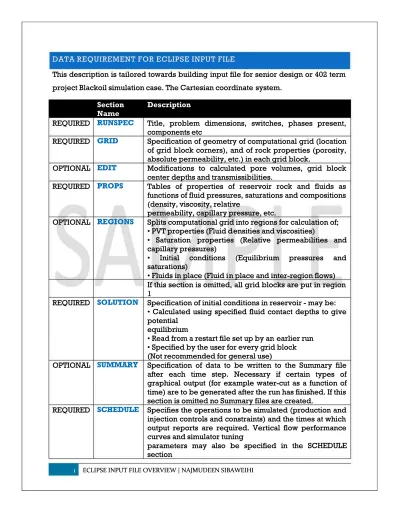

DATA REQUIREMENT FOR ECLIPSE INPUT FILE DATA REQUIREMENT FOR ECLIPSE INPUT FILE
This description is tailored towards building input file for senior design or 402 term This description is tailored towards building input file for senior design or 402 term project Blackoil simulation case. The Cartesian coordinate
project Blackoil simulation case. The Cartesian coordinate system.system.
Section Section Name Name Description Description REQUIRED
REQUIRED RUNSPECRUNSPEC Title, problem dimensions, switches, phases present,Title, problem dimensions, switches, phases present, components etc
components etc REQUIRED
REQUIRED GRIDGRID Specification of geometry of computational grid (locationSpecification of geometry of computational grid (location of grid block corners), and of rock properties (porosity, of grid block corners), and of rock properties (porosity, absolute permeability, etc.) in each grid block.
absolute permeability, etc.) in each grid block. OPTIONAL
OPTIONAL EDITEDIT Modifications to calculated pore volumes, grid blockModifications to calculated pore volumes, grid block center depths and transmissibilities.
center depths and transmissibilities. REQUIRED
REQUIRED PROPSPROPS Tables of properties of reservoir rock and fluids asTables of properties of reservoir rock and fluids as functions of fluid pressures, saturations and compositions functions of fluid pressures, saturations and compositions (density, viscosity, relative
(density, viscosity, relative
permeability, capillary pressure, etc. permeability, capillary pressure, etc. OPTIONAL
OPTIONAL REGIONSREGIONS Splits computational grid into regions for calculation of;Splits computational grid into regions for calculation of; • PVT properties (Fluid d
• PVT properties (Fluid densities and viscosities)ensities and viscosities) • Saturation
• Saturation properties (Relative permeabilities andproperties (Relative permeabilities and capillary pressures)
capillary pressures)
• Initial conditions (Equilibrium pressures and • Initial conditions (Equilibrium pressures and saturations)
saturations)
• Fluids in place (Fluid i
• Fluids in place (Fluid in place and inter-region flows)n place and inter-region flows) If this section is omitted, all grid blocks are put in region If this section is omitted, all grid blocks are put in region 1
1 REQUIRED
REQUIRED SOLUTIONSOLUTION Specification of initial conditions in reservoir - may be:Specification of initial conditions in reservoir - may be: • Calculated using specified fluid contact depths to give • Calculated using specified fluid contact depths to give potential
potential equilibrium equilibrium
• Read from a restart file set up by an
• Read from a restart file set up by an earlier runearlier run • Specified by the user for every grid block • Specified by the user for every grid block (Not recommended for general use)
(Not recommended for general use) OPTIONAL
OPTIONAL SUMMARYSUMMARY Specification of data to be written to the Summary fileSpecification of data to be written to the Summary file after each time step. Necessary if certain types of after each time step. Necessary if certain types of graphical output (for example water-cut as a function of graphical output (for example water-cut as a function of time) are to be generated after the run has finished. If this time) are to be generated after the run has finished. If this section is omitted no Summary files are created.
section is omitted no Summary files are created. REQUIRED
REQUIRED SCHEDULESCHEDULE Specifies the operations to be simulated (production andSpecifies the operations to be simulated (production and injection controls and constraints) and the times at which injection controls and constraints) and the times at which output reports are required. Vertical flow performance output reports are required. Vertical flow performance curves and simulator tuning
curves and simulator tuning
parameters may also be specified in the SCHEDULE parameters may also be specified in the SCHEDULE section
RUNSPEC SECTION (REQUIRED) MINIMUM REQUIRED DATA
Project title (TITLE).
o EX “History Matching’’.
Dimensions of the reservoir (DIMENS).
o This is the discretization of the reservoir in the x, y, z coordinates or the number of gridblocks divisions in the x, y, and z coordinates.
o If for example we have a field of dimensions 15000ft x 15000ft x 150ft and we want to discretize into 10000 gridblocks. We can specify the dimension as “50 50 4” i.e. 50 divisions in x-direction and y-direction and 4 divisions in z-direction.
Phases present in the simulation model (OIL, WATER, GAS, VAPOIL, and
DISGAS).
Unit of the simulation model (FIELD, METRIC and LAB).
The date when the production from the field started (START).
The dimension of the well and groups to be used in the run (WE LLDIMS).
o This is used for defining the maximum number of wells, maximum number of connections per well, maximum number of wells per group etc. in the simulation model.
EXTRA DATA DEPENDING ON YOUR OBJECTIVE
Dimensions of the table (TABDIMS).
o This defines maximum number of nodes in the saturation, PVT and fluid-in place regions used in the simulation run or the maximum number of rows for each table.
Dimensions for aquifer (AQUDIMS) Regions dimension data (REGDIMS)
GRID SECTION (REQUIRED)
This section is for defining the geological model. MINIMUM REQUIRED DATA
Porosity for each gridblocks (PORO).
o A constant porosity can be defined for whole reservoir or each layer (z-divisions) of the simulation model.
Permeability for each gridblock in x, y, and z direction (PERMX, PERMY and
PERMZ).
Discretization of the reservoir in x, y, and z direction (DX, DY and DZ). Depth of top face of each gridblock (TOPS).
EXTRA DATA DEPENDING ON YOUR OBJECTIVE
KEYWORD DESCRIPTION
ADD Adds specified constants to specified arrays in the current input box. BOX Redefines the current input box.
COPY Copies data in the current box from one specified array to another. ENDBOX Redefines the current input box to encompass the whole grid.
EQUALS Sets specified arrays to specified constants within the c urrent box. MULTIPLY Multiply specified arrays by specified constants within the current box. NOGGF Specifies that no Grid Geometry file is to be produced (for graphical
output).
ACTNUM Identifies active grid blocks.
INIT Request initial model before start of simulation
RPTGRID Output the input and calculated data under this section NTG Net to gross ratio
EDIT SECTION (OPTIONAL)
The EDIT section contains instructions for modifying the pore volumes, block center depths, transmissibilities, and non-neighbor connections (NNCs) computed by the program from the data entered in the GRID section. This section is optional. For this course, we will not be covering it.
PROPS SECTION (REQUIRED)
This section is for defining the rock-fluid properties of the simulation model. MINIMUM REQUIRED DATA
PVT for dead oil (i.e. Pressure, formation volume factor, viscosity and
viscosibility) of oil (PVCDO or PVDO).
PVT for live oil (i.e. Pressure, formation volume factor, viscosity and
viscosibility) of oil (PVCO and PMAX or PVTO).
PVT for water (i.e. Pressure, formation volume factor, viscosity and
viscosibility) of oil (PVTW).
Oil-water relative permeability table with oil-water capillary pressure
(SWOF).
o This is in table format. The order of the columns is water saturation, relative permeability of water, relative permeability of oil when water is present and corresponding water-oil capillary pressure.
o The water saturation is in ascending order with corresponding relative permeability of oil when water is present and water-oil capillary pressure.
There is a choice of two families of keywords for entering relative
permeabilities and capillary pressures as functions of saturation. The first family: SWOF and (SGOF or SLGOF), allows you to enter the oil relative permeabilities in the same tables as the water and gas relative permeabilities. The second family: SWFN, SGFN and (SOF3, SOF32D or SOF2), requires the oil relative permeabilities to be entered in a separate table versus oil saturation. KEYWORD DESCRIPTION
SWOF If both water and oil are present SGOF or SLGOF If both gas and oil are present SOF3 or SOF32D For oil in a 3-phase run
SOF2 For oil, if present, in a 2-phase run SGFN For gas, if present
Rock compressibility and reference pressure of compressibility (ROCK).
o Written in single row format with reference pressure first then compressibility.
Density of oil, water and gas (DENSITY).
o Written in single row format with density of oil first then water and gas density.
PROPS KEYWORDS TO BE USED WITH THE DIFFERENT PHASE COMBINATIONS IN A BLACK OIL RUN
Phase combinations Keywords Oil and
Dissolved Gas
Wet Gas and Vaporized
Oil
Water either : PVCO,PMAX,PVTG,PVTW or : PVTO, PVTG,PVTW
either : SGOF or SLGOF, SWOF or : SOF3 or SOF32D, SGFN,
SWFN Oil and
Dissolved Gas
Dry Gas Water either : PVCO,PMAX,PVDG,PVTW or : PVTO, PVDG,PVTW
either : SGOF or SLGOF, SWOF or : SOF3 or SOF32D, SGFN,
SWFN Oil and
Dissolved Gas
Wet Gas and Vaporized
Oil
either : PVCO,PMAX,PVTG or : PVTO, PVTG
either : SGOF or SLGOF or : SOF2, SGFN Undersaturated Oil and
Constant Dissolved Gas
Water either : PVDO, RSCONST(T), PVTW or : PVCDO, RSCONST(T), PVTW either : SWOF
or : SOF2, SWFN Dry Gas PVDG or PVZG
Dry Gas and Constant Vaporized Oil
Water RVCONST(T), PVDG, PVTW either : SGFN, SWFN
REGIONS SECTION (OPTIONAL)
The REGIONS section divides the computational grid into regions for:
Calculation of saturation functions (relative permeability and capillary
pressure)
Calculation of PVT properties (fluid densities, FVFs, viscosities) Equilibration (setting initial pressures and saturations)
Reporting of fluids in place and inter-region flows Calculation of directional relative permeabilities
Calculation of saturation functions for imbibition (Hysteresis option) Calculation of ROCKTAB properties for the Rock Compaction option Calculation of initial tracer concentrations (Tracer Tracking option)
Calculation of the saturation table end points from depth tables (for the
saturation table End Point Scaling option)
Calculation of mixture properties (Miscible Flood option)
KEYWORDS
Keywords Descriptions
RPTREGS Report levels for REGIONS data. FIPNUM Fluid-in-Place regions.
SATNUM Saturation table regions. EQLNUM Equilibration regions. PVTNUM PVT data regions.
SOLUTION SECTION (REQUIRED)
The SOLUTION section contains sufficient data to define the initial state (pressure, saturations) of every grid block in the reservoir.
EQUILIBRATION KEYWORDS
Restriction Keyword Description
Required for equilibration. EQUIL Fluid contact depths and other equilibration parameters. Optional for equilibration in live
oil systems.
RSVD Variation of solution GOR with depth. Optional for equilibration in live
oil systems.
PBVD Variation of bubble point pressure with depth.
Optional for equilibration in wet gas systems.
RVVD Variation of vapor OGR with depth. Optional for equilibration in wet
gas systems.
PDVD Variation of dew point pressure with depth.
ENUMERATION KE YWORDS
Restriction Keyword Description Either RS or PBUB required for
enumeration in live oil systems.
PBUB Bubble point pressures in every grid block.
Either RV or PDEW required for enumeration in wet gas systems.
PDEW Dew point pressures in every grid block.
Either PRESSURE or PRVD is required for enumeration.
PRESSURE Pressures in every grid-block
Either RS or PBUB required for enumeration in live oil systems.
RS Solution gas-oil ratios in every grid block.
Either RV or PDEW required for enumeration in wet gas systems.
RV Vapor oil-gas ratios in every grid block.
Required for enumeration in two/three-phase systems with gas.
SGAS Gas saturation in every grid-block.
Required for enumeration in two/three-phase systems with water
SWAT Water saturation in every grid-block
SUMMARY SECTION (OPTIONAL)
The SUMMARY section specifies a number of variables that are to be written to Summary files after each timestep of the simulation. The graphics post-processor may be used to display the variation of variables in the Summary files with time and with each other. If there is no SUMMARY section, ECLIPSE does not create any
Summary files.
SCHEDULE SECTION (REQUIRED)
The SCHEDULE section specifies the operations to be simulated (production and injection controls and constraints) and the times at which output reports are required. Vertical flow performance curves and simulator tuning parameters may also be specified in the SCHEDULE section.
MINIMUM REQUIRED DATA
To define a well and its connection properties and controls, the following keywords should be used:
1. WELSPECS (to introduce the well). Having created a well specification you can now set its completion and control data.
2. COMPDAT (to specify its completion data)
3. You can specify well controls using the following keywords:
WCONPROD (production controls, if the well is a producer) or WCONINJE (injection controls, if the well is an injector) or
WCONHIST (measured flows and pressures, if it is a history matching
producer) or
WCONINJH (measured flow and pressures, if it is a history matching
injector) or
TIME, TSTEP or DATES keyword advances the simulation to a specified
time or dates.
WEFAC Sets well efficiency factors, to take account of downtime when
wells are taken down individually on a regular basis.
WELOPEN Opens or closes wells or connections.
WLIST Constructs well lists for use with other well keywords.
WLISTARG Resets individual operating targets or limits for a list of wells,
constructed with the WLIST keyword.
WECON Economic operating limits on well rates and production ratios. CECON Economic operating limits on individual well connections. WCUTBACK Instructions to cut back well rates to limit coning.
WLIMTOL Tolerance fraction for economic limits. If the limit is broken by
more than the specified tolerance, the timestep will be repeated after the remedial action has been taken.
WORKTHP Instructions to perform a workover if the well is unable to
produce at its THP limit.
TUNING Timestep and convergence controls.
RPTSCHED Report switches to select which simulation results are to be
printed at report times.
RPTRST Controls data written to the Restart file. END Terminates the simulation.
