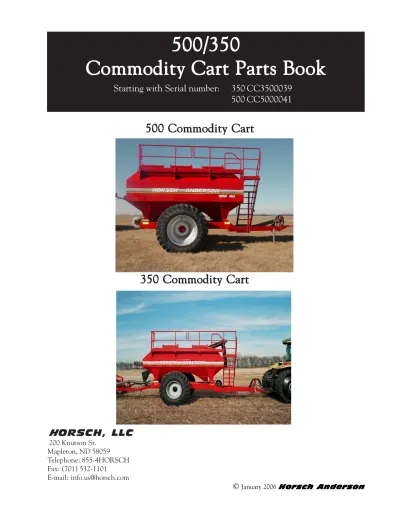

500/350 Commodity Cart Parts Book

(1)

500/350

Commo

Commodity Cart Parts Book

dity Cart Parts Book

500 Commo

500 Commodity Cart

dity Cart

350 Commo

350 Commodity Cart

dity Cart

Starting with Serial number:

350 CC3500039

500 CC5000041

(2)

0550510 Single Shoot 60-15/350 CC5000041- ... 59 0550510 Single Shoot 60-15/350 CC5000041+ .. 61 0553000 Single Shoot 40-15/350 CC5000041- ... 50 0553000 Single Shoot 40-15/350 CC5000041+ ... 52 0553000 Single Shoot 40-15/350 CC5000041+ ... 53 0553000 Single Shoot 40-15/350 CC5000041- .... 51 0543000 Single Shoot 40-15/500 CC50000041- .. 55 0543000 Single Shoot 40-15/500 CC5000041- ....54 0543000 Single Shoot 40-15/500 CC5000041+ .. 56 0543000 Single Shoot 40-15/500 CC5000041+ ... 57 0550510 Single Shoot 60-15/350 CC5000041- .... 58 0550510 Single Shoot 60-15/350 CC5000041+ ... 60

0540510 Single Shoot Air (1 Fan) CC5000041- ... 62

0540510 Single Shoot Air (1 Fan) CC5000041- .. 63

0540510 Single Shoot Air (1 Fan) CC5000041+ .. 64

0540510 Single Shoot Air (1 Fan) CC5000041+ .. 65

0541300 Single Torpedo Hitch Components ... 25

0540610 Steps & Railing ... 12

0540610 Steps & Railing ... 13

3373520 Tow Between Rear Hitch ... 41

0050839 Valve, Hydraulic #312569A1 ... 38

(4)

Item

Qty

Part #

Description

1 1 05403110 Commodity Cart Frame 2 4 33730502 Dummy Load Cell 3 4 33730600 Mounting Plate Load Cell 4 4 33730504 Horizontal Struts

5 8 00501230 Washer, Flat ¾”

6 8 00360260 Bolt, HexHd M20-2.5 x 30 Lg. DIN 933 7 8 00370093 Zerk, Grease H1-M8 x 1

8 4 33730508 Stop Plate

9 8 00370106 Washer, Flat 12MM

10 8 00360133 Bolt, HexHd M12-1.75 x 35 Lg. DIN 933 11 8 00370108 Washer, Flat B 18MM

12 8 00360154 Bolt, HexHd M16-2.0 x 35 Lg. DIN 933 13 1 05415001 Bare 500 Commodity Cart-175-75-250 14 4 00360091 Bolt, HexHd M24-3.0 x 170 Lg. DIN 931

05415000 - Frame & Commo

(5)

Item

Qty

Part #

Description

1 1 00501122 Nipple, Quick Coupler-½” NPT 2 1 00501123 Connector, STR ½” JIC - ½” NPT 3 1 00501124 Hose Assy-½” x 368"

4 2 00501125 Connector, STR ½” JIC - 06 O-Ring 5 2 00501126 Hose Assy-¾” x 20"

6 2 00501127 Connector, STR ¾” JIC - 12 O-Ring 7 2 00501128 Tee, ¾” JIC-¾” JIC-¾” NPT 8 1 00501129 Valve, Check, 5 PSI

9 1 00501130 Hose Assy ¾” x 166"

10 4 00501131 Connector, STR ¾” JIC-¾” NPT 11 1 00501132 Valve, Hydraulic Diverter 12 1 00501133 Hose Assy-¾” x 172" 13 2 00501134 Nipple, Quick Coupler-¾” 14 2 00508513 Washer, Lock ¼” Zn

15 2 00501138 Bolt, HexHd ¼” NC x 2 ¼” Lg. Gr. 5 16 1 00501135 Hose Assy ¾” x 342"

05401100 Hydraulics - Fan Only

(6)

Item

Qty

Part #

Description

1 1 05403110 Commodity Cart Frame 2 4 33730502 Dummy Load Cell 3 4 33730600 Mounting Plate Load Cell 4 4 33730504 Horizontal Struts

5 8 00501230 Washer, Flat ¾”

6 8 00360260 Bolt, HexHd M20-2.5 x 30 Lg. DIN 933 7 8 00370093 Zerk, Grease H1-M8 x 1

8 4 33730508 Stop Plate

9 8 00370106 Washer, Flat 12MM

12 8 00360154 Bolt, HexHd M16-2.0 x 35 Lg. DIN 933 13 1 33730200 Bare 500 Commodity Cart 200-150-150

05403100 Frame & Commo

(7)

05404120 Electrical Grounding 500 Commo

05404120 Electrical Grounding 500 Commodity Cart

dity Cart

Item

(8)

05404100 Commo

(9)

Item

Qty

Part #

Description

1 1 33730700 Rotatable Loop for Commodity Cart 2 8 00370110 Washer, Flat B 24MM

3 8 00360324 Bolt, HexHd M24-3.0 x 50 Lg. 5 3 01415300 Lid with Gas Cylinder

6 3 33328100 Charging Filter 8 1 33730800 Hyd. Hose Bracket 9 8 00370105 Washer, Flat B 10MM

10 4 00360021 Bolt, HexHd M10-1.5 x 40 Lg. DIN 931 11 4 00350058 Nut, Hex, Nylock M10-1.5 DIN 985 ZN 13 2 33743401 Hose Holder 3" x ¾” (HM)

14 1 33743404 Hose Holder 2 11/16" x 7/8" (HM) 15 6 00370105 Washer, Flat B 10MM

16 3 00360024 Bolt, HexHd M10-1.5 x 60 Lg. DIN 931 17 3 00350058 Nut, Hex, Nylock M10-1.5 DIN 985 ZN 19 1 33122253 Bracket, Hyd. Hose Connectors

20 2 00370104 Washer, Flat A 8.4

21 2 00360110 Bolt, HexHd M8-1.25X 20 Lg. DIN 933 23 3 33328400 Cleaning Lid

24 18 00200074 Seal Profile 1300 Lg. 25 6 00370104 Washer, Flat A 8.4 26 6 00370101 Knob Screw 8 x 40

27 4 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 28 8 00370106 Washer, Flat 12MM

31 4 00360057 Bolt, HexHd M16-2.0 x 65 Lg. DIN 931 32 4 00350061 Nut, Hex, Nylock M16-2.0 DIN 985 35 1 00390564 Digital Scale w/Pouch

36 1 00340892 9 Volt Battery 37 1 01432300 Metering Test Bucket 39 1 00380167 Surface, Non Skid Strip - 24" 42 1 05404110 Jack Assembly

43 1 00509350 Commodity Cart Storage Tote Box 44 2 00509640 Tarp Strap 10"

46 1 00360388 Bolt, HexHd M24-3.0 x 90 Lg. DIN 931 47 1 00350065 Nut, Hex, Nylock M24-3.0 DIN 985 Zn

05404100 Commo

(10)

01415300 Pressure T

(11)

Item

Qty

Part #

Description

1 1 01410100 Lid for Tank

2 2 00200070 Rubber 8mm, 620 x 30 x 8 3 2 00200071 Rubber 8mm, 860 x 30 x 8 4 1 01415200 Bow For Lid w/Gas 5 4 00509740 Washer, Flat 5/8" SAE 6 4 00501109 Nut, Jam 5/8"

7 2 00506540 Nut, Hex 5/8" Gr. 5 ZN

9 1 00110621 Gas Cylinder 1700 N - 100MM 42.58 10 8 00370105 Washer, Flat B 10MM

11 2 00360026 Bolt, HexHd M10-1.5 X 80 Lg. DIN 931 12 2 00350058 Nut, Hex, Nylock M10-1.5 DIN 985 ZN 14 2 01415301 Steel Tube 28 x 5.5-13 VZ

15 2 00360156 Bolt, HexHd M16-2.0 X 35 Lg. DIN 933 16 2 00370108 Washer, Flat B 18MM

(12)

05406100 Steps & Railing

(13)

05406100 Steps & Railing (Old Style)

Item

Qty

Part #

Description

1 1 33731100 Ladder for 500 Commodity Cart 1 1 05506110 Ladder for 350 Commodity Cart 2 4 00370108 Washer, Flat B 18MM

3 2 00360057 Bolt, HexHd M16-2.0 x 65 Lg. DIN 931 4 2 00350061 Nut, Hex, Nylock M16-2.0 DIN 985 ZN 6 1 33731200 Ladder Support for 500 Commodity Cart 6 1 05506120 Ladder Support for 350 Commodit Cart 7 2 00370109 Washer, Flat M20

8 2 00360260 Bolt, HexHd M20-2.5 x 30 Lg. DIN 933 10 1 33731203 Flange Plate 141 x 141 x 15

11 8 00501205 Washer, Flat ½” 12 4 00501185 Bolt, HexHd ½”x 11"

13 4 00506210 Nut, Hex, Nylock ½”-13 NC Gr.5 ZN 15 1 33731300 Railing for Ladder for 500 Commodity Cart 15 1 05506130 Railing for Ladder for 350 Commodity Cart 16 8 00370106 Washer, Flat 12MM

17 4 00360036 Bolt, HexHd M12-1.75 x 70 Lg. DIN 931 18 4 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 20 1 33731400 Railing for 500 Commodity Cart

20 1 05506140 Railing for 350 Commodity Cart 21 4 00370106 Washer, Flat 12MM

22 2 00360383 Bolt, HexHd M12-1.75 x 40 Lg. DIN 931 23 2 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 25 1 33731500 Railing Front Right Commodity Cart 26 1 33731700 Railing Back Right Commodity Cart 27 1 33731800 Railing Back Commodity Cart 28 12 00370106 Washer, Flat 12MM

29 6 00360039 Bolt, HexHd M12-1.75 x 80 Lg. DIN 931 30 6 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 32 6 33733601 Pin w/2 Holes 12 - 65

33 6 00260059 Key Ring

34 6 00501204 Hitch Pin Clip 2 5/8" Size 11 35 42" 00250037 Twin Loop Chain #5

37 1 33731600 Railing Front Left 38 4 00370106 Washer, Flat 12MM

39 2 00360036 Bolt, HexHd M12-1.75 x 70 Lg. DIN 931 40 2 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 42 1 33735800 Additional Step Below

43 8 00370106 Washer, Flat 12MM

44 4 00360383 Bolt, HexHd M12-1.75 x 40 Lg. DIN 931 45 4 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN

(14)

(15)

Item

Qty

Part #

Description

1 1 05406310 Ladder for 500 Commodity Cart 2 1 00509740 Washer, Flat 5/8" SAE

3 1 00506530 Bolt, HexHd 5/8"-11 X 1½" Gr. 5 ZN 6 1 05406320 Ladder Brace Model 2007

7 2 00501051 Washer, Flat 7/8" SAE Hi-Strenghth ZN 8 2 00501304 Bolt, Hex, 7/8” - 9 x 1 ½”

10 1 05406322 Mounting Plate 11 16 00501205 Washer, Flat ½” 12 4 00501185 Bolt, HexHd ½”x 11"

13 20 00506210 Nut, Hex, Nylock ½”-13 NC Gr.5 ZN 15 1 05406330 Ladder Rail Model 2007

17 6 00506220 Bolt, HexHd ½"-13 X 2½" Lg. Gr. 5 ZN 18 2 05406307 Rubber Strip

19 1 05406306 Short Step

20 4 00370401 Bolt, HexHd ½" X 1½" 25 1 05406220 Front Rail Model 2007 26 1 05406240 Back Side Rail Model 2007 27 1 05406230 Back Rail Model 2007 28 12 00370106 Washer, Flat 12MM

29 6 00360039 Bolt, HexHd M12-1.75 x 80 Lg. DIN 931 30 6 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 32 6 33733601 Pin w/2 Holes 12 - 65

33 6 00260059 Key Ring

34 6 00501204 Hitch Pin Clip 2 5/8" Size 11 35 42” 00250037 Twin Loop Chain #5

37 1 05406250 Front Side Rail Model 2007 38 4 00370106 Washer, Flat 12MM

39 2 00360036 Bolt, HexHd M12-1.75 x 70 Lg. DIN 931 40 2 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN

05406100 Steps & Railing (New Style)

(16)

05407100 Commo

05407100 Commodity Cart Decals

dity Cart Decals

Item

Qty

Part #

Description

1 5 00501119 Decal: Yellow Reflective 2 2 00501121 Decal: Red Reflective 3 2 00501120 Decal: Red/Orange Florescent 4 1 00507202 Sign: Slow Moving-Adhesive Back 5 1 00501046 Decal: Stop Engine

6 1 00501034 Decal: Air Flow 7 1 00501032 Decal: Stop Fan 8 1 00501043 Decal: Nameplate 9 1 00501044 Decal: Vehicle Speed

10 1 00501045 Decal: Do Not Stand on Tank 11 3 00501033 Decal: Air Leaks

12 1 00508522 Decal: Serial Number Plate 13 2 AM1033324 Rivet, Pound

14 2 00507201 Decal: 500 Commodity Cart 4" 15 2 00507190 Decal: Horsch Anderson 7" 16 9 00380220 Decal: Tank Gray & Yellow 7 ½” 17 1 00380177 Decal: Horsch Anderson (3 1/8") 18 1 00380167 Surface, Non-Skid Strip-24"

(17)

05408100 Axle & T

05408100 Axle & Tires - 500 & 350 Commo

ires - 500 & 350 Commo

ires - 500 & 350 Commodity Cart

ires - 500 & 350 Commo

dity Cart

Item

Qty

Part #

Description

1 1 05408200 Tank Rear Axle

4 8 00350065 Nut, Hex, Nylock M24-3.0 DIN 985 ZN 5 20 00501051 Washer, Flat 7/8" SAE Hi-Strength ZN 6 20 00501050 Bolt HexHd 7/8"- 14 NF x 2 ½” Lg. Yell ZN 7 2 00501012 Tire/Rim Assy - Commodity Cart 20.8-42 Right 8 2 00501011 Tire/Rim Assy - Commodity Cart 20.8-42 Left 9 1 00501013 Rim for 500 BU Commodity Cart

10 1 00505535 Tire, Cart - 520/85R42 12 2 00501168 Alignment Bolt 13 2 00501015 Hub Assembly 14 2 00501016 Tire Spindle for Cart

(18)

05508100 Axle & T

05508100 Axle & Tires - 350 Commo

ires - 350 Commo

ires - 350 Commodity Cart

ires - 350 Commo

dity Cart

Item

Qty

Part #

Description

1 1 05408101 Weldment, Axle

4 8 00350065 Nut, Hex, Nylock M24-3.0 DIN 985 ZN 5 20 00501051 Washer, Flat 7/8" SAE Hi-Strength ZN 6 20 00501050 Bolt HexHd 7/8"-14 NF x 2 ½” Lg. Yell ZN 7 2 05508116 Rim - Weldment, 350 Commodity Cart 8 2 05508115 Tire, Bias (R-1) 30.5L - 32

9 1 00506542 Bolt, Hex 5/8-11 x 7 Gr. 8 10 1 00501305 Nut, Hex 5/8 - 11 NC Nylon 11 2 00501016 Tire, Spindle for Cart 12 1 00501168 Alignment Bolt 13 2 00501015 Hub Assembly

14 1 05508120 Tire & Rim Assembly - Left 15 1 05508110 Tire & Rim Assembly - Right 16 2 00501353 Caster, Tank Rim Valvestem

(19)

05410100 Road Lighting Equipment for Commo

05410100 Road Lighting Equipment for Commodity Cart

dity Cart

Item

Qty

Part #

Description

1 1 00501152 Weldment, Light Bar 2 4 00370106 Washer, Flat 12MM

3 4 00360131 Bolt, HexHd M12-1.75 x 25 Lg. DIN 933 4 2 00501157 Weldment/Light Extension

5 2 00501291 Light, Red Tail-Finish

6 2 00501292 Light, Amber-Flashing/Signal-Finish 7 4 1011097 Nut, Hex ½”

8 4 00370401 Bolt, HexHd ½”x 1 ½” 9 20 00509755 Tie Strap 15" HD

(20)

05409100 Commo

(21)

Item

Qty

Part #

Description

1 3 01503200 Metering Unit-Electric Drive 2 12 00370104 Washer, Flat A 8.4

3 12 00360440 Bolt, HexHd M8 x 20(Stainless) DIN 933 11 2 33734904 Module Plate for Half Width

12 8 00370104 Washer, Flat, A 8.4

13 4 00360111 Bolt, HexHd M8-1.25 x 25 Lg. DIN 933 14 4 00350057 Nut, Hex, Nylock M8-1.25 DIN 985 16 3 33337400 Electric Motor Drive-EMD

17 12 00370102 Washer, Flat A 5MM

18 6 00360102 Bolt, HexHd M5-0.8 x 16 Lg. DIN 933 19 6 00350056 Nut, Hex, Nylock M5-8 DIN 985 ZN 20 1 00340962 Cable, Module Strong 23'

21 1 00340659 Cable, Module (17') 5M 22 1 00340658 Cable, Module 3M (10 FT.) 25 8 00370103 Washer, Flat A 6MM

27 4 00360289 Bolt, HexHd M6-1.0 x 110 Lg. DIN 28 4 00350067 Nut, Hex, Nylock M6-1.0 DIN 985 ZN 29 1 00340647 Radar Adapter

30 1 00340651 Cable, Minidin (1 ½’) .5M 32 3 00340646 Bin Sensor

36 2 00340653 Cable, Minidin (5') 1.5M 39 1 23473801 Fan Sensor Bracket - 2006 41 1 00340645 Fan Sensor

43 2 00360382 Bolt, HexHd M4-0.7 x 40 Lg. DIN 933 44 2 00350055 Nut, Hex, Nylock M4-0.7

45 2 00340654 Cable, Minidin 2M 47 1 00380894 Sign: Radar Warning 48 40 00509755 Tie Strap 15" HD 50 1 00501017 Radar Gun

05409100 Commo

(22)

01503200 Metering Unit Electric Drive - VDO

Item

Qty

Part #

Description

1 1 01501901 Retaining Plate 138 x 20 x 1 ½ 2 1 01501902 Rubber Strip 139 43 x 6 3 1 01501905 Meter Shaft/Electric Drive 4 1 01501904 Guide Bushing Metering Unit 5 1 01501100 Brush Holder

6 2 01500001 Brush

7 1 00240001 Bearing 62205 2RS INA 8 2 00240002 Seal 40 x 52 x 5 INA 9 1 00260125 Snap Ring 52 x 2-A2 10 1 00260126 Snap Ring 25 x 1½ “-A2 11 2 00260131 Circlip 15 x 1 ½” 12 6 00360372 Bolt M6 x 25-A2

13 10 00360371 Thumbscrew M8 x 12-A2

14 3 00360337 Bolt, HexHd M6-1.0 x 18 Lg. DIN 931 15 1 00170053 Hitch Clip 5 Double

(23)

01503200 Metering Unit Electric Drive - VDO

Item

Qty

Part #

Description

17 1 00370246 Screw, Allen Head M5 x 16 DIN 914 18 1 33336200 Housing Flange

19 6 00350064 Nut, Hex, Nylock, Stainless M6-A2 20 1 00340616 VDO Drive Motor 63M x 60 +P52/25 21 15 00370388 Washer A 6,4-A2

22 NB 00230042 Shim 20 x 28 x 1.0 NB 00230037 Shim 20 x 28 x 0.20 NB 00300579 Shim 20 x 28 x 0.10 23 10 00370389 Washer A 8,7-A2 24 1 01503301 Metering Unit Housing 25 1 01503304 Housing Cap

26 1 01503302 Conductivity Cap

27 1 01503303 Bearing Flange - Metering Unit 28 1 01503600 Meter Divider

29 1 01500804 Low Rate Sunflower Flute 40 CCM Red 29 1 01500805 High Rate Sunflower Flute 100 CCM Blue 30 1 01503700 Metering Roller 20 CCM

31 3 00370183 Screw, Allen Head M6 x 20 32 2 01501203 Spacer 100 x 28

33 2 01502701 Cell Washer 10 CCM - A2 34 1 01501202 Spacer 100 x 70

35 4 00240054 Bearing 6004 2 RSR 36 1 00230061 Key Stock 5 x 5 x 18 37 1 00340636 Drive Motor Plug

38 4 00360362 Bolt, HexHd M5-0.8 x 12 Lg DIN 933 39 4 00170026 Lock Washer A5

40 4 00370102 Washer A 5MM

41 2 00360407 Wing Screw M8 x 16 - A2 42 1 01503435 Stiffener Plate

43 2 00370117 Washer, Flat R11

44 3 01500600 Metering Roller 250 CCM Black 44 3 01500300 Metering Roller 500 CCM Yellow 44 3 01504100 Metering Roller 800 CCM Stainless 45 1 01503210 Meter Roller Cleaner

(24)

(25)

01504900 Half Width Module Kit

Item Qty

Part #

Description

1 2 00360021 Bolt, HexHd M10 1.5 x 40 Lg. DIN 931 2 4 00370105 Washer, Flat B10mm

3 1 01505300 Acuator

4 1 00340679 Module, Half Width

5 2 00350058 Nut, Hex, Nylock M10-1.5 DIN 985 Zn 6 4 00370389 Washer, A 8 7-A2 Stainless

7 2 00360442 Bolt, HexHd M8 x 35 (Stainless) A-2 8 2 00350062 Nut, Nylock M8-A2 (Stainless)

9 2 00360102 Bolt, HexHd M5 - 0.8 x 20 A-2 Stainless 10 4 00370102 Washer, Flat M5 A-2 Stainless

11 1 00341165 Sensor

12 1 01504600 Actuator Bracket (half Width Module)

(26)

05411000 Hydraulics T

(27)

Item

Qty

Part #

Description

1 2 00501072 Coupler, Quick, Male-½” O-Ring 2 2 00501068 Adapter, STR ¾” JIC-½” O-Ring 3 2 00501159 Hose Assy-¾” x 410"

4 - --- Customer Supplied

5 1 00501177 Adapter, ½” O-Ring, ½” JIC Male 6 1 00501160 Hose Assy-½” x 404"

7 2 00501188 Connector, Bulkhead ¾” JIC-¾” NPT 8 1 00501142 Connector, Bulkhead ½” NPT-½” JIC 9 2 00501167 Coupler, Quick-¾”

10 1 00501141 Coupler, Quick-½”

11 1 00501161 Holder, Hydraulic Connector 12 2 00370105 Washer, Flat B 10MM

13 2 00360119 Bolt, HexHd M10 -1.5 x 25 Lg. DIN 933 14 1 05411010 Tag, Econ. Poly-Case Drain Hose

05411000 Hydraulics T

(28)

05421000 Hydraulics T

(29)

Item

Qty

Part #

Description

1 2 00501072 Coupler, Quick, Male-½” O-Ring 2 2 00501068 Adapter, STR ¾” JIC-½” O-Ring 3 2 00501159 Hose Assy-¾” x 410"

6 2 00501160 Hose Assy-½” x 404"

7 2 00501188 Connector, Bulkhead ¾” JIC-¾” NPT 8 1 00501142 Connector, Bulkhead ½” NPT-½” JIC 9 2 00501167 Coupler, Quick-¾”

10 1 00501141 Coupler, Quick-½”

11 1 00501161 Holder, Hydraulic Connector 12 2 00370105 Washer, Flat B 10 MM

13 4 00360121 Bolt, HexHd M10 - 1.5 x 35 Lg. DIN 14 1 05411010 Tag, Econ. Poly-Case Drain Hose 15 1 05421001 Strap - Dual Hyd. Holder - 10" 16 1 00501210 Elbow, Swivel, ½” JIC

17 1 00501293 Adapter, Tee 6804-8

05421000 Hydraulics T

(30)

05412000 Hydraulics T

05412000 Hydraulics Tow Between 500 Commo

ow Between 500 Commo

ow Between 500 Commodity Cart

dity Cart

Item

Qty

Part #

Description

1 4 00501141 Coupler, Quick – ½”

2 4 00501142 Connector, Bulkhead ½” NPT x ½” JIC 3 4 00501143 Hose Assy ½” x 344”

4 4 00501123 Connector, STR ½” JIC-½”NPT 5 4 00501122 Nipple, Quick Coupler-½” NPT

(31)

05413000 Single T

05413000 Single Torpedo Hitch Components

orpedo Hitch Components

Item

Qty

Part #

Description

1 1 33736200 Single Hitch Frame 2 12 00370110 Washer, Flat B 24MM

3 4 00360324 Bolt, HexHd M24-3.0 x 50 Lg. DIN 933 4 4 00360388 Bolt, HexHd M24-3.0 x 90 Lg. DIN 931 5 4 00350065 Nut, Hex, Nylock M24-3.0 DIN 985 ZN 7 1 33747201 Anderson Hyd. Torpedo Hitch

8 12 00509740 Washer, Flat 5/8" SAE

9 6 00506532 Bolt, HexHd 5/8"-11 x 2" Gr.5 ZN 10 6 00501111 Nut, Hex, Nylock 5/8" NC 11 1 00506710 Valve, Hydraulic - Single Spool 24 2 00501202 Bolt, HexHd 3/8" x 2"

(32)

05423000 Dual T

05423000 Dual Torpedo Hitch Components

orpedo Hitch Components

Item

Qty

Part #

Description

1 1 33736400 Dual Hitch Frame 2 12 00370110 Washer, Flat B 24MM

3 4 00360324 Bolt, HexHd M24-3.0 x 50 Lg. DIN 933 4 4 00360388 Bolt, HexHd M24-3.0 x 90 Lg. DIN 931 5 4 00350065 Nut, Hex, Nylock M24-3.0 DIN 985 ZN 7 2 33747201 Anderson Hyd. Torpedo Hitch

8 24 00509740 Washer, Flat 5/8" SAE

9 12 00506532 Bolt, HexHd 5/8"-11 x 2" Gr.5 ZN 10 12 00501111 Nut, Hex, Nylock 5/8" NC 11 1 00506560 Valve, Hydraulic-Two Spool 24 2 00501202 Bolt, HexHd 3/8" x 2" 25 2 00506480 Washer, Lock 3/8" ZN

(33)

05414000 Hydraulics Single T

05414000 Hydraulics Single Torpedo Hitch

orpedo Hitch

Item

Qty

Part #

Description

1 2 00501131 Connector, STR ¾” JIC x ¾” NPT 2 1 00501163 Hose Assy – ¾” x 201"

3 2 00501210 Elbow, Swivel - ½” JIC 4 2 00501237 Hose Assy – ½” x 33”

5 2 00501236 Connector, STR ½” JIC-10 O-Ring 6 1 00501166 Hose Assy - ¾” x 50"

7 1 00506710 Valve, Hydraulic – Single Spool 8 1 00501211 Elbow, Swivel ¾” JIC

(34)

05424000 Hydraulics Dual T

05424000 Hydraulics Dual Torpedo Hitch

orpedo Hitch

Item

Qty

Part #

Description

1 2 00501131 Connector, STR ¾” JIC x ¾” NPT 2 1 00501163 Hose Assy – ¾” x 201

3 4 00501232 Elbow, 90 - ½” NPT x ½” JIC 4 2 00501233 Hose Assy – ½” x 47”

5 4 00501236 Connector, STR ½” JIC-10 O-Ring 6 1 00501166 Hose ¾” x 50”

(35)

05420000 Hydraulics, Fan Front (Double Shoot)

Item

Qty

Part #

Description

1 1 00501122 Nipple, Quick Coupler ½” NPT 2 1 00501123 Connector, STR ½” JIC - ½” NPT 3 1 00501198 Hose Assy ½” x 285"

4 2 00501125 Connector, STR ½” JIC O6 O-Ring 5 2 00501126 Hose Assy ¾” x 20"

6 2 00501127 Connector, STR ¾” JIC 12 O-Ring 7 2 00501128 Tee, ¾” JIC - ¾” JIC - ¾” NPT 8 1 00501129 Valve Check, 5 PSI

9 1 00501136 Tee, ¾” JIC - ¾” FJIC - ¾” JIC 10 2 00501131 Connector, STR ¾” JIC - ¾” NPT 11 1 00501210 Elbow, Swivel, ½” JIC

12 1 00501199 Hose Assy ¾” x 262" 13 2 00501134 Nipple, Quick Coupler ¾” 14 1 00501283 Reducer ½” JIC x ¾” FJIC

(36)

00508930 Digi-Star Scale Assembly

Item

Qty

Part #

Description

1 4 00508931 Anti-Rotating Bracket 2 8 00508933 Anti-Rotating Bracket Spacer 4 8 00508936 Bolt, HexHd 3/8"- 16 x 2 ¾” 5 8 00506290 Nut, Hex, Nylock 3/8"-16NC ZN 7 8 00508518 Shim-Ct Mount 7/16"

8 4 00508519 Cell-50 KTC-30 0.10% 11 1 00508523 J-Box 4 pt 15'

15 1 00508517 IND-2000

16 1 00508934 Mounting Bracket/Digi-Star Scale 20 1 00508521 Power Cord 10' 4-Wire

21 1 00508524 Kit Ext. 30’ J-Box (in Tractor) 22 1 00508525 Kit Ext. 40’ J-Box (over Seeder)

(37)

05415001 Commo

05415001 Commodity Cart, Special 175-75-250

dity Cart, Special 175-75-250

Item

Qty

Part #

Description

(38)

05500110 Bare 350 Commo

05500110 Bare 350 Commodity Cart

dity Cart

Item

Qty

Part #

Description

(39)

05419000 Decals Filling Auger

Item

Qty

Part #

Description

1 1 00501028 DECAL: ELECTRIC LINE

2 1 00501036 DECAL: ROADWAY COLLISIONS 3 1 00501029 DECAL: ELECTROCUTION 4 1 00501037 DECAL: AUGER DIRECTION 5 1 00501027 DECAL: ENTANGLEMENT

(40)

05425000 Auger Mounting Components

(41)

05425000 Auger Mounting Components

Item

Qty

Part #

Description

1 1 33731900 Auger Holder SW 17600 2 4 00370108 Washer, Flat B 18MM

3 4 00360057 Bolt, HexHd M16-2.0 x 50 Lg. DIN 931 5 1 33732000 Arm 1 for Auger SW 17600

6 4 00230005 Bushing 50/40 x 30 9 1 00370112 Washer, Flat B 43 VZ 10 1 23811510 Pin 40-340

11 1 00360039 Bolt, HexHd M12-1.75 x 80 Lg. DIN 931 12 1 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 13 2 00370093 Zerk, Grease H1-M8 x 1

15 1 33732100 Arm 2 for Auger SW 17600 16 2 00230005 Bushing 50/40 x 30

18 1 00230048 Fitting Washer 42 x 52 x 0.50 19 1 03020201 Pin 40-225

20 1 00360039 Bolt, HexHd M12-1.75 x 80 Lg. DIN 931 21 1 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 22 1 00370093 Zerk, Grease H1-M8 x 1

24 1 33732300 Locking Pin for Auger 25 1 00170087 Pressure Spring 2 ½” x 25 x 50 26 1 00370109 Washer, Flat M20

27 1 00170098 Split Pin 4 x 36

29 1 33732200 Link for Auger SW 17600 30 1 00370066 Pin, Spring Type M12 x 70

31 2 00360134 Bolt, HexHd M12-1.75 x 40 Lg. DIN 933 32 1 00508300 Auger Assembly 10" x 21'

33 2 00370110 Washer, Flat B 24MM

34 1 00360092 Bolt, HexHd M24-3.0 x 180 Lg. DIN 931 35 1 00350065 Nut, Hex, Nylock M24-3.0 DIN 985 ZN 36 8 AM1030567 Rivet, 8-8 Buttonhead

37 1 33732400 Support Brace for Auger 500 Commodity Cart 38 4 00370106 Washer, Flat 12MM

39 4 00360134 Bolt, HexHd M12-1.75 x 40 Lg. DIN 933 40 1 33734001 Poly Strip 80 x 3-530

41 1 33734000 Support Yoke for Auger 500 Commodity Cart 42 2 00501249 Nut, Hex 1 ¼” - 7 ZN Gr. 5

(42)

05425700 Auger Mounting Components 2007

(43)

Item

Qty

Part #

Description

1 1 05425200 Auger Holder Model 2007 2 4 00509740 Washer, Flat 5/8" SAE

3 1 00506530 Bolt, HexHd 5/8” - 11 x 1 ½” Gr. 5 Zn 5 1 05425220 Arm 1 For Auger Model 2007

6 6 05225001 Bushing, Tension, Steel, 2"OD X 1.5 LG 9 1 00509814 Washer, Flat 1½" SAE Hardened, Plain 10 1 05425210 Pin 1 ½" x 13 3/8"

11 1 00360039 Bolt, HexHd M11 - 1.75 x 80 Lg. Din 931 12 1 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 13 2 00370093 Zerk, Grease H1-M8 x 1

15 1 05425250 Arm 2 For Auger Model 2007 18 1 00230048 Fitting Washer 42 x 52 x 0.50 19 1 05425211 Pin 1 ½” x 8 ¾”

20 1 00360036 Bolt, HexHd M12-1.75 X 70 Lg Din 931B 21 1 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 22 1 00370093 Zerk, Grease H1-M8 x 1

29 1 05425280 Link For Auger Model 2007 30 1 05224032 Roll Pin 3/8" X 2 ½"

31 2 00360134 Bolt, HexHd M12-1.75 x 40 Lg. DIN 933 32 1 00508300 Auger Assembly 10" x 21'

33 2 00370110 Washer, Flat B 24MM

34 1 00360092 Bolt, HexHd M24-3.0 x 180 Lg. DIN 931 35 1 00350065 Nut, Hex, Nylock M24-3.0 DIN 985 ZN 36 8 AM1030567 Rivet, 8-8 Buttonhead

37 1 05425100 Auger Support Brace Model 2007 38 4 00501205 Washer, Flat USS ½"

39 4 00370401 Bolt, HexHd ½" X 1½" Bolt, HexHd ½" X 1½" 40 1 33734001 Poly Strip 80 x 3-530

41 1 33734000 Support Yoke for Auger 500 Commodity Cart 42 2 00501118 Nut, Hex 1"-8 NC Nylon Y.ZN

43 2 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 44 1 05425770 Auger Clamp Preassembly 2007

45 4 00370106 Washer, Flat 12MM

46 4 00360131 Bolt, HexHd M12-1.75 x 25 Lg. DIN 933 47 1 33732900 Actuating Clamp 1 Er

05425700 Auger Mounting Components 2007

(44)

05422000 Hydraulics For Filling Auger w/T

(45)

Item

Qty

Part #

Description

1 2 00501131 Connector, STR ¾” JIC-¾”NPT 2 2 00501123 Connector, STR ½”JIC-½"NPT 3 2 00501236 Connector, STR ½” JIC - 10 O-Ring 4 4 00501210 Elbow, Swivel, ½”JIC

5 2 00501212 Hose Assy ½”x 197.0" 6 1 00501213 Hose Assy ¾” x 303" 7 1 00501214 Hose Assy ¾” x 264" 8 50 00509755 Tie Strap, 15" HD 10 2 00501211 Elbow, Swivel, ¾” JIC

(46)

(47)

Item

Qty

Part #

Description

1 1 00508302 Auger Tube 2 1 00508310 Poly Hopper 3 1 00508320 Flex Spout 4 1 00508406 Hose Clamp 5 1 00508330 Hyd. Motor Plate 6 1 00508380 Top Clamp Mount 7 1 00508390 Base Bracket Mount 8 1 00508305 Cupped Flighting Poly 9 1 00508370 Hopper Guard 10” 10 2 00508340 Hopper Back Plate 11 2 00508350 Bearing Flangette 1 ½” 12 1 00508360 Bearing 24 W 1 ½” 13 1 00508391 Valve, Activator 14 1 00508424 Hyd. Motor 15 1 00380915 Control Lever Long 16 1 00380916 Control Rod 17 1 00380917 Control Lever Short 18 1 00380918 Lever, Valve Activator 19 4 00506250 Nut, Flange ½” 20 10 00509600 Washer, Lock ½” 21 10 00506215 Bolt, Hex ½” x2 23 1 00506210 Nut, Lock ½” 24 10 00370401 Bolt ½” x 1 ½” 25 16 1011097 Nut ½” 26 6 00506480 Washer, Lock 3/8” 27 6 00506470 Nut, 3/8” 28 6 00506481 Washer, Flat 3/8” 29 6 00501201 Bolt 3/8” x 1 ½” 30 1 00501138 Bolt, ¼” x 2 ¼” 31 1 00508512 Washer, ¼ 32 1 00508062 Nut, Lock ¼” 33 4 00506280 Bolt 3/8” x 1 35 1 00506220 Bolt ½” x 2 ½”

(48)

00508300 Auger Assembly 10” x 21’

(49)

Item

Qty

Part #

Description

1 1 00508302 Auger Tube 10" x 21' 2 1 00508390 Mounting Bracket Base 10"

3 1 00508380 Mounting Bracket Top/Clamp Bracket 10" 4 1 00508330 Hyd. Motor Mounting Plate 10”

5 1 00508310 Poly Hopper 6 1 00508320 Flex Spout 10" x 60"

8 1 00508425 Motor, Hyd. Eaton Model (Auger)

9 1 00508391 Valve, Hydraulic #312569A1 (see page 40 & 41) 10 2 00508350 Flight Bearing 1 ½”Flangette

11 1 00508360 Flight Bearing 1 ½”24W 12 1 00508406 Hose Clamp 10" 13 1 00508370 Hopper Guard 10"

14 2 00508340 Hopper Mounting Backing Plate 15 1 00508303 Cupped Flight 9" x 21'

16 1 00508451 Valve Control Kit 21'

00508300 Auger Assembly 10” x 21’

(50)

(51)

Item

Qty

Part #

Description

1 1 Control Valve Body (½” NPTF cyl. ports) 1 Control Valve Body (¾” NPTF cyl. ports) 2 1 Valve Spool (for Model CVR-100)

1 Valve Spool (for Model CVR-200)

1 Valve Spool, 4-Way, open center motor (for CVRM-200) 1 Vlave Spool, 3-Way open center motor (for CVRM-100) 3 1 Control Lever

4 1 Screw, Slotted Set ½” -20 UNF x 3/8” 5 1 Relief Vavle Spring Assembly

6 1 Cam Cover 7 1 Detent Cam 8 1 Index Body 9 1 Index Pin 10 2 Spring 11 1 Grip 12 1 Spring Pin 1/8” x ½” 13 1 Washer, Lock 5/16”

14 1 Nut, Jam, Hex ½” -20 UNF 15 1 Steel Ball

16 1 O-Ring Boss Plug ½” -20 UNF 17 2 O-Ring, 7/8” I.D. X 1 1/16” O.D.

18 2 Screw, Cap, Hex, Soc., ¼” -20 UNC x 1 ¼” 19 1 Screw, Cap, HexHd, 5/16” -18 UNC x 1 ½” 20 1 Screw, Cap, HexHd, ¼” -20 UNC x 1 21 1 Nut Centerlock ¼-20 UNC Gr2

22 1 Pipe Plug, Hex Soc, ½” NPT (CVR-100, CVRM-100)

1 Pipe Plug, Hex Soc, ¾” NPT (CVR-100, CVRM-100) 23 2 Washer, Back-up, 7/8” I.D. X 1 1/16” O.D.

24 2 Seal Retainer

25 1 Retaining Plate

26 2 Machine Screw Phl Rd ¼” -20 UNC x 0.625

27 1 Valve Seat

(52)

33733700 Auger Clamp

Item

Qty

Part #

Description

1 1 33732600 Clamp Weldment Rigid 2 1 33732800 Control Lever

3 1 33732700 Clamp Weldment Loose 4 4 00370108 Washer, Flat B 18MM

5 2 00360063 Bolt, HexHd M16-2.0 X 100 Lg. DIN 931 6 2 00350061 Nut, Hex, Nylock M16-2.0 DIN 985 ZN 8 2 00150065 Fork Joint m 12x24

9 1 33733701 Thread Bar M 12 x 1.75 x 75 10 2 00350010 Nut, Hex M12 DIN 934 8.8 ZN 11 1 33733702 Pin W/2 Holes 12 x 26

12 1 33733703 Pin W/2 Holes 12 x 40 13 4 00170098 Pin, Split 4 x 36 15 1 33733704 Pin w/2 Holes 12 x 95 16 2 00260059 Key Ring

17 1 00501204 Hitch Pin Clip 2 5/8" Size 11 18 24" 00250037 Twin Loop Chain #5 20 1 33733801 Poly Strip 80 X 3 - 372

(53)

Item

Qty

Part #

Description

1 1 33733200 Hitch Tow Between 2 16 00370110 Washer, Flat B 24MM

33735200 T

(54)

05401200 Hydraulics Fan Only T

(55)

05401200 Hydraulics Fan Only T

05401200 Hydraulics Fan Only Tow Between Cart

ow Between Cart

Item

Qty

Part #

Description

1 2 00501072 Quick Coupler, Male - ½” O-Ring 2 1 00501177 Union, ½” O-Ring, ½” JIC Male 3 1 00501276 Hose Assy - ½” x 204"

4 2 00501125 Adapter, STR ½” JIC – 06 O-Ring 5 2 00501126 Hose Assy - ¾” x 20"

6 2 00501127 Connector, STR ¾” JIC – 12 O-Ring 7 1 00501128 Tee, ¾” JIC - ¾” JIC - ¾” NPT 8 1 00501129 Valve, Check 5 PSI

9 2 00501068 Adapter, STR ¾” JIC ½” O-Ring 10 2 00501131 Connector, STR ¾” JIC - ¾” NPT 11 1 00501132 Valve, Hydraulic Diverter

12 2 00501133 Hose Assy - ¾” x 172” 14 2 00508513 Washer, Lock ¼” ZN

15 2 00501138 Bolt, HexHd ¼” NC x 2 ¼” Lg. Gr. 5 17 2 00501136 Tee, ¾” JIC - ¾” FJIC - ¾” JIC 18 1 00501137 Cap, ¾”

20 1 00501128 Tee,¾” JIC-¾”JIC-¾”NPT 21 1 00501283 Reducer ½”JIC - ¾”F JIC 22 1 00501284 Hose Assy, ½” x 27” 24 1 00501286 Orifice, Screw-In 25 2 00501277 Hose Assy ¾” x 32" 26 1 00501290 Union ¾” JIC - ¾” JIC 27 - - Customer Supplied

(56)

05402120 Components - Hydraulic Fan w/Motor

(57)

Item

Qty

Part #

Description

1 1 00380119 Fan Housing Right 2 1 00380115 Fan Housing Left 3 1 00380118 Rotor 4 15 00360107 Bolt, Hex M 6x25 5 15 00350067 Nut, M6 6 30 00370103 Washer, A6,4 7 1 00380153 Inlet Screen 8 6 00370122 Washer, Fender ¼” 9 6 00370005 Screw

10 1 00501002 Screen Cap, 6” Fan 11 5 00370005 Screw

14 1 00380127 Hyd. Fan Motor

15 2 00370401 Bolt, Hex ½” x 1 ½” Gr. 5 16 2 00310205 Nut, Hex ½”

17 3 00380126 Rotor Flange 18 1 00380128 Flange Sealing Plate 19 1 00380124 Motor Flange 20 4 00370106 Washer, B 13

05402120 Components - Hydraulic Fan w/Motor

(58)

05427000 Hydraulics for T

05427000 Hydraulics for Tow Between Filling Auger

ow Between Filling Auger

Item

Qty

Part #

Description

1 2 00501131 Connector, STR ¾” JIC - ¾” NPT 2 2 00501123 Connector, STR ½” JIC - ½” NPT 3 2 00501209 Connector, #10, O-Ring x ½” JIC 4 4 00501210 Elbow, Swivel, ½” JIC

5 2 00501212 Hose Assy ½” x 197" 6 1 00501274 Hose Assy ¾” x 392” 7 1 00501274 Hose Assy ¾” x 392” 8 50 00509755 Tie Strap, 15” HD 10 2 00501211 Elbow, Swivel, ¾” JIC

(59)

05428000 Hydraulics for T

05428000 Hydraulics for Tow Behind Filling Auger

ow Behind Filling Auger

Item

Qty

Part #

Description

1 2 00501131 Connector, STR ¾” JIC - ¾” NPT 2 2 00501123 Connector, STR ½” JIC - ½” NPT 3 2 00501236 Connector, STR ½” JIC - 10, O’Ring 4 4 00501210 Elbow, Swivel, ½” JIC

5 2 00501212 Hose Assy ½” x 197.0” 6 1 00501213 Hose Assy ¾” x 303” 7 1 00501214 Hose Assy ¾” x 264” 8 50 00509755 Tie Strap, 15” HD 10 2 00501211 Elbow, Swivel, ¾” JIC

(60)

05417100 Cross Member Assembly Double Shoot

(61)

Item

Qty

Part #

Description

1 1 05417001 Weldment, Cross Tube, Second Fan 2 2 00360268 Bolt, HexHd M24-3.0 x 80 Lg. DIN 931 4 2 00350065 Nut, Hex, Nylock M24 – 3.0 DIN 985 ZN

05417100 Cross Member Assembly Double Shoot

(62)

05431000 Double Shoot 2 Fans Used w/40-15 & 500 Commo

(63)

Item

Qty

Part #

Description

2 48 00370389 Washer, A 8 7-A2 Stainless

3 48 00360441 Bolt, HexHd M8 x 30 (Stainless)A-2 4 24 00350062 Nut, Nylock M8 - A2 (Stainless) 18 2 05405120 Pipe, 5 ½” Seed - 9’

19 44.25' 00180006 Hose, Seed, Flexible - 5 ½” 20 10 00190055 Clamp Diam 132-178 29 24” 00190211 Hose, G38/.9 (Tank Pressure) 30 6 00190044 Clamp Diam 32-50

33 2 05402110 Components Hydraulic Fan

34 2 05402102 Fan Bracket for Centrifugal Fan Install 35 8 00508511 Bolt, HexHd ¼” - 20 NC x 1 ¼” Gr. 5 ZN 36 8 00508513 Washer, Lock ¼” ZN

37 8 00508512 Washer, Flat ¼” ZN

38 2 05402101 Back Plate for Centrifugal Fan Install 39 4 00360046 Bolt, HexHd M12 - 1.75 x 200 Lg. DIN 931 40 4 00370106 Washer, Flat 12MM

41 4 00350059 Nut, Hex, Nylock M12 - 1.75 DIN 985 ZN 42 1 00501019 Kit Cylindrical Inlet Screen Commodity Cart 44 3 33332300 Seed Delivery Housing (Single)

45 3 33332601 Seed Channel Closure 1 OHR 46 3 01502801 Plate 190 x 30 x 1

47 12 00360337 Bolt, HexHd, Stainless M6 - 1.0 x 18 48 12 00350064 Nut, Hex, Nylock, Stainless M6 - A2 49 1 00506210 Nut, Hex Nylock ½” - 13 NC Gr. 5 ZN 50 1 05417015 Hose Support From Ladder Step

50 1 05417020 Pipe Support From Ladder Step CC5000059 - Present 51 1 00501203 Bolt, HexHd ½” NC x 1” Gr. 5 ZN

05431000 Double Shoot 2 Fans Used w/40-15 & 500 Commo

(64)

05517000 Double Shoot 2 Fan 40-15 & 350 Commo

(65)

05517000 Double Shoot 2 Fan 40-15 & 350 Commo

05517000 Double Shoot 2 Fan 40-15 & 350 Commodity Cart

dity Cart

Item

Qty

Part #

Description

2 16 00370389 Washer A 8 7-A2 Stainless

3 8 00360441 Bolt, HexHd M8 x 30 (Stainless)A-2 4 8 00350062 Nut, Nylock M8 - A2 (Stainless) 19 27’ 00180006 Hose, Seed, Flexible - 5 ½” 20 10 00190055 Clamp Diam 132-178 21 2 05405120 Pipe, 5 ½” Seed - 9’

22 2 33733501 Non-Corrosive Tube V2A 139 7 x 2 1960 23 2 00190261 Rubber Socket DC150 135-150MM 29 16” 00190211 Hose, G38/.9 (Tank Pressure) 30 4 00190044 Clamp Diam 32-50

34 2 05402102 Fan Bracket for Centrifugal Fan Install 35 8 00508511 Bolt, HexHd ¼” - 20 NC x 1 ¼” Gr. 5 ZN 36 8 00508513 Washer, Lock ¼” ZN

37 8 00508512 Washer, Flat ¼” ZN

41 4 00350059 Nut, Hex, Nylock M12 - 1.75 DIN 985 ZN 42 2 00501019 Kit Cylindrical Inlet Screen CC

44 2 33332300 Seed Delivery Housing (Single) 45 2 33332601 Seed Channel Closure 1 OHR 46 2 01502801 Plate 190 x 30 x 1

47 8 00360337 Bolt, HexHd, Stainless M6 - 1.0 x 18 48 8 00350064 Nut, Hex, Nylock, Stainless M6 - A2 49 1 00506210 Nut, Hex, Nylock ½” -13 NC Gr. 5 ZN 50 1 05417015 Hose Support From Ladder Step 51 1 00501203 Bolt, HexHd ½” NC x 1" Gr. 5 ZN

(66)

05530000 Single Shoot 40-15 & 350 Commo

(67)

CC5000041-05530000 Single Shoot 40-15 & 350 Commo

05530000 Single Shoot 40-15 & 350 Commo

05530000 Single Shoot 40-15 & 350 Commodity Cart CC5000041-

dity Cart CC5000041-

dity Cart

CC5000041-Item

Item

Qty

Part #

Description

2 16 00370104 Washer, Flat A 8.4

3 8 00360441 Bolt, HexHd M8 x 30 (Stainless)A-2 4 8 00350062 Nut, Nylock M8 - A2 (Stainless) 19 6” 00180006 Hose, Seed, Flexible - 5½” 20 2 00190055 Clamp Diam 132-178

22 1 00190261 Rubber Socket DC150 135-150MM 2 4 133731000 Hose Bracket For Commodity Cart 25 4 00370104 Washer, Flat A 8.4

26 2 00360112 Bolt, HexHd M8 1.25 x 30 Lg. DIN 985 27 2 00350057 Nut, Hex, Nylock M8 - 1.25 DIN 98 29 13” 00190211 Hose G38/.9 (Tank Pressure) 30 4 00190044 Clamp Diam 32-50

34 1 05402102 Fan Bracket For Centrifugal Fan Install 35 4 00508511 Bolt, HexHd ¼” - 20 NC x 1 ¼” Gr. 5 ZN 36 4 00508513 Washer, Lock ¼” ZN

37 4 00508512 Washer, Flat ¼” ZN

41 2 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 42 1 00501019 Kit Cylindrical Inlet Screen Commodity Cart 44 2 33332300 Seed Delivery Housing (Single)

47 8 00360337 Bolt, HexHd, Stainless M6-1.0 x 18 48 8 00350064 Nut, Hex, Nylock, Stainless M6-A2 49 1 00190261 Rubber Socket DC150 135-150MM 50 1 33733501 Non-Corrosive Tube V2A 139 7 x 2 1960 51 1 00506210 Nut, Hex, Nylock ½ - 13 NC Gr. 5 ZN 52 1 05417015 Hose Support From Ladder Step 53 1 00501203 Bolt, HexHd ½” NC x 1" Gr. 5 ZN

(68)

05530000 Single Shoot 40-15 & 350 Commo

(69)

05530000 Single Shoot 40-15 & 350 Commo

05530000 Single Shoot 40-15 & 350 Commodity Cart CC5000041+

dity Cart CC5000041+

Item

Qty

Part #

Description

2 16 00370389 Washer A 8 7 -A2 Stainless

3 8 00360441 Bolt, HexHd M8 x 30 (Stainless)A-2 4 8 00350062 Nut, Nylock M8 - A2 (Stainless) 19 8’ 00180006 Hose, Seed, Flexible - 5½” 20 10 00190055 Clamp Diam 132-178 21 1 05405120 Pipe, 5 ½” Seed - 9’

29 13” 00190211 Hose G38/.9 (Tank Pressure) 30 4 00190044 Clamp Diam 32-50

34 1 05402102 Fan Bracket For Centrifugal Fan Install 35 4 00508511 Bolt, HexHd ¼” - 20 NC x 1 ¼” Gr. 5 ZN 36 4 00508513 Washer, Lock ¼” ZN

37 4 00508512 Washer, Flat ¼” ZN

41 2 00350059 Nut, Hex, Nylock M12-1.75 DIN 985 ZN 42 1 00501019 Kit Cylindrical Inlet Screen Commodity Cart 44 2 33332300 Seed Delivery Housing (Single)

47 8 00360337 Bolt, HexHd, Stainless M6-1.0 x 18 48 8 00350064 Nut, Hex, Nylock, Stainless M6-A2 49 2 00190261 Rubber Socket DC150 135-150MM 50 2 05405130 Pipe, 5½" Seed - 5 ½'

51 1 00506210 Nut, Hex, Nylock ½ - 13 NC Gr. 5 ZN 52 1 05417015 Hose Support From Ladder Step 53 1 00501203 Bolt, HexHd ½” NC x 1" Gr. 5 ZN

(70)

05430000 Single Shoot 40-15 & 500 Commo

(71)

CC5000041-05430000 Single Shoot 40-15 & 500 Commo

05430000 Single Shoot 40-15 & 500 Commo

05430000 Single Shoot 40-15 & 500 Commodit Cart CC5000041-

dit Cart CC5000041-

dit Cart

CC5000041-Item

Item

Qty

Part #

Description

2 24 00370104 Washer, Flat A 8.4

3 12 00360441 Bolt, HexHd M8 x 30 (Stainless) A-2 4 12 00350062 Nut, Nylock M8-A2 (Stainless)

17 2 33783501 Hose Repair Splice

18 2 05405120 Pipe, 5½” Seed

19 7' 00180006 Hose, Seed, Flexible - 5 ½”

20 6 00190055 Clamp Diam 140 - 160

21 1 33733501 Non-Corrosive Tube V2A 139 7 x 2 -1960 24 1 33731000 Hose Bracket For Commodity Cart

25 4 00370104 Washer, Flat A 8.4

26 2 00360112 Bolt, HexHd M8 1.25 x 30 Lg. DIN 985 27 2 00350057 Nut, Hex, Nylock M8 - 1.25 DIN 985 29 36" 00190211 Hose G38/.9 (Tank Pressure)

30 6 00190044 Clamp Diam. 32-50

33 1 05402110 Components, Centrifugal Fan

34 1 05402102 Fan Bracket for Centrifugal Fan Installation 35 4 00508511 Bolt, Hex, ¼”-20 NC 1 ¼” x 1 ¼” GR 5 ZN

36 4 00508513 Washer, Lock, ¼” ZN

37 4 00508512 Washer, Flat ¼” ZN

38 1 05402101 Backplate for Centrifugal Fan Installation 39 2 00360046 Bolt, HexHd M12 x 200 Lg DIN 931

40 2 00370106 Washer, Flat M12

41 2 00350059 Nut, Hex, Nylock M12 - 1.75 DIN 985 ZN 42 1 00501019 Kit, Cylindrical Inlet Screen

44 3 33332300 Delivery Housing

45 3 33332601 Seed Channel Closure 1 OHR

46 3 01502801 Plate 190 x 30 x 1

47 6 00360337 Bolt, HexHd (Stainless) M6 - 1.0 x 18 48 6 00350064 Nut, Hex, Nylock (Stainless) M6 - A2

(72)

05430000 Single Shoot 40-15 & 500 Commo

(73)

05430000 Single Shoot 40-15 & 500 Commo

05430000 Single Shoot 40-15 & 500 Commodity Cart CC5000041+

dity Cart CC5000041+

ITEM

QTY

P

PAR

AR

ART #

T #

DESCRIPTION

2 24 00370104 Washer, Flat A 8.4

3 12 00360441 Bolt, HexHd M8 X 30 (Stainless) A-2 4 12 00350062 Nut, Nylock M8-A2 (Stainless) 16 1 05405120 Pipe, 5 ½ Seed - 9’

19 8’ 00180006 Hose, Seed, Flexible - 5 ½” 20 10 00190055 Clamp Diam 140 – 160 21 1 05405130 Pipe, 5½" Seed - 5 ½'

22 1 00190261 Rubber Socket DC 150 135 150MM 29 36” 00190211 Hose G38/.9 (Tank Pressure) 30 6 00190044 Clamp Diam. 32 –50

33 1 05402110 Components, Centrifugal Fan

34 1 05402102 Fan Bracket for Centrifugal Fan Install 35 4 00508511 Bolt, Hex ¼”-20 NC 1 ¼” x 1 ¼” Gr. 5 ZN 36 4 00508513 Washer, Lock ¼” ZN

37 4 00508512 Washer, Flat ¼” ZN

38 1 05402101 Backplate for Centrifugal Fan Installation 39 2 00360046 Bolt, HexHd M12 X 200 Lg. DIN 931 40 2 00370106 Washer, Flat M 12

41 2 00350059 Nut, Hex, Nylock M12 – 1.75 DIN 985 Zn 42 1 00501019 Kit, Cylindrical Inlet Screen

44 3 33332300 Delivery Housing

47 6 00360337 Bolt, HexHd Stainless M6 - 1.0 x 18 48 6 00350064 Nut, Hex Nylock, Stainless M6 - A2

500/350 Commodity Cart Parts Book

500/350

500/350

500/350

500/350

500/350

Commo

Commo

Commo

Commo

Commodity Cart Parts Book

dity Cart Parts Book

dity Cart Parts Book

dity Cart Parts Book

dity Cart Parts Book

500 Commo

500 Commo

500 Commo

500 Commo

500 Commodity Cart

dity Cart

dity Cart

dity Cart

dity Cart

350 Commo

350 Commo

350 Commo

350 Commo

350 Commodity Cart

dity Cart

dity Cart

dity Cart

dity Cart

Starting with Serial number:

350 CC3500039

500 CC5000041

Contents

Contents

Contents

Contents

Contents

Contents

Contents

Contents

Contents

Contents

Item

Item

Item

Item

Item

Qty

Qty

Qty

Qty

Qty

Part #

Part #

Part #

Part #

Part #

Description

Description

Description

Description

Description

05415000 - Frame & Commo

05415000 - Frame & Commo

05415000 - Frame & Commo

05415000 - Frame & Commo

Item

Item

Item

Item

Item

Qty

Qty

Qty

Qty

Qty
