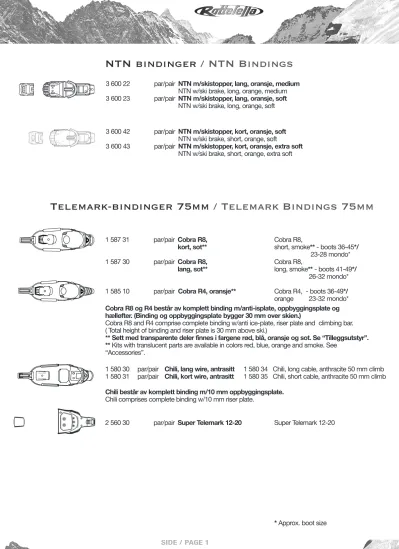

NTN bindinger / NTN Bindings. Telemark-bindinger 75mm / Telemark Bindings 75mm

(1)

1 587 31 par/pair Cobra R8, Cobra R8,

kort, sot** short, smoke**- boots 36-45*/

23-28 mondo*

1 587 30 par/pair Cobra R8, Cobra R8,

lang, sot** long, smoke**- boots 41-49*/

26-32 mondo*

1 585 10 par/pair Cobra R4, oransje** Cobra R4, - boots 36-49*/

orange 23-32 mondo*

1 580 30 par/pair Chili, lang wire, antrasitt 1 580 34 Chili, long cable, anthracite 50 mm climb

1 580 31 par/pair Chili, kort wire, antrasitt 1 580 35 Chili, short cable, anthracite 50 mm climb

Cobra R8 og R4 består av komplett binding m/anti-isplate, oppbyggingsplate og hælløfter. (Binding og oppbyggingsplate bygger 30 mm over skien.)

Cobra R8 and R4 comprise complete binding w/anti ice-plate, riser plate and climbing bar. ( Total height of binding and riser plate is 30 mm above ski.)

** Sett med transparente deler finnes i fargene rød, blå, oransje og sot. Se “Tilleggsutstyr”. ** Kits with translucent parts are available in colors red, blue, orange and smoke. See

“Accessories”.

Chili består av komplett binding m/10 mm oppbyggingsplate.

Chili comprises complete binding w/10 mm riser plate.

2 560 30 par/pair Super Telemark 12-20 Super Telemark 12-20

Telemark-bindinger 75mm

/ Telemark Bindings 75mm

NTN bindinger

/ NTN Bindings

3 600 22 par/pair NTN m/skistopper, lang, oransje, medium

NTN w/ski brake, long, orange, medium

3 600 23 par/pair NTN m/skistopper, lang, oransje, soft

NTN w/ski brake, long, orange, soft

3 600 42 par/pair NTN m/skistopper, kort, oransje, soft

NTN w/ski brake, short, orange, soft

3 600 43 par/pair NTN m/skistopper, kort, oransje, extra soft

(2)

*Komplett sett består av anti-isplate, hælstø og hælstrammer. *Complete kit comprises anti-ice plate, heel plate and latching handle.

*Anti-isplate sett: *Anti-ice Plate Kit

Cobra R8/R6/R4 Cobra R8/R6/R4

9 110 28 sett/set Rød transparent Red translucent

9 110 29 Blå transparent Blue translucent

9 110 30 Sot transparent Smoke translucent

9 110 31 Oransje transparent Orange translucent

Tilleggsutstyr NTN

/ Accessories NTN

9 250 41 par/pair Spacer 10 mm Spacer 10 mm

Cobra R8/R6 Cobra R8/R6

9 250 13 par/pair Oppbyggingsplate 10 mm, Riser 10 mm, smoke translucent

sot transparent. Chili/Super Telemark/ SuperCable

Chili/Super Telemark/Riva 3

9 250 14 * par/pair Carve 20 mm, sort Carve 20 mm, black

*Ikke til bruk med Cobra R-serien Not to be used with the Cobra R-series.

9 130 20 par/pair Skistopper NTN, standard 95mm Ski brake NTN, standard 95mm

9 130 21 par/pair Skistopper NTN, bred 110mm Ski brake NTN, extra wide 110 mm

9 130 22 par/pair Skistopper NTN, ekstra bred Ski brake NTN, extra wide 125 mm

125mm

9 130 09 sett/set Power Tubes extrasoft, hvit Power Tubes extrasoft, white

9 130 10 sett/set Power Tubes soft, grønn Power Tubes soft, green

9 130 11 sett/set Power Tubes medium, blå Power Tubes medium, blue

9 130 12 sett/set Power Tubes hard, rød Power Tubes hard, red

Tilleggsutstyr 75mm

/ Accessories 75mm

9 999 04 par/pair Tele hælløfter + kloss Climbing bar

Gir totalhøyde 67 mm Gives total height 67mm

Kun for Cobra R-serien For Cobra R-series only

9 999 05 par/pair Tele hælløfter Climbing bar

Hever hælen 50 mm Raises the heel 50 mm

Riva 3/Chili SuperCable/Chili

(3)

9 250 42 par/pair Standard oppbyggings- Standard riser plate, black

plate, sort, Cobra R8/R6 Cobra R8/R6

9 250 36 par/pair Standard oppbyggings- Standard riser plate, black

plate, sort, Cobra R4 Cobra R4

Hælstø Cobra R8/R6/R4 Heel plate Cobra R8/R6/R4

9 250 47 par/pair Rød transparent Red translucent

9 250 12 par/pair Hælstø oppb. plater, Heel plate riser plates,

sort black

0 711 52 stk/pcs Baseplate front plate Baseplate front plate

0 811 53 stk/pcs Baseplate hælstø Baseplate heel plate

Reservedeler

/ Spare Parts

9 164 50 par/pair Fangrem Runaway strap

9 110 01 par/pair Justeringsplate m/ skruer Adjustment plate w/ screws

Riva 3 SuperCable

9 222 86 par/pair Hælstø, flat 412/Riva 95/Riva 3/ Heel plate, flat 412/

Chili/Extreme/Super Telemark Riva 95/SuperCable/

Chili/Extreme/Super Telemark

9 158 07 par/pair Hælbøyle/stagkomplett Cobra R8 kort, extra soft (grønn)

Heel bail/conn. rods complete Cobra R8 short, extra soft (green)

9 158 08 par/pair Hælbøyle/stagkomplett Cobra R8 kort, soft (blå)

Heel bail/conn. rods complete Cobra R8 short, soft (blue)

9 158 09 par/pair Hælbøyle/stagkomplett Cobra R8 lang, hard (rød)

Heel bail/conn. rods complete Cobra R8 long, hard (red)

9 158 10 par/pair Hælbøyle/stagkomplett Cobra R8 lang, extra hard (sort)

(4)

0 811 17 stk/pcs Hælbøyle m/fjærer Chili Heel bail w/springs Chili

0 811 27 stk/pcs Hælbøyle Riva Z Comp/ Heel bail Riva Z Comp/

Cobra R4 Cobra R4

0 811 29 Hælbøyle Cobra R8 Heel bail Cobra R8 black cartridge

sort hylse

0 811 31 Hælbøyle Cobra R6 Heel bail Cobra R6 blue cartridge

blå hylse

0 811 14 stk/pcs Hælbøyle m/fjærer 412/ Heel bail w/springs 412/

Cable/Riva II/Riva 3/ Cable/Riva II/ SuperCable/Riva Z

Riva Z

0 810 89 stk/pcs Bakstropp Riva I Heel coil assembly Riva I

0 810 23 stk/pcs Kort wire, (410) Short cable, boots 35-39/C4-7*

0 810 24 Lang wire, (410) Long cable, boots 38-42/C6-10*

0 810 25 X-lang wire, (410) X-long cable, boots 40-49/C8-15*

0 811 10 stk/pcs Kort wire, 412/Riva 3 Short cable, 412/ SuperCable

Cable boots 35-43/C4-11*

0 811 11 Standard wire, 412/Riva 3 Stand. cable, 412/ SuperCable

0 811 12 Lang wire, 412/Riva 3/Riva Z Long cable, 412/SuperCable/Riva Z

0 811 07 stk/pcs Kort wire, Riva 95 Short cable, Riva 95

boots 36-41/C4-8*

0 811 08 Standard wire, Riva 95 Stand. cable, Riva 95

boots 40-45/C7-12*

0 811 09 Lang wire, Riva 95 Long cable, Riva 95

boots 44-49/C11-15*

0 811 01 stk/pcs Kort wire, Riva II Short cable, Riva II

boots 36-41/C4-8*

0 811 02 Standard wire, Riva II Stand. cable, Riva II

boots 40-45/C7-12*

0 811 03 Lang wire, Riva II Long cable, Riva II

boots 44-49/C11-15*

0 811 24 stk/pcs Kort wire, Riva Z Comp Short cable, Riva Z Comp.

0 811 25 Lang wire, Riva Z Comp/ Long cable, Riva Z Comp/

Cobra R4 Cobra R4

(5)

Innvendig gjenge M6

Inside thread M6

Innvendig gjenge for fjær

Inside thread for spring

Innvendig gjenge M5

Inside thread M5

0 711 34 stk/pcs Stag krom Conn. rod chrome

Cobra R8/R6 kort høyre Cobra R8/R6 short, right

0 711 35 Stag krom Conn. rod chrome

Cobra R8/R6 kort, venstre Cobra R8/R6 short, left

0 711 36 stk/pcs Stag krom Conn. rod chrome

Cobra R8/R6 lang, høyre Cobra R8/R6 long, right

0 711 37 Stag krom Conn. rod chrome

Cobra R8/R6 lang, venstre Cobra R8/R6 long, left

0 711 20 stk/pcs Stag Chili kort, høyre Conn. rod Chili short, right,

0 711 21 Stag Chili kort, venstre Conn. rod Chili short, left,

0 711 22 Stag Chili lang, høyre Conn. rod Chili long, right,

0 711 23 Stag Chili lang, venstre Conn. rod Chili long, left,

9 158 05 sett/set Stag Chili kort Conn. rods Chili short

9 158 06 Stag Chili lang Conn. rods Chili long

stk/pcs Hælstrammere komplett: Latching handle w/clip:

9 110 18 Rød transparent Red translucent

9 110 03 Riva II/Riva 3, sort Riva ll/SuperCable, black

9 110 07 Chili sort Chili black

9 110 08 Cobra sort Cobra black

9 110 09 Cobra blå Cobra blue

9 110 17 Riva Z Comp. sort Riva Z Comp. black

0 711 49 stk/pcs Skive til anti-is plate Disk for anti-ice plate

0 150 83 stk/pcs Fjærmutter M6 Riva II Adjusting nut M6 Riva II

0 150 89 stk/pcs Fjærmutter 412/Riva 3/Riva Z Adjusting nut 412/SuperCable/Riva Z

0 150 90 stk/pcs Fjærmutter M5 Chili m/stag Adjusting nut M5 Chili w/conn.rod

0 120 01 stk/pcs Krussert mutter Riva I/Riva 95 Knurled nut Riva I/Riva 95

9 110 05 stk/pcs Linseskrue, mutter og skive Carriage bolt, nut and washer

Riva I Riva I

0 150 47 stk/pcs Justeringsfjær Adjustment spring

412/Riva 3/Riva Z 412/SuperCable/Riva Z

0 710 86 stk/pcsStoppskive Washer

(6)

9 220 04 stk/pcs Monteringsjigg for NTN Mounting jig for NTN

Skibredde: 64-100mm Ski width: 64-100mm

9 220 05 stk/pcs Monteringsjigg for telemark Mounting jig for telemark 75mm

75mm. Skibredde: 53-95 mm Ski width: 53-95 mm

9 220 08 stk/pcs Monteringsjigg for Mounting jig for telemark, wide

telemark, bred Ski width: 64-110 mm

Skibredde: 64-110 mm

0 440 01 tube Skibindingsfett Ski binding grease

9 229 90 stk/pcs Serviceboks, komplett sett. Service box, complete kit.

Innhold som beskrevet Contents as described below.

nedenfor.

0 159 20 stk/pcs Skrue bit, Poz 3 Screw bit, Poz 3

0 159 22 stk/pcs Hullbor Hollow drill bit

0 159 21 stk/pcs Bor for reparasjonsplugger Drill bit for repair plugs

0 440 02 tube Spesiallim Special glue

0 159 23 stk/pcs Gjengetapp Threading die

0 169 90 stk/pcs Reparasjonsplugger Plastic dowels for repair

(50 stk.) (50 pcs.)

0 169 91 stk/pcs Plastplugger Plastic plugs for repair

(250 stk.) (250 pcs.)

0 151 10 stk/pcs Bor Ø3,6x9 Drill bit Ø3,6x9

0 151 11 Bor Ø3,6x14 Drill bit Ø3,6x14

0 151 12 Bor Ø3,6x7 Drill bit Ø3,6x7

0 151 20 stk/pcs Skrutrekker Poz 3 Screwdriver Poz 3

(7)

skrueoversikt / screw overwiew

SuperCable SUPERTELEMARK CHILI u/plate Fot til strammer, S. TELEMARK m/wire

Ø4,2 x 13 (plateskrue Poz 2)

Gml. CHILI, SuperCable/ 412 / EXTREME gml. BC 011022 Ø6.3 x20 HÆLSTØ SUPER TELEMARK 011041 011021 Ø6 x17 Ø6 x24 011028 Ø6 x 17 011021 VARENR.: 011021 ALLE: 3 stk. SKRUER Ø6 x 17 011028 Ø6 x24 Ø6.3 x 20 011022 011009 M6 x 25 Ø6.15 x 24 011036 011013 M5 x 10 011028Ø6 x 24 HÆLSTØ - CHILI TELEMARK K2 ski 011038Ø6,3 x 11 Ø6,3 x 11 011038 CARVE / SUPERCARVE / ULTRACARVE M5 x 10 M6 x 25 K2 ski M5 x 10 011013 011072 M6 x 20 011038 Ø6,3 x 11 011009 CHILI (TÅJERN + 20 mm PLATE) F R O N T M5 x 10 K2 ski 011013 011028 4 stk. frontplate + 2 stk. hælplate Ø6 x 24 COBRA R8, R6, R4 (NY 2004) 011008 M6 x 30 K2 ski 011015 COBRA R8 / R6 10 mm PLATE 4 stk. frontplate + 2 stk. hælplate M5 x 20 NTN
