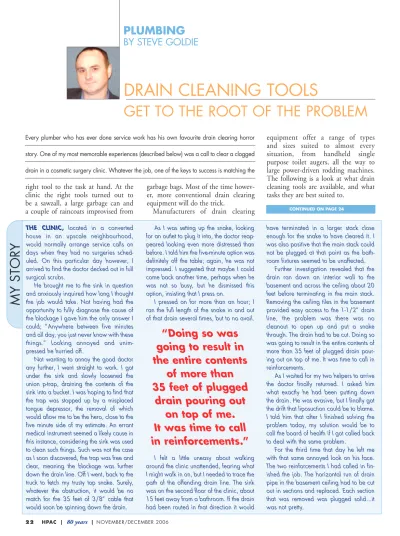

DRAIN CLEANING TOOLS

PLUMBING

BY STEVE GOLDIE

THE CLINIC, located in a converted house in an upscale neighbourhood, would normally arrange service calls on days when they had no surgeries sched-uled. On this particular day however, I arrived to find the doctor decked out in full surgical scrubs.

He brought me to the sink in question and anxiously inquired how long I thought the job would take. Not having had the opportunity to fully diagnose the cause of the blockage I gave him the only answer I could; “Anywhere between five minutes and all day, you just never know with these things.” Looking annoyed and unim-pressed he hurried off.

Not wanting to annoy the good doctor any further, I went straight to work. I got under the sink and slowly loosened the union p-trap, draining the contents of the sink into a bucket. I was hoping to find that the trap was stopped up by a misplaced tongue depressor, the removal of which would allow me to be the hero, close to the five minute side of my estimate. An errant medical instrument seemed a likely cause in this instance, considering the sink was used to clean such things. Such was not the case as I soon discovered, the trap was free and clear, meaning the blockage was further down the drain line. Off I went, back to the truck to fetch my trusty top snake. Surely, whatever the obstruction, it would be no match for the 35 feet of 3/8” cable that would soon be spinning down the drain.

As I was setting up the snake, looking for an outlet to plug it into, the doctor reap-peared looking even more distressed than before. I told him the five-minute option was definitely off the table; again, he was not impressed. I suggested that maybe I could come back another time, perhaps when he was not so busy, but he dismissed this option, insisting that I press on.

I pressed on for more than an hour; I ran the full length of the snake in and out of that drain several times, but to no avail.

I felt a little uneasy about walking around the clinic unattended, fearing what I might walk in on, but I needed to trace the path of the offending drain line. The sink was on the second floor of the clinic, about 15 feet away from a bathroom. If the drain had been routed in that direction it would

DRAIN CLEANING TOOLS

GET TO THE ROOT OF THE PROBLEM

have terminated in a larger stack close enough for the snake to have cleared it. I was also positive that the main stack could not be plugged at that point as the bath-room fixtures seemed to be unaffected.

Further investigation revealed that the drain ran down an interior wall to the basement and across the ceiling about 20 feet before terminating in the main stack. Removing the ceiling tiles in the basement provided easy access to the 1-1/2” drain line, the problem was there was no cleanout to open up and put a snake through. The drain had to be cut. Doing so was going to result in the entire contents of more than 35 feet of plugged drain pour-ing out on top of me. It was time to call in reinforcements.

As I waited for my two helpers to arrive the doctor finally returned. I asked him what exactly he had been putting down the drain. He was evasive, but I finally got the drift that liposuction could be to blame. I told him that after I finished solving the problem today, my solution would be to call the board of health if I got called back to deal with the same problem.

For the third time that day he left me with that same annoyed look on his face. The two reinforcements I had called in fin-ished the job. The horizontal run of drain pipe in the basement ceiling had to be cut out in sections and replaced. Each section that was removed was plugged solid...it was not pretty.

Every plumber who has ever done service work has his own favourite drain clearing horror story. One of my most memorable experiences (described below) was a call to clear a clogged drain in a cosmetic surgery clinic. Whatever the job, one of the keys to success is matching the

CONTINUED ON PAGE 24 right tool to the task at hand. At the

clinic the right tools turned out to be a sawzall, a large garbage can and a couple of raincoats improvised from

equipment offer a range of types and sizes suited to almost every situation, from handheld single purpose toilet augers, all the way to large power-driven rodding machines. The following is a look at what drain cleaning tools are available, and what tasks they are best suited to.

garbage bags. Most of the time howev-er, more conventional drain clearing equipment will do the trick.

Manufacturers of drain clearing

“Doing so was

going to result in

the entire contents

of more than

35 feet of plugged

drain pouring out

on top of me.

It was time to call

in reinforcements.”

MY

STOR

Y
