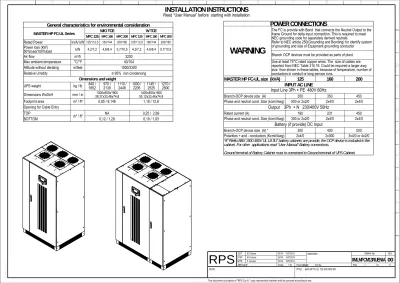

INSTALLATION INSTRUCTIONS

General characteristics for environmental consideration

MASTER HP FC-UL Series W/O TCE W TCE

MFC 125 MFC 160 MFC 200 MFC 125 MFC 160 MFC 200

Reted Power kVA/ kW 125/112,5 160/144 200/180 125/112,5 160/144 200/180 Power loss (kW)

50%load/100%load kW 4,2/7,2 4,6/8,4 5,7/10,5 4,2/7,2 4,6/8,4 5,7/10,5

Air flow m³/h 3200

Max ambient temperature °C/°F 40/104 Altitude without derating m/feet 1000/3300 Relative Umidity ≤ 95% non condensing

Dimensions and weight

UPS weight kg / lb 840 / ₁₈₅₂ 970 / ₂₁₃₉ 1110 / ₂₄₄₈ 1000 / ₂₂₀₅ 1145 / ₂₅₂₅ 1270 / ₂₈₀₀ Dimensions WxDxH mm / in _{39,37x33,46x74,8}1000x850x1900 _{55,12x33,46x74,8}1400x850x1900 Footprint area m² / ft² 0,85 / 9,146 1,19 / 12,8 Opening for Cable Entry

TOP

m² / ft² NA 0,25 / 2,69

BOTTOM 0,12 / 1,29 0,19 / 1,93

POWER CONNECTIONS

WARNING

The FC is provide with Bond that connects the Neutral Output to the frame Ground for delta input connection. This is required to meet NEC grounding code for separately derived neutrals.

Refer to NEC article 250(Grounding and Bonding) for identify system of grounding and size of Equipment grounding conductor

Branch OCP devices must be provided as parts of plant. Use at least 75°C rated copper wires. The size of cables are reported from NEC Table 310.16. Could be required a larger awg size than shown in these tables, because of temperature, number of conductors in conduit or long service runs.

MASTER HP FC-UL size (kVA)

125

160

200

INPUT AC LINE

Input Line 3Ph + PE 480V 60Hz

Branch-OCP device size (A) 300 350 450

Phase and neutral cond. Size (kcmi/Awg) 500 or 2x2/0 2x4/0 2x4/0

Output 3Ph + N 230/400V 50Hz

Rated current (A) 180 231 450

Phase and neutral cond. Size (kcmi/Awg) 300 or 2x2/0 2x4/0 2x4/0

Battery (if provide) DC Input

Branch-OCP device size (A) * 300 400 500

Polarities + and - conductors (Kcmil/Awg) 2x4/0 2x300 3x4/0 or 4x2/0

*If “Riello BBX 1900 480V UL L8 3U” battery cabinets are provide, the OCP device is included in the

cabinet. For other applications read “User Manual” Battery connections. .

Ground terminal of Battery Cabinet must to connected to Ground terminal of UPS Cabinet.

INSTALLATION INSTRUCTIONS

Reed “User Manual” before starting with installation

VARIATION: M. Fontana L H G F E D C B A CA RT I S O _ A 3 TITLE: DRAW. No DI REPLACE: PAG. REV.

RPS

CONT. NOTE:

0MLMFCM13RUENIA

1 ... 1:20 M. Fontana ... Scala: : 0.03 Kg 6 ... MAN HP FC-UL 125-200 DRW EN ...

00

DATA: 15/07/2014 DATA: 15/07/2014 DATA: 15/07/2014 APPR. F. Amodeo ... Peso/Weight EDIT.

500 19,69 (Suggested Value) 600 23, 62 (Min) 120° 90° 120° ~ 1390 54,72 58,27 ~1480 64, 09 ~ 1628 60, 24 ~ 1530 ~ 1090 42,91 ~ 1530 60, 24 66,34 120_° 120 90°_° 120° ~1685 46, 85 ~ 1190 ~ 1628 64, 09

W/O TCE W TCE

INSTALLATION INSTRUCTIONS

NOTE:

Do not mount side kickplate when there are cabinet side by side.

Leave at least one of the three (right, rear, left) of cabinet free

2

00

L H G F E D C B A RT I S O _ A 3 _{DRAW. No} DI PAG. REV.

RPS

6

0MLMFCM13RUENIA

FRONT VIEW

1000 39,37 1900 74, 8

REAR VIEW

FRONT VIEW

1400 55,12

REAR VIEW

SIDE VIEW

WALL

DISTANCE TO THE WALL

NOTE:

1000mm [ 39,37in] MINIMUM FRONT

FRONT

850 33,46 865 34,06

MASTER HP FC-UL -

Series

W/O TCE

INPU T- OUTPUT

SECTION: A-A

Aux Connections and BATTERY CABLES ENTRY ENTRY

CABLES SIGNAL

BOTTOM VIEW

W/O DOOR AND PANNEL

Opening for Cable entry

FRONT

62, 5 2, 46 150 5, 91 52,5 2,07 768 30,24 52,5 2,07 72,5 2,85 120 4, 72

SECTION: B-B

BOTTOM VIEW

W/O DOOR AND PANNEL

Bearing surface of cabinet

FRONT

N 6 HOLES 12 0,47 TO FIX THE CABINET 27,5 1,08 994 39,13 27,5 1,08 110 4, 33 301 11, 85 301 11, 85 110 4, 33 822 32, 36 10 0,39 10 0,39

OUTLET AIR

INLET AIR

INLET AIR

AIR FLOW

NOTE:

High temperaturerise may occur if the

minimum value indicated is not

maintained above the FC

L H G F E D C B A DRAW. No DI PAG. REV.

RPS

3 6

00

0MLMFCM13RUENIA

FRONT VIEW

A

A

B

B

TOP VIEW

Fans Position

FRONT

155 6, 1 456 17, 95 193 7,6 307 12,09 307 12,09 193 7,6 266 10,47 450 17,72

429 16, 89

MASTER HP FC- UL - Series

W/O TCE

Torque specification

Bolt size

Torque Load

3/8 - M10

40Nm

29,5lbf-ft

+

BATTERY

DETAIL: C

-ø11 0,43

AUX CONNECTIONS

DETAIL: D

152, 5 6 220, 5 8, 68 427 16, 81 515, 5 20, 3 550, 5 21, 67 79,5 3,13 239 9,41 402 15,82 20 0,79 179 7,05

SWIN

SWOUT

SLOT FOR RS232 AND

NETMAN-MULTICOM

CABLES ENTRY

Ph-B

DETAIL: B

OUTPUT

Ph-A

Ph-C

54 2,13 54 2,13 ø11 0,43 L H G F E D C B A RT I S O _ A 3 _{DRAW. No} DI PAG. REV.

RPS

4 6

00

0MLMFCM13RUENIA

A

B

C

D

INPUT

GROUND

OUTPUT

OUTPUT N

BATTERY

Ph-B

DETAIL: A

INPUT

Ph-A

Ph-C

54 2,13 54 2,13 ø11 0,43

571 22, 48 162 6, 38

MASTER HP FC-UL - Series

W TCE

FRONT

FRONT

CABLES ENTRY

Fans Position and Opening for Cables entry

TOP VIEW

INPUT - OUTPUT and BATTERY Aux Connections Cables Entry

FRONT

307 12,07 _1,08 591, 5 23, 29 173 6, 81 ~ 27, 5 1,08 13,58 ~ 27,5 345 6, 1 17, 97 155 456 7,58 193 307 12,07

CLOSED

SECTION: C-C

Aux Connecctions Cables Entry

Opening for Cable entry

W/O DOOR AND PANNEL

BOTTOM VIEW

BATTERY CABLES ENTRY INPUT OUTPUT and SIGNAL CABLES ENTRY 1,75 1,75 12,24 44,5 311 1, 75 44, 5 1, 75 44, 5 2, 46 120 4, 72 62, 5 52,52,07 2,85 72,5 _44,5 285 11,22

SECTION: D-D

BOTTOM VIEW

W/O DOOR AND PANNEL

Bearing surface of cabinet

372,5 14,67 4, 33 11, 85 301 11, 85 110 301 4, 33 32, 36 110 822 0,39 10 0,39 10 1,08 27,5 2,17 55 1,08 38,05 966,5 27,5 1394 54,88

FRONT VIEW

D

D

C

C

maintained above the FC

INLET AIR

INLET AIR

OUTLET AIR

NOTE:

High temperaturerise may occur if the

minimum value indicated is not

AIR FLOW

00

L H G F E D C B A DRAW. No DI PAG. REV.

RPS

5 6

0MLMFCM13RUENIA

SWIN

SWOUT

SLOT FOR RS232 AND

NETMAN-MULTICOM

CABLES ENTRY

AUX ACONNECTIONS

DETAIL: E

MASTER HP- UL - Series W TCE

Torque specification

Bolt size

Torque Load

M10 - 3/8

40Nm

29,5lbf-ft

6

00

L H G F E D C B A DRAW. No DI PAG. REV.

RPS

6

0MLMFCM13RUENIA

Ph-B

Ph-A

Ph-C

OUTPUT N

INPUT

Ph-C

BATTERY " + "

DETAIL: G

GROUND

Ph-B

Ph-A

OUTPUT

BATTERY " - "

ALL HOLES 11 0,43

E

F

G

DETAIL: F

3,41 176 6,93 152, 5 6 452 17, 8 522 20, 55 592 23, 31 872 34, 33 942 37, 09 1008 39, 69 1085 42, 72 1166 45, 91 1231 48, 46 486 19, 14 183,5 7,22 268 10,55 3,56 90,5 86,5 265,5 10,45
