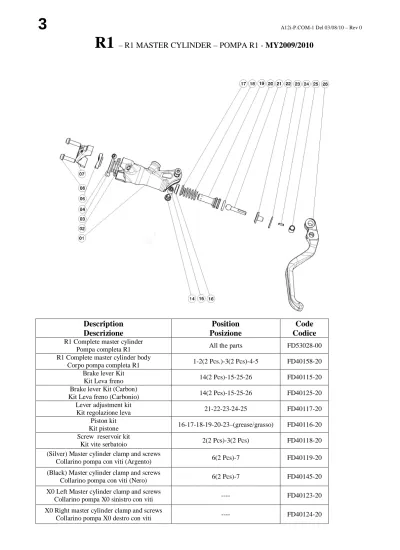

R1
– R1 MASTER CYLINDER – POMPA R1 -
MY2009/2010
Description
Descrizione
Position
Posizione
Code
Codice
R1 Complete master cylinder
Pompa completa R1 All the parts FD53028-00
R1 Complete master cylinder body
Corpo pompa completa R1 1-2(2 Pcs.)-3(2 Pcs)-4-5 FD40158-20
Brake lever Kit
Kit Leva freno 14(2 Pcs)-15-25-26 FD40115-20
Brake lever Kit (Carbon)
Kit Leva freno (Carbonio) 14(2 Pcs)-15-25-26 FD40125-20
Lever adjustment kit
Kit regolazione leva 21-22-23-24-25 FD40117-20
Piston kit
Kit pistone 16-17-18-19-20-23–(grease/grasso) FD40116-20
Screw reservoir kit
Kit vite serbatoio 2(2 Pcs)-3(2 Pcs) FD40118-20
(Silver) Master cylinder clamp and screws
Collarino pompa con viti (Argento) 6(2 Pcs)-7 FD40119-20
(Black) Master cylinder clamp and screws
Collarino pompa con viti (Nero) 6(2 Pcs)-7 FD40145-20
X0 Left Master cylinder clamp and screws
Collarino pompa X0 sinistro con viti ---- FD40123-20
X0 Right master cylinder clamp and screws
R1
– R1 MASTER CYLINDER – POMPA R1 -
MY2011
Description
Descrizione
Position
Posizione
Code
Codice
R1 Complete master cylinder
Pompa completa R1 All the parts (Except 8-22-23-24-25) FD53088-00
R1 Complete master cylinder body
Corpo pompa completa R1 1-2-3-4(2 Pcs.)-5(2 Pcs) FD40158-20
Brake lever Kit (Silver)
Kit Leva freno (Argento) 13(2 Pcs)-14-15-17 FD40156-20
Brake lever Kit (Carbon)
Kit Leva freno (Carbonio) 13(2 Pcs)-14-15-17 FD40125-20
Lever adjustment kit (with 8mm lever Bush)
Kit regolazione leva (con barilotto da 8mm) 11-12-16-17-18 FD40155-20
Lever adjustment kit (with 7,7mm lever Bush)
Kit regolazione leva (con barilotto da 7,7mm) 11-12-16-17-18 FD40151-20
Reach adjustment kit (Red anodized)
Kit pomello regolazione leva (Anodizzato rosso) 22-23-24-25 FD40153-20
FCS Kit (Red anodized)
Kit FCS (Anodizzato rosso) 8 FD10050-20
Piston kit
Kit pistone 9-10-18-19-20-21–(grease/grasso) FD40116-20
Screw reservoir kit
Kit vite serbatoio 4(2 Pcs)-5(2 Pcs) FD40118-20
(Silver) Master cylinder clamp and screws
Collarino pompa con viti (Argento) 7(2 Pcs)-6 FD40119-20
(Black) Master cylinder clamp and screws
Collarino pompa con viti (Nero) 7(2 Pcs)-6 FD40145-20
X0 Left Master cylinder clamp and screws
Collarino pompa X0 sinistro con viti ---- FD40123-20
X0 Right master cylinder clamp and screws
R1
- R1 CALIPER – PINZA R1
MY2010/2011
Description
Descrizione
Position
Posizione
Code
Codice
R1 Complete caliperPinza completa R1 All the parts (Except 1-2-4) FD50102-00
Screws kit Kit viti 1-3-4-6 FD40108-10 Piston kit (2 pcs) Kit pistoni (2 pz) 7(2 Pcs.)-8(2 Pcs.)– (grease/grasso) FD40109-10 ORing Kit Kit OR 2-8(2 Pcs.)-9 FD40110-10
Sintered brake pads kit “Mega/The one/R1/Rx” (BOX)
Kit pastiglie sinterizzate “Mega/The one/R1/Rx” (CONFEZ.) 11(2 Pcs.)-12 FD40103-10
Organic brake pads kit “Mega/The one/R1/Rx” (BOX)
Kit pastiglie organiche “Mega/The one/R1/Rx” (CONFEZ.) 11(2 Pcs.)-12 FD40105-10
Allum./Organic brake pads kit “Mega/The one/R1/Rx” (BOX)
Kit pastiglie organiche/allum. “Mega/The one/R1/Rx” (CONFEZ.) 11(2 Pcs.)-12 FD40107-10
Comfort brake pads kit “Mega/The one/R1/Rx” (BOX)
Rx/Mega/TheOne/R1
- DISCS – DISCHI -
MY2010/2011
Description
Descrizione
Position
Posizione
Code
Codice
Disc Ø160mm - 6 bolt (Solid)
Disco Ø160mm - 6 Fori (Monolitico) 2 FD50696-00
Disc Ø180mm - 6 bolt (Solid)
Disco Ø180mm - 6 Fori (Monolitico) 2 FD50697-00
Disc Ø203mm - 6 bolt (Solid)
Disco Ø203mm - 6 Fori (Monolitico) 2 FD54001-00
Disc Ø160mm - 6 bolt (Red Al.carrier)
Disco Ø160mm - 6 Fori (2pezzi int.rosso) 3 FD54010-00
Disc Ø180mm - 6 bolt (Red Al.carrier)
Disco Ø180mm - 6 Fori (2pezzi int.rosso) 3 FD54011-00
Disc Ø160mm – Center Lock (Red Al.carrier)
Disco Ø160mm – Center Lock (2pezzi int.rosso) 1 FD54012-00
Disc Ø180mm – Center Lock (Red Al.carrier)
Disco Ø180mm – Center Lock (2pezzi int.rosso) 1 FD54013-00
Disc screws kit (6 pcs.)
Kit viti disco (6 pz.) -- FD40001-50
(Titanium) Disc screws kit (6 pcs.)
Kit viti disco in titanio (6 pz.) -- FD40002-50
Center Lock Ring
R1
HYDRAULIC HOSE – TUBO IDRAULICO
Description
Descrizione
Position
Posizione
Code
Codice
Hose joint kit
Kit raccordi tubo 1-2-3-4 FD40018-40
200 cm Complete hydraulic hose
Tubo olio 200 cm completo All the parts FD50127-00
Hose cover kit (50 pcs)
Gommino copritubo (50 pcs) 5 (50 Pcs.) FD40020-40
Compression fitting kit (50 pcs)
Kit biconico (50pz) 3 (50 pz) FD40013-40
Nut kit (50 pcs)
Kit bussola di serraggio (50 pz) 4 (50 pz) FD40103-40
Pin kit (50 pcs) Kit spina (50 pz) 2 (50 pcs) FD40015-40 O-ring 6x1 kit (100 pcs) Kit o-ring 6x1 (100 pz) 8 (100 pcs) FD40016-40 O-ring 3x1 kit (50 pcs) Kit o-ring 3x1 (50 pz) 1 (50 pcs) FD40017-40
Adaptors
– ADATTATORI
Description
Descrizione
Position
Posizione
Code
Codice
Front adaptor P.M. for Ø160mm I.S.
Adattatore anteriore P.M.per I.S. Ø160 mm 1 FD40089-10
Adaptor for front Ø180mm I.S.
Adattatore PM per I.S. Ø180mm Anteriore 2 FD40062-10
Adaptor for front Ø200mm I.S.
Adattatore PM per I.S. Ø200mm Anteriore 3 FD40063-10
Adaptor for front Ø203mm I.S.
Adattatore PM per I.S. Ø203mm Anteriore 14 FD40134-10
Adaptor for front Ø220mm I.S. or rear Ø200mm I.S.
Adattatore PM per I.S. Ø220mm Anteriore o I.S. Ø200mm Posteriore 4 FD40064-10
Adaptor for rear Ø160mm I.S.
Adattatore PM per I.S. Ø160mm Posteriore 5 FD40131-10
Adaptor for rear Ø180mm I.S.
Adattatore PM per I.S. Ø180mm Posteriore 6 FD40132-10
Adaptor for rear Ø203mm I.S.
Adattatore PM per I.S. Ø203mm Posteriore 7 FD40093-10
Front adaptor P.M. for Ø180mm P.M. 6”
Adattatore anteriore P.M. per P.M. 6” Ø180mm 9 FD40074-10
Front adaptor P.M. for Ø200mm Fox F40
Adattatore anteriore P.M. per Fox F40 Ø200mm 16 FD40073-10
Front adaptor P.M. for Ø220mm Fox F40
Front adaptor P.M. for Ø180mm Marzocchi QR20
Adattatore anteriore P.M. per Marzocchi QR20 Ø180mm 18 FD40088-10
Front adaptor P.M. for Ø200mm P.M. 6”
Adattatore anteriore P.M. per P.M. 6” Ø200mm 10 FD40065-10
Front adaptor P.M. for Ø220mm P.M.
Adattatore anteriore P.M. per P.M. Ø220mm 12 FD40085-10
Front adaptor P.M. for Ø180mm Boxxer
Adattatore anteriore P.M. per Boxxer Ø180mm 19 FD40091-10
Front adaptor P.M. for Ø200mm Boxxer
Adattatore anteriore P.M. per Boxxer Ø200mm 20 FD40066-10
Front adaptor P.M. for Ø220mm Boxxer
Adattatore anteriore P.M. per Boxxer Ø220mm 21 FD40087-10
Rear adaptor P.M. for Ø220mm I.S.
Adattatore posteriore P.M. per I.S. Ø220mm 8 FD40086-10
Front adaptor P.M. for Ø180mm Fox F40
Adattatore anteriore P.M. per Fox F40 Ø180mm 15 FD40092-10
Front adaptor P.M. for Ø200mm Monster T
Adattatore anteriore P.M. per Monster T Ø200 mm -- FD40070-10
Front adaptor P.M. for Ø220mm P.M. 8”
Adattatore anteriore P.M. per P.M. 8” Ø220 mm 13 FD40106-10
Front adaptor P.M. for Ø203mm P.M. 6”
Adattatore anteriore P.M. per P.M. 6” Ø203 mm 11 FD40111-10
(Titanium) Fixing screws kit (4 pcs.)
Spare parts
- ACCESSORIES – ACCESSORI
Description
Descrizione
Code
Codice
Brake Kit display
Display per kit freno FD51024-00
Zip tie strap
Fascetta ferma tubo FD-F003-00
Grease for seals assembly
Grasso siliconico per guarnizioni EPDM FD-G015-00
Shell brake fluid DOT4 (250 ml)
Olio Shell per circuiti idraulici DOT4 (250 ml) FD-O029-00
2 syringe bleeding kit (20 ml)
Kit spurgo con 2 siringhe (20 ml) FD50902-00
Bleeding alloy syringe
Siringa spurgo in alluminio FD50903-00
Center lock adaptor
Kit adattatore Center lock FD40090-10
R1 support kit (Red box)
Kit Assistenza R1 (In scatola rossa) FD51032-00
Nut Locking Threadsealing (10 ml.)
Frenafiletti (10 ml.) FD-L026-00
Caliper Shims Kit (4 Pcs each 0.5MM + 0.2MM)
Kit spessori pinza (4 pz. 0,5 mm – 4 pz 0,2 mm) FD40030-10
Hose cutter
Pinza tagliatubi FD-P034-00
Blade for hose cutter
Lama di ricambio per pinza tagliatubi FD-L048-24
Multitools mini 6 plus Red with "Formula" logo
