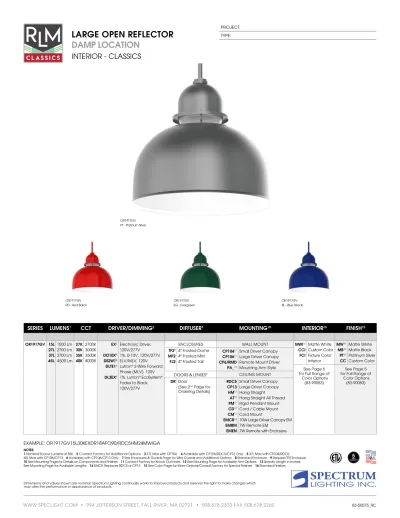

LARGE OPEN REFLECTOR DAMP LOCATION

(1)

5

YEAR WARRANTY

PROJECT:

TYPE:

WWW.SPECLIGHT.COM • 994 JEFFERSON STREET, FALL RIVER, MA 02721 • 508.678.2303 FAX 508.678.2260

Dimensions and values shown are nominal. Spectrum Lighting continually works to improve products and reserves the right to make changes which may alter the performance or appearance of products.

OR1917GV RD - Red Baron OR1917GV EG - Evergreen OR1917GV BL - Blue Streak

LARGE OPEN REFLECTOR

DAMP LOCATION

INTERIOR - CLASSICS

EXAMPLE: OR1917GV15L30KEXDR18AFO90/RDC5HM24MWIGA

SERIES LUMENS

1

CCT

DRIVER/DIMMING

2

DIFFUSER

7

MOUNTING

10

INTERIOR

15

FINISH

15

OR1917GV 15L

27L

37L

45L

1500 Lm

2700 Lm

3700 Lm

4500 Lm

27K

30K

35K

40K

2700K

3000K

3500K

4000K

EX

3

DO10X

4

DS2W1

5

DLTE1

6

DL3EX

6

Electronic Driver,

120V/277V

1%, 0-10V, 120V/277V

ELV/MLV, 120V

Lutron

®

2-Wire Forward

Phase (MLV), 120V

1%, Lutron

®

EcoSystem

®

,

Fades to Black,

120V/277V

ENCLOSURES

WALL MOUNT

MWI

16

CCI

FCI

Matte White

Custom Color

Fixture Color

Interior

MW

16

MB

16

PT

16

CC

Matte White

Matte Black

Platinum Silver

Custom Color

TF2

8

MF2

FJ2

4" Frosted Dome

4" Frosted Mini

4" Frosted Tall

CP104

11

CP106

11

CP6/RMD

PA_

12

Small Driver Canopy

Large Driver Canopy

Remote Mount Driver

Mounting Arm Style

See Page 5

for Full Range of

Color Options

(83-90083)

See Page 5

for Full Range of

Color Options

(83-90083)

DOORS & LENSES

9

CEILING MOUNT

DR

Door

(See 2

nd

Page for

Ordering Details)

RDC5

CP13

HM

13

AT

13

PM

13

CD

13

CM

13

EMCR

14

EMRM

EMEN

Small Driver Canopy

Large Driver Canopy

Hang Straight

Hang Straight All Thread

Rigid Pendant Mount

Cord / Cable Mount

Cord Mount

10W Large Driver Canopy EM

7W Remote EM

7W Remote with Enclosure

83-50075_RC

OR1917GV PT - Platinum Silver

NOTES:

1 Nominal Source Lumens at 35K 2 Contact Factory for Additional Options 3 37L Max with CP104 4 Available with CP106/RDC5/CP13 Only 5 37L Max with CP104/RDC5, 45L Max with CP106/CP13 6 Available with CP106/CP13 Only 7 See Enclosures & Guards Page for Wire Guards and Additional Options 8 Standard Enclosure 9 Requires TF2 Enclosure

10 See Mounting Page for Details on Components and Finishes 11 Contact Factory for Knock Out Holes 12 See Mounting Page for Available Arm Options 13 Specify Length in Inches: See Mounting Page for Available Lengths 14 EMCR Replaces RDC5 or CP13 15 See Color Page for More Options/Consult Factory for Special Finishes 16 Standard Finishes

(2)

WWW.SPECLIGHT.COM • 994 JEFFERSON STREET, FALL RIVER, MA 02721 • 508.678.2303 FAX 508.678.2260

HOUSING DIMENSIONS

APPLICATION

The Open Reflector RLM offers 80% downlight and 20% up-light. GV Series is designed for damp

or dry locations.

FEATURES

Spectrum Lighting's RLM Classics are inspired by vintage lighting fixtures redesigned with modern

LED light sources and materials. The wide range of options for illumination, mounting, enclosures,

guards and finishes allows for creative fixture specification and design. LED module and driver

are serviceable for future replacement.

FINISH

Multi-stage polyester powder-coat process applied on our dedicated paint lines. Variety of

standard and custom finishes are available. Interior is Matte White unless specified. Custom

Color interior finish available.

ELECTRONICS

GV LED system features high brightness white Samsung LED's. 3-step MacAdam Ellipse binning.

Standard CRI: 80+. Higher CRI, R9 and custom LED configurations are available; consult factory.

Choice of electronic 120V/277V and dimming drivers.

CONSTRUCTION

Fixture shades are spun in our factory from 0.060 high purity aluminum. Wall mount canopies

are die-cast aluminum with stainless steel hardware. Wall arms are formed 3/4 NPT aluminum

pipe and may be field cut.

CODE COMPLIANCE

BAA compliant. ETL certified to meet US and Canadian standards. Suitable for dry or damp

locations. Manufactured and tested to UL standards No. 1598/8750.

LARGE OPEN REFLECTOR

DAMP LOCATION

INTERIOR - CLASSICS

A B 18.7 475.0 mm 449.6 mm17.7 A B

LUMENS / WATTAGE DATA

PART

NUMBER LUMENSSOURCE 1 DELIVERED LUMENS2 SYSTEM WATTS LPW OR1917GV15L 1500 939 10 94 OR1917GV27L 2700 1636 18 91 OR1917GV37L 3700 2400 26 92 OR1917GV45L 4500 3030 32 95

83-50075_RC

1 Nominal Source Lumens at 35K 2 Nominal Delivered Lumens at 35K

ENCLOSURES

TF2

MF2

FJ2

4" FROSTED DOME 4" FROSTED MINI 4" FROSTED TALL

OR1917GV SHOWN WITH DR18AFO

DR18A-

18" Ø

FO-

WHITE OPTICAL ACRYLIC

DOORS

LENSES

CD

CORD / CABLE MOUNT

CM

CORD MOUNT

HM / AT / PM

HANG STRAIGHT / ALL THREAD / PENDANT

CEILING MOUNT

(SEE MOUNTING PAGES FOR MORE OPTIONS & CANOPY DIMENSIONS.)

OR1917GV SHOWN WITH RDC5PM OR1917GV SHOWN WITH RDC5CD OR1917GV SHOWN WITH RDC5CM

OR1917GV SHOWN WITH CP104PA23

WALL MOUNT

(SEE MOUNTING PAGES FOR MORE OPTIONS & DIMENSIONS.)

PA_

(3)

OR1917GV-45L-35K-EX-TF2

CANDLEPOWER CURVE INTENSITY ZONAL LUMENS SINGLE UNIT: PERFORMANCE

INITIAL FOOTCANDLES BASED ON IES BEAM ANGLE

MULTIPLE UNITS: PERFORMANCE

80/50/20% REFLECTANCES

INITIAL FOOTCANDLES AND WATTS PER SQUARE FOOT

0° 10° 20° 30° 40° 50° 60° 70° 80° 90° 0° 200 cd 400 cd 600 cd 800 cd 1000 cd 1200 cd 1400 cd 1600 cd 1800 cd 2000 cd 0.00° 0.00° 2,056 5.00° 1,966 10.00° 1,751 15.00° 1,562 20.00° 1,446 30.00° 1,265 40.00° 475 50.00° 244 60.00° 293 70.00° 285 80.00° 147 90.00° 74 0° - 10° 181 6% 0° - 20° 617 20% 0° - 30° 1,242 41% 0° - 40° 1,776 59% 0° - 60° 2,249 74% 0° - 80° 2,788 92% 0° - 90° 2,894 96% Total 3,028 100% Ceiling Height SpacingFixture

RCR 2 RCR 4 FC + _{W/Sq. Ft.} _FC+ _{W/Sq. Ft.} 8' 6' * ₈₀ _0.94 ₁₁₅ _1.67 12' 8' ** ₄₈ _0.57 ₂₅ _0.36 16' 10' *** ₃₀ _0.35 ₂₄ _0.35 Delivered Illuminance

Rating: (DIR) 85 FC per W/Sq. Ft. 69 FC per W/Sq. Ft. 2' Suspension Length

Square rooms used for multiple units: - RCR 2: Length & Width = Ceiling Ht. -4.5' x 5.00 - RCR 4: Length & Width = Ceiling Ht. - 4.5' x 2.50

+_{Average Footcandles at 2.5' Above Floor} *_{Exceeds spacing criteria by 86%} **_{Exceeds spacing criteria by 16%} ***_{Exceeds spacing criteria by -5%}

Delivered Lumens: 3,028 CP at 0deg (Nadir): 2,056 Beam Angle:66.74 Lamp Multiplier: 45L x 1

Luminaire Watts: 32 CRI: 85+ Spacing Ratio:0.92 CCT Multiplier: 27K x 0.971, 30K x 0.985, 40K x 1.03

LER: 94.63 Mounting Height AFF FC at Center on Floor Beam Diameter FC at Beam Edge 5.50 ' 68 fc 7.3 ' 33 fc 6.50 ' 49 fc 8.6 ' 24 fc 7.50 ' 37 fc 10.0 ' 18 fc 8.50 ' 28 fc 11.3 ' 14 fc 10.00 ' 21 fc 13.3 ' 10 fc 12.00 ' 14 fc 15.9 ' 7 fc 14.00 ' 10 fc 18.6 ' 5 fc 16.00 ' 8 fc 21.3 ' 4 fc

Page 1 of 1

7/2/2018

about:blank

LARGE OPEN REFLECTOR

DAMP LOCATION

INTERIOR - CLASSICS / PHOTOMETRIC DATA

(4)

SOME OPTIONS NOT AVAILABLE ON ALL FIXTURES, CONSULT SPECIFICATION SHEETS. SEE INDIVIDUAL SPECIFICATION SHEETS OR CONSULT FACTORY FOR ADDITIONAL INFORMATION. NOTE: THIS IS TYPICAL OF RLM SPECIFICATION FOR MOUNTING. INDIVIDUAL FIXTURES OR PROJECTS MAY HAVE SPECIALIZED REQUIREMENTS.

MOUNTING & ACCESSORIES

EMERGENCY BATTERY OPTIONS

REMOTE EMERGENCY BATTERY OPTIONS

Ø 9.0

EMCR -

LARGE DRIVER CANOPY FOR

10W EMERGENCY BATTERY

(FOR ROUND CEILING MOUNT TYPES)

3.25

A B C

1.3 12.6 13.0

EMRM* -

7W REMOTE EMERGENCY BATTERY

(50' MAX) A B C A B C 2.0 17.0 6.2 A B C

EMEN* -

7W REMOTE EMERGENCY BATTERY

WITH ENCLOSURE

(50' MAX)

*OTHER EM BATTERY SIZES AVAILABLE, CONTACT FACTORY.

WALL MOUNTING

CP106 -

LARGE DRIVER CANOPY

MAY BE USED AS SPLICE BOX FOR DIRECT FEED

CP104 -

SMALL DRIVER CANOPY

(STANDARD) MAY BE USED AS SPLICE BOX FOR DIRECT FEED

CP6/RMD -

REMOTE MOUNT DRIVER

MOUNTS DIRECTLY TO WALL OR OCTAGON STYLE J-BOX Ø 5.5 Ø 4.7 4.0 Ø 7.5 5.0 1.8

CUSTOM AND OTHER WALL ARMS AVAILABLE - CONTACT FACTORY. ARMS MAY BE FIELD CUT ON WALL SIDE - FIXTURE SIDE THREADED 3/4" NPT REQUIRES SEALANT FOR WET LOCATION.

PA23 _23.0 7.0 PA26 28.5 12.7 PA17 _17.0 7.0 PA22 _22.0 12.5 7.5 5.0 PA24 15.0 9.5 24.0 18.0 PA15_15.0 8.3 9.8 PA23(xx)

EXAMPLE: PA2330 - 30" PA23

SPECIFY LENGTH 7.0

SP90(xx)

Designed for Straight Arm Mounting

SPECIFY LENGTH

EXAMPLE: SP9024 - STRAIGHT PIPE 24" LONG

EXAMPLE: PA90W20D07 - 90° PIPE 20 LONG 7" DEEP THREADED AT FIXTURE END

PA90 (Wxx)(Dxx) SPECIFY LENGTH (Wxx) SPECIFY DROP (6.5 Minimum) (Dxx) PA32 32.6 30.0 19.5 10.5 32.2 PA901212 12.0 12.0 PA36 7.0 36.0 PA48 _48.0 7.0

PA16 - Front Wall Mount

13.0

WALL

15.0

25.0

PA16F - Back Wall Mount

13.0 20.0 WALL 25.0

CEILING MOUNTING

Ø 5.3 2.5 45°

HM*

HANG STRAIGHT 45° SWIVEL 1/2" STEM - 3/8" NPT ORDER: HM (Length) SPECIFY LENGTH: HM3 - 3" HM6 - 6" HM12 - 12" HM18 - 18" HMLC(XX) Custom Length (Specify in Inches) HM24 - 24" HM36 - 36" HM48 - 48" HM72 - 72" ADJUST AND LOCKS

CD

CORD / CABLE MOUNT

SJ CORD WITH 1/16 SS CABLE

ORDER: CD (Length) SPECIFY LENGTH: CD36 - 36" CD72 - 72" CD144 - 144" CDLC(XX) Custom Length (Specify in Inches)

CM

CORD MOUNT

SJ CORD WITH STRAIN RELIEF

ORDER: CM (Length) SPECIFY LENGTH: CM36 - 36" CM72 - 72" CM144 - 144" CMLC(XX) Custom Length (Specify in Inches) FIELD CUTABLE 45°

AT**

HANG STRAIGHT ALL THREAD

45° SWIVEL 1/2" STEM - 1/4" IP

CP13 -

LARGE DRIVER CANOPY

Ø 7.0 2.6

RDC5 -

SMALL DRIVER CANOPY

(STANDARD)

MOUNTS TO 4” OCTO J-BOX RIGID 1/2" STEM - 3/8" NPT

0°

PM*

RIDGID PENDANT MOUNT

PM24 - 24" PM36 - 36" PM48 - 48" PM72 - 72" ORDER: PM (Length) SPECIFY LENGTH: PM3 - 3" PM6 - 6" PM12 - 12" PM18 - 18" PMLC(XX) Custom Length (Specify in Inches)

*MAXIMUM ONE PIECE STEM LENGTH IS 72". **MAXIMUM ONE PIECE STEM LENGTH IS 36". LONGER LENGTHS ARE POSSIBLE USING MULTIPLE STEMS AND COUPLERS. **ORDER IN 12" INCREMENTS, ODD SIZES MAY BE FIELD CUT

ORDER: AT (Length) SPECIFY LENGTH:

AT12 - 12"

AT24 - 24"

AT36 - 36"

FIELD CUT THREADED PIPE TO LENGTH NEEDED

SLIP "PIPE COVER" OVER THREADED PIPE CUT "PIPE COVER 3/4" SHORTER THAN THREADED PIPE

(5)

WWW.SPECLIGHT.COM • 994 JEFFERSON STREET, FALL RIVER, MA 02721 • 508.678.2303 FAX 508.678.2260

NOTE: NO PRINTED IMAGE CAN EQUAL THE EXACT COLOR OF FINISH ON METAL. SEE INDIVIDUAL SPECIFICATION SHEETS OR CONSULT FACTORY FOR ADDITIONAL INFORMATION.

COLOR OPTIONS - POWDER COAT PAINT FINISHES

FIXTURE COLOR STANDARD CORD COLOR STANDARD CANOPY / STEM COLOR

Matte White, Textured White Matte White Matte White

Gloss White Matte White Gloss White

Matte Black, Gloss Black, Textured Black Matte Black Matte Black All Others Matte Black Same Color as Fixture Custom Color Contact Factory Contact Factory

TIER COST AVERAGE PAINT TIME*

Tier 1 - Standard Finishes $ Tier 2 - Typical Finishes $$ Tier 3 - Special Metal Finishes $$$

Custom Color Contact Factory Contact Factory

STANDARD CORD / STEM / CANOPY FINISHES

PAINT TIMES

TIER 1 - STANDARD FINISHES

BZ

Bronze

GB

Gloss Black

GW

Gloss White

TW

Textured White

MT*

Textured Silver

SN

Sun Gold

CO

Copper Metallic

BR

Brecchia

GH

Graphite

CH

Charcoal

AL

Almond

AS

Anodic Sapphire

AN

Anodic Natural

AC

Anodic Champagne

AZ

Anodic Bronze

AK

Anodic Black

AM

Anodic Malachite

LG

Lime Green

LB

Light Blue

BY

Burgundy

TB

Textured Black

OB*

Oil Rubbed Bronze

VE

Verde Green

RD

Red Baron

OR

Orange

CM

Camel

PL

Purple

PG

Pub Green

TQ

Turquoise

AY

Aero Yellow

EG

Evergreen

BL

Blue Streak

SF

Sea Foam

PK

Pink

MW

Matte White

PT

Platinum Silver

MB

Matte Black

TIER 2 - TYPICAL FINISHES

TIER 3 - SPECIAL METAL FINISHES

GA*

Galvanized

CUSTOM COLOR FINISHES

CONTACT FACTORY

CC

Custom Color

*

UNAVAILABLE FOR WET LOCATION

CC

*

CONTACT FACTORY FOR SPECIFIC PRODUCT LEAD TIMES

GF*

Gold Flake
