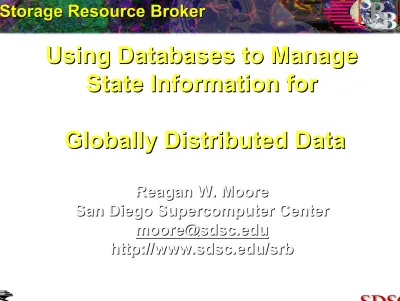

Using Databases to Manage State Information for. Globally Distributed Data

(1)

Using Databases to Manage

State Information for

Globally Distributed Data

Storage Resource Broker

Reagan W. Moore

San Diego Supercomputer Center

[email protected]

http://www.

(2)

Abstract

• The management of globally distributed data is

simplified through the use of data grids which enable data sharing environments. Data grids provide:

• Interoperability mechanisms needed to interact with legacy storage systems and legacy applications

• Logical name spaces needed to identify files, resources, and users.

• Consistent management of state information about each file within the distributed environment.

• Access controls, descriptive metadata, and administration metadata.

• These capabilities enable data virtualization, the

ability to manage data independently of the chosen storage repositories.

• Examples of management of globally distributed data include data grid federation, distributed digital libraries, and distributed persistent archives.

(3)

Research Questions

•

How do we build global data

management systems that rely on

database technology to support state

information?

•

Is the current state of the art sufficient,

or do we need extensions to current

database technology?

(4)

Global Data Management Precursor

•

1994 - Alternative Architecture Study for

NASA Earth Observing Satellite EOSDIS

•

Mike Stonebraker, Jim Grey, Jeff Dozier,

William Farrell, Reagan Moore

•

Proposed aggressive use of database

technology to manage

• 3 TBs data ingestion per day from multiple sites

• Replication of data

• 15 PB archive

• Discovery and manipulation of the collection

(5)

Data Grid Evolution

• 1995 - DARPA Massive Data Analysis Systems

• 1997 - DARPA/USPTO Distributed Object Computation Testbed

• 1998 - NSF National Partnership for Advanced Computational Infrastructure

• 1998 - DOE Accelerated Strategic Computing Initiative data grid • 1999 - NARA persistent archive

• 2000 - NASA Information Power Grid • 2001 - NLM Digital Embryo digital library • 2001 - DOE Particle Physics data grid

• 2001 - NSF Grid Physics Network data grid

• 2001 - NSF National Virtual Observatory data grid

• 2002 - NSF National Science Digital Library persistent archive • 2003 - NSF Southern California Earthquake Center digital library • 2003 - NIH Biomedical Informatics Research Network data grid

• 2003 - NSF Real-time Observatories, Applications, and Data management Network

• 2004 - NSF ITR, Constraint based data systems

• 2005 - LC Digital Preservation Lifecycle Management

(6)

Terminology

•

1998

•

Data Grid, a data management system that

organizes distributed data into collections

•

Data Grid - data virtualization

•

2000

•

Persistent Archive, a data management

system that handles technology evolution

•

Persistent Archive - infrastructure

independence

(7)

Data Grids: First Viewpoint

•

Create a

shared collection

which

manages state information independently

from the storage systems

•

Build a metadata catalog to store state

information

•

Separate data access mechanisms from

storage access mechanisms

(8)

Trust Virtualization

•

Shared collection owns the data

•

At each remote storage system, an account ID

is created under which the data grid stores

files

•

User authenticates to the data grid

•

Data grid checks access controls

•

Data grid server authenticates to a

remote data grid server

•

Remote data grid server authenticates

(9)

Data Grids

•

Largest single data grids

• ROADnet real-time sensor network, links 90 object ring buffers supporting 24,000 sensors

• BaBar high energy physics, distributes SLAC collections to Lyon,France and Rome, Italy

• Biomedical Informatics Research Network, links data resources across 25 institutions within the US

•

Largest data grid federations

• KEK high-energy physics federation of 7 data grids between Japan, South Korea, China, Taiwan,

Australia, Poland, US

• WUN federation of 5 academic institutions (SDSC, NCSA, U Bergen, U Southampton, U Manchester)

• NARA Research Prototype Persistent Archive (SDSC, U Maryland, NARA, GA Tech)

(10)

Data Grids: Second Viewpoint

•

Support data management applications

•

Automate all aspects of data discovery,

access, management, analysis, preservation

•

Security paramount

•

Distributed data

•

Provide distributed data support for

•

Data sharing - data grids

•

Data publication - digital libraries

•

Data preservation - persistent archives

(11)

Generic Data Management

•

Data grids provide capabilities needed by

digital libraries and persistent archives

•

Infrastructure independence to manage a collection

distributed across multiple storage systems

•

Descriptive metadata to describe authenticity

context of each file

•

Administrative metadata to maintain integrity

• Location, replicas, checksums, audit trails, ownership, access controls, versions, locks, pinning, aggregation

•

Data grids are implemented as middleware

(12)

SRB server SRB agent SRB server

Federated Server Architecture

MCAT Read Application SRB agent 1 2 3 4 6 5 Logical Name Or Attribute Condition 1.Logical-to-Physical mapping 2.Identification of Replicas 3.Access & Audit Control

Peer-to-peer Brokering Server(s) Spawning Data Access Parallel Data Access R1 R2 5/6

(13)

Unix Shell NT Browser, Kepler Actors OAI, WSDL, (WSRF), GridFTP HTTP, DSpace, Fedora, OpenDAP Archives - Tape, Sam-QFS, DMF, HPSS, ADSM, UniTree, ADS Databases -DB2, Oracle, Sybase, Postgres, mySQL, Informix File Systems Unix, NT, Mac OSX Application ORB

Storage Repository Abstraction Database Abstraction Databases -DB2, Oracle, Sybase, Postgres, mySQL, Informix C Library, Java Logical Name Space Latency Management Data Transport Metadata Transport Consistency & Metadata Management / Authorization, Authentication, Audit

Linux I/O C++ DLL / Python, Perl, Windows Federation Management

Storage Resource Broker 3.3.1

(14)

Storage Resource Broker Collections at SDSC (8/2/2005) GBs of data stored Number of files Users with ACLs Data Grid Ê Ê Ê

NSF/ITR - National Virtual Observatory 53,862 9,536,751 100

NSF - National Partnership for Advanced Computational Infrastructure 36,149 7,539,180 380

Static collections Ğ Hayden planetarium 8,013 161,352 227

Pzone Ğ public collections 12,998 6,707,952 68

NSF/NPACI - Biology and Environmental collections 40,155 76,083 67 NSF/NPACI Ğ Joint Center for Structural Genomics 15,731 1,577,260 55 NSF - TeraGrid, ENZO Cosmology simulations 176,730 2,125,945 3,267 NIH - Biomedical Informatics Research Network 10,561 7,596,888 303

Digital Library Ê Ê Ê

NSF/NPACI - Long Term Ecological Reserve 256 9,033 36

NSF/NPACI - Grid Portal 2,620 53,048 460

NIH - Alliance for Cell Signaling microarray data 741 84,594 21

NSF - National Science Digital Library SIO Explorer collection 2,733 1,083,998 27 NSF/ITR - Southern California Earthquake Center 131,010 2,702,421 73

Persistent Archive Ê Ê Ê

NHPRC Persistent Archive Testbed (Kentucky, Ohio, Michigan, Minnesota) 100 382,186 28

UCSD Libraries archive 4,147 408,050 29

NARA- Research Prototype Persistent Archive 1,478 893,434 58

NSF - National Science Digital Library persistent archive 3,600 27,034,150 136

(15)

Infrastructure Independence

•

Data virtualization

•

Management of name spaces independently

of the storage repositories

• Global name spaces

• Persistent identifiers

• Collection-based ownership of files

•

Support for access operations independently

of the storage repositories

• Separation of access methods from storage protocols

(16)

Separation of Access Method

from Storage Protocols

Storage System

Storage Protocol

Access Method

Access Operations

Data Grid

Map from the

operations used by

the access method

to a standard set of

operations used to

interact with the

storage system

Storage Operations

(17)

Data Grid Operations

• File access

• Open, close, read, write, seek, stat, synch, …

• Audit, versions, pinning, checksums, synchronize, …

• Parallel I/O and firewall interactions

• Versions, backups, replicas

• Latency management • Bulk operations

• Register, load, unload, delete, …

• Remote procedures

• HDFv5, data filtering, file parsing, replicate, aggregate

• Metadata management

• SQL generation, schema extension, XML import and export, browsing, queries,

• GGF, “Operations for Access, Management, and Transport at Remote Sites”

(18)

Latency Management

-

-Bulk Operations

Bulk Operations

•

Bulk register

• Create a logical name for a file

• Load context (metadata)

•

Bulk load

• Create a copy of the file on a data grid storage repository

•

Bulk unload

• Provide containers to hold small files and pointers to each file location

•

Bulk delete

• Trash can

(19)

Examples of Extensibility

• The 3 fundamental APIs are C library, shell commands, Java

• Other access mechanisms are ported on top of these interfaces

• API evolution

• Initial access through C library, Unix shell command

• Added iNQ Windows browser (C++ library)

• Added mySRB Web browser (C library and shell commands)

• Added Java (Jargon)

• Added Perl/Python load libraries (shell command)

• Added WSDL (Java)

• Added OAI-PMH, OpenDAP, DSpace digital library (Java)

• Added Kepler actors for dataflow access (Java)

(20)

Examples of Extensibility

• Storage Repository Driver evolution • Initially supported Unix file system

• Added archival access - UniTree, HPSS

• Added FTP/HTTP

• Added database blob access

• Added database table interface

• Added Windows file system

• Added project archives - Dcache, Castor, ADS

• Added Object Ring Buffer, Datascope

• Added GridFTP version 3.3

• Database management evolution • Postgres

• DB2

• Oracle

• Informix

• Sybase

(21)

Logical Name Spaces

Storage Repository • Storage location

• User name • File name

• File context (creation date,…) • Access constraints

Data Access Methods (C library, Unix, Web Browser)

Data access directly between

application and storage

repository using names

required by the local

repository

(22)

Logical Name Spaces

Storage Repository • Storage location

• User name • File name

• File context (creation date,…) • Access constraints

Data Grid

• Logical resource name space • Logical user name space

• Logical file name space • Logical context (metadata)

• Control/consistency constraints Data Collection

Data Access Methods (C library, Unix, Web Browser)

(23)

Federation Between Data Grids

Data Grid

• Control/consistency constraints Data Collection B

Data Access Methods (Web Browser, DSpace, OAI-PMH)

Data Grid

• Control/consistency constraints Data Collection A

Access controls and consistency constraints on cross registration of digital entities

(24)

Types of Federation

•

Peer-to-peer grids

• Data grids forward requests for access to public data

•

Hierarchical grids

• Master - slave

• All files in slave data grid are replicated from the master data grid

• Central archive

• Multiple independent data grids deposit replicas into a central archive

•

Replication grids

• Two independent data grids serve as back-up sites for each other

(25)

Data Management Systems

•

Digital Libraries

• DSpace services for ingestion and description of files -ported on top of SRB data grid

• Fedora relationship management services, port on top of SRB data grid in test

• Cheshire integration on top of SRB data grid

• OAI-PMH interface to the SRB data grid

•

Persistent archives

• Manage authenticity, integrity, and infrastructure independence

• Integrate preservation processes on top of SRB data grid

(26)

Chronopolis

Preservation Facility

NCAR U Md SDSC

MCAT MCAT MCAT

Deep Archive at NARA, no user access but complete copy

Replicated copy

at U Md for improved access, load balancing and disaster recovery

Active archive at SDSC, user access Demonstrate preservation environment • Authenticity • Integrity • Management of technology evolution

• Mitigation of risk of data loss • Replication of data • Federation of catalogs • Management of preservation metadata • Scalability • 3 collections / year

• Support 100 TBs per site

Federation of Three

Independent Data Grids

(27)

Distributed Metadata Management

•

Database specific replication

•

Oracle

•

Master-slave catalogs across vendors

•

Synchronize an independent metadata catalog

with state from primary catalog

•

SRB version 3.4

•

Master-slave catalog federation

between data grids

•

How to enforce data grid administration

(28)

Data Grids: Third Viewpoint

•

Require ability to apply dynamic

consistency constraints to state

information

•

When federating data grids

•

When modifying views of collections

•

When managing data placement

•

When asserting global properties (creating

consistent state across the collection)

• Synchronization of replicas

(29)

State Information Context

•

Need to be able to characterize the

consistency constraints that are evaluated

when updating state information

•

Example - copying data

• Replica (intent that copy be synchronized)

• Version (intent that copy be labeled)

• Backup (intent that copy represent time snapshot)

• New file (intent that copy be independent of original)

• Could change intent of the copy, changing the required state information

(30)

Dynamic Constraints

•

Need technology that manages

•

Reification of consistency rules into metadata

•

State information about the reification

• Version of consistency rules that were evaluated

• Time stamp for when the evaluation was done

• Granularity within the collection for which the reification is valid

•

Require two versions

•

Management of procedural execution of rules

(31)

Projects

•

Monash University / NSF National

Science Digital Library / NARA

Persistent Archive

•

Integration of Fedora and SRB data grid

•

SDSC - NSF ITR on Constraint-based

Knowledge Systems for Grids, Digital

Libraries, and Persistent Archives

•

Embedding of dynamic constraint

(32)

For More Information

Reagan W. Moore

San Diego Supercomputer Center

[email protected]
