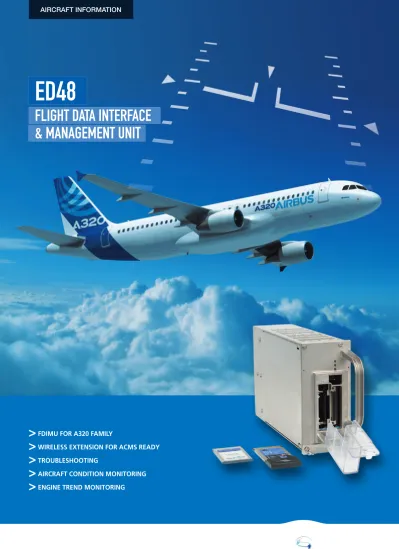

FDIMU FOR A320 FAMILY
>
WIRELESS EXTENSION FOR ACMS READY
>
TROUBLESHOOTING
>
AIRCRAFT CONDITION MONITORING
>
ENGINE TREND MONITORING
AIRCRAFT INFORMATION
ED48
FLIGHT DATA INTERFACE
& MANAGEMENT UNIT
>
FDIMU FOR A320 FAMILY
>
WIRELESS EXTENSION FOR ACMS READY
>
TROUBLESHOOTING
>
AIRCRAFT CONDITION MONITORING
>
ENGINE TREND MONITORING
AIRCRAFT INFORMATION
ED48
FLIGHT DATA INTERFACE
& MANAGEMENT UNIT
>
FDIMU FOR A320 FAMILY
>
WIRELESS EXTENSION FOR ACMS READY
>
TROUBLESHOOTING
>
AIRCRAFT CONDITION MONITORING
>
ENGINE TREND MONITORING
AIRCRAFT INFORMATION
ED48
FLIGHT DATA INTERFACE
& MANAGEMENT UNIT
SAGEM
Arcs de Seine – 18/20 quai du Point du Jour - 92659 Boulogne-Billancourt Cedex - France Tel.: + 33 1 55 60 39 36 - Fax: + 33 1 55 60 38 95
www.sagem.com - www.cassiopee.aero
P U T Y O U R F L I G H T D A T A T O W O R K
ED48
Flight data interface & management unit
Highly reconfigurable, the ED48 meets
the aircraft operators and MROs’ needs. In
addition to flight data monitoring (FOQA/
MOQA), the ACMS provides troubleshooting
for system fault conditions such as electrical
power, pitot heater, pneumatic system or
engine trim failures.
ACMS traditional uses:
Engine & aircraft trending condition
monitoring
• Take-off
• Cruise
• APU
• Airplane performance
Engine exceedance monitoring
• Overspeed / Overtemp
• Vibrations
Airframe structural exceedance
monitoring
• Hard landing
Other uses
• Weather reporting
• QAR continuous data recording
• BITE monitoring
• Sensor failure detection
Wireless Ready:
• WEFA Plug & Play capability
• Worldwide 3G Connection
• 100 % Data Transfer
Key ACMS features
• Real time ACMS monitoring & reporting
• Comprehensive ACMS reprogramming for customized detections, computing & recording
• Communication protocols with ACARS, MCDU, Printer, CFDS, MDDU/PDL & Ethernet bus
Key FDIMU features
• Selectable Supplier Furnished Equipment (SSFE) for
A318/A319/A319CJ/A320/A321
• Dimensions: 3 MCU • Weight: < 4.5 Kg
• Power supply: 115V - 400Hz • Two independent processors • Data acquisition: per Airbus request • FDR output: up to 2048 words/sec • Up to 10 databases
• ACMS recorder: PCMCIA & SD cards
Adapted to the specific requirements of the
Airbus A320 family, the ED48 FDIMU combines
mandatory flight data acquisition and high
performance monitoring capabilities into a
single unit.
Sagem ma
y, a
t an
y time and without notic
e, mak e changes or impr ov emen ts t o the pr oduc ts and ser vic es offer ed and/or c ease pr oducing or c ommer cializing them. Sagem is the c ommer
cial name of the c
ompan y Sagem D éfense S écurit é - P rin ted in F ranc e - © Sagem, A irbus SAS - D1473 - 05/2011 Engine Monitoring Actuator Monitoring Airframe structural Monitoring Fuel consumption Monitoring Landing Gear & Breaks Monitoring Sensor Failure Detection APU Monitoring FDR FDIMU (ED48) WEFA Ready Wireless 3G+ OR PCMCIA Card
Flight Data QAR FOQA
Predictiv e Maintenance Actions DAR MOQA Oper ational recommendations
