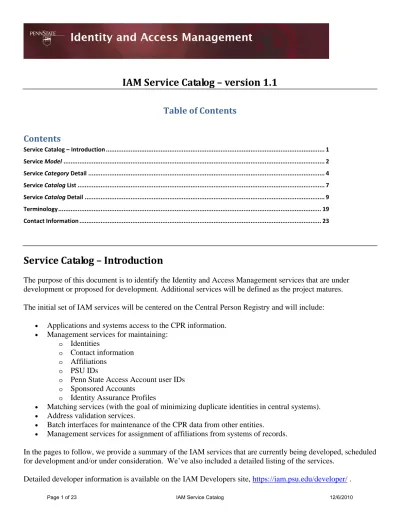

IAM Service Catalog version 1.1

(1)

IAM

Service

Catalog

–

version

1.1 Table

of

Service

Catalog

–

Introduction

The purpose of this document is to identify the Identity and Access Management services that are under

development or proposed for development. Additional services will be defined as the project matures.

The initial set of IAM services will be centered on the Central Person Registry and will include:



Applications and systems access to the CPR information.



Management services for maintaining:

o

Identities

o

Contact information

o

Affiliations

o

PSU IDs

o

Penn State Access Account user IDs

o

Identity Assurance Profiles



Matching services (with the goal of minimizing duplicate identities in central systems).



Address validation services.



Batch interfaces for maintenance of the CPR data from other entities.



Management services for assignment of affiliations from systems of records.

In the pages to follow, we provide a summary of the IAM services that are currently being developed, scheduled

for development and/or under consideration. We’ve also included a detailed listing of the services.

(2)

Service

Model

The following page provides a high level model of the IAM Services.

(3)

SPONSORED ACCOUNTS …

PSU ID…

CONTACT & IDENTITY INFO ...

IDENTITY ASSURANCE PROFILE ... AFFILIATION …

MATCHING …

ADDRESS VALIDATION…

BATCH INTERFACES ...

This is a high level overview of the IAM services. December 3, 2010

ServiceModelDiagram.vsd

IAM SERVICE MODEL

Message Services:

Get/Find

Add

Update

Delete

Service Provider Registration Authority SERVICE MODEL IAM Systems of Record

CENTRAL PERSON REGISTRY

GENERALIZED INTERFACE

CENTRAL PERSON REGISTRY CENTRAL PERSON REGISTRY

CENTRAL PERSON REGISTRY

(4)

Service

Detail

The following pages provide a high level description of the IAM Services by Category.

(5)

ServiceCategory

‐

Detail

ServiceCategory Category Description

Affiliation This collection of services enables an authorized registration authority to add, delete, or update

an affiliation type and modifier for a person.

Registration authorities and authorized principals also have the capability to retrieve

information about a person’s internal affiliation (PSU affiliates) and external affiliations (e.g.

affiliates from another university or federation e.g eduPerson).

Codeset This collection of services retrieve information about an Integrated Business Information

Systems (IBIS) or Student Information Systems (ISIS) codeset. These services are provided by the

Generalized Interface and will be called by the Central Person Registry system.

Contact Info The contact information about a person maintained in the Central Person Registry includes: •Name

•Address (multiple addresses)

•E‐mail •Phone •Photo (ID+)

This collection of services enables an authorized registration authority to add, delete, or update

contact information for a person.

Registration authorities and authorized principals also have the capability to retrieve contact

information about a person.

Interfaces to service providers will include messaging (e.g. an address has changed, etc.). Validation services are included that will process data elements as input and 1) standardization

of content 2) validate if address exists.

The next release of the Central Person Registry will include services that:

•provide for “blocking” and ”un‐blocking” a person from the registry. E.g. to block their wireless •provide for “enabling” and “disabling” a person in the registry. E.g. for authentication.

•include a collection of ID+ picture services that will obtain the photo via a) data view b) web

service or c) LDAP jpeg photo.

•will provide the ability to flip address types of persons (e.g summer, winter, fall, temporary,

etc.)

•logging of email

Departmental Identity A future collection of services related to university organizational units. For example,

Information Technology Services, Adinistrative Information Services, Outreach, World Campus,

University Budget Office, etc..

IAP This collection of services enables authorized principles to retrieve Identity Assurance Profiles

for Penn State persons and persons external to Penn State.

The next release of the Central Person Registry will include services that will update the Identity

Assurance Profile level and retrieve data associated with a registration event.

Location A future collection of services related to university locations. For example, Room 223 Computer

(6)

ServiceCategory Category Description

Matching This collection of services will allow an authorized principal to locate persons within the Central

Person Registry via various combinations of data.

PSUID This collection of services enables a registration authority and authorized principals the

capability to assign a PSU ID to a person in the Central Person Registry, as well as the capability

to retrieve, delete and update the PSU ID for a person.

The next release of the Central Person Registry will include services that will provide the ability

to update CIDR with the PSU ID.

Registration Authority The next release of the Central Person Registry will include services that will enable authorized

principals to add, delete, suspend and retrieve data for registration authorities.

In addition, services will be developed around the collection of registration and proofing data for

a person.

Sponsored Account The second release of IAM services will include services to enable authorized principals to add,

delete, disable and retrieve data for sponsored accounts.

USERID This collection of services enables an authorized principal to add, delete, update and retrieve

information for persons USER ID.

(7)

Service

Catalog

List

(8)

ServiceCatalog

‐

List

Note: An "F" next to the service name indicates a "Future" service. (e.g. not part of the first release)

Service Category / Service Name

AFFILIATION

Get Internal Affiliations

Add Affiliation

Update Affiliation

Delete Affiliation

Get User Affiliations

F

Get External Affiliations

CODESET

Get ISIS Codeset

Get IBIS Codeset

CONTACT INFO

Update Person

Update Address Type

F Log Email F Unblock Person F Block Person F Disable Person F Get Phone

Get Photo ID Plus

F

Set Primary Email Address

Add Phone

Add Address

Validate Address

Get Person Service

Enable Person F Get Email Delete Address Add Name CONTACT INFO Delete Name Get Name Update Name Update Address Delete Email Add Person Update Email Delete Phone Get Address Update Phone Delete Person Add Email DEPARTMENTAL Departmental Identity F IAP

Get Registration Events IAP

F

Update IAP

F

Get External Identity Assurance Profile

Get PSU Identity Assurance Profile

LOCATION

Location F

MATCHING

Get Match Codes

Find User PSUID Get PSU ID PSUID Get PSU ID by SSN Update PSU ID F Delete PSU ID F

Update CIDR PSU ID

F

Get Next PSU Id

Add PSU ID

REGISTRATION AUTHORITY

Add Registration Authority Agent

F

Suspend Registration Authority Agent

F

Get Registration Authority Status

F

Proof User

F

Register User

F

Delete Registration Authority Agent

F

SPONSORED ACCOUNT

Add Sponsored Account

F

Update Sponsored Account

F

Disable Sponsored Account

F

Enable Sponsored Account

F SSN Update CIDR SSN F USERID Update UserID F Delete UserID F Get Userid Add Userid

(9)

Service

Catalog

Detail

(10)

Service

Catalog

‐

Detail

Service Name Description Requestor Provider

Id

Future / Dependent Service

AFFILIATION

Category:

Add Affiliation This service enables an authorized Registration Authority to add an

affiliation (type and modifier) for a user. The calling parameters to the

service specify the affiliation type and its associated modifier. If the

type and modifier do not represent a valid affiliation, the service

returns an error. If user has no affiliation relationship one is created. If

an affiliation relationship exists and the current and new match, return

success. If the affiliations do not match and the affiliation transition is

valid, expire current affiliation and create new affiliation relationship.

Otherwise return exception. The service returns either an exception

(reason the add didn't happen) or success.

Registration Authority/Central

Person Registry

Central Person

Registry

6 No / No

Delete Affiliation This service enables an authorized Registration Authority to delete

(archive) an affiliation for a user. The calling parameters to the service

specify the affiliation type and affiliation modifier. If the user has the

specified affiliation, it will be archived. The service returns either an

exception (reason the remove didn't happen) or success.

Person Registry

Central Person

Registry

9 No / No

Get External Affiliations This service enables all authorized principals to retrieve external

affiliations, i.e. eduPerson for a user. The service returns either an

exception (reason the retrieve didn't happen) or success.

Person Registry/Ser

Central Person

Registry

15 No / No

Get Internal Affiliations This services allow authorized principals to retrieve Penn State

affiliations for a user. This service returns either an exception (reason

retrieve didn't happen) or success.

Person Registry/Ser

Central Person

Registry

12 No / No

Get User Affiliations A service to be developed in the next release that will obtain all of the

user's that have a particular affiliation.

to be determined Central Person

Registry

43 Yes / No

Update Affiliation This service enables an authorized Registration Authority to update an

affiliation for a user. The calling parameters to the service specify the

affiliation type and modifier. If user has no affiliation relationship one

is created. If an affiliation relationship exists and the current and new

match return success. If the affiliations do not match and the affiliation

transition is valid, expire current affiliation and create new affiliation

relationship. Otherwise return exception. The service returns either

an exception (reason the update didn't happen) or success.

Registration Authority/Central Person Registry Central Person Registry 16 No / No CODESET Category:

(11)

Service Name Description Requestor Provider Id Future / Dependent Service CODESET Category:

Get IBIS Codeset Retrieves information about an IBIS Codeset code. Retrieves an IBIS

codeset. The response size arrays are 1:? Indicating the returned array

will be the sized to fit the number of values in the codeset. This is

available from the Generalized Interface

https://es.ais.psu.edu/gitools/controller?page=serviceInfo&lookupId=g etIbisCodeset .

Central Person Registry Generalized Interface

71 No / Yes

Get ISIS Codeset Retrieves an ISIS codeset. The response size arrays are 1‐? Indicating

the returned array will be the sized to fit the number of values in the

codeset. This is available from the Generalized Interface

https://es.ais.psu.edu/gitools/controller?page=serviceInfo&lookupId=g etIsisCodeset .

72 No / Yes

CONTACT INFO

Category:

Add Address This service will enable an authorized registration authority to be able

to add an address for a user. The calling parameters to the service will

specify the address along with the address type. If the user already has

an address of the type specified, it will be expired prior to the new

address being added. In addition, since we are dealing with an address

it will cause new match codes to be generated and interfacing with

service providers to let them know of the new address change. The

service will either return an exception (with the reason the add did not

happen) or success. Registration Authority/Central Person Registry Central Person Registry 1 No / No

Add Email This service will enable an authorized registration authority to be able

to add an e‐mail address for a user. The calling parameters to the

service will specify the e‐mail address along with the e‐mail address

type. If the user already has an e‐mail address of the type specified, it

will be expired prior to the new e‐mail address being added. The

Add Name This service will enable an authorized registration authority to be able

to add a name for a user. The calling parameters to the service will

specify the name along with the name type. If the user already has a

name of the type specified, it will be expired prior to the new name

being added. The service will either return an exception (with the

reason the add did not happen) or success.

Person Registry

Central Person

Registry

(12)

Service Name Description Requestor Provider Id Future / Dependent Service CONTACT INFO Category:

Add Person This service will enable an authorized registration authority to be able

to add a person to the registry. The calling parameters to the service

will specify a minimal amount of data necessary for matching. If the

user already exists in the registry, an exception will be returned to the

user to indicate that along with the pertinent data. Otherwise, the user

will be added to the registry and the service providers will be notified

of the new person. The service will either return an exception (with

the reason the add did not happen) or success.

Registration Authority Central Person

Registry

30 No / No

Add Phone This service will enable an authorized registration authority to be able

to add an phone number for a user. The calling parameters to the

service will specify the phone along with the phone type. If the user

already has a phone of the type specified, it will be expired prior to the

new phone being added. The service will either return an exception

(with the reason the add did not happen) or success.

Person Registry

Central Person

Registry

22 No / No

Block Person A service to be developed in the next release will enable an

authorized registration authority to be able to block a person to the

registry (for wireless).

Registry

47 Yes / No

Delete Address This service will enable an authorized registration authority to be able

to delete (archive) an address for a user. The calling parameters to this

service will specify which address to archive. Since address is used by

service providers, they will be notified of the archival. The service will

either return an exception (with the reason the add did not happen) or

success. Registration Authority/Central Person Registry Central Person Registry 3 No / No

Delete Email This service will enable an authorized registration authority to be able

to delete (archive) an e‐mail address for a user. The calling parameters

to this service will specify which e‐mail address to archive. Since name

is used by service providers, they will be notified of the archival. The

service will either return an exception (with the reason the archive did

not happen) or success.

Person Registry

Central Person

Registry

11 No / No

Delete Name This service will enable an authorized registration authority to be able

to delete (archive) a name for a user. The calling parameters to this

service will specify which name to archive. Since name is used by

service providers, they will be notified of the archival. The service will

either return an exception (with the reason the archive did not happen)

or success. Registration Authority/Central Person Registry Central Person Registry 5 No / No

(13)

Delete Person This service will enable an authorized registration authority to be able

to delete a person to the registry. In the case of a delete, the user data

will not be removed, it will be archived. However data that exists on

the various service providers could be deleted. That decision is up to

the service provider. The service will either return an exception (with

the reason the add did not happen) or success.

Registration Authority/Other

authorized entity

Central Person

Registry

32 No / No

Delete Phone This service will enable an authorized registration authority to be able

to delete (archive) an phone number for a user. The calling parameters

to this service will specify which phone number type to archive. Since

phone number is used by service providers, they will be notified of the

archival. The service will either return an exception (with the reason

the add did not happen) or success.

Person Registry

Central Person

Registry

24 No / No

Disable Person A service to be developed in the next release will enable an authorized

registration authority to be able to disable a person to the registry (for

authentication).

Registry

46 Yes / No

Enable Person A service to be developed in the next release will enable an authorized

registration authority to be able to enable a person to the registry (for

authentication).

Registry

45 Yes / No

Get Address This service will enable an authorized agent to obtain address

information for a user in the CPR. The service will either return an

exception (with the reason the get did not happen) or success.

Person Registry

Central Person

Registry

21 No / No

Get Email This service will enable an authorized agent to obtain email address

Person Registry

Central Person

Registry

13 No / No

Get Name This service will enable an authorized agent to obtain name

Person Registry

Central Person

Registry

7 No / No

Get Person Service This service will enable an authorized registration authority to be able

to obtain information about a person in the CPR. The service will either

return an exception (with the reason the get did not happen) or

success. Registration Authority/Other authorized entity Central Person Registry 33 No / No

Get Phone This service will enable an authorized agent to obtain phone

Person Registry

Central Person

Registry

(14)

Get Photo ID Plus A service to be developed in the next release refers to a collection of

services needed for the ID+ Photo: a) Obtain the photo via a data view

b) Obtain the photo via a service or c) obtain the photo via LDAP

jpegPhoto

to be determined Central Person

Registry

44 Yes / No

Log Email A service to be developed in the next release to be defined around

logging of email. Registration Authority/Central Person Registry Central Person Registry 49 Yes / No

Set Primary Email

Address

This service will enable an authorized registration authority to be able

to set an e‐mail address as the primary address for a user. The calling

parameters to the service will specify the e‐mail address type. If the

user already has a primary e‐mail address specified, it will be unset as

primary prior to the new e‐mail address type being set as primary. The

service will either return an exception (with the reason the set did not

Unblock Person A service to be developed in the next release will enable an authorized

registration authority to be able to unblock a person to the registry

(for wireless).

Registry

48 Yes / No

Update Address This service will enable an authorized registration authority to be able

to update an address for a user. The calling parameters to the service

will specify the address along with the address type. Since an update is

being performed, the existing address will be prior to adding the new

address. In addition, since we are dealing with an address it will cause

new match codes to be generated and interfacing with service

providers to let them know of the address change. The service will

either return an exception (with the reason the add did not happen) or

Update Address Type A service to be developed in the next release that will provide the

ability to filp address types of persons. E.g. summer address, winter

address, temporary address, etc.

Person Registry

Central Person

Registry

50 Yes / No

Update Email This service will enable an authorized registration authority to be able

to update an e‐mail address for a user. The calling parameters to the

service will specify the e‐mail address along with the type. If the user

already has an e‐mail address of the type specified, it will be expired

prior to the new e‐mail address being added. The service will either

return an exception (with the reason the update did not happen) or

(15)

Update Name This service will enable an authorized registration authority to be able

to update a name for a user. The calling parameters to the service will

specify the name along with the name type. If the user already has a

name of the type specified, it will be expired prior to the new name

reason the update did not happen) or success.

Person Registry

Central Person

Registry

8 No / No

Update Person This service will enable an authorized registration authority to be able

to update information about a person in the registry. The service will

either return an exception (with the reason the update did not happen)

or success.

Registry

31 No / No

Update Phone This service will enable an authorized registration authority to update a

phone number for a user. The calling parameters to the service will

specify the phone along with the phone type. If the user already has a

phone of the type specified, it will be expired prior to the new phone

reason the update did not happen) or success.

Person Registry

Central Person

Registry

23 No / No

Validate Address This service will receive address data elements as input and perform

two operations. The service will perform standardization of the

address data elements and determine whether the address exists. The

capability for testing whether an address exists will depend on the final

selection of address validation database. There will likely be three

conditions for the existence of an address (found, not found and

unknown). A status of unknown would result if the coverage of the

address database does not include the country of the input address.

The inputs and outputs of the service are also dependent on the the

final selection of address validation software.

Central Person Registry,

Registration Authorities Central Person Registry 40 No / No DEPARTMENTAL Category:

Departmental Identity A service to be developed in a future release s related to linkage and

university organizational units

Registration Authorities/Central Person Registr Central Person Registry 51 Yes / No IAP Category:

Get External Identity

Assurance Profile

This service enables authorized services to retrieve External Identity

Assurance Profiles Registration Authority/Central Person Registry/Ser Central Person Registry 18 No / No

Get PSU Identity

Assurance Profile

This service enables authorized services to retrieve PSU Identity

Assurance Profile. Registration Authority/Central Person Registry/Ser Central Person Registry 17 No / No

(16)

Service Name Description Requestor Provider Id Future / Dependent Service IAP Category:

Get Registration Events

IAP

A service to be developed in the next release that will get data

associated with a registration event

Registration Authorities/Central Person Registr Central Person Registry 52 Yes / No

Update IAP A service to be developed in the next release that will update the

Identity Assurance Profile level.

Registration Authorities/Central Person Registr Central Person Registry 53 Yes / No LOCATION Category:

Location A service to be developed in a future release related to linkage and

physical locations. Registration Authorities/Central Person Registr Central Person Registry 76 Yes / No MATCHING Category:

Find User This service allows a requester to find a person within the CPR using

various combinations of input data.

Person Registry

Central Person

Repository

42 No / No

Get Match Codes Accepts up to ten name name/value pairs and returns match codes for

the DFI Blue Fusion server. The input for this service is an array of up

to sub‐arrays. Each sub‐array consists of two elements, the name of a

match code type, and the value for which a match code is needed. The

possible names of match code types are: NAME, ADDR, CITY, STATE,

ZIP. This is a Generalized Interface service at

https://es.ais.psu.edu/gitools/controller?page=serviceInfo&lookupId=g etMatchCodes .

74 No / Yes

PSUID

Category:

Add PSU ID This service will enable an authorized registration authority to be able

to request the assignment of a PSU ID to a person in the CPR. The

Delete PSU ID A service to be developed in the next release will enable an authorized

registration authority to be able to delete the assignment of a PSU ID to

a person in the CPR. Registration Authority/Central Person Registry Central Person Registry 56 Yes / No

(17)

Service Name Description Requestor Provider Id Future / Dependent Service PSUID Category:

Get Next PSU Id This service will choose the next available Penn State Id number for

assignment. The next id number is selected at random from a pool of

unused Penn State id numbers. Random means that there should be no

way to predict the value of the next Penn State id to be selected. The

service will place the selected id number in a pending status

temporarily so the number will not be reused. For the pilot

deployment, available Penn State ids will begin with a letter

Central Person

Registry/Registration Authority

Central Person

Registry

41 No / No

Get PSU ID This service will enable an authorized agent to obtain PSU ID

Person Registry

Central Person

Registry

27 No / No

Get PSU ID by SSN This service will receive a SSN and will return the individual`s PSU‐ID.

This is available from the Generalized Interface

https://es.ais.psu.edu/gitools/controller?page=serviceInfo&lookupId=g etPSU IDBySsn .

73 No / Yes

Update CIDR PSU ID A service to be developed in the next release that will provide the

ability to update CIDR with PSU ID

Central Person Registry Central Person

Registry

57 Yes / No

Update PSU ID A service to be developed in the next release will enable an authorized

registration authority to be able to request the assignment of a PSU ID

to a person in the CPR. Registration Authority/Central Person Registry Central Person Registry 55 Yes / No REGISTRATION AUTHORITY Category: Add Registration Authority Agent

A service to be developed in the next release that will add a

Registration Authority Agent.

Registration Authority/Central Person Registry Central Person Registry 61 Yes / No Delete Registration Authority Agent

A service to be developed in the next release that will delete a

Registration Authority agent.

Registration Authority/Central Person Registry Central Person Registry 63 Yes / No Get Registration Authority Status

A service to be developed in the next release that will return the status

of a Registration Authority. Registration Authority/Central Person Registry Central Person Registry 62 Yes / No

Proof User A service to be developed in the next release that will collect and store

proofing data from a user (e.g. existing user, password reset, lost

password, etc. )

Registry

60 Yes / No

Register User A service to be developed in the next release that will collect and store

registration data from a user (for the purpose of establishing behind

the scenes LOA/IAP)

Registry

59 Yes / No

Suspend Registration

Authority Agent

A service to be developed in the next release that will suspend a

Registration Authority agent.

Person Registry

Central Person

Registry

(18)

Service Name Description Requestor Provider Id Future / Dependent Service SPONSORED ACCOUNT Category:

Add Sponsored Account A service to be developed in the next release that will allow an

authorized user to add a Sponsored Account.

Registration Authority/Central Person Registry Central Person Registry 65 Yes / No Disable Sponsored Account

A service to be developed in the next release that will allow an

authorized user to disable a Sponsored Account.

Registration Authority/Central Person Registry Central Person Registry 67 Yes / No Enable Sponsored Account

authorized user to enable a Sponsored Account.

Registration Authority/Central Person Registry Central Person Registry 68 Yes / No Update Sponsored Account

authorized user to update a Sponsored Account.

Registration Authority/Central Person Registry Central Person Registry 66 Yes / No SSN Category:

Update CIDR SSN A service to be developed in the next release that will provide the

ability to update CIDR with SSN

Registry

58 Yes / No

USERID

Category:

Add Userid This service will enable an authorized registration authority to be able

to add a network id to a user. The calling parameters to the service will

specify the person identifier. The service will either return an

exception (with the reason the add did not happen) or success.

Person Registry

Central Person

Registry

28 No / No

Delete UserID A service to be developed in the next release that will allow an

authorized user to delete the list of all user ids associated with a person

id number. Registration Authority/Central Person Registry Central Person Registry 70 Yes / No

Get Userid This service will enable an authorized agent to obtain userid

Person Registry

Central Person

Registry

29 No / No

Update UserID A service to be developed in the next release that will allow an

authorized user to update the list of all user ids associated with a

person id number. Registration Authority/Central Person Registry Central Person Registry 69 Yes / No

(19)

Terminology

Definition

Affiliation

Affiliation is the combination of one's relationship with Penn State

(which may allow access to electronic services) and some form of

trusted (may not be Penn State) identity. At Penn State, affiliations

are not roles; they are never deleted. One may have zero, one or

many active relationships. Zero occurs if all relationships have been

deactivated; the affiliation is active if one has one or more active

relationships. When the affiliation is active, there is a single

"dominant" relationship.

Identity and

Access

Management

Identity Management is multidisciplinary and covers multiple

dimensions:

Penn State: The alignment of University business processes,

policies, and technologies that manage identities to support the

delivery of rich and diverse array of online services for faculty, staff,

and students.

Administrative: An administrative process coupled with a

technological solution that validates the identity of individuals and

allows owners of data, applications, and systems to either maintain

centrally or distribute responsibility for granting access to their

respective resources to anyone participating within the IAM

framework.

Technical: With identity management systems (identification,

implementation, administration and termination of identities with

access to information systems, buildings and data within an

organization).

Legal: Such as legislation for data protection.

Police. For instance for dealing with identity theft.

Social: Dealing with issues such as privacy.

Security. With elements such as access control.

See the IAM Final Report and Recommendations for concepts, goals

and strategic recommendations related to Penn State's IAM

initiatives.

For example: At Penn State, a cohesive IAM strategy and

(20)

Terminology

Definition

services.

Level of

Assurance (LOA)

The degree of confidence in the vetting and proofing processes used

to establish the identity of the individual to whom the credential is

issued. Levels of Assurance also consider the degree of confidence

that the individual who uses the credential is the individual to whom

the credential was issued. See "Assurance Levels" for related

information.

Access Account

(Penn State)

A Penn State Access Account is a user ID and password that enables

Penn State students, faculty, and staff to use the full range of the

University's Internet services, on or off campus, at computer labs or

on personal computers. Once a user's Access Account is active, it

provisions for authentication (user ID/password), an entry in Penn

State's Directory Services, e-mail service and file storage space

known as Penn State Access Storage Space (PASS). These

entitlements are associated with a full Access Account. Slim Access

Accounts may also be issued, which provide only for authentication

and an entry in Directory Services. Penn State Personal Web space

may also be obtained by taking and passing a short quiz (upon

successful completion of the quiz, Web space is created within one's

PASS folder). Currently the Kerberos realm name for Access Accounts

is dce.psu.edu.

For example: xyz5000 (a sample user ID) plus a password equals an

Access Account.

Registration

Authority

A University entity that has the authority to verify user information

and issue credentials.

For example, Penn State World Campus is a Registration Authority for

World Campus students.

Identity Provider

Commonly referred to as IdP, it is the originating location for a user.

For InCommon, an IdP is a campus or other organization that

operates and manages an identity management system and offers

information about members to other InCommon participants.

For example: Information Technology Services (ITS) is an IdP for

Penn State (Penn State's IdP is established as Penn State University).

Affiliate

A person who has some connection to the University.

For example: A student, faculty, staff, vendor, spouse, alumni,

donors, guests, etc.

Central Person

Registry

A centralized person registry is a single data store that combines and

consolidates identity information currently stored in separate and

(21)

Terminology

Definition

non-integrated sources throughout the University.

At its simplest form, a person registry is a data store of user

information

For Example:



Central ID Repository (CIDR)



Friends of Penn State (FPS)



Central Accounts Coordination Tracking of User Services

(CACTUS)



Integrated Student Information System (ISIS)



Integrated Business Information System (IBIS)



Many others

Service Provider

A Service Provider is a Penn State University entity that makes online

resources available to users based in part on information about them

that it receives from the Central Person Registry.

For example: The ANGEL course management system, Penn State

email, Admissions applications, etc.

PSU ID

A Penn State Identification Number or PSU ID is assigned to

individuals and is to be used as the primary identifier in Penn State's

administrative and academic systems. The PSU ID is a nine digit

number, beginning with 9 in the following format: 9-XXXX-XXXX.

The PSU ID is unique to the individual and is a lifetime assignment

used for multiple and changing relationships with Penn State.

For more information on the application and use of the PSU ID, see

Policy AD19.

For example: A PSU ID is issued to anyone enrolling in Penn State

academic offerings - including credit and non-credit instruction - that

are recorded in the Integrated Student Information System (ISIS).

For example: All Penn State employees, including wage payroll, are

issued a PSU ID at the time of employment.

User ID and

Password (Penn

State)

Your user ID is the "public" part of your Access Account. This is the

part you should share with others so that they know where to send

you electronic mail. Your user ID is usually your initials followed by a

1- to 3-digit number such as xyz101. The letters are lowercase.

Your password, on the other hand, should be kept private. Your

password is the "key" that lets you open electronic doors. Guard your

password just as you guard your bank card PIN. Don't write it down

or make it easy for someone to "crack." Don't share your password

with others, as they would then have the opportunity to read your

email, see your grades, obtain your transcript, and forge email and

news postings from you.

(22)

Terminology

Definition

Identity

Assurance Profile

(IAP)

A set of data, associated with an individual, that reflects the degree

of confidence in the vetting and proofing processes used to establish

the identity of the individual to whom the credential is issued at a

given point in time. See "Assurance Levels" and "Levels of Assurance"

for related information.

(23)

IAM Service Catalog version 1.1

IAM

Service

Catalog

–

version

1.1

Table

of

Contents

Contents

Service

Catalog

–

Introduction

The purpose of this document is to identify the Identity and Access Management services that are under

development or proposed for development. Additional services will be defined as the project matures.

The initial set of IAM services will be centered on the Central Person Registry and will include:

Applications and systems access to the CPR information.

Management services for maintaining:

Identities

Contact information

Affiliations

PSU IDs

Penn State Access Account user IDs

Sponsored Accounts

Identity Assurance Profiles

Matching services (with the goal of minimizing duplicate identities in central systems).

Address validation services.

Batch interfaces for maintenance of the CPR data from other entities.

Management services for assignment of affiliations from systems of records.

In the pages to follow, we provide a summary of the IAM services that are currently being developed, scheduled

for development and/or under consideration. We’ve also included a detailed listing of the services.

Service

Model

The following page provides a high level model of the IAM Services.

Message Services:

Get/Find

Add

Update

Delete

Service

Category

Detail

The following pages provide a high level description of the IAM Services by Category.

ServiceCategory

‐

Detail

Service

Catalog

List

ServiceCatalog

‐

List

Service

Catalog

Detail

Service

Catalog

‐

Detail

Terminology

Terminology

Definition

Affiliation

Affiliation is the combination of one's relationship with Penn State

(which may allow access to electronic services) and some form of

trusted (may not be Penn State) identity. At Penn State, affiliations

are not roles; they are never deleted. One may have zero, one or

many active relationships. Zero occurs if all relationships have been

deactivated; the affiliation is active if one has one or more active

relationships. When the affiliation is active, there is a single

"dominant" relationship.

Identity and

Access

Management

Identity Management is multidisciplinary and covers multiple

dimensions:

Penn State: The alignment of University business processes,

policies, and technologies that manage identities to support the
