Software Quality Models: A Comparative Study

J. Ghayathri, E. Mohana Priya

Abstract- Software testing requires the use of a model for test

selection and test verification. Model-based testing is very

effective for software design and development. Model-based

testing has a lot of benefits, test suite growth with the product,

manage the model instead of cases, automation is cheaper and

more effective, one implementation per model, then all cases are

free. Model-based testing is a general term that signifies an

approach that bases common testing tasks such as test case

generation and test result evaluation on a model of application

under test. The fundamental tasks for Model-based testing

including gathering the necessary information to build a model,

the steps in building a model, and generating and evaluating tests

from a model. There are a number of models, but few models

are good for testing. By using some models such as McCall,

Boehm, FURPS, Dromey and ISO 9126 the qualities are tested.

Each model has its own quality characteristics along with the

factors and subfactors. One of the great advantages of

model-based development is the opportunity to start simulation and

testing activities. This allows the developer to focus on specific

errors at each development stage. The benefit of quality models

is that they are simpler to use and the benefit of quality

management is that they probably more to the point capture the

idea of quality. Software quality model is the representation of

the characteristics of the software that describe the quality. This

paper discusses the features of the models McCall, Boehm,

FURPS, Dromey and ISO 9126. By using these models the

quality characteristics are compared.

Index Terms- Quality Models; Quality Assurance; Quality

Characteristics; Quality Criteria; Quality factors; Metrics and

Quality Management

J.Ghayathri, Department of Computer Science (PG), Kongu Arts and Science College.

Erode. TamilNadu, India. PH:9842379818

E.Mohana Priya, Department of Computer Science (PG), Kongu Arts and Science College,

Erode,TamilNadu, India. PH: 98656286:87

I. INTRODUCTION

The main goal of quality model is to achieve quality

(more quality factors) with cost and performance as prime

consideration. In technical terms quality is Conformance to

specification, Meeting customer needs, Fitness for use [11].

There are numerous such models, and each describes different

aspects of software behavior [1]. Then generation by model

checking and generation by using an event-flow model are the

techniques used in Model-based testing [2].

Conformance to specification: Quality that is defined as a

matter of products and services whose measurable

characteristic satisfy a fixed specification – that is,

conformance to an in beforehand defined specification.

Meeting customer needs: Quality that is identified

independent of any measurable characteristics. That is, quality

is defined as the products or services capability to meet

customer expectations – explicit or not. The definitions of five

different approaches (views) are gained for the product

qualities are as follows:

 The transcendent view that defines quality as something that can be recognized but not defined.

 The product view that defines quality by specifying the product characteristics that contributes to quality.

 The user view, that regards quality as subjective attribute that is “in the eye of the beholder:.

 The manufacturing view, that quality as conformance to specification.

 The value-based view that regards quality as inherently connected to the costs to achieve it.

There are many models in Quality Assurance (QA) such as McCall’s, Boehm, FURPS, Dromey’s and ISO quality

model. The quality of the implementation model largely

determines the quality that is correctness and efficiency [3].

43

high quality of software. An important factor in Software

Quality Assurance (SQA) and other are explaining

relationships between some factors of SQA such as

reusability, maintainability, usability and etc. And then also

there is relationship between SQA factors and attributes of

object oriented [5]. Quality assurance make sure the product

will be completed based on the approved specifications,

standards and functionality [9]. The testing of software is

important for assessing the software to determine its quality

then it consumes more effort for systems that require higher

levels of reliability [10].

The software quality assurance issue brings four key subjects:

 How much of the software development cost to invest in software testing.

 Communication to the user of the software.

 Defects detected in the package and released into the “production” environment.

 Consequences of defects beyond the intended use of software application [6].

Quality assurance tasks, such as testing, profiling,

performance evaluation, have been done in developers and

generated field [7].

II. QUALITY MODELS

A. McCall’s Quality Model (1977)

One of the more renowned predecessors of today’s

quality models is the quality model presented by Jim McCall

et al. In quality model McCall attempts to bridge the gap

between users and developers by focusing on a number of software quality factors that reflect both the users’ views and the developers’ priorities. This model is constructed using

tree-like fashion. In this model quality factors are not directly

measured and set of metrics is needed to develop relationship

[4,8].Then three major perspectives for defining and

identifying the quality of a software product: product revision

(ability to undergo changes), product transition (adaptability

to new environments) and product operations (its operation

characteristics). Product revision includes maintainability to

locate and fix a fault in the program within its operating

environment, flexibility is the making changes required by

changes in the operating environment and testability is to

ensure that it is error-free and meets its specification. Product

transition is all about portability to transfer a program from

one environment to another, reusability is reusing the software

in a different context and interoperability to couple the system

to another system. Quality of product operations depends on

correctness which a program fulfils its specification, reliability

is the system ability not to fail, efficiency categorized into

execution efficiency and storage efficiency and generally

meaning the use of resources, integrity is the protection of the

program from unauthorized access and usability is the ease of

the software. The difficulty in applying this model is no

consensus about what high level quality factors are important

[15].

Fig. 1: The McCall quality model

Each quality factor is positively influenced by a set

of quality criteria, and the same quality criterion impacts a

number of quality factors. If an effort is made to improve one

quality factor, another quality factor may be degraded. Some

quality factors positively impact others. These are some of the

problems in McCall quality model.

The model furthermore details the three types of quality

44

Fig. 2: Three three types of quality characteristics in a

hierarchy of factors, criteria and metric

Fig. 3: McCall’s Quality Model

The quality factors describe different types of system

behavioral characteristics, and the quality criterions are

attributes to one or more of the quality factors. The problem in

this model is no standards, no methods and no tools to

measure these quality factors.

B. Boehm’s Quality Model (1978)

The Boehm’s model attempts to qualitatively define

software quality by a given set of attributes and metrics.

Boehm's model is similar to the McCall Quality Model in that

it also presents a hierarchical quality model structured around

high-level characteristics, intermediate level characteristics,

primitive characteristics - each of which contributes to the

overall quality level. The high-level characteristics address

three main questions that a buyer of software has:

McCalls Quality Characteristics

Factors (11)

Describes the external view of the software

(Viewed by users)

Quality Criteria (13)

Describes the internal view of the software

(Seen by developer)

Metrics

Defined and used to provide a scale and method for measurement

Correctness

Traceability

Completeness

Consistency

Reliability

Accuracy

Error tolerance

Storage efficiency

Access control

Access audit

Operability

Training

Communicativene ss

Execution efficiency Efficiency

Integrity

Usability

Simplicity

Conciseness

Instrumentation

Self-descriptiveness

Expandability

Modularity

Software-system independence

Machine independence

Communication commonality

Data commonality Generality Maintainability

Testability

Flexibility

Portability

Reusability

45

• As-is utility: How well (easily, reliably, efficiently) can I use it as-is?

• Maintainability: How easy is it to understand, modify and

retest?

• Portability: Can I still use it if I change my environment?

The intermediate level characteristic represents Boehm’s 7

quality factors that together represent the qualities expected

from a software system:

TABLE I BOEHM’S QUALITY FACTORS

Quality Factors Purpose

Portability General Utility Characteristics

Reliability As-is Utility Characteristics

Efficiency As-is Utility Characteristics

Usability As-is Utility Characteristics

Testability Maintainability Characteristics

Understandability Maintainability Characteristics

Flexibility Maintainability Characteristics

The primitive characteristics provide the foundation for

defining qualities metrics – which was one of the goals when

Boehm constructed his quality model. Consequently, the

model presents one or more metrics supposedly measuring a

given primitive characteristic.

Though Boehm’s and McCall’s models might appear very similar, the difference is that McCall’s model primarily

focuses on the precise measurement of the high-level characteristics “As-is utility , whereas Boehm’s quality mode

model is based on a wider range of characteristics with an

extended and detailed focus on primarily maintainability. The Boehm’s quality model is very difficult to apply in practice,

but easy to understand and learn [16].

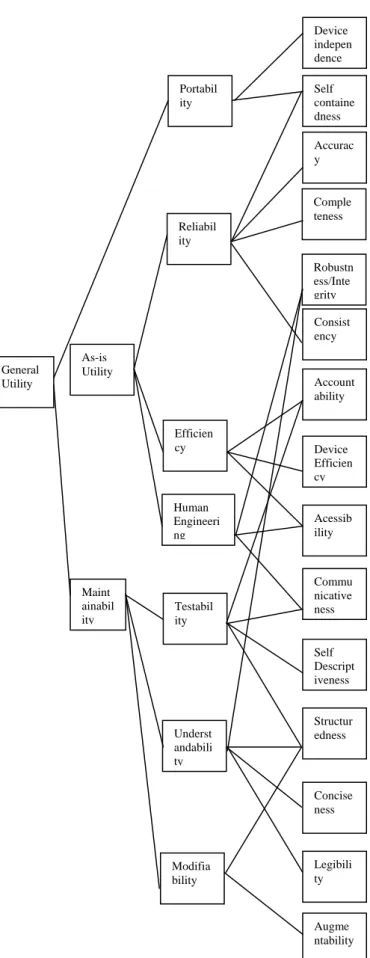

Fig.4: Boehm's Software Quality Characteristics Tree

Portabil ity

Device indepen dence

Self containe dness

Accurac y

Reliabil ity

Comple teness

Robustn ess/Inte grity

Account ability

Device Efficien cy

Acessib ility

Commu nicative ness

Self Descript iveness

Underst andabili ty

Consist ency

Efficien cy

Human Engineeri ng

Testabil ity

Modifia bility

Structur edness

Concise ness

Legibili ty

Augme ntability General

Utility

As-is Utility

46

C. FURPS/FURPS+

The FURPS model that is structured in basically the same

manner as the previous two quality models. The FURPS

model originally presented by Robert Grady .

FURPS stands for:

• Functionality – which may include feature sets, capabilities

and security

• Usability - which may include human factors, aesthetics,

consistency in the user interface, wizards and agents, user

documentation, and training materials?

• Reliability - which may include frequency and severity of

failure, recoverability, predictability, accuracy, and mean time

between failure.

• Performance - imposes conditions on functional

requirements such as speed, efficiency, availability, accuracy,

throughput, response time, recovery time, and resource usage. • Supportability - which may include testability, extensibility,

adaptability, maintainability, compatibility, configurability,

serviceability,installability, localizability (internationalization)

The FURPS-categories are of two different types: Functional

(F) and Non-functional (URPS). These categories can be used

as both product requirements as well as in the assessment of

product quality.

D. Dromey's Quality Model

The Dromey Quality model similar to the McCall’s, Boehm’s and the FURPS quality model, is the quality model

presented by R. Geoff Dromey. Dromey is focusing on the

relationship between the quality attributes and the

sub-attributes, as well as attempting to connect software product

properties with software quality attributes.

As Figure 5 illustrates, there are three principal elements

to Dromey's generic quality model

 Product properties that influence quality

 High level quality attributes

 Means of linking the product properties with the quality attributes.

Fig. 5: Principles of Dromey’s Quality Model

Dromey’s Quality Model is further structured around a 5

step process:

 Chose a set of high-level quality attributes necessary for the evaluation.

 List components/modules in your system.

 Identify quality-carrying properties for the components/modules.

 Determine how each property effects the quality attributes.

 Evaluate the model and identify weaknesses.

E. ISO

1. ISO 9000

The renowned ISO acronym stands for International

Organization for Standardization.

ISO 9001 is a process oriented approach towards quality

management. That is, it proposes designing, documenting,

implementing, supporting, monitoring, controlling and

improving (more or less) each of the following processes:

Implementa tion

Correctne ss

Internal Contextua l

Descriptiv e

Function ality, reliability

Maintaina bility, efficiency, reliability

Maintain ability, reusabilit y, portabilit y, reliability

47

Fig. 6: The ISO 9000:2000 standards.

Quality Management Process, Resource Management

Process, Regulatory Research Process, Market Research

Process, Product Design Process, Purchasing Process,

Production Process, Service Provision Process, Product

Protection Process, Customer Needs Assessment Process,

Customer Communications Process, Internal,

Communications Process, Document Control Process, Record

Keeping Process, Planning Process, Training Process, Internal

Audit Process, Management Review Process, Monitoring and

Measuring Process, Nonconformance Management Process

and Continual Improvement Process.

2. ISO 9126

ISO has also release the ISO 9126: Software Product

Evaluation: Quality Characteristics and Guidelines.

Are the required

functions available in the software?

How reliable How easy is is the

to transfer software? the software

to another environment?

Is the How easy is software

to modify easy to use? the software?

How efficient is the

software?

Fig. 7: The ISO 9126 quality model

This standard was based on the McCall and Boehm

models. ISO 9126 also includes functionality as a parameter,

as well as identifying both internal and external quality

characteristics of software products. ISO 9126 proposes a

standard which species six areas of importance, i.e. quality

factors, for software evaluation.

The problem with this model is there is no consensus

regarding what is a top-level quality-factor and what is more

concrete quality criterion [17]. Each quality factors and its

corresponding sub-factors are defined as follows:

• Functionality: A set of attributes that relate to the existence

of a set of functions and their specified properties.

 Suitability, Accuracy, Security, Ability,

Interoperability, Compliance.

• Reliability: Capability of software to maintain its level of

performance under stated conditions for a stated period of

time.

 Maturity, Fault tolerance, Recoverability.

• Usability: The effort needed for use, and on the individual

assessment of such use, by a stated or implied set of users.

ISO 9001:2000 “Requirement s for Quality Assurance ISO

9000:2000 “Concepts and terminology”

ISO 9000:200 0

ISO 19011:2000 “Guidelines for Auditing Quality Management Systems”

ISO 9004:2000 “Guidelines for Quality Management of Organizations”

ISO 9000-2:1997

ISO 9000-3:1996

ISO 9004-3:1993

ISO 9004-4:1993

ISO/I EC 9126 Functi onalit y

Reliab ility

Usabi lity Porta

bility

Main taina bility

48

Subfactors

Factors

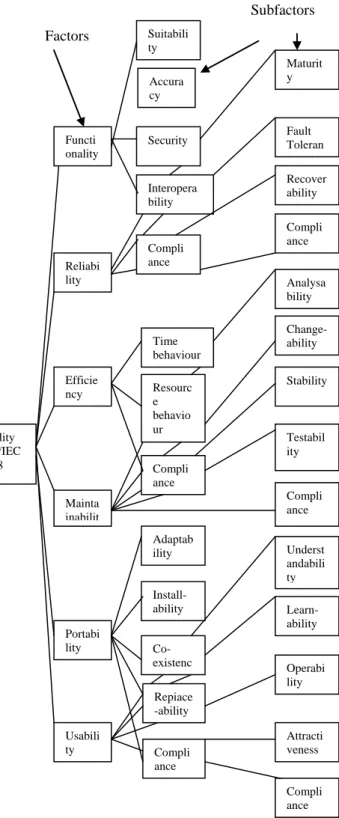

Fig. 8: ISO 9126: Software Product Evaluation: Quality Characteristics and Guidelines for their Use

 Understandability, Learnability, Operability.

• Efficiency: The relationship between the level of

performance of the software and the amount of resources

used, under stated conditions.

 Time behavior, Resource behavior.

• Maintainability: The effort needed to make specified

modifications.

 Analyzability, Changeability, Stability, Testability.

• Portability: Ability of software to be transferred from one

environment to another.

 Adaptability, Installability, Conformance,

Replaceability.

III. COMPARATIVE ANALYSIS

From the comparison table each model has its own characteristics. The McCall’s model supports testability,

correctness, efficiency, reliability, flexibility, integrity,

interoperability, maintainability, usability and portability and

it lacks the characteristics such as understandability,

functionality, human engineering, process maturity,

changeability, clarity, modifiability, documentation, resilience, validity, generality and economy. Boehm’s model

provides the characteristics are testability, efficiency,

understandability, reliability, human engineering,

maintainability, changeability, portability, usability, clarity, Suitabili

ty

Maturit y

Fault Toleran ce

Recover ability

Compli ance

Analysa bility

Stability

Testabil ity

Compli ance

Underst andabili ty

Learn-ability Time

behaviour

Change-ability Security

Interopera bility

Compli ance

Resourc e behavio ur

Operabi lity

Attracti veness

Compli ance Quality

ISO/IEC 9128

Reliabi lity

Mainta inabilit y

Compli ance

Adaptab ility

Install-ability

Co-existenc e

Repiace -ability

Compli ance Functi

onality

Efficie ncy

Portabi lity

Usabili ty

49

TABLE II

COMPARISON BETWEEN CRITERIA/GOALS OF THE

BOEHM, MCCALL, FURPS, ISO 9126 AND DROMEY

QUALITY MODELS

Quality

Characteristic McC

all

Boeh

m

FURP

S

Dro

mey

ISO

9126

Testability * * *

Correctness *

Efficiency * * * * *

Understandabili

ty

* * * *

Reliability * * * * *

Flexibility * *

Functionality * * *

Human

Engineering

*

Integrity * *

Interoperability * *

Process

Maturity

*

Maintainability * * * * *

Changeability *

Portability * * * *

Reusability * *

Usability * * * *

Clarity *

Modifiability * *

Documentation * *

Resilience *

Validity *

Generality *

Economy *

modifiability, documentation, resilience, validity, generality

and economy and it unable to provide correctness, flexibility,

functionality, integrity, interoperability, reusability and

process maturity. The FURPS model has the qualities are

efficiency, understandability, reliability, flexibility,

functionality, maintainability, usability and documentation

then it fails to support testability, correctness, human

engineering, integrity, interoperability, process maturity,

changeability, portability, clarity, documentation, resilience,

validity, generality and economy. Dromey’s quality model has

the abilities such as efficiency, understandability, reliability,

functionality, process maturity, maintainability and portability

and it unable to support the qualities are testability,

correctness, flexibility, human engineering, integrity,

interoperability, usability, clarity, modifiability,

documentation, resilience, validity, generality and economy

and changeability. ISO 9126 model has the possibilities such

as testability, efficiency, understandability, reliability,

functionality, integrity, interoperability, maintainability,

usability, modifiability and portability and it lacks the

qualities such as correctness, flexibility, human engineering,

process maturity, changeability, clarity, documentation,

resilience, validity, generality and economy.

IV. FURTHUR STUDY

The Management of software quality has also

evolved, it is directed not only toward the development of

software that executes correctly, but also toward satisfying the

objectives for which that software is designed. The

management of software quality requires a set of quality

criteria that the software product must meet, including related

software measures to evaluate this quality. The three models

of software product related to the three views of quality are an

internal quality model, external quality model and

quality–in-use model [12]. An internal metrics measure the software

itself, external metrics measure the behaviour of the

computer-based system that includes the software, and quality

in use metrics measure the effects of using the software in a

specific context of use. Appropriate internal attributes of the

50

behaviour, whereas external behaviour is a prerequisite for

achieving quality in use [14]. The six fundamental steps of

Quality Improvement Paradigms are characterize the project

and its environment, set of goals, choose the appropriate

processes, execute the processes, analyze the data and package

the experience for reuse [13]. The quality models at the time

focused on the final product and on the identification of the key attributes of quality from the user’s point of view. The

assessment framework was later improved; consisting of

quality attributes related to quality factors, which were

decomposed into particular quality criteria and lead to quality

measures. Attempted standardisation work resulted in the

Software Product Evaluation Standard, ISO- 9126. This model

was fairly closely patterned after the original Boehm structure,

with a six primary quality attributes that were subdivided into

27 sub characteristics [14].

V. CONCLUSION

Most of the quality models presented within this paper

probably could be fitted within the user view, manufacturing

view or product view. Some advantages are the quality models

actually reduce the notion of quality to a few relatively simple

and static attributes. The benefit of quality model is that they

are simpler to use. Then the software quality models are the

process of testing the quality with several factors and sub

factors along with metrics. The development of efficient

software quality model that will assist in the creation of

high-quality software will become one of the most important

research areas in the near future.

REFERENCES

[1] Ibrahim K.El-Far and James A. Whittaker, “Model-based Software Testing”, Encyclopedia on Software Engineering, Wiley, 2001.

[2] Jovanavic, Irena, “Software Testing Methods and Techniques”, I.

M. Jovanovic is with the Inzenjering, Mat 26, 2008.

[3] Ines Fey, DaimlerChrysler AG, Berlin, Germany. Ingo Sturmer, Model Engineering Solutions, Berlin, Germany, “Quality

Assurance Methods for Model-based Development: A Survey and Assessment”, SAE International, 2007.

[4] Rikard Edgren, “Software Quality Models and Philosophies”,

2010.

[5] Mohammed Horbi, “Hybrid Model of Software Quality Assurance for Business and Real-time Systems Oriented”, International

Journal of Software Engineering, ISSN 0974-3162 Volume 2,

Number 1(2011), pp.39-45, International Research Publication House.

[6] Jim Nindel-Edwards, Microsoft Inc. USA, Gerhard Steinke , Seattle Pacific University, USA, “Ethical Issues in the software Quality Assurance Function”, Communication of the HMA, 2008

Volume 8 Issue 1.

[7] Arvind S. Krishna, Douglas C. Schmidt, Electrical Engineering and Computer Science, Vanderbilt University, TN USA, Atif

Memon, Adam Porter, Computer Science Department, University

of Maryland College Park, MD USA. Diego Sevilla, Department

of Computer Engineering, University of Murcia, Spain. “Validating Quality of Service for Reusable Sofware via Model-integrated Distributed Continuous Quality Assurance”. National

Science Foundation under Grant Nos. NSF ITR CCR-0312859, CCR-0205265, CCR 0098158, 2004

[8] Sangeetha M, Research Scholar, Dept of CSE & IT, Coimbatore

Institute of Technology, Coimbatore. Akila K, SenthilKumar K.

M, Lecturers, Kumaraguru College of Technology, Dept of Mechatronics, Coimbatore. Arumugam Dr. C, (S.G) Lecturer,

Dept of Mechanical Engineering, Coimbatore Institute of Technology, Coimbatore, “Improved Software Quality Assurance Techniques Using Safe Growth Model”, M.Sangeetha et.al. /

(IJCSE) International Journal on Computer Science and

Engineering, Vol.02, No 06, 2010, 2125-2132, ISSN: 0975-3397. [9] Nayyar Iqbal, Rizwan Jameel Qureshi, Department of Computer

Science, COMSATS Institute of Information Technology, Lahore Pakistan, “Improvement of Key Problems of Software Testing in Quality Assurance”, Sci.Int. (Lahore), 21(1), 25-28,2009. ISSN

1013-5316; CODEN: SINTE 8.

[10] Lu Luo, Paul Li, School of Computer Science, Carnegie Mellon University , “Software Testing Techniques”, 2010.

[11] Jaspreet Kaur, “Software Quality Models and Standards”. [12] LAILA CHEIKHI, Ecole Nationale Superieure d’Informatique et

d’Analyse des Systemes-Universite Mohammed V, ALAIN

ABRAN, Ecole de Technologie Superieure-Universite du Quebec, “Investigation of the Relationships Between the Software Quality

51

[13] S.H. Kan, V.R. Basili, L.N. Shapiro, “Software quality: An Overview from the perspective of total quality management”,

IBM SYSTEMS JOURNAL, VOL 33, NO 1,1994.

[14] Ali M. Al-Khouri, “Using Quality Models to Evaluate National ID Systems: the Case of the UAE”, Manuscript received March 27, 2007. Ali M. Al-Khouri is with Emirates Identity Authorit, Abu Dhabi, United Arab Emirates (phone: +97150-613-7020; fax: +9712-404-6661; e-mail: alkhouri@ emiratesid.ae), Source: Adopted from Pfleeger (2001), International Journal of Social Sciences Volume 1 Number 2.

[15] I.Omaima Al-Matrafi, “Software Quality” .

[16] Dr. Raymond A. Paul, “Evolution of Software/System Quality Second Asia-Pacific Conference o QUALITY SOFTWARE”, December 11, 2011.

[17] Naik and Tripathy, “Software Testing and Quality Assurance, Theory and Practice (Chapter 17: Software Quality), NEC- Empowered by Innovation, University of Waterloo, Wiley Publishers since 1801.

J. Ghayathri is currently working as Associate Professor in Computer Science (PG), Kongu Arts and Science College, Erode. TamilNadu, India. PH:9842379818 , E-mail:
