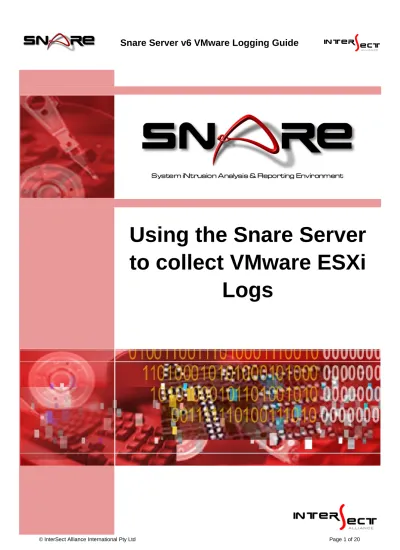

Using the Snare Server
to collect VMware ESXi
© Intersect Alliance International Pty Ltd. All rights reserved worldwide.
Intersect Alliance Pty Ltd shall not be liable for errors contained herein or for direct, or indirect damages in connection with the use of this material. No part of this work may be reproduced or transmitted in any form or by any means except as expressly permitted by Intersect Alliance International Pty Ltd. This does not include those documents and software developed under the terms of the open source General Public Licence, which covers the Snare agents and some other software.
The Intersect Alliance logo and Snare logo are registered trademarks of Intersect Alliance International Pty Ltd. Other trademarks and trade names are marks’ and names of their owners as may or may not be indicated. All trademarks are the property of their respective owners and are used here in an editorial context without intent of infringement. Specifications and content are subject to change without notice.
About this guide
This document details the steps required to configure VMware ESXi vSphere CLI to log to the Snare Server, and also highlights some basic analysis strategies for Snare version 6. More details on the techniques used, are available in the Snare Server Users Guide.
These instructions have been tested on VMware ESXi 5.1, and should also apply to other versions of ESXi and ESX, as long as the syslog configuration can be modified to forward events to the Snare Server.
Other resources that may be useful to read include:
● Snare Server v6.x Users Guide
● vSphere Command-Line Interface Documentation - http://www.vmware.com/support/developer/vcli/
Table of Contents :
1.
VMware Server Configuration 1.1
Activate SSH , or access the vSphere Console Initial Screen
Troubleshooting
Activate SSH / Console 1.2
Syslog delivery
1.2.1 Firewall configuration 1.2.2 Syslog configuration 2.
The following procedure assumes that you wish to configure the vSphere server via the command line. Logging functionality can also be modified using vClient GUI tools; please see the VMware documentation for detailed procedures.
1.1 Activate SSH, or access the vSphere Console ➤ What You Need..
○ The DNS name or IP address of your vSphere server. ○ Access to the vSphere console to enable SSH
➤ Initial Screen
On the vSphere console, use the F2 key to access the system configuration options.
Hit F2 on your keyboard.
➤ Troubleshooting
Use your cursor keys to choose the ‘Troubleshooting options’ menu option, and hit ENTER on your
keyboard.
➤ Activate SSH / Console
You will need to either activate the vSphere console, or SSH.
If you choose to activate the console, the keyboard sequence Alt+F1 will open a local console. Log in using your administrator account and password. If you choose to activate ssh, connect to your ESX machine using the IP address displayed on the first console screen, .
1.2 Syslog delivery
In order to activate remote delivery of VMware log data using the syslog protocol, several commands need to be run:
1.2.1 Firewall configuration
Run the following commands, to allow syslog data to be sent through the ESX local firewall.
esxcli network firewall ruleset set --ruleset-id=syslog --enabled=true esxcli network firewall refresh
1.2.2 Syslog configuration
Configure the server to send syslog data to a remote server, using the syslog protocol. Substitute the IP address of your Snare Server, for the “10.11.12.13” in the following command:
esxcli system syslog config set --loghost='udp://10.11.12.13:514' esxcli system syslog reload
2. Analysis
If you are not familiar with the operation of the Snare Server, please refer to the Snare Server Users Guide for more information.
The Snare Server will receive data from your ESX/vSphere server, and add it to the generic syslog data source. The following series of screenshots provide an example of how to perform basic analysis on VMware vSphere/ESX log data.
Create a new objective called “VMWare ESX”
Choose the “Analyse data from Generic Syslog logs” objective template, from the “Generic Syslog” group.
specific settings.
Modify the Table output configuration to include the fields of interest, save the configuration, and regenerate the objective.
We have some data returned from the objective. In this case, the data has arrived from the ‘v5dev’ server. You will notice though, that there are some interesting details within the body of the message, that we may be interested in analysing in more detail. In particular, you can see that the Date/Time presented in the event, is actually a little different than the time at which the Snare Server received the event.
Usually, Snare is able to retrieve the date/time from within each event, but in this case, VMware are using a non-standard syslog date format, so the Snare Server has opted to preserve both the receive-time and the log-time in the event. However, we can pull out this information for our analysis.
A new window will pop up, asking for the “Field Name”. Lets use “VMDATE”.
Next, we’ll test a “regular expression” match to pull out the date from within the event body.
For this, I have copied & pasted a sample event from the tabular output, into the ‘sample log entry’ field. Next, I have crafted a simple regular expression to pull out the date from the entry.
In this case, the regular expression translates to:
* Grab the first 10 characters from the event, that contain numbers or dashes.
Regular expressions are very powerful. We could do almost the same thing by using the expression above, instead. (Grab the first 10 characters from the event, regardless of what they look like).
While we’re at it, we can grab the time (VMTIME).
Since VMware’s time format is reasonably consistent, a simple regular expression like the one above may be perfectly adequate.
Next, we can pull out the syslog ‘category’ (“VMCATEGORY”)
Or featured as part of a graph component.
Regenerate the objective once more once configuration has been completed.
If we wanted to search for a particular subset of messages, such as commands executed by the root-level user, we could modify our configuration further.
In this case, we’ve asked Snare to search for events from ‘VMWareESX001’ with a ‘VMSource’ of ‘shell’. Regenerate the objective once done.
