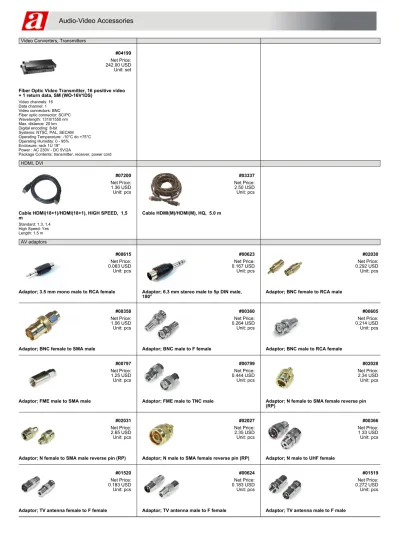

Video Converters, Transmitters

#04199 Net Price: 242.00 USD Unit: set

Fiber Optic Video Transmitter, 16 positive video + 1 return data, SM (WO-16V1DS)

Video channels: 16 Data channel: 1 Video connectors: BNC Fiber optic connector: SC/PC Wavelength: 1310/1550 nm Max. distance: 20 km Digital encoding: 8-bit Systems: NTSC, PAL, SECAM Operating Temperature: -10°C do +75°C Operating Humidity: 0 - 95% Enclosure: rack 1U 19" Power : AC 230V - DC 5V/2A

Package Contents: transmitter, receiver, power cord HDMI, DVI

#07200 Net Price: 1.36 USD Unit: pcs

Cable HDMI(18+1)/HDMI(18+1), HIGH SPEED, 1,5 m

Standard: 1.3, 1.4 High Speed: Yes Length: 1.5 m #03337 Net Price: 2.50 USD Unit: pcs Cable HDMI(M)/HDMI(M), HQ, 5.0 m AV adaptors #00615 Net Price: 0.083 USD Unit: pcs

Adaptor; 3.5 mm mono male to RCA female

#00623 Net Price: 0.167 USD Unit: pcs

Adaptor; 6.3 mm stereo male to 5p DIN male, 180°

#02030 Net Price: 0.292 USD Unit: pcs

Adaptor; BNC female to RCA male

#00358 Net Price: 1.06 USD Unit: pcs

Adaptor; BNC female to SMA male

#00360 Net Price: 0.264 USD Unit: pcs

Adaptor; BNC male to F female

#00605 Net Price: 0.214 USD Unit: pcs

Adaptor; BNC male to RCA female #00797

Net Price: 1.25 USD Unit: pcs

Adaptor; FME male to SMA male

#00799 Net Price: 0.444 USD Unit: pcs

Adaptor; FME male to TNC male

#02028 Net Price: 2.34 USD Unit: pcs

Adaptor; N female to SMA female reverse pin (RP)

#02031 Net Price: 2.65 USD Unit: pcs

Adaptor; N female to SMA male reverse pin (RP)

#02027 Net Price: 2.35 USD Unit: pcs

Adaptor; N male to SMA female reverse pin (RP)

#00366 Net Price: 1.33 USD Unit: pcs

Adaptor; N male to UHF female #01520

Net Price: 0.183 USD Unit: pcs

Adaptor; TV antenna female to F female

#00624 Net Price: 0.183 USD Unit: pcs

Adaptor; TV antenna male to F female

#01519 Net Price: 0.272 USD Unit: pcs

(2)

AV connections #01234 Net Price: 0.583 USD Unit: pcs DC cable 2x0.22 mm, 1.5 m + connector 1.1/3.0 male, 90° #01235 Net Price: 0.651 USD Unit: pcs DC cable 2x0.22 mm, 1.5 m + connector 1.1/3.5 male, 90° #01250 Net Price: 0.651 USD Unit: pcs DC cable 2x0.22 mm, 1.5 m + connector 1.3/3.5 male, 90° #01236 Net Price: 0.600 USD Unit: pcs DC cable 2x0.22 mm, 1.5 m + connector 1.6/5.0 male, 90° #00291 Net Price: 0.629 USD Unit: pcs DC cable 2x0.22 mm, 1.5 m + connector 1.7/4.0 male, 90° #00292 Net Price: 0.806 USD Unit: pcs DC cable 2x0.22 mm, 1.5 m + connector 2.1/5.5 male, 90° #00293 Net Price: 0.691 USD Unit: pcs DC cable 2x0.22 mm, 1.5 m + connector 2.5/5.5 male, 90° #01727 Net Price: 1.64 USD Unit: pcs

Mini DIN 4P male to mini DIN 4P male, gold, Satin type, cable 5.0 m, dark blue

#02727 Net Price: 1.94 USD Unit: pcs

VIDEO cable, BNC male to BNC male, 1.5 m Length: 1.5m

Cable type: RG59, stranded, 75Ω

#01746 Net Price: 0.806 USD Unit: pcs

TV-VIDEO cable, TV male to TV female, gold, Satin type, 1.5 m, dark blue

Cables coaxial type

#08999 Net Price: 136.00 USD Unit: roll 100m

Coaxial cable RG213, stranded wire, black, 100 m Internal wire: 7x0.75 copper/stranded wire

Insulation: 7.2 mm, PE

External coating: 10.3mm/PVC/black Impedance: 50Ω capacitance: 98 +/- 2 pF/m attenuation: 10 MHz - 1.7 dB/100m, 50 MHz - 4.6 dB/100m, 100 MHz 6.7 dB/100m, 230 MHz 9.8 dB/100m, 470 MHz -15.3 dB/100m, 860 MHz - 22.3 dB/100m, 1000 MHz - 24.5 dB/100m, 1500 MHz - 31.3 dB/100m, 2000 MHz - 36.5 dB/100m #07208 Net Price: 13.50 USD Unit: roll 100m

Coaxial cable Wave Cables RG174, stranded wire, black, 100 m

Internal wire: 7x0.16 copper/stranded wire Insulation: 1.6 mm, PE

Shield: 96x0.1 copper

External coating: 2.90mm/PVC/black Impedance: 50Ω capacitance: 100 +/- 2 pF/m attenuation: 50 MHz - 18.0 dB/100m, 200 MHz - 37.2 dB/100m, 400 MHz - 53.2 dB/100m, 600 MHz - 64.3 dB/100m, 800 MHz - 79.2 dB/100m #07209 Net Price: 29.40 USD Unit: roll 100m

Coaxial cable Wave Cables RG58, stranded wire, black, 100 m

Internal wire: 19x0.18 copper/stranded wire Insulation: 3.0 mm, PE

Shield: 112x0.1 copper External coating: 5.0mm/PVC/black Impedance: 50Ω capacitance: 100 +/- 2 pF/m attenuation: 50 MHz - 10.9 dB/100m, 200 MHz - 23.0 dB/100m, 400 MHz - 33.8 dB/100m, 600 MHz - 42.5 dB/100m, 800 MHz - 47.8 dB/100m, 1000 MHz - 51.9 dB/100m #00129 Net Price: 32.90 USD Unit: roll 100m Coaxial cable, RG58 ALL, stranded wire, 100 m, black

High performance, professional outdoor coaxial cable for video instalation.

Internal wire:1.10mm/cooper (Cu) Insulation: 2.90mm

Shield: Al-PET + 70% CuSn External coating:5.00mm/PVC/black

#07098 Net Price: 32.90 USD Unit: roll 100m

Coaxial cable CTF 113 Tri-shield, 100 m CFT 113 Tri-shield is a high quality 75Ω coaxial cable designed for perfect signal transmission of digital and analog in a very difficult external environment.

internal vein: 1.13 mm / copper wire (Cu) dielectric: 4.8 mm

Screen: Al foil + braid 90% + Al-Pet braid: 90%

outer shell: 7mm/PVC/white

Attenuation: 50 MHz - 4,1 dB/100m, 100 MHz - 5,5 dB/100m,

#07099 Net Price: 72.90 USD Unit: roll 100m

Coaxial cable RG-11/U Tri-shield, 100 m RG-11/U Tri-shield is a high quality 75Ω coaxial cable designed for perfect signal transmission of digital and analog in a very difficult external environment.

internal vein: 1.63 mm / copper wire (Cu) dielectric: 7.11 mm

Screen: Al foil + braid 60% + Al-Pet outer shell: 10.1 mm/PE/black + gel

Attenuation: 50 MHz - 3,1 dB/100m, 100 MHz - 4,3 dB/100m, 200 MHz 6,1 dB/100m, 450 MHz 9,1 dB/100m, 860 MHz

(3)

-#07097 Net Price: 33.10 USD Unit: roll 100m Coaxial cable RG6type, CTF 113 DIGITAL, white, 100 m

CFT 113 DIGITAL is a high quality 75Ω coaxial cable designed for perfect signal transmission of digital and analog. Internal wire:1.13mm/cooper (Cu)

Insulation: 4.80mm Shield: Al-PET-Al + 90% External coating:7.00mm/PVC/black Attenuation: 50 MHz - 3,9 dB/100 m, 100 MHz - 5,5 dB/100 m, 200 MHz - 7,8 dB/100 m, 450 MHz - 12,3 dB/100 m, 800 MHz - 16,6 dB/100 m, 1000 MHz - 18,5 dB/100 m, 1200 MHZ - 21,3 dB/100m, 1750 MHZ - 25,2 dB/100m, 2050 MHz - 27,4 dB/100 m, 2150 MHZ - 28,3 dB/100m, 2400 MHz - 29,8 dB/100 m #07204 Net Price: 16.10 USD Unit: roll 100m

Coaxial cable Wave Cables RG59 Cu, 100 m center conductor: 0.81 mm / copper wire (Cu) dielectric: 3.7 mm

screen: Al-PES foil braid: 64x0.12 Al outer shell: 6.0mm/PVC impedance: 75Ω capacitance: 52 +/- 2 pF/m return loss: 5-30 MHz - >26dB, 30-470 MHz - >23dB, 470-1000 MHz - >20dB, 1000-3000 MHz - >20dB acreening attenuation: 1-1000MHz - >90dB attenuation: 5 MHz - 1.8 dB/100m, 50 MHz - 5.9 dB/100m, 200 MHz - 10.7 dB/100m, 400 MHz - 14.8 dB/100m, 800 MHz - 22.5 dB/100m, 1000 MHz - 25.0 dB/100m, 1350 MHz - 30.5 dB/100m, 1750 MHz - 33.5 dB/100m, 2150 MHz - 37.5 dB/100m, 3000 MHz - 46.5 dB/100m #07205 Net Price: 18.10 USD Unit: roll 100m

Coaxial cable Wave Cables RG59-Tri Cu, 100 m center conductor: 0.81 mm / copper wire (Cu)

dielectric: 3.7 mm screen: Al-PES-Al foil braid: 96x0.12 Al outer shell: 6.2mm/PVC impedance: 75Ω capacitance: 52 +/- 2 pF/m return loss: 5-30 MHz - >26dB, 30-470 MHz - >23dB, 470-1000 MHz - >20dB, 1000-3000 MHz - >20dB screening attenuation: 1-1000MHz - >100dB attenuation: 5 MHz - 1.7 dB/100m, 50 MHz - 5.8 dB/100m, 200 MHz - 10.7 dB/100m, 400 MHz - 15.2 dB/100m, 800 MHz - 22.5 dB/100m, 1000 MHz - 25.0 dB/100m, 1350 MHz - 30.5 dB/100m, 1750 MHz - 33.5 dB/100m, 2150 MHz - 37.5 dB/100m, 3000 MHz - 46.5 dB/100m #07206 Net Price: 21.40 USD Unit: roll 100m

Coaxial cable Wave Cables RG6 Cu, black, 100 m center conductor: 1.02 mm / copper wire (Cu)

dielectric: 4.7 mm screen: Al-PES foil braid: 64x0.12 Al outer shell: 6.8mm/PVC impedance: 75Ω capacitance: 52 +/- 2 pF/m return loss: 1-1000 MHz - >23dB, 1000-3000 MHz - >20dB screening attenuation: 1-1000MHz - >90dB attenuation: 5 MHz - 5 MHz - 1.7 dB/100m, 50 MHz - 5.0 dB/100m, 200 MHz - 8.7 dB/100m, 400 MHz - 12.8 dB/100m, 800 MHz - 18.0 dB/100m, 1000 MHz - 19.8 dB/100m, 1350 MHz 23.8 dB/100m, 1750 MHz 28.0 dB/100m, 2150 MHz -31.4 dB/100m, 3000 MHz - 38.0 dB/100m #07212 Net Price: 21.40 USD Unit: roll 100m

Coaxial cable Wave Cables RG6 Cu, white, 100 m center conductor: 1.02 mm / copper wire (Cu)

dielectric: 4.7 mm screen: Al-PES foil braid: 64x0.12 Al outer shell: 6.8mm/PVC impedance: 75Ω capacitance: 52 +/- 2 pF/m return loss: 1-1000 MHz - >23dB, 1000-3000 MHz - >20dB screening attenuation: 1-1000MHz - >90dB attenuation: 5 MHz - 5 MHz - 1.7 dB/100m, 50 MHz - 5.0 dB/100m, 200 MHz - 8.7 dB/100m, 400 MHz - 12.8 dB/100m, 800 MHz - 18.0 dB/100m, 1000 MHz - 19.8 dB/100m, 1350 MHz 23.8 dB/100m, 1750 MHz 28.0 dB/100m, 2150 MHz -31.4 dB/100m, 3000 MHz - 38.0 dB/100m #07199 Net Price: 105.00 USD Unit: roll 500m

Coaxial cable Wave Cables RG6 Cu, white, 500 m center conductor: 1.02 mm / copper wire (Cu)

dielectric: 4.7 mm screen: Al-PES foil braid: 64x0.12 Al outer shell: 6.8mm/PVC impedance: 75Ω capacitance: 52 +/- 2 pF/m return loss: 1-1000 MHz - >23dB, 1000-3000 MHz - >20dB screening attenuation: 1-1000MHz - >90dB attenuation: 5 MHz - 5 MHz - 1.7 dB/100m, 50 MHz - 5.0 dB/100m, 200 MHz - 8.7 dB/100m, 400 MHz - 12.8 dB/100m, 800 MHz - 18.0 dB/100m, 1000 MHz - 19.8 dB/100m, 1350 MHz 23.8 dB/100m, 1750 MHz 28.0 dB/100m, 2150 MHz -31.4 dB/100m, 3000 MHz - 38.0 dB/100m #08002 Net Price: 57.40 USD Unit: roll 100m Coaxial cable XAp RG59 + 2 x power cable, white, 100m

XAP RG59 + 2x0,75 is 75Ω coaxial cable with the wires supplying integrated / octal construction controls, designed primarily for use in CCTV installations.

The parameters of the coaxial

Inner conductor: 0.59 mm / copper wire (Cu) Dielectric: 3.70 mm / EP

Display: braided copper (Cu) 90% Outer sheath: PE 6mm/black Impedance: 75 Ω +/- 3 Unit Capacity: 67 +/- 3 pF / m

Screening efficiency:> 65dB (100-900MHz) Internal conductor resistance: 46 Ω / km

Minimum bending radius in the internal installations:> 5x cable diameter

Damping [dB/100m]: 7.6 (50MHz), 10.9 (100MHz), 15.5 (200MHz), 23.1 (450MHz), 25.9 (500MHz), 32.6 (800MHz), 36 , 5 (1000MHz), 42.0 (1300MHz)

The parameters of the control Vein internal: 2 x stranded copper (Cu)

Rated cross-section of living control: 0.75 mm / copper,

multiple-Outer sheath: 5mm/PVC/black

#08000 Net Price: 44.60 USD Unit: roll 100m Coaxial cable YAp RG59 + 2 x power cable 0,75, white, 100m

YAp 75-0,59/3,7 + 2x0,75 coaxial outdoor cable for industrial tv instalation.

The parameters of the coaxial

Inner conductor: 0.59 mm / copper wire (Cu) Dielectric: 3.70 mm / EP

Display: braided copper (Cu) 90% Outer sheath: 6mm/PVC/biała Impedance: 75 Ω +/- 3 Unit Capacity: 67 +/- 3 pF / m

Screening efficiency:> 65dB (100-900MHz) Internal conductor resistance: 46 Ω / km

Minimum bending radius in the internal installations:> 5x cable diameter

Damping [dB/100m]: 7.6 (50MHz), 10.9 (100MHz), 15.5 (200MHz), 23.1 (450MHz), 25.9 (500MHz), 32.6 (800MHz), 36 , 5 (1000MHz), 42.0 (1300MHz)

Weight: 7.5 kg

The parameters of the control Vein internal: 2 x stranded copper (Cu)

Rated cross-section of living control: 0.50 mm / copper,

multiple-Outer sheath: 5mm/PVC/biała

#07211 Net Price: 36.10 USD Unit: roll 100m

H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (PE), 100 m

High performance outdoor coaxial cable for WLAN communication (2,4 GHz).

Internal wire:7x0.45 / cooper (Cu) Insulation: 3.60mm

Shield: Double Al foil, 96x0.12Cu External coating:5.4mm/PE Attenuation 20°C [dB/100m] 5 MHz: 1,8 50 MHz: 6,8 200 MHz: 12,5 400 MHz: 17,8 800 MHz: 26 1000 MHz: 29,6 1350 MHz: 34,7 1750 MHz: 40 2150 MHz: 44,5 3000 MHz: 53,2 Return loss [dB] 5-30 MHz: >22 30-470 MHz: >20 470-1000 MHz: >18 1000-2150 MHz: >18

(4)

#07253 Net Price: 181.00 USD Unit: roll 500m

H155 (WC-55) coaxial cable Wave Cables, 50 Ohm (PE), 500 m

50Ω, 5,4mm (H155) High performance outdoor coaxial cable for WLAN communication (2,4 GHz).

Internal wire:7x0.45 / cooper (Cu) Insulation: 3.60mm

Shield: Double Al foil, 96x0.12Cu External coating:5.4mm/PE Attenuation 20°C [dB/100m] 5 MHz: 1,8 50 MHz: 6,8 200 MHz: 12,5 400 MHz: 17,8 800 MHz: 26 1000 MHz: 29,6 1350 MHz: 34,7 1750 MHz: 40 2150 MHz: 44,5 3000 MHz: 53,2 Return loss [dB] 5-30 MHz: >22 30-470 MHz: >20 470-1000 MHz: >18 1000-2150 MHz: >18 #02058 Net Price: 178.00 USD Unit: roll 100m RF-10F (H1000) coaxial cable, 50 Ohm (PE), wire, 100 m

Internal wire: 2.71/Cu/solid Insulation: 7.25/Foam-PE

Shield: 10.3 mm Cu-PET-Cu-foil+cooper braid External coating: 5.4/PE/black

Wave loss [100/1000/2500MHz]: 1.0/3.6/20.6

#02051 Net Price: 43.40 USD Unit: roll 100m

RF-5X (H155) coaxial cable, 50 Ohm (PE), Draka, 100m

High performance outdoor coaxial cable for WLAN communication (2,4 GHz). Draka Comteq. Internal wire:1.35mm(7x0,45)/cooper (Cu) Insulation: 3.60mm

Shield: Cu-Al-PET + 60% cooper (CuCA) External coating:5.4mm/PE/black

#02050 Net Price: 217.00 USD Unit: roll 500m

RF-5X (H155) coaxial cable, 50 Ohm (PE), Draka, 500m

High performance outdoor coaxial cable for WLAN communication (2,4 GHz). Draka Comteq. Internal wire:1.35mm(7x0,45)/cooper (Cu) Insulation: 3.60mm

Shield: Cu-Al-PET + 60% cooper (CuCA) External coating:5.4mm/PE/black

#08259 Net Price: 173.00 USD Unit: roll 100m

MRC 400 ECO coaxial cable, Draka, 50 Ohm (PE), 100 m

High performance, professional outdoor coaxial cable for WLAN communication (2,4 GHz, WiMAX, 5 GHz) with a CCA inner conductor (Copper Clad Aluminium). Draka Comteq. Internal wire: 2.74 mm/CCA

Insulation: Ø7.24 mm

Shield: AL-PET Foil, bonded to the dielectric + Aluminium braid

External coating:10.3 mm/PE/black Attenuation table 30 MHz: 2.2 dB/100m 150 MHz: 5 dB/100m 220 MHz: 6.1 dB/100m 450 MHz: 8.9 dB/100m 900 MHz: 12.8 dB/100m 1800 MHz: 18.6 dB/100m 2500 MHz: 22.3 dB/100m 5200 MHz: 33.6 dB/100m 5800 MHz: 35.5 dB/100m #05299 Net Price: 81.10 USD Unit: roll 100m

Tri-lan 240 (RF-240) coaxial cable, 50 Ohm, 100 m Copper core diameter: 1.4 mm+/-0.02 mm

Outer diameter: 3.8 mm +/- 0.05 mm Shield: Al/Poliester Foil/Al Foil 12/15/12 um Foil coverage rate: 100 %

CuSn braid: 16x7x0.12 Braid coverage rate: 80 % Outer diameter: 4.45 mm Sheath Material: PE Outer diameter: 6.10 mm +/-0.10 mm Colour: black Electrical parameters Impedance: 50 Ohm +/-2 Capacitance: 83 pF/m Wave reduction factor: 81% Screening efficiency: >90 dB Core resistance: 11.2 Ohm/km Braid resistance: 12.4 Ohm/km Other parameters

Minimum bending radius: 30/60 mm Weight: 47 kg/km Working temperature: -40°C ÷ 70°C Attenuation table 30 MHz: 4.2 dB/100m 50 MHz: 5.4 dB/100m 150 MHz: 9.2 dB/100m 220 MHz: 11.2 dB/100m 450 MHz: 16.2 dB/100m 900 MHz: 23.3 dB/100m 1500 MHz: 30.7 dB/100m 1800 MHz: 33.9 dB/100m 2000 MHz: 35.9 dB/100m 2500 MHz: 40.6 dB/100m 5800 MHz: 65.2 dB/100m Connectors SMA type

#02023 Net Price: 0.667 USD Unit: pcs

SMA male connector, crimp type, H155

#00378 Net Price: 0.667 USD Unit: pcs

SMA male connector, crimp type, RG174

#01561 Net Price: 0.667 USD Unit: pcs

SMA male connector, crimp type, RG58 #02025 Net Price: #02789 Net Price: #02791 Net Price:

(5)

#00374 Net Price: 0.975 USD Unit: pcs

Adaptor, SMA female to SMA female

#00372 Net Price: 0.917 USD Unit: pcs

SMA female connector, bulkhead

#02024 Net Price: 0.858 USD Unit: pcs

SMA female connector, crimp type, H155 #00375

Net Price: 0.803 USD Unit: pcs

SMA female connector, crimp type, RG174

#01560 Net Price: 0.803 USD Unit: pcs

SMA female connector, crimp type, RG58

#02043 Net Price: 1.14 USD Unit: pcs

SMA female connector, PCB, right angle #02039

Net Price: 0.628 USD Unit: pcs

SMA female reverse pin connector (RP), bulkhead receptacle, 11.6 mm

#02041 Net Price: 0.853 USD Unit: pcs

SMA female reverse pin connector (RP), bulkhead receptacle, 13.15 mm

#02026 Net Price: 0.781 USD Unit: pcs

SMA female reverse pin connector (RP), crimp type, H155

#02792 Net Price: 0.811 USD Unit: pcs

SMA female reverse pin connector (RP), crimp type, RG174

#02790 Net Price: 0.842 USD Unit: pcs

SMA female reverse pin connector (RP), crimp type, RG58

#02037 Net Price: 1.01 USD Unit: pcs

SMA female reverse pin connector (RP), PCB, right angle, L=15 mm Connectors N type #00723 Net Price: 1.29 USD Unit: pcs

N male connector, clamp type, RG213

#02018 Net Price: 1.15 USD Unit: pcs

N male connector, crimp type, H1000

#02021 Net Price: 1.12 USD Unit: pcs

N male connector, crimp type, H155 #00347

Net Price: 1.15 USD Unit: pcs

N male connector, crimp type, RG58

#00342 Net Price: 0.944 USD Unit: pcs

N female connector, bulkhead crimp type, RG58

#02019 Net Price: 1.18 USD Unit: pcs

N female connector, crimp type, H1000 #02022

Net Price: 1.12 USD Unit: pcs

N female connector, crimp type, H155

#00344 Net Price: 1.17 USD Unit: pcs

N female connector, crimp type, RG58

#02020 Net Price: 0.936 USD Unit: pcs

N female connector, receptacle chassis mount, RG58

#00343 Net Price: 1.34 USD Unit: pcs

Adaptor, N female to N female

#00346 Net Price: 1.42 USD Unit: pcs

(6)

Connectors TNC type

#00752 Net Price: 0.272 USD Unit: pcs

TNC male connector, clamp type, RG6

#02483 Net Price: 0.364 USD Unit: pcs

TNC male connector, crimp type, H155

#00386 Net Price: 0.350 USD Unit: pcs

TNC male connector, crimp type, RG58 #04727

Net Price: 0.683 USD Unit: pcs

TNC male RP connector (Reverse Pin), crimp type, H155

#04728 Net Price: 0.550 USD Unit: pcs

TNC male RP connector (Reverse Pin), crimp type, RG58

#00381 Net Price: 0.506 USD Unit: pcs

Adaptor, TNC female to TNC female

#00380 Net Price: 0.367 USD Unit: pcs

TNC female connector, bulkhead receptacle

#02482 Net Price: 0.350 USD Unit: pcs

TNC female connector, crimp type, H155

#00750 Net Price: 0.219 USD Unit: pcs

TNC female connector, crimp type, RG6 Connectors FME type

#02481 Net Price: 0.422 USD Unit: pcs

FME male connector, crimp type, H155

#01503 Net Price: 0.422 USD Unit: pcs

FME male connector, crimp type, RG174

#00756 Net Price: 0.417 USD Unit: pcs

FME male connector, crimp type, RG58 #02480

Net Price: 0.333 USD Unit: pcs

FME female connector, crimp type, H155

#01502 Net Price: 0.269 USD Unit: pcs

FME female connector, crimp type, RG174

#00755 Net Price: 0.297 USD Unit: pcs

FME female connector, crimp type, RG58 MCX, MC CARD, TS9, CRC9 Connectors

#07132 Net Price: 1.36 USD Unit: pcs

CRC9 male connector, 90°, crimp type, RG174 CRC9 is mailny used in Huawei 3G and LTE modems.

#07134 Net Price: 1.44 USD Unit: pcs

CRC9/TS9 twix male connector, 90°, crimp type, RG174

TS9 is mailny used in 3G and LTE modems manufactured by ZTE, Sierra Wireless, Novatel and others.

CRC9 is mailny used in Huawei 3G and LTE modems.

#02053 Net Price: 0.833 USD Unit: pcs

MC-CARD male connector; 90°, gold, crimp type, H155

#02787 Net Price: 1.31 USD Unit: pcs

MCX male connector, 90°, crimp type, RG174

#03389 Net Price: 1.08 USD Unit: pcs

MCX male connector, straight, crimp type, RG174

#07133 Net Price: 1.22 USD Unit: pcs

TS9 male connector, 90°, crimp type, RG174 TS9 is mailny used in 3G and LTE modems manufactured by ZTE, Sierra Wireless, Novatel and others.

Connectors BNC type

(7)

#00718 Net Price: 0.406 USD Unit: pcs

BNC male connector, clamp type, RG6

#00316 Net Price: 0.542 USD Unit: pcs

BNC male connector, crimp type, RG11 Cable core diameter up to Ø1,3mm.

#01635 Net Price: 0.400 USD Unit: pcs

BNC male connector, crimp type, RG174

#00317 Net Price: 0.300 USD Unit: pcs

BNC male connector, crimp type, RG58

#00318 Net Price: 0.300 USD Unit: pcs

BNC male connector, crimp type, RG59

#01559 Net Price: 0.300 USD Unit: pcs

BNC male connector, crimp type, RG6 #00311 Net Price: 0.253 USD Unit: pcs Adaptor, BNC(F) - BNC(F) #00310 Net Price: 0.269 USD Unit: pcs

BNC female connector, bulkhead receptacle nut 12.7 mm 50ohm

#01634 Net Price: 0.397 USD Unit: pcs

BNC female connector, crimp type, RG174

#00312 Net Price: 0.403 USD Unit: pcs

BNC female connector, crimp type, RG58

#01633 Net Price: 0.400 USD Unit: pcs

BNC female connector, crimp type, RG59

#00714 Net Price: 0.533 USD Unit: pcs

BNC female connector, isolated ground #01641 Net Price: 0.244 USD Unit: pcs BNC female connector, PCB, 180° #00715 Net Price: 0.528 USD Unit: pcs BNC female connector, PCB, 90° #00306 Net Price: 0.394 USD Unit: pcs Splitter, BNC(F) - 2x BNC(F) #00307 Net Price: 0.439 USD Unit: pcs Splitter, BNC(M) - 2x BNC(F) #02408 Net Price: 0.047 USD Unit: pcs BNC boot, RG58 Length: 44,5mm Diameters: 8.5mm; 5.5mm #02409 Net Price: 0.047 USD Unit: pcs BNC boot, RG59 Length: 44,5mm Diameters: 8,5mm; 6,5mm Connectors F type #01796 Net Price: 6.67 USD Unit: 100pcs

F male connector, TWIST-ON, RG59, brass

#02059 Net Price: 4.44 USD Unit: 100pcs

F male connector, TWIST-ON, RG6

#01550 Net Price: 5.94 USD Unit: 100pcs

F male connector, TWIST-ON, RG6, Thickness 7.2 mm

#01797 Net Price: 6.67 USD Unit: 100pcs

F male connector, TWIST-ON, RG6, brass

#00575 Net Price: 7.08 USD Unit: 100pcs

F double female connector + Nut/Washer, diecast

#00574 Net Price: 16.20 USD Unit: 100pcs

F female connector, bulkhead receptacle, O.D.:11 mm, brass, with Nut/Washer

(8)

Connectors UHF type

#03387 Net Price: 0.444 USD Unit: pcs

UHF male connector, crimp type, RG58

#01558 Net Price: 0.500 USD Unit: pcs

UHF male connector, twist type, RG11

#00699 Net Price: 0.486 USD Unit: pcs

UHF male connector, twist type, RG58 #00700

Net Price: 0.486 USD Unit: pcs

UHF male connector, twist type, RG59

#00697 Net Price: 0.539 USD Unit: pcs

Adaptor, UHF female to UHF female

#00696 Net Price: 0.517 USD Unit: pcs

UHF female connector, bulkhead, 16 teeth Connectors DC type

#00559 Net Price: 5.94 USD Unit: 100pcs

DC male connector with plastic handle, 2.5/5.5 Connectors PAL type

#00539 Net Price: 1.67 USD Unit: 100pcs

TV antenna male connector, chassis mount

#00534 Net Price: 2.19 USD Unit: 100pcs

TV antenna female connector

#00530 Net Price: 2.22 USD Unit: 100pcs

TV antenna female connector, 90°, big #00528

Net Price: 0.069 USD Unit: pcs

TV antenna female connector, metal, chassis mount

#00529 Net Price: 1.67 USD Unit: 100pcs

TV antenna female connector, metal, PCB

#01516 Net Price: 0.117 USD Unit: pcs

TV antenna female connector, with attach ring, RG6

#00647 Net Price: 0.083 USD Unit: pcs

TV single outlet box

#00690 Net Price: 0.147 USD Unit: pcs

Splitter, TV antenna male to 2xTV antenna female, metal

Cables power type

#01211 Net Price: 106.00 USD Unit: roll 100m HC OFC power cable, 8AWG, red, O.D.: 6.5 mm External diameter with isolation: 6,5 mm

Wire diameter: 0,15 mm

#01215 Net Price: 41.70 USD Unit: roll 100m HC OFC power cable, 10AWG, black, O.D.:5.5 mm

External diameter with isolation: 5,5 mm Wire diameter: 0,15 mm

Toslink optical accessories

#01676 Net Price: 0.556 USD Unit: pcs

(9)

AV splitters

#02700 Net Price: 0.200 USD Unit: pcs

Splitter, SCART 21P male to SCART 21P female + 2XRCA female

Other audio accessories

#01535 Net Price: 0.111 USD Unit: pcs

(10)

Video Converters, Transmitters ... 1

HDMI, DVI ... 1

AV adaptors ... 1

AV connections ... 2

Cables coaxial type ... 2

Connectors SMA type ... 4

Connectors N type ... 5

Connectors TNC type ... 6

Connectors FME type ... 6

MCX, MC CARD, TS9, CRC9 Connectors ... 6

Connectors BNC type ... 6

Connectors F type ... 7

Connectors UHF type ... 8

Connectors DC type ... 8

Connectors PAL type ... 8

Cables power type ... 8

Toslink optical accessories ... 8

AV splitters ... 9

References

Related documents
