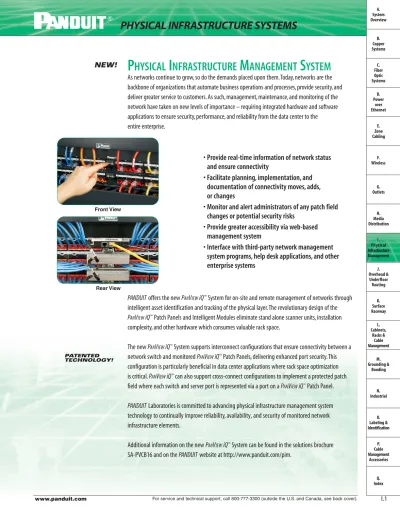

PHYSICAL INFRASTRUCTURE MANAGEMENT SYSTEM

(1)

Systems C. Fiber Optic Systems D. Power over Ethernet E. Zone Cabling F. Wireless G. Outlets H. Media Distribution I. Physical Infrastructure Management J. Overhead & Underfloor Routing K. Surface Raceway L. Cabinets, Racks & Cable Management M. Grounding & Bonding N. Industrial O. Labeling & Identification P. Cable Management Accessories Q. Index

P

HYSICAL

I

NFRASTRUCTURE

M

ANAGEMENT

S

YSTEM

As networks continue to grow, so do the demands placed upon them.Today, networks are the

backbone of organizations that automate business operations and processes, provide security, and

deliver greater service to customers. As such, management, maintenance, and monitoring of the

network have taken on new levels of importance – requiring integrated hardware and software

applications to ensure security, performance, and reliability from the data center to the

entire enterprise.

• Provide real-time information of network status

and ensure connectivity

• Facilitate planning, implementation, and

documentation of connectivity moves, adds,

or changes

• Monitor and alert administrators of any patch field

changes or potential security risks

• Provide greater accessibility via web-based

management system

• Interface with third-party network management

system programs, help desk applications, and other

enterprise systems

PANDUIT offers the new P

AN

V

IEW

iQ

™

System for on-site and remote management of networks through

intelligent asset identification and tracking of the physical layer.The revolutionary design of the

P

AN

V

IEW

iQ

™

Patch Panels and Intelligent Modules eliminate stand alone scanner units, installation

complexity, and other hardware which consumes valuable rack space.

The new P

AN

V

IEW

iQ

™

System supports interconnect configurations that ensure connectivity between a

network switch and monitored P

AN

V

IEW

iQ

™

Patch Panels, delivering enhanced port security.This

configuration is particularly beneficial in data center applications where rack space optimization

is critical. P

AN

V

IEW

iQ

™

can also support cross-connect configurations to implement a protected patch

field where each switch and server port is represented via a port on a P

AN

V

IEW

iQ

™

Patch Panel.

PANDUIT Laboratories is committed to advancing physical infrastructure management system

infrastructure elements.

Additional information on the new P

AN

V

IEW

iQ

™

System can be found in the solutions brochure

SA-PVCB16 and on the PANDUIT website at http://www.panduit.com/pim.

Front View

Rear View

(2)

Appliqué with peel-off adhesive strip Switch Attachment cable Systems C. Fiber Optic Systems D. Power over Ethernet E. Zone Cabling F. Wireless G. Outlets H. Media Distribution I. Physical Infrastructure Management J. Overhead & Underfloor Routing K. Surface Raceway L. Cabinets, Racks & Cable Management M. Grounding & Bonding N. Industrial O. Labeling & Identification P. Cable Management Accessories Q. Index

P

AN

V

IEW

iQ

™

Interconnect Solution for the Enterprise

VoIP Computer Printer

Switch

PANVIEW iQ™ Patch Panel

PANVIEW iQ™ Interconnect Patch Cords Horizontal Links PANVIEW iQ™ Interconnect Patch Cord PANVIEW iQ™ Interconnect Patch Cord PANVIEW iQ™ Patch Panel PANVIEW iQ™ Patch Panel Horizontal Cabling

Switch

Server

PANVIEW iQ™ Interconnect Patch Cords PANVIEW iQ™ Interconnect Patch Cords PANVIEW iQ™ Patch Panels PANVIEW iQ™ Patch Panels Horizontal Cabling Switch Servers

• Eliminates the need for scanner units and the rack spaces that these units occupy

• Eliminates the need for attachment cables and stick-on strips which mount to switches

• Innovative new provisioning port allows guided patching from PANVIEWiQ™_{Patch Panel to}

designated switch ports

• Detects patch cord connections/ disconnections made between the switch and PANVIEWiQ™

Patch Panels

• Detects connections and disconnections made between the switch and PANVIEWiQ™

Patch Panels

• Detects connections and disconnections made between the server and PANVIEWiQ™

Patch Panels

• Provides asset tracking of devices with the PANVIEWiQ™

System from the logical layer to the physical layer

(3)

P

AN

V

IEW

iQ

™

Cross-Connect Solution for the Enterprise

VoIP Computer Printer

Switch Horizontal Links PANVIEW iQ™ Cross-Connect Patch Cords PANVIEW iQ™ Patch Panels Standard Plug to Jack Cabling PANVIEW iQ™ Cross-Connect Patch Cord Standard Patch Cord PANVIEW iQ™ Patch Panel Standard Patch Panel Horizontal Cabling Standard Plug to Jack Cabling

Switch

Server

PANVIEW iQ™ Patch Panel PANVIEW iQ™ Cross-Connect Patch Cords PANVIEW iQ™ Patch Panels PANVIEW iQ™ Patch Panels Standard Patch Cords Standard Plug to Jack Cabling Standard Patch Panels Switch Servers Horizontal Cabling

• Provides asset tracking of devices with the PANVIEWiQ™

System from the logical layer to the physical layer

•PANVIEWiQ™_{Patch Panels}

will confirm: double-ended connections (both ends connected), and single-ended connections (remote

end disconnected) • The PANVIEWiQ™System

can automatically map the cross-connect patch field and monitor all connections for continuous security. The system also guides moves, adds, and changes

• Prevents damage to switch and server ports by creating protected patch field between PANVIEWiQ™

Patch Panels. Each switch and server port is represented at the patch panel level

•PANVIEWiQ™_{Cross-Connect}

Patch Cords guarantee switch to server traceability to support critical moves, adds, and changes

•PANVIEWiQ™Patch Panels detect and send notifications of connect and disconnect status for event recording and security purposes

(4)

P

AN

V

IEW

iQ

™

Hardware

P

AN

V

IEW

iQ

™

Hardware Exploded View

P

AN

V

IEW

iQ

™

Interface Unit

P

AN

V

IEW

iQ

™

96-Port Configuration (Rear View)

RJ-45 Patch Cord to Additional Panel Managers

Up to 29 additional 96-port groups can be added.

PANVIEW iQ™ Patch Panels with

PANVIEW iQ™_{Expansion Modules (EM)}

Up to three PANVIEW iQ™

Expansion Modules (EM) can be connected to a single

PANVIEW iQ™Panel Manager (PM).

PANVIEW iQ™_{Patch Panel with} Panel Manager (PM)

RJ45 Patch Cord to Network Switch Expansion Port Cables carry power and data

Included with PANVIEW iQ™

Expansion Module (EM).

PANVIEW iQ™ Panel Manager (PM)

PANVIEW iQ™ Expansion Modules (EM)

To PANVIEW iQ™ Power Supply PANVIEWiQ™

Patch Panel

PANVIEWiQ™_{Intelligent Module: Panel Manager or Expansion Module}

PANVIEWiQ™ Interface Unit PANVIEWiQ™ Patch Cord MINI-COM® Jack Module Mounting Bracket

Port for Interconnect Provisioning Mode Status Indicator

Next Key System Status Indicator Confirmation Key Trace Mode Indicator MAC Mode Indicator

Interface unit shown for PANVIEWiQ™_{Panel Manager (PM).}

Interface unit for PANVIEWiQ™_{Expansion Manager (EM) does not}

contain provisioning port. PANVIEWiQ™_{Intelligent Module is supplied with the matching interface unit.}

(5)

Physical Infrastructure Management System Roadmap

PANVIEWiQ™ Intelligent Modules (page I.6)

1

PANVIEWiQ™ Patch Panels (page I.6)

2

PANVIEWiQ™ Power Supply (page I.7)

3

Strain Relief Bars (page B.61)

4

PHYSICALINFRASTRUCTURE MANAGER™_Software (page I.7)

5

PANVIEW™_iQ

Copper and Fiber Patch Cords (page I.8)

6

Horizontal Cable Managers (page L.27)

7

ULTIMATEID®_Labels

(pages O.8 and O.15)

8

5 1 2 3 4 6 7 8

(6)

P

AN

V

IEW

iQ

™

Intelligent Modules

• Provides manageability for a PANVIEWiQ™_{Patch Panel}

• Eliminates the need for additional rack space by attaching directly to the back of a PANVIEWiQ™_{Patch Panel}

• Enables quick addition, removal, or replacement of intelligent modules to add management capabilities • Adapts to either cross-connect or interconnect installations

• The intelligent panel manager (PM) module provides networking interface, power connection and expansion port connections

• The intelligent expansion module (EM) is a slave to the PM and receives all power and data signals through the expansion port. Three EMs can be connected to one PM

PVQ-EM

PANVIEWiQ™

Panel Manager requires proper country specific power supply (PVQ-PS12VDC-S for North America, PVQ-PS12VDC-E for Europe, or PVQ-PS12VDC-U for United Kingdom) which must be ordered separately.

Part Number Part Description

Std. Pkg. Qty. PVQ-PM Panel manager (includes mounting bracket, 1.5' (0.5m) RJ45 patch cord, and

interface unit). 1

PVQ-EM Expansion module (includes mounting bracket, expansion port cable, and

interface unit). 1

P

AN

V

IEW

iQ

™

Patch Panels

• Mount to standard EIA 19" rack or 23" racks with optional extender bracket on page L.33

• Accommodates intelligent modules that mount in the rear and utilize no additional rack space (zero RU)

• Accepts all MINI-COM®_{UTP, STP, and LC Fiber}

Optic Modules

• Accepts a PANVIEWiQ™_{Interface Unit to provide patch}

cord tracing and provisioning of switch ports with PANVIEW

iQ™_{Interconnect Patch Cords or patch field mapping with}

PANVIEWiQ™Cross-Connect Patch Cords

PVQ-MIQPU24

PVQ-MIQPS96F

^One rack space = 1.75" (44.45mm). PANVIEWiQ™

Panel Manager requires proper country specific power supply (PVQ-PS12VDC-S for North America, PVQ-PS12VDC-E for Europe, or PVQ-PS12VDC-U for United Kingdom) which must be ordered separately.

PVQ-PM

No. of Rack Spaces^ Std. Pkg. Qty. Std. Ctn. Qty.

AngledPANVIEWiQ™Patch Panels

PVQ-MIQAPU24 24-port unpopulated angled UTP modular intelligent module

ready patch panel.

1 1 10

PVQ-MIQAPS24 24-port unpopulated angled STP modular intelligent module

ready patch panel.

1 1 10

FlatPANVIEWiQ™_{Patch Panels}

PVQ-MIQPU24 24-port unpopulated UTP modular intelligent module ready patch panel.

1 1 10

PVQ-MIQPS24 24-port unpopulated STP modular intelligent module ready patch panel.

1 1 10

PANVIEWiQ™_{Hardware Kit}

PVQ-MIQPS96F For standard configurations, this 96-port modular

intelligent panel kit includes four flat PANVIEWiQ™Patch Panels (PVQ-MIQPU24), one PANVIEWiQ™_{Panel Manager}

with interface unit, and three PANVIEWiQ™_Expansion

Modules with expansion port cables and interface units. Also includes one 1.5' (0.5m) RJ45 patch cord for connection to network switch or additional daisy-chained PANVIEWiQ™_{Panel Managers. (Power supply, P}_AN_V_IEW_iQ™

Patch Cords and MINI-COM®_{Modules are not included and}

must be purchased separately.)

[PVQ-MIQPS96A will be released as an angled kit. See website for availability at www.panduit.com/pim.]

4 1 0

PVQ-MIQAPU24

PANVIEWiQ™_{Patch Panels revolutionize intelligent physical infrastructure management by providing a modular and}

scalable approach to meet the demands of enterprise and data center installations. Standard copper and fiber cabling is used for all terminations onto the back of these panels while unique PANVIEWiQ™_{Patch Cords are used for cross-connect}

or interconnect installations.

PANVIEWiQ™_{Intelligent Modules enable the P}_AN_V_IEW_iQ™_{Patch Panels to sense connections and disconnections from each}

port and relay status information to the PHYSICALINFRASTRUCTUREMANAGER™(PIM) database. The intelligent modules also accept trace mode and MAC commands to provide guidance via the PANVIEWiQ™_{Interface Unit and Patch Panel LEDs.}

(7)

P

HYSICAL

I

NFRASTRUCTURE

M

ANAGER

™

Software

• Supports the PANVIEWiQ™_System

• Provides automated documentation of network patch field connectivity

• Provides real-time notification of all changes in physical layer patch field

• Documents and assigns moves, adds, and changes for planned configuration changes

• Utilizes a web-based graphical user interface that is globally accessible

• Allows integration between third-party programs via the PANDUIT Application Programming Interface (API) e.g. HP OpenView Network Node Manager^

Std. Pkg. Qty. PIMS-MEDIA Software user manual with PHYSICALINFRASTRUCTUREMANAGERSOFTWARE™_CD

and support tools. 1

PIMS-100EL Endpoint license for 100 intelligent links. 1

PIMS-1KEL Endpoint license for 1000 intelligent links. 1

PIMS-MA-B1 Software maintenance agreement, basic, 1-year. 1

P

AN

V

IEW

iQ

™

Power Supply

• Provides 12 volts of regulated power

• One power supply required per panel manager module

• Offers flexible placement inside of rack • 5 feet (1.5m) cord length

^HP, OpenView, and Network Node Manager are registered trademarks of Hewlett-Packard Development Company, L.P.

Std. Pkg. Qty.

PVQ-PS12VDC-S 30W power supply for North America. 1

PVQ-PS12VDC-E 30W power supply for Europe. 1

PVQ-PS12VDC-U 30W power supply for UK. 1

Component Labels for P

AN

V

IEW

iQ

™

Patch Panels

For complete ULTIMATEID®_{Labeling Solutions and product information, reference charts on pages O.8 and O.15.}

Suggested Label Solutions for TIA/EIA-606-A Compliance Patch Panel

Part Number

Laser/Ink Jet Desktop Printer Label

PANTHER™_LS8E Hand-Held Printer Label

COUGAR™_LS9 Hand-Held Printer Label All Patch Panels

(8)

Cable Labels for P

AN

V

IEW

iQ

™

Patch Cords

For complete labeling solutions and product information, reference charts on pages O.1 – O.18.

Suggested Label Solutions for TIA/EIA-606-A Compliance Patch Cord

Part Number

Laser/Ink Jet Desktop Printer Label

TDP43MY Thermal Transfer Desktop Printer Label

PANTHER™_LS8E Hand-Held Printer Label

COUGAR™_LS9 Hand-Held Printer Label All Patch Cords

on Page I.8 _S100X150YAJ _S100X150VATY _S100X150VAC _{T100X000CBC-BK}

PVUTPSPC*BBUY

PVF9L10-10M*Y PVSTP6X*MBBU

P

AN

V

IEW

iQ

™

Patch Cords

•PANVIEWiQ™_{Interconnect Patch Cords support}

connectivity from non PANVIEWiQ™_{enabled ports (e.g.,}

switches, servers, etc) to a single PANVIEWiQ™Panel

•PANVIEWiQ™_{Cross-Connect Patch Cords manage}

and map the patch field between two PANVIEWiQ™

Patch Panels

• All PANVIEWiQ™_{Patch Cords permit P}_AN_V_IEW_iQ™

Panels to detect single-ended connections

PVQ-BIU6C3BU

^Additional lengths available: PVQ-BIU6C3BU also available in lengths 5, 7, 10 and 14 feet. PVQ-BIU6L3MBU also available in lengths 1m, 2m, 5m, and 10m.

Consult website at www.panduit.com/pim for additional colors and lengths.

^Additional lengths available: PVUTPSPC3BBUY also available in lengths of 5, 7, 9, 14 and 20 feet. PVUTPSPC1MBBUY also available in lengths of 2, 3, 5, 7 and 10 meters. PVSTP6X1MBBU also available in lengths of 2, 3, 5 and 10 meters. PVF9L10-10M0.5Y also available in 1/2 meter increments up to 10 meters. PVFXL10-10M0.5Y also available in 1/2 meter increments up to 10 meters.

ContactPANDUIT Customer Service for lead times.

Consult website at www.panduit.com/pim for additional colors and lengths.

Length^ _Pkg.Std. Qty. Std. Ctn. Qty. Ft. m

Interconnect Patch Cords

PVQ-BIU6C3BU Category 6 UTP interconnect patch cord for use

withPANVIEWiQ™patch panel, CM rated.

3 — 1 10

PVQ-BIU6L3MBU Category 6 UTP interconnect patch cord for use

withPANVIEWiQ™patch panel, LSZH rated.

— 1 1 10

Length^ _Pkg.Std. Qty. Std. Ctn. Qty. Ft. m

Cross-Connect Patch Cords

PVUTPSPC3BBUY Category 6 UTP patch cord for use with modular

patch panel.

3 — 1 10

PVUTPSPC1MBBUY Category 6 UTP patch cord for use with modular

patch panel.

— 1 1 10

PVSTP6X1MBBU Category 6A, STP modular 10GIG™_{Patch Cord.} _— ₁ ₁ ₁₀

PVUTP6X1MBBU Category 6A, UTP modular 10GIG™_{Patch Cord.} _— ₁ ₁ ₁₀

PVF9L10-10M0.5Y Singlemode LSZH LC-LC patch cord. — 1 1 10
