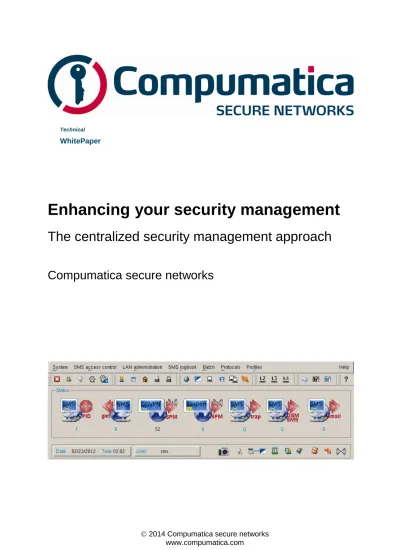

Enhancing your security management

(1)

 2014 Compumatica secure networks www.compumatica.com

Enhancing your security management

The centralized security management approach

Compumatica secure networks

Technical

(2)

Compumatica secure networks – Cybersecurity with a personal touch

Page 2 of 25

O

VERVIEW

Network Security today ranks high on the list of any company’s concerns. Almost all of a firm’s relevant information is

exchanged in electronic form via networks. Since the network technology employed by a company may assist attackers in many ways, these networks do not generally guarantee security or confidentiality for a company.

For this reason, security has to be added to the firm networks. The corporate security manager can fulfill the pure security requirement by integrating additional security devices into the existing network, whereby the management of these devices is an important consideration. A central, easy-to-handle

management station is a main prerequisite to fulfill the security requirements.

Concerning the management of security components the corporate security manager generally has the choice between two different approaches. The first one is the local management approach. The idea behind local management is that the

corporate security manager can manage each component individually, thus he has the highest flexibility with control over each flag in the components. The second approach is the security management approach, in which the idea is that the corporate security manager has a higher-level overview of the whole system and does not have to spend too much time with component details.

Both approaches have their pros and cons. The security management approach, however, offers the following advantages:

- in general, a company wants or has to use a VPN system as an additional mechanism,

- the handling of the mechanism will be as easy as possible,

- the results are secure and understandable for the company staff.

NETWORK SECURITY

plays an important role for any company’s IT management. For a better protected environment, security components have to be integrated into the firm network. A central security management station that is both effective and simple in use can fulfill these security demands.

(3)

Page 3 of 25

T

HE

C

OMPUMATICA

S

ECURE

N

ETWORKS

S

OLUTION

:

T

HE SECURITY MANAGEMENT

S

TATION

(SMS)

The Security Management Station (SMS) developed by

Compumatica secure networks is such a tool to realize central and connection-oriented security management. It follows the centralized management approach and gives a high-level overview of the entire security system within a company. It handles all details automatically in the background. However, the corporate security manager can still examine and analyze details of the security devices. This is also possible for each security device of the CryptoGuard VPN system.

THE CRYPTOGUARD VPNPRODUCT LINE

The SMS is part of the CryptoGuard VPN and CryptoWall security system, which additionally contains the CryptoGuard VPN device and the CryptoGuard VPN Client. Furthermore, the SMS can also manage the CryptoBastion, an application level gateway. All information about a company’s VPN system (e.g., the specific security devices and security policies) and about the network in general (e.g. network nodes, gateways and connections) is stored in the database of the SMS. The security-relevant information (e.g., master or system keys) is stored encrypted, making it impossible to extract them from the database in a readable form.

If the corporate security manager combines the two security systems CryptoGuard VPN and CryptoBastion under one management system he will be able to create powerful network security solutions for his company.

NOTE:

KryptoGuard LAN (KGLAN) is the older name for the identical product CryptoGuard VPN 3000.

Security Management Station Ver. 3.02 still uses the older name KryptoGuard LAN (KGLAN) in a few cases.

(4)

Page 4 of 25 Figure 1 and

Figure 2 show examples for the security devices CryptoGuard VPN and CryptoBastion, respectively.

(5)

Page 5 of 25

Figure 2

KEY FEATURES AND BENEFITS OF THE SECURITY MANAGEMENT

STATION

The network information stored within the SMS is used to display the network topology in a graphical form. This display immediately gives an overview of the network topology and the corporate security manager can use it as a powerful tool for the security administration. He can define secure connections independently of the network environment, using only the end-to-end communication devices.

To expand the security philosophy of the SMS to the users, the concept of a user role is integrated. The security administrator can define different roles for the SMS users, e.g., editor or auditor. Each role is allowed to carry out a defined set of functions. These functional groups also have to be defined by the corporate security manager. Using the role mechanism, he can define, e.g., an editor role which is allowed to enter and store the new network components, their parameters and nothing more. The auditing of these new network components and the definition of their connections can be carried out by a user in a different role, e.g. the security supervisor.

SECURITY MANAGEMENT STATION: GRAPHICAL PRESENTATION ROLE MANAGEMENT ORGANIZATIONAL UNITS INTEGRATION CONNECTIONS NODES AND NETWORKS PROTOCOL PROFILES KEY MANAGEMENT LOGBOOKS

(6)

Page 6 of 25 In connection with the security alerts generated by the

CryptoGuard VPN devices, the security administrator is informed in real time about violations of his security policy. Companies should always see their security management systems in combination with a network management system; in the last instance such security devices are simply another kind of network device. The SMS, e.g., has the ability to forward security alerts as SNMP traps to a network management station. If the corporate security manager wants to perform a later offline analysis, he can have a look at the security alerts, received from the CryptoGuard VPN devices, which are collected by the SMS and stored in the security alert logbook database.

The corporate security manager can set up a logbook database according to his preferences and requirements. The SMS supports different kinds of logbook databases. There are

logbook databases for the CryptoGuard VPN security alerts, for the CryptoGuard VPN security records and for all user activities at the SMS. If the corporate security manager wants to analyze these logbook databases, a detailed history of all activities and security-relevant events in the CryptoGuard VPN security system is possible.

(7)

Page 7 of 25 Below, the features and benefits that the SMS offers are listed:

• Easy integration into existing network topology

CG VPN black box principle

SMS integration as a single network component

• Backup/Restore mechanism

The Backup includes the configuration data of the whole security system

• Secured communication between SMS and security components

Compumatica proprietary authentication protocol based on ITSEC/E3 high certified method

Customer specific S-Boxes are loadable

• Downward compatible to the beginning

Reliable compatibility to CryptoGuards and CryptoBastions of the first generation with a history of about 10 years

• Easy definition of secured connections

After creation of topology no knowledge of security components necessary

Just connection endpoints and security policy necessary

Support of templates by using service/protocol/time profiles to simplify the creation of the security policy

Simple method of enabling/disabling of connections and protocol profiles

As connection mode the proprietary CG VPN mode and IPsec are available

Inter-domain communication by using shared key material

Automatic generation of configuration files for CryptoGuards and CryptoBastions

According to the Compumatica VPN security policy:

All is forbidden except for the explicitly allowed connections

• Logging functionality

Logging of tasks performed at SMS (functions, errors, login/logout) as preservation of evidence

• Excellent key management

Automatic generation of connection key files used by CryptoGuards

Exchange of connection keys: Beside the key

management mode IKEv1 also IKEv2 is supported within IPsec

Beside the authentication method RSA also ECDSA (Elliptic Curve Digital Signature Algorithm) is supported within IPsec and IKEv2

Generation of CG VPN Mode keys ((A)DES, 3DES, AES)

Generation of IPsec keys (MD5, SHA-1, DES, 3DES, BLOWFISH, CAST-128, AES, ...)

(8)

Page 8 of 25

RA/CA/PKI included to generate X509v3 certificates e.g. for using in IPsec connections with RSA signatures as authentication method

PKI:

o Beside RSA also ECDSA certificates are supported

o Support of proprietary elliptical curves (EC)

o Distribution of the CRL to several LDAP servers

o Mark CA certificates as "Trusted", "Not trusted" and "OCSP"

o Mark certificates near the expiration date

o Import of PKCS#12 (Certificate and Private Key container)

Smartcard functionality

• Centralized security management

Centralized point of security management and single point of trust

Automatically and centralized configuration of CryptoGuards and CryptoBastions

According to the Compumatica VPN security policy:

Managing CryptoGuards and CryptoWalls are managed by the push method

• GUI based security management

User-friendly design

Visualization of network topology

Visualization of connections and all the security devices involved

Powerful search functionality by user defined criteria

Multi language support: Currently English and German are available

Print functionality

HTML based Online Help

• SMS owned user access control and role administration

Application based user access control

Administration of organizational units

User roles to split responsibilities

• Centralized and user-friendly management of CryptoGuards

Configuration by means of dividing generation, transmission and activation of configuration files

Certificate Signing Request (CSR)

CRL (Certificate Revocation List) and OCSP (Online Certificate Status Protocol) support concerning certificate validation within IPsec

Perform Integrity check

Retrieving and visualization of statistic information

View SA list in case of IPsec

Perform Selftest

Get Log book

Exchange of connection keys: Beside the key

management mode IKEv1 also IKEv2 is supported within IPsec

(9)

Page 9 of 25

Software upload

White list of version check concerning software upload

Import/Export of certificates

• Centralized and user-friendly management of CryptoBastions

Configuration (General, Proxies, ...) by means of dividing generation and transmission of configuration files

Perform Integrity check

Select operation mode (Runlevel)

Get Log book

Retrieving and visualization of statistic information

• Centralized and user-friendly administration of network components

Single network component, Server, IPsec Client, network

Import/Export of network components

• Alert functionality

Reception of spontaneous messages of CryptoGuards and CryptoWalls and storage in database

Forwarding of spontaneous messages of CryptoGuards and CryptoWalls as SNMP-Trap, E-Mail or GSM-SMS

• SNMP interface

SMS acts as SNMP proxy agent

Support of SNMPv3

SNMP-Trap

SNMP-Get (Status, Selftest, Statistic, Ping (Echo Request), Version, …)

MIB available

• Administration of batch orders

CryptoGuard:

o Exchange of connection keys : Beside the key management mode IKEv1 also IKEv2 is supported within IPsec

o Time synchronization between SMS and CryptoGuard

o Software upload

o Get Log book

CryptoBastion:

o Get Log book

o Integrity check

o System: Backup

• Redundancy mechanism

Active redundancy system of CryptoGuards by using the Spanning Tree Protocol (STP)

Passive redundancy system of CryptoGuards

Geo-Redundancy

• Unix based security management

SUN SunOS (e.g. Solaris 10 up to SMS version 5.00.xx)

PC Linux (e.g. SuSE 9.3)

(10)

Page 10 of 25

• Database Management System (DBMS)

Access of Perl scripts to DBMS via ODBC

Job Scheduler

ASE XP Server

Virtual DBA: The virtual DBA includes database maintenance tasks that are

essential concerning database performance and data security.

Using ASE Job Scheduler and ASE XP Server (extended procedures) the virtual DBA supports amongst others the feature Geo-redundancy: If one or more slave SMS exist, the dumps are replicated and loaded onto the slave SMS; this is one more step to improve database security.

GRAPHICAL PRESENTATION

The graphical presentation of a network topology is the heart of the SMS. All relevant network and security components are displayed. This allows obtaining a quick overview of the network and security topology. The reference point of the topology is moveable and can be set at any point in the network. The network topology can therefore be seen from different points of view, depending on which security structure the corporate security manager needs.

Figure 3 is an example for a graphical presentation of a

headquarters with two branch offices, all communicating via the internet. The reference point of the topology is the “Internet”. The headquarters is connected to the “Internet” via the

CryptoGuard VPN device “Internet-Gateway”. The two branch offices are connected to the “Internet” via the CryptoGuard VPN devices “Site-A-Gateway” and “Site-B-Gateway”.

NETWORK OVERVIEW

MOVEABLE

(11)

Page 11 of 25 Figure 3

ROLE MANAGEMENT

As mentioned earlier, the corporate security manager is able to define different users at the SMS. For each SMS user he has to define a role. When installing the SMS five roles already have been predefined: ■ SMS Administrator ■ SMS Auditor ■ SMS Editor ■ SMS Observer ■ SMS Operator USER ROLE RESTRICTIONS ADMINISTRATOR ROLE “FOUR EYES PRINCIPLE”

(12)

Page 12 of 25 The corporate security manager can extend these roles or develop new roles according to his requirements.

The role definition consists of a name and an assigned set of functions permitted the role. There is one SMS user, however, who needs no role definition: the SMS system administrator. He is comparable to a UNIX “root” account. The system

administrator must define the roles and is able to assign any functionality to a role. It is also possible for him to define a role equal to his own, i.e., to define an additional “system

administrator” role. Since this role is very powerful it should be protected by a password. Figure 4 shows the definition of a new role.

Figure 4

This mechanism offers many possibilities. One example of what can be realized with the role mechanism is the “four eyes

principle”. Two roles are defined. The first is allowed to define the data, e.g. the security policy, the second is allowed to activate this data. Thus both roles (four eyes) are needed to define and activate a new security policy for the company’s communication.

(13)

Page 13 of 25

ORGANIZATIONAL UNITS

Organizational units will help to define the independent logical security units within the SMS and are a main part of the central, structured security approach. They can be defined for all types of organizational units, e.g. headquarters, financial departments or branch offices. All components of a defined area will be assigned to a well-defined branch.

Organizational units appear to the user as independent security areas. Different units are only connected to each other if the administrator defines interfaces between them. Thus each unit can be seen as an individual and independent logical security system.

EASY INTEGRATION

Independent of the already existing hardware the corporate security manager can integrate the SMS into a network as easily as any other workstation. The installation location is independent of the other security components, e.g.,

CryptoGuard VPN devices. Figure 5 shows a network after integration of the SMS and several CryptoGuard VPN devices.

Figure 5 EASY INTEGRATION INTO EXISTING NETWORK Server Server Server WAN Client Client Client Server Server Server Cli ent Cli ent Client Client Client CryptoGuard VPN 5000 Gigabit Bastion Crypto Head Quarter CompuWall Internet [intranet - extranet] Crypto Guard PC 400 Crypto Guard VPN 500 CompuWall Client Client Client Client Client Client CryptoGuard VPN 5000 CryptoGuard VPN 5000 CryptoGuard VPN 5000 Gigabit DMZ SMS Server Server Server Server Main Branch Branch Mobile User Branch Small Office Home Office

(14)

Page 14 of 25 The communication between the SMS and the CryptoGuard VPN devices (and also, if installed in the network, the

CryptoBastion) is secured by strong authentication and encryption, and is independent of the secure communication between the CryptoGuard VPN devices.

(15)

Page 15 of 25

CONNECTIONS INDEPENDENT OF SECURITY COMPONENTS

The definition of the security policy entity for the communication between insecure network components (e.g., workstations, hosts or networks) is independent of the network security components involved (e.g., CryptoGuard VPN devices). The SMS automatically checks the security policy and discovers possible inconsistencies. The corporate security manager only has to define the end points of the communication (e.g., ‘Clients from France’ and ‘Important DB Server’) and the security policy for the communication between these points (e.g., only allow encrypted HTTP and SQL traffic). The SMS generates from this information the security policy rules for all involved security components (e.g. CryptoGuard VPN devices). Figure 6 shows an example for the definition of such a security policy entity.

(16)

Page 16 of 25

NODES AND NETWORKS AS OBJECTS

Consistent with the high-level approach to central security management, one thing that must be done is to define a model of the network components (nodes and networks) within the SMS. The SMS handles these network components as objects with attributes. Later, only these objects will be used to define the security policy (e.g., an encrypted connection between net x and node a). Node objects can as well represent individual devices as entire networks. Using the object mechanism, the corporate security manager can integrate large numbers of nodes into one network object to simplify the security structure. Figure 7 shows a list of network and node objects with

definitions and notes.

Figure 7

PROTOCOL PROFILES

The corporate security manager can define the security policy (involving, e.g., the allowed protocols and a specification of encrypted or plain connections) with “Protocol Profiles” as shown in Figure 6. Protocol profiles are an additional mechanism to assist in the high-level view approach. With protocol profiles the corporate security manager is able to see more at the application than at the protocol level (e.g., the profile “Config Bastion” in Figure 8 collects each protocol needed to configure a CryptoBastion). The security policy definition can use these profiles to set up all needed communications between the SMS and a CryptoBastion.

(17)

Page 17 of 25 Figure 8

KEY MANAGEMENT

Key management is highly important within a security system. A strong key management represents a major aspect for each security system. This was kept in mind during the design of the key management for the CryptoGuard VPN system. A PKI (Public Key Infrastructure) represents the whole of all

components that are necessary to generate, manage, distribute and revoke digital certificates.

Keys for the entire system are generated and stored on the SMS. The pseudo-random number generator used for key generation and the key storage fulfill high security

requirements.

The primary CryptoGuard VPN device keys (the CryptoGuard VPN master keys), which will be used for the later encrypted communication between the SMS and the CryptoGuard VPN device, are transferred during the first contact between the SMS and the CryptoGuard VPN device. This key transfer is done per smartcard in a very flexible way. For CryptoGuard VPN devices without smartcard functionality the key transfer has to be done in a secure environment, using a serial link between the SMS and the CryptoGuard VPN device. After this step, which is called “personalization” of the CryptoGuard VPN, the SMS and the CryptoGuard VPN device are able to establish a secure session via the network (e.g., Internet).

SECURE KEY GENERATOR AND KEY STORAGE AUTOMATIC OR MANUAL KEY DISTRIBUTION SMARTCARD FUNCTIONALITY

(18)

Page 18 of 25 The corporate security manager can manage the distribution of new keys by the SMS during normal daily business

automatically or manually. Automatically means that the SMS changes the keys in a CryptoGuard VPN device at a defined date and time independently of any instructions. The corporate security manager only needs to specify the date, time and CryptoGuard VPN devices. Manually means that he has to start the key change for each CryptoGuard VPN device on his own. The newest version of the SMS supports as well smartcard functionality. This means an easy and comfortable way for the user to personalize on the SMS.

LOGBOOKS

The SMS supports a management activity logbook and two security device logbooks.

Each function activated at the SMS generates a logbook entry at the management activity logbook. The management activity logbook shows which user activated which functionality, and when. It logs the history of the entire security system for the later analysis.

The corporate security manager can configure the CryptoGuard VPN devices to send security alerts in real time to the SMS, which receives them, displays a message on the screen, and stores the security alert in the security alert logbook for later analysis. He can also configure the SMS to additionally send an SNMP trap to a defined network management system.

Individual security alerts are stored for each CryptoGuard VPN device.

The second security device logbook is the security record logbook. Each CryptoGuard VPN device has its own logbook, storing security records defined by the SMS. As the logbook size in the CryptoGuard VPN devices is limited, the corporate security manager should save the security records periodically to external media. This is done by transferring the security records from the CryptoGuard VPN to the SMS. On the SMS, the received security records are stored in the security record logbook. The security records are stored individually for each CryptoGuard VPN device.

The corporate security manager can export all logbook entries in standard export format for use with third party analysis tools and is thus able to keep the whole offline analysis as flexible as possible.

HISTORY FOR LATER

ANALYSIS

(19)

Page 19 of 25

BATCH JOBS

If the corporate security manager has a great work load and e.g. wants to start many activities at a defined date and time, batch jobs are an instrument to distribute the work load, distributing new connection keys to all CryptoGuard VPN devices on Friday at 10:00 PM and activating these keys on Saturday at 1:00 A.M. The corporate security manager can automate such activities using batch jobs. He only has to define them once and they will be carried out at the defined date/time. Additional examples for batch jobs are:

- periodic reading of the CryptoGuard VPN logbooks

- periodic backups of the SMS database

- automatic distribution of software updates.

REDUNDANCY

Since the SMS itself is the central possibility to manage the CryptoGuard VPN security system it is advisable to have a redundant SMS for large networks requiring high availability. CryptoGuard VPN, CryptoGuard VPN Client and CryptoBastion have redundancy mechanisms with support of third party

components independent of that of the SMS.

It is possible to integrate two ore more devices in parallel into one system to increase the availability of the network. The route is checked regularly; this allows to recognize if an active

CryptoGuard VPN device (called 'Master') failed and if so, to remove it from the system. In that case, a second by then passive CryptoGuard VPN of the redundancy system (called 'Slave') becomes the active one.

New feature: Geo-Redundancy to support the configuration of the security system from different SMS locations and to

manage the Backup and Restore mechanism from the master to the slave SMS (the replication of the databases will be done by several DBMS mechanisms like Virtual DBA).

REMOTE ADMINISTRATION

The corporate security manager may have a need for managing the SMS remotely; for this remote management functionality is included. PERIODIC READING OF LOGBOOKS PERIODIC BACKUP OF SMS DATABASE AUTOMATIC UPDATE DISTRIBUTION INCLUDED REMOTE FUNCTIONALITY INCLUDED REDUNDANCY MECHANISMS

(20)

Page 20 of 25 Remote management is realized using the standard X-Window system of the SMS operating system by tunneling it in an encrypted Secure Shell (SSH) session to a remote client.

(21)

Page 21 of 25

C

ONCLUSION

In times of more and more severe attacks on computers and computer networks managers should especially keep in mind the damages emerging from these attacks and consequently attach great importance to network security. In order to protect their confidential data many organizations are seeking for a comprehensive, reliable and easy to handle opportunity. For companies that have a great need for a security management enabling a centralized and comfortable administration the Security Management Station solution provided by Compumatica secure networks turns out to be an ideal way to manage their security concerns. Its uncomplicated integration as well as its numerous functionalities offer a perfect base for the setup of a stable and reliable corporate safety policy.

For information concerning the further parts of the CryptoGuard VPN security system and the system in general we refer to our other White Papers.

(22)

Page 22 of 25

T

ECHNICAL

D

ATA

S

ECURITY

M

ANAGEMENT

S

TATION

5.40.

XX

Operating Systems SLES 11 SP1 or higher (32 bit)

Database Linux: Sybase Database Version

15.0.3 EBF 17776 ESD#4

Platforms Linux: Intel hardware (64 bit)

CPU: Quad Core

A

BBREVIATIONS

CG VPN CryptoGuard VPN: product to secure

network communication.

IETF Internet Engineering Task Force:

Organization, which defines the standards, used in the Internet.

IKE Internet Key Exchange: A protocol

defining how to exchange keys for IPsec communications. Defined in RFC 2409.

IPsec IP security: A standard which defines

various security services for traffic at the IP layer. Defined in RFC 2401-2411.

KGL same as KGLAN

KGLAN KryptoGuard LAN: former name of

the CryptoGuard VPN product.

LAN Local Area Network: Any physical

network technology that spans short distances (up to a few thousand meters).

SLES SuSE Linux Enterprise Server

SMS Security Management Station:

former name of the CryptoGuard Security Management CGCM.

VPN Virtual Private Network: Synonym for

doing network communication over a public network in an encrypted way, so that only participants that share the necessary keys are able to communicate.

(23)

Page 23 of 25

WAN Wide Area Network: Any physical

network technology that spans large geometric distance.

(24)

Page 24 of 25

F

URTHER

I

NFORMATION

SHORT PROFILE

Compumatica secure networks – based in Germany and the

Netherlands – is a fully independent private company with main task securing IP traffic of its customers.

Compumatica develops, produces and implements high level security solutions for all types of IP networks and all types of customers. Customers can be small organizations with just a few countrywide connections up to international enterprises with world-wide networks.

Compumatica staff and products meet high standards of reliability and quality. The products are based on systems that are approved, or even certified, according to the strict

regulations of the BSI (in Germany) and the NLNCSA (in the Netherlands). Every single product goes through a quality assurance phase in which it is subject to a long-term test. All Compumatica products are backward compatible for more than ten years. Herewith we guarantee our customers investment protection.

Our product range also includes devices from our daughter .vantronix secure systems which contain a unique combination of IPv4-IPv6 gateway, router, firewall, network based anti-spam as well as Load Balancer based on OpenBSD. .vantronix is a HP AllianceOne partner. The whole software range is therefore available on HP systems.

In the area of mobile communication our range is completed by a comprehensive Secure Mobile Concept that secures voice and SMS and which may be adapted to the individual

requirements and needs of the customers.

Our customers are well-known top 500 enterprises as well as government agencies and public organizations in different countries which protect their critical data with the aid of Compumatica systems.

As world-wide approved producer and system integrator Compumatica secure networks provides complete IT security solutions for networks of each size.

The security of your data is our mission – Cybersecurity with a personal touch.

(25)

Page 25 of 25

CONTACT DATA The Netherlands:

Compumatica secure networks BV Oude Udenseweg 29 5405 PD Uden Phone +31 (0)413 334668 Fax +31 (0)413 334669 www.compumatica.com Germany:

Compumatica secure networks GmbH Monnetstraße 9

52146 Würselen

Phone +49 (0)2405 89 24 400 Fax +49 (0)2405 8924 410 www.compumatica.com
