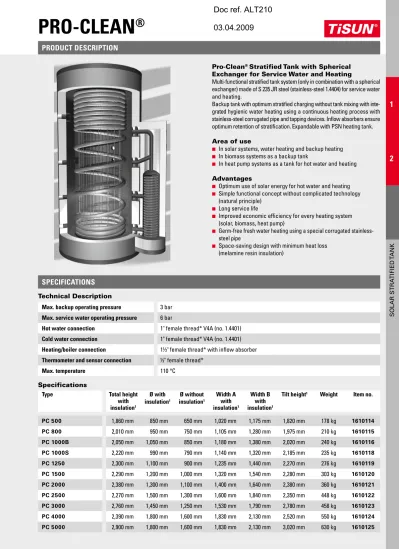

Pro-Clean®Stratified Tank with Spherical Exchanger for Service Water and Heating
Multi-functional stratified tank system (only in combination with a spherical exchanger) made of S 235 JR steel (stainless-steel 1.4404) for service water and heating.
Backup tank with optimum stratified charging without tank mixing with inte-grated hygienic water heating using a continuous heating process with stainless-steel corrugated pipe and tapping devices. Inflow absorbers ensure optimum retention of stratification. Expandable with PSN heating tank. Area of use
■ In solar systems, water heating and backup heating ■ In biomass systems as a backup tank
■ In heat pump systems as a tank for hot water and heating Advantages
■ Optimum use of solar energy for hot water and heating ■ Simple functional concept without complicated technology (natural principle)
■ Long service life
■ Improved economic efficiency for every heating system (solar, biomass, heat pump)
■ Germ-free fresh water heating using a special corrugated stainless- steel pipe
■ Space-saving design with minimum heat loss (melamine resin insulation)
Technical Description
Max. backup operating pressure 3 bar
Max. service water operating pressure 6 bar
Hot water connection 1" female thread* V4A (no. 1.4401)
Cold water connection 1" female thread* V4A (no. 1.4401) Heating/boiler connection 1½" female thread* with inflow absorber Thermometer and sensor connection ½" female thread*
Max. temperature 110 °C
PRO-CLEAN
®
PROduCT dEsCRiPTiON
sPECifiCATiONs
Specifications
Type Total height
with insulation1 Ø with insulation1 Ø without insulation1 Width A with insulation1 Width B with insulation1
Tilt height1 Weight item no.
1
2
SOLAR S t RA tified tA nkPro-Clean® 2WR Stratified Tankwith Spherical Exchanger for Service Water and Heating
Multi-functional stratified tank system (only in combination with a spherical exchanger) made of S 235 JR steel (stainless steel 1.4404) for service water and heating.
Backup tank with optimum stratified charging without tank mixing with integrated hygienic water heating using the continuous heating proc-ess 2 with stainlproc-ess-steel corrugated pipes and tapping devices. Inflow absorbers ensure optimum retention of stratification. Expandable with PSN heating tank
Area of use
■ In solar systems, water heating and backup heating ■ In biomass systems as a backup tank
■ In heat pump systems as a tank for hot water and heating Advantages
■ Optimum use of solar energy for hot water and heating ■ Simple functional concept without complicated technology (natural principle)
■ Long service life
■ Improved economic efficiency for every heating system (solar, biomass, heat pump)
■ Germ-free fresh water heating due to a special corrugated stainless- steel pipe
■ Space-saving design with minimum heat loss (melamine resin insulation)
Technical Description
Max. backup operating pressure 3 bar
Max. service water operating pressure 6 bar
Hot water connection 2 x 1" female thread* V4A (No. 1.4401) Cold water connection 2 x 1" female thread* V4A (No. 1.4401) Heating/boiler connection 1½" female thread* with inflow absorber Thermometer and sensor connection ½" female thread*
Max. temperature 110 °C
Specifications
Type Total height
with insulation1 Ø with insulation1 Ø without insulation1 Width A with insulation1 Width B with insulation1
Tilt height1 Weight item no.
PC2WR 1500 2,290 mm 1,200 mm 1,000 mm 1,320 mm 1,540 mm 2,280 mm 334 kg 1610438 PC2WR 2000 2,380 mm 1,300 mm 1,100 mm 1,400 mm 1,640 mm 2,380 mm 393 kg 1610439 PC2WR 2500 2,270 mm 1,500 mm 1,300 mm 1,600 mm 1,840 mm 2,350 mm 483 kg 1610440 PC2WR 3000 2,760 mm 1,450 mm 1,250 mm 1,530 mm 1,790 mm 2,780 mm 493 kg 1610443 PC2WR 4000 2,390 mm 1,800 mm 1,600 mm 1,830 mm 2,130 mm 2,520 mm 585 kg 1610444 PC2WR 5000 2,900 mm 1,800 mm 1,600 mm 1,830 mm 2,130 mm 3,020 mm 665 kg 1610445
PROduCT dEsCRiPTiON
sPECifiCATiONs
Insulation thickness of PC 3000, PC 4000 and PC 5000 is 110 mm. Pro-Clean® Tank Volume at sleeve sleeve
no. sleeve height(measured from the lid)
Volume 4 H1 V1 6 H2 V2 7 H3 V3 8 H4 V4 9 H5 V5 10 H6 V6 12 H7 V7 13 H8 V8 Total volume m2 n g h i j k l e1 f a b c d 1 1 1 1 13b 12 10 9 8 7 6 4 2a 100 13a 2b e2 m1
*
*
only for PC 1000S ¾" sleeve closed Insulation Service water connection kmService water connection
Position unit of measure PC 500 PC 800 PC 1000S PC 1000B PC 1250 PC 1500 (2WR) PC 2000 (2WR) PC 2500 (2WR) PC 3000 (2WR) PC 4000 (2WR) PC 5000 (2WR) a mm 1,540 1,540 1,540 1,540 1,560 1,600 1,610 1,660 2,120 2,010 2,010 b mm 1,150 1,150 1,150 1,150 1,170 1,210 1,220 1,270 1,560 1,450 1,450 c mm 720 720 720 720 740 780 790 840 1,030 920 920 d mm 290 290 290 290 310 350 360 410 400 290 290 e1 mm 260 280 280 295 305 340 355 410 395 465 465 e2 (2WR) mm – – – – – 440 455 510 495 565 565 f mm 340 370 380 380 380 425 450 495 475 540 610 f (2WR) mm – – – – – 560 575 630 615 685 685 g mm 640 660 710 720 730 720 790 800 930 840 1,000 h mm 830 920 1,000 950 1,010 980 1,030 1,010 1,250 1,100 1,340 i mm 940 1,060 1,160 1,090 1,180 1,160 1,210 1,160 1,450 1,240 1,520 j mm 1,050 1,200 1,300 1,230 1,350 1,330 1,400 1,300 1,640 1,380 1,710 k mm 1,160 1,340 1,420 1,340 1,520 1,510 1,520 1,420 1,820 1,520 1,900 l mm 1,270 1,450 1,530 1,450 1,630 1,620 1,630 1,530 1,930 1,630 2,040 m1 (2WR) mm – – – – – 1,905 1,960 1,820 2,330 1,880 2,390 m2 mm 1,650 1,780 1,990 1,790 2,040 2,005 2,080 1,920 2,430 1,980 2,490 n mm 1,760 1,910 2,120 1,950 2,200 2,190 2,280 2,170 2,660 2,290 2,800 o1 mm 1,540 1,680 1,900 1,680 1,700 1,890 1,950 1,810 2,200 1,700 2,300 o2 mm – – 1,680 – – – – – – – – p mm 1,150 1,170 1,170 1,170 1,170 1,280 1,370 1,360 1,460 1,170 1,600 q mm 720 725 725 725 725 775 860 880 880 725 950 r mm 270 350 350 350 350 350 350 400 415 350 350 s mm 240 260 265 280 290 325 340 390 375 450 450 t mm 480 500 500 530 530 560 580 630 710 600 600 flange mm – – – – – 730 750 800 880 780 800 u mm 710 730 780 790 800 900 920 970 1,060 970 1,130 v mm 910 1,040 1,140 1,070 1,160 1,140 1,190 1,140 1,430 1,210 1,440 w mm 1,160 1,320 1,420 1,340 1,520 1,510 1,510 1,420 1,820 1,500 1,815 x mm 1,350 1,450 1,610 1,480 1,710 1,640 1,660 1,550 2,070 1,700 2,075 y mm 1,570 1,690 1,900 1,710 1,650 1,910 1,970 1,815 2,315 1,890 2,320 z mm 1,650 1,780 1,990 1,800 2,040 2,010 2,065 1,905 2,410 1,980 2,490 d1 mm 650 750 790 850 900 1,000 1,100 1,300 1,250 1,600 1,600 d2 mm 600 600 740 747 800 900 1,000 1,200 1,150 1,300 1,300 km mm 1,820 1,975 2,185 2,020 2,270 2,280 2,380 2,350 2,780 2,520 3,020 H1 mm 490 460 590 500 570 570 650 640 730 660 760 H2 mm 600 570 700 610 680 680 760 750 840 770 900 H3 mm 710 710 820 720 850 860 880 870 1,020 910 1,090 H4 mm 820 850 960 860 1,020 1,030 1,070 1,010 1,210 1,050 1,280 H5 mm 930 990 1,120 1,000 1,190 1,210 1,250 1,160 1,410 1,190 1,460 H6 mm 1,120 1,250 1,410 1,230 1,470 1,470 1,490 1,370 1,730 1,450 1,800 H7 mm 1,420 1,540 1,740 1,570 1,820 1,765 1,830 1,675 2,185 1,750 2,190 H8 mm 1,500 1,630 1,840 1,655 1,895 1,850 1,925 1,760 2,265 1,825 2,335 V1 l 140 170 255 240 310 355 500 655 725 985 1,185 V2 l 175 220 305 300 380 440 605 800 860 1205 1,470 V3 l 210 285 365 360 490 580 710 960 1,080 1,490 1,850 V4 l 250 345 435 440 600 715 910 1,145 1,315 1,780 2,230 V5 l 285 405 510 520 705 855 1,085 1,345 1,560 2,050 2,595 V6 l 350 520 655 650 885 1,060 1,310 1,625 1,955 2,575 3,280 V7 l 450 650 815 845 1,105 1,295 1,635 2,030 2,510 3,175 4,060 V8 l 475 690 865 895 1,155 1,360 1,725 2,140 2,610 3,330 4,355 V total l 520 760 980 980 1,250 1,490 1,930 2,430 2,910 3,920 4,950
TABLE Of diMENsiONs As PER iLLusTRATiONs
No. Label dimensions use Comment
1 f (with flange 100) 1½" Spherical exchanger with layer washers for connection to a solar system 2a V4A (stainless steel) 1" HW connection (stainless steel) mandatory (possibly with circulation lance) 2b
(2WR) V4A (stainless steel) 1" HW connection (stainless steel) mandatory (possibly with circulation lance)
3 ½" Deaeration mandatory
4 EE (with inflow absorber) 1½" Additional heating forward flow mandatory with additional heating 5 ½" Sensor thimble for boiler sensor mandatory
6 EE (with inflow absorber) 1½" Heating circuits forward flow according to hydraulic diagram 7 H (for immersion heater) 2" Electric immersion heater (reduced to 1½") with extension optional
8 1½" Additional heating return mandatory with additional heating 9 E (with inflow absorber) 1½" High-temperature heating circuits return according to hydraulic diagram 10 E (with inflow absorber) 1½" Low temperature heating circuits return according to hydraulic diagram 11 ½" Sensor thimble for solar sensor mandatory
12 H (for immersion heater) 2" Electric immersion heater (reduced to 1½") with extension optional 13a
(2WR) V4A (stainless steel) 1" CW connection (stainless steel) mandatory
13b V4A (stainless steel) 1" CW connection (stainless steel) mandatory
15 ½" Sensor thimble for boiler thermometer optional
16 ½" Sensor thimble, usually for boiler sensor according to hydraulic diagram
17 ½" Sensor thimble according to hydraulic diagram
18 ½" Sensor thimble according to hydraulic diagram
19 ½" Drain mandatory
30a E (with inflow absorber) 1½" Corrugated connection pipe, possibly with priority flap optional, only in combination with other tanks
30b E (with inflow absorber) 1½" Corrugated connection pipe, possibly with priority flap 31 E (with inflow absorber) 1½" Corrugated connection pipe
32 1½" Corrugated connection pipe 33 1½" Corrugated connection pipe
Hot water tap output and spherical exchanger sizing for Pro-Clean® Stratified Tank
Type 500PC 800PC 1000BPC 1000SPC 1250PC 1500PC 2000PC 2500PC 3000PC 4000PC 5000PC Tank volume l 520 760 980 980 1,250 1,490 1,930 2,430 2,910 3,920 4,950 single discharge capacity1 l 400 600 810 810 1,050 1,290 1,710 2,150 2,610 3,560 4,475 Corrugated pipe Corrugated service
water pipe volume l 45 55 55 55 55 60 65 75 75 75 75
Length m 25 30 30 30 30 35 37 40 40 40 40
surface area m2 6.45 7.74 7.74 7.74 7.74 9.03 9.546 10.32 10.32 10.32 10.32
Tap output (hot water)
∆T2 at 30 l/min °C 4 3 3 3 3 3 3 3 3 3 3 ∆T2 at 40 l/min °C 6 5 5 5 5 5 5 4 4 4 4 ∆T2 at 50 l/min °C 10 8 8 8 8 7 7 6 6 6 6 ∆T2 at 70 l/min °C – – – – – 11 11 10 9 9 8 Area of use (hot water)3 NF4 1–2 1–4 1–5 1–5 1–5 1–6 1–7 1–9 1–11 1–12 1–14
Can be combined with ST 10-40 ST 10-40 ST 20-40ST 60K ST 20-40ST 60K ST 20-40ST 60K ST 20-40ST 60K ST 20-40ST 60K ST 20-40ST 60K ST 60 ST 60 ST 60
HOT WATER TAP OuTPuT fOR PC WiTH 1 CORRugATEd PiPE
1 Discharge capacity (hot water up to 38 °C) when the backup tank is loaded at 60 °C.
2 Temperature difference between the backup tank temperature and the service water tap temperature when the tank is half-full.
3 Figures quoted are based on standard consumption values. Specific calculations are made for extreme consumption e.g. in swimming pools, saunas etc.
4 Number of flats (3 occupants/flat). Applicable only without circulation.
Hot water tap output and spherical exchanger sizing for Pro-Clean® Stratified Tank Type PC 2WR1500 PC 2WR2000 PC 2WR2500 PC 2WR3000 PC 2WR4000 PC 2WR5000 Tank volume l 1,490 1,930 2,430 2,910 3,920 4,950 single discharge capacity1 l 1,290 1,710 2,150 2,610 3,560 4,475 Corrugated pipe Corrugated service
water pipe volume l 2 x 60 2 x 65 2 x 75 2 x 75 2 x 75 2 x 75
Length m 2 x 35 2 x 37 2 x 40 2 x 40 2 x 40 2 x 40
surface area m2 2 x 9.03 2 x 9.546 2 x 10.32 2 x 10.32 2 x 10.32 2 x 10.32
Can be combined with ST 20-40ST 60K ST 20-40ST 60K ST 20-40ST 60K ST 60 ST 60 ST 60
HOT WATER TAP OuTPuT fOR PC WiTH 2 CORRugATEd PiPEs
Continuous output KW 100 200 300
For drinking water heating from 10 to 45 °C and heating water forward flow temperature of 70 °C for the
heating water flow rate listed below l/h 2,335 4,658 6,981
Heating water flow rate for the specified continuous outputs l/h 1,920 3,830 5,740
Continuous output KW 100 200 300
For drinking water heating from 10 to 55 °C and heating water forward flow temperature of 70 °C for the
heating water flow rate listed below l/h 1,830 3,666 4,500
Heating water flow rate for the specified continuous outputs l/h 2,460 4,920 7,380
Tank size [l] Volumetric flow [m3/h]
500 2.7 800 3.2 1000 3.4 1250 3.4 1500 4.0 2000 4.3 2500 4.4 3000 4.5 4000 4.9 5000 5.0
CONTiNuOus OuTPuT fOR PRO-CLEAN
®WiTH 2 CORRugATEd PiPEs
MAx. WATER fLOW RATE AT PRO-CLEAN
®TANk WiTHOuT MixiNg Of LAyERs
information regarding continuous output: Nominal thermal output of the boiler must be greater than or equal to the continuous output. Provide circulation pump which is suitable for the flow rate.
Note: The acceptable total volumetric flow may be calculated from the specified value with +30% per sleeve for each additional pressurised sleeve.
1 Discharge capacity (hot water up to 38 °C) when the backup tank is loaded at 60 °C.
Data with heating using a spherical exchanger (ST 20) with a flow quantity of 400 l/h and a collector surface area of 16 m2.
13 kWh are required to obtain useable hot water at 40 °C (achieved within 98 min). 1 6 11 16 21 26 31 36 41 46 51 56 61 66 71 76 81 86 91 96 10 1 10 6 11 1 11 6 12 1 12 6 13 1 13 6 14 1 14 6 15 1 15 6 16 1 16 6 17 1 17 6 0 5 0 1 5 1 0 2 5 2 0 3 5 3 0 4 5 4 0 5 5 5 0 6 5 6 0 7 5 7 0 8 5 T 4 T 3 T 2 T 1 T
Pro-Clean
®1,000 l
1,5
1,7
3,2
5,5
7
10,5
14
16,8
19,5
90
80
70
60
50
40
30
20
10
0
Rated load
Boiler output (kW) Boiler output Rated loadsOLAR sTRATifiEd CHARgiNg
Temp. (°C)
RATEd LOAd AT 60 °C TANk TEMPERATuRE
PRO-CLEAN
®
Spherical exchanger
Temp 1 Temp 2 Temp 3 Temp 4 Temp 5 Solar forward
0 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 0,13 0,19 0,26 0,32 0,39 0,45 0,52 0,58 0,65 0,71 0,78 0,84 0,91 0,97 1,03 0,6 0,9 1,2 1,5 1,8 2,1 2,4 2,7 3 3,3 3,6 3,9 4,2 4,5 4,8 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80 PC 500 PC 800 PC 1000 PC 1250 PC 1500 PC 2000 PC 2500 PC 3000 PC 4000 PC 5000
Concentration limits for diverse drinking water constituents when using Pro-Clean® corrugated
stainless-steel pipe pH value 6.5–9.5 sulphates 250 mg/l sodium 200 mg/l Manganese 0.5 mg/l iron 0.2 mg/l Nitrates 50 mg/l Chlorides 200 (2501) mg/l Ammonium 0.5 mg/l Nitrite 0.1 mg/l
These values may not be exceeded!
1 Austria: 200 mg/l, Germany 250 mg/l
CONsTiTuENT CONCENTRATiON LiMiTs
PREssuRE LOss Of CORRugATEd PiPE dN 40
PRO-CLEAN
®
Tap quantity and flow velocity
Flow vel. [m/s]
Tap quantity [m3/h]
Tap quantity [l/min]
Pressure loss in [mbar]
Reference house: 9 kW heat load at -15 °C ambient temperature
Location: Würzburg/Germany, collector orientation 0° south, 30° tilt, average heating forward flow temperature 33 °C
6/4" 6/4" 6/4" 6/4" 6/4" 6/4" 6/4" 6/4" 6/4" 6/4" 6/4" 6/4" 45° 45° 45° 45° 5 1 0 2 5 2 0 3 5 3 0 4 5 4 0 5 5 5 0 6 5 6 ² m 2 1 15m² 18m² 24m² 30m² 40m² 50m² 60m² PC 500 l comprising 160 l HW PC 800 old comprising 250 l HW PC 1,000 l comprising 250 l HW PC 1,250 l comprising 250 l HW optional: priority flap 5/4" piping fitted on site Expansion tank
Corrugated connection pipe Corrugated connection pipe Expansion tank Stratified Tank optional: priority flap 5/4" piping fitted on site PC 1,500 l comprising 320 l HW PC 2,000 l comprising 320 l HW PC 2,500 l comprising 320 l HW
Recommended tank size
PC 3,000 l comprising 400 l
HW
A stratified tank can be expanded using a maximum of 2 PSN ex-pansion tanks (possible for a tank capacity of up to 1,500 l, above this value piping has to be fitted on site). Installation of fittings may be required on site. Recommended for up to 50 kW only. Tank
volume may be tripled at a maximum. 4 pieces of corrugated con-nection pipe are required for each expansion tank. A priority flap may optionally be used.
ExPANsiON WiTH BACkuP TANk
sizE dETERMiNATiON WiTH sOLAR COLLECTORs
PRO-CLEAN
®
Solar coverage in % for space heating and hot water
(100% hot water coverage in summer months)
m2 collector surface area
