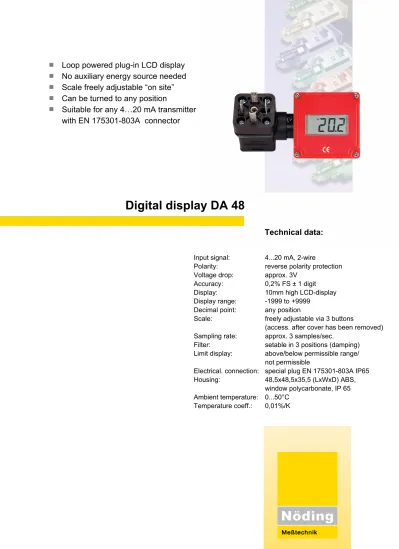

Digital display DA 48

Loop powered plug-in LCD display

No auxiliary energy source needed

Scale freely adjustable “on site”

an be turned to any position

C

uitable for any 4…20 mA transmitter

S











with EN 175301-803A connector

Digital display DA 48

Technical data:

Input signal: 4...20 mA, 2-wire

Polarity: reverse polarity protection Voltage drop: approx. 3V

Accuracy: 0,2% FS ± 1 digit Display: 10mm high LCD-display Display range: -1999 to +9999

Decimal point: any position

Scale: freely adjustable via 3 buttons

(access. after cover has been removed) Sampling rate: approx. 3 samples/sec.

Filter: setable in 3 positions (damping) Limit display: above/below permissible range/

not permissible

Electrical. connection: special plug EN 175301-803A IP65 Housing: 48,5x48,5x35,5 (LxWxD) ABS, window polycarbonate, IP 65 Ambient temperature: 0...50°C

48.0 48 .0 Nöding Meßtechnik GmbH 22143 Hamburg DA48

Display can be rotated 360° and the LCDs in 90° steps.

Fits all transmitters with 4…20 mA output and EN 175301-803A connector.

Plug-in local display DA 48

Electrical connections EN 175301-803A connector 4...20 mA 2-wire PIN1 Signal + PIN2 Signal – PE 1 3 2

Modifications reserved without notice, 02.10

Nöding Meßtechnik GmbH  Oldenfelder Bogen 29  D-22143 Hamburg  Germany  Tel. 040 / 67 58 51 - 0



25 mm housing for DIN rail



Pt 100 input, 3-wire



Supply voltage 18…30V DC



Output 0(4)...20 mA / 0...10 V

switchable

Temperature transmitter EMW 63.4

Technical data:

Input signal: Pt 100, 3-wire

Output signal: 0(4)…20 mA, max. 500  0…10 V, max. 5 mA,

switchable Short-circuit current < 30 mA

Accuracy ≤ ± 0,3% FS @ 25°C Residual ripple: < 50 mVpp

Power supply: 18…30V DC, max. 50 mA Ambient temperature: 0...60 °C

ordering code range EMW 63.4/0/50 0…50 °C EMW 63.4/0/100 0…100 °C EMW 63.4/0/150 0…150 °C EMW 63.4/0/200 0…200 °C EMW 63.4/0/250 0…250 °C EMW 63.4/0/300 0…300 °C EMW 63.4/0/400 0…400 °C EMW 63.4/40/140 40…140 °C Dimensions Electrical connections

Modifications reserved without notice, 02.10

Nöding Meßtechnik GmbH  Oldenfelder Bogen 29  D-22143 Hamburg  Germany  Tel. 040 / 67 58 51 - 0

Fax 040 / 67 58 51 - 49  Internet: www.noeding-messtechnik.de  E-mail: [email protected]











Adjustable temperature controller for Pt 100

Low-Cost version

22,5 mm housing for DIN rail

ower supply 24V DC

P

ircuit monitoring for break and

C

short-circuit

Temperature switch ERW 72.4

Technical data:

Input: Pt 100, 3-wire Accuracy: ≤ ± 2% FS @ 25°C Switch hysterisis: approx. 1% of span Error controll: Break or short-circuit of the measuring circuit affects

like setpoint exceed. Output: Relay with potential-free change-over contact. Relay

is activated, when actual value < set point Switching power: 250V AC max. 600 VA

125V DC max. 120 W

max. switching current 3A Power supply: 18…30V DC, max. 40 mA, max. ripple 10% within

Dimensions

Electrical connections

Ordering code range

ERW 72.4/0/100 0…100 °C ERW 72.4/0/150 0…150 °C ERW 72.4/0/200 0…200 °C ERW 72.4/0/250 0…250 °C ERW 72.4/0/300 0…300 °C ERW 72.4/0/400 0…400 °C

Modifications reserved without notice, 02.10

Nöding Meßtechnik GmbH  Oldenfelder Bogen 29  D-22143 Hamburg  Germany  Tel. 040 / 67 58 51 - 0

Fax 040 / 67 58 51 - 49  Internet: www.noeding-messtechnik.de  E-mail: [email protected]

L-















Digital contact thermometer

3-digit 14mm LED display

63mm stainless steel bayonet lock case

Min./max. memory

Ranges from 0…50°C to -50…200°C

Easy on-site configuration

Analog output: 0(4)...20 mA, 0...10 V

Contact output: DC PNP, max. 200 mA

Digital contact thermometer TM 63

Technical Data:

Range: 0…50°C bis -50…200°C Analog output: 0(4)...20 mA, 0…10 V

Contact output: DC PNP, max. 200 mA Accuracy: ≤ ± 0.3% FS @ 25°C + 0,3°C +0.005°C x t (Pt1000 Kl. B) Response time: 200 ms

Power supply: 10...30V DC, 20 mA Ausgang 16…30V DC, 10 V Ausgang Ambient temperature: -25...80 °C

Process temperature: -50...200 °C Temperature

Type

A Axial, connection back

W Bottom connection

Analog output

1 0…10 V 3-wire 2 0…20 mA 3-wire

3 4…20 mA 3-wire (signal range 3.8…20.5 mA)

Contact output

1 1 Contact

Range

Measurement range see table 9 others on request

Process connection and material

3 G1/2“ male swivel nut 1.4404

G G1/2” union nut 1.4404 Sensor Length 05 50 mm 10 100 mm others 16 160 mm on request 25 250 mm _{Accuracy class} 0 Pt 1000 Cl. B (Standard) 1 Pt 1000 Cl. A Optiones 0 without TM63

Modifications reserved without notice 02.10

Nöding Meßtechnik GmbH  Oldenfelder Bogen 29  D-22143 Hamburg  Germany  Tel. 040 / 67 58 51 - 0

Fax 040 / 67 58 51 - 49  Internet: www.noeding-messtechnik.de  E-mail: [email protected]

Electrical connections Accessories (optional)

Elbow-Connector M8x1, 4-polig with 2m PVC Cable; Typ: AKW-8-4-2P

Dimension (mm) Range Code 0...50 °C 1 0...60 °C 2 0...80 °C 3 0...100 °C 4 0…120 °C 5 0…150 °C 6 0…160 °C 7 0…200 °C 8 -20…50 °C A -20…60 °C B -20…80 °C C -20…100 °C D -20…120 °C E -20…150 °C F -20…160 °C G -20…200 °C H 0...50.0 °C J 0...60.0 °C K 0...80.0 °C L 0...100.0 °C M -20.0...50.0 °C N -20.0...60.0 °C O -20.0...80.0 °C P -20.0...100.0 °C Q

Other ranges on request

Type A Type W 42.0 L Ø 6 .0 14.0 26.0 22 male nut G1/2“ type 3 L Ø 6.0 53.0 52 .0 14 .0 22 male nut G1/2“ type 3 Ø 63.0 °C

0

3

6 .

Connector M8x1 4-polig Thermowell SH-1-05 L = 50 mm
