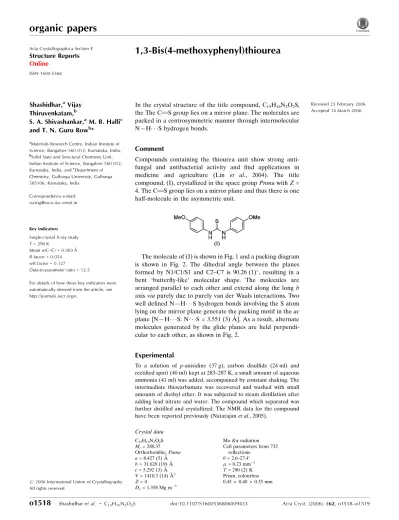

1,3 Bis(4 meth­oxy­phen­yl)thio­urea

organic papers

o1518

Shashidharet al. _C

15H16N2O2S doi:10.1107/S1600536806009433 Acta Cryst.(2006). E62, o1518–o1519

Acta Crystallographica Section E

Structure Reports Online

ISSN 1600-5368

1,3-Bis(4-methoxyphenyl)thiourea

Shashidhar,aVijay

Thiruvenkatam,b

S. A. Shivashankar,aM. B. Hallic

and T. N. Guru Rowb*

a_{Materials Research Centre, Indian Institute of}

Science, Bangalore 560 012, Karnataka, India,

b_{Solid State and Structural Chemistry Unit,}

Indian Institute of Science, Bangalore 560 012, Karnataka, India, andc_{Department of}

Chemistry, Gulbarga University, Gulbarga 585106, Karnataka, India

Correspondence e-mail: ssctng@sscu.iisc.ernet.in

Key indicators Single-crystal X-ray study

T= 290 K

Mean(C–C) = 0.003 A˚

Rfactor = 0.054

wRfactor = 0.127

Data-to-parameter ratio = 12.5

For details of how these key indicators were automatically derived from the article, see http://journals.iucr.org/e.

Received 23 February 2006 Accepted 14 March 2006

#2006 International Union of Crystallography All rights reserved

In the crystal structure of the title compound, C15H16N2O2S,

the The C S group lies on a mirror plane. The molecules are packed in a centrosymmetric manner through intermolecular N—H S hydrogen bonds.

Comment

Compounds containing the thiourea unit show strong anti-fungal and antibacterial activity and find applications in medicine and agriculture (Lin et al., 2004). The title compound, (I), crystallized in the space groupPnmawithZ= 4. The C S group lies on a mirror plane and thus there is one half-molecule in the asymmetric unit.

The molecule of (I) is shown in Fig. 1 and a packing diagram is shown in Fig. 2. The dihedral angle between the planes formed by N1/C1/S1 and C2–C7 is 90.26 (1)_{, resulting in a}

bent ‘butterfly-like’ molecular shape. The molecules are arranged parallel to each other and extend along the longb axisviapurely due to purely van der Waals interactions. Two well defined N—H S hydrogen bonds involving the S atom lying on the mirror plane generate the packing motif in theac plane [N—H S: N S = 3.551 (3) A˚ ]. As a result, alternate molecules generated by the glide planes are held perpendi-cular to each other, as shown in Fig. 2.

Experimental

To a solution of p-anisidine (37 g), carbon disulfide (24 ml) and rectified spirit (40 ml) kept at 283–287 K, a small amount of aqueous ammonia (41 ml) was added, accompained by constant shaking. The intermediate thiocarbamate was recovered and washed with small amounts of diethyl ether. It was subjected to steam distillation after adding lead nitrate and water. The compound which separated was further distilled and crystallized. The NMR data for the compound have been reported previously (Natarajanet al., 2005).

Crystal data

C15H16N2O2S

Mr= 288.37 Orthorhombic,Pnma a= 8.427 (5) A˚

b= 31.628 (19) A˚

c= 5.292 (3) A˚

V= 1410.3 (14) A˚3

Z= 4

Dx= 1.358 Mg m 3

MoKradiation Cell parameters from 732

reflections

= 2.6–27.4

= 0.23 mm1

Data collection

Bruker SMART CCD area-detector diffractometer

’and!scans

Absorption correction: multi-scan (SADABS; Sheldrick, 1996)

Tmin= 0.903,Tmax= 0.923

11344 measured reflections

1572 independent reflections 1433 reflections withI> 2(I)

Rint= 0.022

max= 27.4

h=10!10

k=40!39

l=6!6 Refinement

Refinement onF2

R[F2_{> 2(F}2_{)] = 0.054}

wR(F2_{) = 0.127}

S= 1.21 1572 reflections 126 parameters

All H-atom parameters refined

w= 1/[2_(F

o2) + (0.0502P)2

+ 0.7475P]

whereP= (Fo2+ 2Fc2)/3

(/)max< 0.001

max= 0.33 e A˚

3

min=0.19 e A˚

[image:2.610.43.299.70.144.2] [image:2.610.366.511.76.417.2]

3

Table 1

Selected geometric parameters (A˚ ,_).

S1—C1 1.693 (3) O1—C5 1.375 (3) O1—C8 1.417 (4)

N1—C1 1.339 (2) N1—C2 1.431 (3)

C5—O1—C8 117.5 (2) C1—N1—C2 124.68 (18) N1—C1—N1i 114.7 (2) S1—C1—N1 122.66 (12)

N1—C2—C3 119.41 (19) N1—C2—C7 120.56 (18) O1—C5—C6 124.4 (2) O1—C5—C4 115.5 (2)

Symmetry code: (i)x;yþ1 2;z.

Table 2

Hydrogen-bond geometry (A˚ ,_).

D—H A D—H H A D A D—H A

N1—H1 S1ii

0.80 (3) 2.79 (3) 3.551 (3) 160 (2)

Symmetry code: (ii)xþ1 2;yþ

1 2;zþ

1 2.

All the H atoms were located and refined isotropically. The C—H bond lengths are 0.89 (3)–1.05 (3) A˚ and the N—H bond length is 0.80 (3) A˚ .

Data collection:SMART(Bruker, 1998); cell refinement:SMART; data reduction: SAINT (Bruker, 1998); program(s) used to solve structure: SHELXS97(Sheldrick, 1997); program(s) used to refine structure: SHELXL97 (Sheldrick, 1997); molecular graphics:

ORTEP-3 for Windows(Farrugia, 1997) andCAMERON(Watkinet al., 1993); software used to prepare material for publication:

PLATON(Spek, 2003).

We thank the Department of Science and Technology, India, for use of the CCD facility set up under the IRHPA– DST programme at IISc.

References

Bruker (1998).SMART(Version 5.628) andSAINT(Version 6.02). Bruker AXS Inc., Madison, Wisconsin, USA.

Farrugia, L. J. (1997).J. Appl. Cryst.30, 565.

Lin, Q., Zhang, Y.-M., Wei, T.-B. & Wang, H. (2004).Acta Cryst.E60, o580– o582.

Natarajan, A., Guo, Y.-H., Arthanari, H., Wagner, G., Halperin, J. A. & Chorev, M. (2005).J. Org. Chem.70, 6362–6368.

Sheldrick, G. M. (1996).SADABS. University of Gottingen, Germany. Sheldrick, G. M. (1997). SHELXS97 and SHELXL97. University of

Gottingen, Germany.

Spek, A. L. (2003).J. Appl. Cryst.36, 7–13.

Watkin, D. M., Pearce, L. & Prout, C. K. (1993). Chemical Crystallography Laboratory, University of Oxford, England.

Figure 1

View of the molecular structure of (I), showing the atom-labelling scheme. Displacement ellipsoids are drawn at the 50% probability level. H atoms are shown as small spheres of arbitrary radii. [Symmetry code: (a)x,1

2y,z.]

Figure 2

[image:2.610.42.298.436.508.2]

supporting information

sup-1 Acta Cryst. (2006). E62, o1518–o1519

supporting information

Acta Cryst. (2006). E62, o1518–o1519 [https://doi.org/10.1107/S1600536806009433]

1,3-Bis(4-methoxyphenyl)thiourea

Shashidhar, Vijay Thiruvenkatam, S. A. Shivashankar, M. B. Halli and T. N. Guru Row

1,3-Bis(4-methoxyphenyl)thiourea

Crystal data

C15H16N2O2S Mr = 288.37

Orthorhombic, Pnma

Hall symbol: -P 2ac 2n

a = 8.427 (5) Å

b = 31.628 (19) Å

c = 5.292 (3) Å

V = 1410.3 (14) Å3 Z = 4

F(000) = 608

Dx = 1.358 Mg m−3 Melting point: 202 K

Mo Kα radiation, λ = 0.71073 Å Cell parameters from 732 reflections

θ = 2.6–27.4°

µ = 0.23 mm−1 T = 290 K Prism, colourless 0.45 × 0.40 × 0.35 mm

Data collection

Bruker SMART CCD area-detector diffractometer

Radiation source: fine-focus sealed tube Graphite monochromator

φ and ω scans

Absorption correction: multi-scan (SADABS; Sheldrick, 1996)

Tmin = 0.903, Tmax = 0.923

11344 measured reflections 1572 independent reflections 1433 reflections with I > 2σ(I)

Rint = 0.022

θmax = 27.4°, θmin = 2.6° h = −10→10

k = −40→39

l = −6→6

Refinement

Refinement on F2 Least-squares matrix: full

R[F2 _{> 2σ(F}2_{)] = 0.054} wR(F2_{) = 0.127} S = 1.21 1572 reflections 126 parameters 0 restraints

Primary atom site location: structure-invariant direct methods

Secondary atom site location: difference Fourier map

Hydrogen site location: inferred from neighbouring sites

All H-atom parameters refined

w = 1/[σ2_(F

o2) + (0.0502P)2 + 0.7475P] where P = (Fo2 + 2Fc2)/3

(Δ/σ)max < 0.001 Δρmax = 0.33 e Å−3 Δρmin = −0.19 e Å−3

Special details

Refinement. Refinement of F2 _{against ALL reflections. The weighted R-factor wR and goodness of fit S are based on F}2_, conventional R-factors R are based on F, with F set to zero for negative F2_{. The threshold expression of F}2 _{> σ(F}2_{) is used} only for calculating R-factors(gt) etc. and is not relevant to the choice of reflections for refinement. R-factors based on F2 are statistically about twice as large as those based on F, and R- factors based on ALL data will be even larger.

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2₎

x y z Uiso*/Ueq

S1 0.30058 (9) 0.25000 0.61989 (16) 0.0457 (3) O1 0.3347 (2) 0.05014 (5) 0.5625 (4) 0.0607 (6) N1 0.5326 (2) 0.21436 (5) 0.3520 (4) 0.0451 (6) C1 0.4633 (3) 0.25000 0.4324 (5) 0.0369 (8) C2 0.4809 (2) 0.17261 (6) 0.4159 (4) 0.0388 (6) C3 0.3743 (3) 0.15207 (7) 0.2602 (5) 0.0452 (7) C4 0.3264 (3) 0.11132 (7) 0.3169 (5) 0.0487 (7) C5 0.3881 (3) 0.09076 (6) 0.5254 (4) 0.0427 (6) C6 0.4958 (3) 0.11110 (7) 0.6804 (4) 0.0458 (7) C7 0.5404 (3) 0.15240 (7) 0.6258 (4) 0.0449 (7) C8 0.4002 (4) 0.02715 (9) 0.7674 (7) 0.0700 (10) H1 0.603 (3) 0.2163 (8) 0.251 (5) 0.054 (7)* H3 0.336 (3) 0.1655 (8) 0.120 (5) 0.053 (7)* H4 0.257 (3) 0.0981 (8) 0.219 (5) 0.061 (7)* H6 0.536 (3) 0.0990 (8) 0.825 (5) 0.053 (7)* H7 0.614 (3) 0.1661 (8) 0.730 (5) 0.050 (6)* H8A 0.377 (4) 0.0421 (10) 0.940 (6) 0.084 (10)* H8B 0.518 (4) 0.0246 (10) 0.754 (6) 0.086 (10)* H8C 0.354 (4) 0.0004 (10) 0.765 (6) 0.077 (9)*

Atomic displacement parameters (Å2₎

U11 _U22 _U33 _U12 _U13 _U23

S1 0.0436 (4) 0.0384 (4) 0.0551 (5) 0.0000 0.0144 (3) 0.0000 O1 0.0656 (11) 0.0357 (8) 0.0807 (12) −0.0093 (7) −0.0080 (9) 0.0056 (8) N1 0.0434 (10) 0.0353 (9) 0.0567 (11) −0.0005 (7) 0.0165 (9) −0.0012 (8) C1 0.0370 (14) 0.0353 (14) 0.0384 (14) 0.0000 −0.0014 (12) 0.0000 C2 0.0382 (10) 0.0297 (9) 0.0485 (11) 0.0016 (8) 0.0092 (9) −0.0025 (8) C3 0.0455 (12) 0.0395 (11) 0.0507 (12) 0.0061 (9) −0.0036 (10) 0.0018 (10) C4 0.0466 (12) 0.0406 (11) 0.0589 (14) −0.0044 (9) −0.0093 (11) −0.0064 (10) C5 0.0414 (11) 0.0318 (10) 0.0548 (12) −0.0003 (8) 0.0045 (10) −0.0024 (9) C6 0.0492 (12) 0.0440 (12) 0.0441 (12) −0.0026 (10) −0.0010 (10) 0.0051 (9) C7 0.0463 (12) 0.0434 (11) 0.0451 (12) −0.0081 (9) −0.0001 (10) −0.0043 (9) C8 0.084 (2) 0.0420 (13) 0.084 (2) −0.0078 (14) 0.0002 (17) 0.0162 (14)

Geometric parameters (Å, º)

supporting information

sup-3 Acta Cryst. (2006). E62, o1518–o1519

N1—C1 1.339 (2) C4—H4 0.89 (3) N1—C2 1.431 (3) C6—H6 0.92 (3) N1—H1 0.80 (3) C7—H7 0.93 (3) C2—C7 1.376 (3) C8—H8A 1.05 (3) C2—C3 1.381 (3) C8—H8B 1.00 (3) C3—C4 1.384 (3) C8—H8C 0.93 (3) C4—C5 1.382 (3)

S1···C3 3.688 (3) C7···H3vii _{2.84 (3)} S1···C7 3.690 (3) C8···H6 2.56 (3) S1···C3i _{3.688 (3) C8···H8B}x _{3.09 (3)} S1···C7i _{3.690 (3) H1···S1}xi _{2.79 (3)} S1···H1ii _{2.79 (3) H1···S1}vii _{2.79 (3)} S1···H7iii _{3.19 (3) H1···C3}vii _{3.06 (3)} S1···H7iv _{3.19 (3) H1···H1}i _{2.13 (4)} S1···H1v _{2.79 (3) H3···C2}v _{3.01 (3)} O1···H8Cvi _{2.75 (3) H3···C7}v _{2.84 (3)} C2···C3vii _{3.504 (4) H4···H8A}viii _{2.52 (4)} C3···C2v _{3.504 (4) H4···C6}v _{3.08 (3)} C3···S1 3.688 (3) H6···C8 2.56 (3) C3···C6viii _{3.485 (4) H6···H8A 2.32 (4)} C3···C7v _{3.477 (4) H6···H8B 2.39 (4)} C6···C3ix _{3.485 (4) H6···C5}xii _{3.08 (3)} C7···C3vii _{3.477 (4) H7···S1}xiii _{3.19 (3)} C7···S1 3.690 (3) H7···S1xii _{3.19 (3)} C8···C8x _{3.441 (5) H8A···C4}ix _{2.99 (3)} C2···H3vii _{3.01 (3) H8A···C6 2.77 (3)} C3···H1v _{3.06 (3) H8A···H4}ix _{2.52 (4)} C4···H8Aviii _{2.99 (3) H8A···H6 2.32 (4)} C5···H6iii _{3.08 (3) H8B···C6 2.77 (3)} C6···H4vii _{3.08 (3) H8B···H6 2.39 (4)} C6···H8B 2.77 (3) H8B···C8x _{3.09 (3)} C6···H8A 2.77 (3) H8C···O1xiv _{2.75 (3)}

C4—C5—C6 120.12 (19) H8B—C8—H8C 110 (3) C5—C6—C7 119.5 (2)

C8—O1—C5—C4 177.2 (2) C7—C2—C3—C4 0.6 (3) C8—O1—C5—C6 −2.9 (4) C3—C2—C7—C6 1.0 (3) C1—N1—C2—C3 91.8 (3) C2—C3—C4—C5 −1.6 (4) C1—N1—C2—C7 −90.3 (3) C3—C4—C5—O1 −179.0 (2) C2—N1—C1—S1 −1.0 (3) C3—C4—C5—C6 1.1 (4) C2—N1—C1—N1i _{179.2 (2) O1—C5—C6—C7 −179.5 (2)} N1—C2—C7—C6 −176.8 (2) C4—C5—C6—C7 0.5 (4) N1—C2—C3—C4 178.5 (2) C5—C6—C7—C2 −1.5 (4)

Symmetry codes: (i) x, −y+1/2, z; (ii) x−1/2, −y+1/2, −z+1/2; (iii) x−1/2, y, −z+3/2; (iv) x−1/2, −y+1/2, −z+3/2; (v) x−1/2, y, −z+1/2; (vi) −x+1/2, −y,

z−1/2; (vii) x+1/2, y, −z+1/2; (viii) x, y, z−1; (ix) x, y, z+1; (x) −x+1, −y, −z+2; (xi) x+1/2, −y+1/2, −z+1/2; (xii) x+1/2, y, −z+3/2; (xiii) x+1/2, −y+1/2, −z+3/2; (xiv) −x+1/2, −y, z+1/2.

Hydrogen-bond geometry (Å, º)

D—H···A D—H H···A D···A D—H···A

N1—H1···S1xi _{0.80 (3) 2.79 (3) 3.551 (3) 160 (2)} N1—H1···S1vii _{0.80 (3) 2.79 (3) 3.551 (3) 160 (2)}
