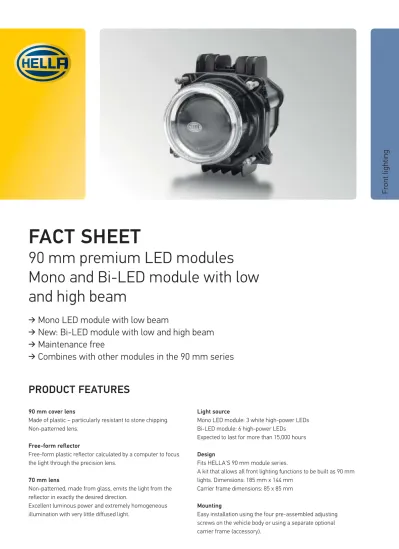

90 mm premium LED modules
Mono and Bi-LED module with low
and high beam
Mono LED module with low beam
New: Bi-LED module with low and high beam
Maintenance free
Combines with other modules in the 90 mm series
90 mm cover lens
Made of plastic – particularly resistant to stone chipping. Non-patterned lens.
Free-form reflector
Free-form plastic reflector calculated by a computer to focus the light through the precision lens.
70 mm lens
Non-patterned, made from glass, emits the light from the reflector in exactly the desired direction.
Excellent luminous power and extremely homogeneous illumination with very little diffused light.
Fr
ont lighting
PRODUCT FEATURES
FACT SHEET
Light source
Mono LED module: 3 white high-power LEDs Bi-LED module: 6 high-power LEDs
Expected to last for more than 15,000 hours
Design
Fits HELLA'S 90 mm module series.
A kit that allows all front lighting functions to be built as 90 mm lights. Dimensions: 185 mm x 144 mm
Carrier frame dimensions: 85 x 85 mm
Mounting
Easy installation using the four pre-assembled adjusting screws on the vehicle body or using a separate optional carrier frame (accessory).
Lux is the unit used to measure light.. It provides the luminous flux which hits a certain surface from the light source. For example; an office workplace should be illuminated with at least 500 Lux and the human eye can still read a newspaper without any problems at 1 Lux. The values under the Lux axis show where the respective illumination intensities are achieved in the light distribution diagrams.
Mono LED module
Bi-LED module
FURTHER PRODUCT BENEFITS
Millions of 90 mm module headlights prove their worth daily under tough conditions. Our range currently includes
4 series with an extraordinary number of varieties (Classic, Performance, Premium and Premium LED). The new 90 mm Premium LED product group gives designers new degrees of freedom. The two LED modules (mono-LED and Bi-LED) are an ideal solution because they are a direct replacement of previous 90 mm halogen and xenon modules.*
The LED module requires no maintenance and provides excellent lighting performance. Since LEDs are expected to last for more than 15,000 real operating hours (in an ambient temperature of around 50°C), they will help to save tremendous costs compared to the standard servicing and garage fees incurred by other lighting systems.
Drive 20 times around the world without needing to replace the bulb.
Bulb replacement has become a thing of the past. Requires no maintenance due to passive cooling. No moving parts (e.g. fans) required
Low fuel consumption and reduced CO2 emissions due to the low power consumption of just 35 Watt per function.
10,000 operating hours saves around 370 litres of fuel (compared to a 24 V halogen headlight)
LED headlights improve safety. The light colour is similar to daylight, improving vision and ease of driving (drivers do not tire as quickly)
No headlight power wash system required Multi-voltage (12 V, 24 V)
ECE type-tested
* Countries required to comply with ECE R48 must, by law, guarantee a failure control of LED headlights through appropriate measures in the vehicle electric system. Further details of the failure control system for the 90 mm Premium LED headlight are provided in the "Highlights" section of the following website:
http://www.hella.com/bus
Low beam illumination
High beam illumination +
INSTALLATION AND THERMAL CONDITIONS
10 mm * 20 mm * Ø 110 mm Ø 90 mm 10 mm * 20 mm * 20 mm Recommended installation* Minimum installation distance from vehicle body: 1) 10 mm all round (at the lens)
2) 20 mm all round (at the housing)
The modules are designed to work without a fan since passive cooling and adherence to the minimum installation distances ensures perfect thermal conditions for operation.
Thermal conditions
Maximum cooling body temperature during operation: Mono LED module: 63℃
Bi-LED module: 69℃
TECHNICAL DRAWINGS
Standard carrier frame (cars, caravans, trams and buses)
BI-LIGHTING TECHNOLOGY
APPLICATION EXAMPLE
Hella is an innovation leader in the field of automotive original equipment and as such it sets standards by supplying
integrative lighting technology
A single module covers both low beam and high beam headlights:
Instead of separate reflectors for low beam and high beam, a single projection module with one light source (LED) is sufficient on each side of the vehicle.
Low beam and high beam headlights from two light sources but with no moving parts:
A second reflector supplements the low beam illumination with high beam when the headlights are switched over. No mechanical parts are moved to achieve this.
Simple extension of illumination:
When the driver switches to high beam, the light distribution and brightness of the low beam setting remain unchanged - high beam illumination extends the existing beam. Constant close-range illumination results in a very comfortable extension/reduction of the visual range for the human eye when switching between low beam and high beam.
LED MODULE / BI-LED MODULE SCOPE OF SUPPLY
90 mm LED module (with adjusting screws) Connector cable
Installation instructions
90 MM LED MODULE
Lighting function Low beam Vehicle electrical system voltage Multi-voltage Right-hand traffic 1BL 010 820-001 Left-hand traffic 1ML 010 820-011 Type approval ECE ES 3159 and ECE LES 3160
90 MM BI-LED MODULE*
Lighting function Low beam and high beam Vehicle electrical system voltage Multi-voltage
Right-hand traffic 1AL 010 820-021 Left-hand traffic 1LL 010 820-031 Type approval ECE
* Available from December 2011
90 mm cover lens
Free-form reflector
70 mm lens
© HELLA KGaA Hueck & Co., Lippstadt Stand Oktober 2011 KB/xx.11/x.x Printed in Germany
ACCESSORIES
CARRIER FRAME INSERT
Standard (passenger cars, caravans and trams)
Heavy duty (trucks)
Premium carrier frame
Standard (passenger cars, caravans, trams and
buses) 9AH 169 580-011 Heavy duty (trucks) 9AH 185 978-011
Headlight levelling system
Adjuster, 12 V 6NM 007 282-221 Adjuster, 24 V 6NM 008 299-501
Bracket for right-hand installation of adjuster 8HG 138 619-007 Bracket for left-hand installation of adjuster 8HG 138 620-007
LED AMP Superseal jack, 3-pole
Plug housing, 10 units 8JA 746 184-032 Female contact, 50 units 8KW 744 837-002 For harness 1.0 – 1.5 mm²
Single strand seal, 50 units 9GD 746 185-002
Optional LED headlight Function monitoring
Available soon
DETAILS AVAILABLE ON THE INTERNET AT:
www.hella.com/bus www.hella.com/soe/caravan www.hella.com/soe/truck
