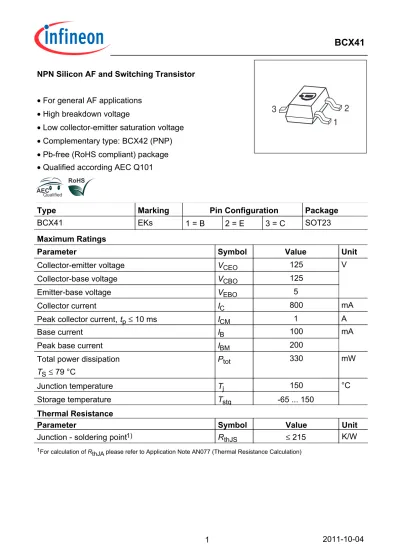

NPN Silicon AF and Switching Transistor

• For general AF applications • High breakdown voltage

• Low collector-emitter saturation voltage • Complementary type: BCX42 (PNP) • Pb-free (RoHS compliant) package • Qualified according AEC Q101

Type Marking Pin Configuration Package

BCX41 EKs 1 = B 2 = E 3 = C SOT23

Maximum Ratings

Parameter Symbol Value Unit

Collector-emitter voltage V_CEO 125 V

Collector-base voltage V_CBO 125

Emitter-base voltage V_EBO 5

Collector current I_C 800 mA

Peak collector current, t_p≤ 10 ms I_CM 1 A

Base current I_B 100 mA

Peak base current I_BM 200

Total power dissipation

T_S ≤ 79 °C

P_tot 330 mW

Junction temperature T_j 150 °C

Storage temperature T_stg -65 ... 150

Thermal Resistance

Parameter Symbol Value Unit

Junction - soldering point1) _{RthJS ≤ 215 K/W}

Electrical Characteristics at T_A = 25°C, unless otherwise specified

Parameter Symbol Values Unit

min. typ. max.

DC Characteristics

Collector-emitter breakdown voltage

I_C = 10 mA, I_B = 0

V_(BR)CEO 125 - - V

Collector-base breakdown voltage

I_C = 100 µA, I_E = 0

V_(BR)CBO 125 -

-Emitter-base breakdown voltage

I_E = 10 µA, I_C = 0

V_(BR)EBO 5 -

-Collector-base cutoff current

V_CB = 100 V, I_E = 0 V_CB = 100 V, I_E = 0 , T_A = 150 °C I_CBO -0.1 20 µA

Collector-emitter cutoff current

V_CE = 100 V, T_A = 85 °C V_CE = 100 V, T_A = 125 °C I_CEO -10 75 Emitter-base cutoff current

V_EB = 4 V, I_C = 0 I_EBO - - 100 nA DC current gain1) I_C = 100 µA, V_CE = 1 V I_C = 100 mA, V_CE = 1 V I_C = 200 mA, V_CE = 1 V h_FE 25 63 40

-Collector-emitter saturation voltage1)

I_C = 300 mA, I_B = 30 mA

V_CEsat - - 0.9 V

Base emitter saturation voltage1)

I_C = 300 mA, I_B = 30 mA V_BEsat - - 1.4 AC Characteristics Transition frequency I_C = 20 mA, V_CE = 5 V, f = 20 MHz f_T - 100 - MHz Collector-base capacitance V_CB = 10 V, f = 1 MHz C_cb - 12 - pF 1_{Pulse test: t < 300µs; D < 2%}

DC current gain h_FE = ƒ(IC) V_CE = 1 V 10 10 10 10 BCX 41/BSS 64 EHP00427 h mA -1 0 2 3 FE 3 10 102 1 10 5 5 1 10 150 25 -50 5 5 5 C Ι ˚C ˚C ˚C

Collector-emitter saturation voltage

I_C = _ƒ(VCEsat), h_FE = 10 0 400 800 BCX 41/BSS 64 EHP00425 V_{CE sat} mV mA 103 0 10 10 101 10 102 10 5 5 5 10 200 600 150 25 -50 -1 C Ι ˚C ˚C ˚C

Base-emitter saturation voltage

I_C = _ƒ(VBEsat), h_FE = 10 BCX 41/BSS 64 EHP00424 10 mA 10 10 10 3 2 1 0 5 5 5 150 25 -50 C Ι ˚C ˚C ˚C Collector current I_C = ƒ(VBE) V_CE = 1V BCX 41/BSS 64 EHP00421 10 mA 10 10 10 3 2 1 0 5 5 5 150 25 -50 T_A= C Ι ˚C ˚C ˚C

Collector cutoff current I_CBO = ƒ(TA) V_CBO = 80 V 10 0 50 100 150 BCX 41/BSS 64 EHP00426 T_A 5 10 10 nA 10 ΙCB0 5 5 5 10 10 4 3 2 1 0 -1 max typ ˚C

Transition frequency f_T = ƒ(IC) V_CE = 5 V 10 10 10 10 BCX 41/BSS 64 EHP00423 f mA MHz 0 ₅ 1 2 3 T 3 10 102 1 10 5 5 5 C Ι Collector-base capacitance C_cb=ƒ(VCB) Emitter-base capacitance C_eb=_ƒ(VEB) 0 5 10 V 20 V_CB(V_EB 0 10 20 30 40 50 60 70 80 pF 100 CCB (CEB ) CCB CEB

Total power dissipation P_tot = ƒ(TS)

0 15 30 45 60 75 90 105 120 _°C 150 T_S 0 50 100 150 200 250 300 mW 400 Ptot

Permissible Pulse Load P_totmax/P_totDC = _ƒ(tp) 10 EHP00422 BCX 41/BSS 64 -6 0 10 5 D = 5 101 5 102 3 10 10-5 10-4 10-3 10-2 s 100 0 0.005 0.01 0.02 0.05 0.1 0.2 0.5 tp = D T tp T tot max tot P DC P p t
