www.chromeled.com | [email protected] |T: 626-964-9040 | F: 626-964-9072
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.25mm (0.01”) unless otherwised noted. 3. Specifications are subject to change without notice.

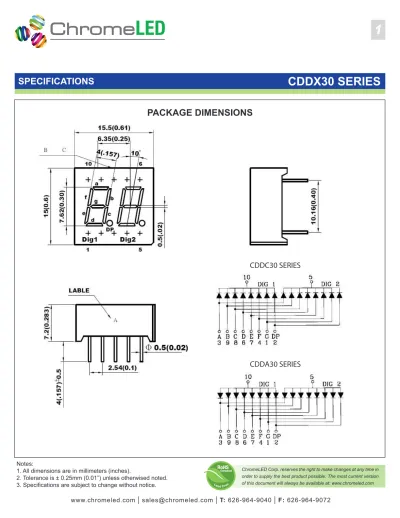

package dimensions
speciFicaTions
1
CDDX30 series
American Opto Plus LED
A302X G/W
0.3’’ Dual Digit Seven Segment Display
0.30inch (7.62 mm) height
Low power consumption
roHs Compliance
Case mold type
Package Dimensions
Notes: 1. Label Notes: A: Part Number B: Date C: Bin Code 2. All dimensions are in millimeters (inches) 3. Tolerance is ± 0.25mm (0.01”) unless otherwise specified
Feb. 2005 Rev. 1.0
American Opto Plus LED
A302X G/W
0.3’’ Dual Digit Seven Segment Display
0.30inch (7.62 mm) height
Low power consumption
roHs Compliance
Case mold type
Package Dimensions
Notes: 1. Label Notes: A: Part Number B: Date C: Bin Code 2. All dimensions are in millimeters (inches) 3. Tolerance is ± 0.25mm (0.01”) unless otherwise specified
American Opto Plus LED
A302X G/W
0.3’’ Dual Digit Seven Segment Display
0.30inch (7.62 mm) height
Low power consumption
roHs Compliance
Case mold type
Package Dimensions
Notes: 1. Label Notes: A: Part Number B: Date C: Bin Code 2. All dimensions are in millimeters (inches) 3. Tolerance is ± 0.25mm (0.01”) unless otherwise specified
Feb. 2005 Rev. 1.0
American Opto Plus LED
A302X G/W
0.3’’ Dual Digit Seven Segment Display
0.30inch (7.62 mm) height
Low power consumption
roHs Compliance
Case mold type
Package Dimensions
Notes: 1. Label Notes: A: Part Number B: Date C: Bin Code 2. All dimensions are in millimeters (inches) 3. Tolerance is ± 0.25mm (0.01”) unless otherwise specified
Feb. 2005 Rev. 1.0
CDDA30 SERIES CDDC30 SERIES
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com
2
Part Number Chip Material Color of Emission Lens Type Description
CDDA30R1W GaAsP Red White Segment Common Anode
CDDC30R1W GaAsP Red White Segment Common Cathode
CDDA30RR1W AlGaAs Super Red White Segment Common Anode
CDDC30RR1W AlGaAs Super Red White Segment Common Cathode
CDDA30Y1W GaAsP Yellow White Segment Common Anode
CDDC30Y1W GaAsP Yellow White Segment Common Cathode
CDDA30G1W GaP Green White Segment Common Anode
CDDC30G1W GaP Green White Segment Common Cathode
CDDA30B1W GaN Blue White Segment Common Anode
CDDC30B1W GaN Blue White Segment Common Cathode
OPTiCAL-eLeCTriCAL CHArACTerisTiCs
(TA=25°C)
Part number descriPtion
Part number length
Wave-(nm)
absolute maximum electro-optical characteristics
Δλ Pd Iaf IPf Vf (V) if iV (μcd)
nm mW ma (Peak) min typ max (rec) min typ
CDDA30R1W 625 45 75 30 100 1.7 1.85 2.5 10 800 1900 CDDC30R1W 625 45 75 30 100 1.7 1.85 2.5 10 800 1900 CDDA30RR1W 640 20 72 20 100 1.6 1.75 2.4 10 3000 8000 CDDC30RR1W 640 20 72 20 100 1.6 1.75 2.4 10 3000 8000 CDDA30Y1W 588 35 75 30 100 1.7 2.1 2.8 10 480 1200 CDDC30Y1W 588 35 75 30 100 1.7 2.1 2.8 10 480 1200 CDDA30G1W 568 30 65 30 100 1.7 2.1 2.8 10 1200 3000 CDDC30G1W 568 30 65 30 100 1.7 2.1 2.8 10 1200 3000 CDDA30B1W 470 30 120 30 100 3.0 3.5 4.0 10 480 2000 CDDC30B1W 470 30 120 30 100 3.0 3.5 4.0 10 480 2000
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com
ABSOLUTE MAXIMUM RATINGS
(TA=25°C)
3
Reverse Voltage 5V Spectral Line half-width (λ) nm
Reverse Current (Vr = 5V) 100μA Power Dissipation (Pd) mW
Operating Temperature -40˚C~+85˚C Peak Forward Current (Duty 1/10, @ KHz) mA
Storage Temperature -40˚C~+85˚C Recommended Operation Current (If Rec) mA
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com
OPTiCAL CHArACTerisTiC Curves - reD
Forward Current vs. Forward Voltage
Forward Current vs. Ambient Temperature
Relative Intensity vs. Forward Current
Luminous Intensity vs. Ambient Temperature
4
American Opto Plus LED
C/A284CX G/W
0.28’’ Four Digit Clock Display
0.28inch (7.102 mm) height
Low power consumption
RoHS Compliance
Case mold type
TYPICAL ELECTRO-OPTICAL CHARACTERISTIC CURVES: ORANGE-RED (E)
American Opto Plus LED
C/A284CX G/W
0.28’’ Four Digit Clock Display
0.28inch (7.102 mm) height
Low power consumption
RoHS Compliance
Case mold type
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com
OPTiCAL CHArACTerisTiC Curves - suPer reD
Forward Current vs. Forward Voltage
Forward Current vs. Ambient Temperature
Relative Intensity vs. Forward Current
Luminous Intensity vs. Ambient Temperature
5
American Opto Plus LED
C/A284CX G/W
0.28’’ Four Digit Clock Display
0.28inch (7.102 mm) height
Low power consumption
RoHS Compliance
Case mold type
TYPICAL ELECTRO-OPTICAL CHARACTERISTIC CURVES: SUPER RED (SR)
American Opto Plus LED
C/A284CX G/W
0.28’’ Four Digit Clock Display
0.28inch (7.102 mm) height
Low power consumption
RoHS Compliance
Case mold type
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com
OPTiCAL CHArACTerisTiC Curves - YeLLOw
Forward Current vs. Forward Voltage
Forward Current vs. Ambient Temperature
Relative Intensity vs. Forward Current
Luminous Intensity vs. Ambient Temperature
6
American Opto Plus LED
C/A284CX G/W
0.28’’ Four Digit Clock Display
0.28inch (7.102 mm) height
Low power consumption
RoHS Compliance
Case mold type
TYPICAL ELECTRO-OPTICAL CHARACTERISTIC CURVES: YELLOW (Y)
American Opto Plus LED
C/A284CX G/W
0.28’’ Four Digit Clock Display
0.28inch (7.102 mm) height
Low power consumption
RoHS Compliance
Case mold type
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com
OPTiCAL CHArACTerisTiC Curves - Green
Forward Current vs. Forward Voltage
Forward Current vs. Ambient Temperature
Relative Intensity vs. Forward Current
Luminous Intensity vs. Ambient Temperature
7
American Opto Plus LED
C/A284CX G/W
0.28’’ Four Digit Clock Display
0.28inch (7.102 mm) height
Low power consumption
RoHS Compliance
Case mold type
TYPICAL ELECTRO-OPTICAL CHARACTERISTIC CURVES – GREEN (G)
American Opto Plus LED
C/A284CX G/W
0.28’’ Four Digit Clock Display
0.28inch (7.102 mm) height
Low power consumption
RoHS Compliance
Case mold type
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com
OPTiCAL CHArACTerisTiC Curves - bLue
Forward Current vs. Forward Voltage
Forward Current vs. Ambient Temperature
Relative Intensity vs. Forward Current
Luminous Intensity vs. Ambient Temperature
8
American Opto Plus LED
C/A2570X G/W
0.7’’ 5 x 7 DOT MATRIX DISPLAY
0.70inch (17.8 mm) height
Low power consumption
RoHS Compliance
Case mold type
TYPICAL ELECTRO-OPTICAL CHARACTERISTIC CURVES: BLUE (LB)
American Opto Plus LED
C/A2570X G/W
0.7’’ 5 x 7 DOT MATRIX DISPLAY
0.70inch (17.8 mm) height
Low power consumption
RoHS Compliance
Case mold type
www.chromeled.com | [email protected] |T: 626-964-9040 | F: 626-964-9072
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com
sOLDerinG COnDiTiOns - DisPLAY
9
ChromeLED Corp. reserves the right to make changes at any time in order to supply the best product possible. The most current version of this document will always be available at: www.chromeled.com
SOLDERIng COnDITIOnS – LAmP TYPE LED
4
* Solder the LED no closer than 3mm from the base of the epoxy bulb. Soldering beyond the base of the tie bar is recommended.
* Recommended soldering conditions
Dip Soldering Pre-Heat
Pre-Heat Time
Solder Bath Temperature Dippng Time Dipping Position 100 ˚C Max 60 Second Max 260 ˚C Max 5 Second Max
No lower than 3mm from the base of the epoxy Hand Soldering
Temperature Soldering Time Position
3mm Series Others
300 ˚C Max 3 Second Max
No closer than 3mm from the base of the epoxy
350 ˚C Max 3 Second Max
No closer than 3mm from the base of the epoxy
* Do not apply any stress to the lead. Particularly when heated. * The LED must not be repositioned after soldering.
* After soldering the LEDs, the epoxy bulb should be protected from mechanical shock or vibra- tion until the LEDs return to room temperature.
* Direct soldering onto a PC board should be avoided. Mechanical stress to the resin may be caused by the PC board warping or from the clinching and cutting of the leadframes. When it is absolutely necessary, the LEDs may be mounted in this fashion, but, the user will assume responsibility for any problems. Direct soldering should only be done after testing has confirmed that no damage, such as wire bond failure or resin deterioration, will occur. LEDs should not be soldered directly to double sided PC boards because the heat will deteriorate the epoxy resin. * When it is necessary to clamp the LEDs to prevent soldering failure, it is important to minimize the mechanical stress on the LEDs.
* Cut the LED leadframes at room temperature. Cutting the leadframes at high temperature may cause LED failure.
