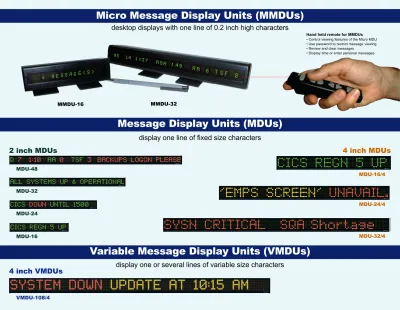

Micro Message Display Units (MMDUs)
Message Display Units (MDUs)
desktop displays with one line of 0.2 inch high characters
Hand held remote for MMDUs • Control viewing features of the Micro MDU • Use password to restrict message viewing • Review and clear messages
• Display time or enter personal messages
display one line of fixed size characters
2 inch MDUs
MDU-48 MDU-32 MDU-24 MDU-164 inch MDUs
MDU-16/4 MDU-24/4 MDU-32/4Variable Message Display Units (VMDUs)
display one or several lines of variable size characters
VMDU-108/4
4 inch VMDUs
VMDU-90/4 VMDU-36/4 VMDU-54/4 VMDU-72/4
6 inch VMDUs
VMDU-36/6 VMDU-54/6 VMDU-72/6 VMDU-108/6 VMDU-144/6 VMDU-36/8 VMDU-72/8 VMDU-54/88 inch VMDUs
Micro Message Display Units — Message Display Units — Variable Message Display Units
The MMDU is a personal desktop display perfect for communicating ACD or system status to difficult-to-reach locations such as offices and cubicles. MDUs combine technology with functionality to deliver excellent value. The MDU displays messages on a single line with a fixed character size. The VMDU is the flagship of the TDS moving message display product line. VMDUs display variable font sizes to show either single or multiple lines of information. This control offers maximum flexibility for viewing distance and display requirements. All TDS displays feature industry exclusives such as 2-way communication and poll-on-demand features. The MDUs and VMDUs give the user a variety of color options by utilizing TDS’s patented 11-color LED technology.Features/Benefits
• 2-way communication
- positively acknowledges that messages are properly received and displayed
• Poll-on-demand
- display units respond to user queries about their identity, operational status, message schedule, queue, etc.
• Microprocessor controlled • 32K message memory [8K for MMDU]
- allows messages to be sent for display at a later time
• Battery backup
• 160 degree viewing angle • Variable font size
• 11 user selectable colors [single color for MMDU] - more versatile communications
• Audible alerts
- musical tones; individual volume control [single tone for MMDU]
- external speaker support • Blinking and flashing letters
- highlight urgent messages
• Sub-panel capability
- subdivide display area into multiple addressable sections
- one part of display can show a scrolling message while other parts show static messages
• Local and/or remote connection - hard wired, modem, LAN/WAN, or wireless
connection • RS-485 protocol
- up to 4,000 feet from PC
• RJ-11 connectors [4-wire telephone cable] • Individually addressable
- up to 10,000 MDUs or VMDUs • Internal power supply
- easy to install or relocate • Wall or ceiling mounted • E2 PROM technology
- Allows hardware to be upgraded to keep pace with software enhancements
• Antiglare filter
Specifications
Power Requirement: 110V/220V
Number of Model No. Dimensions Weight viewable characters
MMDU-16 5" x 1.25" x 1.25" 6 oz. 16 MMDU-32 9" x 1.25" x 1.25" 9 oz. 32 MDU-16 25.25" x 3.5" x 1.9" 5 lbs. 16 MDU-24 37.25" x 3.5" x 1.9" 7 lbs. 24 MDU-32 49.25" x 3.5" x 1.9" 9 lbs. 32 MDU-48 73.25" x 3.5" x 1.9" 15 lbs. 48 MDU-16/4 49.5" x 6.3" x 4" 20 lbs. 16 MDU-24/4 73.5" x 6.3" x 4" 28 lbs. 24 MDU-32/4 97.5" x 6.3" x 4" 36 lbs. 32 Minimum number of viewable characters Model No. Dimensions Weight 6" 4" 3" 2" 1.6"
VMDU-36/4 38" x 6.3" x 4" 28 lbs. 10 20 20 VMDU-54/4 56" x 6.3" x 4" 40 lbs. 15 30 30 VMDU-72/4 74" x 6.3" x 4" 52 lbs. 20 40 40 VMDU-90/4 92" x 6.3" x 4" 64 lbs. 25 50 50 VMDU-108/4 110" x 6.3" x 4" 76 lbs. 30 60 60 VMDU-36/6 38" x 9.2" x 4" 34 lbs. 8 10 17 20 20 VMDU-54/6 56" x 9.2" x 4" 48 lbs. 10 15 20 30 30 VMDU-72/6 74" x 9.2" x 4" 63 lbs. 14 20 27 40 40 VMDU-108/6 110" x 9.2" x 4" 91 lbs. 21 30 40 60 60 VMDU-144/6 146" x 9.2" x 4" 145 lbs. 28 40 57 80 80 VMDU-36/8 38" x 11.4" x 4" 52 lbs. 8 10 17 20 20 VMDU-54/8 56" x 11.4" x 4" 73 lbs. 10 15 20 30 30 VMDU-72/8 74" x 11.4" x 4" 96 lbs. 14 20 27 40 40
MMDUs
MDUs
VMDUs
Displays connected directly to the QuickCOM Enterprise PCA variety of connections to meet your needs
Remote displays via modem connection
Wireless display
Displays on LAN/WAN
Sub-Panel #1
Sub-Panel #2
Panel Display Units (PDUs)
display multiple lines and multiple screens
2 inch high characters
PDU-48-2
1.2 inch high characters
PDU-1920-1 PDU-96-2 PDU-240-2 PDU-400-2 PDU-48-1 PDU-96-1 PDU-240-1 PDU-400-1
Panel Display Units
Panel Display Units are multi-line displays capable of maximizing the amount of information displayed without sacrificing visibility. Panels are available in nine models and two character heights, ensuring a fit to match any requirement.
Specifications
Power Requirement: 110V/220V
Number of Model No. Dimensions Weight viewable characters
1.2 inch character displays
PDU-48-1 30.1" x 7.5" x 4" 12 lbs. 2 lines of 24 characters PDU-96-1 30.1" x 10.7" x 4" 18 lbs. 4 lines of 24 characters PDU-240-1 30.1" x 21.5" x 4" 32 lbs. 10 lines of 24 characters PDU-400-1 47.8" x 21.5" x 4" 54 lbs. 10 lines of 40 characters PDU-1920-1 91.7" x 46.7" x 4" 256 lbs. 24 lines of 80 characters 2 inch character displays
PDU-48-2 48" x 10.7" x 4" 22 lbs. 2 lines of 24 characters PDU-96-2 48" x 16.5" x 4" 29 lbs. 4 lines of 24 characters PDU-240-2 48" x 33" x 4" 50 lbs. 10 lines of 24 characters PDU-400-2 76" x 33" x 4" 85 lbs. 10 lines of 40 characters
Overview
Panel display units display multiple lines of information and QuickCOM Enterprise software offers two unique control features for even more flexibility. Sub-panels and optional Channels further expand the operational capability of the panel by allowing more information to be viewed on a single panel.
Sub-panels
Sub-panels allow the display to be broken into separate windows. Information is then directed to a specific sub-panel for display. This data can be updated and scrolled without disrupting other sub-panels (see figure 1).
Channels
Channels are like channels on a television set.
QuickCOM Enterprise can establish multiple
monitoring screens, only one of which is actively displayed. The remainder are maintained in the background and can be called forward by the operator or cycled through on a timed rotation basis. In addition, alert messages can automatically trigger the priority of the appropriate screen and cause it to be displayed (see figure 1).
Features/Benefits
• 11 user selectable colors - more versatile communications • RS-422 protocol
- up to 4,000 feet from PC
•␣ Local and/or remote connection • Dynamic buffer storage
• Page up/down - access buffer storage - auto scroll
• Wall or ceiling mounted
Figure 1: Channels and Sub-panels Figure 2: A variety of connections to meet your needs
400 Technology Parkway College Station, TX 77845 Voice (409) 693-9378 FAX (409) 764-8650 www.txdigital.com [email protected]
Directly connected PDUs
Modem or LAN/WAN connection LAN/WAN 9903 9903
