(1)

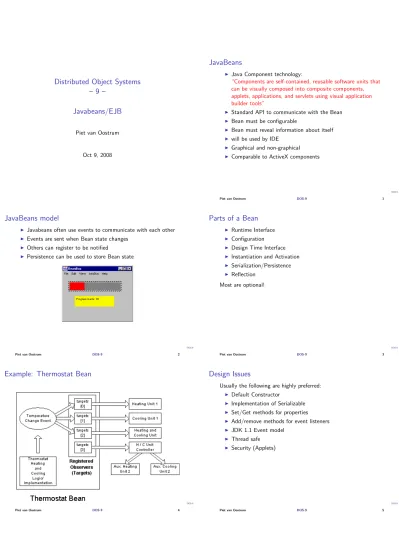

Distributed Object Systems

– 9 –

Javabeans/EJB

Piet van Oostrum

Oct 9, 2008

DOS-9

JavaBeans

I _{Java Component technology:}

“Components are self-contained, reusable software units that can be visually composed into composite components, applets, applications, and servlets using visual application builder tools”

I _{Standard API to communicate with the Bean} I _{Bean must be configurable}

I _{Bean must reveal information about itself} I _{will be used by IDE}

I _{Graphical and non-graphical} I _{Comparable to ActiveX components}

Piet van Oostrum DOS-9 1

DOS-9

JavaBeans model

I _{Javabeans often use events to communicate with each other} I _{Events are sent when Bean state changes}

I _{Others can register to be notified}

I _{Persistence can be used to store Bean state}

DOS-9

Parts of a Bean

I _{Runtime Interface} I _{Configuration} I _{Design Time Interface} I _{Instantiation and Activation} I _{Serialization/Persistence} I _Reflection

Most are optional!

Example: Thermostat Bean

Design Issues

Usually the following are highly preferred:

I _{Default Constructor}

I _{Implementation of Serializable} I _{Set/Get methods for properties} I _{Add/remove methods for event listeners} I _{JDK 1.1 Event model}

I _{Thread safe} I _{Security (Applets)}

(2)

DOS-9

Example

DOS-9

Custom Property Editor

DOS-9

Event Model

I _{Same model as AWT in JDK 1.1 and beyond} I _{AWT/Swing components are basic Beans} I _{EventObjects and EventListeners}

Examples of Events:

I _{GUI events (mouse/keyboard)} I _{Database Changes}

I _{Response to requests (asynchronous)} I _{Property Changes in Bean}

DOS-9

Bean Properties

I _{A property xxx should have methods getXxx and setXxx} I _{IDE can find out which properties are available by}

introspection

I _{Property editor can often do conversion automatically} I _{Some types cannot be handled nicely (e.g. enumerations)} I _{Indexed properties (arrays) use specialized set/get methods,}

e.g.

public void setColorTable(int index, Color value); public Color getColorTable(int index);

public void setColorTable(Color values[]); public Color[] getColorTable();

DOS-9

Bound Properties

A bound property supports notification of changes In the bean:

private PropertyChangeSupport changes = new PropertyChangeSupport(this); public void addPropertyChangeListener(

PropertyChangeListener p) {

changes.addPropertyChangeListener(p); }

public void removePropertyChangeListener( PropertyChangeListener p) {

changes.removePropertyChangeListener(p); }

Clients can add and remove PropertyChangeListeners

DOS-9

Bound Properties

Set method must fire a notification public void setLevel(int level) {

int oldlv = this.level; this.level = level;

changes.firePropertyChange("level", new Integer(oldlv), new Integer(level)); }

(3)

DOS-9

Constrained properties

Additional Functionality above Bound properties:

notified listener can veto the property change

private VetoableChangeSupport vetoes = new VetoableChangeSupport(this); public void addVetoableChangeListener(

VetoableChangeListener v) { vetoes.addVetoableChangeListener(v); }

public void removeVetoableChangeListener( VetoableChangeListener v) {

vetoes.removeVetoableChangeListener(v); }

DOS-9

Usage of Constrained Properties

public void setLevel(int level)

throws PropertyVetoException {

vetoes.fireVetoableChange("level",

new Integer(this.level), new Integer(level));

int oldlv = this.level; this.level = level;

changes.firePropertyChange("level", new Integer(oldlv), new Integer(level)); }

DOS-9

Usage of Constrained Properties

In the listener:

public void vetoableChange

(PropertyChangeEvent e) throws PropertyVetoException {

// ... raise the PropertyVetoException // if it doesn’t agree with the change }

The exception is caught by the JavaBeans framework, not by the set method.

DOS-9

Introspection

I _{Java provides}_reflection_{: You can find out information about}

classes.

I _{This is used by IDE’s to get (a.o.) the names of properties} I _{Introspector class gives higher-level support for info about}

a Bean (properties, events, and methods).

I _{It uses implicit info from the MyBean class/superclasses,} I _{and explicit info from a separate MyBeanBeanInfo class.} I _{This information is used to build a BeanInfo object}

Example BeanInfo

For a Bean called ‘Hire’ with a bound property ‘salary’:

import java.beans.*; public class HireBeanInfo

extends SimpleBeanInfo { public PropertyDescriptor[] getPropertyDescriptors() { try { PropertyDescriptor pd1 = new PropertyDescriptor("salary", Hire.class); pd1.setBound(true);

return new PropertyDescriptor[] {pd1}; } catch (Exception e) { return null; } } }

Property Editors

(4)

DOS-9

Property Editors

Restricted by BeanInfo:

DOS-9

Customized Property Editors

‘department’ can be choosen from a list of values (enumeration)’: it needs a customized property editor

DOS-9

Customized Property Editors

public class HireBeanInfo

extends SimpleBeanInfo { public PropertyDescriptor[] getPropertyDescriptors() { try { PropertyDescriptor pd1 = new PropertyDescriptor("salary", Hire.class); PropertyDescriptor pd2 = new PropertyDescriptor("department", Hire.class); pd2.setPropertyEditorClass( DepartmentEditor.class);

return new PropertyDescriptor[] {pd1, pd2}; } catch (Exception e) { return null; } }

}

DOS-9

Conclusion

I _{Javabeans are components to build applications} I _{Similar to chips in hardware}

I _{Usually to build client applications} I _{Can be bought off the shelf} I _{Not distributed objects}

DOS-9

Multi-tier applications

I _{Monolythic applications:}

I The whole application is in one process

I _{This includes user interface, ‘business logic‘ and data handling}

I _{Client-server applications}

I Usually user-interface and business logic in client I _{Database in server}

I _{Multi-tier applications:}

I Client contains only user interface I _{Database server(s)}

I Business logic in one or more intermediate tiers

DOS-9

Enterprise Javabeans (EJB)

I _{EJB is a framework for multi-tier applications in Java} I _{Especially for the business logic tier}

I _{This tier should concentrate on business objects}

I customers I students I _orders I etc.

I _{The framework is responsible for providing services}

I _security I transactions I etc.

(5)

DOS-9

EJB advantages

I _{Cross-platform components (Java)}

I _{Developer concentrates on Business programming, not services} I _{Scalable (business components can be divided over several}

servers)

I _{Can use existing services}

I Database services I Transaction services I Web servers I _Security

I Multithreading, . . .

DOS-9

EJB characteristics

I _{Some ideas from Javabeans} I _{EJB are}_server-side_beans

I _{Communication through RMI or RMI-IIOP (hence Corba)} I _{EJB’s work inside a}_container

I _{Containers run in a server}

I _{Standards for communication between container and EJB} I _{Dynamic configuration through properties (environment)} I _{EJB’s can be dynamically added to a server}

I _{Client uses proxy object (EJB Object)}

DOS-9

EJB model

I _{Servers e.g. JBoss, IBM Websphere, BEA WebLogic}

DOS-9

EJB model

Figure 1.6 A J2EE deployment.

■■Java API for XML RPC (JAX-RPC).JAX-RPC is the main technology that provides support for developing Web Services on the J2EE plat-form. It defines two Web Service endpoint models—one based on servlet technology and another based on EJB. It also specifies a lot of runtime requirements regarding the way Web Services should be sup-ported in a J2EE runtime. Another specification called Web Services for J2EE defines deployment requirements for Web Services and uses the JAX-RPC programming model. Chapter 5 discusses support of Web Services provided by both these specifications for EJB applications. ■■Java Remote Method Invocation (RMI) and RMI-IIOP.RMI is the Java

language’s native way to communicate between distributed objects, such as two different objects running on different machines. RMI-IIOP

Firewall EJBs Existing System Legacy System ERP System IIOP Client Tier J2EE Server Back-End Systems Business Partner or Other System Servlets Business Partner or Other System Applets, Applications, CORBA Clients IIOP Web services technologies

(SOAP, UDDI, WSDL, ebXML) HTTP

Databases

Proprietary ProtocolWeb Services Technologies(SOAP, UDDI, WSDL, ebXML) Connectors

SQL

JSPs Web Browser Wireless Device

HTTP

JMS

Overview 23

EJB types (EJB version 2)

I _{Entity bean}

I Corresponds to a (business) entity, e.g. customer, order,

student

I Persistent object

I Survives server shutdown or crash I _{Is loaded on demand (for scalability)}

I Implements interface javax.ejb.EntityBean I Has primary key (e.g. order number, student number)

I _{Session bean}

I Represents connection from a client I Usually not persistent

I Implements interface javax.ejb.SessionBean I Stateless or statefull

I _{Message-driven bean}

I For messaging services (event driven)

EJB container

I _{Container contains all the infrastructure (transactions etc.)} I _{EJB’s relate to the world through the container}

I _{For each EJB the container contains a}_Home_object

I This is the factory object to create EJB’s I Every EJB class has its Home interface

I _{The interface contains methods to create, find (for entity}

beans), initialize,destroy beans

I Home interface extends javax.ejb.EJBHOME

I _{EJB’s are not directly called by clients} I _{Proxy EJB object is called instead}

I _{Allows the container do supply services (transactions,}

(6)

DOS-9

Interceptors

technologies (EJB, CORBA Component Model, and Microsoft.NET) is that in this new world, you can harness complex middleware in your enterprise applications without writing to middleware APIs (see Figure 2.4).

In outline, follow these steps to harness the power of middleware: 1. Write your distributed object to contain only business logic. Do not write

to complex middleware APIs. For example, this is the code that would run inside the distributed object:

transfer(Account account1, Account account2, long amount) { // 1: Subtract the balance from one account, add to the other }

2. Declare the middleware services that your distributed object needs in a separate descriptor file, such as a plain text file. For example, you might declare that you need transactions, persistence, and a security check.

Figure 2.4 Implicit middleware (gained through declarations).

Stub Client Request Interceptor Skeleton Remote Interface Network

Remote Interface _Transaction Service Security Service Database Driver Transaction API Security API Database API Distributed Object Remote Interface The request interceptor knows what to do because you describe your needs in a special descriptor file. 34 Chapter 2

DOS-9

EJBObject and Bean

Figure 2.5 EJB objects.

Each EJB container ships with a suite of glue-code tools. These tools are meant to integrate beans into the EJB container’s environment. The tools generate helper Java code—stubs, skeletons, data access classes, and other classes that this specific container requires. Bean providers do not have to think about the specifics of how each EJB container works because the container’s tools gener-ate its own proprietary Java code automatically.

The container’s glue-code tools are responsible for transforming an enterprise bean into a fully managed, distributed server-side component. This involves logic to handle resource management, life cycle, state management, transac-tions, security, persistence, remote accessibility, and many other services. The generated code handles these services in the container’s proprietary way. The Remote Interface

As mentioned previously, bean clients invoke methods on EJB objects, rather than the beans themselves. Therefore, EJB objects must clone every business method that your bean classes expose. But how do the tools that autogenerate EJB objects know which methods to clone? The answer is in a special interface that a bean provider writes. This interface duplicates all the business logic methods that the corresponding bean class exposes. This interface is called the

remote interface.

Remote interfaces must comply with special rules that the EJB specification defines. For example, all remote interfaces must derive from a common inter-face supplied by Sun Microsystems. This interinter-face is called javax.ejb.EJBObject, and it is shown in Source 2.2.

EJB Container/Server

Enterprise Bean Client Code, such as

Servlets or Applets 1: Call a Method EJB Object Remote Interface 4: Method Returns 5: Return Result 3: Call a Bean Transaction Service, Security Service, Persistence Sevice, etc 2: Call Middleware APIs

EJB Fundamentals 39

DOS-9

Transactions

I _{Each container must implement interface}

javax.jts.UserTransaction

I _{JTS = Java Transaction Service} I _{Some methods are:}

I commit() I rollback()

I _{EJB must have a transactional attribute that tells whether the}

bean supports and/or needs transactions

I _{Transaction can contain multiple EJB and/or Corba objects}

on multiple servers

DOS-9

Transactions 2

I _{Client that uses JNDI to locate beans use}

javax.jts.UserTransaction

I _{Corba clients use Object Transaction Service (OTS)} I _{JTS is the Java interface to Corba’s OTS}

I _{RMI-IIOP is used to communicate with the OTS for JNDI}

clients

DOS-9

Client view

I _{Client has the Interface specification of the EJB} I _{Interface must be RMI compatible:}

I extends EJBObject (extends Remote) I methods must specify throws RemoteException I Object parameters must be remote or serializable

I _{Client finds the EJB Home interface through the JNDI.} I _{It calls the Home interface with a create method to create a}

bean

I _{Implementation of the EJBObject methods is in the container}

DOS-9

Example Entity Bean

Our entity bean needs the following:

I _{component interface (maybe remote and local)}

This is what clients need to know

I _{home interface (maybe remote/local)}

This is used to find/create entities

I _{implementation}

I _{appropriate finder methods} I _{bean implementation class} I _{deployment descriptor}

(7)

DOS-9

Component interface (local)

We use an Employee entity as example

import javax.ejb.*; import java.util.*; import java.sql.*; import java.math.*;

public interface Employee extends javax.ejb.EJBLocalObject { public int getEmployeeID();

public void setEmployeeName(String name); public String getEmployeeName();

public void setEmployeeAddress(String address); public String getEmployeeAddress();

public void setSalary(BigDecimal salary); public BigDecimal getSalary();

... lots more ... }

get... and set... are for accessing instance variables (attributes)

DOS-9

Remote Interface

The remote interfaces must specify the ’throws RemoteException’

import javax.ejb.EJBObject; import java.ejb.RemoteException;

public interface EmployeeRemote extends EJBObject {

public int getEmployeeID() throws RemoteException; public void setEmployeeName(String firstName)

throws RemoteException; public String getEmployeeName() throws RemoteException; public void setEmployeeAddress(String lastName)

throws RemoteException; public String getEmployeeAddress() throws RemoteException; ...

}

DOS-9

Home Interface

I _{More than one create() method is possible (overloaded)} I _{Only one findByPrimaryKey is possible (must always have one}

parameter)

import javax.ejb.EJBHome; import java.ejb.* // Exceptions

public interface EmployeeHome extends EJBHome { public Employee create(int employeeID, String name,

String address)

throws CreateException, RemoteException; public Employee findByPrimaryKey(

EmployeePrimaryKey empKey) throws FinderException, RemoteException; }

public class EmployeePrimaryKey

implements Serializable { public int employeeId; }

DOS-9

Entity Bean Persistence

Persistence for Entity bean can be provided by:

I _{Container (container-managed persistence)}

I _{At deployment time the deployer must give the container a list}

of fields that must be persisted

I Difficulities e.g. how do the fields map to database records?

e.g. SQL code must be supplied (container dependent). I _{Bean itself (bean-managed persistence)}

I _{Bean must access database for persistence} I Or use another component to do the work

Entity Context

I _{The container keeps a datastructure called ’EntityContext’ to}

keep info about the entity

I _{transaction, security, EJBObject, Primary key}

I _{Important: the container can have more entities than}

instances of the EJB!

I _{The cantainer can reuse EJB’s from a pool}

I _{The EntityContext interface provides an instance with access}

to the container-provided context

I _{The container passes the EntityContext interface to an}

instance after the instance has been created.

I _{information that the instance obtains using the EntityContext}

interface (e.g result of getPrimaryKey()) may change.

Example container-managed bean

import javax.ejb.EntityBean; import java.ejb.EntityContext; import java.ejb.CreateException;

public class EmployeeBean implements EntityBean {

private transient EntityContext entContext; public int employeeID;

public String employeeName; public String employeeAddress;

public void setEntityContext(EntityContext context) {

entContext = context; }

(8)

DOS-9

Example container-managed bean

public void unsetEntityContext() {

entContext = null; }

public EmployeePrimaryKey ejbCreate(int ID, String name, String address) throws CreateException { employeeID = ID; employeeName = name; employeeAddress = address; return null; }

DOS-9

Example container-managed bean

public void ejbPostCreate(int ID, String name, String address) throws CreateException

{ // This method is called by the container // after the persistence has be loaded }

public int getEmployeeID() {

return this. employeeID; }

public void setEmployeeName(String empName) {

employeeName = empName; }

// etc ... }

DOS-9

Container Callable Methods

I _{setEntityContext(EntityContext context): the entity}

bean must save the state of the EntityContext interface in its instance variable.

I _{unsetEntityContext(): container invokes this method}

before terminating the entity bean instance

I _{ejbCreate(): the signature of each one should map to the}

create() methods in the entity bean Home interface.

I _{ejbPostCreate(): For each ejbCreate() method provide}

matched ejbPostCreate() method. Called after the persistence has been loaded

DOS-9

Sequence diagram Create

Client

EJBHome

Instance

database

EJBObject create new DB entry create()

ejbPostcreate() ejbCreate()

extract CMP fields

DOS-9

Sequence diagrams Remove

Client EJBHome EJBObject Instance database

remove()

ejbRemove()

remove from database

DOS-9

Sequence diagrams Find

(Container Managed Bean)

Client EJBHome Instance database

EJBObject

find<method>

new

(9)

DOS-9

Example client

public class EmployeeTestClient {

private EmployeeHome employeeHome = null; public EmployeeTestClient() {

try {

Context ctx = new InitialContext(); Object ref = ctx.lookup("EmployeeRemote");

employeeHome = (EmployeeHome) PortableRemoteObject.narrow (ref,EmployeeHome.class); EmployeePrimaryKey empNo = EmployeePrimaryKey(12345); EmployeeRemote employee = employeeHome.findByPrimaryKey

(empNo); System.out.println(employee.getEmployeeName()); System.out.println(employee.getEmployeeAddress()); } catch(Exception e) { e.printStackTrace(); } }

DOS-9

EJB version 2 complexities

I _{several interfaces and unnecessary callback methods.} I _{implementation of EJBObject or EJBLocalObject and many}

exceptions.

I _{container-managed persistence is complex.}

I _{not really object-oriented (restrictions on inheritance and}

polymorphism).

I _{cannot test outside an EJB container.} I _{looking up an EJB is complex (JNDI).} I _{deployment descriptor is complex.}

DOS-9

EJB version 3 simplifications

I _{the bean class can be a plain java class (POJO)} I _{the EJB interface may be a pure interface (POJI)} I _{the EJB Home interface is no longer needed}

I _{annotations can be used instead of a dedicated deployment}

descriptor

annotations are metadata that are compiled into the class (can be obtained by the container with introspection)

I _{methods such as ejbPassivate, ejbActivate, ejbLoad, ejbStore}

not necessary to implement for all @Remote

public interface EmployeeFacade {

Employee addEmployee(String name, double salary); Employee findEmployeeByEmpNo(Long empNo);

}

DOS-9

Example EJB3 Entity Bean

@Entity

@Table(name = "EMPLOYEES")

public class Employee implements Serializable {

private int empId; private String Name; private double salary; @Id

@Column(name="EMPNO", primaryKey=true) public int getEmpId()

{

return empId; }

...

Example EJB3 Stateless Session Bean

@Stateless

public class EmployeeFacadeBean implements EmployeeFacade { @PersistenceContext

private EntityManager em;

public Employee addEmployee(String empName, double sal) { Employee emp = new Employee();

emp.setName(empName); emp.setSal(sal); em.persist(emp); return emp; }

public Employee findEmployeeByEmpNo(Long empNo){ return em.find(Employee.class,empNo); }
