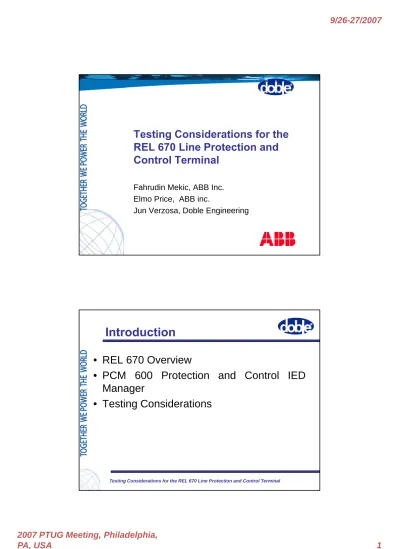

REL670 Testing Considerations

(1)

Testing Considerations for the

REL 670 Line Protection and

Control Terminal

Fahrudin Mekic, ABB Inc.

Elmo Price, ABB inc.

Jun Verzosa, Doble Engineering

Introduction

• REL 670 Overview

• PCM 600 Protection and Control IED

Manager

(2)

REL 670 Overview

79 1/3ph B 79 1/3ph 50BF DFR 25/27 SC/VC B 21 PSB 50/51 51N/67N 52PD 21 (5) 27P 50BF 50BF 25/27 SC/VC Σ 60 LOV 60 LOV 59P

A

_{Basic Protection Functions}

• Two breaker applications

• Single and three pole tripping

Testing Considerations for the REL 670 Line Protection and Control Terminal

59N 86/94 LO/Trip Trip Bus 60 LOV DFR 50 STUB

Hardware

• Common look and feel

• ½, ¾, and full 19” rack widths, 6 RU high

• Built in HMI with graphic LCD and keypad control

• Front Ethernet port for local PC connection

(3)

Hardware –

System Analog Inputs

Full Rack

½ Rack

6I

6V

Transformer input module (TRM)

12 analog current and voltage inputs

6I – 6V

7I – 5V

9I – 3V

12I

(4)

Hardware –

I/O Modules

• IOM

Binary I/O

– 8 inputs, 12 outputs

• BIM

Binary inputs

BIM BOM

IOM

• BIM

Binary inputs

– 16 inputs

• BOM

Binary outputs

– 24 outputs

• SOM

Static High-speed

outputs

– 6 HS, 6 std

MIM SOM

,

• MIM mA analog

– 6 transducer inputs ± 20 mA

Hardware -

Communication

• LDCM -

Line data

communications

– 4

• OEM -

Optical Ethernet

– 2 Tx/Rx (IEC or DNP)

• EIAEIA

485 (Galvanic) DNP

– 485 (Galvanic) DNP

(5)

Operator’s HMI

• IED Status, pickup/trip

LEDs

• Programmable LEDs

• Liquid Crystal Display - LCD

• Keypad

– Menu navigation and Control

– Reset

– Local/Remote

OPEN CLOSE

Local/Remote

• Computer Interface

(CAT-5 crossover cable)

Operator’s HMI –

Status LEDs

LED State

Ready (Green)

Alarm (Amber)

Trip (Red)

Steady

In service

Disturbance

record triggered

Trip

command

issued

Flashing

Internal failure

IED in test mode

IED blocked from

operation

(6)

Operator’s HMI –

Programmable LEDs

• 15 programmable LEDs

– 6 Red

9 Amber

– 9 Amber

– Binary I/O

– Logic

– Remote

• LED Labels

– PDF file template

– Cut out the strip and insert

from top into the label holder

– The template can be found on

documentation CD and on the

homepage

Operator’s HMI –

Keypad

KEY Function

E Enters into (or exits) editing mode or executes a command

C Cancels a command or an action

Help brings up the operator’s Help screen

↑↓ Navigate between objects on the same page or shuffle values or digits (in editing mode) →/← Navigate between screens or between digits (in editing mode)

Menu Cycles the LCD between the Main Menu screen and the Control screens

Close Starts the action of closing primary switchgear or turning an on/off switch to ON.

Must be followed by E

St t th ti f i i it h t i / ff it h t OFF

OPEN Starts the action of opening primary switchgear or turning an on/off switch to OFF.

Must be followed by E

Reset Shows the reset menu for resetting counters and LEDs

L/R Allows the selection of local (L – at the IED) or remote (R – station HMI or SCADA)

(7)

Operator’s HMI –

Computer Interface

• Cable terminated with

T-568A and T-568B

RJ45 connectors

• Use either T-568A or B,

but swap pin

connections on one end

– green and orange

-pins 2 and 6

– green/white and

orange/white - pins 1

d 3

and 3

Crossover Ethernet Cable

Operator’s HMI –

Graphical LCD

• Main Menu

– Simple and intuitive – Has nine sub-menus – The whole menu depth does

t d f l l not exceed four levels

• Configurable Control Screens

– Multiple control screens can be configured

– Primary switchgear control can be used as Default Screen – Single Line Diagram allows

user to view, select and operate the apparatuses in one bay with secure interlocking interlocking – Important dynamic

measurements are shown on screen

– Function control can be shown on separate screens

(8)

Operator’s HMI –

Main Menu

• Control

– Single line diagrams for primary apparatus control

and status indication

– Icon displays for ON/OFF and selector switch (32

positions) control

– Service value display: kV, A, P, Q, MVA, etc.

• Measurements

– Current and voltage analog values input to the

TRM (IED’s secondary transformer inputs)

(

y

p

)

• primary kV and amps

• secondary volts and amps

– Monitoring of application function block monitors

and metering

Operator’s HMI –

Main Menu

• Events

– Lists most recent 96 on/off operations of binary

DFR signals time tagged with date and time to the

nearest millisecond.

• Disturbance Records

– Header information of the most recently recorded

fault records.

– record length

– trigger values

gg

– operated functions

– fault type

(9)

Operator’s HMI –

Main Menu

• Settings

– View and edit settings

g

– Hierarchal sub menus

• Time

• General settings

• Settings group N

• Activate settings group

• Diagnostics

Diagnostics

– List of most recent internal events

– IED status

– Product and installed hardware information

Operator’s HMI –

Main Menu

• Tests

– Provides a number of IED test functions that assists in

functional testing and test troubleshooting

– The Tests menu includes:

• IED test mode

• Binary input values

• Binary output values

• Function test modes (this works with IED test mode)

• Function status

• LED test.

• Reset

– Displays the reset menu for resetting counters and LEDs.

• Language

(10)

PCM 600-

Protection & Control Manager

Hierarchical IED Management Structure

Engineering Tools

Bay

IED

Voltage Level

Substation

PCM 600-

Application Configuration

FUNCTION INSTANCE(SEQ,INT) IN PUTS OU TPUTS LOGIC OR TASKS SETTINGS PLATFORM OBJECTS IEC 61850 LOGICAL NODES

=

Background Operations

(11)

PCM 600-

Application Configuration

Signal Matrix

Parameter Settings

Testing Considerations for the REL 670 Line Protection and Control Terminal Parameter Settings

Communication Management

(12)

PCM 600-

Signal Matrix

SMT is the tool to the define relationship between Virtual

I/O signals and Physical (hardware) I/O, analog or binary).

PCM 600 –

Disturbance Handling

Disturbance Report

FAULT TRIP VALUE RECORDER _LMBRFLO RDRE LOCATOR A1RADR B1RBDR ANALOG SIGNALS BINARY SIGNALS RECORDER DISTURBANCE RECORDER (COMTRADE) EVENT RECORDER 40/rec 150/rec

Different presentations

of disturbance data

INDICATIONS (HMI) SEQ. OF EVENTS LIST 96/rec

96/rec

(13)

PCM 600 –

Disturbance Handling

• Fault Record

Stores approximately 100 6 sec records

– Stores approximately 100, 6 sec. records

– 40 analog signals

– 96 binary signals

• Settings

PCM 600 –

Disturbance Handling

COMTRADE file format allows you

to use your preferred visualization

and analysis tool

(14)

PCM 600 –

Disturbance Handling

Quick Icons:

Upload All from IED Read Selected Records Add to PC Data Base Generate Report Manual Trigger

PCM 600 –

Disturbance Handling

Analog Recordings Zoomed Sequence of Events Zoomed Recordings

Auto-reporting

Binary

(15)

Control Center _{Station HMI}

RTU

I t l

ki

Conventional Substation

Relay

X1

Relay

X2

Relay

X1

Relay

X2

Interlockin

g logic

Hardwired with parallel Copper wires

Conventional

Switchgear

Conventional

CT / VT's

Conventional

Switchgear

Conventional

CT / VT's

Remote control

SMS & PCM600 TCP/IP LAN

Office

Station Level

MicroSCADA Pro

Station Gateway

IEC-61850 –

Station/Process Comm

B

L

l

Station Level

Station or interbay bus (LAN) IEC61850-8-1 Multi Object Protection Multi Bay Control Object Protection Bay Control Control & Protection TCP/IP LAN

Bay Level

Process Level

Process bus (LAN) IEC61850-9-2

(16)

… is ready now!

IEC-61850

y

… products available

… replaces UCA 2.0*

One world

One technology

One standard

IEC 61850

* UCA International Users Group

only supports IEC 61850

IEC 61850 –

Logical Node

SIMG

Sensors

PTOC XSWI XSWI SIMG PTRC CSWI CSWI CSWI SIMG TVTR TCTR

CT

VT

89

89 Protection:

PDIS

Control:

Primary Technology -- Switchgear

Secondary

Technology

--Substation

Automation

XCBR

CT

52

(17)

IEC 61850 –

Logical Node

Analog of circuit

breaker control with

conventional and

IEC-61850

Testing Considerations

Key Settings

• Transformer Inputs

Transformer Inputs

– CT polarity

– CT and VT turns ratio

• Setting Units

– IBase and VBase

I

d

i

h

– Impedance - primary ohms

– Current - % of IBase

(18)

Key Settings -

Transformer Input

1

2

3 2. CT Ratio

600

5 3000 =

=

CTR

3. VT Ratio

4500

11 .

111

000 ,

500 ₌

=

VTR

1. CT Polarity

Protected Zone Object

Y

POINT

Key Settings –

IBase and VBase

• IBase

– Set to primary of CT turns ratio

– E.g. 3000/5 CT,

IBase = 3000 A

• VBase

– Set to primary of VT turns ratio

E g 500 kV/111V VT

VBase = 500 kV

(19)

Key Settings –

Distance Units

• Distance Unit Reach

– Zone-1 to Zone-5

– Set in primary ohms

– Convert to secondary ohms for testing

PRI

RATIO

SEC

Z

CT

Z

=

⋅

PRI

RATIO

SEC

Z

VT

Z

=

Key Settings –

Current / Voltage Units

• Current Unit Setting

Amps

I

⋅

100 – Set in % of IBase

– IBase is primary CT

Amp rating

• Voltage Unit Setting

– Set in % of VBase

IBase

Amps

I

_OP

%

=

OP

⋅

100 Volts

V

⋅

100 Set in % of VBase

– VBase is primary VT

kV rating

VBase

Volts

V

_OP

%

=

OP

⋅

100

(20)

Cross-polarized Mho

Includes effect of source impedance

As measured by test set

Offset Mho

jX

Z

C

R

ArgNegRes

Forward and reverse reach settings

R

- ArgDir

(21)

Ground Quadrilateral

X1

+X

n

Directional Forward and Reverse

Non-directional

Load Encroachment

Quadrilateral Characteristic

Mho Characteristic

(22)

Load Encroachment

Quadrilateral Characteristic

Mho Characteristic

Time Overcurrent (51)

td

C

M

A

t

P

⎟

_⎠

⋅

⎞

⎜

⎝

⎛

=

td

M

tr

t

P

⎟

_⎠

⋅

⎞

⎜

⎝

⎛

−

=

1

Oper ating Tim e , t

C

M

P

⎠

⎝

−

Reset T im e , t

M

⎠

⎝1

(23)

Time Overcurrent (51)

Curve Type ↓

IEEE C37.112

parameters →

A

B

C

p

tr

ANSI Extremely Inverse

28.2 0.1217

1

2.0

29.1 ANSI Very Inverse

19.61

0.491

1

2.0

21.6 ANSI Inverse

0.0086

0.0185

1

0.02

0.46 ANSI Moderately Inverse

0.0515

0.114

1

0.02

4.85 ANSI L

ti

E t

l I

64 07

0 250

1 2 0

30 ANSI Long-time Extremely Inverse

64.07

0.250

1

2.0

30 ANSI Long-time Very Inverse

28.55

0.712

1

2.0

13.4

6 ANSI Long-time Inverse

0.086

0.185

1

0.02

4.6 Test Support –

HMI Data Access

Menu Path Function Measurements ► Analog

primary values►TRM40 ►

Displays all analog voltages and currents in primary values

primary values ►TRM40 ► values Measurements ► Analog

secondary values ► TRM40 ►

Displays all analog voltages and currents in secondary values

Test ► IED test mode ► Places the relay in the test mode by blocking all trip functions and sets the amber Start LED to flashing. This is used in conjunction with menu selection ‘Function test modes’.

Test► Function test modes Allows selection of functions to enable while in the ‘IED Test ► Function test modes

►►►

Allows selection of functions to enable while in the IED test mode’. This is done to test functions individually. You must be sure to enable the function to be tested and all functions that supervise (enable) it. E.g. ZMH1 (zone-1) requires enabling of PHM (phase selection and load encroachment).

(24)

Test Support –

HMI Data Access

Menu Path Function Test ► Binary input values

► Binary input modules ►

Displays the status of the binary input number on the BIM# terminal block

y p BIM# ►

Test ► Binary input values ► SMT binary inputs ► Instance ►

Displays the status of ‘virtual’ inputs defined in the application configuration 52a, 52b, … , etc. Several instances of SMBI function block (SI01, 2, …, N) are used (instance N = SI0N).

Test ► Binary output values ► Binary output modules ► BOM# ►

Displays the status of the binary output number on the BOM# terminal block

Test Support –

HMI Data Access

Menu Path Function

Test ► Binary output Displays the status of ‘virtual’ outputs defined in the values ► SMT binary

outputs ► Instance ►

application configuration Trip, Close, Channel Start, … , etc. Several instances of SMBO function block (SO01, 2, …, N) are used (instance N = SO0N). Test ► Function status

►►►►

Allows navigation to all protection functions and displays all of the functions binary (E.g. pickup and trip) outputs.
