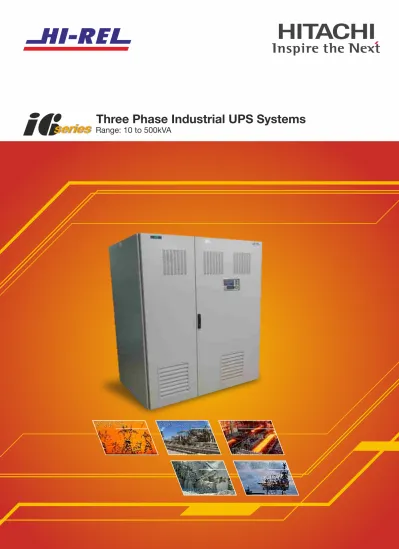

Three Phase Industrial UPS Systems
Range: 10 to 500kVA
STEEL
POWER
CHEMICAL
CEMENT
PIPELINES
PIPELINES
POWER
STEEL
CHEMICAL
CEMENT
series
Three Phase Industrial UPS Systems
Standard Features
Hitachi Hi-Rel Power Electronics Pvt. Ltd. is in the business of Industrial UPS Systems since 1987 and has
rich experience in supplying power back-up and power quality solutions for mission critical applications in refineries, petrochemicals, power generation, steel & metals, process industries as well as for critical data processing applications.
Hitachi Hi-Rel Power Electronics offers high quality power back-up technology and complete customized system solutions for demanding applications..
n High input power factor reduces burden on main supply
n Use of latest power device
n Capable to withstand 100% Unbalance Load n Latest IGBT driver for higher reliability n DSP based control
n High speed CAN bus interface for internal communication
n SVM base PWM generation for lower harmonics n Inverter PWM through optical link to enhance reliability
n High branch fuse clearing capacity n Front and back access oriented layout n Monitor system performance
n Higher level connectivity DCS/PLC through MODBUS protocol
n Monitoring on LAN through SNMP
n Eight programmable potentials free contacts n True power measurement
n Isolated eight inputs for remote & alarms operation
n LCD metering display with true rms measurement
n Comprehensive LED mimic n LCD display + keypad interface
n Date-time stamp event recording - last 999 events logged in non- volatile memory
n Programming & monitoring of various system parameters
n PC based monitoring & reporting unit (optional)
n Automatic battery charging Float/Boost mode selection with current limit
n Battery Monitoring system
n Automatic service call fax generation with alarm log details
Alarms, Indications and Metering
1 2 3 4 5 6 7 8 9 10 Bypass Input Absent Within Range Out of Range Red Green Red Mains Input Absent Within Range Out of Range OFF Green Blinking Green Charger Operation ON OFF Trip Green Red Blinking RedBattery Discharge Red
Battery Operation Boost Charge Float Charge Discharge Red Green OFF Battery MCCB ON OFF Green Blinking Red Inverter Operation ON OFF Trip Green Red Blinking Red
Load on Inverter Inverter SSW ON
Inverter SSW OFF
Green OFF
Load on Bypass Bypass SSW ON
Bypass SSW OFF
Red OFF Synch.
No Synch.
Synchronization Steady Yellow
Blinking Yellow
Parameter Status
Common Alarm Indication Any Alarm Present
LCD Indication LCD No.
11 Blinking Red
Digital Control Panel
Exceptional safeguar
d against power disruption
INPUT DC BATTERY INVERTER ALTERNATE STATIC SWITCH Under Voltage Over Voltage Over Voltage Discharging Under Voltage
End of Battery Discharge Under Voltage
Over Volta ge IGBT Limb Fault Over load
Over l oad Trip (Inverse Time) Over Temperature
Under Voltage Over Voltage
Frequency out of Range Transfer t o Bypass
MAJOR ALARMS - TEXT READOUT - LCD DISPLAY
LCD Display
Serving Entire Gamut of Industries
VOLTAGE METERS
FREQUENCY METERS
METERS - DIGITAL - LCD DISPLAY
Mains Alternate Battery I nverter Load Mains Alternate Output CURRENT METERS POWER METERS Mains Battery Inverter Load Load kVA Load kW L
oad Power Factor
U
PS kVA
UPS kW U
PS Power Factor
Metering with t rue RMS measurement
and others...
Power Oil & Gas Steel & Metal Cement ChemicalPharmaceutical Plastic Pulp & Paper Packaging Textile
We have rich experience in supplying power electronics products & complete customized solutions for mission critical applications in refineries, petro-chemicals, power generation, steel & metal and process industries as well as critical data processing applications.back-up technology and complete customized system solutions for demanding applications..
Technical Specifications
Ambient Temperature Altitude
Humidity Atmosphere
Audible Noise @ 1metre from Panel Front
OPERATING CONDITIONS
0 0
45 C (50 C Optional) 1000 Meter From MSL 90% Non Condensing
Non Corosive, Dust Free, Freely Ventilated 55 dBA to 70 dBA (depending on system rating system Configuration)
ENCLOSURES
Construction Protection Class Finish (Powder Coated) Ventilation
Cable Entry
CRCA Steel Sheet IP 21 (IP31 / IP41 Optional) RAL 7032 (Other Colours Optional)
Forced Air (Internal Fans) Bottom
415 V +15% -25% Three phase Three wire 50 Hz ± 10%
0.92 @ Full Load
305 to 425 Vdc
2% RMS
380-400-415 Vac, Three Phase + Neutral 0.80 3:1 50 Hz ± 1% to 6 % Field Programmable 0.1 1 Hz/Sec <3% <5% ± 1% ± 5% < 20 msec 600 Seconds 60 Seconds
30% Rated (Semiconductor type Fuse)
DC BUS
OUTPUT MAINS INPUT
Voltage Frequency
Input Power Factor
Voltage
Maximum DC Bus Ripple Without Battery
Nominal Voltage
Load Power Factor Rated Load Crest Factor
Frequency
Bypass Synchronization Window
Internal Oscillator Slew Rate
Total Harmonic Distortion Linear Load Nonlinear Load (CF 3:1) Voltage Regulation Steady State 100% Step Load Recovery Time to 98% 25% 50% Over Load
Branch Fuse Clearing Ability
State-of-the-art IGBT driver for higher r
Note:
Dimensions for i6 10 kVA to 80 kVA UPS systems are without I/P x'mer. Dimensions for i6 100 kVA to 400 kVA UPS systems are with I/P x'mer. Dimensions and Weight are approx.
Rating (kVA) Height (mm) Width (mm) Depth (mm) Weight (Kg) 10 20 30 40 50 60 80 100 120/125 150 200 250 300 1500+100 800 800 1000 1000 1000 1000 1200 2400 2400 2400 2400 2400 4300 860 860 1000 1000 1000 1000 1000 1000 1000 1000 1000 450 500 800 900 1100 1200 1300 1400 1600 2000 2400 2700 3000 400
Dimensions
Options
n Also, Available IGBT Based Active
n Front End Rectifier
— Input Power Factor Near Unity — <5 % Input THDi
— Available in PR, CR, N+1 & Split Redundant configuration
n Input Isolation Transformer n 12 Pulse Rectifier
n Harmonic TRAP LC / Active Filter n Bypass Line Regulator
n AC Distribution Panel
n PC Based Monitoring and Recording Unit
n RS-485 Communication Port
n Monitoring & LAN through SNMP and Profibus
n Fan Redundancy
n Battery Monitoring System n Remote Annunciation n Automatic Shutdown Kit
n DCS connectivity through Modbus
n Individual Battery Health Monitoring systems (BHMS)
0
n 50 C Ambient
Note:
Overall dimensions, weight, audible noise, heat generation, module height etc. depend upon the system configuration and options required.
2100+100 1700+100 1000 1000 500 1500+100 1800+100 1800+100 1800+100 1800+100 2100+100 2100+100 2100+100 2100+100 2100+100 Dimensions on Request.
