Liebert DSE. System Design Manual Downflow, kW, Tons; Upflow, 80-85kW, Tons; 50/60Hz

60

Loading....

Loading....

Loading....

Loading....

Loading....

Full text

(1)

Liebert

DSE

(2)
(3)

1.0

L

IEBERT

DSE C

OMPONENTSAND

N

OMENCLATURE

. . . .1

1.1

Model Number Nomenclature - 25 Digit Configuration Number . . . 3

2.0

A

IR

-C

OOLED

P

ERFORMANCE

D

ATA

. . . .4

3.0

D

IMENSIONSAND

E

QUIPMENT

L

AYOUT

. . . .12

3.1

Floor Stand Dimensions. . . 15

4.0

P

IPING

S

CHEMATICS

. . . .17

5.0

C

ONDENSERS

—D

IMENSIONS

. . . .23

6.0

P

LENUM

D

IMENSIONS

. . . .29

6.1

Outdoor Equipment Dimensions . . . 30

7.0

D

ISASSEMBLY

. . . .33

8.0

E

LECTRICAL

C

ONNECTIONS

. . . .36

8.1

Standard Electrical Connections—Liebert MC . . . 37

8.2

Notes on Electrical Connections—Liebert MC . . . 38

8.2.1 Wye- vs. Delta-Connected Power Supply . . . 38

8.3

Standard Electrical Field Connections, DA080 and DA085 Upflow and Downflow. . . 42

8.4

CANbus Electrical Connections, DA080 and DA085 Upflow and Downflow . . . 42

8.5

Optional Electrical Field Connections, DA080 and DA085 Upflow and Downflow . . . 43

8.6

Optional Low-Voltage Terminal Package Field Connections, DA080 and DA085 Upflow

and Downflow . . . 43

8.7

Liebert DSE Electrical Field Connection Descriptions, DA125, DA150 and DA165

Downflow Models Standard Electrical Connections. . . 46

8.8

Optional Electrical Connections, DA125, DA150 and DA165 Downflow Models . . . 46

8.9

Optional Low-Voltage Terminal Package Connections, DA125, DA150 and DA165

Downflow Models . . . 47

9.0

G

UIDE

S

PECIFICATIONS

. . . .49

1.0

G

ENERAL

. . . .49

2.0

P

RODUCT

. . . .49

(4)
(5)

1.0

L

IEBERT

DSE C

OMPONENTS

AND

N

OMENCLATURE

Figure 1 Downflow model component locations

1 2 3 4 5 6 10 8 7 11 9 4 1. Liebert iCOM

2. THD Assembly (575V units only) 3. Evaporator Coil

4. Smoke Sensor (optional) 5. Fan Modules (internal position) 6. Infrared Humidifier (optional)

7. Condensate Pump (optional) 8. Compressor Section 9. Disconnect (optional) 10. Filter Plenum 11. Electric Box

DPN003452

Rev. 0

(6)

Liebert DSE Components and Nomenclature Figure 2 Upflow model component locations

3

1

2

4

5

DPN003451

Rev. 0

6

7

8

9

10

11

8

Typical

1. EC Fans

2. Plenum (Front Discharge Shown) 3. Liebert iCOM

4. Evaporator Coil

5. Smoke Sensor (optional) 6. Infrared Humidifier (optional) 7. Condensate Pump (optional) 8. Filters (not shown for clarity) 9. Electric Box

10. Disconnect (optional) 11. Compressor Section

(7)

1.1

Model Number Nomenclature - 25 Digit Configuration Number

Model #** Part 1/2 Model Details Model # Part 2 *

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

D A 1 2 5 D A 1 A T H A 0 8 1 1 D 0 0 S P 1 2 3 S

Digits 1-2 - Product Family Digit 17 - High-Voltage Options

DA = Liebert DSE 0 = No disconnect

Digits 3-5 - Cooling Capacity, kW D = Non-Locking Disconnect

Nominal Sensible Capacity, kW L = Locking Disconnect

Digit 6 - Air Discharge 3 = No Disconnect, With Condensate Pump

D = Downflow 4 = Non-Locking Disconnect, With Condensate Pump

U = Upflow 5 = Locking Disconnect, With Condensate Pump

Digit 7 - System Type Digit 18 - Option Packages

A = Air-Cooled 0 = None

P = Air-Cooled, Econ-O-Phase Ready L = Option Package #1 - Low Voltage Terminal Package

Digit 8 - Airflow (Fan Type) H = Reheat and Humidifier Lockout

1 = EC Plug Fans R = Remote Humidity Contact

Digit 9 - Power Supply C = Option Package #1, Plus Reheat/Humidifier Lockout

A = 460V / 3ph / 60Hz D = Option Package #1, Plus Remote Humidifier Contact

B = 575V / 3ph / 60Hz E = Option Package #1, Plus Reheat/Humidifier Lockout, plus remote contact

C = 208V / 3ph / 60Hz

D = 230 / 3ph / 60Hz F = Remote Humidity Contact Plus Reheat/Humidifier Lockout 2 = 380-415 / 3ph / 60Hz Digit 19 - Monitoring Cards

M = 400 / 3ph / 50Hz

Digit 10 - Cooling System 0 = No Cards

D = Digital Scroll, R-410A U = One Liebert IS-Unity-DP™ Card T = Tandem with Digital, R-410A C = One Liebert SiteLink-E™ Card

Digit 11 - Humidification 6 = One Liebert IS-Unity-DP Card and One Liebert SiteLink-E Card

0 = None 7 = Two Liebert IS-Unity-DP Cards

H = Infrared Humidifier Digit 20 - Sensors

Digit 12 - Display 0 = None

H = Liebert iCOM Control S = Smoke Sensor

Digit 13 - Reheat H = High-Temperature Sensor

0 = None F = Smoke and High-Temperature Sensors

1 = Electric Reheat, 30kW C = Compressor Overload Sensors

Digit 14 - Air Filter A = Compressor, High-Temperature Sensor

8 = MERV 8, 4" D = Compressor, Smoke Sensor

9 = MERV 11, 4" K = Compressor, High-Temperature, Smoke Sensors

A = MERV 13, 4" Digit 21 - Packaging

6 = MERV 11, 2" plus MERV 8 prefilter, 2" P = Domestic

C = MERV 13, 2" plus MERV 8 prefilter, 2" Digit 22 - 24 Configuration Code

Digit 15 - Coil Options

1 = Non-Coated Coil, Indoor Unit Digit 25 - Configuration Code

2 = Coated Coil, Indoor Unit A = 1

Digit 16 - Enclosure Options S = SFA

1 = Color standard 2 = Color Optional

6 = Color Standard W/Double-Skin Panels 9 = Color Optional W/Double-Skin Panels

(8)

Air-Cooled Performance Data

2.0

A

IR

-C

OOLED

P

ERFORMANCE

D

ATA

Table 1 Capacity data with and EC fans, 60Hz

Model Size 80 85 125 150 165

Net Capacity Data kW (kBTUH)

95°F DB, 67.7°F WB, 52.3°F DP (35°C DB, 19.8.°C WB) 24% RH

Total, kW (BTUH) 88 (300) 100 (341) 146 (499) 170 (581) 181 (53) Sensible, kW (BTUH) 84 (287) 94 (321) 146 (499) 170 (581) 181 (53) Net Full-Load SCOP (kW/kW) @ 95 Outdoor Ambient

(Compressor Mode) 3.2 3.1 3.8 3.2 3.2

Net Full-Load SCOP (kW/kW) @ 35 Outdoor Ambient

(Pump Mode) 10.5 10.1 17.5 13.0 13.04

90°F DB, 66.1°F WB, 52.3°F DP (32.2°C DB, 18.9°C WB) 28% RH

Total, kW (BTUH) 86 (294) 98 (334) 138 (471) 162 (552) 172 (50) Sensible, kW (BTUH) 80 (273) 88 (300) 138 (471) 162 (552) 172 (50) Net Full-Load SCOP (kW/kW) @ 95 Outdoor Ambient

(Compressor Mode) 3.1 3.0 3.6 3.1 3.0

Net Full-Load SCOP (kW/kW) @ 35 Outdoor Ambient

(Pump Mode) 9.8 9.4 14.1 12.5 12.54

85°F DB, 64.5°F WB, 52.3°FDP (29.4°C DB, 18.1°C WB) 32% RH

Total, kW (BTUH) 85 (290) 92 (314) 130 (444) 153 (522) 163 (48) Sensible, kW (BTUH) 77 (263) 83 (283) 130 (444) 153 (522) 162 (48) Net Full-Load SCOP (kW/kW) @ 95 Outdoor Ambient

(Compressor Mode) 3.0 2.7 3.4 2.9 2.9

Net Full-Load SCOP (kW/kW) @ 35 Outdoor Ambient

(Pump Mode) 9.1 8.7 12.2 12.0 12.04

80°F DB, 62.8°F WB, 52.3°F DP (26.7°C DB, 17.1°C WB) 38% RH

Total, kW (BTUH) 83 (283) 89 (304) 123 (420) 145 (494) 154 (45) Sensible, kW (BTUH) 72 (246) 78 (266) 123 (420) 145 (494) 154 (45) Net Full-Load SCOP (kW/kW) @ 95°F Outdoor Ambient

(Compressor Mode) 2.8 2.6 3.3 2.7 2.7

Net Full-Load SCOP (kW/kW) @ 35°F Outdoor Ambient

(Pump Mode) 8.2 7.9 11.5 11.1 11.14

75°F DB, 61.1°F WB, 52.3°F DP (23.9°C DB, 16.2°C WB) 45% RH

Total, kW (BTUH) 75 (256) 86 (294) 116 (396) 134 (457) 147 (43) Sensible, kW (BTUH) 67 (229) 73 (249) 112 (382) 134 (457) 147 (43) Net Full-Load SCOP (kW/kW) @ 95°F Outdoor Ambient

(Compressor Mode) 2.6 2.4 3.0 2.4 2.5

Net Full-Load SCOP (kW/kW) @ 35°F Outdoor Ambient

(Pump Mode) 7.5 7.2 10.7 10.2 10.24

FAN SECTION - Downflow models

Standard Air Volume - CFM (CMH) 0.2" external static (16,310)9,600 (17,670)10,400 (30,582)18,000 (30,582)18,0003 20,000(33980)3

Operating Fan kW, Total for All Fans 4.6 5.7 5.9 5.9 8.0

Quantity of Fans 2 2 3 3 3

(9)

Table 2 Capacity data with and EC fans, 50Hz

Model Size 80 85 125 150

Net Capacity Data, kW (kBTUH)

95°F DB, 67.7°F WB, 52.3°F DP (35°C DB, 19.8.°C WB) 24% RH

Total kW (BTUH) 87 (297) 92 (314) 154 (526) 171 (584) Sensible kW (BTUH) 83 (283) 86 (294) 154 (526) 171 (584)

Net Full-load SCOP (kW/kW) @ 95 Outdoor Ambient (Compressor Mode) 3.4 3.2 3.3 3.3

Net Full-load SCOP (kW/kW) @ 35 Outdoor Ambient (Pump Mode) 10.5 10.1 17.5 13.0

90°F DB, 66.1°F WB, 52.3°F DP (32.2°C DB, 18.9°C WB) 28% RH

Total kW (BTUH) 84 (287) 90 (307) 145 (495) 161 (549) Sensible kW (BTUH) 78 (266) 81 (276) 145 (495) 161 (549)

Net Full-load SCOP (kW/kW) @ 95 Outdoor Ambient (Compressor Mode) 3.2 3.0 3.2 3.2

Net Full-load SCOP (kW/kW) @ 35 Outdoor Ambient (Pump Mode) 9.8 9.4 14.1 12.5

85°F DB, 64.5°F WB, 52.3°FDP (29.4°C DB, 18.1°C WB) 32% RH

Total kW (BTUH) 81 (276) 85 (290) 137 (468) 152 (519) Sensible kW (BTUH) 73 (249) 76 (259) 137 (468) 152 (519)

Net Full-load SCOP (kW/kW) @ 95 Outdoor Ambient (Compressor Mode) 3.0 2.9 3.0 3.0

Net Full-load SCOP (kW/kW) @ 35 Outdoor Ambient (Pump Mode) 9.1 8.7 12.2 12.0

80°F DB, 62.8°F WB, 52.3°F DP (26.7°C DB, 17.1°C WB) 38% RH

Total kW (BTUH) 78 (266) 82 (280) 129 (440) 142 (485) Sensible kW (BTUH) 69 (235) 72 (246) 129 (440) 142 (485)

Net Full-load SCOP (kW/kW) @ 95 Outdoor Ambient (Compressor Mode) 2.9 2.7 2.9 2.8

Net Full-load SCOP (kW/kW) @ 35 Outdoor Ambient (Pump Mode) 8.2 7.9 11.5 11.1

75°F DB, 61.1°F WB, 52.3°F DP (23.9°C DB, 16.2°C WB) 45% RH

Total kW (BTUH) 72 (246) 78 (266) 125 (427) 135 (461) Sensible kW (BTUH) 64 (218) 67 (229) 121 (413) 130 (444)

Net Full-load SCOP (kW/kW) @ 95 Outdoor Ambient (Compressor Mode) 2.7 2.6 2.7 2.6

Net Full-load SCOP (kW/kW) @ 35 Outdoor Ambient (Pump Mode) 7.5 7.2 10.7 10.2

FAN SECTION - Downflow models - Fixed Pitch, Two Belts

Standard Air Volume - CFM (CMH) 0.2" external static (16,310)9,600 (17,670)10,400 (30,582)18,000 18,000(30,582)3

Operating Fan kW, total for all fans 4.4 5.5 7.3 7

Number of Fans 2 2 3 3

1. Capacity data is rated and factory certified per ASHRAE 127-2007 with a 5% tolerance

2. Some options or combinations of options may result in reduced air flow; consult factory for recommendations. 3. Option for 24,000 CFM fans on DA150 and DA165 is available for DA150 and DA165. consult factory for more details.

(10)

Air-Cooled Performance Data Table 3 Physical data—Air-cooled units, 60Hz models

Model Size 80 85 125 150 165

EVAPORATOR COIL- A-Frame - Copper Tube/Aluminum Fin

Face Area, sq. ft. (sq. m) 24.65 (2.3) 24.65 (2.3) 56.2 (5.2) 56.2 (5.2) 56.2 (5.2)

Rows of Coil 6 6 6 6 6

Face Velocity, FPM (m/s), Std. Air Volume 389.5 (2.0) 421.9 (2.2) 320.3 (1.6) 320.3 (1.6) (1.8)354

REHEAT SECTION

Electric - Three (3) Stage, Stainless Steel Fin Tubular, capacity does not include fan motor heat

Capacity,- kW (KBTUH) - Std. Selection 15 (51.20) 15 (51.20) 30 (102.4) 30.0 (102.4) 30.0 (102.4) Capacity, kW (KBTUH) - Opt. Selection 10 (34.13) 10 (34.13) 10.0 (34.1) 10.0 (34.1) 10.0 (34.1)

HUMIDIFIER SECTION Infrared Humidifier

Capacity, lb./hr. (kg/h) 22 (10) 22 (10) 22 (10) 22 (10) 22 (10.0)

FILTER SECTION - Disposable Type - Nominal Sizes and Quantities

Nominal Size, inches 25 x 20 25 x 20 21.5 x 24 21.5 x 24 21.5 x 24

Quantity 4 4 10 10 10

Line Sizes*

Liquid Line, O.D. Copper (2/unit), up to 300 eq. ft 7/8" 7/8" 7/8" 1-1/8" 1-1/8" Hot Gas Line, O.D. Copper (2/unit), up to 300 eq. ft. 1-1/8" 1-1/8" 1-3/8" 1-3/8" 1-3/8" Infrared Humidifier,O.D. Copper 1/4" 1/4" 1/4" 1/4" 1/4"

Condensate Drain, FPT 3/4" 3/4" 1-1/8" 1-1/8" 1-1/8" Condensate Drain w/opt Condensate Pump, OD 1/2" 1/2" 1/2" 1/2" 1/2"

* For installations using pre-fabricated heat rejection skids, included piping must be factored into total equivalent length calculation. Consult factory for details.

Table 4 Physical data—Air-cooled units, 50Hz models

Model Size 80 85 125 150

EVAPORATOR COIL- A-Frame - Copper Tube/Aluminum Fin

Face Area - sq. ft. (sq. m) 24.65 (2.3) 24.65 (2.3) 56.2 (5.2) 56.2 (5.2)

Rows of Coil 6 6 6 6

Face Velocity - FPM (m/s) - Std. Air Vol. 389.5 (2.0) 421.9 (2.2) 320.3 (1.6) 320.3 (1.6)

REHEAT SECTION

Electric—Three-Stage, Stainless Steel Fin Tubular; capacity does not include fan motor heat

Capacity - kW (KBTUH) - Std Selection 15 (51.20) 15 (51.20) 30.0 (102.4) 30.0 (102.4) Capacity - kW (KBTUH) - Opt Selection 10 (34.13) 10 (34.13) 10.0 (34.1) 10.0 (34.1)

HUMIDIFIER SECTION Infrared Humidifier

Capacity, lb./hr. (kg/h) 22.0 (10.0) 22.0 (10.0) 22.0 (10.0) 22.0 (10.0)

FILTER SECTION - Disposable Type - Nominal Sizes and Quantities

Nominal Size, inches 25 x 20 25 x 20 21.5 x 24 21.5 x 24

Quantity 4 4 10 10

Line Sizes

Liquid Line - O.D. Copper (2/unit), up to 300 eq. ft 7/8" 7/8" 7/8" 1-1/8" Hot Gas Line - O.D. Copper (2/unit), up to 300 eq. ft. 1-1/8" 1-1/8" 1-3/8" 1-3/8"

(11)

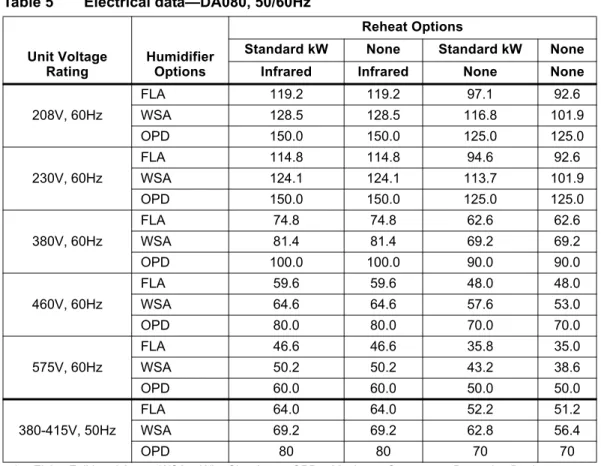

Table 5 Electrical data—DA080, 50/60Hz

Unit Voltage

Rating HumidifierOptions

Reheat Options

Standard kW None Standard kW None

Infrared Infrared None None

208V, 60Hz FLA 119.2 119.2 97.1 92.6 WSA 128.5 128.5 116.8 101.9 OPD 150.0 150.0 125.0 125.0 230V, 60Hz FLA 114.8 114.8 94.6 92.6 WSA 124.1 124.1 113.7 101.9 OPD 150.0 150.0 125.0 125.0 380V, 60Hz FLA 74.8 74.8 62.6 62.6 WSA 81.4 81.4 69.2 69.2 OPD 100.0 100.0 90.0 90.0 460V, 60Hz FLA 59.6 59.6 48.0 48.0 WSA 64.6 64.6 57.6 53.0 OPD 80.0 80.0 70.0 70.0 575V, 60Hz FLA 46.6 46.6 35.8 35.0 WSA 50.2 50.2 43.2 38.6 OPD 60.0 60.0 50.0 50.0 380-415V, 50Hz FLA 64.0 64.0 52.2 51.2 WSA 69.2 69.2 62.8 56.4 OPD 80 80 70 70

1. FLA = Full Load Amps; WSA = Wire Size Amps; OPD = Maximum Overcurrent Protection Device. 2. Full-load amperage values do not reflect operating amperage values.

Table 6 Electrical data—DA085, 50/60Hz

Unit Voltage

Rating HumidifierOptions

Reheat Options

Standard kW None Standard kW None

Infrared Infrared None None

208V, 60Hz FLA 152.2 152.2 125.6 125.6 WSA 165.6 165.6 139.0 139.0 OPD 200.0 200.0 175.0 175.0 230V, 60Hz FLA 147.8 147.8 125.6 125.6 WSA 161.2 161.2 139.0 139.0 OPD 200.0 200.0 175.0 175.0 380V, 60Hz FLA 74.8 74.8 62.6 62.6 WSA 81.4 81.4 69.2 69.2 OPD 100.0 100.0 90.0 90.0 460V, 60Hz FLA 61.0 61.0 49.4 49.4 WSA 66.2 66.2 58.5 54.6 OPD 80.0 80.0 70.0 70.0 575V, 60Hz FLA 50.8 50.8 39.2 39.2 WSA 54.9 54.9 45.8 43.3 OPD 70.0 70.0 50.0 50.0 FLA 71.2 71.2 58.4 58.4

(12)

Air-Cooled Performance Data Table 7 Electrical data—DA125, 50/60Hz

Unit Voltage

Rating HumidifierOptions

Reheat Options

Standard kW None Standard kW None

Infrared Infrared None None

208V, 60Hz FLA 174.6 174.6 165.7 148.0 WSA 193.2 182.3 193.2 155.7 OPD 200.0 200 200.0 175.0 230V, 60Hz FLA 170.2 170.2 165.2 148.0 WSA 192.5 177.9 192.5 155.7 OPD 200.0 200 200.0 175.0 380V, 60Hz1 FLA 93.6* 93.6* 88.1* 81.4* WSA 102.7* 97.9* 102.7* 85.7* OPD 110* 110* 100* 100* 460V, 60Hz FLA 79.9 79.9 78.8 68.3 WSA 92.2 83.5 92.2 71.9 OPD 100.0 90.0 100.0 80.0 575V, 60Hz FLA 63.4 63.4 60.5 51.8 WSA 70.7 66.1 70.7 54.5 OPD 80.0 70.0 80.0 60.0 380-415V, 50Hz FLA 105.4 105. 95.9 92.6 WSA 111.7 110.4 111.7 97.6 OPD 125 125 110 110

1. 380V version of DA125 is not CSA- listed.

2. FLA = Full Load Amps; WSA = Wire Size Amps; OPD = Maximum Overcurrent Protection Device. 3. Full-load amperage values do not reflect operating amperage values.

Table 8 Electrical data—DA150, 50-60Hz

Unit Voltage

Rating HumidifierOptions

Reheat Options

Standard kW None Standard kW None

Infrared Infrared None None

380V, 60Hz FLA 130.4 130.4 118.2 118.2 WSA 137 137 128.1 124.8 OPD 150 150 150 150 460V, 60Hz FLA 102.7 102.7 93.7 91.1 WSA 107.7 107.7 104.3 96.1 OPD 125 125 110 110 575V, 60Hz FLA 77.8 77.8 69.3 66.2 WSA 81.4 81.4 77.2 69.8 OPD 90 90 80 80 380-415V 50Hz FLA 108.2 108.2 99.7 95.4 WSA 113.4 113.4 111.1 100.6 OPD 125 125 125 110

1. FLA = Full Load Amps; WSA = Wire Size Amps; OPD = Maximum Overcurrent Protection Device. 2. Full-load amperage values do not reflect operating amperage values.

(13)

Table 9 Electrical data—DA165, 60Hz

Unit Voltage

Rating HumidifierOptions

Reheat Options

Standard kW None Standard kW None

Infrared Infrared None None

380V, 60Hz FLA 130.4 130.4 118.2 118.2 WSA 137 137 128.1 124.8 OPD 150 150 150 150 460V, 60Hz FLA 105.5 105.5 95.8 93.9 WSA 110.7 110.7 106.6 99.1 OPD 125 125 110 110 575V, 60Hz FLA 86.2 86.2 75.6 74.6 WSA 90.3 90.3 84 78.7 OPD 100 100 90 90

1. FLA = Full Load Amps; WSA = Wire Size Amps; OPD = Maximum Overcurrent Protection Device. 2. Full-load amperage values do not reflect operating amperage values.

Table 10 Electrical data—Liebert MC™ three- and four-fan, three-phase condensers

Model MCL110 MCM160 MCL165 MCL220

Input

Voltage FLA WSA OPD FLA WSA OPD FLA WSA OPD FLA WSA OPD

208/230 11.4 12.8 15 9.2 9.8 15 17.1 18.5 20 22.8 24.2 25

460 5.6 6.3 15 5.6 6.0 15 8.4 9.1 15 11.2 11.9 15

1. FLA = Full Load Amps; WSA = Wire Size Amps; OPD = Maximum Overcurrent Protection Device. 2. Must be connected to wye 3-phase systems with solidly grounded neutral.

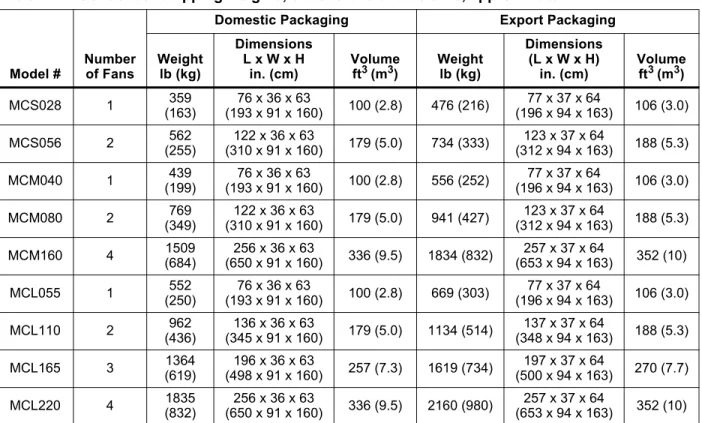

Table 11 Condenser shipping weights, dimensions and volume, approximate

Model # Numberof Fans

Domestic Packaging Export Packaging

Weight lb (kg)

Dimensions L x W x H

in. (cm) Volumeft3 (m3) Weightlb (kg)

Dimensions (L x W x H) in. (cm) Volumeft3 (m3) MCS028 1 (163)359 (193 x 91 x 160)76 x 36 x 63 100 (2.8) 476 (216) (196 x 94 x 163)77 x 37 x 64 106 (3.0) MCS056 2 (255)562 (310 x 91 x 160)122 x 36 x 63 179 (5.0) 734 (333) (312 x 94 x 163)123 x 37 x 64 188 (5.3) MCM040 1 (199)439 (193 x 91 x 160)76 x 36 x 63 100 (2.8) 556 (252) (196 x 94 x 163)77 x 37 x 64 106 (3.0) MCM080 2 (349)769 (310 x 91 x 160)122 x 36 x 63 179 (5.0) 941 (427) (312 x 94 x 163)123 x 37 x 64 188 (5.3) MCM160 4 1509(684) (650 x 91 x 160)256 x 36 x 63 336 (9.5) 1834 (832) (653 x 94 x 163)257 x 37 x 64 352 (10) MCL055 1 (250)552 (193 x 91 x 160)76 x 36 x 63 100 (2.8) 669 (303) (196 x 94 x 163)77 x 37 x 64 106 (3.0) MCL110 2 (436)962 (345 x 91 x 160)136 x 36 x 63 179 (5.0) 1134 (514) (348 x 94 x 163)137 x 37 x 64 188 (5.3) MCL165 3 1364(619) (498 x 91 x 160)196 x 36 x 63 257 (7.3) 1619 (734) (500 x 94 x 163)197 x 37 x 64 270 (7.7) MCL220 4 1835 256 x 36 x 63 336 (9.5) 2160 (980) 257 x 37 x 64 352 (10)

(14)

Air-Cooled Performance Data Table 12 Liebert MCM condenser and option net weights

Condenser Model MCM160 Refrigeration Circuits 2 Condenser Dry Weight, lb (kg) 18" Leg 860 (390) 36" Leg 1066 (484) 48" Leg 1114 (505) 60" Leg 1160 (526)

Additional Weight for Options, lb (kg)

Liebert DSE Receiver DA080/085 88 (40)

Liebert DSE Receiver DA125/150/165 184 (83)

Coated Coil 20 (9)

1. Total weight is the sum of condenser weight + receiver weight ( Liebert DSE receiver) + coated coil weight. 2. Source: DPN003034, Rev. 0

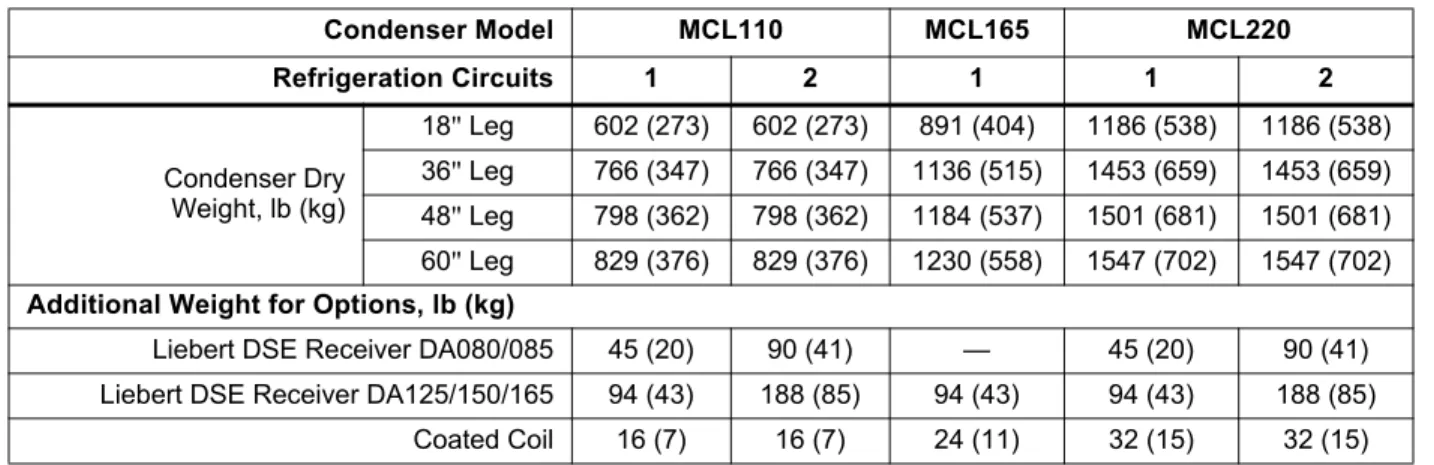

Table 13 Liebert MCL condenser and option net weights

Condenser Model MCL110 MCL165 MCL220 Refrigeration Circuits 1 2 1 1 2 Condenser Dry Weight, lb (kg) 18" Leg 602 (273) 602 (273) 891 (404) 1186 (538) 1186 (538) 36" Leg 766 (347) 766 (347) 1136 (515) 1453 (659) 1453 (659) 48" Leg 798 (362) 798 (362) 1184 (537) 1501 (681) 1501 (681) 60" Leg 829 (376) 829 (376) 1230 (558) 1547 (702) 1547 (702)

Additional Weight for Options, lb (kg)

Liebert DSE Receiver DA080/085 45 (20) 90 (41) — 45 (20) 90 (41)

Liebert DSE Receiver DA125/150/165 94 (43) 188 (85) 94 (43) 94 (43) 188 (85)

Coated Coil 16 (7) 16 (7) 24 (11) 32 (15) 32 (15)

1. Total weight is the sum of condenser weight + receiver weight (Liebert DSE receiver) + coated coil weight. 2. Source: DPN003034, Rev. 0

(15)

3.0

D

IMENSIONS

AND

E

QUIPMENT

L

AYOUT

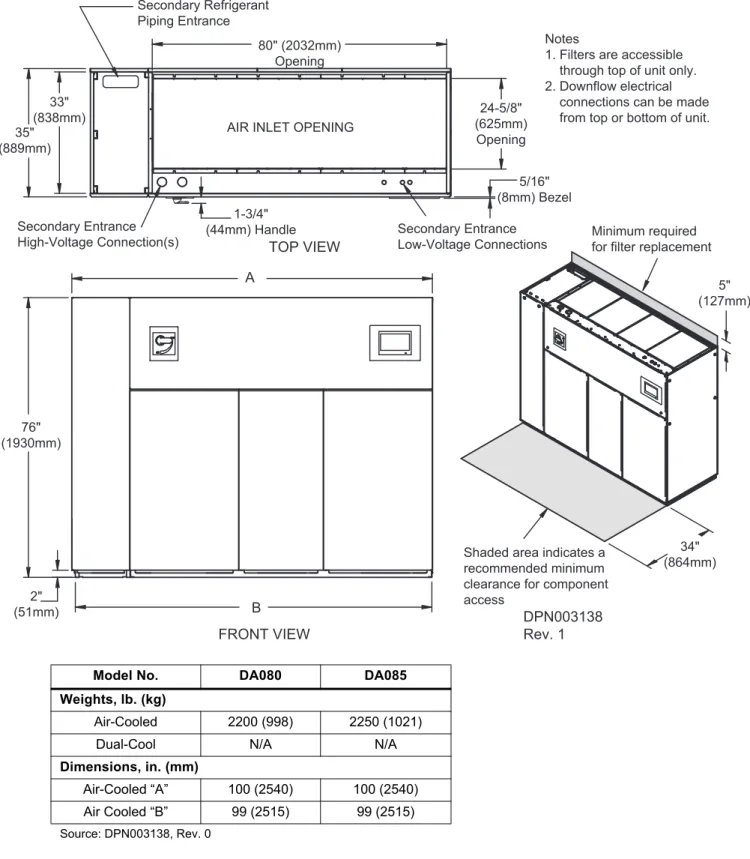

Figure 3 Cabinet and floor planning dimensions—Downflow, air-cooled, DA080, DA085, scroll and digital scroll compressor models

Model No. DA080 DA085

Weights, lb. (kg)

Air-Cooled 2200 (998) 2250 (1021)

Dual-Cool N/A N/A

Dimensions, in. (mm) Air-Cooled “A” 100 (2540) 100 (2540) Air Cooled “B” 99 (2515) 99 (2515) Source: DPN003138, Rev. 0 B A Notes

1. Filters are accessible through top of unit only. 2. Downflow electrical connections can be made from top or bottom of unit.

TOP VIEW AIR INLET OPENING

Shaded area indicates a recommended minimum clearance for component access Secondary Entrance High-Voltage Connection(s) Secondary Refrigerant Piping Entrance Secondary Entrance Low-Voltage Connections Minimum required for filter replacement 5/16" (8mm) Bezel 1-3/4" (44mm) Handle 5" (127mm) 24-5/8" (625mm) Opening 34" (864mm) 80" (2032mm) Opening 76" (1930mm) 2" (51mm) 33" (838mm) 35" (889mm) FRONT VIEW DPN003138 Rev. 1

(16)

Dimensions and Equipment Layout Figure 4 Cabinet and floor planning dimensions—Upflow, air-cooled, DA080U, DA085U, scroll and digital

scroll compressor models

APPROXIMATE DRY WEIGHT, lb (kg) DA080U - DA085U: 2150 (977)

DPN002950 Rev. 0

Alternate Refrigerant Piping Entrance

Shaded area indicates a recommended minimum clearance for

component access

Minimum required for blower replacement

Front air return unit shown. For rear return unit, in addition to front service area shown, also include 25" (635mm) on one side of unit for access to rear return filter box. See DPN001196.

FRONT VIEW TOP VIEW 76" (1929mm) 2" (50mm) 3-1/4" (81mm) 100" (2539mm) 99" (2517mm) High-Voltage Connection(s) Low-Voltage Connection(s) 3/4" (19mm) Bezels 35" (883mm) 33" (838mm) 24" (610mm) 34" (864mm)

(17)

Figure 5 Cabinet and floor planning dimensions—Downflow, air-cooled, DA125, DA150 and DA165, tandem scroll compressor models

Dry Weights, Approximate DA125: 3465 lb. (1572kg) DA150/165: 3574 lb. (1621kg) 18" (457mm) Secondary Refrigerant Piping Entrance TOP VIEW FRONT VIEW DPN003175 Rev. 1

Shaded area indicates the required minimum clearance below the unit to lower the fans into the floor.Fans also remain in their shipped position if desired. Striated area indicates

the recommended minmum clearance for component access.

Filter Plenum (shipped separately)

Filters are removed though the front of the plenum.

45" (1143mm) 45" (1143mm) 42" (1067mm) Opening 76" (1930mm) Base Unit 144" (3658mm) 142" (3607mm) 94" (2388mm) Total Height 47" 1194mm) 47" 1194mm) 1-3/4" (44mm) Handle 1" (25mm) Typical 5/16" (8mm) Bezel 24" (610mm) 45" (1143mm) Plenum 48" (1219mm) 117-11/16" (2989mm) Opening

(18)

Dimensions and Equipment Layout

3.1

Floor Stand Dimensions

Figure 6 Floor stand and floor planning dimensions, DA080, DA085

A *

100-1/2" (2553mm) 99" (2515mm)

1. This floor stand should be used when EC fans are intended to be lowered under a raised floor. The standard floor stand can be used if the fans are to remain raised. 2. Right side of paneled unit is flush with right side of floor stand. All other paneled sides

overhang floor stand 1" (25mm).

3. The floor stand used with EC units is not symmetrical and its orientation to the Liebert DSE is critical for lowering the EC fans. Unless the floor stand is installed in the correct position, the blowers will not lower into the floor stand.

4. Jack and jack support are shipped loose and are intended to be placed into position under each fan and used to lower or raise that fan as needed.

*Leveling feet are provided with ±1-1/2” (38mm) adjustment from nominal height “F”. Piping Access Area

See Note 4 32"

(813mm) Center Feet

97-1/2" (2477") Support Feet Centers 3/4" (19mm) 3/4" (19mm) 17" (432mm) 3/4" (19mm) 32-3/4" (832mm) 3" (76mm) 7/8" (23mm) 35" (889mm) Overall Depth 31-1/2" (800mm) 1" (25mm) 33" (838mm) DPN003173 Rev. 0 99" (2515mm) Height, A * In. (mm) 24 (610) 30 (762) 36 (914) 42 (1067) 48 (1219)

(19)

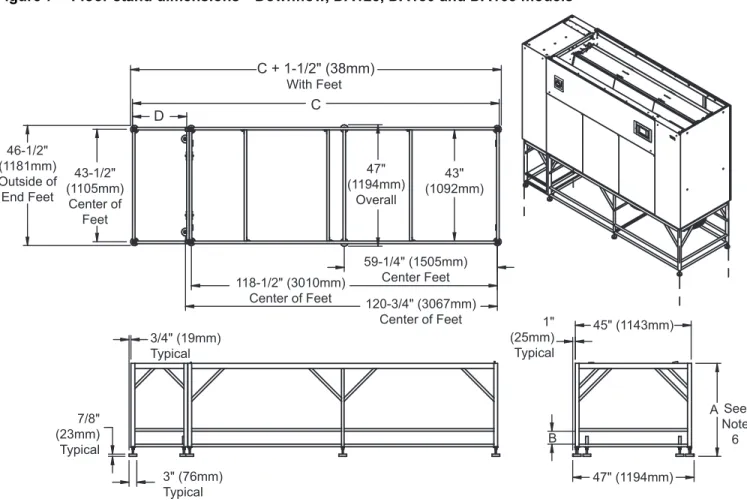

Figure 7 Floor stand dimensions—Downflow, DA125, DA150 and DA165 models Height, in. (mm) Coolant Dimensions, in. (mm) A * B * C D 24 (610) — Air-Cooled 142 (3607) 21 (533) 30 (762) — Water/Glycol Cooled 164" (4166mm) 43" (1092mm) 36 (914) 5 (127)

42 (1067) 11 (279) 1. Leveling feet have ±1-1/2" (38mm) adjustment from nominal height “A.” 2. Source: DPN003177, Rev. 2 48 (1219) 17 (432) A B D C C + 1-1/2" (38mm) With Feet 47" (1194mm) See Note 6 47" (1194mm) Overall 1" (25mm) Typical 7/8" (23mm) Typical 3" (76mm) Typical 3/4" (19mm) Typical 45" (1143mm) 43-1/2" (1105mm) Center of Feet 46-1/2" (1181mm) Outside of End Feet 43" (1092mm) 118-1/2" (3010mm) Center of Feet 120-3/4" (3067mm) Center of Feet 59-1/4" (1505mm) Center Feet DPN003177 Rev. 2 NOTES

1. This floor stand should be used when EC fans are intended to be lowered into the floor stand. The standard Liebert floor stand can be used if the fans are to remain in their original raised position. 2. All paneled sides of unit overhang floor stand 1" (25mm).

3. The floor stand used with EC units is not symmetrical, and proper orientation required for lowering

the blowers. The blowers will not lower into the floor stand unless the floor stand is installed in the correct position. 4. The jack and jack support are shipped loose and are intended to be placed into position under each fan

and used to lower or raise that fan.

5. Jack to lower blowers not provided with 18" floorstand.

(20)

Piping Schematics

4.0

P

IPING

S

CHEMATICS

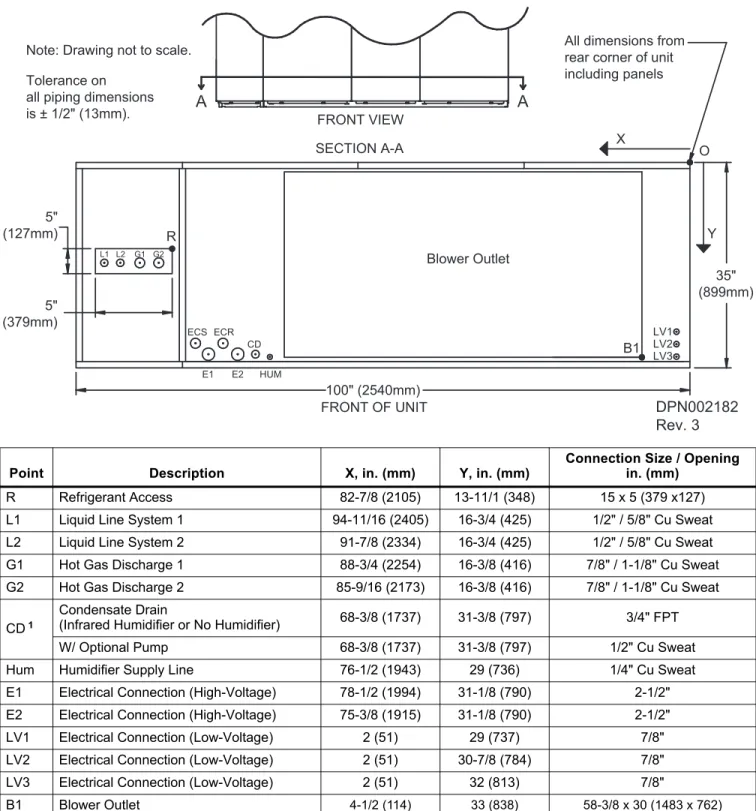

Figure 8 Primary connection locations—Downflow, air-cooled DA080 and DA085, scroll compressor models

Point Description X, in. (mm) Y, in. (mm) Connection Size / Openingin. (mm)

R Refrigerant Access 82-7/8 (2105) 13-11/1 (348) 15 x 5 (379 x127)

L1 Liquid Line System 1 94-11/16 (2405) 16-3/4 (425) 1/2" / 5/8" Cu Sweat

L2 Liquid Line System 2 91-7/8 (2334) 16-3/4 (425) 1/2" / 5/8" Cu Sweat

G1 Hot Gas Discharge 1 88-3/4 (2254) 16-3/8 (416) 7/8" / 1-1/8" Cu Sweat

G2 Hot Gas Discharge 2 85-9/16 (2173) 16-3/8 (416) 7/8" / 1-1/8" Cu Sweat

CD1

Condensate Drain

(Infrared Humidifier or No Humidifier) 68-3/8 (1737) 31-3/8 (797) 3/4" FPT

W/ Optional Pump 68-3/8 (1737) 31-3/8 (797) 1/2" Cu Sweat

Hum Humidifier Supply Line 76-1/2 (1943) 29 (736) 1/4" Cu Sweat

E1 Electrical Connection (High-Voltage) 78-1/2 (1994) 31-1/8 (790) 2-1/2"

E2 Electrical Connection (High-Voltage) 75-3/8 (1915) 31-1/8 (790) 2-1/2"

LV1 Electrical Connection (Low-Voltage) 2 (51) 29 (737) 7/8"

LV2 Electrical Connection (Low-Voltage) 2 (51) 30-7/8 (784) 7/8"

LV3 Electrical Connection (Low-Voltage) 2 (51) 32 (813) 7/8"

B1 Blower Outlet 4-1/2 (114) 33 (838) 58-3/8 x 30 (1483 x 762)

1. Field pitch condensate drain line a minimum of 1/8" (3.2mm) per foot (305mm). All units contain a factory-installed condensate trap. Do not trap external to the unit. Drain line may contain boiling water; select appropriate drain system materials. The drain line must comply with all local codes.

Note: Drawing not to scale. All dimensions fromrear corner of unit including panels

A

X O Y R L1 L2 G1 G2 Blower Outlet LV1 LV2 LV3 B1 ECS ECR CD E1 E2 HUM FRONT OF UNIT FRONT VIEW SECTION A-A

A

5" (127mm) 5" (379mm) 100" (2540mm) Tolerance on

all piping dimensions is ± 1/2" (13mm).

35" (899mm)

DPN002182 Rev. 3

(21)

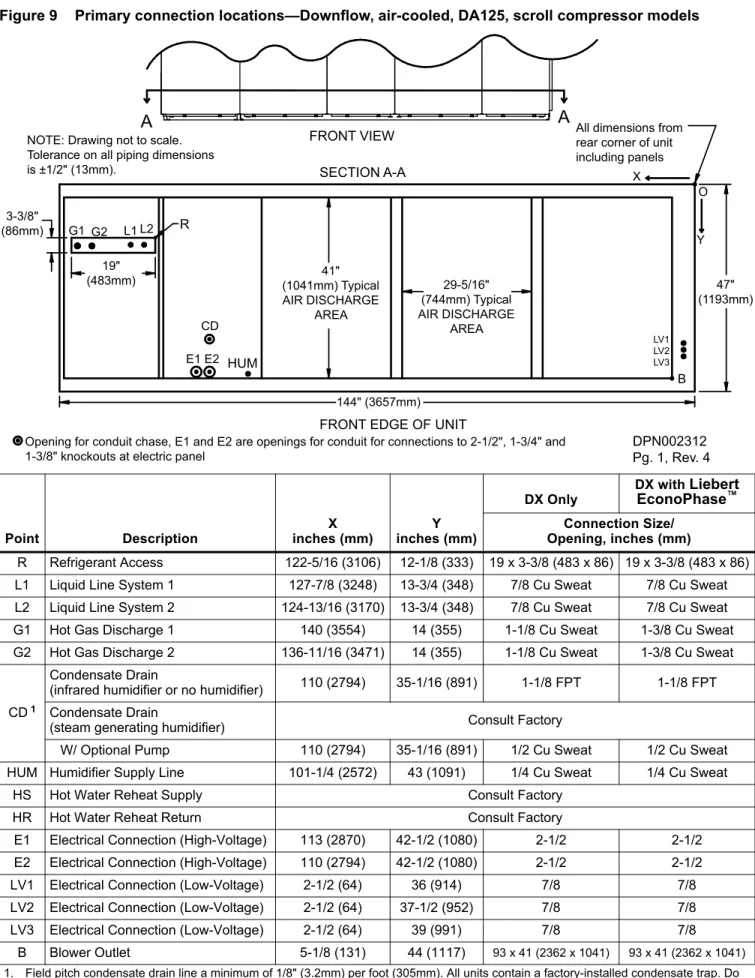

Figure 9 Primary connection locations—Downflow, air-cooled, DA125, scroll compressor models

Point Description inches (mm)X inches (mm)Y

DX Only DX with EconoPhaseLiebert™

Connection Size/ Opening, inches (mm)

R Refrigerant Access 122-5/16 (3106) 12-1/8 (333) 19 x 3-3/8 (483 x 86) 19 x 3-3/8 (483 x 86)

L1 Liquid Line System 1 127-7/8 (3248) 13-3/4 (348) 7/8 Cu Sweat 7/8 Cu Sweat

L2 Liquid Line System 2 124-13/16 (3170) 13-3/4 (348) 7/8 Cu Sweat 7/8 Cu Sweat

G1 Hot Gas Discharge 1 140 (3554) 14 (355) 1-1/8 Cu Sweat 1-3/8 Cu Sweat

G2 Hot Gas Discharge 2 136-11/16 (3471) 14 (355) 1-1/8 Cu Sweat 1-3/8 Cu Sweat

CD1

Condensate Drain

(infrared humidifier or no humidifier) 110 (2794) 35-1/16 (891) 1-1/8 FPT 1-1/8 FPT Condensate Drain

(steam generating humidifier) Consult Factory

W/ Optional Pump 110 (2794) 35-1/16 (891) 1/2 Cu Sweat 1/2 Cu Sweat

HUM Humidifier Supply Line 101-1/4 (2572) 43 (1091) 1/4 Cu Sweat 1/4 Cu Sweat

HS Hot Water Reheat Supply Consult Factory

HR Hot Water Reheat Return Consult Factory

E1 Electrical Connection (High-Voltage) 113 (2870) 42-1/2 (1080) 2-1/2 2-1/2

E2 Electrical Connection (High-Voltage) 110 (2794) 42-1/2 (1080) 2-1/2 2-1/2

LV1 Electrical Connection (Low-Voltage) 2-1/2 (64) 36 (914) 7/8 7/8

LV2 Electrical Connection (Low-Voltage) 2-1/2 (64) 37-1/2 (952) 7/8 7/8

LV3 Electrical Connection (Low-Voltage) 2-1/2 (64) 39 (991) 7/8 7/8

B Blower Outlet 5-1/8 (131) 44 (1117) 93 x 41 (2362 x 1041) 93 x 41 (2362 x 1041) B O X Y

A

A

R HUM

FRONT EDGE OF UNIT FRONT VIEW

SECTION A-A

NOTE: Drawing not to scale. Tolerance on all piping dimensions is ±1/2" (13mm).

All dimensions from rear corner of unit including panels E1 E2 CD LV1 LV2 LV3 G1 G2 L1L2 19" (483mm) 3-3/8" (86mm) 144" (3657mm) 47" (1193mm) 29-5/16" (744mm) Typical AIR DISCHARGE AREA 41" (1041mm) Typical AIR DISCHARGE AREA DPN002312 Pg. 1, Rev. 4

Opening for conduit chase, E1 and E2 are openings for conduit for connections to 2-1/2", 1-3/4" and 1-3/8" knockouts at electric panel

(22)

Piping Schematics Figure 10 Primary connection locations—Downflow, air-cooled, DA150, scroll compressor models

Point Description inches (mm)X inches (mm)Y

DX Only DX with EconoPhaseLiebert™

Connection Size/ Opening, inches (mm)

R Refrigerant Access 122-5/16 (3106) 12-1/8 (333) 19 x 3-3/8 (483 x 86) 19 x 3-3/8 (483 x 86)

L1 Liquid Line System 1 140 (3554) 14 (355) 1-1/8 Cu Sweat 1-1/8 Cu Sweat

L2 Liquid Line System 2 136-11/16 (3471) 14 (355) 1-1/8 Cu Sweat 1-1/8 Cu Sweat

G1 Hot Gas Discharge 1 127-7/8 (3248) 13-3/4 (348) 1-3/8 Cu Sweat 1-3/8 Cu Sweat

G2 Hot Gas Discharge 2 124-13/16 (3170) 13-3/4 (348) 1-3/8 Cu Sweat 1-3/8 Cu Sweat

CD1

Condensate Drain

(infrared humidifier or no humidifier) 110 (2794) 35-1/16 (891) 1-1/8 FPT 1-1/8 FPT Condensate Drain

(steam generating humidifier) Consult Factory

W/ Optional Pump 110 (2794) 35-1/16 (891) 1/2 Cu Sweat 1/2 Cu Sweat

HUM Humidifier Supply Line 101-1/4 (2572) 43 (1091) 1/4 Cu Sweat 1/4 Cu Sweat

HS Hot Water Reheat Supply Consult Factory

HR Hot Water Reheat Return Consult Factory

E1 Electrical Connection (High-Voltage) 113 (2870) 42-1/2 (1080) 2-1/2 2-1/2

E2 Electrical Connection (High-Voltage) 110 (2794) 42-1/2 (1080) 2-1/2 2-1/2

LV1 Electrical Connection (Low-Voltage) 2-1/2 (64) 36 (914) 7/8 7/8

LV2 Electrical Connection (Low-Voltage) 2-1/2 (64) 37-1/2 (952) 7/8 7/8

LV3 Electrical Connection (Low-Voltage) 2-1/2 (64) 39 (991) 7/8 7/8

B O X Y

A

A

R HUM

FRONT EDGE OF UNIT FRONT VIEW

SECTION A-A

NOTE: Drawing not to scale. Tolerance on all piping dimensions is ±1/2" (13mm).

All dimensions from rear corner of unit including panels E1 E2 CD LV1 LV2 LV3 G1 G2 L2 L1 19" (483mm) 3-3/8" (86mm) 144" (3657mm) 47" (1193mm) 29-5/16" (744mm) Typical AIR DISCHARGE AREA 41" (1041mm) Typical AIR DISCHARGE AREA DPN002312 Pg. 2, Rev. 4

Opening for conduit chase, E1 and E2 are openings for conduit for connections to 2-1/2", 1-3/4" and 1-3/8" knockouts at electric panel.

(23)

Figure 11 Primary connection locations—Upflow, DA080U and DA085U

Point Description inches (mm)X inches (mm)Y Opening, inches (mm)Connection Size/

R1 Refrigerant Access (Top) 83-5/8 (2124) 1-7/8 (48) 15-7/16 x 4 (392 x 102)

R2 Refrigerant Access (Bottom) 82-15/16 (2106) 13-5/8 (346) 14-15/16 x 5 (379 x 127)

R3 Refrigerant Access (Side) — — 6 x 17-3/16 (152 x 437)

L1 Liquid Line System 1 94-9/16 (2402) 16-3/4 (425) 5/8 Cu Sweat

L2 Liquid Line System 2 91-7/8 (2334) 16-3/4 (425) 5/8 Cu Sweat

G1 Hot Gas Discharge 1 88-7/8 (2257) 16-7/16 (418) 1-1/8 Cu Sweat

G2 Hot Gas Discharge 2 85-5/8 (2175) 16-7/16 (418) 1-1/8 Cu Sweat

CGD1 Condensate Gravity Drain 3/4 FPT

CPD Condensate Pump Discharge (Optional) 79-5/16 (2015) 11-7/8 (302) 1/2 Cu Sweat

HUM Humidifier Supply Line 79-5/16 (2015) 9-7/8 (251 1/4 Cu Sweat

E1 Electrical Connection (High Voltage) 78-1/8 (1984) 30 (762) 2-1/2

E2 Electrical Connection (High Voltage) 74-3/8 (1889) 30 (762) 2-1/2

LV1 Electrical Connection (Low Voltage) 2-5/8 (66) 29-1/16 (738) 7/8

LV2 Electrical Connection (Low Voltage) 2-5/8 (66) 30-7/16 (773) 7/8

LV3 Electrical Connection (Low Voltage) 2-5/8 (66) 31-13/16 (808) 7/8

1. Field pitch condensate drain line a minimum of 1/8" (3.2mm) per foot (305mm). All units contain a factory-installed condensate trap. Do not trap external to the unit. Drain line may contain boiling water; select appropriate drain system materials. The drain line must comply with all local codes. 2. Source: DPN002951, Rev. 1 O X Y L1L2G1G2 3 L1L2G1G2 R2 R1 3. 3. E1 E2 LV1 LV2 LV3 4. DPN002951 Rev. 1 NOTES

1. Drawing not to scale.

2. Tolerance on all piping dimensions is ± 1/2" (13mm).

3. Field-routed alternatives for refrigerant gas and liquid line connection points. 4. See submittal page DPN002748 for plenum dimensional data.

R3 CGD* 6" (152mm) 17-3/16" (437mm) 3-7/8" (98mm) 15-7/8" (403mm) 14-1/4" (362mm)

TOP VIEW OF UNIT

All dimensions from rear corner of unit including panels HUM CPD Front of Unit Factory Location 14-1/8" (359mm) 100" (2540mm) 14-15/16" (379mm) 5" (127mm) 4" (102mm) 35" (889mm)

FRONT SECTION VIEW OF UNIT

(Left Front Panel Not Shown)

CGD*

15-7/16" (392mm)

LEFT SIDE SECTION VIEW OF UNIT

3 3 3

(24)

Piping Schematics Figure 12 Piping schematic—Air-cooled, tandem compressor models, DA0805, DA085

Liebert MC Condenser

DA080 and DA085

Electronic Expansion Valve Hot Gas Discharge Evaporator Coil SUCTION LIQUID Check Valve Check Valve Check Valve

Field-installed relief valves required for 50Hz EU CE units rated maximum 650PSIG (45bar)

Trap at base of risers over 5ft. (1.5m)* *Full Ported Ball Valve See Note 4 *Full Ported Ball Valve See Note 4 LIQUID RETURN See Note 2 HOT GAS DISCHARGE See Note 2

For rises over 25ft. (7.6m), trap every 20ft. (6m) or evenly divided*

Optional Liebert EconoPhase Unit

Ball Valve Ball Valve Solenoid Valve Service Valve Service Valve

1-3/8" Liquid from Condenser See Note 2

1-1/8" Hot Gas Discharge from Indoor Unit See Note 2

7/8" Liquid to Indoor Unit See Note 2

Includes Factory traps. No external trap required.

Differential Check Valve Differential

Check Valve

1. Two refrigeration circuits provided. Single refrigeration circuit shown for clarity.

2. Circuit 1 must be maintained between indoor unit, condenser and Liebert EconoPhase unit. Circuit 2 must be maintained between indoor unit, condenser and Liebert EconoPhase unit. 3. Schematic representation shown. Do not use for specific connection locations.

4. Port in ball must be the same diameter as the piping I.D.

5. Length of piping between condenser and indoor unit shall be no greater than

* Components are not supplied by Liebert but are required for proper circuit operation and maintenance.

Service/Schrader (Access) Connection, No Valve Core Refrigerant Piping

Field Piping

Service/Schrader (Access) Connection, With Valve Core

Differential Check Valve (Required)

Liebert DSE Receiver

(25)

Figure 13 Piping schematic—Air-cooled, tandem compressor models, DA125, DA150 and DA165 Differential Check Valve Differential Check Valve Optional EconoPhase Unit DA125: 7/8" DA150: 7/8" or 1-1/8" Liquid to Indoor Unit Depending on length of line See Note 2 Check Valve Solenoid Valve Ball Valve Ball Valve

1-3/8" Hot Gas Discharge from Indoor Unit

See Note 2.

For rises over 25ft. (7.6m), trap every 20ft. (6m) or evenly divided Hot Gas Discharge Liebert MC Condenser

DA125 and DA150

Liquid Suction Service Valve Check Valve Check Valve

Hot Gas Discharge See Note 2. * Trap at Base of Risers Over 5ft. (1.5m) *Full Ported Ball Valve See Note 4. *Full Ported Ball Valve See Note 4. Liquid Return

See Note 2. DifferentialCheck Valve (Required) * Components are not supplied by

Emerson but are required for proper circuit operation and maintenance.

Refrigerant Piping Field Piping

Service/Schrader (Access) Connection, No Valve Core Service/Schrader (Access) Connection, With Valve Core 1. Two refrigeration circuits provided. Single refrigeration circuit shown for clarity. 2. Circuit 1 must be maintained between indoor unit, condenser and EconoPhase unit. Circuit 2 must be maintained between indoor unit, condenser and EconoPhase unit. 3. Schematic representation shown. Do not use for specific connection locations. 4. Port in ball must be the same diameter as the piping I.D.

5. Length of piping between condenser and indoor unit must be no greater than 300 ft (91.4 m) [Maximum equivalent length of 450 ft (137.2 m)].

6. Vertical height of condenser above indoor unit shall be no greater than 60ft (18.3m). 7. All indoor and outdoor field refrigerant piping must be insulated,

1/2" minimum thickness. All outdoor insulation must be UV- and ozone-resistant

DPN002340 Rev. 8

Electronic Expansion Valve

1-3/8" Liquid Line from Condenser See Note 2.

Evaporator Coil

Field-installed relief valves required for 50Hz EU CE units rated maximum 650 PSIG (45 Bar)

Liebert DSE Receiver

Includes Factory Traps No External Trap Required

(26)

Condensers—Dimensions

5.0

C

ONDENSERS

—D

IMENSIONS

Figure 14 Cabinet and anchor dimensions, MCM160

Liebert

Model No. FansNo.

A A* (575V) B C D E

Leg Height

F1 G H

in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) in. (mm) in. (mm)

MCM160 4 202-7/16(5142) 210-5/8(5350) 113-1/2(2883) 192-1/4(4883) 94-7/16(2398) 96-3/16(2444) 18 (457) 31-5/8(803) (1006)39-5/8 36 (914) (1260)49-5/8 (1464)57-5/8 A B C F H 46" (1168mm) D E G A*

Eyebolts for Lifting Condenser Provided on Four-Fan Models Height to Top

of Fan Guard

575V Transformer Enclosure Option

Emerson recommends a clearance of 36" (915mm) on each side for proper operation and component access

TYPICAL FOOTPRINT DPN002172 Rev. 5 ANCHOR PLAN 1-7/8" (48mm) 2-1/2" (64mm) 2-1/2" (64mm) 3-5/8" (93mm) 1-7/8" (48mm) 1/2" x 1" 12.7mm x 25.4mm) Obround 13/16" (21mm)

Electric Box End

39-5/16" 999mm) 44-3/8" (1127mm) Provided On Four-Fan-models

(27)

Figure 15 Liebert MC™ cabinet and anchor dimensions, MCL110, MCL165 and MCL220

Table 14 Cabinet and anchor dimensions, MCL110, MCL165 and MCL220

Liebert

Model # Fans# of

Dimensions, In. (mm) Leg

Height F1 G H A (575V)A* B C D E MCL055 1 (172768 76-1/8(1935)(1423)56 (1381)54-3/8 — (457)18 35-7/8(911) 43-5/8(1108) MCL110 2 124-1/8(3152) 132-1/4(3360) — 112-1/8(2848) 110-1/2(2806)(914)36 53- 7/8(1368) 61-5/8(1565) MCL165 3 180-1/4(4578) 188-3/8(4786) 73-7/16(1866) 168-1/4(4274) 110-1/2(2806) 56-1/8(1425) (1219)48 65-7/8(1673) 73-5/8(1870) MCL220 4 236-5/16(6003) 244-1/4(6211) 129-9/16(3291) 224-3/8(5699) 110-1/2(2806) 112-1/4(2851) (1524)60 77-7/8(1978) 85-5/8(2175)

1. *Cross-bracing required for legs longer than 18" (457mm). Quantity varies per model and options selected.

A B C F H 55-1/2" (1409mm D E G A*

Emerson recommends a clearance of 36" (915mm) on each side for proper operation and component access Height to

Top of Fan Guard

575V Transformer Enclosure Option

Eyebolts for Lifting Condenser Provided on 3&4 Fan Models

Electric Box End

Provided on 3- and 4-Fan Models 13/16" (21mm) 2-1/2" (64mm) 2-1/2" (64mm) 3-5/8" (93mm) 3-5/8" (93mm) 1-7/8" (48mm) 1/2"x1" (12.7mm x 25.4mm) Obround ANCHOR PLAN DPN002416 Rev. 4 TYPICAL FOOTPRINT 48-3/4" (1238mm) 53-7/8" (1368mm) 1-7/8" (48mm)

(28)

Condensers—Dimensions Figure 16 Typical receiver mounting MCL110, MCL165, MCL220 units, left-side mounting outlet receiver

1 Receiver and Bracket Assembly 1

2 Cap Screw HXDIN933M8-1.25x25A2 8

3 Fender Washer DIN9021 M8x24 A2 12

4 Lock Nut, Hex Nylon Insert, M8 8

7 90-degree Elbow FTGXC 7/8" Copper 1

8 Copper Formed Tube 1-1/8" 1

12 Coupling, Copper 1-1/8" 1 13 Reducer, Copper CXC 1-3/8" x 1-1/8" 1 1 7 8 15 16 13 14 1. 2. 3. 1 3 3 12 2

A

Notes Receiver Mounting Holes Single Circuit

DETAIL A

Trim piping as needed Typically 4 Places 4, 3, 2 11.13" (282.6mm) Cross-Bracing Not Shown 64.3" (1383.1mm)

Small receiver shown. Actual receiver size may vary.

DPN002554 Pg. 1, Rev. 4

36" (914.4mm) Clearance required for

viewing sight glass

Use Items 15 and 16 as needed for mounting Item 1.

Item 12 to be used on MCL165 units. Item 13 to be used on MCL220 units.

(29)

Figure 17 Typical receiver mounting MCL110, MCL165, MCL220 units, right-side mounting outlet receiver

Item # Description Quantity

1 Receiver and Bracket Assembly 1

2 Cap Screw HXDIN933M8-1.25x25A2 8

3 Fender Washer DIN9021 M8x24 A2 12

4 Lock Nut, Hex, Nylon Insert, M8 8

5 Clamp Omega 1-1/8" 7

6 Screw, Self-Drilling, HWH YZ 10-16 x 5/8" 2

7 90-degree Elbow FTGXFTG 7/8" Copper 1

8 Copper Formed Tube 1-1/8" 1

9 Copper Formed Tube 1-1/8" 2

12 Coupling, Copper 1-1/8" 1 13 Reducer, Copper CXC 1-3/8" x 1-1/8" 1 14 Reducer, Copper CXC 1-1/8" x 7/8" 2 1 7 8 9 15 16 13 14 1 12 5 6 3 3 1. 2. 3. 2

B

Notes Receiver Mounting Holes Single Circuit DETAIL B Trim piping as needed Typ. 4 Places 4, 3, 2 11.13" (282.6mm) Cross-Bracing Not Shown 64.3" (1383.1mm)

Small receiver shown. Actual receiver size may vary.

DPN002554 Pg. 2, Rev. 4

36" (914.4mm) Clearance required for

viewing sight glass

Use Items 15 and 16 as needed for mounting Item 1.

Item 12 to be used on MCL165 units. Item 13 to be used on MCL220 units.

(30)

Condensers—Dimensions Figure 18 Required receiver mounting MCM160 units, left-side mounting outlet receiver

Item # Description Quantity

1 Receiver and Bracket Assembly 1

2 Cap Screw HXDIN933M8-1.25x25A2 8

3 Fender Washer DIN9021 M8x24 A2 12

4 Lock Nut, Hex Nylon Insert, M8 8

7 90-degree Elbow FTGXC 7/8" Copper 2

1 2 3 4 7 8 15 16 1. 1 1

A

Typically 4 Places DPN002383 Pg. 1, Rev. 5 Trim piping as needed 54.45" (1383.1mm) 36" (914.4mm) Clearance required for

viewing sight glass

11.23" (285.3mm)

Cross Bracing Not Shown Receiver mounting holes Single circuit

DETAIL A

Small receiver shown. Actual receiver size may vary

(31)

Figure 19 Required receiver mounting MCM160 units, right-side mounting outlet receiver

Item # Description Quantity

1 Receiver and Bracket Assembly 1

2 Cap Screw HXDIN933M8-1.25x25A22 8

3 Fender Washer DIN9021 M8x24 A2 12

4 Lock Nut, Hex Nylon Insert, M8 8

5 Clamp Omega 7/8" 1

6 Screw, Self-Drilling, HWH YZ 10-16 x 5/8" 2

7 90-degree Elbow FTGXC 7/8" Copper 1

8 Copper Formed Tube 7/8" 1

9 Copper Formed Tube 7/8" 1

1 234 7 8 5 6 9 15 16 1. 1 1

A

DPN002383 Pg. 2, Rev. 5 Trim Piping As Needed 54.49" (1384.1mm) Cross Bracing Not Shown Typically 4 Places 11.23" (285.3mm) 36" (914.4mm) Clearance required for

viewing sight glass

Small receiver shown. Actual receiver size may vary

Receiver Mounting Holes

Single circuit

(32)

Plenum Dimensions

6.0

P

LENUM

D

IMENSIONS

Figure 20 Plenum dimensions—Downflow, DA080 and DA085

82-1/4" (2089mm)

A

Typical 53-77kW (15-22 Tons) unit orientation shown. View varies by unit size

76" (1930mm) 7/8" (22mm) Typical Plenum Hinged door for filter access 1" (25mm) Liebert DSE 32-1/8" (816mm) Opening 34" (864mm) 12" (305mm) Return air inlet opening 80-1/2" (2045mm) DPN003151 Pg. 2, Rev. 0 Height, A * in. (mm) 20 (508) 24 (610) 36 (914)

(33)

6.1

Outdoor Equipment Dimensions

Figure 21 Plenum dimensions—Upflow, DA080U and DA085U, EC fans

1 3 2 NOTES

Shaded areas indicate a recommended minimum clearance of 36" (914mm) from the floor to the top of the plenum.

Must have access to remove the front grille or panel to remove EC fans. Top duct flanges on plenum top for supply air ducting when

solid panel plenum is used. 1.

2. 3. Both top duct opening and grilles shown. See specification sheet for specific application. 0.88" (22.2mm) 0.88" (22.2mm)

DPN003453

Rev. 0

82" (2083mm) 80" (2032mm) 81" (2057mm) 34" (864mm) Plenum Height * 32" (813mm) 1" (25mm) 1" (25mm) 20" (508mm) 4" (102mm)

Grille & Top Discharge 24" (610mm)

Top Discharge Only 30" (762mm)

Top Discharge Only 36" (914mm)

(34)

Plenum Dimensions Figure 22 Liebert EconoPhase™ pump box dimensions, typical

SECTION A-A

A

A

Electric Box End of Unit REAR VIEW (PIPING END) DETAIL B

LEFT SIDE VIEW

DPN002326 Rev. 4 FRONT VIEW ISOMETRIC VIEW System Circuit 1 Liquid In System Circuit 2 Liquid In System Circuit 2 Liquid Out System Circuit 1 Liquid Out 1-3/8" Liquid Line from Condenser 7/8" Liquid to Indoor Unit Pump Access Typical Both Sides 42" (1067mm) Minimum Clearance 36" (914mm) Minimum Clearance 36" (914mm) Minimum Clearance 4-13/16" (122mm) 21-3/8" (543mm) 36-15/16" (939mm) 9-3/8" (238mm) 4-13/16" (123mm) 21-5/16" (541mm) 40-1/8" (1019mm) 42-1/8" (1071mm) 40-11/16" (1033mm) 36-3/16"(919mm) 35-7/8" (911mm) Ø 7/16" (11mm) typical 8 places for unit mounting

Ø 7/16" (11mm) Typical 8 Places for unit mounting

40" (1016mm) 39-3/8" (1000mm) 5/8" (16mm) 2-15/16" (56mm) 12-15/16" (328mm) 22-15/16" (582mm) 32-15/16" (836mm) 35-7/8" (911mm)

B

Approximate Unit Voltage Weight, lb (kg) 208/230, 460V 60Hz 340 (154) 380/400, 575V 60Hz 390 (177)

(35)

Figure 23 Condenser and Liebert EconoPhase™ unit locations, typical unit arrangement diagram layout Circuit 2 Circuit 1 Air-Cooled Condenser CIRCUIT 1 CIRCUIT 1 CIRCUIT 2 CIRCUIT 2 DPN002324

Entering Hot Gas Line

Liquid Line to Liebert EconoPhase from Bottom of Receiver 42" (1067mm) Minimum Clearance

*Liquid line from Condenser 1-3/8". Do Not Trap Line Slope toward Liebert EconoPhase unit

2 in. per 10 ft. (50.8mm per 3m).

EconoPhase Unit

60" (1524mm) * Liquid from Condenser 1-3/8"

Do Not Trap Line Slope toward Liebert EconoPhase unit

2 in. per 10 ft. (50.8mm per 3m). * Liquid from Condenser 1-3/8"

Do Not Trap Line Slope toward Liebert EconoPhase unit

2 in. per 10 ft. (50.8mm per 3m).

*Components are not supplied by Liebert but are recommended for proper circuit operation and maintenance.

**Components supplied by Liebert and must be field-installed.

Factory-Supplied, Field-Installed Field Piping

Top View

Top View

Notes:

1. For proper pump function, a minimum elevation difference of 60" (1524 mm) must be maintained between the bottom of condenser box to the bottom of Liebert EconoPhase unit.

2. All indoor and outdoor field refrigerant piping must be insulated, 1/2" minimum. All outdoor insulation must be UV- and ozone-resistant.

60" (1524mm) leg height Typical; see Note 1.

Air-Cooled Condenser

(36)

Disassembly

7.0

D

ISASSEMBLY

Figure 24 Liebert DSE disassembly downflow air-cooled DA080, DA085 with EC fans

Table 15 Dry weights, DA080/085 including panels

Component Weight, lb. (kg)

Compressor Assembly 590 (269)

Filter and Electric Box Assembly 250 (114)

Blower and Coil Assembly 1410 (641)

59-7/16" (1509mm) Filter and Electric Box Assembly

Blower and Coil Assembly

76" (1930mm) Assembled Height 39" (991mm) Compressor Assembly 33" (838mm) 76" (1930mm) 82" (2083mm) 99" (2515mm) Assembled Length 17" (432mm) Forward curved blowers shown. Liebert DSE units only available with EC fans.

Drawing simplified with panels removed to show overall dimensions. See disassembly and handling instructions in installation manual.

37" (940mm)

DPN003140 Rev. 0

(37)

Figure 25 Liebert DSE disassembly dimensions, downflow air-cooled DA125 and DA150 models

Table 16 Dry weights, DA125, DA150, including panels

Component

Dry Weight, lb. (kg)

DA125 DA150

Compressor Assembly 630 (286) 739 (335)

Electric Box Assembly 417 (189) 417 (189

Blower and Coil Assembly 2218 (1006) 2218 (1006)

Filter Assembly 200 (91) 200 (91)

Source: DPN003178, Rev. 0

142" (3607mm) Assembled Length

Drawing views are simplified with panels removed to show overall dimensions. See disassembly and handling instructions in installation manual.

Compressor Assembly Blower and Coil Assembly

Electric Box Assembly

35" (889mm) 74-3/16" (1884mm) 120" (3048mm) 18" (457mm) 40-11/16" (1034mm) 22" (558mm) 45" (1143mm) 76" (1930mm) Filter Assembly 94" (2388mm) Assembled Height DPN003178 Rev. 0

(38)

Disassembly Figure 26 Liebert DSE disassembly dimensions, upflow air-cooled DA080U-DA085U

Table 17 DA080U-DA085U dry weight including panels)

Component Weight, lb. (kg)

Compressor Assembly 590 (269)

Blower and Electric Box Assembly (EC Fans)1 600 (272)

Filter and Coil Assembly 960 (436)

1. Fan weight not included in this unit weight. Fan is installed in plenum. See 313221 for plenum weight.

2. Source: DPN003166, Rev. 0 31-1/4" (794mm) 76" 1930mm) Assembled Height 45-13/16" (1163mm) Filter and Coil Assembly

Blower and Electric Box Assembly Compressor Assembly 33" (838mm) 76" (1930mm) 82" (2083mm) 17" (432mm) 99" (2515mm) Assembled Length DPN003166 Rev. 0

Drawing views are simplified with panels removed to show overall dimensions. See disassembly and handling instructions in installation manual.

(39)

8.0

E

LECTRICAL

C

ONNECTIONS

Figure 27 Electrical field connections, Liebert MC™, Premium Efficiency Control

Fan 2 Fan 1 12 13 70 71 230 SH 8 9 10 6 5C 7 5B 4 2 1 11 Left Knockout 3 Right Two Knockouts 5A

(40)

Electrical Connections

8.1

Standard Electrical Connections—Liebert MC

(Source: DPN002169, Rev. 7, Page 1)

1. Three-Phase Electrical Service—Terminals are on top of the disconnect switch for one- and two-fan units. Terminals are on the bottom for the disconnect switch for three- and four-fan units. Three-phase service is not provided by Emerson (See Note5 on page 38.)

2. Earth Ground—A field lug terminal is available for earth ground connection. Ground the terminal strip to make a fan motor ground connection.

3. Primary High Voltage Entrance—Two knockouts, each 7/8" (22.2mm) diameter, at the bottom of the enclosure.

4. Surge Protection Device (SPD) Field Connection Terminals—High-voltage surge

protective device terminals. (SPD is optional.)

5. CANbus Terminal Connections—Terminals for field CANbus cable connection.

a. 5A is the CANbus connectors

• TB49-1 is the input terminal for CANbus high. • TB49-3 is the input terminal for CANbus low. • TB50-1 is the output terminal for CANbus high. • TB50-3 is the output terminal for CANbus low.

• Each CANbus cable shield is connected to Terminal SH, (see Item9). b. 5B is the END OF LINE jumper

c. 5C is the CANbus device address DIP switch. This CANbus cable is not supplied by Emerson (see Note2 on page 38).

6. Remote Unit Shutdown—Replace existing jumper between Terminals TB38-1 and TB38-2 with

field-supplied normally closed switch having a minimum 75VA, 24VAC rating. Use field-supplied Class 1 wiring. (This is an optional feature that may be owner-specified.)

7. Alarm Terminal Connections

a. The Common Alarm Relay indicates when any type of alarm occurs. TB74-1 is common; TB74-2 is normally open; and TB74-3 is normally closed. 1A, 24VAC is the maximum load. Use field-supplied Class 1 wiring.

b. The Shutdown Alarm Relay indicates when a condenser loses power or when a critical alarm has occured that shuts down the condenser. TB74-4 is common; TB74-5 is normally open; and TB74-6 is normally closed. 1A, 24VAC is the maximum load. Use field-supplied Class 1 wiring.

8. Indoor Unit Interlock and SPD Alarm Terminals

a. On any call for compressor operation, normally open contact is closed across Terminals 70 and 71 for Circuit 1; and from an indoor unit, normally open contact is closed across Terminals 70 and 230 for Circuit 2.

b. During an SPD alarm, the normally open contact is closed across Terminals 12 and 13. (SPD is an optional device.)

9. CANbus Shield Terminal—This terminal is for the field connection of the field-supplied CANbus cables. The shield of the field-supplied CANbus cables must not be connected to ground. 10. Primary Low-Voltage Entrance—One knockout, 7/8" (22mm) diameter, free for customer

low-voltage wiring.

11. Surge Protection Device Entrance—One knockout, 7/8" (22mm) diameter, at the bottom of the enclosure. (High-voltage SPD is an optional device.)

(41)

8.2

Notes on Electrical Connections—Liebert MC

(Source: DPN002169, Rev. 7, Pages 2-3)

1. Refer to specification sheet for the unit voltage rating, full load amp and wire size amp ratings. 2. The CANbus wiring is field-supplied and must be:

• Conductors 22-18AWG stranded tinned copper • Twisted pair, minimum four twists per foot (305mm) • Braided shield or foil shield with drain wire

• Shield must be wired to ground at the indoor unit • Low capacitance (15pF/FT or less)

• UL-approved temperature rated to 167°F (75°C) • UL-approved voltage rated to 300V

• UV-resistant and moisture-resistant if not run in conduit

• Plenum-rated NEC-type CMP, if required by national or local codes

Examples: Belden 89207 (plenum-rated) or Alpha Wire 6454 (UV resistant outdoor rated) Category 5, 5e or higher

3. Do not run the CANbus cable in the same conduit, raceway or chase as high-voltage wiring. 4. No special considerations are required when the total external cable connection between the

indoor unit and outdoor unit(s) is less than 450 ft. (137m). A CANbus isolator is required for total external cable connections greater than 450 ft. (137m) but less than 800 ft. (243m).

5. All wiring must be sized and selected for insulation case per National Electrical Code and other local electrical codes.

6. Do not bend cables to less than four times the diameter of the cable.

7. Do not deform cables when securing them in bundles or when hanging them.

8. Do not run cables near devices that may introduce noise, such as machines, fluorescent lights and electronics.

9. Do not stretch cables.

NOTICE

Risk of CANbus communication interference. Can cause improper operation.

Separate high voltage wires and other high voltage sources from CAN wires by 12 inches (305mm).

8.2.1 Wye- vs. Delta-Connected Power Supply

Figure 28 Wye- vs. delta-connected power supply connection diagram Phase A

Phase B

Phase C

Wye-Connected Power Diagram

Winding

A-B

Winding

C-A

Winding B-C

Phase A

Phase B

(42)

Electrical Connections

NOTICE

Risk of improper input power. Can cause equipment damage.

The Liebert MC is designed to operate with wye-connected power with a solidly grounded neutral. It will not operate properly with wye-connected power with high-resistance (or impedance) ground or with delta-connected power

Acceptable Power Supplies for Liebert MC—208 to 575V Nominal Units

Source: DPN002374, Pg. 3, Rev. 6

• 208V wye with solidly grounded neutral and 120V line-to-ground • 380V wye with solidly grounded neutral and 220V line-to-ground • 480V wye with solidly grounded neutral and 277V line-to-ground

• 575V wye with solidly grounded neutral and 332V line-to-ground (with step-down transformer)

Unacceptable Power Supplies for Liebert MC—480V Nominal Units

Source: DPN002374, Pg. 3, Rev. 6

• Wye with high-resistance (or impedance) ground • Delta without ground or with floating ground • Delta with corner ground

• Delta with grounded center tap

NOTE

(43)

Figure 29 Liebert EconoPhase™ pump box field electrical connections

Input Voltage Full Load Amps, FLA Minimum Supply Circuit Ampacity Maximum Fuse Size

208/230, 60Hz 13.8 15.5 20.0

380 */400, 60Hz 8.4 9.4 15.0

Field Connection From Condenser CANbus. Wire Per Local Codes

Field High Voltage Connection.

Wire Per Local Codes.

Field Ground Connection. Wire Per Local Codes

Optional Low-Voltage Field Wiring Connection

7/8" Knockout Optional High-VoltageField Wiring Connections

1-1/8" Knockouts Optional High-Voltage Field Wiring Connection 1-18" Knockout Optional Low-Voltage Field Wiring Connections 7/8" Knockout Optional High Voltage Field Wiring Connection 2" Knockout DPN002327 Rev. 5 FRONT VIEW

(44)

Electrical Connections Figure 30 CANbus cable connections between indoor unit, Liebert MC™ and optional Liebert

EconoPhase™ unit 1 INPUT 23CAN H TB50 OUTPUT 123 TB49 CAN L

A

B

C

SH 49-1 49-3 373824505155562307071 230 71 70 1 2 3 1 2 3 H L H L B A 3 1 D58 P80 J6 TB 5 0 J4 TB 4 9 P15 BO O T SY S AP P PS W D 1 1 1 1 1 11 1 1 3 1 CAN ON SW6 CAN ON CAN ON SW6 SW6 SW6 SW6 CAN ON CAN ON 70 71 230 SH 70 71 230 SH ON SW6 CAN ON SW6 CAN 1 INPUT 23CAN H TB50 OUTPUT 123 TB49 CAN L

F

G

H

1

2

3

3

4

3 1 J6 3 1 J6 3 1 J6 3 1 J6 3 1 J6 3 1 J6 CAN ON SW6 3 1 J6

HEAT REJECTION INTERLOCK

INPUT CAN H CAN L TB50 OUTPUT TB49

Factory wiring between control boards and terminal strip

No Shield Connection

Low-voltage field entrance on bottom left of

Condenser 1 enclosure Low-voltage field entrance on bottom left of

Condenser 2 enclosure

Factory wiring between Liebert MC control board and terminal strip Factory wiring between Liebert MC control board and terminal strip

Remove Jumper DETAIL 3

CAN Cable Connection DETAIL 4 CAN Cable Connection

DETAIL 1 CAN Cable Connection

Two Condensers Two Condensers With EconoPhase EconoPhase Control Board Dual Circuit (Factory Set) EconoPhase Control Board Single Circuit (Factory Set) Liebert EconoPhase

Last Device on CANbus (If Present) CONDENSER 1 CONDENSER 1 CONDENSER 2 CONDENSER 2 CONDENSER 2 CONDENSER 1 CONDENSER 1 CIRCUIT ONE CIRCUIT ONE

CIRCUIT TWO

CONDENSER 2

INDOOR UNIT

Factory Wiring Between Liebert iCOM and Terminal Strip DETAIL 2

Heat Rejection Interlock

49-1 49-3

CANbus Connections

Component Notes:

1. Component appearance, orientation and position may vary between product lines. Terminal names and callouts remain constant. Cable Notes (A, B, C):

1. Field-supplied cable: ● shielded

● 24-18AWG stranded tinned copper ● twisted pair (minimum 8 twists per foot) ● low capacitance (15pF/ft or less)

● must be rated to meet local codes and conditions. ● examples Belden 89207 (plenum-rated), or Alpha Wire 6454 Category 5, 5e or higher.

2. Do not run in same conduit, raceway or chase as voltage wiring.

3. Contact factory for CANbus network lengths greater than 350ft (107m).

Wire Notes (F, G,H): 1. Field-supplied wire: ● 18AWG or greater ● rated 600V

2. For single-circuit systems, run two wires from indoor unit to condenser(s).

3. For dual-circuit systems, run three wires from the indoor unit to first condenser and one wire from first condenser

Shield Connection

(45)

8.3

Standard Electrical Field Connections, DA080 and DA085 Upflow and Downflow

Source: DPN000807, Revision 12; refer to Figures 31 and 32

1. Primary High-Voltage Entrance—Concentric knockouts, 2.5" (64mm); 1.75" (44mm); 1.375" (35mm) diameter in bottom of box.

2. Secondary High-Voltage Entrance—Concentric knockouts, 2.5" (64mm); 1.75” (44mm); 1.375" (35mm) diameter in top of box.

3. Primary Low-Voltage Entrance—Three knockouts, each 1.375" (35mm) diameter, in bottom of unit.

4. Secondary Low-Voltage Entrance—Three knockouts, each 1. 375" (35mm) diameter, in top of box.

5. Three-Phase Electrical Service—Terminals are on main fuse block (disregard if unit has optional disconnect switch). Three-phase service not by Emerson.

6. Earth Ground—Terminal for field-supplied earth grounding wire. Earth grounding required for Liebert units.

7. Remote Unit Shutdown—Replace existing jumper between Terminals 37 and 38 with

field-supplied normally closed switch having a minimum 75VA, 24VAC rating. Use field-supplied Class 1 wiring.

8. Customer Alarm Inputs—Terminals for field-supplied, normally open contacts, having a minimum 75VA, 24VAC rating, between Terminals 24 and 50, 51, 55, 56. Use field-supplied Class 1 wiring. Terminal availability varies by unit options.

9. Common Alarm—On any alarm, normally open dry contact is closed across Terminals 75 and 76 for remote indication. 1A, 24VAC maximum load. Use field-supplied Class 1 wiring.

10. Heat Rejection Interlock—On any call for compressor operation, normally open dry contact is closed across Terminals 70 and 71 (Circuit 1), 230 (Circuit 2) to heat rejection equipment. 1A, 24VAC maximum load. Use field-supplied Class 1 wiring. Three wires must connect Terminals 70, 71 and 230 of the indoor unit to Terminals 70, 71 and 230 of the Liebert MC series condenser. Liebert DSE units must be connected to Liebert MC series condenser with premium control. The jumper between Terminals 71 and 230 must be removed. Three wires must connect terminals 70, 71, and 230 of the indoor unit to Terminals 70, 71 and 230 of the Liebert MC series condenser.

8.4

CANbus Electrical Connections, DA080 and DA085 Upflow and Downflow

Source: DPN000807, Revision 12; refer to Figures 31 and 32

11. CANBus Connector—Terminal block with Terminals 49-1 (CAN-H) and 49-3 (CAN-L) + SH

(shield connection). The terminals are used to connect the CANBus communication cable

(provided by others) from the indoor unit to the Liebert MC – Premium Model and optional PRE unit.

12. CANbus Cable—CANbus cable provided by others to connect to the outdoor condenser, and optional PRE unit. No special considerations are required when the total external cable connection between the indoor unit and outdoor unit(s) is less than 450 ft. (137m). ACANbus isolator is required for total external cable connections greater than 450 ft. (137m) but less than 800 ft. (243m). Cable must meet the following specifications:

• Conductors22-18AWG stranded tinned copper • Twisted pair (minimum four twists per foot) • Braided shield or foil shield with drain wire • Low-capacitance15pF/FT or less

• UL-approved temperature rated to 167°F (75°C) • UL-approved voltage rated to 300V

• UV-resistant and moisture-resistant if not run in conduit.

• Plenum-ratedNEC type CMP (if required by national or local codes.)

Figure

Updating...

References

Updating...

Related subjects :
