Additional rules and comments for the transfer of container movements to DAKOSY with the EDIFACT-message CODECO/COARRI

(1)

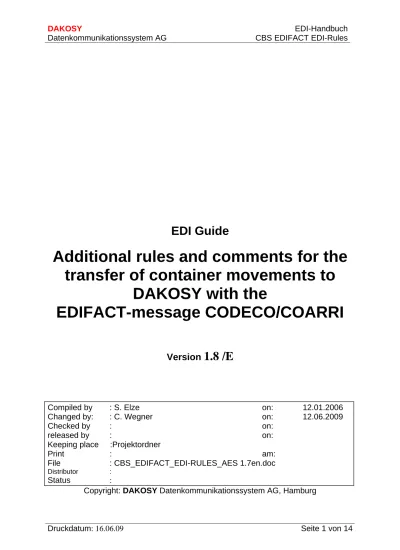

DAKOSY EDI-Handbuch Datenkommunikationssystem AG CBS EDIFACT EDI-Rules

Druckdatum: 16.06.09 Seite 1 von 14

EDI Guide

Additional rules and comments for the

transfer of container movements to

DAKOSY with the

EDIFACT-message CODECO/COARRI

Version

1.8 /E

Compiled by : S. Elze on: 12.01.2006

Changed by: : C. Wegner on: 12.06.2009

Checked by : on:

released by : on:

Keeping place :Projektordner

Print : am:

File : CBS_EDIFACT_EDI-RULES_AES 1.7en.doc

Distributor :

Status :

(2)

List of modification Version Concerned

sections

Type of modification Name Date

1.0/D Alle First version S. Elze 12.01.2006 1.3/D Addition of the message CODECO

for message type conventional repositioning

C. Wegner 23.11.2006

1.4 Addition of transit code in COARRI C. Wegner 02.05.2007 1.5 _{Addition of transfer of chassis}

no. and the indicator full/ blank to the vehicle presentation

C. Wegner 30.04.2008

1.6 Formatting regulation for the transfer of the chassis no.

C. Wegner 06.08.2008 1.7/E Addition of the indicator complete

loading of conventional goods (completion indicator for partial loading).

Addition of conditions for the processes of car loading

C. Wegner 23.02.2009

1.8 / E Changes in description message type APERAK

RFF ACW, ED and ABT deleted

C. Wegner 12.06.2009

Modification service

The following DAKOSY®-service is responsible for updates, taking and processing of comments and modifications of this document:

DAKOSY AG Tel.: 040 / 37 003 421 - EDI-Services – Telefax: 040 / 37 003 370 Mattentwiete 2

20457 Hamburg E-mail: [email protected]

Configuration data:

(3)

Index of contents

1 Field of application ... 4

2 Rules and comments... 5

2.1 CODECO ... 5

2.2 COARRI... 9

(4)

1 Field of application

This document contains additional rules and comments for the transfer of container movements to DAKOSY in EDIFACT format.

It was created in addition to the Message Implementation Guide of the SMDG (User Group for Shipping Lines and Container Terminals) for the EDIFACT messages CODECO and COARRI. Moreover it provides information to the APERAK 04B, which enables you to send confirmations to reported container movements.

The Message Implementation Guides of the SMDG is online available at

www.smdg.org:

• CODECO 95B (Gate-In/Out): http://www.smdg.org/upload/itigg-codeco.zip

(5)

DAKOSY EDI-Manual

Datenkommunikationssystem AG CBS EDIFACT EDI-Rules

2 Rules and comments

The following table describes the additional rules and comments, that have to be considered, concerning the transfer of container movements to DAKOSY with the EDIFACT message CODECO or COARRI.

2.1 CODECO

EDIFACT-term Segment group (SG) Segment Data element (DE)

Content 1 Additional rules and comments

BGM DE1001 Indicator delivery

or dispatch

Mandatory field 34 Gate-In 36 Gate-Out

999 Status Change Report

999 = replacement for Gate-In for a container, packed at the terminal AAA= Transport Equipment Movement Report (repositioning) (only possible in connection with containerized goods)

BGM DE1004 Message number Message reference - technical key to identify a message. You refer to this reference i.e. in case of error messages.

BGM DE1225 Message function Mandatory field

DE1225 = 9 (original)

SG5 EQD DE8053 Indicator

conventional goods/

containerized goods

Mandatory field

BB = Breakbulk / conventional goods CN = Container

(6)

EDIFACT-term

Segment

group (SG) Segment

Data element (DE)

SG5 EQD DE8260 Container number Mandatory field in case of containerized goods (DE8053 = CN) and for vehicles (DE8053 = VT) 1

DE8260 = Container number or chassis number an..17

Please note: the letter „O“ is not allowed when transmitting the chassis no., please send 0 = zero instead.

SG5 EQD DE8169 Indicator full/

empty, blank

Mandatory field for vehicles ((DE8053 = VT) 4 = empty/ blank

5 = full

SG5 RFF DE1153

DE1154

ZAPP-reference Mandatory field for conventional goods and vehicles B-number, Z-number

Optional field for containerized goods:

The B-number or Z-number (in AES cases) shall be sent, if it is known and available.

ZAPP-reference: DE1153 = ABT

DE1154 = ZAPP-reference (B-number or Z-number) MRN: DE1153 = ED DE1154 = MRN SG5 DTM DE2005 DE2380 DE2379 Date/ time of movement Mandatory field

DE2005 = 7 (Effective date/time) DE2380 = Date/ time

DE2379 = 203 (Format CCYYMMDDHHMM)

SG5 LOC DE3227

DE3225

Port code Mandatory field

(7)

EDIFACT-term

Segment

(DEHAM = HAMBURG)

In the CODECO the segment LOC is being used in segment group 5. DE3227 = 165 (Activity Location)

DE3225 = UN-LoCode SG5 LOC C519 RELATED LOCATION ONE IDENTIFICATION DE3223 DE1131 DE3055

Terminal code Mandatory field

The DAKOSY-participant code is being used as terminal code. Please indicate the code in the same segment as the port code.

DE3223 = Code

DE1131 = TER (Terminal)

DE3055 = ZZZ (Mutually Agreed)

The DAKOSY-participant code may be reviewed at http://www.dakosy-direct.de . SG5 LOC C553 RELATED LOCATION TWO IDENTIFICATION DE3233 DE1131 DE3055

Terminal code Mandatory field in case of Transport Equipment Movement Report (repositioning)

Repositioning on the basis of a ZAPP-reference in case of

conventional goods: Indication of the terminal, which accepts the goods– the addressed terminal obtains the presentation notification (HDS/GM01) as well. – The original port order must not be cancelled. DE3233 = Code

The DAKOSY-participant code may be reviewed at http://www.dakosy-direct.de .

(8)

EDIFACT-term

Segment

DE9308 CA Carrier

CU Customs QA Quarantine

TO Terminal Operator SH Shipper

DE9308 = Seal number

SG5 FTX DE4451

DE4440

Gate-Out CPA The indicator „Gate-Out CPA“ must be sent, if the container is being moved via CPA, in order that ZAPP does not generate an error message. (CPA = Container x-ray facility)

DE4451 = OSI (Other Service Information) DE4440 = CPA

1

Within the tightened processes of the car loading the mandatory indication of the chassis-no is only required for the loading of cars, which are grouped under the term vehicles ("Positions 8701 to 8705 of the commodities chart for the foreign trade statistic").

All vehicles, which are termed as construction machinery (crane, caterpillar/ bulldozer...) in the broadest sense, are not subject to the conditions of car loading.

In case of indicating a full vehicle, additionally a gate-in for the accompanying ZAPP-Reference (can be the same as for the vehicles in case of AES) without vehicle-no is required to start the customs positioning.

(9)

2.2 COARRI

EDIFACT-term

Segment group (SG)

Segment Data element (DE)

Content Additional rules and comments

BGM DE1001 Description of the

message

Mandatory field

270 = Loading Report

BGM DE1004 Message number Message reference - technical key to identify a message. You refer to this reference i.e. in case of error messages.

BGM DE1225 Message function Mandatory field

DE1225 = 9 (Original)

SG1 TDT DE8213

DE1131 DE8212

Means of transport In order to ascertain vessel information, one of the following combinations must be sent:

1. DAKOSY Voyage number

2. Call sign+ Name of vessel+ Departure date (see DTM DE2380) 3. IMO no.+ Name of vessel+ Departure date

To 1)

DE1153 = DAKOSY-Voyage number (see DE1153) To 2)

DE8213 = Call sign, DE1131 = 103

DE8212 = Name of vessel To 3)

DE8213 = IMO number DE1131 = 146

(10)

EDIFACT-term

SG1 RFF DE1153

DE1154

DAKOSY-voyage number

DE1153 = „VON“

DE1154 = 7-digit DAKOSY-voyage number (see www.dakosy-direct.de)

SG1 LOC DE3227

DE3225

Port code Mandatory field

The UNLoCode is being used for the port code (DEHAM = Hamburg). DE3227 = 9 (Port of Loading)

DE3225 = UN-LoCode

SG1 LOC DE3223

DE1131 DE3055

Terminal code Mandatory field

The DAKOSY-participant code is being used for the terminal code. Please indicate the code in the same segment as the port code.

DE3223 = Code

The DAKOSY-participant code may be reviewed at http://www.dakosy-direct.de .

SG1 DTM DE2005

DE2380 DE2379

Date of departure Mandatory field

DE2005 = 133 (Departure Date/time, est) DE2380 = Date/time

DE2379 = 203 (CCYYMMDDHHMM)

SG3 EQD DE8053

DE8260

Container number Mandatory field in case of containerised goods DE8053 = CN (Container)

DE8260 = Container number

Mandatory field in case of loading of cars DE8053 = VT (vehicle)

DE8260 = Chassis number an..17

(11)

EDIFACT-term

no., please send 0 = zero instead.

SG3 RFF DE1153

DE1154

ZAPP-reference (B-number or Z-number)

Mandatory field in case of conventional goods, Optional field for containerised goods:

The B-number or Z-number (for AES-cases) shall be sent, if is known and available. DE1153 = ABT DE1154 = ZAPP-reference SG3 RFF DE1153 DE1156 Indicator of completeness

Mandatory field for conventional goods;

The values “J/N” are permitted; the indicator “N” refers to the fact that the procedure must not be completed, because there are still goods left at port, which belong to the Z-number, reported as loaded. The completion of loading will primary be reported to ATLAS by transmitting the indicator of completeness = „J“. The Z-number achieves the status AAG, the export customs office/ the exporter are being informed about the completion of the MRN(s).

DE1153 = ABT

DE1156 = Indicator of completeness

Valid in production system from 2009, June1st (Test 2009 April 1st)

SG3 DTM DE2005 DE2380 DE2379 Date/ time of movement Mandatory field

DE2005 = 203 (Execution Date/time) DE2380 = Date/time

DE2379 = 203 (Format CCYYMMDDHHMM)

SG3 RFF DE1153

DE1154

Transit code DE1153 = AAY

DE1154 = The first digit of the data element must be „D“ in case of transit.

SG3 SEL DE9308

DE9303

Seal number In DE9303 – Issuer of seal, coded –may be indicated: CA Carrier

(12)

EDIFACT-term

CU Customs QA Quarantine

TO Terminal Operator SH Shipper

(13)

2.3 APERAK

EDIFACT-term Segment group (SG) Segment Data element (DE)

UNH DE0054 Version number DE0054 = 04B

BGM DE1001 Description of

message

Potential values: 34 = Gate-In 36 = Gate-Out

999 = Status Change Report 270 = Loading Report BGM DE4343 Type of return RE = rejected

CA = error-free, accepted from DAKOSY

DTM DE2005

DE2380 DE2379

Date of verification DE2005 = 9 (Processing time) DE2380 = Date/ time

DE2379 = 203 (CCYYMMDDHHMM) SG2 RFF DE1153 DE1154 Relation to original message DE1153 = AGO

DE1154 = Content of BGM-reference

SG3 NAD DE3035 DE3039 Sender of APERAK DE3035 = MS DE3039 = DAK CTA DE3139 DE3412

DAKOSY Support DE3139 = BF

DE3412 = DAKOSY-Support

COM DE3148

DE3155

Telephone DE3148 = Telephone number

DE3155 = TE

SG4 ERC DE9321 Error code Three-digit DAKOSY-error code. You can download the error code list under www.dakosy-direct.de. Furthermore you find a description in the next segment (DE4440).

DE9321 = Error code

(14)

EDIFACT-term

Segment
