On / Off Electrical remote control NGE : DN 50 - DN 200 AE/GE : DN 32 - DN 150. On / Off Electrical remote control

(1)

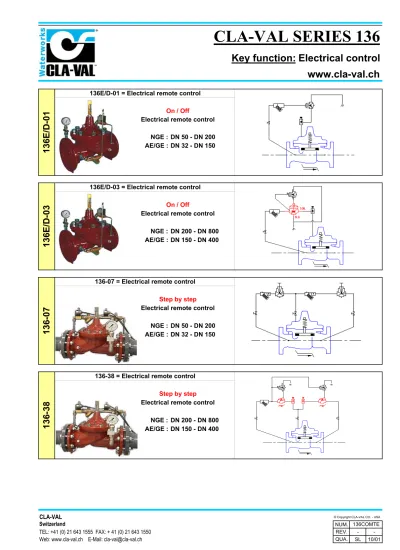

CLA-VAL SERIES 136

Key function: Electrical control

www.cla-val.ch

On / Off

Electrical remote control NGE : DN 50 - DN 200 AE/GE : DN 32 - DN 150

On / Off

Electrical remote control NGE : DN 200 - DN 800 AE/GE : DN 150 - DN 400

Step by step Electrical remote control

NGE : DN 50 - DN 200 AE/GE : DN 32 - DN 150

Step by step Electrical remote control

NGE : DN 200 - DN 800 AE/GE : DN 150 - DN 400

CLA-VAL © Copyright CLA-VAL CO. - USA

Switzerland NUM.

TEL: +41 (0) 21 643 1555 FAX: + 41 (0) 21 643 1550 REV. -

-Web: www.cla-val.ch E-Mail: [email protected] QUA. SL 10/01

136E/

D

-01

136E/D-01 = Electrical remote control

136-07

136E/D-03 = Electrical remote control

136-07 = Electrical remote control

136COMTE

136E/

D

-03

136-38 = Electrical remote control

(2)

The CLA-VAL 136E/D-01 & -03 Solenoid Control Valve is an On/Off Control Valve which either fully opens when the solenoid is energized or fully closes when the solenoid is denergized.

The Cla-Val 136E/D-01 & -03 is typically designed for industrial uses like control of process water for batching, mixing, washing or other on/off applications.

The CLA-VAL 136E/D-01 & -03 can also be used as a Level Control Valve by using a float switch sending an electrical signal to open or close the valve.

The CLA-VAL SERIES 136E/D Solenoid Control Valve is an On/Off Control Valve which either opens or closes upon receiving an electrical signal to the solenoid pilot control.

The CLA-VAL SERIES 136 Solenoid Control Valve is a Step by Step Control Valve.

P1 (bar)

CLA-VAL 136E/D-01 & -03 : Typical Application

Usual SERIES 136 Combinations

Other Functions : Please Contact CLA-VAL

CLA-VAL SERIES 136 : Main Function

Main Valve

On/Off Electrical Remote Control

AE/GE : DN 32-DN 150 / NGE : DN 50-DN 200 AE/GE : DN 150-DN 400 / NGE : DN 200-DN 600 Step by Step Control Valve

AE/GE : DN 32-DN 150 / NGE : DN 50-DN 200 AE/GE : DN 150-DN 400 / NGE : DN 200-DN 600 100-01 136E/D-01 136E/D-03 136-07 136-38 P2 (bar) 3-Way Solenoid 136E/D-01: 136001F 136E/D-03: 136003F CLA-VA L 136E /D-01 or 136E /D-03 Solen oid Co ntrol Va lve

Simple, Reliable and Accurate

· Completely Automatic Operation

· Easy Adjustment and Maintenance

· Quality Approved Materials

· World Wide Support

?

CLA-VAL 136E/D-01 & -03

On/Off Electrical Remote Control Valve

E E E 000121D 000122D 000123D Schematic Diagram

Quick Valve Selection Dimensions

Pressure Ratings & Materials Specify your Valve

More Information

Sheet #

E E

136E/D-01: 136001V

(3)

(4)

(5)

P1 (bar)

CLA-VAL 136-07 & -38 : Typical Application

CLA-VAL SERIES 136 : Main Function

P2 (bar) 3-Way Solenoid CLA-V AL 136 -07 or 136-38 Solen oid Co ntrol Va lve The CLA-VAL 136-07 & -38 is a step by step Solenoid

Control Valve for big pipes. Specially designed for applications where an electrical control of the valve is required. The solenoid pilots add or relieve pressure from the cover chamber in order to close or open the valve.

The CLA-VAL 136-07 & -38 can be configured to perform a wide range of functions, like pressure reducing, sustaining, flow control, level control, etc.

The CLA-VAL SERIES 136E/D Solenoid Control Valve is an On/Off Control Valve which either opens or closes upon receiving an electrical signal to the solenoid pilot control.

The CLA-VAL SERIES 136 Solenoid Control Valve is a Step by Step Control Valve.

Solenoid Control

Simple, Reliable and Accurate

· Completely Automatic Operation

· Easy Adjustment and Maintenance

· Quality Approved Materials

· World Wide Support

?

100-01 136E/D-01 136E/D-03 136-07 136-38

Other Functions : Please Contact CLA-VAL

Main Valve

On/Off Electrical Remote Control

Step by Step Control Valve

Usual SERIES 136 Combinations

Schematic Diagram Quick Valve Selection Dimensions

Pressure Ratings & Materials

Specify your Valve 136-07 :_{136-38 :} 136007V_136038V 000121D 000122D 000123D E E E E E

More Information

136-07 : 136007F 136-38 : 136038F Sheet # E E

CLA-VAL 136-07 & -38

Dual Solenoid Control Valve

AE/GE : DN 32-DN 150 / NGE : DN 50-DN 200 AE/GE : DN 150-DN 400 / NGE : DN 200-DN 600 AE/GE : DN 32-DN 150 / NGE : DN 50-DN 200 AE/GE : DN 150-DN 400 / NGE : DN 200-DN 600

(6)

(7)

(8)

CLA-VAL NGE 136

Standard Equipment - Standard Ausführung - Equipement Standard

www.cla-val.ch

Type CLA-VAL No. Standard Rp DN 136E/D-01 136E/D-03 136-07 136-38

311-C EVL220/50IP65-30LNI 230 V / 50 Hz 1/4"-1/8" DN 50-600 4 B 6 B 4 A-B 311-D EVL220/50IP65-30LNI 230 V / 50 Hz 1/4"-1/8" DN 50-600 4 A 6 A 6 A-B 102C-3H 71697H - 1/2" DN 150-600 4 100-KHR 100-01-727F - 3/8" DN 50-600 4 A-B 6120 RPT2021 - 3/8" DN 50-300 5 5 5 A-B 6120 RPT3021 - 1/2" DN 350-600 5 5 A-B X43 FLB4300-01 - / 0.2 mm 3/8" DN 50-300 3 3 3 X43 FLB4300-03 - / 0.2 mm 1/2" DN 350-600 3 X44-A1 FLB4406-01 0.6 / 0.2 mm 3/8" DN 50-200 3 A-B RB-117 RBL2001 - 3/8" DN 50-80 DN 50-100 DN 50-300 2 2 2 A-B-C 2 A-B-C DN 50-600 RB-117 RBL3001 - 1/2" DN 50-80 DN 50-600 DN 100-350 DN 100-600 DN 150-200 DN 350-600 2 2 A-B-C RB-117 RBL4001 - 3/4" DN 50-600 DN 250-600 RB-117 RBL6001 - 1" DN 125-600 DN 250-600

Option W1 / W1 Anti-freeze feature / Frostschutzvorrichtung / Dispositif anti-gel

Option M1 / M1 Manual operator / Handbetätigtung / Commande manuelle

Option M / M Manual operator / Handbetätigtung / Commande manuelle

Option H1 / H1 Drain to main valve outlet / Ablass in den Hauptventilsausgang / Décharge à la sortie de la vanne de base

Option H / H Drain atmosphere / Ablass in die Atmosphäre / Décharge à l'atmosphère

Option F / F Remote sensing / Entfernte Druckmessung / Mesure de pression à distance

TEL: +41 (0) 21 643 1555 FAX: + 41 (0) 21 643 1550 REV. -

-Web : www.cla-val.ch E-mail : [email protected] QUA. HvB 09/01

13600NTT

Other combinations consult Cla-Val / Weitere Varianten Cla-Val ansprechen / Autres combinaisons contacter Cla-Val

REMOTE CONTROL VALVE - ELEKTRISCHES ABSPERRVENTIL - VANNE A TELECOMMANDE ELECTR.

STANDARD PN 10/16: PILOTS / STEUERSYSTEM / PILOTES

STANDARD PN 25: PILOTS / STEUERSYSTEM / PILOTES

CLA-VAL NGE 136 : OPTIONAL FEATURES / SPEZIELLE AUSFÜHRUNG / OPTIONS

PN 25 IDEM PN10/16

(9)

CLA-VAL AE/GE 136

Standard Equipment - Standard Ausführung - Equipement Standard

www.cla-val.ch

311-C EVL220/50IP65-30LNI 230 V / 50 Hz 1/4"-1/8" DN 32-400 4 B 6 B 4 A-B 311-D EVL220/50IP65-30LNI 230 V / 50 Hz 1/4"-1/8" DN 32-400 4 A 6 A 6 A-B 102C-3H 71697H - 1/2" DN 100-400 4 100-KHR 100-01-727F - 3/8" DN 32-400 4 A-B 6120 RPT2021 - 3/8" DN 32-300 5 5 5 A-B 6120 RPT3021 - 1/2" DN 400 5 5 A-B X43 FLB4300-01 - / 0.2 mm 3/8" DN 32-250 3 3 3 X43 FLB4300-03 - / 0.2 mm 1/2" DN 300-400 3 X44-A1 FLB4406-01 0.6 / 0.2 mm 3/8" DN 32-150 3 A-B RB-117 RBL2001 - 3/8" DN 32-50 DN 32-80 DN 32-300 2 2 2 A-B-C 2 A-B-C DN 32-400 RB-117 RBL3001 - 1/2" DN 32-50 DN 32-400 DN 80-300 DN 65-400 DN 100-150 DN 400 2 2 A-B-C RB-117 RBL4001 - 3/4" DN 32-400 DN 200-400 RB-117 RBL6001 - 1" DN 100-400 DN 200-400

Option W1 / W1 Anti-freeze feature / Frostschutzvorrichtung / Dispositif anti-gel

Option M1 / M1 Manual operator / Handbetätigtung / Commande manuelle

Option M / M Manual operator / Handbetätigtung / Commande manuelle

Option H1 / H1 Drain to main valve outlet / Ablass in den Hauptventilsausgang / Décharge à la sortie de la vanne de base

Option H / H Drain atmosphere / Ablass in die Atmosphäre / Décharge à l'atmosphère

Option F / F Remote sensing / Entfernte Druckmessung / Mesure de pression à distance

TEL: +41 (0) 21 643 1555 FAX: + 41 (0) 21 643 1550 REV. -

-Web : www.cla-val.ch E-mail : [email protected] QUA. HvB 09/01

13600GTT

Other combinations consult Cla-Val / Weitere Varianten Cla-Val ansprechen / Autres combinaisons contacter Cla-Val

REMOTE CONTROL VALVE - ELEKTRISCHES ABSPERRVENTIL - VANNE A TELECOMMANDE ELECTR.

STANDARD PN 10/16: PILOTS / STEUERSYSTEM / PILOTES

STANDARD PN 25: PILOTS / STEUERSYSTEM / PILOTES

CLA-VAL AE/GE 136 : OPTIONAL FEATURES / SPEZIELLE AUSFÜHRUNG / OPTIONS
