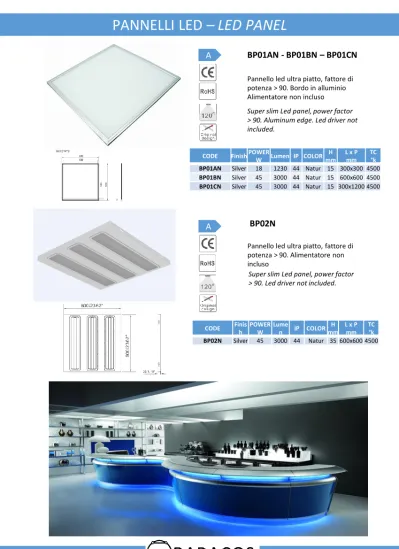

BP01AN - BP01BN – BP01CN
PANNELLI LED – LED PANEL
A
BP02N
A
CODE FinishPOWERW Lumen IP COLORmmH L x Pmm TC°k
BP01AN Silver 18 1230 44 Natur 15 300x300 4500
BP01BN Silver 45 3000 44 Natur 15 600x600 4500
BP01CN Silver 45 3000 44 Natur 15 300x1200 4500
Pannello led ultra piatto, fattore di
potenza > 90. Bordo in alluminio
Alimentatore non incluso
Super slim Led panel, power factor
> 90. Aluminum edge. Led driver not
included.
CODE Finish POWERW Lumen IP COLORmmH L x Pmm TC°k
BP02N Silver 45 3000 44 Natur 35 600x600 4500
Pannello led ultra piatto, fattore di
potenza > 90. Alimentatore non
incluso
Super slim Led panel, power factor
> 90. Led driver not included.
PANNELLI LED – LED PANEL
Pannello led ultra piatto, disponibile
nella versione alluminio satinato o
bianco. Driver led incluso
Super slim Led panel, available satin
silver or white painted aluminum. Led
driver included.
BP03SN - BP03WN
BP03AWN -BP03BWN
A
BP04SN – BP04WN
A
CODE FinishPOWERW Lumen IP COLORmmH L x Pmm TC°k
BP04SN Satin 13 800 20 Natur 13 172x172 4500
BP04WN White 13 800 20 Natur 13 172x172 4500
Pannello led ultra piatto, disponibile
nella versione alluminio satinato o
bianco. Driver led incluso
Super slim Led panel, available satin
silver or white painted aluminum. Led
driver included.
CODE FinishPOWERW Lumen IP COLOR mmH mmD TC°k
BP03SN Satin 13 800 20 Natur 13 174 4500
BP03WN White 13 800 20 Natur 13 174 4500
BP03AWN White 12 1350 20 Natur 40 155 4500
TUBI LED – LED TUBES
BTC15 - BTN15 – BTF15
A
CODE AnglePOWERW Lumen IP COLOR mmL mmD TC°k
BTC15 180 22 2400 20 Warm 1500 26 3000
BTN15 180 22 2500 20 Natur 1500 26 4500
BTF15 180 22 2600 20 Cold 1500 26 6000
Tubo a led con corpo in alluminio
per impiego ad uso interno.
Sostituibile con tubi a fluorescenza
Led tube aluminum body for indoor
use. Replaceble with a fluorescent
tube
BTC6 – BTN6 – BTF6 – BTN9
A
CODE AnglePOWER
W Lumen IP COLOR L mm D mm TC °k BTC6 180 10 1180 20 Warm 600 26 3000 BTN6 180 10 1200 20 Natur 600 26 4500 BTF6 180 10 1220 20 Cold 600 26 6000 BTN9 180 14 1400 20 Natur 900 26 4500
Tubo a led con corpo in alluminio
per impiego ad uso interno.
Sostituibile con tubi a fluorescenza
Led tube aluminum body for indoor
use. Replaceable with a fluorescent
tube
BTC12 - BTN12 – BTF12
A
CODE AnglePOWER
W Lumen IP COLOR L mm D mm TC °k BTC12 180 18 2050 20 Warm 1200 26 3000 BTN12 180 18 2100 20 Natur 1200 26 4500 BTF12 180 18 2150 20 Cold 1200 26 6000
Tubo a led con corpo in alluminio
per impiego ad uso interno.
Sostituibile con tubi a fluorescenza
Led tube aluminum body for indoor
use. Replaceble with a fluorescent
tube
Reglette LED, ideale per il
montaggio nel sottopensile;
possibilità di montaggio di 5
corpi in serie
LED reglette for undercabinet
mounting. Possibility to connect 5
item series
BRR7C – BRR7N – BRR7F
A
CODE V ac POWER W PLUG IP TC °K L x P mm H mm Lm CRI BRR7C 220 7 T5 20 3000 600x25 33 600 >80 BRR7N 220 7 T5 20 4500 600x25 33 630 >80 BRR7F 220 7 T5 20 6000 600x25 33 660 >80Reglette LED ideale per il
montaggio nel sottopensile,
possibilità di montaggio di 5
corpi in serie
LED reglette for undercabinet
mounting. Possibility to connect 5
item series
A
CODE acV POWERW PLUG IP TC°K L x Pmm mmH Lm CRI
BRR14C 220 14 T5 20 3000 1200x25 33 1200 >80
BRR14N 220 14 T5 20 4500 1200x25 33 1260 >80
BRR14F 220 14 T5 20 6000 1200x25 33 1300 >80
Reglette LED T8 ideale per il
montaggio nel sottopensile,
possibilità di montaggio di 5
corpi in serie
T8 LED reglette for undercabinet
mounting. Possibility to connect 5
item series
A
CODE acV POWERW PLUG IP TC°K L x Pmm mmH Lm CRI
BRR16C 220 16 T8 20 3000 1200x31 38 1400 >80
BRR16N 220 16 T8 20 4500 1200x31 38 1440 >80
BRR16F 220 16 T8 20 6000 1200x31 38 1480 >80
BRR14C – BRR14N – BRR14F
BRR16C – BRR16N – BRR16F
REGLETTE LED – LED REGLETTE
REGLETTE LED – LED REGLETTE
Corpo lampada per
l’installazione di 2 tubi a led T8
Tubo a led non incluso
Lamp body for two T8 led tube
installation.
Led tube not included
BRRA12
CODE acV Color PLUG IP Cover L x Pmm mmH
BRRA12 220 Grey T8 65 Plicarbon 1270x110 170
Corpo lampada per l’installazione
di un tubo a led T8
Tubo a led non incluso
Lamp body for T8 led tube installation.
Led tube not included
BRRB6 - BRRB12 - BRR15
CODE acV Color PLUG IP Cover L x Pmm mmH
BRRB6 220 Grey T8 20 Plicarbon 625x45 80
BRRB12 220 Grey T8 20 Plicarbon 1235x45 80
Led Emitter 350 mA 3,2 W
3,2 W, 350mA Led Emitter
BM1C – BM1N – BM1F
LED COB – COB LED
A
A
CODE mAI POWERW N° LED IP COLOR mmL lm TC°k P x Hmm
BM1C 350 3,2 1 20 WARM 50 240 3000 7 x 2
BM1N 350 3,2 1 20 NATUR 50 240 4500 7 x 2
BM1F 350 3,2 1 20 COLD 50 320 6000 7 x 2
Led Emitter 350 mA 3,5 W
3,5 W, 350mA Led Emitter
BM2C – BM2N – BM2F
CODE mAI POWERW N° LED IP COLOR mmD lm TC°k mmH
BM2C 350 3,5 1 20 WARM 28 240 3000 3
BM2N 350 3,5 1 20 NATUR 28 240 4500 3
BM2F 350 3,5 1 20 COLD 28 320 6000 3
Micro led con dissipatore
costampato fissione a pressione
Micro led molded aluminum heat
sink push-in fixing in pipes
A
CODE I mA POWER W N° LED IP COLOR L mm lm TC °k D Mm BM3C 350 2,7 1 20 WARM 20 120 3000 11 BM3N 350 2,7 1 20 NATUR 20 140 4500 11 BM3F 350 2,7 1 20 COLD 20 160 6000 11BM3C – BM3N – BM3F
PLAFONIERE LED – LED ROOF LAMP
Plafoniera led da soffitto e da parete
materiale termoplastico per resistere
agli agenti atmosferici
Wall and ceiling led light made of
durable weatherproof thermoplastic
material.
BE01N
A
BE03
CODE FinishPOWERW Plug IP mmH L x Pmm
BE03 Steel - GU10 65 80 156x80
Lampada up and down da parete con
attacco GU10 in acciaio INOX AISI 304
Lampadina non inclusa
Up and down ceiling lamp with GU10
plug made of AISI 304 steel .
Light bulb not included
CODE FinishPOWER
W Lumen IP COLOR H mm D mm TC °k
BE01N Black 12 810 54 Natur 100 300 4500
Plafoniera led da soffitto e da parete
materiale termoplastico per resistere
agli agenti atmosferici
Wall and ceiling led light made of
durable weatherproof thermoplastic
material.
BE02N
A
CODE FinishPOWERW Lumen IP COLOR mmH L x Pmm TC°k
FARETTI LED GIARDINO – GARDEN SPOT LED
BE04
CODE FinishPOWER W Plug IP
H mm
L x P mm
BE04 Steel - GU10 65 95 317x95
Faretto da esterno con picchetto in
alluminio
Outdoor spotlight with aluminum
spike
BE05
CODE Finis h POWER W Plug IP H mm L x P mmBE05 Steel - GU10 65 95 317x95
Apparecchio di illuminazione di
segnalazione da incasso per
istallazioni in esterni con livello di
protezione IP65 calpestabile
Lighting appliance with recessed step
lighting leds for outdoor istallation
with IP65 protection
PROIETTORI STRADALI – LED STREET LIGHT
A
A
A
CODE acV POWERW H palo m IP COLOR CRI lm TC°k D palo mm L x P x Hmm
BSS130 220 30 6 65 Natur >80 2800 6000 48/60 560x260x110
BSS160 220 60 7 65 Natur >80 5306 6000 48/60 560x260x110
Proiettore stradale a led in
alluminio fissaggio a palo
durata 50.000 ore
Led aluminum street light pole fixing
Average 50.000 h
BSS130 – BSS160
CODE V ac POWER W H palo m IP COLOR CRI lm TC °k D palo mm L x P x H mm BSS190 220 90 8 65 Natur >80 7798 6000 60/76 754x280x110 BSS1120 220 120 9 65 Natur >80 10848 6000 60/76 754x280x110Proiettore stradale a led in
alluminio fissaggio a palo
durata 50.000 ore
Led aluminum street light pole fixing
Average 50.000 h
BSS190 – BSS1120
CODE V ac POWER W H palo m IP COLOR CRI lm TC °k D palo mm L x P x H mm BSS1150 220 160 11 65 Natur >80 13470 6000 60/76 595x360x120Proiettore stradale a led in
alluminio fissaggio a palo
durata 50.000 ore
Led aluminum street light pole fixing
Average 50.000 h
PROIETTORI STRADALI – LED STREET LIGHT
Proiettore stradale a led in
alluminio fissaggio a palo
durata 50.000 ore
Led Aluminum street light, pole fixing
Average life 50.000 h
BSS30 BSS60
A
A
A
Proiettore stradale a led in
alluminio fissaggio a palo
durata 50.000 ore
Led Aluminum street light, pole fixing
Average life 50.000 h
BSS90 BSS120
Proiettore stradale a led in
alluminio fissaggio a palo
durata 50.000 ore
Led Aluminum street light, pole fixing
Average life 50.000 h
BSS150
CODE acV POWERW H palo m IP COLOR CRI lm TC°k D palo mm L x P x Hmm
BSS30 220 30 6 65 Natur >80 2800 6000 48/60 560x260x110
BSS60 220 60 7 65 Natur >80 5306 6000 48/60 560x260x110
CODE acV POWERW H palo m IP COLOR CRI lm TC°k D palo mm L x P x Hmm
BSS90 220 90 8 65 Natur >80 7798 6000 60/76 754x280x110
BSS120 220 120 9 65 Natur >80 10848 6000 60/76 754x280x110
CODE acV POWERW H palo m IP COLOR CRI lm TC°k D palo mm L x P x Hmm
RIFLETTORI LED - REFLECTOR LED
CODE V ac POWER W N°LED IP COLOR CRI lm TC °k L x P x H mm BFL10C 220 10 1 65 WARM >80 800 3000 86x115x89 BFL10F 220 10 1 65 COLD >80 900 6000 86x115x89
Riflettore a led da 10 W con
corpo in alluminio, vetro
temperato e COB led
10 W LED spotlight with aluminum
casting, tempered glass and led COB
BFL10C – BFL10F
A
CODE acV POWERW LEDN° IP COLOR CRI lm TC°k L x P x Hmm
BFL30C 220 30 1 65 WARM >80 2500 3000 185x225x110
BFL30F 220 30 1 65 COLD >80 2600 6000 185x225x110
BFL30C – BFL30F
A
CODE acV POWERW LEDN° IP COLOR CRI lm TC°k L x P x Hmm
BFL50C 220 50 1 65 WARM >80 4000 3000 290x240x168
BLF50F 220 50 1 65 COLD >80 4200 6000 290x240x168
BFL50C – BFL50F
A
Riflettore a led da 30 W con
corpo in alluminio, vetro
temperato e COB led
30 W LED spotlight with aluminum
casting, tempered glass and led COB
Riflettore a led da 50 W con
corpo in alluminio, vetro
temperato e COB led
50 W LED spotlight with aluminum
casting, tempered glass and led COB
RIFLETTORI LED - REFLECTOR LED
CODE acV POWERW N° LED IP COLOR CRI lm L x P x Hmm TC°k
BFLA50C 220 50 MULTI 65 WARM >80 4000 220x190x130 3000
BFLA50F 220 50 MULTI 65 COLD >80 4100 220x190x130 6000
BFLA70C 220 70 MULTI 65 WARM >80 5600 290x235x150 3000
BFLA70F 220 70 MULTI 65 COLD >80 5700 290x235x150 6000
Riflettore a led 50W con corpo
in alluminio, vetro temperato
e led MULTI CHIP
50 W LED spotlight with aluminum
casting, tempered glass and
MULTI-CHIP led
BFLA50C – BFLA50F
A
A
Riflettore a led con corpo in
alluminio, vetro temperato e
led MULTI CHIP
LED spotlight with aluminum casting,
tempered glass and MULTI-CHIP led
BFLA150C – BFLA150F
CODE acV POWERW N° LED IP COLOR CRI lm L x P x Hmm TC°k
BFLA150C 220 150 MULTI 65 WARM >80 12000 370x285x105 3000
BFLA150F 220 150 MULTI 65 COLD >80 13000 370x285x105 6000
A
Faro industriale a led ad alta
luminosità e basso consumo.
Ideale per illuminare
capannoni industriali
BFI100N – BFI150N
CODE acV POWERW N° LED IP COLOR CRI lm D x Hmm TC°k
BFI100N 220 100 1 65 Natur >80 7000 200 x 290 4500
BFI150N 220 150 1 65 Natur >80 9900 270 x 270 4500
Led Lighthouse hight
brightness low comsumption
for enlighten industrial sheds
RIFLETTORI LED - REFLECTOR LED
CODE V ac POWER W N°LED IP COLOR CRI lm TC °k L x P x H BFLS30C 220 30 1 65 WARM >80 2300 3000 246x225x121 BFLS30F 220 30 1 65 COLD >80 2500 6000 246x225x121
BFLS30C – BFLS30F
A
BFL30SSN
A
Riflettore a led con corpo in
alluminio, vetro temperato e
COB led sensore di movimento
50 W LED spotlight with aluminum
casting, tempered glass, LED COB and
motion sensor
Riflettore a led ultra piatto
con corpo in alluminio, vetro
temperato e COB led
LED spotlight super slim with
aluminum casting, tempered glass,
LED COB
CODE acV POWERW LEDN° IP COLOR CRI lm TC°k L x P x Hmm
RIFLETTORI LED - REFLECTOR LED
CODE acV POWERW LEDN° Angle° COLOR CRI lm D x Hmm TC°k
BFB120C 85-240 20 1 80 WARM >80 1800 110 X 98 3000
BFB120F 85-240 20 1 80 COLD >80 1700 110 X 98 6000
Faro led a binario orientabile a
360° corpo in alluminio
completo di dissipatore design
moderno.
Led spot track 20 W 360° angle
adjustable with heatsink original
design.
BFB120C – BFB120F
A
A
CODE V ac POWER W N° LED Angle ° COLOR CRI lm D x H mm TC °k BFB220C 85-240 20 1 120 WARM >80 1800 210 X 98 3000 BFB220F 85-240 20 1 120 COLD >80 1700 210 X 98 6000Faro led a binario orientabile a
360° corpo in alluminio
completo di dissipatore design
moderno.
Led spot track 20 W 360° angle
adjustable with heatsink original
design.
BFB220C – BFB220F
CODE P x Hmm COLOR mmL
BFB03N 34 x 20 BLACK 1000
BFB03B 34 x 20 WHITE 1000
Accessori per binario
Track accessories
BFB03N - BFB03B
CODE P x Hmm COLOR Shape
BFB04TN 34 x 20 BLACK T BFB04TW 34 x 20 WHITE T BFB04IN 34 x 20 BLACK I BFB04IW 34 x 20 WHITE I BFB04LN 34 x 20 BLACK L BFB04LW 34 x 20 WHITE L
