ESTEEM NOTE

(1)

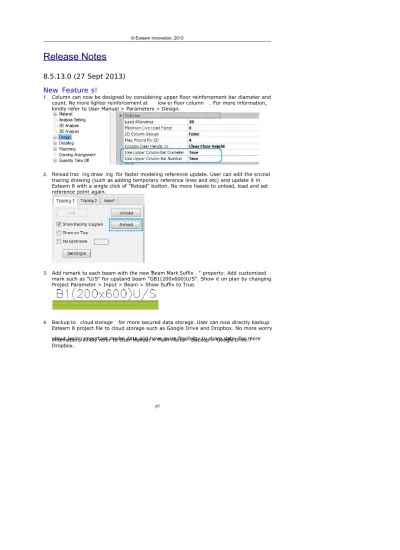

Release Notes

8.5.13.0 (27 Sept 2013)

New Feature s!

1. Column can now be designed by considering upper floor reinforcement bar diameter and count. No more lighter reinforcement at low er floor column . For more information, kindly refer to User Manual > Parameters > Design.

2. Reload trac ing draw ing for faster modeling reference update. User can edit the srcinal tracing drawing (such as adding temporary reference lines and etc) and update it in Esteem 8 with a single click of "Reload" button. No more hassle to unload, load and set reference point again.

3. Add remark to each beam with the new "Beam Mark Suffix " property. Add customized mark such as "U/S" for upstand beam "GB1(200x600)U/S". Show it on plan by changing Project Parameter > Input > Beam > Show Suffix to True.

4. Backup to cloud storage for more secured data storage. User can now directly backup Esteem 8 project file to cloud storage such as Google Drive and Dropbox. No more worry about losing important model data and have more flexibility to share data. For more information, kindly refer to User Manual > Main Menu > Bac kup > Google Drive / Dropbox.

(2)

5. Wall Plan View is now linked to Wall Detailing and Full Report. Right click on any of the wall panel to view detailing or full report for smoother verification of wall design.

6. Not Design status added to Wall Plan View. Look for new cyan color in wall plan view.

7. User can now predefinepaper size for report . Default paper size is "Letter", go to Project Parameter > Reporting > General > Paper Size to change the size.

8. Copie d/ Mirrored bea m and slab will now use same mark plus su ffix (') for ease of reference. To generate new mark for copied/mirrored beam/slab, go to Project Parameter > Input > Beam/Slab > Copy/Mirror Suffix and change it to False.

(3)

9. "Project Parameter > Detailing > Foundation > Pad/Pile > Section Detailing > Lean Concrete Drawing Thickness" parameter is now removed. User may setlean concrete thickness for foundation at Project Parameter > Quantity Take Off > Others > Foundation > Lean Concrete Thickness (mm).

10. "Frame to Frame Spacing " option added to Beam Title Block Feature. User can now set the vertical spacing between title block measured from drawing boundary. For more information, kindly refer to User Manual > Main Menu > Design Results > Multiple Beam > Beam Title Block.

11. Filter option added to Tracking Changes report. User can now use this filter to generate summary of element with changes. For more information, kindly refer to User Manual > Main Menu > Design > Tracking Changes > Filter.

8.2.259.0 (10 J une 2013)

1.

New Feature!

Beam shear reinforcement design priority. User can now choose to increase bar diameter or link loop as priority in beam design. For more information, refer to User Manual > Parameter > Project > Design > Floor > Beam.

2.

New Feature!

Foundation side bar reinforcement strength can now be customized under Project Parameter > Detailing > Foundation > Pad/Pile > Section Detailing > Side Bar Reinforcement.

3.

New Feature!

Continuous column can now be displayed as detailing rather than "Follow Top Column" text. Project Parameter > Detailing > Column > Detailing > Continuous Column Display.

4. User can now batch export beam tabulated report.

5.

New Feature!

Foundation design with consideration of backfilled soil load. For more information refer to User Manual > Parameter > Project > Design.

6. User can now toggle element appearance on key plan from right-click context menu. 7. Holding "Shift" key during beam input will invert the auto-connect beam parameter e.g. if

(4)

8.

New Feature!

Brickwall Auto Height feature to automatically compute brickwall heights according to upper and lower floor element levels. For more information, refer to User Manual > Main Menu > Input > Brickwall > Auto Height

9.

New Feature!

Break Brickwall feature to break brickwall on a beam according to different beam section drops or levels. For more information, refer to User Manual > Main Menu > Input > Brickwall > Break Brickwall.

10.

New Feature!

Beam reinforcement optimization can now be toggled on/off. User can turn off to opt for beam design with lesser number of larger diameter rebar or turn on for more number of smaller diameter rebar. For more information, refer to User Manual > Main Menu > Parameter > Design > Floor > Beam.

8.2.69.0 Net 2 (2 Oct 2012)

1. User can now choose to view either Error, Warning or both by check/uncheck the boxes as illustrated, below the Error/Warning list.

2.

New Feature!

User can now have the option of having auto-connect beam turned to True or False during input by going to Project Parameter > Input > Beam > General > Auto-connect Beam.

3.

New Feature!

Detailing for seismic case: Detailing provision for Seismic Load Analysis (Static) case based on Eurocode 8 (EC8) is now available. The detailing provision is available for code of practice EC2 and EC2 (NA to SS). For more information, refer to

o _{User Manual > Parameters > Project > 3D Analysis > Lateral Load Options >} Seismic Load Analysis (Static)

o User Manual > Parameters > Project > Design > Seismic Design

4. Grid properties' Begin Extension and End Extension is back in the latest release. User may now either use Begin Extension and End Extension grid properties or the Extend Grid or Trim Grid icon from Grid Input to extend or trim a gridline.

5.

New Feature!

Pile footing detailing: Anchorage bars projecting from piles can now be displayed in pile footing cut section detailing. For more information, refer toUser Manual > Main Menu > Parameters > Project > Detailing > Foundation > Pile > Section Detailing > Pile Anchorage Bars.

(5)

6.

New Feature!

User can now customized the Prefix of Pile in the Pile List Selection.

7.

New Feature!

Pile Mark Assignment can now be controlled in the Project Parameter > Detailing > Foundation > Pile > Label > Pile Mark Assignment > By Default or By Pile Number.

8.

New Feature!

Beam/Slab can now be defined as groundbeam /slab and can be detailed with lean concrete.

(6)

9. Cantilever Slab Top Bar will be anchored at least 45 diameter into the beam from support face. For more information, refer to Technical Documentation > Slab > Detailing > Cantilever Slab with Drop.

10.

_{New Feature!}

3D View object editing is now enabled. User can now change object properties/delete object/copy column across floors in 3D View.

11. Batch Export output folder will now automatically open for user to check the output files. 12.

New Feature!

Torsion Reduction (Virtual Beam) is now available. User can now set

Torsion Reduction for wall framing beam element. For more information, refer to User Manual > Main Menu > Parameters > 2D Analysis > Torsion Reduction (Virtual Beam) 13. Slab Point-by-Point Input can now be completed by "Enter" key.

14.

New Feature!

Input Precast Slab. User can now input Precast Slab which is similar to Roof Slab Input and assign Load Distribution direction in X-Dir, Y-Dir or Both. For more information, refer toUser Manual > Object Properties > Slab > Customised Slab.

15. Beam is now checked for negligible compressive force. For more information, refer toUser Manual > Parameters > Project > Design > Floor > Beam > Design Specification > Allowable Axial Compressive Force, %

16.

New Feature!

Project Costing is now available. For more information, refer to User Manual > Parameter > Quantity Take Off. Open Costing from the tab below for each

(7)

element and project.

17.

New Feature!

Copy Cut Section: Slab cut section can now be copied to another floor(s). For more information, refer to User Manual > Main Menu > Input > Slab > Create Cut Section.

18.

New Feature!

User can change the slab fill appearance to be according to Slab Drop Value, Dead Load Value, Live Load Value, Self-Weight Value for the ease of slab input checking. The option can be accessed through Main Menu > View > Slab > Slab Fill by.

19.

New Feature!

Beam Tabulated Report is now available. For more information, refer toUser Manual > Parameter > Reporting > Beam Tabulated Report. Open Report from the tab below for each Beam.

20. Beam Stiffness Increment parameter is now removed. All projects will run without any beam stiffness adjustment in the latest release.

21.

New Feature!

Application and Projects based setting now both can be import and export. For more information, refer toUser Manual > Parameters > Project.

22.

New Feature!

Grid Marks Elbow. User can now set the grid marks to have elbow with user defined length.

23.

New Feature!

Hide All Grids: To hide all the gridlines on the keyplan in the project. Refer toUser Manual > Main Menu > Input > Grid for more information.

24.

New Feature!

Beam Cut Section can be grouped. ReferUser Manual -> Parameters -> Detailing -> Beam -> Cut Section -> Cut Section Grouping for more information. 25. Adoption of BS8110 Part 1 Clause 3.4.5.12 in beam design.

26.

New Feature!

Upper Column in Subframe. Users now have the option whether to include or exclude upper column in the 2D sub-frame analysis. For more information, refer

(8)

toUser Manual > Parameters > 2D Analysis.

8.0.549.0 Net 2 (28 Oct 2011)

1. Column plan-based detailing: Steel percentage provided for columns can now be shown in the Column Detailing -> Plan-based Detailing.

2. Total Number of Pile points is now being displayed on pile detailing with the control of the parameter in Project Parameter > Detailing > Foundation > Pile > Others > Show Pile Point Counts > True.

(9)

3. Slab Result. The Full Report and Summary Report for individual columns'Punching

Shear checking are now available in Design Result -> Slab. The punching shear checking is available for projects having either flat slab columns or columns sitting on transfer slabs. Refer to User Manual -> Design Results -> Slab -> "Punching Shear Checking Report" for more information.

4. A minimum diameter of 12mm is now compulsory for columns longitudinal reinforcement in accordance to BS8110:1997 Clause 3.12.5.3.

5.

New Feature!

Texture and Hatch Pattern for Brickwalls. User can now select different appearance for bricks to help user to identify different brick types in 3D model and plan view. The parameter is available underPro ject Parameter > Material > Brick Properties.

6.

New Feature!

Typical Column Elevation Detailing. User can now select to include typical column elevation detailing. The parameter is available underPro ject Parameter > Detailing > Column

7.

New Feature!

Beam Title Block. User can now load title block drawing into Multiple Beam Detailing and all the beams selected will be arranged automatically. For more information, refer toUser Manual > Main Menu > Design Results > Multiple Beam > Beam Title Block

(10)

8.

_{New Feature!}

Pre-Analysis Report. Before analysis the building User can ensure that Parameters, Load Combinations, Storey Loads and Materials have been correctly defined. For more information, refer toUser Manual > Verification > Pre-Analysis Report

9.

New Feature!

Slab Opening Detail. User can now obtain Slab Opening Details. For more information, refer toUser Manual > Main Menu -> Input -> Slab -> Rectangular Opening

10.

New Feature!

Shear in Columns. Column will not design to Shear and Torsion when M/N value fulfill requirement in Part 1 Clause 3.8.4.6 for all load Cases. For more information, refer toTechnical Documentation -> Shears in Columns.

11.

New Feature!

New parameter for Quantity Take Off (QS) in Project Parameter > Quantity Take Off. User can now define steel density and foundation lean concrete thickness for QS calculation.

12. Foundation excavation calculation is now based on column/wall stump height. Previous calculation is based on stump height of 500mm.

13.

New Feature!

Generate Column Marks , previously column marks are assigned during column design. Now, user can generate c olumn marks during input. For more information, refer toUser Manual > Main Menu > Input > Column > Generate Column Marks.

14.

New Feature!

Input Roof Slab (i.e. slab with 0 thickness). User can now input Roof Slab and assign Load Distribution direction in X-Dir, Y-Dir or Both. For more information, refer toUser Manual > Object Properties > Slab > Customised Slab.

8.0.488.0 Net 2 (2

5 J uly 2011)

1.

New Feature!

Feature to generate point loads on multiple columns now available. The command is available through the Column Input's right-click context menu. Refer to the User Manual -> Main Menu -> Input -> Column -> Context Menu for more

(11)

2.

New Feature!

User may now check for any latest updates for Esteem 8 General Release through Help menu -> Check Updates. This link will direct user to the Download page for "Esteem 8 Software Updates".

3.

New Feature!

Minimum Number of Piles can now be applied individually for Column Pile Foundation in the Object Viewer.

(12)

4.

New Feature!

Show All Grids: To show all the gridlines on the keyplan in the project, including all the hidden gridlines. Refer to User Manual -> Main Menu -> Input -> "Grid" for more information.

5.

New Feature!

Archi Import Auto Locate Feature: Auto generate region for element that cannot be import due to short of grid intersection as reference point. Refer to User Manual -> Main Menu -> View -> Architectural Drawing -> Import -> Parameter(Drawing Import) -> Grid -> Grid Region -> Auto Locate.

6. Show Floor Level : To show stump and floor level in Pile and Pad Footing Section Detailing. Refer to User Manual -> Main Menu -> Parameters -> Project -> Detailing -> Foundation -> Pad -> Section Detailing and User Manual -> Main Menu -> Parameters -> Project -> Detailing -> Foundation -> Pile -> Section Detailing under "Show Floor Plan" and "Stump Height" for more information.

(13)

rearrange column mark using Rearrange Column Marks function. Input -> Column -> Column Rearrange.

8.

New Feature!

Column clear height computation can now be based on Clear Distance between End Restraints. To turn on, change Project Parameter -> Design -> Column -> Column Clear Height from Clear Floor Height to Clear Distance between End Restraints. For more information, refer to User Manual -> Parameters -> Design -> Column -> Column Clear Height.

9. Curved beam intersecting with existing beam will now be able to input. User may need to convert it to straight beam segments in order to pass project integrity check.

8.0.385.0 Net 2 (30 March 2011)

1. Further improvement in the detection of restraint elements to the wall in the calculation for wall effective height. Refer to Technical Documentation -> Wall -> Wall Effective Height for more information.

2. Updates on column input on raft. Refer to Technical Documentation -> Raft for more information.

3. User now has the option to specify the parameter for Coefficient of Moment of Inertia for all element types; slab, beam, column and wall. Refer to User Manual -> Main Menu -> Parameters -> Analysis Setting -> Coefficient of Moment of Inertia.

4. Floor selection for drop down list is added for Search Element function. Refer to User Manual -> Main Menu -> View -> Search Element.

(14)

new project created in the latest release.

6. Modification of Column Result Diagram control panel to show bottom floor 2D results. Refer to User Manual -> Main Menu -> Design Result -> Column -> Result Diagram for more information.

floor

7. Grid properties' Begin Extension and End Extension have been hidden. User may continue to use the Extend Grid or Trim Grid icon from Grid Input to extend or trim a gridline.

(15)

Settings for more information.

9. Column that is not stump and not supported by any element will now pass verification with warning message.

10. Slanting beam marking now available. User may change slanting beam prefix in Project > Slanting Beam Prefix. Refer to User Manual > Object Properties > Project for more information.

11. Column failed in link design now included in column fail report.

12. Intersecting beam point load now shown in beam loading diagram.

13. Slab brickwall can be input without 0 - 300mm limitation from another Brickwall/Load and slab edge and brickwall length can less than 300mm if Project Parameter -> Analysis Setting -> Slab Equivalent Nodal Load is set to TRUE.

14. Mirrored/Copied grid will be mark as the same and differentiate by apostrophe sign ('). For example, a new grid mirrored or copied from grid A will be mark as A'. For multiple duplications, new grids will be named as A'', A''' and so on.

15. Slanting beam result diagram now can be viewed in Elevation Result. Activate Elevation Result command and click on any slanting beam to display result diagram for the beam.

(16)

For more information, refer to User Manual > Main Menu > Analysis Result > Elevation Result.

16. Subframe view elements and nodes information will be displayed in the object viewer as an element is selected from the display by mouse click. For more information, refer to User Manual > Main Menu > Analysis Result > 2D Contour View > Subframe view.

8.0.300 Net 2 (29 Nov 2010)

1. Alternative Deflection Check (for cantilever beam only). The program will do an alternative deflection check (BS8110:1997 clause 3.4.6.3) for cantilever beam when the cantilever beam fails in the deflection check by using span/depth ratio (BS8110:1997 clause 3.4.6.3).

2. Slab top bar detailing: Tick length for dimension has been shortened.

3. Option to turn off the label for top bar location is now available in Project Parameters -> Detailing -> Slab -> Detailing -> Show Top Bar Location.

Slab top bar location is turned on Slab top bar location is turned off

4. The critical value of displacement can be shown in 3D Analysis by right-click> show max node only

(17)

5. "Wall" will be indicated on beam detailing if beam is supported by wall

6. Detailing of pad foundation for column link will be drawn all the way up

(18)

8.0.290.0 Net 2 (15 Nov 2010)

1. Released nodes for slab in 3D Mesh now can be displayed through right-click context menu. For more information, refer to User Manual -> Main Menu -> Analysis Result -> 3D Analysis Result.

2. Default color for wall mesh (in 3D Analysis Display) has been changed.

(19)

8.0.271.0 Net 2 (22 Oct 2010)

1. Batch Export for Raft Punching Shear Summary and Full Reports now available.

2. Updates in the calculation of relative stiffness for curved beams framing into columns. For more details, refer to Technical Documentation -> Column -> Column End Conditions (Out of plane cases) -> Curved beam framed into column.

3. User may now set the maximum relative stiffness for computation of column beta value. For more information, refer to User Manual > Parameters > Design > Column > Maximum Relative Stiffness

4. User may now input column across multiple floors using Advance Input . For more information, refer to User Manual > Main Menu > Input > Column > Advance Input. 5. Slanting beam is now available in beam toolbar. For more information, refer to User

Manual > Main Menu > Input > Beam > Add Slanting Beam.

6. Option for Beam Grouping is now available. For more information, refer to User Manual > Parameters > Project > Detailing > Beam > Grouping

7. Option for Rebar Editing now available in Design Result -> Single Beam -> Beam Rebar Editing.

8. Option to Group Column now available in Project Parameter -> Detailing -> Column -> Grouping -> Group Column = TRUE.

(20)

9. Column/wall sitting on a transfer slab can now be done. Refer to Technical Documentation -> Transfer Slab for more information.

10. Tracking Changes, Tracking Records, and Compare Tracking Records are now available in Design menu/toolbar. For more information, refer to User Manual > Main Menu > Design > Tracking Changes.

11. New shortcut key for QS Comparison, (CTRL + E, V). For more information, refer to User Manual > Main Menu > Design Results > Quantity Take Off > QS Comparison.

12. Beam Rebar Editing feature is now available in Design Result > Beam Rebar Editing mode.

(21)

8.0.243.0 Net 2 (21 Sept 2010)

1. Option to provide top bar for pile cap is now available. For more information, refer to User Manual -> Parameters -> Design -> Project -> Pile.

2. Slab Stiffness Adjustment by default is set to 100. For more information, please refer to User Manual> Parameters> 2D Analysis> Slab stiffness adjustment.

3. Linetype scale factor for key plan construction drawing is now available in Project Parameter -> Drawing -> Plan Drawing -> Linetype Scale Factor

For more information, refer to User Manual -> Parameters -> Drawing -> Linetype Scale Factor.

4. Linetype scale factor for detailing drawing is now available in Project Parameter -> Detailing -> Linetype Scale Factor

(22)

For more information, refer to User Manual -> Parameters -> Detailing -> Linetype Scale Factor.

8.0.208.0 Net 2 (2

9 J uly 2010)

1. Pad footing design: Option for using single bar diameter in pad footing design now available in Project Parameter -> Design -> Project -> Pad -> Main Reinforcement ->Use Single Bar Diameter .

(23)

For more information, refer to User Manual -> Parameters -> Design -> Project -> Pad -> "Use Single Bar Diameter".

2. Pad & Pile Section Detailing: Reinforcement strength for side bar diameter < 10 will now automatically switch to 'R' bar. For more information, refer to User Manual -> Parameters -> Detailing -> Foundation -> Pad and User Manual -> Parameters -> Detailing -> Foundation -> Pile.

3. Export Wall/Column Reactions report is now available. For more information, refer to User Manual -> Main Menu -> Analysis Result -> Wall and Column Reactions

4. Minimum Bent Length for Pin and Fix condition can be specified by user individually in beam detailing. This feature is under Project Parameter -> Detailing -> Beam -> Bar Bent 5. Some shortcut keys have been changed as shown below:

Before: D = Grid. F = Beam. G = Slab. H = Column. J = Wall. N = Brickwall. M = Elevation. < = Move to left icon. > = Move to right icon. After: After: Ctrl + Shift + D - Grid. Ctrl + Shift + G - Beam Ctrl + Shift + H - Slab Ctrl + Shift + J - Column Ctrl + Shift + V - Wall Ctrl + Shift + N - Brickwall Ctrl + Shift + M - Elevation Ctrl + Shift + < - Move to left. Ctrl + Shift + > - Move to right.

8.0.198.0 Net 2 (1

4 J uly 2010)

1. Beam End Option button is now available with 3 options (Auto, Pin, Fix). For more information, refer to User Manual -> Main Menu -> Input -> Beam.

2. Shortcut key to bring up "Search Element" form now available. For more information, refer to User Manual -> Esteem User Interface (UI) > Esteem Short Cut Keys.

3. Shortcut keys now available for full screen mode, and to toggle for grid, beam, slab, column, wall, brickwall and elevation input. For more information, refer to User Manual > Esteem User Interface (UI) > Esteem Short Cut Keys.

(24)

5. Measure function is now available at elevation input view. Right Click > Measure Length to activate or deactivate the function.

8.0.156.0 Net 2 (31 May 2010)

1.

New Feature!

Convert curved beams into straight beams: The feature helps to convert curved beam into straight beam segments with predefined segment length. This feature overcomes the Verification -> Plan Integrity error wherecurved beam is not supported on columns. Previously, user has to click on the intersections one by one to input the straight beams simulating the curved beams. For further details, refer to topic in User Manual -> Main Menu -> Input -> "Curve Beam".

2. Input slab between curved beams fixed. As the feature "Convert to Straight Beams" above is now available, user can input the slab in between the curved beams converted into straight beams as shown in example below. Refer to topic in User Manual -> Main Menu -> Input -> "Curve Beam" for further details.

8.0.153.0 Net 2 (25 May 2010)

1. Wall Full Report: The column for Loading Source now included in the tabulation for wall braced/unbraced condition.

2.

New Feature!

Slab support design: To skip collecting the node values within column profile is now available. Refer to Technical Documentation ->Slab ->Design

(25)

3.

New Feature!

Strut and Tie method in transfer wall: Option for design of short transfer wall is now available. Refer to Technical Documentation -> Wall -> Wall Detailing -> "Not design due to short transfer wall" for further details.

4.

New Feature!

Punching Shear Calculator: Type "Auto" is now available to automatically detect the column type, whether internal, edge or corner column. For further details, refer to User Manual -> Main Menu -> Tools -> Punching Shear Calculator.

8.0.109.0 Net 2 (7 April 2010)

1. 3D View: "Disable Pads and Piles" is removed from the 3D View's context menu because it is redundant. The hiding/displaying of the pads and piles in the 3D View can be done by floor basis. Refer to User Manual -> Main Menu -> 3D View for further details.

2. Bug in Raft Punching Shear report fixed: The lateral load results for the design moment Mt1 and Mt2 were not tabulated correctly.

Example: Tabulation of design moments Mt1 and Mt2 for lateral load cases were not tabulated correctly.

(26)

Version before 8.0.104.0 Net 2

Version 8.0.104.0 Net 2 onwards

3. Bug in Raft Punching Shear report fixed: The results for the design shear, Vt, ultimate shear capacity, Vcap and design effective shear, Veff were not tabulated correctly when there is no Column Point, beneath the column sitting on the raft foundation.

Example: The value of Vt were not captured correctly in the Raft Punching Shear Report for column sitting on raft without a Column Point for the column on the raft floor below.

Plan View Plan View

Version before 8.0.103.0 Net 2

(27)

4. Indication of beam section support number when slab failed in flexural design of slab top bar. For further details, refer to User Manual -> Main Menu -> Design Results -> Failed Elements.

5. Indication of Load Case of the occurrence of the node with large displacement in 2D Subframe View. Previously, the Load Case of occurrence is only shown in 3D Analysis Display. For further details, refer to User Manual -> Main Menu -> Analysis Result -> 2D Contour View -> Subframe View.

8.0.88.0 Net 2 (22 March 2010)

New Feature s!

1. Converting EsteemPlus project to Esteem8: The 'Beam drop with slab' feature in EsteemPlus is converted to Esteem8 by setting the beam's drop to the touching slab's drop. For more details, refer to User Manual > Main Menu > Import > Beam Drop with Slab.

2. Parameter to control the minimum steel percentage for fabric in the transverse direction now available. User is now able to control the minimum percentage of rectangle fabric reinforcement (for Type B) in the transverse direction. Previously, the fabric reinforcement was mainly based on the Minimum Steel Percentage, %. For further details, refer to User Manual > Paramters > Design > Floor > Slab.

(28)

3. Identical beam marks in projects imported from Esteem Plus to Esteem 8. Since Esteem 8 does not allow identical beam marks as in Esteem Plus, the program will automatically add a combination of character '*Serial Number' to those beams with identical beam mark during import from Esteem Plus into Esteem 8. For further details, refer to User Manual > Transitioning from Esteem Plus > Identical Beam Mark.

4. 'Delete Element' icon has been updated as shown in figure below. Previously the 'Delete Element' icon was represented by 'X' icon.

Previously Latest version

5. 3D analysis results from Stage Construction now available in Single Beam > Results Diagram. The analysis results can be obtained from the 3D Frame Analysis when Stage Construction = TRUE. For further details, refer to User Manual > Main Menu > Design Result > Single Beam > Result Diagram.

6. Warning message for columns that failed due to no restraint and thus subjected to large beta value and applied moment. Previously there was no message indicating the reason of the large applied moment. This warning message is included in the "Full Report" and list of "Failed Elements". Refer to User Manual > Main Menu > Design Results > Failed Elements for further details.

Mx and My is taken with respect to the geometrical centroid of the column Mx and My is taken with respect to the geometrical centroid of the column

(29)

Applied Bending Moment about X-X Axis = 217.3 kNm Applied Bending Moment about Y-Y Axis = 1.8E+308 kNm Bending

Bending moment moment due due to to effect effect of of slenderness slenderness is is excessive excessive because because there there is is no no restraint restraint at at x x or or y y axis axis of of the the columncolumn

8.0.67.0 Net 2 (23 Feb 2010)

New Feature s!

1. The "Table of Contents" for ALL textual reports such as Full Report, Summary Report, Loading Report, etc. are now available for easy browsing. The list in the "Table of Contents" will automatically help user to browse through the report of that particular element by clicking on the topic in the list. For further details, refer to User Manual > Main Menu > Design Results > Single Beam.

2. Steel Area Required for slab detailing can be shown on plan. Please refer to User Manual> Parameters> Detailing> Slab.

3. Slab cut section on plan can be shown in different direction. Please refer to User Manual> Parameters> Detailing> Slab> Cut Section On Plan

4. Design of elements using 2D Analysis results is not allowed if there is any transfer element exists in the project. Therefore, user is informed initially by disabling Batch Process Plan (2D) > ALL element design. Previously, user is only informed after 2D Analysis is completed. Refer to User Manual > Main Menu > Analysis > "Batch Process" topic for further details.

5. Feature to measure angles on display is now available on the right-click context menu of the display. Refer to User Manual > View > Architectural Drawing > "Open a View" for further details.

(30)

6. Size of cover that drawn for slab detailing can be defined by user without following the real cover setting. Refer to User Manual> Parameters> Detailing> Slab for further details.

7. Improvement of Auto-Fix feature to automatically solve Large Displacement nodes especially for cantilever beam sections PINNED at support. Refer to User Manual > Main Menu > Verification > Auto-Fix Changes for further details.

8. In addition of Staged Construction, both 3D Non-Staged Construction and Staged Construction analysis results for regions above wall opening are included in Wall Detailing > Full Report.

o 3D Non-Staged Construction analysis results:

o 3D Staged Construction analysis results:

9. Option either to use Transfer Beam's Staged Construction or Full Non-Staged Construction 3D Analysis result is now available in Project Parameter > 3D Analysis > Stage

Construction > Transfer Beam = TRUE/FALSE. Refer to User Manual > Parameters > 3D Analysis > Stage Construction > "Transfer Beam" for further details.

(31)

10. The row of inner ties in column reinforcement schedule can now be toggled On/Off through a new parameter called "Show Inner Ties" in Project Parameter > Detailing > Column > "Show Inner Ties" = True/False. For further details, refer to topic in User Manual > Parameters > Detailing > Column.

11. The 2D unfactored dead load and live load is now available in Design Result for beam. The result is shown in Design Results > Single Beam > Beam Result > Result Diagram tab. In the Result form, choose 2D Plan Analysis and 2D Raw Result: Dead Load or Live Load.

12. Parameter to control beam end release condition updated. The beam end release setting for beam ends sitting on another beam is now controlled by another parameter in Project Parameter > Analysis Setting > "Beam End Release Beam". Previously, beam end sitting on another beam is controlled by Beam End Release at Support. For further details, refer to topic in User Manual > Main Menu > Input > Beam > "Beam End Condition".

(32)

8.0.34.0 Net 2 (4 Jan 2010)

1. Raft Punching Shear report for raft foundation. The raft punching shear report is available in Design Result > Raft Punching Shear menu.

(33)

2. Indication of both Outer Ties and Inner Ties in column reinforcement. The reinforcement for Outer Ties and Inner Ties are now shown in Column Reinforcement Schedule and Plan Based Detailing.

Column Reinforcement Schedule P lan Based Detailing

3. Implementation of Raft Foundation. For more information on the implementation, refer to Technical Documentation > Raft.

(34)

Object Properties > Column > Stump Properties for further details.

5. Transfer wall with opening and transfer wall without side support will be marked as Not Designed. Refer to User Manual > Design > Design Wall > Strut and Tie Method for further details.

6. Bug where the column reduction factor was not updated in the analysis and causing the column to fail in the analysis is now fixed. (fixed in version 7.6.71. C Net 2.0 onwards). Meaning, unbraced slender columns which failed previously in analysis will now pass because it is now able to update the reduction factor used in reducing the moment in the analysis. Refer for summary of "Design/Analysis Result and Status" below for comparison.

Previous Relea se

Des

Designign / Anal/ Analysiysiss ResResulult andt and StaStatustus

No Process FCap FApplied MyApplied MzApplied Status Fail Mode 1 Analysis 14443.6 15799.7 316.0 3823.5 Fail Capacity

2 Analysis 9.5 9.5 105.7 2.3 Pass None

3 Design 18590.2 15984.5 111.2 1925.8 Pass None

5 Analysis 13433.0 10796.0 -1214.0 2612.6 Pass None

Latest Relea se 7.6.71.0 C Net 2.0 onw ards

Des

Designign / Anal/ Analysiysiss ResResulult andt and StaStatustus

No Process FCap FApplied MyApplied MzApplied Status Fail Mode

1 Design 18502.3 15799.7 101.1 1944.5 Pass None

5 Analysis 14672.5 10796.0 -1214.0 2085.6 Pass None

7. Column Design Full Report: Indication of short or slender column. Another column is now added in the tabulation of "Selection of Moment for Design and Analysis" to indicate whether the column is short or slender for every load case.

(35)

DE

DESISIGNGN // ANANALALYSYSISIS RERESUSULTLT

Selection of Moment for Design and Analysis Selection of Moment for Design and Analysis

No My Mz

2D/3D NeMin Mi Madd Selected Slender 2D/3D NeMin Mi Madd Selected Slender 1 101.1 - - - 101.1 No 0.0 316.0 0.0 1944.5 1944.5 Yes 2 101.1 - - - 101.1 No 0.0 0.2 0.0 2.3 2.3 Yes 3 111.2 - - - 111.2 No 0.0 319.7 0.0 1925.8 1925.8 Yes 4 111.2 - - - 111.2 No 0.0 2.8 0.0 34.2 34.2 Yes 5 -1214.0 - - - -1214.0 No 0.0 215.9 0.0 2085.6 2085.6 Yes Note

2D/3D - Moment values obtained from 2D/3D analysis process, kNm NeMin - Moment due to minimum eccentricity x design ultimate axial load, kNm Mi - Initial moment at the point of maximum additional moment, kNm Madd - Additional Moment induced by deflection, kNm

Selected - Selected moment based on greater of 2D/3D, NeMin and Mi + Madd, kNm

7.6.115. 0 C. Net 2 (20 Nov 2009)

1. Bug when not able to detect two loop link in Quantity Take Off for column solved. 2. Columns at wall end detailing. The end bars are anchored fully into the columns.

Previously, the end bars were not anchored into the columns.

3. Beam detailing. Tension lap will be used when there is a sagging moment at the support. The 2D Full Moment will be used to decide whether tension or compression lap is used. For more details, go to Technical Documentation > Beam > Detailing > "Use tension bar lapping for sagging moment at support".

4. 2D Contour View. The contour values will be displayed when moving mouse along the contour.

(36)

5. Input General Variation Load on top of RC Wall now available. For further details, refer to User Manual > Input > Wall > General Variation Load.

6. 3D Wall Contour. Arrow of Principal Stress Max, Pmax and Principal Stress Minimum, Pmin has been removed to avoid confusing direction of the stress paths. v7.6.83.0 Net 2.0 7. Individual setting for potential couple beam to be meshed as area (shell element)is now

available in Object Viewer > Beam > 3D Analysis > Use Deep Beam Mesh> True. This parameter will overwrite the global parameter in Project Parameter > 3D Analysis > Couple Beam Depth. For further details, refer to User Manual > Object Properties > Beam > 3D Analysis > Use Deep Beam Mesh.

8. The static secant modulus of elasticity of concrete, Ec can be defined manually or automatically from the Characteristic strength of concrete, fcu. Previously, the Ec cannot be defined manually.

9. 3D Wall Contour Cut : Cut section for wall contour can be done which previously cannot. Refer User Manual < Main Menu < Analysis Result < 3D Analysis Result < 3D Wall Contour < 3D Wall Contour Cut.

(37)

10. Grid Input UI : The sign of distance in Y-direction has been reversed. For further detail, refer User Manual < Main Menu < Input < Add Grid.

11. Prevent multi-instance users opening a single license of Esteem7. User is no longer allowed to open more than one Esteem7 application simultaneously. Therefore only ONE application is allowed to be opened at once.

(38)

13. Change in curve slab top bar detailing. The top bar over the support is extended to the curve slab. Previously, top bar is also provided in the curve slab, causing congested detailing in the curve slab area.

Curve slab top bar detailing

14. Enhancement of Material and Design Data in reports for every element slab, beam, column, wall, pad and pile by including the value of Static Secant Modulus of Elasticity of Concrete, Ec (N/mm2)

MA

MATETERIRIALAL ANANDD DEDESISIGNGN DADATATA

(39)

BS8110 1997: 25 22454 460 1.5 1.05

Cover( mm) Conc.U nitW eight( kN/m³) SteelU nitW eight( kg/m³)

25 24 7860

15. Wide Couple Beam meshing: Meshing of couple beam with more than one row of mesh.

16. Only Single line for the edge of the link indication if turn to False in Project Parameter> Detailing> Beam> Shear and Stirrup

17. Enhancement of Column design Full Report for clearer presentation to user.

Selection of Moment for Design and Analysis Selection of Moment for Design and Analysis

No

My Mz

2D/3D NeMin Mi Madd Selecte

d 2D/3D NeMin Mi Madd Sele cted 1 0.1 0.2 0.0 2.2 2.3 0.5 0.3 0.1 1.1 1.2 2 0.1 0.1 0.0 1.4 1.5 0.5 0.2 0.1 0.7 0.8 3 -0.1 0.4 0.0 6.0 6.0 -0.2 0.9 0.1 3.0 3.1 4 -0.1 0.3 0.0 4.1 4.2 -0.2 0.6 0.1 2.1 2.2

18. The titles for 2D and 3D Contour View is shortened to DIS, Mx, My, etc.

19. Beam top bar detailing: Tension lap is used for top bar detailing (where there are hogging moments). Previously, compression lap was used for top bar since the lapping is located at the point of change of moment sign.

(40)

20. Enhancement of slab Analysis Report. The maximum values are highlighted in the tabulation of node values from the 2D Contour View. The location of the node values are also referred to as according to either Sagging or Hogging moments (which are not located on boundary of the slab region).

Example:

Analysis

Analysis values (Sagging) of values (Sagging) of region (all nodes)region (all nodes) Moment X Local Maximum = 4.68 kNm Moment Y Local Maximum = 7.55 kNm Shear Force X Local Maximum = 0.00 kN Shear Force Y Local Maximum = 0.00 kN Displacement Maximum = 1.184 mm

Analysis values (Hogging) not on boundary of region Analysis values (Hogging) not on boundary of region Moment X Local Maximum = -3.75 kNm

Moment Y Local Maximum = -15.91 kNm Shear Force X Local Maximum = 0.00 kN Shear Force Y Local Maximum = 0.00 kN

Refer to Right-Click menu on a Slab Panel > View Analysis Report to view the enhancements.

21. Checking of column slenderness about respective axis as per Clause 3.8.1.7 and 3.8.1.8 in BS8110: 1997 now included in Column Detailing > Full Report. However, in previous version the column would still fail Automatically due to huge slenderness moment applied. The comparison is shown below:

version before 7.6.54.0 Net 2.0

Sle

Slendndernernessess CalCalculculatiationon AboAboutut Y-YY-Y AxiAxiss Column Clear Length, lo = 7510.0 mm

Lateral Force, V = 0, Use Stability Index Q = 0 for Gravity Load The Element is Braced

Relative Stiffness at Top of Element,

α

Top = 0.000 Relative Stiffness at Bottom of Element,

α

Bot = 1.000

β

1 = 0.7 + 0.05 × (

α

Top +

α

Bot) = 0.75

β

2 = 0.85 + 0.05 × Min (

α

Top,

α

Bot) = 0.85

β

= Min (

β

1,

β

2) = 0.75 < 1.0

Effective Length = leff =

β

× lo = 5632.5 mm leff / H = 5632.5 / 125.0 = 45.1 >= 15 The Column Is Slender About Y-Y Axis

Deflection of column under ultimate condition, au =

β

a × Kyy × Hyy Iyy = 36621093.8 mm^4

ryy =

√

(Iyy / Ac) =

√

(36621093.8 / 28125.0) = 36.1 mm

(41)

Initial Kyy value = 1.0

Eccentricity, eMin = H / 20 = 125.0 / 20 = 6.3 mm

≤

20 mm

Design

Design Failed

Failed

Des

Design

ign Pro

Proces

cesss Fa

Faile

iled.

d.

Cap

Capaci

acity

ty of

of sec

sectio

tion

n ins

insuff

uffici

icient

ent!!

√ (A

(Ass R

Req

equi

uire

red

d // A

Ass P

Pro

rovvid

ided

ed)) R

Rat

atio

io,, K

K fr

fro

om

m la

last

st it

iter

era

ati

tio

on

n =

=

2.29

version 7.6.54. 0 Net 2.0 onw ards

Sle

Slendndernernessess CalCalculculatiationon AboAboutut Y-YY-Y AxiAxiss Column Clear Length, lo = 7510.0 mm

Lateral Force, V = 0, Use Stability Index Q = 0 for Gravity Load The Element is Braced

Relative Stiffness at Top of Element,

α

Top = 0.000 Relative Stiffness at Bottom of Element,

α

Bot = 1.000

β

1 = 0.7 + 0.05 × (

α

Top +

α

Bot) = 0.75

β

2 = 0.85 + 0.05 × Min (

α

Top,

α

Bot) = 0.85

β

= Min (

β

1,

β

2) = 0.75 < 1.0

Effective Length = leff =

β

× lo = 5632.5 mm leff / H = 5632.5 / 125.0 = 45.1 >= 15 The Column Is Slender About Y-Y Axis

Deflection of column under ultimate condition, au =

β

a × Kyy × Hyy Iyy = 36621093.8 mm^4

ryy =

√

(Iyy / Ac) =

√

(36621093.8 / 28125.0) = 36.1 mm

β

a = (leff / ryy)² / 24000 = (5632.5 / 36.1)² / 24000 = 1.02

Clause 3.8.1.7 Slenderness limits for columns

lo / Min(b, h) = 7510 / 125 = 60.1 > 60 Slenderness

Slenderness Limit Limit is is exceeded exceeded Initial Kyy value = 1.0

Eccentricity, eMin = H / 20 = 125.0 / 20 = 6.3 mm

≤

20 mm

--

Design

Design Failed

Failed

Des

Design

ign Pro

Proces

cesss Fa

Faile

iled.

d.

Cap

Capaci

acity

ty of

of sec

sectio

tion

n ins

insuff

uffici

icient

ent!!

Sl

Slen

ende

dern

rnes

esss li

limi

mitt by

by co

code

de of

of pr

prac

acti

tice

ce ex

exce

ceed

eded

ed

√ (A

(Ass R

Req

equi

uire

red

d // A

Ass P

Pro

rovvid

ided

ed)) R

Rat

atio

io,, K

K fr

fro

om

m la

last

st it

iter

era

ati

tio

on

n =

=

2.29

22.

Warning

:

Any version before 7.6.42.0 for the transfer wall(Not whole length of wall) sitting on the intersecting beam does not plot the Shear and Moment diagram correctly. It will cause the shear force and moment which is taken in the 3D analysis might be not correct.

(42)

However, it Doesn't Affect the wall which is in full length(With Continuous Shear Wall) that sitting at the intersecting beam .Only the wall(With Breaking Shear Wall) sitting at the intersecting beam, the shear force and moment diagram are interpreted wrongly.

(43)

With Continuous Shear Wall

3D shear force and moment diagram on beam 6F63 (Correct)

With Breaking Shear Wall

3D shear force and moment diagram on beam 6F63 (Wrong)

You can study the example " Transfer shear wall at intersecting beam ( With Breaking Shear Wall) & Transfer shear wall at intersecting beam (With Continuous Shear Wall)" provided in the installation CD under sub-folder "\Projects" for clarity.

Open the project. Batch run 2D and 3D analysis with beam design. Observe the shear force and moment from Design Result> Single Beam> 6F63> Result Diagram> 3D Frame Analysis 23. Re-arranged the location of 'Add Point Load on Column' icon for clarity and consistent with

Wall Point Load input.

24. Allowable Percentage is available in Project Parameter> Design> Project> Pile to let user to set the percentage whether to allow the large footing is designed which the self-weight

(44)

Menu> Design> Pile Footing> Allowable Percentage.

25. User can choose either envelope moment or most critical case moment to run the Pile Design. Please refer to documentation in UserManual> Main Menu> Design> Pile Footing> To Use Envelope Moment Run Pile Design

26. User can choose either envelope moment or most critical case m oment to run the Pad Design. Please refer to documentation in UserManual> Main Menu> Design> Pad Footing> To Use Envelope Moment Run Pad Design

27. Indication of moment in Pad Footing when there is moment.

28. Column offset and column marks are now shown in foundation detailing. Column marks will only be shown after Column Design is done.

29. Auto-connect beams. Implemented for beams that are being input ONLY along the same gridlines in section but not as a whole beam. Refer to User Manual > Main Menu > Input > Beam > Merge for further details.

30. Improved integrity checking when new Grid Region is added at the same point of an existing Region. This is to avoid overlapping regions.

31. Bug in beam stirrup detailing for small beam section near support face fixed (inaccurate distance for link placement which was taken from centre of support).

32. Enhancement on Beam Detailing. Grid Circle and Grid Line are separate entities. Link and Link Range Line are separate entities.

(45)

33. Grid Mark and Grid Circle to be separate entity. User can view this new layer in Project Parameter > Drawing > Layer Settings

7.6.21.0 C .Net 2 (3 Sept 2009)

1. Shear and Torsion Design Calculation for beam: Tension steel area provided now shown in Full Report.

Tension Steel Area Provided = 603 mm²

- Table 3.8: Values of

ν

c, design concrete shear stress

Steel Percentage, 100 × As / (bv × d) = 0.361 % < 3.0 %

2. Wind Load Input Comply to CP65 is now available. Please refer to User Manual > Main Menu > Input > Lateral Load > Wind Load Value and Technical Documentation > Loading > Wind Loading > Wind Load Input Comply to CP65 for further details.

3. Report enhancement for beam called Summary Report is added in the batch export.

4. When Free Node Check is TRUE and click to Generate Mesh, a warning message will pop up to notify user the number of free nodes found in the mesh. Previously no warning message pop up to notify user.

5. Input range for Multiple Grid Input distance is now increased to -50000mm to 50000mm. Previously input range was only from -10000mm to 10000mm.

(46)

6. Vertical help line in Elevation Input to help user align the wall opening precisely

7. To show the slab cut in the key plan. Set True for Slab Cut in Project Parameter> Drawing Arrangement

8. Beam detailing span cut. The parameter for beam detailing span cut is now available in: Project Parameter > Detailing > Beam > Span Cut. Refer to User Manual > Parameter > Detailing > Beam > Span Cut for further details.

Beam detailing before Span Cut

(47)

9. Wall design: Indication of steel percentage in calculation for both Full Report and Summary Report.

Full Report

Sub-Panel Applied Axial Force, F = 138.6 kN138.6 kN Sub-Panel Axial Force Capacity, FCap = 15142.6 kN15142.6 kN Sub-Panel Applied Moment About X-X Axis, Mx = 0.0.00 kNkNmm Sub-Panel Moment Capacity Abou t X-X Axis, MxCap = 0.0.00 kNkNmm Sub-Panel Applied Moment Abou t Y-Y Axis, My = 0.0.00 kNkNmm Sub-Panel Moment Capacit y About Y -YAxis, MyCap = 0.0.00 kNkNmm Wall

Wall Sub-Panel Sub-Panel Analysis/DesignAnalysis/Design Passed Passed

Vertical Reinforcement Provided: 36T12-1-275 (0.41%) Vertical Reinforcement Provided: 36T12-1-275 (0.41%)

Summary Report

Wal

Walll DesDesignign SumSummarmaryy TabTablele Floor Group

ID Core ID Panel Sub-Panel V-Rebars H-Rebars Status Remark gb 1 1 1/A-B Sub Panel 1

(Reg. 1)

36T12-1-27 5 (0.41%)

2 X

10T10-300 Pass

(48)

11. Allowable range for column and RC Wall stump height is between 500mm to 30000mm. Previously no maximum limit for the c olumn and RC Wall stump height.

12. New specification for the distribution of Torsion Longitudinal perimeter bar. Refer to topic in Technical Documentation > Code of Practice > BS8110: 1985 only > Distribution of Torsion Longitudinal Perimeter Bar for the details and example.

13.

New Feature!

Slab thickness indication in Floor Keyplan and Slab Detailing. The slab thickness shown on floor keyplan is now only the one which is different from the U.N.O (Unless Noted Otherwise). Refer to User Manual > Object Properties > Plan for further details.

(49)

14. Bug in Slab Cut Section detailing for internal panel now fixed (slab cut for internal panel shows slab is discontinuous although slab is continuous).

15. Now when user set Beta value for column manually through Object Viewer, the default value will be 1.0. Previously the default value is zero (0). With this new setting, it will always return to the default value 1.0 whenever the value entered is not within the range allowed.

16.

New Feature!

Tracing an architectural drawing: With this new feature, two drawings can now be viewed on a keyplan.

Eg: To do Tracing based on the current floor, upper floor or bottom floor for comparison.

17. Enhancement in Multiple Architectural Drawing import. Now Incremental Import for Grid is applicable for addition of new grids on an amended drawing. Refer to User Manual > Main Menu > View > Architectural Drawing > Import > Multiple Import of Architectural Drawing for further details.

18. Default setting for Beam End Release Support is now Pinned. If any large displacement issue arises, the auto-fixing of the large displacements can now be overcome by using the Auto-Fix feature.

(50)

19.

New Feature!

Floor name now shown in: a) Keyplan (input display), b) Slab top and bottom bar detailing.

20.

New Feature!

Showing of upper and lower beams, slabs, brickwalls and walls from upper and lower floor now available! Refer to User Manual > Main Menu > View > "Show Objects from Upper Floor" and "Show Objects from Lower Floor" for feature details. 21. Correction in the Characteristic Strength used for stirrup bar in Shear and Torsion

Reinforcement for beam design when using smallest bar, R.

Now whenever the link bar diameter is using the smallest bar, R, it will use the Characteristic Strength of Stirrup bar specified in:

o Parameter > Design > Special Design > Characteristic Strength of Stirrup Bar,

regardless of the parameter "Maximum Beam Width".

22.

New Feature!

Shortcut keys to toggle element marks now available in "Beam Results" mode! By default, now only the beam markings are shown to avoid congested plan display of "Beam Results" mode. Other element marks can be turned on when needed using their respective shortcut keys.

(51)

23.

New Feature!

Auto detects the common source of problems for large displacement issue through Auto-Fix!

Refer to topic in User Manual > Verification > Auto-Fix Changes for more details.

24.

_{New Feature!}

Applied loadings on beams are now shown on keyplan!

25.

Warning

:

Bug of discrepancy between slab top bar detailing and detail calculation in Full Report in version before 7.5.147.0 C Net 2.0.

Refer to example of top bar detailing for slab FS29 below:

(52)

o _{But in Full Report and Failed Element list, the slab actually "Failed in Flexural}

Design of Slab Top Bar for Slab".

FEM Slab Analysis Result for Support 254 FEM Slab Analysis Result for Support 254

Design Bending Moment from FEM Analysis = -61.47 kNm/m Unfactored Displacement from FEM Analysis = 0.1632 mm Design Calculation for Support 254

Design Calculation for Support 254 RC Wall Mark = LC0: Bi/7a1G-6a RC Wall Mark = LC0: Bi/7a1G-6a Slab/Sub-Slab Mark = FS29:1 Slab/Sub-Slab Mark = FS29:1 Th

Thicicknknesesss ofof SlSlabab == 151500 mmmm

Average Concrete Stress above Neutral Ax is, k1 = 0.40 × 30.0 = 12.12 N/mm² Concrete Lever Arm Factor, k2 = 0.4518

Limiting Effective Depth Factor, cb = 0.50

Limiting Concrete Moment Capacity Factor, kk1 = cb × k1 × (1 - cb × k2) = 0.50 × 12.12 × (1 - 0.50 × 0.4518) = 4.691N/mm² k2 / k1 Factor, kkk = 0.037

Mu / bd² = 61.5 × 1000000 / (1000.0 × 109.0²) = 5.174 N/mm² Mu / bd² = 5.174 > 4.691

Design

Design for for singly singly reinforced reinforced failed failed and and cannot cannot design design as as doubly doubly reinforced reinforced Design

Design Failed, Failed, not not able able to to provide provide reinforcement reinforcement

26. The Out of Memory message will notify user when the project is running out of memory. Refer to FAQ > Error Message > Out of Memory, for further details.

(53)

27. Now, there is an error message to notify user if wrongly defined brickwall height (where new minimum height should be 100mm, in milimeter). Previously when user mistakenly assume that the input value is in meter (say, 5m height brickwall. User might input 5 instead of 5000), no error message is shown to notify user.

28. The below model will show Free Node after analysis due toAlternative Model in Project Parameter been turned to TRU E ( Fo r Es te em 7.5 .1 60 be lo w ) .

However the problem is solved inEstee m 7.5.160

29. For short beams not connected to slab, now the midpoint is created to get the exact midspan moment. For example:

(54)

30. Notify user the governing minimum torsion link spacing as specified by the code without failing in torsion design.

Previous version

Current version

31. Now, the diagonal grid can be copied either to the floor below or floor above.

32. Rotation of Main Grids in every Regions are now not allowed. Thus all the Main Grids in Regions must be in 90 degrees.

33. Enhancement in beam detailing. Reduce numbers of lapping at the bottom layer of reinforcement. If the bar size is the same, the bar will be pulled over without lapping.

(55)

Current version

34. Enhancement in beam detailing. The grid line and lapping lengths are now more compact. The cut sections are shifted away from the labels to avoid overlapping layers.

Previous version

(56)

35. Auto locking of beam intersections in the verification checking.

Previously the beams ends with such configuration would cause an error message for user to check and modify their model manually as shown below.

36. When the foundation failed in design due to uplift force, user needs to refer to Footing Design Loading Table in Full Report to identify uplift force himself.

37. Additional statement is now shown for the design that governs the link spacing provided as shown below in Beam Result > Full Report > Shear and Torsion Design Calculation.

Governed by Statement

Buckling check Shear Shear Reinforcement Reinforcement Provided Provided : : T10-125 T10-125 (Link (Link spacing spacing is is governed governed by by buckling buckling check)check) Maximum spacing

defined by user setting

Shear

Shear Reinforcement Reinforcement Provided: Provided: T10-250 T10-250 (Link (Link spacing spacing is is governed governed by by user user setting)setting)

Torsion reinforcement

Shear

Shear And And Torsion Torsion Reinforcement Reinforcement Provided Provided : : T10-175 T10-175 (Link (Link spacing spacing is is governed governed byby torsion)

torsion)

38.

New Feature!

Flush brickwall to the left, right or centre of beam is now available! Refer to User Manual > Main Menu > Input > Brickwall for more details.

(57)

40. Improved Beam Result Diagram form: All-in-one screen:

41. Lapping and anchorage for side bar

42. Rebar spacing warning in Beam Full Report can now be turned On/Off in Parameter > Detailing > General > Rebar Spacing Warning.

Warning, Top spacing between steel bars is insufficient, minimum clear spacing required by user is 30 mm Warning, Top spacing between steel bars is insufficient, minimum clear spacing required by user is 30 mm

(58)

Menu > Input > Column > Column Rotate.

44. Wall effective height calculation: Consideration of transverse beam and transverse wall. The stiffness of each restraint element at the top and bottom of wall zone are tabulated accordingly. Refer to examples provided under topic "Wall Effective Height" in Technical Documentation.

Slend

Slendernesernesss ResuResultlt

Wall Clear Height, lo = 6600 mm

Top Element Stiffness, KeTop =

∑

KsTop +

∑

KbTop +

∑

KtwTop = 2529228.6 mm³ Bottom Element Stiffness, KeBot =

∑

KsBot +

∑

KbBot +

∑

KtwBot = 7762500.0 mm³ Wall Stiffness, Kw = 1610795.5 mm³

Restraint

Restraint Elements at the top pElements at the top part of wall zoneart of wall zone No. Elememt

Type Mark Width a, mm Depth b, mm

Length L,

mm Angle

α

, ° K

1 Slab FS1:1 3150 115 3000 90.0 798459

2 Beam 2B1(125x600) - 1 125 600 7800 90.0 1730769 Note

K = 0 when the element is skipped from computation of restrain condition, please refer to the technical documentation K = |Sinα| × [a × b³ / (2 × L)]

Restraint

Restraint Elements at the botElements at the bottom part of wall zonetom part of wall zone No. Elememt

Type Mark Width a, mm Depth b, mm

Length L,

mm Angle

α

, ° K 1 Beam GB6(200x600) - 1 200 600 3000 90.0 7200000 2 Beam GB37(125x300) - 1 125 300 3000 90.0 562500 Note

K = 0 when the element is skipped from computation of restrain condition, please refer to the technical documentation K = |Sinα| × [a × b³ / (2 × L)]

45. Enhancement in rc wall reporting: Wall short/slender condition tabulation.

46. Wall is designed for gravity and lateral loading cases. Thus not able to determine in which load case does the wall is in tension or compression. To solve this problem, the area of reinforcement used in shear design for wall will now use 0.15% which is more

(59)

47. Enhanced and more compact reporting in Wall Shear Design Checking Calculation .

48. The loading shown on pad footing detailing is the equivalent design service load, (equivalent column load + pad footing self-weight). Please refer to User Manual > Main Menu > Design Results > Pad Footing > Detailing for detailed explanation.

7.5.84.0 C .Net 2 (11 May 2009)

1.

Warning

:

Bug in the calculation ofK (reduction factor that corrects the deflection to allow for the influence of axial load) fixed for wall design. The bug is more prominent in cases of longer slender wall as additional slenderness moment is a function of K and h (height of wall). The incorrect calculation ofK will result in a lower slenderness moment hence rendering the wall to be under design. This bug was fixed in version 7.5.44.0 onwards.

You can study the example "Slender wall design-7.5.42.0-2503091201.zip" provided in the installation CD under sub-folder "\Projects" for clarity.

Open the project. Batch run 2D and 3D analysis with wall design. Click "Design Report > Wall" and check on the summary report.

Wal

Walll DesDesignign SuSummammaryry TabTablele Floor Group

ID Core ID Panel Sub-Panel V-Rebars H-Rebars Status Remark

1b 1 1 A/1-2 Sub Panel 1

(Reg. 1) 26T32-50 2 X

23T10-250 Fail

Wall Failure due to inssuficient section

capacity

The wall would fail in design.

If you create the same model and repeat the same steps mentioned above in version lower than 7.5.44.0 you will find that the wall will pass in design.

2.

_Warning

_:

Any version before 7.5.7.0 does not take into consideration the 3D Analysis results for the shear/torsion design of beams. Critical it will cause under design in shear/torsion of transfer wall partially sitting on transfer beam as the design of this beam requires the 3D results which is not taken into account.

(60)

You can study the example "Partial transfer wall-7.0.362.0-0705091447.zip" provided in the installation CD under sub-folder "\Projects" for clarity.

Open the project. Batch run 2D and 3D analysis with beam design. Observe the shear force from the "Plan Loading and Result Diagram"

2D sh ear f or ce di agr am o n b eam g b1 3D sh ear f or ce d iagr am o n b eam g b1

Open the beam design full report and check the shear & torsion design calculation. SH

SHEAEARR && TOTORSRSIOIONN DEDESISIGNGN CACALCLCULULATATIOIONN

LO

LOCATCATIONION :: SESECTCTIONION 11 LELEFT FT SUPSUPPORPORTT (B:

(B:00 mmmm EE:1500 mm from le:1500 mm from le ft grid of spaft grid of span)n) Ma

Maxiximumumm ToTorsrsioionn wiwiththinin ZoZonene,, TT == 1919.6.6 kNkNmm Shear at Location of Maximum Torsion, V = 251.8 kN Shear at Location of Maximum Torsion, V = 251.8 kN

(61)

The design shear of 251.8 kN is taken correctly from the 3D analysis results.

If you run the same model with a version lower than7.5.7.0 you will discover that the 2D analysis results will be chosen hence the bug!

When the wall sits across the whole length of the beam between the column, the strut and tie method would be employed to design the beam hence beam is deemed safe. In cases of transfer columns the accumulation of loading from all upper floor 2D analysis are generally more conservative than the 3D analysis results. User are advice to check and satisfy themselves with the design results.

This bug has been fixed from version7.5.7.0 onwards.

3. Slenderness ratio of wall design is now checked against "Limits of Slenderness" (version_7.5.89.0). 4. Beam mark using grid info as mark previously not shown in design report is fixed. 5. Column On Beam(COB) must now be fully supported to integrity chec k.(Figure 2 &

Figure 3 )

Figure 1 : The error message will warn user regarding the COB is not fully supported

Figure 2: The COB is Not Fully Supported

Figure 3: The COB are Fully Supported

6.

Reminder

:

To avoid multi-grids at intersection as in example in the model below, user gird trimming.

(62)

This is to avoid the element locking into different nodes, to prevent inaccurate meshing. User can trim grid lines to such an extent that it does not produce unnecessary grid nodes (generated at intersection of grid lines) using trim gridline .

7. Continuous column (not from lowest floor) going down to foundation support condition now strictly follows the 3D column support parameter.

8. Wall restraint information window pops up at the right click command of a wall selected. 9. Beam mark parameter "Show Dimension" default set to TRUE.

10.

New ! QS

Obtained from menu "Design Results > Quantity Take Off " 1.1. Quantity take off for beam reinforcement.

(63)

1.3. Incremental select possible for QS. At input menu, select elements, then right click to Update QS . Only selected elements will be accounted for in the QS table.

11.

New!

A faster and more efficient solver has been implemented. Sample performance as follows (vertical axis in hours).

12. Implemented wall restraint info as context right click option when a wall is selected. 13. Unfactor beam reaction now shown in beam details, "Full Report" and "Summary Report".

BEAM SU PP ORT RE ACTI ON TABLE

Current Beam Grid Mark: C Beam Support Reactions

Support No. Grid Mark Support Type Support Reaction, kN

Dead Load Live Load

1 3A Column 12.3 3.1

2 5 Wall 22.3 5.0

3 6 Wall 5.2 0.4

14. Torsion reduction parameters default set to 99% for both 2D and 3D Analysis.
