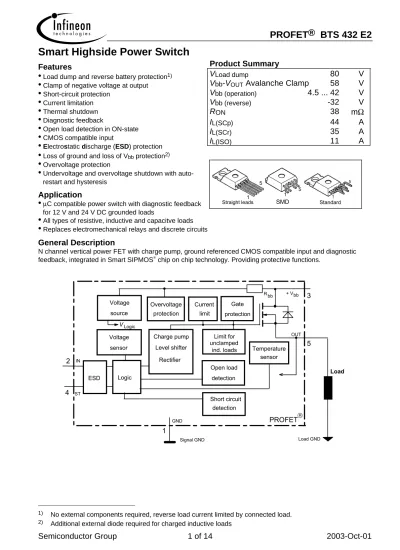

Smart Highside Power Switch

(1)

PROFET® BTS 432 E2

Smart Highside Power Switch

Features

• Load dump and reverse battery protection1)

• Clamp of negative voltage at output

• Short-circuit protection

•_{Current limitation} • Thermal shutdown

•_{Diagnostic feedback}

• Open load detection in ON-state

•_{CMOS compatible input}

• Electrostatic discharge (ESD) protection

• Loss of ground and loss of Vbb protection2)

•_{Overvoltage protection}

• Undervoltage and overvoltage shutdown with auto-restart and hysteresis

Application

•_µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads

• All types of resistive, inductive and capacitve loads

•_{Replaces electromechanical relays and discrete circuits}

General Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, integrated in Smart SIPMOS chip on chip technology. Providing protective functions.

+ Vbb IN ST Signal GND ESD PROFET OUT GND Logic Voltage sensor Voltage source Open load detection Short circuit detection Charge pump

Level shifter Temperature

sensor Rectifier Limit for unclamped ind. loads Gate protection Current limit 2 4 1 3 5 Load GND Load V_Logic Overvoltage protection Rbb

1) No external components required, reverse load current limited by connected load.

2)_{Additional external diode required for charged inductive loads}

Product Summary

VLoad dump

80 V

Vbb

-VOUT Avalanche Clamp

58 V

Vbb (operation)

4.5 ... 42

V

Vbb (reverse)

-32

V

RON

38 m

Ω

IL(SCp)

44 A

IL(SCr)

35 A

IL(ISO)

11 A

1 5 Straight leads 1 5 SMD 5 Standard

(2)

BTS 432 E2

Pin Symbol

Function

1 GND

-

Logic

ground

2 IN

I

Input, activates the power switch in case of logical high signal

3 Vbb

+

Positive power supply voltage,

the tab is shorted to this pin

4 ST

S

Diagnostic feedback, low on failure

5 OUT

(Load, L)

O

Output to the load

Maximum Ratings at T

j

= 25 °C unless otherwise specified

Parameter Symbol

Values

Unit

Supply voltage (overvoltage protection see page 3)

V

bb

63 V

Load dump protection V

LoadDump

= UA + Vs, UA = 13.5 V

RI= 2

Ω

, RL= 1.1

Ω

, td= 200 ms, IN= low or high

V

s3)

66.5 V

Load current (Short-circuit current, see page 4)

I

L

self-limited

A

Operating temperature range

Storage temperature range

T

j

T

stg

-40 ...+150

-55 ...+150

°C

Power dissipation (DC)

P

tot

125 W

Inductive load switch-off energy dissipation,

single pulse

T

j=150 °C:

E

AS

1.7 J

Electrostatic discharge capability (ESD)

(Human Body Model)

V

ESD 2.0

kV

Input voltage (DC)

V

IN

-0.5 ... +6

V

Current through input pin (DC)

Current through status pin (DC)

see internal circuit diagrams page 6...

I

IN

I

ST

±

5.0 ±

5.0 mA

Thermal resistance

chip - case:

junction - ambient (free air):

R

thJC

R

thJA

≤

1 ≤

75 K/W

SMD version, device on pcb

4)

_:

≤

_tbd

3) _V

S is setup without DUT connected to the generator per ISO 7637-1 and DIN 40839

4_{) Device on 50mm*50mm*1.5mm epoxy PCB FR4 with 6cm}2_{(one layer, 70}µ

m thick) copper area for Vbb connection. PCB is vertical without blown air.

(3)

BTS 432 E2

Electrical Characteristics

Parameter and Conditions Symbol

Values

Unit

at Tj = 25 °C, Vbb = 12 V unless otherwise specified

_{min typ}

_max

Load Switching Capabilities and Characteristics

On-state resistance (pin 3 to 5)

IL = 2 A

T

j=25 °C:

T

j=150 °C:

R

ON

--

30

55

38

70 m

Ω

Nominal load current (pin 3 to 5)

ISO Proposal: V

ON

= 0.5 V, T

C

= 85 °C

I

L(ISO)

9

11 --

A

Output current (pin

5

) while GND disconnected or

GND pulled up, VIN= 0, see diagram page 7,

T

j

=-40...+150°C

I

L(GNDhigh)

-- -- 1

mA

Turn-on time

to 90% V

OUT

:

Turn-off time

to 10% V

OUT

:

R

L

= 12

Ω

, T

j

=-40...+150°C

t

on

t

off

50

10

160 --

300

80 µ

s

Slew rate on

10 to 30% V

OUT, RL = 12

Ω

, T

j

=-40...+150°C

dV /dt

on

0.4 --

2.5 V/

µ

s

Slew rate off

70 to 40% V

OUT

, R

L = 12

Ω

, T

j

=-40...+150°C

-dV/dt

off 1

--

5 V/

µ

s

Operating Parameters

Operating voltage

5

)

_T

_j

_{=-40...+150°C: V}

bb(on)

4.5 --

42 V

Undervoltage shutdown

T

j

=-40...+150°C: V

bb(under)

2.4 --

4.5 V

Undervoltage restart

T

j

=-40...+150°C: V

bb(u rst)

--

4.5 V

Undervoltage restart of charge pump

see diagram page 12

T

j

=-40...+150°C:

V

bb(ucp)

-- 6.5 7.5

V

Undervoltage hysteresis

∆

V

bb(under)

= V

bb(u rst)

- V

bb(under)

∆

V

bb(under)

-- 0.2 --

V

Overvoltage shutdown

T

j

=-40...+150°C: V

bb(over)

42 --

52 V

Overvoltage restart

T

j

=-40...+150°C: V

bb(o rst)

42 -- --

V

Overvoltage hysteresis

T

j

=-40...+150°C:

∆

V

bb(over)

-- 0.2 --

V

Overvoltage protection

6)

_T

_j

_=-40°C:

Ibb=40 mA

T

j

=25...+150°C:

V

bb(AZ)

60

63 --

67 --

V

Standby current (pin 3)

T

j=-40...+25°C:

VIN=0

T

j=150°C:

I

bb(off)

--

12

18

25

60 µ

A

Leakage output current (included in Ibb(off))

VIN=0

I

L(off)

-- 6 --

µ

A

Operating current (Pin 1)

7)

_{, VIN=5 V}

_I

GND

-- 1.1 --

mA

5) At supply voltage increase up to V_bb_{= 6.5 V typ without charge pump, V}_OUT_≈_V_bb_{- 2 V}

6) _{see also V}_ON(CL)_{in table of protection functions and circuit diagram page 7. Meassured without load}_. 7) _{Add I}_ST_{, if I}_ST_{> 0, add I}_IN_{, if V}_IN_{>5.5 V}

(4)

BTS 432 E2

Parameter and Conditions Symbol

Values

Unit

min typ

max

Protection Functions

8)

Initial peak short circuit current limit (pin 3 to 5)

9)

_,

(

max 400

µ

s if VON > VON(SC) )

I

L(SCp)

T

j =-40°C:

T

j =25°C:

T

j =+150°C:

--

24 --

44 --

74 --A

Repetitive short circuit current limit

I

L(SCr)

T

j

= T

jt

(see timing diagrams, page 10)

22

35 --

A

Short circuit shutdown delay after input pos. slope

V

ON

> V

ON(SC)

,

T

j =-40..+150°C:

min value valid only, if input "low" time exceeds 30 µs

t

d(SC)

₈₀

_{-- 400}

_µ

_s

Output clamp (inductive load switch off)

at V

OUT

= V

bb

- V

ON(CL),

I

L= 30 mA

V

ON(CL)

--

58 --

V

Short circuit shutdown detection voltage

(pin 3 to 5)

V

ON(SC)

--

8.3 --

V

Thermal overload trip temperature

T

jt

150 -- --

°C

Thermal hysteresis

∆

T

jt

-- 10 --

K

Inductive load switch-off energy dissipation

10)

_,

T

j Start

= 150 °C, single pulse

V

bb = 12 V:

V

bb = 24 V:

E

AS

E

Load12

E

Load24

-- --

1.7

1.3

1.0 J

Reverse battery (pin 3 to 1)

11

)

_-V

bb

--

32 V

Integrated resistor in Vbb line

R

bb --

120 --

Ω

Diagnostic Characteristics

Open load detection current

T

j=-40 °C:

(on-condition)

T

j=25..150°C:

I

L (OL)

2

2 --

--

900

750 mA

8_{) Integrated protection functions are designed to prevent IC destruction under fault conditions described in the}

data sheet. Fault conditions are considered as "outside" normal operating range. Protection functions are not designed for continuous repetitive operation.

9_{) Short circuit current limit for max. duration of 400}_µ_{s, prior to shutdown (see t}

d(SC) page 4)

10)_{While demagnetizing load inductance, dissipated energy in PROFET is E}

AS= VON(CL) * iL(t) dt, approx.

EAS= 1/₂_{* L * I}2_L * (_V VON(CL)

ON(CL) - Vbb ), see diagram page 8

11_{) Reverse load current (through intrinsic drain-source diode) is normally limited by the connected load.}

Reverse current I_GND of ≈ 0.3 A at V_bb= -32 V through the logic heats up the device. Time allowed under these condition is dependent on the size of the heatsink. Reverse I_GND can be reduced by an additional external GND-resistor (150 Ω). Input and Status currents have to be limited (see max. ratings page 2 and circuit page 7).

(5)

BTS 432 E2

Parameter and Conditions Symbol

Values

Unit

min typ

max

Input and Status Feedback

12)

Input turn-on threshold voltage

T

j =-40..+150°C:

V

IN(T+)

1.5 --

2.4 V

Input turn-off threshold voltage

T

j =-40..+150°C:

V

IN(T-)

1.0 -- --

V

Input threshold hysteresis

∆

V

IN(T)

-- 0.5 --

V

Off state input current (pin 2)

V

IN

= 0.4 V: I

IN(off)

1 --

30 µ

A

On state input current (pin 2)

V

IN

= 3.5 V: I

IN(on)

10 25 50

µ

A

Status invalid after positive input slope

(short circuit)

Tj=-40 ... +150°C:

t

d(ST SC)

80 200 400

µ

s

Status invalid after positive input slope

(open load)

Tj=-40 ... +150°C:

t

d(ST)

350 --

1600

µ

s

Status output (open drain)

Zener limit voltage T

j

=-40...+150°C, I

ST

= +1.6 mA:

ST low voltage T

j

=-40...+150°C, I

ST

= +1.6 mA:

V

ST(high)

V

ST(low)

5.4 --

6.1 --

--0.4

V

12)_{If a ground resistor R}

(6)

BTS 432 E2

Truth Table

Input- Output Status level level 432 D2 432 E2/F2 432 I2 Normal operation L H L H H H H H H H Open load L H 13) H H L H L L H Short circuit to GND L H L L H L H L H L Short circuit to Vbb L H H H H H (L14)) H H (L14)₎ L H Overtem-perature L H L L L L L L L L Under-voltage L H L L L15) L15) H H L15) L15) Overvoltage L H L L L L H H L L L = "Low" Level H = "High" Level

13_{) Power Transistor off, high impedance} 14_{) Low resistance short V}

bb to output may be detected by no-load-detection 15_{) No current sink capability during undervoltage shutdown}

Terms

PROFET V IN ST OUT GND bb VST V_IN IST IIN V bb Ibb IL VOUT IGND VON 1 2 4 3 5 R_GND

Input circuit (ESD protection)

IN GND I R ZD ZD I I I1 I2

ESD-ZDI1 6.1 V typ., ESD zener diodes are not designed for

(7)

BTS 432 E2

Status output

ST GND ESD-ZD +5V R_ST(ON)

ESD-Zener diode: 6.1 V typ., max 5 mA;

RST(ON) < 250 Ω at 1.6 mA, ESD zener diodes are not designed for continuous current

Short Circuit detection

Fault Condition: VON > 8.3 V typ.; IN high

Short circuit detection Logic unit + Vbb OUT V ON

Inductive and overvoltage output clamp

+ Vbb OUT GND V_Z V_ON VON clamped to 58 V typ.

Overvolt. and reverse batt. protection

+ Vbb V_OUT IN ST bb R Signal GND Logic PROFET V_Z R_GND GND IN R ST R

Rbb = 120 Ω typ., VZ +Rbb*40 mA = 67 V typ., add

RGND, RIN, RST for extended protection

Open-load detection

ON-state diagnostic condition: VON < RON * IL(OL); IN high Open load detection Logic unit + Vbb OUT ON VON

GND disconnect

PROFET V IN ST OUT GND bb V_bb 1 2 4 3 5 V_{IN VST} _V GND

Any kind of load. In case of Input=high is VOUT ≈ VIN - VIN(T+) .

(8)

BTS 432 E2

GND disconnect with GND pull up

PROFET V IN ST OUT GND bb V bb 1 2 4 3 5 V GND V INVST

Any kind of load. If VGND > VIN - VIN(T+) device stays off

Due to VGND >0, no VST = low signal available.

Vbb disconnect with charged inductive

load

PROFET V IN ST OUT GND bb V bb 1 2 4 3 5 high PROFET V IN ST OUT GND bb V bb 1 2 4 3 5 high

Inductive Load switch-off energy

dissipation

PROFET V IN ST OUT GND bb = E E E EAS bb L R ELoad

Energy dissipated in PROFET EAS = Ebb + EL - ER.

(9)

BTS 432 E2

Options Overview

all versions: High-side switch, Input protection, ESD protection, load dump and

reverse battery protection , protection against loss of ground

Type

BTS 432D2 432E2 432F2 432I2

Logic version

D E F I

Overtemperature protection

Tj >150 °C, latch function

16)17)

Tj >150 °C, with auto-restart on cooling

X

X X

Short-circuit to GND protection

switches off when VON>8.3 V typ.16)

(when first turned on after approx. 200 µs)

X X X X

Open load detection

in OFF-state with sensing current 30

µ

A typ. in ON-state with sensing voltage drop across

power transistor X X X

X

Undervoltage shutdown with auto restart

X X X X

Overvoltage shutdown with auto restart

_X _X _{X X}

Status feedback for

overtemperature short circuit to GND short to Vbb open load undervoltage overvoltage X X -18) X X X X X -18) X - - X X -18) X - - X X X X X X

Status output type

CMOS Open drain

X

X X

X

Output negative voltage transient limit

(fast inductive load switch off)

to Vbb - VON(CL) X X X X

Load current limit

high level (can handle loads with high inrush currents)

medium level

low level (better protection of application)

X X

X

16_{) Latch except when V}

bb -VOUT < VON(SC) after shutdown. In most cases VOUT = 0 V after shutdown (VOUT ≠

0 V only if forced externally). So the device remains latched unless V_bb < V_ON(SC) (see page 4). No latch between turn on and td(SC).

17) _{With latch function. Reseted by a) Input low, b) Undervoltage, c) Overvoltage} 18_{) Low resistance short V}

(10)

BTS 432 E2

Timing diagrams

Figure 1a: Vbb turn on:

IN V OUT t V bb ST open drain A A t d(bb IN)

in case of too early VIN=high the device may not turn on (curve A)

td(bb IN) approx. 150 µs

Figure 2a: Switching a lamp,

IN ST OUT L t V I

Figure 2b: Switching an inductive load

IN ST L t V I *) OUT td(ST) IL(OL)

*) if the time constant of load is too large, open-load-status may occur

Figure 3a: Turn on into short circuit,

IN ST OUT L t V I td(SC)

(11)

BTS 432 E2

Figure 3b: Turn on into overload,

IN ST L t I L(SCr) I IL(SCp)

Heating up may require several milliseconds , Vbb - VOUT < 8.3 V

typ.

Figure 3c: Short circuit while on:

IN ST OUT L t V I **)

**) current peak approx. 20 µs

Figure 4a: Overtemperature:

Reset if Tj <Tjt IN ST OUT J t V T

Figure 5a: Open load: detection in ON-state, turn

on/off to open load

IN ST OUT L t V I open t d(ST)

(12)

BTS 432 E2

Figure 5b: Open load: detection in ON-state, open

load occurs in on-state

IN ST OUT L t V

I normal open normal

td(ST OL1) td(OL ST2)

td(ST OL1) = tbd µs typ., td(ST OL2) = tbd µs typ

Figure 6a: Undervoltage:

IN V OUT t V bb ST open drain V V bb(under) bb(u rst) bb(u cp) V

Figure 6b: Undervoltage restart of charge pump VON [V] bb(under) V V_{bb(u rst)} V bb(over) V bb(o rst) V bb(u cp) off on off VON(CL) V_bb V_on Vbb [V]

charge pump starts at Vbb(ucp) =6.5 V typ.

Figure 7a: Overvoltage:

IN V OUT t V bb ST ON(CL) V V_bb(over) V_{bb(o rst)}

(13)

BTS 432 E2

Package and Ordering Code

All dimensions in mm

Standard TO-220AB/5

Ordering code

BTS 432 E2 Q67060-S6202-A2

TO-220AB/5, Option E3043

Ordering code

BTS 432 E2 E3043 Q67060-S6202-A4

SMD TO-220AB/5, Opt. E3062

Ordering code BTS432E2 E3062A T&R: Q67060-S6202-A6

(14)

BTS 432 E2

Published by

Infineon Technologies AG, St.-Martin-Strasse 53, D-81669 München

Attention please!

The information herein is given to describe certain

components and shall not be considered as a guarantee of characteristics.

Terms of delivery and rights to technical change reserved. We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding circuits, descriptions and charts stated herein.

Infineon Technologies is an approved CECC manufacturer. Information

For further information on technology, delivery terms and conditions and prices please contact your nearest Infineon Technologies Office in Germany or our Infineon

Technologies Representatives worldwide (see address list). Warnings

Due to technical requirements components may contain dangerous substances. For information on the types in question please contact your nearest Infineon Technologies Office.

Infineon Technologies Components may only be used in life-support devices or systems with the express written approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure of that life-support device or system, or to affect the safety or

effectiveness of that device or system. Life support devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may be endangered.
