Scope of Work

(1)

D ESC R IP T IO N REV NO . JO/ E W O DA T E O EN G G PM T CE R T DATE: DATE: DATE: DATE: DATE: DAT E : BY : CO NT R O L NUM B E R PROJECT ENGINEER CONSTRUCTION AGENCY DISCIPLINE ENGINEER V E RI FI CAT IO N ED S D RT IF ICAT E R E V . N O ._ __ __ __ __ _ C O V E R E D , F O R A L L A T IO N RE Q UI RE M E NT S , E T ION CE RT IF IC A T E __ __ __ __ __ _ OPERATIONS CERTIFIED R T IF ICAT ION 0 ASA 6/27/08 SSJ 6/27/08 6/27/08 6/27/08 SSJ 6/278 SSJ ALL ALL 100% ISS U E FOR CO NSTRUCTION 0002 6/27 /08 00 DRA W ING A N D THE I N FO RM AT IO N C O NTA INE D H ER EI N A R E TH E S O LE P R OP ER TY OF S AU D I A R AM CO . NO RE PR OD U CT ION I N F U LL OR I N P ART S H AL L B E OB TA IN ED F R OM TH IS D OC U M EN T W ITH OU T TH E W R ITTE N C ONS EN T OF I TS OW NE

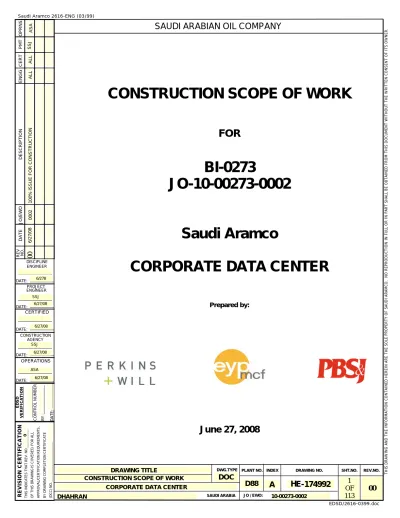

CONSTRUCTION SCOPE OF WORK

FOR

BI-0273

JO-10-00273-0002

Saudi Aramco

CORPORATE DATA CENTER

Prepared by:

(2)

D ESC R IP T IO N REV NO . JO/ E W O DA T E O EN G G PM T CE R T DATE: DATE: DATE: DATE: DATE: DAT E : BY : CO NT R O L NUM B E R PROJECT ENGINEER CONSTRUCTION AGENCY DISCIPLINE ENGINEER V E RI FI CAT IO N ED S D RT IF ICAT E R E V . N O ._ __ __ __ __ _ C O VE R E D , F O R A L L A T IO N RE Q UI RE M E NT S , E T ION CE RT IF IC A T E __ __ __ __ __ _ OPERATIONS CERTIFIED R T IF ICAT ION 0 ASA 6/27/08 SSJ 6/27/08 6/27/08 6/27/08 SSJ 6/278 SSJ ALL ALL 100% ISS U E FOR CO NSTRUCTION 0002 6/27 /08 00 DRA W ING A N D THE I N FO RM AT IO N C O NTA INE D H ER EI N A R E TH E S O LE P R OP ER TY OF S AU D I A R AM CO . NO RE PR OD U CT ION I N F U LL OR I N P ART S H AL L B E OB TA IN ED F R OM TH IS D OC U M EN T W ITH OU T TH E W R ITTE N C ONS EN T OF I TS OW NE

Construction Scope of Work – LSPB Data Center Contract – Table of Contents

1. Project Summary

1.1. Project Description 1.2. Description of Phases

1.3. Work Permits / Safety and Security Requirements / Site Queries

2. Project Drawings

2.1. Saudi Aramco Standard Drawings 2.2. Other Applicable Standards

3. Codes, Standards and Specifications

3.1. Industry Codes, Standards And Specifications

3.2. SAUDI ARAMCO Standards, Specifications, Gen .Instructions and Safety Manuals 3.3. Saudi Electric Company (SECO) Standards

3.4. Material Specifications 3.5. Project Drawings 3.6. Vendor’s Drawings 3.7. As-Built Drawings

4. Detailed Description of Work, Phase 200/400 - Civil / Structural / Architectural

4.1. General

4.2. Architectural Systems 4.3. Structural

4.4. General Site Requirements 4.5. Demolition

4.6. Survey and Layout of Facilities 4.7. Site Preparation and Earthwork 4.8. Landscaping and Irrigation 4.9. Road and Parking Construction 4.10. Raw Water System

4.11. Drinking Water (Sweet Water) System 4.12. Sanitary Sewer System

4.13. Drainage System 4.14. Site Electrical Work

4.15. Site Telecommunications Work 4.16. Site Painting and Coating Work 4.17. Site Structural Concrete

(3)

5. Detailed Description of Work, Phase 500 – Equipment / Mechanical

5.1. General

5.2. Project Requirements 5.3. HVAC Air Systems 5.4. HVAC Hydronic Systems 5.5. Plumbing and Sewage System 5.6. Fuel System

6. Detailed Description of Work, Phase 600 – Piping

6.1. General 6.2. HVAC Piping 6.3. Plumbing Piping 6.4. Fuel Piping

6.5. Fire Protection Piping

7. Detailed Description of Work, Phase 700 – Electrical

7.1. General

7.2. Project Requirements 7.3. Medium Voltage Systems 7.4. Low Voltage Systems 7.5. Back-up Power Systems

7.6. Data Hall / Raised Floor Power Distribution Systems 7.7. Lighting Systems

7.8. Fire Alarm Systems and Public Address System 7.9. Closed Circuit Television and Access Control Systems 7.10. Ancillary Systems

8. Detailed Description of Work, Phase 800 – Instrumentation and Communications

8.1. HVAC Control System (BMS)

8.2. Electrical Power Monitoring System (EPMS) 8.3. Structured Cable Plant

8.4. Data Networking Systems

9. Detailed Description of Work, Phase 900 – Painting / Coating / Insulation

9.1. General

9.2. Coating and Painting 9.3. Insulation

(4)

D ESC R IP T IO N REV NO . JO/ E W O DA T E O EN G G PM T CE R T DATE: DATE: DATE: DATE: DATE: DAT E : BY : CO NT R O L NUM B E R PROJECT ENGINEER CONSTRUCTION AGENCY DISCIPLINE ENGINEER V E RI FI CAT IO N ED S D RT IF ICAT E R E V . N O ._ __ __ __ __ _ C O VE R E D , F O R A L L A T IO N RE Q UI RE M E NT S , E T ION CE RT IF IC A T E __ __ __ __ __ _ OPERATIONS CERTIFIED R T IF ICAT ION 0 ASA 6/27/08 SSJ 6/27/08 6/27/08 6/27/08 SSJ 6/278 SSJ ALL ALL 100% ISS U E FOR CO NSTRUCTION 0002 6/27 /08 00 DRA W ING A N D THE I N FO RM AT IO N C O NTA INE D H ER EI N A R E TH E S O LE P R OP ER TY OF S AU D I A R AM CO . NO RE PR OD U CT ION I N F U LL OR I N P ART S H AL L B E OB TA IN ED F R OM TH IS D OC U M EN T W ITH OU T TH E W R ITTE N C ONS EN T OF I TS OW NE 10. Testing 10.1. Commissioning

11. Special Technical Requirements

11.1. Tie-Ins

11.2. As-Built Drawings

(5)

SECTION 1.0 - PROJECT SUMMARY

This Construction Scope of Work, together with the Drawings, applicable Saudi Aramco Standards and Specifications listed in the project documents constitute the basis for the complete Work to be performed by the Contractor.

The Scope of Work describes the technical contents of the activities required for the project. It shall be read in conjunction with other Contract Schedules of the Construction Contract and Construction drawings to obtain a complete understanding of the full requirements of the Contract. Contractor shall work on the basis of this Construction Scope of Work, Construction Specifications and Project Drawings as indicated on the Drawing Control Sheet HD-174991. Construction Scope of Work, Specifications and Drawings are complementary and are not to be used separately. Any item mentioned in Scope of Work and not shown on drawings or shown on drawings but not mentioned in Scope of Work shall be of like effects as if shown or mentioned in both.

In case of any conflict between the contract documents, the Contractor shall inform Saudi Aramco Representative and receive his directions before taking any further action.

1.1 Project Description

This Scope of Work identifies the WORK required to construct a new Corporate Data Center for Saudi ARAMCO. CONTRACTOR shall construct/install the facilities in accordance with this Scope of Work. The Project Drawings provide construction locations, dimensions, layouts and installation details. The term CONTRACTOR shall also include all his subCONTRACTORs and vendor. All work will be scheduled to use materials on hand at time of scheduling.

The WORK includes, but is not limited to:

1.1.1 Project Phasing. This project will provide a facility with a raised floor area of approximately 6,000 square meters. The raised floor is divided into four data halls of 1,500 square meters each. It is anticipated that the mission of this facility will require growth over time, so the design concept provides for planned expansion. The sitework, architecture, mechanical and electrical designs allow for ease of future construction. For example, in the areas beside the data halls, all unsuitable subgrade material will be excavated, removed and replaced with select fill so that when the second phase of construction begins no high-vibration excavations will be needed. This idea is repeated in all the other design disciplines. In addition, the critical support infrastructure design is such that the expansion can be accomplished with minimal impact to ongoing operations.

In addition to the data halls, there will be an office component, back of the house critical infrastructure spaces and a security/gatehouse.

1.1.2 Demolition of utilities, pavement, and other structures on the site; site clearing; and disposal of material offsite.

(6)

1.1.3 Site Preparation. The contractor shall survey the site; establish horizontal and vertical controls; provide site clearing and grubbing; remove unsuitable subgrade material; haul in select fill and established grades to +/- 200mm of expected final grades; establish road bases along design centerlines; provide interim storm drainage measures; construct a contractor storage area; construct temporary contractor access gate as needed; establish site security and fencing; excavate the site for foundations; provide final storm drainage; install road network and sidewalks; provide car parking and bus drop-off and bus shelter; and develop utility connections. A contract administrative support trailer area will have been provided by others prior to start of construction.

1.1.4 Contractor shall submit statement method and construction sequencing to minimize the interruption of the normal operation of existing utilities and traffic circulation. Such plans shall be submitted to Saudi Aramco Representative and concerned utilities department for approval prior to start of constru The Contractor shall perform continuous site clean-up during the project and after demobilization and shall adhere to Saudi Aramco Quality and Safety Procedures.

Testing of all materials shall be done at Contractor’s expense by an independent Saudi Aramco approved laboratory or independent laboratory chosen by Saudi Aramco.

Testing and commissioning of all the works by Contractor shall be done by qualified personnel.

1.1.5 Due to the critical nature of the facility, it is designed with redundant power, cooling and communications systems. In addition, redundant systems are housed in separate “compartments” to minimize the possibility of a failure of one system causing a failure in the redundant system or both systems being affected by the same event. There are also sophisticated monitoring, control, fire detection and fire prevention systems.

1.1.6 Saudi Electric Co. (SECO) will be building a new substation adjacent to the facility. This substation will be fed by redundant transmission lines and will have redundant transformers and 15 KV feeders going to the facility. This project includes all cables, conduits and wiring from the SECO provided manholes at the substation fence to the new CDC facility.

1.1.7 The following is the main criteria for the facility: • 6000 m2

of computer raised floor with a maximum of 1500 m2 area in individual compartments

• Buildings constructed to support 100 watts/ft2

computer floor power and cooling density initially with expansion capability up to 200 watts/sf

• Concurrently maintainable: systems allow maintenance of any component without affecting computer room operation

• Compartmentalization: total loss of any support room and internal equipment will not affect computer room operations

• Infrastructure such as piping, conduits, and future equipment connections installed for 200 watts/ft2 computer floor power and cooling density

(7)

• Master plan allows future expansion to 200 watts/ft2

computer floor power and cooling density

• Master plan allows future expansion to 9,000 m2

computer floor area with the same total capacity for power and cooling as 200 watts/ft2 over 6000 m2

• Systems for delivery of critical power to computer floor including generators and UPS populated with equipment with a total capacity less than 100 watts/ft2

Also, additional capacity was built into the design to avoid expansion problems for the following systems:

• Primary Power Substation and Transmission Line Capacity • Central Chiller Plant Area

• Computer Room Air Handling (CRAH) Unit Area • Fresh Air And Humidification Air Handling Systems • Electrical And Instrumentation Conduits

• Cooling Tower Sumps • Water Piping

• Water Tanks • Diesel Tanks

• Remote Power Panels (RPPs)

• Structure For Computer Compartments

1.1.8 The building will consist of precast wall panel exterior walls, and a combination of precast double T and hollow core roof panels.

The data halls will have raised floor for air and power distribution while the balance will be slab on grade.

1.1.9 The electrical system will consist of oil filled exterior transformers feeding interior switchgear. 15 KV feeders will be run underground from the substation to the transformers with overhead cablebus being run from the transformers to the interior switchgear. From the switchgear, feeders are then run via duct bank, trench and cablebus to the various distribution systems.

The main critical support components consist of diesel generators, static UPS systems and flooded cell batteries.

1.1.10 The mechanical support system is comprised of water cooled chillers with cooling towers, a thermal storage tank and CRAH’s in galleries along the perimeter of the raised floor.

1.1.11 Fire detection/protection consists of an addressable fire alarm system, high sensitivity detection, pre-action sprinklers and clean agent gaseous suppression system.

1.1.120 There will be a building management system controlling and monitoring the critical mechanical system and an EPMS system monitoring the critical electrical systems.

(8)

D ESC R IP T IO N REV NO . JO/ E W O DA T E O EN G G PM T CE R T DATE: DATE: DATE: DATE: DATE: DAT E : BY : CO NT R O L NUM B E R PROJECT ENGINEER CONSTRUCTION AGENCY DISCIPLINE ENGINEER V E RI FI CAT IO N ED S D RT IF ICAT E R E V . N O ._ __ __ __ __ _ C O VE R E D , F O R A L L A T IO N RE Q UI RE M E NT S , E T ION CE RT IF IC A T E __ __ __ __ __ _ OPERATIONS CERTIFIED R T IF ICAT ION 0 ASA 6/27/08 SSJ 6/27/08 6/27/08 6/27/08 SSJ 6/278 SSJ ALL ALL 100% ISS U E FOR CO NSTRUCTION 0002 6/27 /08 00 DRA W ING A N D THE I N FO RM AT IO N C O NTA INE D H ER EI N A R E TH E S O LE P R OP ER TY OF S AU D I A R AM CO . NO RE PR OD U CT ION I N F U LL OR I N P ART S H AL L B E OB TA IN ED F R OM TH IS D OC U M EN T W ITH OU T TH E W R ITTE N C ONS EN T OF I TS OW NE 1.2 Description of Phases

The WORK phases shall be:

Phase 200/400 - Civil / Architectural / Structural Phase 500 - Mechanical

Phase 600 - Piping

Phase 700 - Electrical

Phase 800 - Instrumentation and Communications Phase 900 - Coating / Painting / Insulation

1.3 Work Permits/Safety and Security Requirements/Site Queries

1.3.1 CONTRACTOR shall obtain work permits before commencement of any WORK. (Refer to G.I.2.100) Coordination with SAPMT will be done prior to excavation or thrust boring to be checked and confirm underground utilities and special care is to be taken on overlapping utilities like electrical, instrument, telecommunications and other piping.

1.3.2 CONTRACTOR shall comply with all SAUDI ARAMCO Construction Safety Manual and Engineering Standards and Saudi Arabian Government Safety Regulations during the performance of the WORK.

1.3.3 CONTRACTOR to provide routes to and from work areas and an emergency evacuation procedure plan/route for approval.

1.3.4 CONTRACTOR (including all sub-CONTRACTORs) shall be able to identify his workers by having color-coordinated coveralls with CONTRACTOR’s name on them. The hard hats will match and have CONTRACTOR’ and employees’ names and position on them.

1.3.5 CONTRACTOR shall remove excess materials, tools, trash etc. from each work location on a daily basis. Areas shall be kept neat and clean during the day. 1.3.6 CONTRACTOR shall request a site query for any clarification or change in the

scope prior to execution. All Site Queries shall clearly state, “change in scope” or “no change in scope”. All change orders shall refer to the appropriate site query number. After the fact site queries with a “change in scope” shall not be allowed. CONTRACTOR shall maintain a site query log in SAUDI ARAMCO Representative agreed format. The log shall include a complete history including all dates.

1.3.7 CONTRACTOR shall request and SAUDI ARAMCO Representative shall issue Work Permits, Cold Work Permits and all other permits in accordance with Section 29 of the SAUDI ARAMCO Construction Safety Manual. CONTRACTOR shall request and SCECO shall issue Work Permits for work under and on either side of SCECO Power Line/fence. Work Permits shall only be issued to CONTRACTOR personnel who are certified to receive permits.

(9)

avoid unnecessary delay.

1.3.8.1 CONTRACTOR shall obtain a Work Permit before working in any area and shall obtain dual signatures required where work encroaches within 30-meters or less of the boundary between existing facilities. 1.3.8.2 CONTRACTOR shall notify SAUDI ARAMCO Representative and

apply for Hot Work/Cold Work permits TWENTYFOUR (24) HOURS in advance.

1.3.8.3 CONTRACTOR shall obtain all Work Permits for each day PRIOR to the main workforce arriving at the site.

1.3.8.4 All daily work permits shall be obtained prior to the CONTRACTOR work force starting time.

(10)

SECTION 2.0 - PROJECT DRAWINGS

The WORK shall conform to the latest revision of the SAUDI ARAMCO Standard Drawings listed below, other Standard Drawings as applicable and the Project drawings as listed in the Drawing Control Log:

2.1 SAUDI ARAMCO Standard Drawings

Index Drawing No. Sheet Title

A AE-036204 Letter Identification Of Lines A AB-036227 Piping Symbols A AB-036305 Equipment Symbols A AC-036950 Instrument Symbols B AB-036789 Symbols Fire Fighting Equipment

J AD-036031 001 Nameplate Details for Instrument Boards P AB-036326 001 Standard Sign Underground Electric Cable P DD-950022 001 to

012

Details Of Ground Connections

P AD-036874 001 Installation of Direct Buried Electrical Cable and Conduit

P AB-036319 001 Standard Sign, Danger High Voltage Keep Away P AB-036326 Standard Sign, Underground Electric Cable P AB-036398 Street Lighting Details

Q AB-036322 Anchor Bolt Details S AD-036009

S DB-950078 Concrete Thrust Block Details for Utilizing Pipelines

T AA-036373 001 PVC Direct Buried/Encased Conduit, Typical Installation

T AA-036748 001 Buried Telephone Cables/Distribution Wires-Installation Details

T AB-036897 001 Buried/Underground Cable Route Marker Posts and Sign

2.2 Other Applicable Standards

SAMA Standard PMC-33-1 RFI/EMI Noise Immunity

(11)

D ESC R IP T IO N REV NO . JO/ E W O DA T E O EN G G PM T CE R T DATE: DATE: DATE: DATE: DATE: DAT E : BY : CO NT R O L NUM B E R PROJECT ENGINEER CONSTRUCTION AGENCY DISCIPLINE ENGINEER V E RI FI CAT IO N ED S D RT IF ICAT E R E V . N O ._ __ __ __ __ _ C O VE R E D , F O R A L L A T IO N RE Q UI RE M E NT S , E T ION CE RT IF IC A T E __ __ __ __ __ _ OPERATIONS CERTIFIED R T IF ICAT ION 0 ASA 6/27/08 SSJ 6/27/08 6/27/08 6/27/08 SSJ 6/278 SSJ ALL ALL 100% ISS U E FOR CO NSTRUCTION 0002 6/27 /08 00 DRA W ING A N D T O RM AT IO N C O NTA INE D H ER EI N A R E TH E S O LE P R OP ER TY OF S AU D I A R AM CO . NO RE PR OD U CT ION I N F U LL OR I N P ART S H AL L B E OB TA IN ED F R OM TH IS D OC U M EN T W ITH OU T TH E W R ITTE N C ONS EN T OF I TS OW NE HE I N F

SECTION 3.0 - CODES, STANDARDS AND SPECIFICATIONS

3.1 Industry Codes Standards And Specifications

The WORK shall conform to the latest edition of the following Industry Codes and Specifications.

Code Title

AASHTO M17 Standard Specification for Mineral Filler for Bituminous Paving Mixtures.

AASHTO T180 AASHTO The Quality of Compaction. AASHTO T191 AASHTO Field Density Determination. AASHTO T193 The California Bearing Ratio.

AASHTO American Association of State Highway and Transportation Officials. AASHTO-1993 AASHTO Guide for Design of Pavement Structures.

ACI American Concrete Institute

ACI-318 Building Code Requirements for Reinforced Concrete ACPA American Concrete Pipe Association.

AISC American Institute of Steel Construction, Inc. AISI American Iron and Steel Institute.

ANSI American National Standard Institute

ASD, 9th Edition Steel Construction Manual – Allowable Stress Design ASCE/SEI-05 American Society of Civil Engineers.

ASCE 7-95 Minimum Design Loads for Building and Other Structures ASHRAE STD 15 Safety Code for Mechanical Refrigeration

ASHRAE STD 52 Filters, Testing Air-Cleaning Devices

ASHRAE STD 55 Thermal Environmental Conditions for Human Comfort ASHRAE STD 62 Ventilation for Acceptable Indoor Air Quality

ASHRAE STD 111 Practice for Measurement, Testing, Adjusting and Balancing of HVAC Systems

ASHRAE Handbook HVAC Applications ASHRAE Handbook Systems and Equipment ASHRAE Handbook Fundamentals

ASHRAE Handbook Refrigeration

ASTM D-1556 Test for Density of Soil in Place by the Sand Cone Method

ASTM D-2049 Standard Methods of Test for Relative Density of Cohesion less Soil

ASTM D-2167 Test for Density of Soil in Place by the Rubber Balloon Method ASTM D-2922 Density of Soil and Soil Aggregate in Place by Nuclear Methods

(Shallow Depth)

ASTM D-422 Particle Size Analysis of Soil

ASTM D-698 Standard Methods of Test for Moisture - Density Relations of Soil AWWA C207 Steel Pipes Flanges for Waterworks Service

AWWA C950 Fiberglass Pressure Pipe AWS D1.1 Structural Welding Code - Steel

AWS D1.4 Structural Welding Code - Reinforcing Steel

BICSI Building Industry Consulting Services International Telecommunications Methods Manual

CMAA Crane Manufacturer’s Association of America CRSI Concrete Reinforcing Steel Institute.

(12)

IEEE Institute of Electrical and Electronics Engineers IPC International Plumbing Code – 2006.

ISO International Organization for Standardization.

MOT Ministry of Transport General Specifications for Road and Bridge Construction.

MSS Manufacturers Standardization Society of Valves and Fittings Industry. NEC National Electric Code.

NEMA National Electrical Manufacturers Association NESC (ANSIC2) National Electrical Safety Code

NFC National Fire Code

NFPA 250 Enclosures for Electrical Equipment (100 Volts maximum) NFPA 10 Standard for Portable Fire Extinguisher

NFPA 30 Flammable and Combustible Liquids Code

NFPA 37 Standard for the Installation and Use of Stationary Combustion Engines and Gas Turbines.

NFPA 70 National Electrical Code

NFPA 72 Installation Maintenance and use of Protective Signaling Systems NFPA 90A Installation of Air Conditioning and Ventilating Systems

NICS National and International Codes and Standards PIP CVS 02100 Site Preparation, Excavation and Backfill Specification. REA PE-39 Filled Telephone Cables

REA PE-89 Filled Telephone Cables with Expanded Insulation SASC SAUDI ARAMCO Sanitary Code

SASO Saudi Arabian Standard Organization

SMACNA 1993 HVAC Systems-Testing, Adjusting and Balancing, 2nd edition SMACNA 1995 HVAC Duct Construction Standards-Metal and Flexible, 2nd edition SMACNA 1992 Fire, Smoke and Radiation Damper Installation Guide for HVAC

Systems, 4th edition

SSA Saudi Arabian Standard Organization SSPC Steel Structures Painting Council.

TIA/EIA Telecommunications Industry Association / Electronic Industries Association

UBC Uniform Building Code

UL Underwriter’s Laboratory

UMC Uniform Mechanical Code UPC Uniform Plumbing Code

3.2 SAUDI ARAMCO Standards, Specifications, General Instructions and Safety Manuals: The WORK shall conform to the November 2001 listing of all SAUDI ARAMCO Standards and Specifications specifically including the following:

Code Title

SACSM Saudi Aramco Construction Safety Manual

SAEP-1142 Qualification of Non-Saudi Aramco NDT Personnel SAEP-1150 Inspection Coverage on Projects

SAEP-1152 Approval Procedure for Ready-Mixed Concrete Mix Design SAEP-1154 Guidelines for Contractor’s Quality Plan

(13)

SAEP-127 Security and Control of Saudi Aramco Engineering Data SAEP-310 Pipeline Repair and Maintenance

SAEP-3102 Equipment and Spare Parts Data Requirements for SAPMT Originated Requisition

SAEP-327 Disposal of Wastewater from Cleaning, Flushing and Hydrostatic Testing SAEP-332 Cathodic Protection CommissioningSAES-A-004 Pressure

Testing

SAES-A-005 Safety Instruction Sheets

SAES-A-007 Hydrostatic Testing Fluids and Lay-up Procedures SAES-A-100 Survey Coordinates and Datums

SAES-A-102 Air Pollutant Emission Source Control. SAES-A-105 Noise Control

SAES-A-111 Borrow Pit Requirements

SAES-A-112 Meteorological and Seismic Design Data SAES-A-113 Geotechnical Engineering Requirements. SAES-A-114 Excavation and Backfill

SAES-A-202 Saudi Aramco Engineering Drawing Preparation SAES-B-008 Restrictions to Use of Cellars, Pits, and Trenches

SAES-B-014 Safety Requirements for Plant Operations Support Buildings SAES-B-019 Portable, Mobile and Special Fixed Firefighting Equipment SAES-B-054 Access, Egress and Materials Handling for Plant Facilities SAES-B-055 Plant Layout

SAES-B-062 Onshore Wellsite Safety

SAES-B-064 Onshore and Nearshore Pipeline Safety SAES-B-067 Safety Identification and Safety Colors SAES-B-068 Electrical Area Classification

SAES-B-069 Emergency Eyewash and Showers SAES-D-109 Design of Small Tanks

SAES-G-005 Centrifugal Pumps

SAES-G-101 Regulated Vendors List for Pumps and Mechanical Seals SAES-H-001 Selection Requirement For Industrial Coating

SAES-H-002 Internal and External Coatings for Steel Pipelines and Piping SAES-H-002V Approved SAUDI ARAMCO Data Sheets

SAES-H-003 Coating Requirements for Concrete Surfaces SAES-H-100 Painting Requirements For Industrial Facilities SAES-H-101 Approved Protective Coating Systems

SAES-H-101V Approved SAUDI ARAMCO Data Sheets - Paints and Coatings SAES-H-102 Safety Requirements for Painting

SAES-H-200 Storage, Handling and Installation of Pipe Externally Coated with Fusion Bonded Epoxy or Polyethylene

SAES-H-201 General Specification for Over-the-Ditch External FBE Coating of Field Girth Welds

SAES-H-203 Hand-Applied Tape Wrapping of Buried Pipe SAES-J-003 Basic Design Criteria

SAES-J-004 Instrument Symbols and Identification

(14)

SAES-J-902 Electrical System For Instrumentation

SAES-J-601 Emergency Shutdown and Isolation Systems SAES-K-001 Heating, Ventilating and Air Conditioning (HVAC)

SAES-K-002 Air Conditioning Systems for Essential Operating Facilities SAES-K-100 SAUDI ARAMCO Mechanical (HVAC) Code

SAES-L-100 Applicable Codes and Standards for Pressure Piping Systems SAES-L-101 Regulated Vendors List for Pipes, Fittings and Gaskets

SAES-L-102 Regulated Vendors List for Valves SAES-L-105 Piping Material Specifications SAES-L-108 Selection of Valves

SAES-L-109 Selection of Flanges, Stud Bolts and gaskets SAES-L-110 Limitations on Pipe Joints and Components

SAES-L-113 Corrosion Protection Requirements for Pipelines/Piping SAES-L-125 Safety Instruction Sheet for Piping and Pipelines SAES-L-132 Material Selection for Piping Systems

SAES-L-136 Selection and Restrictions of Carbon Steel Pipe AES-L-450 Construction of On-Land and Near-Shore Pipelines. SAES-L-460 Pipeline Crossings Under Roads and Railroads SAES-L-610 Nonmetallic Piping

SAES-M-001 Structural Design Criteria for Non-building Structures SAES-M-006 SAUDI ARAMCO Security and General Purpose Fencing SAES-M-100 SAUDI ARAMCO Building Code

SAES-N-001 Basic Criteria External Insulation

SAES-O-100 General Requirements, Safety and Security SAES-O-101 Standard Security Fence - Type I

SAES-O-105 Gates in Perimeter Fences. SAES-O-112 Communications

SAES-O-119 Work Permit Procedures

SAES-P-100 Basic Power System Design Criteria

SAES-P-101 Regulated Vendor’s List for Electrical Equipment SAES-P-103 Direct Current and UPS Systems

SAES-P-104 Wiring Method and Materials SAES-P-107 Overhead Distribution Systems SAES-P-111 Grounding

SAES-P-113 Motors and Generators

SAES-P-114 Power System and Equipment Protection SAES-P-116 Switchgear and Control Equipment SAES-P-119 Onshore Substation

SAES-P-121 Transformers, Reactors, Voltage Regulators SAES-P-123 Lighting

SAES-P-126 Power Monitoring System

SAES-P-302 Waiver of Mandatory SAUDI ARAMCO Engineering Requirements SAEP-1023 CONTRACTOR Quality Assurance & Quality Control

(15)

SAES-Q-005 Concrete Foundations SAES-Q-006 Asphalt Concrete Paving

SAES-Q-010 Cement Based Non-shrink Grout for Structure & Equipment Grouting

SAES-Q-011 Epoxy Grout for Machinery Support.

SAES-Q-012 Criteria for Design & Construction of Precast and Prestressed Concrete Structures.

SAES-S-010 Sanitary Sewers

SAES-S-020 Industrial Drainage and Sewers SAES-S-030 Storm Water Drainage Systems SAES-S-040 Saudi Aramco Water Systems

SAES-S-050 Sprinkler and Standpipe Systems in Buildings SAES-S-060 Saudi Aramco Plumbing Code

SAES-S-070 Installation of Utility Piping Systems

SAES-T-000 Telecommunications Standards Introduction and Indices SAES-T-018 Telecommunications Symbols, Abbreviations and Definitions SAES-T-151 Communication D.C. Power System

SAES-T-435 Telecommunications: Station Protection SAES-T-603 Safeguard and Warning Devices

SAES-T-624 Telecommunications Outside Plant – Fiber Optic Cables SAES-T-628 Underground Cable

SAES-T-629 Telecommunications - Buried Cable and Wire SAES-T-631 Communications Cable Terminals SAES-T-632 Communications Cable Splicing SAES-T-633 Communications Splice Closures

SAES-T-634 Telecommunications - Cable Testing and Acceptance SAES-T-795 Facilities Grounding System

SAES-T-830 Voice Frequency Loop Transmission Objectives SAES-T-903 Electrical Protection - Outside Plant

SAES-T-906 Telecommunications – Structural Coordination SAES-T-911 Telecommunications Conduit System Design SAES-T-912 Communications Feeder Cable

SAES-T-914 Telecommunications Distribution Cable SAES-T-916 Communications Building Cable Systems SAES-T-920 Telecommunications Cable Information SAES-T-928 Telecommunications - OSP Buried Plant

SAES-T-938 Telecommunications: Outside Plant, Systems Design SAES-W-012 Welding Requirements for Pipelines

SAES-X-400 Cathodic Protection of Buried Pipelines SASC-S-02 Saudi Aramco Sanitary Code

Schedule ‘Q’ Quality and Control, Inspection and Testing.

GI-1021.000 Street and Road Closure: Excavation, Reinstatement and Traffic Control

G.I.2.100 Work Permit System G.I.2.102 Pressure Testing Safely G.I.2.716 Land Use Permit Procedures

(16)

GI-150.001 Asbestos Regulations G.I.430.001 Waste Management

G.I.432.000 Pipeline Hydrotest Water Disposal G.I 520.001 Confined Space Entry Procedure

G.I.6.012 Isolation, Lockout and Use of Hold Tags G.I.6.030 Traffic and Vehicle Safety

G.I.2.710 Mechanical Completion and Performance Acceptance of Facilities SAUDI ARAMCO CONSTRUCTION SAFETY MANUAL

SAEP-119 SAUDI ARAMCO Material system Specifications SAEP-013 Project Environmental Impact Assessment

SAEP-128 Security and Control of SAUDI ARAMCO Engineering Data outside of SAUDI ARAMCO

SAEP-302 Instructions for Obtaining a Waiver of a Mandatory SAUDI RAMCO Engineering Requirement

SAEP-316 Performance Qualification of Coating Personnel

SAEP-324 Certification Review and Registration of Project Welders and Brazers

SAEP-327 Disposal of Wastewater from Cleaning, Flushing and Hydrostatic Tests

SAEP-1023 CONTRACTOR Quality Assurance and Quality Control Requirements

SAEP-1131 Pressure Relief Valve Program Use of Form 3099-AENG, RV Authorization

SAEP-1142 Qualification of Non-SAUDI ARAMCO NDT Personnel SAEP-1150 Inspection Coverage for Projects

SAEP-3102 Equipment and Spare Parts

3.3 Saudi Electric Company (SECO) Standards and the Industry standards referenced therein.

SES-P-119 Substation Standards

SES-P-122 Transmission Line Design Standards SCS-P-122 Transmission Line Construction Standards 3.4 Material Specifications

CONTRACTOR supplied materials shall conform to the latest issue of the following

Specifications:

Item # Category of Material Specification 1. Concrete Masonry Units and Concrete Building Bricks 09-SAMSS-016 2. Cement Based Non-Shrink Grout 09-SAMSS-092

3. Ready Mix Concrete 09-SAMSS-097

4. Epoxy Coating of Steel Reinforcing Bars 09-SAMSS-106 5. Packaged Water Cooled Centrifugal Chillers for Utility Service 27-SAMSS-001 6. Manufacture of Non-Industrial Cooling Towers 27-SAMSS-003

7. Centrifugal Pumps 31-SAMSS-004

8. Fabricated Carbon Steel Piping 01-SAMSS-010 9. RTR (Fiberglass) Sewer Pipe and Fittings for Gravity Flow 01-SAMSS-029

(17)

D ESC R IP T IO N REV NO . JO/ E W O DA T E O EN G G PM T CE R T DATE: DATE: DATE: DATE: DATE: DAT E : BY : CO NT R O L NUM B E R PROJECT ENGINEER CONSTRUCTION AGENCY DISCIPLINE ENGINEER V E RI FI CAT IO N ED S D RT IF ICAT E R E V . N O ._ __ __ __ __ _ C O VE R E D , F O R A L L A T IO N RE Q UI RE M E NT S , E T ION CE RT IF IC A T E __ __ __ __ __ _ OPERATIONS CERTIFIED R T IF ICAT ION 0 ASA 6/27/08 SSJ 6/27/08 6/27/08 6/27/08 SSJ 6/278 SSJ ALL ALL 100% ISS U E FOR CO NSTRUCTION 0002 6/27 /08 00 DRA W ING A N D THE I N FO RM AT IO N C O NTA I R E TH E P R OP ER TY OF S AU D I A R AM CO . NO RE PR OD U IN F U LL OR I N P ART S H AL L B E OB TA IN ED F R OM TH IS D OC U M EN T W ITH OU T TH E W R ITTE N C ONS EN T OF I TS OW NE NE D H E IN A R E E S O L CT ION

10. RTR (Fiberglass) Pressure Pipe and Fittings 01-SAMSS-034 11. Manufacturer of Atmospheric Tanks 32-SAMSS-005 12. Manufacture of Low Pressure Tanks 32-SAMSS-006 13. Manufacture of Small Tanks 32-SAMSS-030

14. Power Transformers 14-SAMSS-531

15. Three Phase Dry Type Power Transformers 14-SAMSS-533 16. Pad-Mounted Three Pase Distribution Transformers 14-SAMSS-534 17. MV Power Cables5kV through 35kV 14-SAMSS-502 18. Metal Enclosed, Metal Clad Switchgear 1 to 38kV 16-SAMSS-502 19. Manually Operated Pad Mounted SF6 Switchgear: 1 kV to 36 kV 16-SAMSS-510 20. Metal-Enclosed Bus Indoor and Outdoor 16-SAMSS-511 21. Outdoor Switchrack - Low Voltage 16-SAMSS-512

22. Protective Devices 16-SAMSS-513

23. Control and Protective Relay Panel – Indoor 16-SAMSS-514

24. Low Voltage Panelboards 16-SAMSS-518

25. Indoor Switchboard - Low Voltage 16-SAMSS-519

26. Cablebus 16-SAMSS-520

27. Indoor Automatic Transfer Switch - Low Voltage 16-SAMSS-521 28. Brushless Synchronous Generators 17-SAMSS-510 29. Stationary Storage Batteries 17-SAMSS-511 30. Battery Charger/Rectifier 17-SAMSS-514 31. Auxiliary Electrical Systems for Skid-Mounted Equipment 17-SAMSS-515 32. Uninterruptible Power Supply System 17-SAMSS-516

33. Diesel Generator Sets 17-SAMSS-518

34. SF6 Gas Insulated Circuit Breakers, Outdoor 34.5 KV through 230 KV

16-SAMSS-508

35. Shop Applied, Internal Cement Mortar Lining of Steel Pipe 01-SAMSS-005 36. Pipe Handling and Nesting 01-SAMSS-024

37. API Line Pipe 01-SAMSS-035

38. Butt Welding Pipe Fittings 02-SAMSS-005 39. Hot Tap and Stopple Fittings 02-SAMSS-006

40. Gate Valves 04-SAMSS-001

41. General Requirements for Valves 04-SAMSS-035 42. Valve Inspection and Testing Requirements 04-SAMSS-048 43. Pressure Preservative Treatment for Wood Piles, Timber & Ties 09-SAMSS-002 44. Concrete Masonry Units and Concrete Building Blocks 09-SAMSS-016 . 45. Qualification Requirements for Alkyd Enamel Coating System (APCS-6)

09-SAMSS-021

46. Qualification Requirements for Aluminum-Pigmented Alkyd Coating System (APCS-4)

09-SAMSS-035

47. Qualification Requirements for Coal Tar Epoxy in Buried or Immersion Services

(APCS-3) 09-SAMSS-068 48. Caulking Compound (Joint Sealant) 09-SAMSS-075

49. Aggregates for Concrete 09-SAMSS-088

50. Shop-Applied External Fusion Bonded Epoxy Coating for Steel Line Pipe 09-SAMSS-089 51. Shop-Applied Internal FBE Coatings 09-SAMSS-091 52. Ready-Mixed Portland Cement Concrete 09-SAMSS-097 53. Epoxy Coating of Steel Reinforcing Bars 09-SAMSS-106 54. External Renovation Coating for Buried Pipelines and Piping (APCS-113) 09-SAMSS-113 55. Fabrication of Structural and Miscellaneous Steel 12-SAMSS-007 56. Erection of Structural and Miscellaneous Steel 12-SAMSS-008

(18)

57. Pre-Engineered Metal Buildings 12-SAMSS-014 58. Saudi Aramco Security and General Purpose Fencing (Galvanized) 12-SAMSS-021 59. Metal Enclosed, Metal Clad Low Voltage Switchgear 12-SAMSS-502 60. Overhead-Type Distribution Transformers 14-SAMSS-534 61. Pad-Mounted, Three-Phase Distribution Transformers 14-SAMSS-536 62. Medium Voltage Power Cable 5kV through 35 KV 15-SAMSS-502 All other materials must be approved by the SAUDI ARAMCO Representative prior to use. Samples of these materials must be submitted for approval.

SAUDI ARAMCO’s policy on the use of Saudi manufactured products will be adhered to and strictly enforced and shall be addressed in Schedule “G” of the contract documents. Locally manufactured products approved by SAUDI ARAMCO as meeting its specification and standards are listed in the IDG-4A report. The IDG-4A report shall be attached to the contract documents delivered to the successful construction CONTRACTOR, and also made available to the project design team for material take-off and specifications. This list should not be considered exclusive, containing only approved local manufacturers. The emphasis during design will be to utilize locally manufactured products, wherever possible. For a complete list, refer to IDG-4A Report.

3.5 Project Drawings

3.5.1 Design drawings produced specifically for this Project are listed and described on the drawing control log. Any conflict between project drawings, scope of work, the contract, and etc., SAUDI ARAMCO Representative will be informed and provide direction on how to proceed.

3.5.2 SAUDI ARAMCO Standard Drawings referred to on the above design drawings or otherwise applicable to the work by reference therein are made a part of this specification.

3.6 Vendor Drawings

3.6.1 CONTRACTOR shall maintain a file of vendor drawings at the site for each purchase order.

3.7 As-Built Drawings

3.7.1 CONTRACTOR shall maintain and update as-built drawings as the construction progresses, using red lines for addition and changes, and green lines for deletions. The CONTRACTOR shall, for each job phase/Work Package, submit three (3) sets of built drawings for start up, and a further two (2) sets of as-built drawings within 15 days of completion of construction. These drawings will be readable and suitable for CADD revision and subsequent enter into the SAUDI ARAMCO drawing system.

3.7.2 CONTRACTOR shall include the transferring of information from vendor drawings to Project Drawings in his scope of as-built work.

3.7.3 SAUDI ARAMCO Representative will from time to time review the “red-line” as-built drawings to assure they are up-to-date. If it is determined by the SAUDI

(19)

ARAMCO Representative that they are not up-to-date, construction will be halted without additional cost until they have been updated.

3.7.4 CONTRACTOR shall monitor all drawing stick files to insure that only the latest approved construction drawings, site queries, etc are included. All drawings in the field shall be on stick files.

3.8 Clean Up

3.8.1 During the progress of the Work, the work site and the adjacent areas shall be kept clean. All rubbish from clearing and grubbing not reused, surplus materials and un-needed construction equipment shall be removed and disposed of as directed by Saudi Aramco Representative.

3.8.2 On or before the completion of the Work, unless otherwise specifically directed or permitted in writing, the Contractor shall:

• Remove all temporary buildings and structures built by the Contractor.

• Remove all temporary works, tools, and machinery or other construction equipment furnished by the Contractor.

• Remove all rubbish from any ground, which he has occupied.

• Leave the work site and all adjacent property affected by his operations in a neat and satisfactory condition.

3.8.3 Contractor shall restore or replace at his own expense any Saudi Aramco’s property damaged by his work, equipment, or employees, to a condition at least equal to that existing prior to the beginning of operations. Suitable material, equipment, and methods shall be used for such restoration, which shall be done promptly and shall not be left until the end of the Contract period.

3.8.4 All construction debris shall be transported off the site as directed by Saudi Aramco Representative.

3.9 Quality Control and Assurance

3.9.1 Contractor shall submit to company representative his initial QA/QC plan within 15 days of contract signature. The plan shall be a definition of policies, objectives and responsibilities for QA in conjunction with action designed to provide and produce consistent workmanship, which meets the levels of quality required. The Quality Control Plan shall be prepared as per Schedule “Q” and SAEP-1154 “Guidelines for Contractor’s Quality Plan”.

3.9.2 It is the responsibility of the Contractor to comply with all relevant codes, practices, procedures and specification listed in this Scope of Work

3.9.3 The Contractor shall prove the competency of all craftsmen and supervisory staff as required by Saudi Aramco.

(20)

SECTION 4.0 - DETAILED DESCRIPTION OF WORK

PHASE 200/400 – CIVIL / ARCHITECTURAL / STRUCTURAL

4.1 General

4.1.1 The WORK outlined in the Project Specification shall be completed in accordance with applicable Drawings, codes, Standards and any additional project requirements set forth.

CONTRACTOR shall provide all items, operations and methods, mentioned either in the documents or specified herein, including labor, materials, equipment, consumables and incidentals necessary and required for the completion of the WORK.

4.2 Architectural Systems

4.2.1 The architectural design of the building is based on precast and cast in place concrete for the wall panels (bearing and non-bearing), elevated floor system and roofing system. A pre-insulated precast wall panel system will be used for the exterior. A precast double -T roof system over the raised floor area, hollow core roof panels over the Back of House area, and composite metal/concrete floors and roof in the office area.

4.2.2 The vertical skin around the raised floor and back of house will be an insulated precast wall panel that will be a minimum of 8 meters tall and be of an architectural quality with coloration and reveals. The office component will maximize full height curtain-wall glazing systems to the northeast and northwest with shielded glazing to the southwest. There will be an elevated hovering roof over the entire office component, VIP element and courtyard. The elevated roof will be a metal composite panel and will have a deep recessed connection to the office mass. The finish materials will be consistent with the high-end finishes in the current VIP lobby. There will be a visual connection between the two NOC rooms on the second floor for viewing into the raised floor areas in the main component. All office furniture and systems furniture will be in keeping with Aramco’s standard. The overall design will provide for the inclusion or exclusion of the VIP program and the future addition of office space, up to 1500 m2. 4.2.3 There will also be a security/guardhouse building at the front gate. The first point

of security will occur at the gate house via, guard presence, card in/card out turn stiles, magnetometer and x-ray equipment. Card in/Card out technology will also be applied on the inside of the facility along with biometrics.

4.2.4 Space Allocation

See the Architectural floor plans for proposed spaces. 4.2.5 Raised Floor

To maximize usable open area, a “column free” design approach will be used in the layout of data rooms. CRAH galleries will be located along the perimeter of the data halls. Columns are located within the CRAH galleries, leaving an

(21)

unobstructed data floor. 4.2.6 Access Pedestal Flooring

Access Pedestal Flooring will be a heavy duty bolted stringer system comprised of access floor panels, floor coverings, understructure and various electrical, data and communication accessories.

Understructure is comprised of a heavy duty stringer grid system in a (2’ x 2’) grid pattern in a basket-weave configuration. Pedestals are at each grid intersection point.

Steel stringers will have a conductive galvannealed coating and will support each edge of panel. Stringers will be individually and rigidly bolted to the pedestal. Pedestal assemblies will be hot dipped galvanized all steel welded construction and will provide an adjustment range of +/- 25 mm (1 inch) for finished floor heights 150 mm (6”) or greater. Pedestal assemblies will provide means of leveling and locking the assembly at a selected height. Pedestal assembly will have an axial load capacity of 2268 kg (5000 pounds) and an average overturning moment of 1130 Newton Meter (1000 inch-pound). The system will be laterally stable under seismic conditions.

4.2.7 Access Floor Panels

Access Floor Panels will be a modular and removable cement filled welded metal pan system capable of supporting a concentrated load of 17.2 Mpa (2500 psi) and uniform distributed load of 14.36 Kpa (300 psf). Panels will be finished with High-Pressure Laminate Anti-Static floor covering, with integral trim, and will comprise approximately 80% of the computer raised floor area.

4.2.8 Steel Airflow Grates

Steel airflow grates will be provided for ventilation of computer floor areas. They will be designed for static loads and will be interchangeable with standard access floor panels. Grates will have 56% open area, will allow concentrated loads of 1000 lbs, uniform loads of 250 lb/ft2, and will comprise approximately 20% of the raised floor area.

4.2.9 Return Air Grilles

Return grilles for plenum area above raised floor rooms to be lay-in eggcrate ¼” x ¼” x ¼” type, without dampers. Outer borders will be constructed of heavy extruded aluminum with interlocking corners, and countersunk screw holes for neat appearance. Mechanically stake to form rigid frame, finish to be paint..

4.2.10 Building Exterior

4.3.10.1 Exterior Walls

Exterior wall construction will be of integrally insulated architectural precast concrete panels with a minimum thickness of 200 mm (8 inches). Concrete will have a specified compressive strength (fc) of no less than 35 Mpa (5000 psi). Insulation will be expanded polystyrene.

(22)

For the office area, the glazed aluminum curtain wall will be a heavy duty structural silicon glazed system. The curtain wall will be minimized on the East, West and South faces. Glazing will have a minimum frame bite of 12mm (½ inch) for wet glazed systems. Glazing will be heat treated insulated low-e glazing with 6mm (¼”) outside pane, 12mm (½”) gas filled gap, and 6mm (¼”) inside pane. Maximum glass pane size will not exceed 3.0 m2 (32 ft2). Low-e coating will be a solar control spectrally selective coating.

At the office area, the wall system will also include cold form metal framing with batt insulation, insulated prefinished metal wall panels over the air barrier and sheathing board on the exterior, and gypsum wall board finish on the interior face. Metal wall panels will be aluminum composite material.

Wall Louvers include louvers that are not an integral part of mechanical equipment, including louvers that are connected to ducts. Exterior grilles and screens include products to provide solar screening, equipment screening and security barrier systems.

Exterior solar screens will be provided at west facing glazed curtain-walls and windows.

4.2.10.2 Exterior Windows

Exterior windows will be heavy commercial aluminum windows in compliance with ANSI/AAMA Standard 101-85, HC65. Windows will be fixed and projecting. Glazing will be insulated low-e glazing with solar control spectrally selective low-e coating on surface 2.

4.2.10.3 Exterior Doors

Exterior personnel doors for office areas will swing outside in the direction of egress. Glazed aluminum entrance doors will be heavy duty medium stile doors with insulated safety glazing, with heavy duty continuous hinges, overhead door closer, weather-stripping and threshold. Steel doors and frames will be manufactured of commercial quality, stretcher leveled flatness, and galvannealed. Exterior personnel doors for the data center will be steel doors and frames of commercial quality, stretcher leveled flatness, and galvannealed.

Overhead coiling doors of heavy duty construction will be provided at the loading dock. All exit doors will have a heavy duty panic exit device with electro-mechanical locking system, auxiliary deadbolt and RX switch for interface with IDS system. Emergency exit doors from security area will be fitted with an automatic release system of the REDLAM or SAUDI ARAMCO approved equivalent Alarm Bolt type or better. Exit only doors will not have any operable exterior hardware.

4.2.10.4 Roof Construction

Structural precast concrete units will be provided and will meet the prescriptive requirements of the governing code for fire resistance. Columns supporting roof will be nominal 600 x 600 (24 inch by 24 inch) or 500 x 500 (20 inch x 20 inch) precast columns at the connector. Roof girders and beams will be, at minimum, 35 Mpa (5000 psi) precast-concrete L shape at perimeter and inverted T shape at interior location. The main roof members for the data center support areas will be a minimum of 35 Mpa (5000 psi) precast hollow core slab; the computer raised floor will have double-tee precast roof beams. Concrete topping will be 4000 psi

(23)

concrete topping slab over structural deck. Expansion control will be provided. 4.2.11 Building Interior

4.2.11.1 Partitions

Light weight unit masonry partitions will be provided to enclose computer data centers, storage and support spaces and mechanical rooms. A mix of non-bearing gypsum wallboard partitions and full-height demountable partitions will be used to enclose offices and administration areas, conference rooms, public restrooms, and telephone and telecommunication equipment rooms and closets.

Abuse-resistant panels will be provided in the support room corridors to a minimum of 4-foot height. Moisture and mold resistant drywall panels will be provided in wet areas or areas with high humidity. Partitions enclosing corridors, telecommunication equipment and closets and other secure rooms will be extended to the underside of structural deck.

4.2.11.2 Interior Doors

Solid core interior doors will be used in the office area. Fire rated doors will have manufacturer’s standard non-asbestos mineral core of type as required for fire rating.

Two 4-Wing security automatic revolving doors will be installed in the office area with complete access control revolving door assembly, including circular walls, ceiling, access hatch, ceiling lights, door wings, locks, glass, operator and drive assembly and emergency collapsing mechanism. The doors will meet or exceed the following performance criteria:

Curved enclosure and canopy will be of extruded aluminum

Glass will be 6 mm thick clear tempered in rotation wing and 6mm thick bent clear laminated safety glass in the curved walls.

Controller will be microprocessor-based programmable controller with self diagnostics and digital display status indicator. Status indicator must be capable of providing information indicating “go or no-go” status, source or probable cause and remedy.

Infra-Red Sensor detection system (IRS): Ceiling mounted infrared sensors capable of performing the following functions:

• Detect presence of a person after a valid card read and initiate 180 degree door rotation.

• Detect the presence of a person within the door during an invalid or unauthorized entry or exit, and will result in the door stopping, annunciate alarm and voice message, followed by door reversing to allow unauthorized person to exit doorway.

• Ride along IR sensors will provide constant monitoring per quadrant as door is in motion. System will detect presence of a person entering an unauthorized compartment during valid card read. Security breaches that will be detected, annunciate alarm and reject will include:

(24)

with a valid card read in a trailing quadrant.

• Piggy-backing: An attempted breach of security where two people attempt to gain access to the secure side by passing through the same quadrant at the same time.

• Anti-passback capabilities: To include system controlled anti-passback as well as physical anti-anti-passback by the door resting in the “X” position that prevent items being passed back to subsequent users.

• Emergency collapsing mechanism will permit the door wings to fold to emergency exit position allowing a minimum aggregate width of 900mm. Emergency breakaway will include an electromagnetic lock that is released by smoke or fire alarm system actuation or remote controlled manually operated switch. • IR backstop safety sensors will be provided on the wings to

eliminate possible injury from touching the revolving door when in operation, as well as pressure sensitive sensor to eliminate injury from pressure between door wing and sidewall frame.

Interior doors for the Corporate Data Center will be of extra-heavy duty seamless construction with insulation core. All exterior frames will be fully grouted. Interior doors for the support areas will be of heavy duty seamless construction with honey-comb core. Closers will be heavy duty. RX-electrified locks for high-security areas including computer data center will be provided. High-security exit doors will be “Fail-safe”. Door Push/Pull plates, door stops, protection plates and door coordinator will be provided, as required, for specific application.

4.2.11.3 Return Air Grilles

Return grilles for office area to be lay-in perforated type, without dampers. Outer border to be constructed of heavy extruded aluminum with interlocking corners, and counter sunk screw holes for neat appearance. Mechanically stake to form rigid frame, finish to be paint.

Return grilles for back of house rooms other than raised floor to be ½” parallel blade type with 0 degree deflection. The fixed deflection bars shall be available parallel to the long or short dimension of grille. Construction to be heavy duty aluminum with border. Bar to be reinforced by perpendicular supporting bar. Countersink screw holes for neat appearance, finish to be painted.

4.2.11.4 Tile Floor Finishes

Ceramic floor tile will be used in restroom and locker rooms Large polished granite tiles with small polished inserts will be used for the lobby, prayer, and food areas.

4.2.11.5 Carpet Floor Finishes

Carpeting in offices will be a quality branded nylon Carpet Tile with self-adhesive backing.

Fluid Applied Flooring will be used for many hallways and support rooms for the data center. The system will include 100% solid clear or pigmented epoxy primer/binder, 100% solid flexible, self leveling epoxy matrix resin, color quartz broadcast aggregate and clear sealer coat. The system will be chemical and stain
