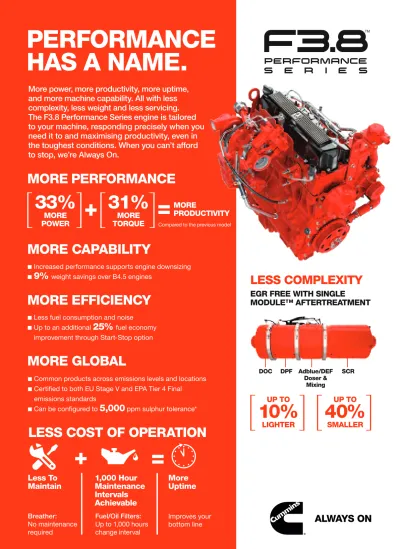

PERFORMANCE HAS A NAME.

(1)

PERFORMANCE

HAS A NAME.

More power, more productivity, more uptime,

and more machine capability. All with less

complexity, less weight and less servicing.

The F3.8 Performance Series engine is tailored

to your machine, responding precisely when you

need it to and maximising productivity, even in

the toughest conditions. When you can’t afford

to stop, we’re Always On.

lESS COMPlExity

EGR FREE WitH SiNGlE

MOdulE™ AFtERtREAtMENt

dOC dPF Adblue/dEF doser & Mixing SCR

uP tO

10%

liGHtER

uP tO

40%

SMAllER

MORE PERFORMANCE

33%

MORE

POWER

31%

MORE

tORQuE

MORE

PROduCtiVity

Compared to the previous model

lESS COSt OF OPERAtiON

Less fuel consumption and noise

Up to an additional

25%

fuel economy

improvement through Start-Stop option

MORE EFFiCiENCy

Increased performance supports engine downsizing

9%

weight savings over B4.5 engines

MORE CAPAbility

Common products across emissions levels and locations

Certified to both EU Stage V and EPA Tier 4 Final

emissions standards

Can be configured to

5,000

ppm sulphur tolerance*

(2)

cummins.com

Power kW (HP) _{N•m (lb-ft) @ rpm}Peak Torque

F3.8 Power Ratings

129 (173) 620 (457) @ 1500 115 (154) 620 (457) @ 1600 110 (148) 600 (443) @ 1500 100 (134) 600 (443) @ 1500 100 (134) 550 (406) @ 1500 90 (121) 500 (369) @ 1500 75 (101) 500 (369) @ 1500 55 (75) 400 (295) @ 1300

* Additional ratings may be available; contact your distributor for more information.

n 33% more power

n More machine capability with higher power density

n Exceptional reliability maintained with performance increases

MORE POWER

MORE SuPPORt

Cummins Care is not a typical call centre.

We are a solutions centre helping to prevent

issues, provide answers quickly and reimburse

accurately. We are your connection to a whole new level of customer

service that is Always On to support and deliver faster personal attention

with rapid results. From the moment you engage with Cummins Care,

you will have access to a Cummins expert with specialised skill sets,

experience and in-depth knowledge to take care of your needs.

MORE tORQuE

n 31% higher peak torque

n Up to 36% higher at 1200 rpm

n Torque curve increases below rated speed support machine productivity improvements

n Stage V ratings optimised by application kW RPM F3.8™ _POWER 100 50 150 0 900 1200 2000 2500 F3.8 Performance Series QSF3.8 RPM F3.8™ _tORQuE N•m 450 650 250 0 900 1200 2000 2500 F3.8 Performance Series QSF3.8

(3)

PERFORMANCE

HAS A NAME.

More power, more productivity, more uptime,

and more machine capability. All with less

complexity, less weight and less servicing.

The B4.5 Performance Series engine is tailored

to your machine, responding precisely when you

need it to and maximising productivity, even in

the toughest conditions. When you can’t afford

to stop, we’re Always On.

lESS COMPlExity

EGR FREE WitH SiNGlE

MOdulE™ AFtERtREAtMENt

uP tO

10%

liGHtER

uP tO

40%

SMAllER

MORE PERFORMANCE

16%

MORE

POWER

11%

MORE

tORQuE

MORE

PROduCtiVity

lESS COSt OF OPERAtiON

Less fuel consumption and noise

Up to an additional

25%

fuel economy

improvement through Start-Stop option

MORE EFFiCiENCy

Increased performance supports engine downsizing

36%

weight savings over B6.7 engines

MORE CAPAbility

Common products across emissions levels and locations

Certified to both EU Stage V and EPA Tier 4 Final

emissions standards

Can be configured to

5,000

ppm sulphur tolerance*

(4)

cummins.com

b4.5 Power Ratings

149 (200) 780 (575) @ 1500 140 (188) 780 (575) @ 1500 129 (173) 780 (575) @ 1500 123 (165) 763 (563) @ 1200 121 (162) 705 (520) @ 1500 115 (154) 712 (525) @ 1200 108 (145) 712 (525) @ 1200 99 (133) 633 (467) @ 1500 97 (130) 651 (480) @ 1500 90 (121) 500 (369) @ 1500

n 16% more power

MORE POWER

MORE SuPPORt

Cummins Care is not a typical call centre.

We are a solutions centre helping to prevent

issues, provide answers quickly and reimburse

accurately. We are your connection to a whole new level of customer

service that is Always On to support and deliver faster personal attention

with rapid results. From the moment you engage with Cummins Care,

you will have access to a Cummins expert with specialised skill sets,

experience and in-depth knowledge to take care of your needs.

MORE tORQuE

n Stage V ratings optimised by application 165 120 75 40 kW RPM 800 1500 1800 2300 b4.5 Performance Series

Optimised For Low End Torque

b4.5 Performance Series QSb4.5 b4.5™ _POWER RPM b4.5™ _tORQuE 675 800 550 400 N•m 800 1500 1800 2300 b4.5 Performance Series

b4.5 Performance Series

(5)

PERFORMANCE

HAS A NAME.

More power, more productivity, more uptime,

and more machine capability. All with less

complexity, less weight and less servicing.

The B6.7 Performance Series engine is tailored

to your machine, responding precisely when you

need it to and maximising productivity, even in

the toughest conditions. When you can’t afford

to stop, we’re Always On.

lESS COMPlExity

EGR FREE WitH SiNGlE

MOdulE™ AFtERtREAtMENt

uP tO

20%

liGHtER

uP tO

40%

SMAllER

MORE PERFORMANCE

5%

MORE

POWER

31%

MORE

tORQuE

MORE

PROduCtiVity

lESS COSt OF OPERAtiON

Less fuel consumption and noise

Up to an additional

25%

fuel economy

improvement through Start-Stop option

MORE EFFiCiENCy

Increased performance supports engine downsizing

36%

weight savings over L9 engines

MORE CAPAbility

Common products across emissions levels and locations

Certified to both EU Stage V and EPA Tier 4 Final

emissions standards

Can be configured to

5,000

ppm sulphur tolerance*

(6)

cummins.com

n 5% more power

MORE POWER

MORE SuPPORt

Cummins Care is not a typical call centre.

We are a solutions centre helping to prevent

issues, provide answers quickly and reimburse

accurately. We are your connection to a whole new level of customer

service that is Always On to support and deliver faster personal attention

with rapid results. From the moment you engage with Cummins Care,

you will have access to a Cummins expert with specialised skill sets,

experience and in-depth knowledge to take care of your needs.

MORE tORQuE

n Stage V ratings optimised by application

b6.7 Power Ratings

243 (326) 1375 (1014) @ 1500 231 (310) 1288 (950) @ 1500 224 (300) 1152 (850) @ 1500 209 (280) 1288 (950) @ 1500 195 (261) 1350 (996) @ 1300 194 (260) 1152 (850) @ 1500 186 (250) 1152 (850) @ 1500 168 (225) 1186 (875) @ 1300 149 (200) 990 (730) @ 1300 129 (173) 746 (550) @ 1300 116 (155) 881 (650) @ 1300

RPM 225 150 75 0 b6.7™ _POWER 800 1200 1800 2200 b6.7 Performance Series QSb6.7 kW N•m RPM 800 1200 1800 2200 1200 800 400 0 b6.7 Performance Series QSb6.7 b6.7™ _tORQuE

(7)

PERFORMANCE

HAS A NAME.

More power, more productivity, more uptime,

and more machine capability. All with less

complexity, less weight and less servicing.

The L9 Performance Series engine is tailored to

your machine, responding precisely when you

need it to and maximising productivity, even in

the toughest conditions. When you can’t afford

to stop, we’re Always On.

lESS COMPlExity

EGR FREE WitH SiNGlE

MOdulE™ AFtERtREAtMENt

uP tO

20%

liGHtER

uP tO

40%

SMAllER

MORE PERFORMANCE

8%

MORE

POWER

14%

MORE

tORQuE

MORE

PROduCtiVity

lESS COSt OF OPERAtiON

Less fuel consumption and noise

Up to an additional

25%

fuel economy

improvement through Start-Stop option

MORE EFFiCiENCy

Expert fault recommendations through Connected Diagnostics™

Remote monitoring that extends engine life and reduces downtime

MORE REliAbility

Common products across emissions levels and locations

Certified to both EU Stage V and EPA Tier 4 Final

emissions standards

Can be configured to

5,000

ppm sulphur tolerance*

(8)

cummins.com

n 8% more power

MORE POWER

MORE SuPPORt

Cummins Care is not a typical call centre.

We are a solutions centre helping to prevent

issues, provide answers quickly and reimburse

accurately. We are your connection to a whole new level of

customer service that is Always On to support and deliver

faster personal attention with rapid results. From the moment

you engage with Cummins Care, you will have access to a

Cummins expert with specialised skill sets, experience and

in-depth knowledge to take care of your needs.

MORE tORQuE

l9 Power Ratings

321 (430) 1846 (1361) @ 1500 309 (415) 1795 (1324) @ 1400 298 (400) 1795 (1324) @ 1400 291 (390) 1795 (1324) @ 1400 283 (380) 1795 (1324) @ 1400 272 (365) 1795 (1324) @ 1400 261 (350) 1561 (1151) @ 1400 254 (340) 1526 (1125) @ 1400 252 (338) 1526 (1125) @ 1400 246 (330) 1636 (1207) @ 1100 242 (325) 1526 (1126) @ 1400 231 (310) 1526 (1125) @ 1400 224 (300) 1526 (1125) @ 1100 220 (295) 1472 (1085) @ 1400 213 (285) 1636 (1207) @ 1100 209 (280) 1472 (1085) @ 1400

kW RPM l9™ _POWER 250 350 150 50 800 1400 1800 2100 l9 Performance Series

l9 Performance Series QSl9 RPM l9™ _tORQuE N•m 2000 1500 1000 600 800 1400 1800 2100 l9 Performance Series

l9 Performance Series

(9)

PERFORMANCE

HAS A NAME.

The X12 Performance Series engine is the

power-weight leader in its engine class, delivering power

and productivity while weighing just 828 kg

(1900 lbs). The X12 is tailored to your machine,

responding precisely when you need it to and

maximising productivity, even in the toughest

conditions. When you can’t afford to stop,

we’re Always On.

MORE PERFORMANCE

383 KW

POWER

2299

N•m

TORQUE

MORE

PRODUCTIVITY

Less fuel consumption and noise

Fully integrated components for maximum optimisation

MORE EFFICIENCY

Expert fault recommendations through Connected Diagnostics™

Remote monitoring that extends engine life and reduces downtime

MORE RELIAbILITY

Common products across emissions levels and locations

Certified to both EU Stage V and EPA Tier 4 Final

emissions standards

MORE GLObAL

LESS WEIGHT

SCULPTED

bLOCK

383 KW POWER

862 KG WEIGHT

LESS COMPLExITY

EGR FREE AFTERTREATMENT

@ only

ADVANCED

COMPONENTS

(10)

cummins.com

x12 Power Ratings

383 (513) 2299 (1696) @ 1400 373 (500) 2169 (1600) @ 1400 354 (475) 2169 (1600) @ 1400 343 (460) 2299 (1696) @ 1400 336 (450) 2169 (1600) @ 1400 324 (435) 2169 (1600) @ 1400 321 (430) 2299 (1696) @ 1400 298 (400) 2169 (1600) @ 1400 298 (400) 1898 (1400) @ 1400 280 (375) 1830 (1350) @ 1400 265 (355) 1695 (1250) @ 1400 261 (350) 1729 (1275) @ 1400 250 (335) 1695 (1250) @ 1400

n More machine capability with high power density

n Ratings ranging from 383 kW to 250 kW

MORE POWER

MORE SUPPORT

Cummins Care is not a typical call centre.

We are a solutions centre helping to prevent

issues, provide answers quickly and reimburse

accurately. We are your connection to a whole new level of customer

service that is Always On to support and deliver faster personal attention

with rapid results. From the moment you engage with Cummins Care,

MORE TORQUE

n Torque curve increases below

rated speed support machine productivity improvements

n Increased capability supports engine downsizing kW RPM x12™ _POWER 450 300 150 0 1000 1300 1500 1700 383 kW Rating 250 kW Rating RPM x12™ _TORQUE N•m 383 kW Rating 250 kW Rating 2000 2500 1000 500 1500 0 1000 1300 1500 1700

(11)

PERFORMANCE

HAS A NAME.

The X15 Performance Series engine is an

undisputed leader in its class, delivering power,

machine capability and productivity to operators

globally. The X15 is tailored to your machine,

responding precisely when you need it to and

maximising productivity, even in the toughest

conditions. When you can’t afford to stop,

we’re Always On.

lESS COMPlExity

SiMPlER ARCHitECtuRE

EASiER iNStAllAtiON

MORE PERFORMANCE

15%

MORE

POWER

60%

MORE

tORQuE

MORE

PRODuCtiVity

Award winning VGT™ Turbocharger

XPI fuel system

Proven DOC, SCR and DPF technology

MORE PROVEN

Expert fault recommendations through Connected Diagnostics™

Remote monitoring that extends engine life and reduces downtime

MORE REliAbility

Common products across emissions levels and locations

Certified to both EU Stage V and EPA Tier 4 Final

emissions standards

MORE GlObAl

lESS FuEl uSAGE

lESS FuEl CONSuMPtiON

AND NOiSE

Fully iNtEGRAtED

COMPONENtS FOR

MAxiMuM OPtiMiSAtiON

(12)

cummins.com

x15 Power Ratings

503 (675) 2778 (2050) @ 1400 485 (650) 2778 (2050) @ 1400 470 (630) 2778 (2050) @ 1400 466 (625) 2779 (2050) @ 1400 447 (600) 2779 (2050) @ 1400 429 (575) 2645 (1950) @ 1400 410 (550) 2373 (1750) @ 1400 399 (535) 2645 (1950) @ 1400 391 (525) 2373 (1750) @ 1400 373 (500) 2169 (1600) @ 1400 352 (472) 2305 (1700) @ 1400 336 (450) 2305 (1700) @ 1400

n 15% more power than the previous model

n Ratings ranging from 503 kW to 336 kW

MORE POWER

MORE SuPPORt

Cummins Care is not a typical call centre.

We are a solutions centre helping to prevent

issues, provide answers quickly and reimburse

accurately. We are your connection to a whole new level of customer

service that is Always On to support and deliver faster personal attention

with rapid results. From the moment you engage with Cummins Care,

MORE tORQuE

n Stage V ratings optimised by application kW RPM x15™ _POWER 450 300 200 0 1000 1400 1700 1900 503 kW Rating 336 kW Rating RPM x15™ _tORQuE N•m 3000 2000 1000 0 800 1200 1600 503 kW Rating 336 kW Rating
