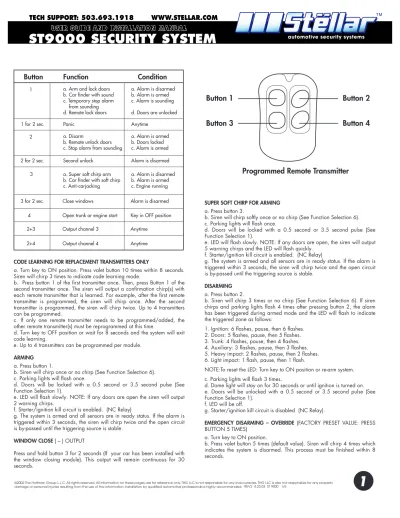

(1)

Button

Function

Condition

1 a. Arm and lock doors

b. Car finder with sound c. Temporary stop alarm from sounding d. Remote lock doors

a. Alarm is disarmed b. Alarm is armed c. Alarm is sounding d. Doors are unlocked

1 for 2 sec. Panic Anytime

2 a. Disarm

b. Remote unlock doors c. Stop alarm from sounding

a. Alarm is armed b. Doors locked c. Alarm is armed 2 for 2 sec. 3 for 2 sec. Second unlock

Close windows Alarm is disarmed

Alarm is disarmed

3 a. Super soft chirp arm

b. Car finder with soft chirp c. Anti-carjacking

a. Alarm is disarmed b. Alarm is armed c. Engine running

4 Open trunk or engine start Key in OFF position

2+3 Output channel 3 Anytime

2+4 Output channel 4 Anytime

Button 1

Button 2

Button 3

Button 4

Programmed Remote Transmitter

CODE LEARNING FOR REPLACEMENT TRANSMITTERS ONLY

a. Turn key to ON position. Press valet button 10 times within 8 seconds. Siren will chirp 3 times to indicate code learning mode.

b. Press button 1 of the first transmitter once. Then, press Button 1 of the second transmitter once. The siren will output a confirmation chirp(s) with each remote transmitter that is learned. For example, after the first remote transmitter is programmed, the siren will chirp once. After the second transmitter is programmed, the siren will chirp twice. Up to 4 transmitters can be programmed.

c. If only one remote transmitter needs to be programmed/added, the other remote transmitter(s) must be reprogrammed at this time.

d. Turn key to OFF position or wait for 8 seconds and the system will exit code learning.

e. Up to 4 transmitters can be programmed per module.

ARMING

a. Press button 1.

b. Siren will chirp once or no chirp (See Function Selection 6). c. Parking lights will flash once.

d. Doors will be locked with a 0.5 second or 3.5 second pulse (See Function Selection 1).

e. LED will flash slowly. NOTE: If any doors are open the siren will output 2 warning chirps.

f. Starter/ignition kill circuit is enabled. (NC Relay)

g. The system is armed and all sensors are in ready status. If the alarm is triggered within 3 seconds, the siren will chirp twice and the open circuit is by-passed until the triggering source is stable.

WINDOW CLOSE ( – ) OUTPUT

Press and hold button 3 for 2 seconds (If your car has been installed with the window closing module). This output will remain continuous for 30 seconds.

SUPER SOFT CHIRP FOR ARMING

a. Press button 3.

b. Siren will chirp softly once or no chirp (See Function Selection 6). c. Parking lights will flash once.

d. Doors will be locked with a 0.5 second or 3.5 second pulse (See Function Selection 1).

e. LED will flash slowly. NOTE: If any doors are open, the siren will output 5 warning chirps and the LED will flash quickly.

f. Starter/ignition kill circuit is enabled. (NC Relay)

g. The system is armed and all sensors are in ready status. If the alarm is triggered within 3 seconds, the siren will chirp twice and the open circuit is by-passed until the triggering source is stable.

DISARMING

a. Press button 2.

b. Siren will chirp 3 times or no chirp (See Function Selection 6). If siren chirps and parking lights flash 4 times after pressing button 2, the alarm has been triggered during armed mode and the LED will flash to indicate the triggered zone as follows:

1. Ignition: 6 flashes, pause, then 6 flashes. 2. Doors: 5 flashes, pause, then 5 flashes. 3. Trunk: 4 flashes, pause, then 4 flashes. 4. Auxiliary: 3 flashes, pause, then 3 flashes. 5. Heavy impact: 2 flashes, pause, then 2 flashes. 6. Light impact: 1 flash, pause, then 1 flash.

NOTE:To reset the LED: Turn key to ON position or re-arm system. c. Parking lights will flash 3 times.

d. Dome light will stay on for 30 seconds or until ignition is turned on. e. Doors will be unlocked with a 0.5 second or 3.5 second pulse (See Function Selection 1).

f. LED will be off.

g. Starter/ignition kill circuit is disabled (NC Relay).

EMERGENCY DISARMING – OVERRIDE (FACTORY PRESET VALUE: PRESS

BUTTON 5 TIMES) a. Turn key to ON position.

b. Press valet button 5 times (default value). Siren will chirp 4 times which indicates the system is disarmed. This process must be finished within 8 seconds.

(2)

CHANGE EMERGENCY DISARMING OVERRIDE VALUE

a. Turn key to ON position. Press valet button 5 times within 8 seconds. Siren will chirp 4 times to indicate that the system is ready to change the Emergency Disarming Override value.

b. Press the valet button (1-15max) as the value you prefer within 8 seconds (if the number is over 15, the system will return back to the original value). The siren will output confirmation chirps for the total value that was selected.

AUTOMATIC DOOR LOCK (SEE FUNCTION SELECTION 4)

When the key turns from the OFF position, to the ON position, the doors will lock after 20 seconds.

AUTOMATIC DOOR UNLOCK

When the key turns from the ON position, to the OFF position, the doors will automatically unlock.

VALET MODE (SEE FUNCTION SELECTION 12) Valet mode ON:

a. Turn key to ON position, within 8 seconds, press and hold valet button for 3 seconds.

b. LED will remain ON constantly to indicate the system has entered Valet mode. Wait 8 seconds or turn key to OFF position.

Valet mode OFF:

a. Turn key to ON position, press and hold valet button for 3 seconds. b. LED will turn OFF to indicate the system has exited valet mode. Wait 8 seconds or turn key to OFF position.

c. While in valet mode, all functions inoperable except door locks. d. If the system is armed the siren will chirp twice to indicate that valet mode is ON.

PANIC

a. Press button 1 for 3 seconds. The siren will sound. The parking lights and dome light will flash together for 30 seconds.

b. Press button 1 or button 2 to turn off Panic mode.

CAR FINDER

While the system is armed, do the following:

a. Press button 1: Siren will chirp once, parking lights and dome light will flash together for 10 seconds.

b. Or, Press button 3: Siren will soft chirp once, parking lights and dome light will flash together for 10 seconds.

c. Press button 2 to stop Car Finder mode and disarm the system.

ANTI-CARJACKING (SEE FUNCTION SELECTION 7)

a. While the engine is running and the doors are closed, press button 3. Within 8 seconds, open the drivers door to activate the anti-carjacking mode. If the door is not opened within 8 seconds, the Anti-carjacking mode will not be entered.

b. Close the drivers door to start the 30 second countdown. The LED will begin to flash quickly.

c. After the 30 second countdown, the siren will chirp every 2 seconds. After 20 more seconds, the siren will sound continuously and the parking lights will flash. If the ignition is turned off, the siren and parking lights will stop.

d. Once the ignition has been turned to the OFF position, the starter/ignition kill circuit is enabled. (if the circuit (NC) relay is connected).

e. Disarming anti-carjacking: Press button 3 for two seconds. The parking lights will flash once for confirmation.

2-STAGE SHOCK SENSOR

a. Immediately after a light impact, the siren will output 5 warning chirps and the parking lights will flash once.

b. Immediately after a heavy impact, the siren will sound for 30 seconds and the parking lights will flash.

OPEN TRUNK OR ENGINE START OUTPUT

a. Press button 4 to open trunk or remote start engine.

b. If the system was previously in the armed mode, both the trunk trigger input and the shock sensor are by-passed. After 30 seconds, the system will be in armed mode again.

CHANNEL 3 AND CHANNEL 4 OUTPUT

Press buttons 2+3 together to output channel 3 (–300mA). This output will remain constant until buttons 2+3 are released.

Press buttons 2+4 together to output channel 4 (–300mA). This output will remain constant until buttons 2+4 are released.

DOOR LOCK CONTROL

a. The doors can be locked with the transmitters, while driving. b. Simply press the lock button.

c. The doors can be unlocked with the transmitters, while driving. d. Simply press the unlock button.

AUTOMATIC REARMING (SEE FUNCTION SELECTION 10)

a. After disarming, when the ignition is in the OFF position and all doors are closed, the system will re-arm automatically within 30 seconds.

LAST DOOR ARMING (SEE FUNCTION SELECTION 8)

a. When the last door is closed and the ignition is in the OFF position, after 30 seconds the system will arm automatically.

b. If one of the doors is opened during the above 30 second countdown, the system will postpone the arming until the last door is closed.

ADDITIONAL TRIGGER SENSOR

Additional sensors can be added that send a negative output trigger.

STARTER/IGNITION KILL

When armed, the system can prevent the vehicle from being started.

AUTO ARM AFTER TRIGERRING

After the siren sounds for 30 seconds upon triggering, the system will remain armed. If the triggering signal is still present, the system will bypass that zone until the triggering signal returns to normal status.

PARKING LIGHT FLASH

In armed mode, the parking lights and dome light will flash for 30 seconds when the system is triggered.

SIREN OUTPUT (See Function Selection 15)

In armed mode, the siren or car horn will sound for 30 seconds when the system is triggered.

FUNCTION SELECTION

The function selections are programmable. Please follow these procedures:

a. Disarm the system.

b. Turn key from OFF position to ON position. c. Press valet button 7 times within 8 seconds.

(3)

button for (CONTINUED FROM PAGE 2)

3 seconds, then release. You will hear 2 chirps. Press and hold the valet button again for 3 seconds, then release. You will hear 2 more chirps. Then, press and release the valet button 5 times. You will hear 5 chirps. f. Turn key to the ON position. You will hear the siren chirp to indicate the current function status (1 or 2 chirps). Then turn key to the OFF position. The system will allow you to enter another selection by repeating step (e). g. To exit programming, turn key to the ON position and press the valet button one time. The system will exit the programming mode.

DEFAULT VALUE VARIABLE VALUE (1CHIRP) (2CHIRPS) 1. LOCK/UNLOCK

TIMER 0.5 SEC 3.5 SEC 2.UNLOCK PULSE 1 2 3. SECOND UNLOCK WITH DISARM AFTER DISARM OUTPUT (HOLD BUTTON 2) 4. IGNITION CONTROLLED

DOOR LOCKS ON OFF 5. SUPER SOFT CHIRP ARM

WITH SHOCK SENSOR ON OFF 6. ARM/DISARM WITH CHIRP ON OFF 7. ANTI-CARJACKING ON OFF 8. LAST DOOR ARMING ON OFF 9. LAST DOOR ARMING

WITH LOCK OFF ON 10. AUTO RE-ARM ON OFF 11. AUTO RE-ARM WITH LOCK OFF ON 12. VALET ON OFF 15. SOUND(siren/horn) CONTINUOUS OUTPUT PULSED OUTPUT 16. LAST DOOR ARMING ALL SENSOR INPUTS IGNITION INPUT INPUTS ACTIVATED ACTIVATED ONLY 25. DEFAULT YES

1. Lock/Unlock Timer

Default: After pressing arm/disarm, both the lock and unlock outputs pulse for 0.5 seconds.

Variable: After pressing arm/disarm, both the lock and unlock outputs pulse for 3.5 seconds.

2. Unlock pulse

Default: 1 pulse Variable: 2 pulses

3. Second unlock

Default: Normal unlock with disarm. Variable: Seond unlock after disarm.

4. Ignition controlled door locks

Default: When key turns from OFF position to ON position, doors will lock after 20 seconds.

Variable: When key turns from OFF position to ON position, doors will NOT lock after 20 seconds (unlock only).

5. Super Soft Chirp with Shock Sensor

Default: Arming with Super Soft Chirp, shock sensor will sound warning chirps on light impacts.

Variable: Arming with Super Soft Chirp arms, shock sensor will NOT sound warning chirps on light impacts.

6. Arm/Disarm with Chirp

Default: Arm/Disarm chirps ON. Variable: Arm/Disarm chirps OFF.

7. Anti-Carjacking

Default: Anti-carjacking mode is ON. Variable: Anti-carjacking mode is OFF.

8. Last Door arming

Default: Turn key to OFF position and close the last door. After 30 seconds, the system will arm automatically.

Variable: Last Door Arming is off.

9. Last Door arming with Door Lock

Default: Last door arming with door lock is off. Variable: Last door arming with door lock is on.

Note: This feature will only work if the Last Door Arming function is selected ON.

10. Auto Re-arm

Default: Auto Re-arm is on Variable: Auto Re-arm is off.

11. Auto Re-arm with lock

Default: Auto Re-arm with lock is off. Variable: Auto Re-arm with lock is on.

Note: This feature will only work if the Auto Re-arm function is selected ON.

12. Valet Mode

Default: Valet mode is on. Variable: Valet mode is off.

15. Siren output

Default: Continuous siren output. Variable: Pulsed siren output.

16. Last Door Arming Inputs

Default: Last door arming with all sensors inputs activated. Variable: Last door arming with only ignition inputs activated.

25. Default

(4)

This system has a switch instead of an actuator in the drivers door. You will need to mount an actuator (GT series) in the drivers door to control your locks. Wiring diagram comes with actuator (GT series)

1. Install the fuse on the red wire then connect the BROWN/BLUE, BROWN/GREEN, and RED wires to a constant 12 volts.

2. From the keyless entry unit connect the ORANGE/BLUE, ORANGE/GREEN, and BLACK wires to metal ground.

3. Mount the actuator, and connect the BLUE/WHITE and GREEN/WHITE wires to the actuators green and blue wires.

Testing (w/an airbag safe digital volt-ohm meter)

Connect the testlight wire to a ground (-), then probe all wires from your door lock switch to determine the lock, unlock, and sender wires.

1. If you come to a wire that LOCKS your doors when probed (-), then you have found the lock wire. Connect the BLUE/WHITE wire from the keyless entry unit to this wire.

2. If you come to a wire that UNLOCKS your doors when probed (-), then you have found the unlock wire. Connect the GREEN/WHITE wire from the keyless entry unit to this wire.

3. From the keyless entry unit connect the BROWN/BLUE and BROWN/GREEN wires to your sender wire. This wire will be a constant negative.

4. Install the fuse on the red wire then connect the RED wire to a constant 12 volts (+), and the BLACK wire to a body ground.

Testing (w/an airbag safe digital volt-ohm meter)

Connect the testlight wire to a 12 volts (+), then probe all wires from your door lock switch to determine the lock, unlock, and sender wires.

1. If you come to a wire that LOCKS your doors when probed (+), then you have found the lock wire. Connect the BLUE/WHITE wire from the keyless entry unit to this wire.

2. If you come to a wire that UNLOCKS your doors when probed (+), then you have found the unlock wire. Connect the GREEN/WHITE wire from the keyless entry unit to this wire.

3. From the keyless entry unit connect the BROWN/BLUE and BROWN/GREEN wires to your sender wire. This wire will be a constant positive.

4. Install the fuse on the red wire then connect the RED wire to a constant 12 volts (+), and the BLACK wire to a body ground.

Similar to positive trigger, but will have 5 wires. 2 wires will be grounded, another 2 wires will be positive triggers, and 1 will have a constant 12 volts (sender wire).

1. Install the fuse on the red wire then connect the BROWN/BLUE, BROWN/GREEN, and RED wires to 12 volts.

2. From the keyless entry unit connect the BLACK wire to metal ground. 3. Cut the drivers door lock wire. This wire will have 12 volts when lock button is pushed.

4. Connect the ORANGE/BLUE wire to the switche's side of the lock wire.

5. Connect the BLUE/WHITE wire to the motor's side of the lock wire. 6. Cut the drivers unlock wire. This wire will have 12 volts when unlock button is pushed.

7. Connect the ORANGE/GREEN wire to the switches side of the unlock wire.

8. Connect the GREEN/WHITE wire to the motor's side of the unlock wire. BROWN/BLUE BLUE/WHITE BLUE ORANGE/BLUE GREEN/WHITE GREEN ORANGE/GREEN GUN LOCK UNLOCK ACTUA TOR NO NO COM NC COM NC +12V BROWN/GREEN BLUE/WHITE DOOR LOCK SWITCH

Negative when lock button is pushed.

Negative when unlock button is pushed.

NEGATIVE (SENDER) LOCK UNLOCK

GREEN/WHITE

FOR VEHICLES WITHOUT DRIVER SIDE LOCKING MOTOR

FOR VEHICLES WITH NEGATIVE LOCKING SYSTEM

BLUE/WHITE DOOR LOCK SWITCH

Positive when lock button is pushed. 12 V o lts when pushed 12 V o lts when pushed

Positive when unlock button is pushed.

POSITIVE (SENDER) LOCK

UNLOCK

GREEN/WHITE

FOR VEHICLES WITH POSITIVE LOCKING SYSTEM

FOR VEHICLES WITH REVERSE POLARITY LOCKING SYSTEM

Note: Connect black, brown/blue and brown/green wire to chasis ground.

Note:

Connect red, brown/blue and brown/green wire to constant 12 Volts.

Note:

Connect red, brown/blue and brown/green wire to constant 12 Volts.

Note: After cutting master door lock switch all buttons will be inoperable when lock button is activated. If only drivers door lock is inoperable, then wrong wire was clut.

LOCK UNLOCK GROUND ORANGE/BLUE ORANGE/GREEN BLUE/WHITE GREEN/WHITE CUT 12V CUT GROUND

USER GUIDE AND INSTALLATION MANUAL

AUTOLOC CL SERIES DOOR KITS

(5)

YELLOW BROWN/WHITE WHITE BROWN

PURPLE/BLACK NEGA

TIVE CH4

GREEN/BLACK NEGTIVE CH3

YELLOW/BLACK NEGA

TIVE SECOND UNLOCK

ORANGE/BLACK WINDOW UP NEGA

TIVE OUTPUT

OPTIONAL SENSOR See page 6.

OPTIONAL

BLACK PURPLE 18A

WG POSITIVE 12V TRUNK SIREN + PARKING LIGHTS RED WHITE/RED BROWN/BLUE 18A WG BLUE/WHITE 18A WG ORANGE/BLUE 18A WG ORANGE ORANGE TRUNK TRIGGER – CUT DOOR TRIGGER + + 12V DOOR TRIGGER – RED BLACK BROWN/GREEN 18A WG GREEN/WHITE 18A WG ORANGE/GREEN 18A WG ORANGE/BLACK 18A WG DOME INPUT ORANGE/BLACK 18A WG DOME OUTPUT FUSE 15A FUSE 15A CENTRAL LOCKING INTERFACE CONNECTIONS + STARTER MOTOR IGNITION SWITCH LED ANTENNA VALET SWITCH SHOCK SENSOR ADJUST DIAL TO STARTER MOTOR

TO IGNITION SIDE OF THE STARTER

ST9000

SECURITY SYSTEM

OFF ACC ON START HEADLIGHT SWITCH RELAY

ORANGE (FROM ALARM) PARKING LIGHT OUTPUT NOTE: RELAY NOT INCLUDED 87

87a 30 86

85

NEGATIVE PARKING LIGHTS

+

(6)

USE THESE EXCELLENT ADD-ON ACCESSORIES TO ENHANCE YOUR

VEHICLES SECURITY SYSTEM

• SIMPLE PLUG AND PLAY INSTALLATION

• LONG LIFE AND RELIABLE OPERATION

• COMPATIBLE WITH ALL STELLAR ALARMS

• BACKED BY A LIMITED LIFETIME WARRANTY

UT1000

ULTRASONIC SENSOR

GS1

GLASS SENSOR

PAGER

LONG RANGE PAGER

RM2000

RADAR SENSOR

BKSR

BATTERY BACK UP SIREN

Upgrade your alarm system to the ultimate dual stage sensor. When an intruder comes near your vehicle the sensor will trigger a warning chirp. (Stage 1) If the sensor senses motion within the vehicle while your system is armed, it will trigger the alarm system (stage2). Sensitivity for both stages of detection is fully adjustable.

Full featured pager with multi-mode operation allows you to monitor the status of your vehicle's security. Ultra-compact high output 4 watt system offers superior range while conserving batter usage. A handy belt holster (not shown) for the pager is included. Universal design, easy installation, and will work with all aftermarket or factory alarms.

Employing the latest compact power cell technology. If the alarm system’s power source has been disconnected, the siren will remain active and functional. The BKSR is housed in a weatherproof housing. Easy installation.

This high frequency sensor will trigger your alarm system when the thief attempts to gain entry by breaking your windows. Fully compatible with all Stellar alarm systems with an optional sensor port. The GS1 glass sensor gives you added peace of mind at a small cost.

Get the ultimate in protection for your vehicle! This dual stage ultrasonic sensor package fills the cabin of your vehicle with invisible ultrasonic waves. Any intrusion that interrupts these invisible waves will trigger your alarm system. Installation is easy. Simply mount, wire, configure and you ar done!

References

Related documents

DOOR LOCK SWITCH DO NOT CONNECT +12V +12V GND BLACK CHASSIS GROUND TO CHASSIS GROUND FUSED +12V CONSTANT-ON FACTORY DOOR LOCK SYSTEM RED FUSED +12V GREEN PACK WHITE/RED BROWN

WINDOW MOTOR WIRES wire ORANGE DUAL RELAY PACK GREEN WHITE BROWN BLUE RED GREEN small wire small BLACK PURPLE CHASSIS GROUND BLUE CONSTANT-ON FUSED +12V GRAY CONNECT TO PINK WHITE RED

Black Black Green Green Yellow Yellow Red Red White/Orange White/Blue Orange Blue White/Brown Brown White/Green Green Pairs 1 & 2 Pairs 3 & 4 Dual Jack Telephone Wallplate

If you want to record the conference, be sure to click on the record icon in the upper left hand corner of the screen.. Even though you clicked that in settings, you need to click it

VIOLET UNLOCK SWITCH (87a) LOCK/UNLOCK POLARITY (87) DOOR LOCK HARNESS BROWN BROWN (-) AUXILIARY 2 OUTPUT +12V IGNITION (+) DOOR TRIGGER (-) HOOD/TRUNK TRIGGER (-) DOOR TRIGGER

Black/Blue Black/DarkGreen Black/Orange Black/Purple Black/White Black Blue/ Blue Military Green Orange Pink Purple White White/Lt Blue White/Lime White/Orange White/Pink Green.

The A DAPTED S ERVER pattern places abstract polymorphic interfaces in an abstract class that is contained by the client, and a derivative of which contains the server. In

GREEN passenger’s door latch actuator PURPLE trunk release latch actuator WHITE/RED trunk lift motor raise relay WHITE/BLUE trunk lift motor lower relay ORANGE
