1. TIB388 about the Windows compatibility of all Mutoh devices subdivided in

(1)

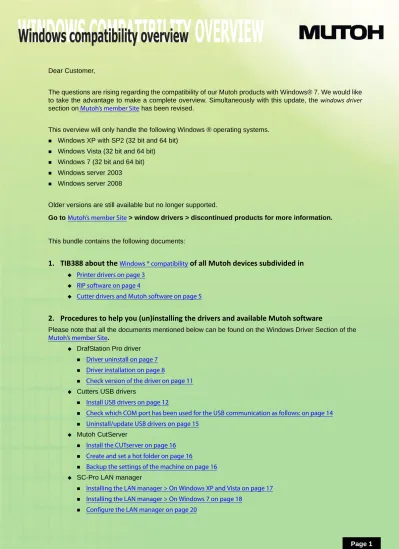

WINDOWS COMPATIBILITY OVERVIEW

Windows compatibility overview

Page 1 Dear Customer,

The questions are rising regarding the compatibility of our Mutoh products with Windows® 7. We would like to take the advantage to make a complete overview. Simultaneously with this update, the windows driver section on Mutoh’s member Site has been revised.

This overview will only handle the following Windows ® operating systems.

 Windows XP with SP2 (32 bit and 64 bit)

 Windows Vista (32 bit and 64 bit)

 Windows 7 (32 bit and 64 bit)

 Windows server 2003

Older versions are still available but no longer supported.

Go to Mutoh’s member Site > window drivers > discontinued products for more information.

This bundle contains the following documents:

1. TIB388 about the

Windows ® compatibility

of all Mutoh devices subdivided in

 Printer drivers on page 3

 RIP software on page 4

 Cutter drivers and Mutoh software on page 5

2. Procedures to help you (un)installing the drivers and available Mutoh software

Please note that all the documents mentioned below can be found on the Windows Driver Section of the Mutoh’s member Site.

 DrafStation Pro driver

 Driver uninstall on page 7

 Driver installation on page 8

 Check version of the driver on page 11

 Cutters USB drivers

 Install USB drivers on page 12

 Check which COM port has been used for the USB communication as follows: on page 14

 Uninstall/update USB drivers on page 15

 Mutoh CutServer

 Install the CUTserver on page 16

 Create and set a hot folder on page 16

 Backup the settings of the machine on page 16

 SC-Pro LAN manager

 Installing the LAN manager > On Windows XP and Vista on page 17

 Installing the LAN manager > On Windows 7 on page 18

(2)

TECHNICAL

INFORMATION

BULLETIN

Release date: 22 April 2010

Bulletin N°: 2010 / 388

FROM: MUTOH service & support department

FOR:

AUTHORIZED MUTOH RESELLERS ONLY

TIB388: All Mutoh devices - Windows ® compatibility Page 2

Dear Customer,

The questions are rising regarding the compatibility of our Mutoh products with Windows® 7. We would like to take the advantage to make a complete overview. Simultaneously with this update, the windows driver section on our member site has been revised.

This overview will only handle the following Windows ® operating systems.

 Windows XP with SP2 (32 bit and 64 bit)

 Windows Vista (32 bit and 64 bit)

 Windows 7 (32 bit and 64 bit)

Older versions are still available but no longer supported.

Go to Mutoh’s member Site > window drivers > discontinued products for more information.

It is necessary to split up this compatibility overview in 3 main categories.

 Printer drivers

 RIP software

 Cutter drivers and Mutoh software

(3)

1 Printer drivers

Mutoh only offers Windows drivers for the DrafStation Pro (RJ-900). All other Mutoh printers are sold with a RIP software which will take care of the direct communication with the Mutoh device without the need for any Windows based drivers. However, these RIP software are not for free.

Refer to RIP software on page 4

Helpful documents

 DrafStation Pro driver

 Driver uninstall on page 7  Driver installation on page 8

 Check version of the driver on page 11

Device Driver Compatible with ...

RJ-900PRO_32-bit_Ver_3.03.zip

 Windows Server 2003 - 32 bit

 Windows XP - 32 bit

 Windows Vista - 32 bit

 Windows 7 - 32 bit

RJ-900PRO_64-bit_Ver_3.02.zip

 Windows XP - 64 bit

 Windows Vista - 64 bit

(4)

2 RIP software

Please find below an overview of the most common RIP software used in combination with Mutoh printers and their compatibility with Windows.

Bold = current version is sold by Mutoh

---* Most RIP software will work on 64 bit systems, but these version are still in beta phase. Logically, no success will be guaranteed when installing one of these versions.

** There is a special driver update required when working with the Kona series cutters. This file ( Mutoh.drv ) can be found on Mutoh’s FTP and should be copied over the existing Mutoh.drv.

RIP software Version Windows XP Windows Vista Windows 7

32 bit * 32 bit * 32 bit *

version 6 or lower version 7

version 4 version 5 with SP 12 **

version 5 with SP 14 ** not recommended

version 5

(5)

3 Cutter drivers and Mutoh software

Please find below an overview of the available drivers and software packages for the Mutoh cutters.

---* When you try to install the Lantronix CPR manager in a Windows 7 environment, it seems to be impossible and incompatible. However, there is a work around. Refer to Installing the LAN manager > On Windows 7 on page 18

** There is a special driver update required when working with the Kona series cutters. This file ( Mutoh.drv ) can be found on Mutoh’s FTP and should be copied over the existing Mutoh.drv.

Operating system

Windows XP

with SP2 Windows Vista Windows 7

Device Tool Driver / Software 32 bit 64 bit 32 bit 64 bit 32 bit 64 bit

USB driver USB_Drivers_1_0_1.zip Cutserver 1.0.5 CutServer_setup_v1.0.5.exe Cutserver 3.0.0 CutServer 3.0.0.exe

USB driver USB_Drivers_1_0_1.zip Cutserver 1.0.5 CutServer_setup_v1.0.5.exe Cutserver 3.0.0 CutServer 3.0.0.exe LAN manager * CPR32DL_4.2.0.1_Web.exe

(6)

Helpful documents

 Cutters USB driver

 Install USB drivers on page 12

 Check which COM port has been used for the USB communication as follows: on page 14  Uninstall/update USB drivers on page 15

 Mutoh CutServer

 Install the CUTserver on page 16  Create and set a hot folder on page 16

 Backup the settings of the machine on page 16  SC-Pro LAN manager

 Installing the LAN manager > On Windows XP and Vista on page 17  Installing the LAN manager > On Windows 7 on page 18

(7)

DRIVER (UN)INSTALL

Driver (un)install

Page 7

1 Driver uninstall

Before installing a new driver it is necessary to uninstall the previous version. Uninstall the driver manually as described below and do not use the (un)installation tool.

Step 1: Open your printer folder via the Windows control panel.

Step 2: Right-click on the MUTOH RJ-90x logo and choose delete.

Step 3: Click on file in the menu bar and choose server properties.

Step 4: Click on the drivers tab.

Step 5: Select the MUTOH RJ-90x and select remove. Be sure to remove driver AND driver package.

Step 6: Now you can install the new driver.

Note

(8)

DRIVER (UN)INSTALL

Driver (un)install

Page 8

2 Driver installation

Be sure to uninstall the previous driver first BEFORE installing a new driver Refer to Driver uninstall on page 7

Choose one of the following options:

 Automatic installation - for Windows 32 bit OS > Network printing on page 8

 Automatic installation - for Windows 32 bit OS > USB printing on page 9

 Manual installation - for Windows 64 bit OS on page 10

 Installation on Windows server 2003 on page 10

Automatic installation - for Windows 32 bit OS

1) Network printing

Step 1: Download the correct driver

 Windows 32 bit driver

Step 2: Unzip the driver package

Step 3: Open the folder, localize the file setup.exe and open it.

Step 4: An installation wizard will open.

Step 5: Select the plotter model and click on install.

Step 6: Select which items to install and click next.

 Driver

 Status monitor (optional)

Step 7: Read license agreement and click on agrees to continue.

Step 8: Select network in this case.

Step 9: Fill in the form popped up and click on settings.

 Port name

 IP address of the plotter

Step 10: Fill in the driver name and click on agrees.

Step 11: Press next to install the driver (and status monitor)

Step 12: Click on end to close the installation tool.

(9)

DRIVER (UN)INSTALL

Driver (un)install

Page 9

2) USB printing

Step 3: Open the folder, localize the file setup.exe and open it.

Step 4: An installation wizard will open.

Step 5: Select the plotter model and click on install.

Step 6: Select which items to install and click next.

 Driver

 Status monitor (optional)

Step 7: Read license agreement and click on agrees to continue.

Step 8: Select USB in this case.

Step 9: Press next to install the driver (and status monitor)

Step 10: Click on end to close the installation tool.

Step 11: Power ON the plotter and connect it to the computer via USB.

Step 12: The USB printing support driver will be installed automatically.

(10)

DRIVER (UN)INSTALL

Driver (un)install

Page 10

Manual installation - for Windows 64 bit OS

There is no installation wizard available for the Windows 64 bit operating systems. Therefore, the driver should be installed manually as follows:

Step 3: Power ON the printer and be sure that it is connected via a network cable.

Step 5: Select add printer.

Step 6: Select add a local printer.

Step 7: Select create a new port - standard TCP/IP port.

Step 8: Set the following and click next:

 Device type: TCP/IP Device.

 Hostname or IP address: Set the internet protocol address of the plotter.

 Port name: will be automatically filled in.

 Clear the checkbox query the printer and automatically select the driver to use.

Step 9: Select custom and click on settings when the additional port information window is displayed

Step 10: Fill in the port settings and click ok.

 Port name: IP address of the plotter

 Printer name or IP address: IP address of the plotter

 Protocol: RAW

 Port number: 9100

Step 11: The additional port information window will be displayed again, click next this time.

Step 12: The add printer wizard will open. Select have disk...

Step 13: Browse to the folder to where you have unpacked the driver package.

Step 14: Select the correct inf-file.

Step 15: Click on ok.

Step 16: Type a printer name and click next.

Step 17: The driver will now be installed.

Step 18: It is possible that Windows Vista cannot verify the publisher of this driver software. If this screen appears, click on Install this driver software anyway.

Step 19: Check the version of the driver to be sure the installation has been finalised correctly. Refer to Check version of the driver on page 11

Installation on Windows server 2003

Step 1: Log on to the server as administrator.

Step 2: Start the group policy editor (in command line, type gpedit.msc).

Step 3: Disable the policy Disallow Installation of printers using kernel-mode drivers in the group policy editor.

Step 4: Install the driver via the normal procedure. Refer to Driver installation on page 8

Step 5: Reboot the server.

(11)

DRIVER (UN)INSTALL

Driver (un)install

Page 11

3 Check version of the driver

It might be possible that the update of the driver has not been succeeded successfully. To ensure a proper installation, check the version of the new driver as follows:

Step 2: Right click on the DrafStation and select properties.

Step 3: Go to the version tab and verify that the latest version if displayed.

Step 4: If not, uninstall and install the driver once more Refer to Driver uninstall on page 7

(12)

USB DRIVER (UN)INSTALL

USB Driver (un)install

Page 12

1 Install USB drivers

Step 1: Download the drivers from Mutoh’s member Site > window drivers.

Step 2: Unpack the driver package.

Step 3: Make a connection between the cutter and your computer using a USB cable.

Step 4: Power ON the cutter and computer.

Step 5: Your computer will automatically detect the cutter.

Step 6: When your are asked to connect to search automatically for software, select No, not this time and press Next .

Step 7: Now select Install from a list or specific location (Advanced).

Note

(13)

USB DRIVER (UN)INSTALL

USB Driver (un)install

Page 13

Step 8: Browse to the folder where the USB driver is located, select the folder shown below 

and press next.

Step 9: When working with Windows XP, a warning message will be displayed. Ignore this message and press Continue anyway.

Step 10: The software will be installed.

Step 11: After the installation of the cutter itself, the USB serial port driver need to be installed.

_

Step 12: Perform the same procedure as earlier.

(14)

USB DRIVER (UN)INSTALL

USB Driver (un)install

Page 14

2 Check which COM port has been used for the USB



communication as follows:

 For Windows XP users

 Open the windows control panel.

 Double click on the system icon

 Click on the hardware tab

 Click on device manager

 Unfold the Ports (COM & LPT) menu and check which COM port is written next to the Kona.

 For Windows Vista an d 7 users

 Click on the start button

 Type device manager in the search window

(15)

USB DRIVER (UN)INSTALL

USB Driver (un)install

Page 15

3 Uninstall/update USB drivers

Please follow the instructions below to know how to uninstall the USB drivers.

Step 1: Make sure your cutter is powered ON and connected to the PC.

Step 2: In the Device manager you will find your device

 Virtual serial port

 USB device

Step 3: Uninstall the serial PORT

 Double-click on the USB serial port item and select the driver TAB

 When you want to install a new version of the driver press the update driver button.

 When you want to remove the complete driver press on the uninstall button.

Step 4: Perform the same actions to uninstall/update the USB device

(16)

CUTSERVER INSTALLATION

CUTserver installation

Page 16 In order to use the Automated Barcode workflow, an exclusive CutServer tool has been 

developed by Mutoh to pass on all generated alignment plot files from your software to the cutter.  All print and cut plot files will be gathered into a hot folder, linked to the CutServer queue, 

in which the scanning command can be given to read the ID number of your printout.

1 Install the CutServer

Step 1: Download the CutServer from Mutoh’s member Site > window drivers.

Step 2: Install the Mutoh CutServer by double clicking on the exe installation file.

Step 3: Follow the instructions of the program.

 Select Destination Location.

 Select Start Menu Folder.

 Decide whether to create a desktop icon or not.

 Install the software.

Step 4: Open the Mutoh CutServer and set a hot folder as described below

2 Create and set a hot folder

To be able to display all the jobs in the queue of the CutServer, a folder need to be made on your local harddisk. This folder should be linked to the CutServer.

Step 1: Using your windows explorer, create a new empty folder on your HardDisk. (Any name will do, for the example we will call the folder CutServer and place it directly under C:\) or use the default folder C:\Program Files\Mutoh Europe Nv\CutServer.

Step 2: Start the Mutoh CutServer, the following pop-up will be displayed:

Step 3: Go to file and choose set directory.

Step 4: Browse to your hot folder and click OK.

Step 5: All the plotfiles gathered in this folder will now be displayed.

3 Backup the settings of the machine

When establishing problems with your cutter, it is very useful to be able to restore previous settings and parameters. Therefore, when starting up the CutServer for the first time, an automatic back-up will be taken from the parameters.

(17)

ETHERNET DRIVER INSTALLATION

Ethernet driver installation

Page 17 To be able to communicate with the SC Pro via network, the Ethernet driver needs to be installed. This

program will generate a virtual com port.

Please find below the procedure to install and configure the CPR manager.

1 Installing the LAN manager

On Windows XP and Vista

Step 1: Install DotNetFix v2.0 before installing the LAN manager when working with Windows XP. This program can be found on the SC-Pro installation CD or on the official website of Microsoft. 

When this update has already been installed, the following screen will be displayed:

Step 2: Download the LAN manager from Mutoh’s member Site > window drivers.

Step 3: Install the program by double clicking on the exe installation file.

Step 4: Follow the instructions of the program:

 Location of save files

 Select installation folder

 Confirm installation

 Installation of LAN manager

 Confirm the installation when asked

 Close installation

Step 5: Configure the LAN manager

(18)

ETHERNET DRIVER INSTALLATION

Ethernet driver installation

Page 18

On Windows 7

Step 1: Download the LAN manager from Mutoh’s member Site > window drivers.

Step 2: Install the program by double clicking on the exe installation file.

Step 3: You may initially get an installation error when attempting to install the LAN manager on a Windows 7 workstation. The following screen will be displayed in this case:

Step 4: Click OK to continue.

Step 5: You will get an installation incomplete message.

Step 6: After clicking on the close button, either the program compatibility assistant will open or a small textballoon will pop-up in the lower right corner on which you should click to open the assistant.

(19)

ETHERNET DRIVER INSTALLATION

Ethernet driver installation

Page 19

Step 8: Follow the instructions of the program:

 Location of save files

 Select installation folder

 Confirm installation

 Installation of LAN manager

 Confirm the installation when asked

 Close installation

Step 9: Open the programs and features window to ensure the Lantronix CPR manager has been installed successfully.

Step 10: Configure the LAN manager

(20)

ETHERNET DRIVER INSTALLATION

Ethernet driver installation

Page 20

2 Configure the LAN manager

Step 1: Be sure that the network cable to the SC-Pro has been plugged in.

Step 2: Power ON the SC-Pro and set the IP address and SubNetMask.

Refer to the User’s Guide of the SC-Pro to know how make these settings.

Step 3: Open the LAN manager.

Step 4: Press add/remove add a COM port

Step 5: Choose a COM port and press OK.

Step 6: The COM port will be added and will be displayed in red.

Step 7: Configure the new COM port as follows.

 Click on the new COM port.

 Type in the IP address of cutter and TCP Port (always 10001).

Do not type a "0" or "00” in a single or double digit number in the chosen IP address.  172.16.222.201 instead of 172.016.222.201.

172.16.222.1 instead of 172.16.222.001 Leave all other settings unchanged!

 To confirm and finalize the configuration of the virtual com port, press the diskette icon to save all the settings.

 When working with Windows XP, you have to confirm once again.

(21)

ETHERNET DRIVER INSTALLATION

Ethernet driver installation

Page 21

Step 9: Verify that the chosen COM port will be used for the SC-Pro Ethernet communication:

 For Windows XP users

 Open the windows control panel.

 Double click on the system icon

 Click on the hardware tab

 Unfold the Ports (COM & LPT) menu and check which COM port is written next to the Lantronix CPR Port

 For Windows Vista an d 7 users

 Click on the start button

 Type device manager in the search window
