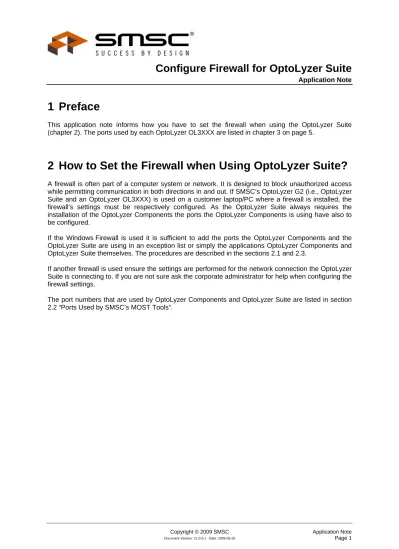

Configure Firewall for OptoLyzer Suite

Application Note

1 Preface

This application note informs how you have to set the firewall when using the OptoLyzer Suite (chapter 2). The ports used by each OptoLyzer OL3XXX are listed in chapter 3 on page 5.

2 How to Set the Firewall when Using OptoLyzer Suite?

A firewall is often part of a computer system or network. It is designed to block unauthorized access while permitting communication in both directions in and out. If SMSC’s OptoLyzer G2 (i.e., OptoLyzer Suite and an OptoLyzer OL3XXX) is used on a customer laptop/PC where a firewall is installed, the firewall’s settings must be respectively configured. As the OptoLyzer Suite always requires the installation of the OptoLyzer Components the ports the OptoLyzer Components is using have also to be configured.

If the Windows Firewall is used it is sufficient to add the ports the OptoLyzer Components and the OptoLyzer Suite are using in an exception list or simply the applications OptoLyzer Components and OptoLyzer Suite themselves. The procedures are described in the sections 2.1 and 2.3.

If another firewall is used ensure the settings are performed for the network connection the OptoLyzer Suite is connecting to. If you are not sure ask the corporate administrator for help when configuring the firewall settings.

The port numbers that are used by OptoLyzer Components and OptoLyzer Suite are listed in section

2.2 “Ports Used by SMSC’s MOST Tools”.

(2)

Configure Firewall for OptoLyzer Suite

2.1 Add OptoLyzer Suite to Exception List

Adding OptoLyzer Suite to the exception list of the firewall requires also adding the OptoLyzer Components to the exception list. This means all ports OptoLyzer Components and OptoLyzer Suite are using are added automatically in the exception list. In the following example the OptoLyzer Suite is added to the exception list.

1. Login as a user with administrator rights.

2. Start Control Panel.

3. Start Windows Firewall.

If another application is used for maintaining the firewall, ask the corporate administrator for help.

4. Switch to tab Exceptions.

5. Click ‘Add Program’.

6. Select OptoLyzer Components in the list and confirm (this is because OptoLyzer Suite requires the OptoLyzer Components for a proper operation).

7. Click ‘Add Program’.

8. Select OptoLyzer Suite in the list and confirm.

All port numbers used by the OptoLyzer Suite are added to the exception list.

(3)

Configure Firewall for OptoLyzer Suite

2.2 Ports Used by SMSC’s MOST Tools

The table below gives an overview about which application requires which port for a proper operation.

Protocol Direction Port Description Port No.

TCP UDP In Out Applications Webinterface (HTTP) 80 OptoLyzer Suite (all versions) License Recognition 27994 OptoLyzer Suite up to V1.4.2 License Recognition 27994 OptoLyzer Suite up to V1.4.2

Recognition 27996 OptoLyzer Suite up to V1.4.2

MBI Recognition 27997

OptoLyzer Suite (all versions) OptoLyzer Components MOST Radar

MOST System Radar

MBI Recognition 27997

OptoLyzer Suite (all versions) OptoLyzer Components MOST Radar

MOST System Radar

MBI Recognition 27997 OptoLyzer Components

Spy Data 27998 OptoLyzer Suite (all versions)

MOST System Radar

MBI 27999

OptoLyzer Suite (all versions) Transceiver

MOST Radar

MOST System Radar

License 28002 OptoLyzer Suite (all versions)

Logger Recognition 28003 MOST DataLogger Extension

Logger MBI 28003 MOST DataLogger Extension

.NET object

transmissions 28004 localhost OptoLyzer Components

(4)

Configure Firewall for OptoLyzer Suite

2.3 Set Port Numbers

Alternatively you can also configure the single ports. In the following example the configuration of an exception is described for port number 28004 and protocol TCP.

1. Login as a user with administrator rights.

2. Start Control Panel.

3. Start Windows Firewall.

If another application is used for maintaining the firewall, ask the corporate administrator for help.

4. Switch to tab Exceptions.

5. Click ‘Add Port’.

Figure 2-1: Add a Port

6. Enter the port number e.g., 28004 and a friendly name.

7. Select the TCP radio button and click OK.

The same procedure has to be performed for all port numbers used by the OptoLyzer Components

and the OptoLyzer Suite (refer to section 2.2 Ports Used by ).

(5)

Configure Firewall for OptoLyzer Suite

3 Ports Listed per OptoLyzer OL3XXX

This chapter provides extended information about which ports are used by which OptoLyzer OL3XXX.

If you are not sure which boxes are used or will be used in future, we recommend the port settings as described in chapter 2.2.

3.1 Ports Used by OptoLyzer OL3025o V1

The following table shows the ports used by the OptoLyzer OL3025o V1. It also informs about the used protocols and directions.

Protocol Direction Port Description Port No.

TCP UDP In Out

Webinterface (HTTP) 80

License Recognition 27994

Recognition 27996

MBI Recognition 27997

Spy Data 27998

MBI 27999

License 28002

(6)

Configure Firewall for OptoLyzer Suite

3.2 Ports Used by OptoLyzer OL3025o V2

The following table shows the ports used by the OptoLyzer OL3025o V2. It also informs about the used protocols and directions.

Protocol Direction Port Description Port No.

TCP UDP In Out

Webinterface (HTTP) 80

MBI Recognition 27997

Spy Data 27998

MBI 27999

License 28002

(7)

Configure Firewall for OptoLyzer Suite

3.3 Ports Used by OptoLyzer OL3050e

The following table shows the ports used by the OptoLyzer OL3050e. It also informs about the used protocols and directions.

Protocol Direction Port Description Port No.

TCP UDP In Out

Webinterface (HTTP) 80

License Recognition 27994

Recognition 27996

MBI Recognition 27997

Spy Data 27998

MBI 27999

License 28002

Logger Recognition 28003

Logger MBI 28003

(8)

Configure Firewall for OptoLyzer Suite

3.4 Ports Used by OptoLyzer OL3150o

The following table shows the ports used by the OptoLyzer OL3150o. It also informs about the used protocols and directions.

Protocol Direction Port Description Port No.

TCP UDP In Out

Webinterface (HTTP) 80

MBI Recognition 27997

Spy Data 27998

MBI 27999

License 28002

(9)

Configure Firewall for OptoLyzer Suite
