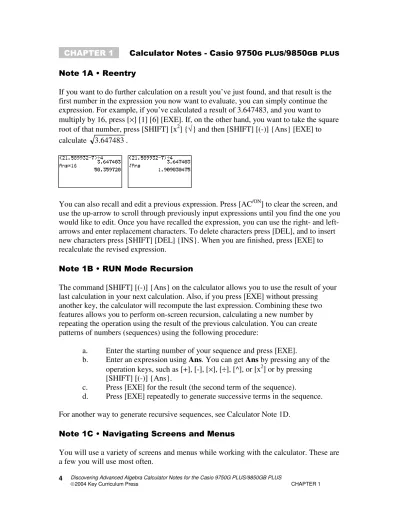

If you want to do further calculation on a result you’ve just found, and that result is the first number in the expression you now want to evaluate, you can simply continue the expression. For example, if you’ve calculated a result of 3.647483, and you want to multiply by 16, press [×] [1] [6] [EXE]. If, on the other hand, you want to take the square root of that number, press [SHIFT] [x2] {√} and then [SHIFT] [(-)] {Ans} [EXE] to calculate 3.647483.
You can also recall and edit a previous expression. Press [AC/ON] to clear the screen, and use the up-arrow to scroll through previously input expressions until you find the one you would like to edit. Once you have recalled the expression, you can use the right- and left- arrows and enter replacement characters. To delete characters press [DEL], and to insert new characters press [SHIFT] [DEL] {INS}. When you are finished, press [EXE] to recalculate the revised expression.
! $ % "
The command [SHIFT] [(-)] {Ans} on the calculator allows you to use the result of your last calculation in your next calculation. Also, if you press [EXE] without pressing another key, the calculator will recompute the last expression. Combining these two features allows you to perform on-screen recursion, calculating a new number by repeating the operation using the result of the previous calculation. You can create patterns of numbers (sequences) using the following procedure:
a. Enter the starting number of your sequence and press [EXE].
b. Enter an expression using Ans. You can get Ans by pressing any of the operation keys, such as [+], [-], [×], [÷], [^], or [x2] or by pressing [SHIFT] [(-)] {Ans}.
c. Press [EXE] for the result (the second term of the sequence).
d. Press [EXE] repeatedly to generate successive terms in the sequence.
For another way to generate recursive sequences, see Calculator Note 1D.
! & ' "' " "% $ "
Set Up Screen
Options on the Set Up Screen will vary depending on the mode in which you are currently working. For example, from the RUN Mode, if you press [SHIFT] [MENU]
{SET UP}, you will see:
Scrolling down, you will see more options.
You can change set-up options by highlighting the option and pressing [F1] through [F6].
Your Set Up Screen will most often appear as above.
If you are working in the GRAPH Mode, your Set Up Screen will have other options.
Graph Function Menu
The Graph Function Menu appears when you choose the GRAPH Mode from the MAIN MENU. You can use this menu to store, edit, and recall functions and to draw their graphs.
View Window
Use the View Window to specify the range of the x- and y-axes, and to set the spacing between the increments on each axis. You should always set the View Window
parameters you want to use before drawing a graph. Press [SHIFT] [F3] {V-Window} to display the View Window.
Statistical Data List
The Statistical Data lists are displayed when you choose the STAT Mode from the Main Menu. Use the statistical data lists to input data and to perform statistical calculations.
Option (OPTN) Menu
There are keys for the most common commands you will use – numbers and operations, for example, and [DEL] and [SHIFT] [DEL] {INS}. You will choose other commands from menus and submenus. The option menu gives you access to scientific functions and features that are not marked on the calculator’s keyboard. The contents of the option menu differ according to the mode you are in when you press the [OPTN] key.
In the RUN Mode, the function keys [F1] through [F6] correspond to:
[F1] list function menu [F2] matrix operation menu
[F3] complex number calculation menu [F4] functional analysis menu
[F5] paired-variable statistical estimated value menu F1 F2 F3 F4 F5 F6
[F6] more options
Within each menu is a submenu, as shown below.
list function menu matrix operation menu complex number calculation menu
functional analysis menu paired-variable statistical more options estimated value menu
Example:
Find the value of 5! × 7! ÷ 2!.
In the RUN Mode, press [OPTN] [F6] [F3] to access the PROBability submenu.
Press [5] [F1] [×] [7] [F1] [÷] [2] [F1]. The PROBability submenu will remain on the screen until you press [EXIT]. Therefore, you will not need to press a series of keys each time you wish to use the factorial symbol (!).
( ! " $ %
The Casio 9750G Plus/9850GB Plus has a built-in feature for performing recursion.
Whereas Discovering Advanced Algebra uses the variable u for recursion, the calculator uses the variable a. From the Main Menu, select the RECUR icon to enter the RECUR Mode.
Before inputting a recursion formula, you must specify its type. In the Recursion Menu, press [F3] (TYPE). Press the function key for the recursion formula type you want to set.
For linear recursion between two terms, press [F2].
Input a recursion formula and generate a table. For example, u1 = 47 (or a1 = 47)
un = 2un-1 – 8 where n ≥ 2 (or an+1 = 2an – 8 where n ≥ 1)
Press [2] [F4] (n,an…) [F2] (an) [-] [8] [EXE] to enter the recursive formula.
Press [F5] (RANG) [F2] to display the table range settings.
Enter a starting value of 1 and an ending value of 10 to specify the range of values for n.
Also, set the initial value (a1) as 47. Press [EXE] or [EXIT] to return to the Recursion Menu. Press [F6] to view the table containing the first 10 terms of the sequence. Use the arrow keys to scroll through the table.
If you would like to generate a table for two recursive sequences at a time, simply enter a second recursive formula for bn+1. When the table is generated, it will include values for both sequences.
You can change the initial value of the sequence by changing the value of a1 or the recursive formula by changing the value of an+1.
! )* "' & + "
Whenever a table is generated in the RECUR Mode, the function menu that appears at the bottom of the screen includes the options to draw a connected-type or plot-type graph of the sequence(s) generated.
Before drawing a graph, you must first specify which sequence(s) will be drawn and in what color.
Press [EXIT] to back up to the very first Recursion Menu where your sequences are defined. Highlight each formula, and Press [F1] (SEL+C). Pressing [F1] will toggle between draw/non-draw status. Pressing [F2] through [F4] will specify a color in which the sequence will be drawn.
Return to the Recursive Menu by pressing [EXIT]. Press [F6] to generate the table of values. Press [F5] if you want a connect-type graph or press [F6] if you want a plot-type graph.
, ! - "' . * / "%
With a link cable, connect the EA-100 to the calculator. Be sure to push in each plug firmly. Choose the PRGM icon from the Main Menu. Arrow down to the program REBOUND. Press [F1] (EXE). If the REBOUND program is not listed, you will need to load the program provided at http://www.keymath.com/DAA/calculator_programs.html.
! "
# $% &' ( ) & $**
&+ ', ' ) &+ ' -#
#.+ ) / 0 1#
" - 23 23 4
5 6 7
% 8 7 , 7 7
,. '9 :
,*;< = > 5 = 7 : 9
,*;<7 = > ??
,*;<" = > ??
= >
( 0 0 5 ( 5
,. %
= >
! " "' ( "
The calculator contains six folders, each with six preset lists. You can enter 255 elements into a list if enough memory is available. You can enter data directly into lists from either LIST or STAT Mode.
Clearing Data
From the Main Menu, select the LIST or STAT icon and press [EXE]. In these notes, LIST Mode is used. If a list already has data in it, position the cursor so that any cell of the list is highlighted, then press [F4] (DEL-A). Press [F1] (YES) to delete all the cells in the list.
Entering Data Directly into a List
Follow the steps below to enter data, for example, {400, 455, 390, 450, 360, 320, 480, 480}, into a list.
a. Select LIST or STAT from the Main Menu.
b. Enter each number into List 1. After entering each data value, press [EXE]. If you wish to add a data value in the middle of the list, move the cursor to the place of insertion, press [F5] (INS), then enter the new number and press [EXE]. To remove an entry from a list, highlight the entry and press [F3] (DEL).
Entering Data into a List from the Run Screen
If you are working with a short list, you may want to enter it while in the RUN Mode. To enter the data {1, 2, 3, 4} into List 1, follow the steps below.
a. Enter RUN Mode.
b. Press [OPTN] [F1] (LIST) to display the list data manipulation menu.
c. You will need to press [SHIFT] [×] to obtain the open brace and [SHIFT] [÷] to obtain the close brace.
d. Enter {1, 2, 3, 4} and then press [→] [F1] (List) [1] [EXE].
e. You can check to see that the new data are stored in List 1 by selecting LIST or STAT Mode from the Main Menu.
You can also enter a list into the RUN Mode without storing it in a stat list by entering the values as in step b above. Press {1, 2, 3, 4} and then [EXE].
! )*
To set up a graph of statistical data stored in a list, you must first enter the STAT Mode from the Main Menu. Then press [F1] (GRPH) [F6] (SET).
From the Set-Up Screen, you can set up any or all of the three statistical graphs (StatGraphs) available on the calculator. Use the following steps. Be aware that some options are not available depending on which graph type you choose.
a. Press [F1], [F2], or [F3] to set up StatGraph1, StatGraph2, or StatGraph3 respectively.
b. Scroll down to the Graph Type, and choose one of the following:
[F1] scatter diagram [F2] xy line graph
[F3] normal probability plot
Other graph types can be found after pressing [F6] for more options.
[F1] histogram [F2] med-box graph [F3] mean-box graph
[F4] normal distribution curve [F5] line graph
c. Scroll down to the XList, and press [F1] through [F6] to select the list where your independent variable is located.
d. Scroll down to the YList (if applicable), and press [F1] through [F6] to select the list where your dependent variable is located.
e. Scroll down to the Frequency (if applicable), and press [F1] if you want a frequency of 1, or choose the list where the frequencies are stored. Usually Frequency is set to 1.
f. Scroll down to the Mark Type (if applicable), and press [F1], [F2], or [F3]
according to your preferences.
g. Scroll down to Graph Color, and press [F1], [F2], or [F3] according to your preferences.
h. Scroll down to Outliers (if applicable), and press [F1] or [F2].
Before viewing the graph, you need to set an appropriate viewing window. Press [SHIFT]
Max = a number slightly greater than the largest x-value you want displayed.
scale = the distance between tick marks on the x-axis. The number of divisions should be less than 25. If there are too many tick marks, the axis will
appear too thick.
Ymin = a number slightly less than the smallest y-value.
max = a number slightly greater than the largest y-value.
scale = see Xscale.
For more information about setting the window for box plots and histograms, see Notes 2C and 2D.
Press [EXIT] to return to the statistical data lists.
Press [F1] (GRPH) and [F1], [F2], or [F3] to draw the selected graph.
0! "'
If you have a statistical graph displayed and you press [SHIFT] [F1] {TRACE}, a
“spider” will appear somewhere on the graph. Use the right and left arrow keys to move the spider along the graph. The spider’s position is given at the bottom of the screen.
For scatter plots, the data are traced in the order they appear in the list, so pressing the left arrow may not move the spider left. Histograms and box plots trace from left to right.
If more than one set of data are graphed, the spider will begin on the first. Pressing the up or down arrow will cause the spider to jump from one graph to another. The graph being traced will be identified at the top of the screen.
1 ! "- "'
You can copy lists from one calculator into another. This can save time and ensure that you’re working from the same data set as others. You will need a link cable and two compatible calculators.
Push the plug firmly into the ports at the bases of both calculators. From the Main Menu of both calculators, choose the LINK icon. On the receiving calculator, press [F2]
(RECV). This calculator should read Receiving... at the top of the screen.
On the calculator with the data, select [F1] (TRAN). Press [F1] (SEL) to see a list of all items (programs, lists, etc.) that you may send. Arrow down to highlight the list you want to send, and press [F1] (SEL). This marks the list but does not send it. Mark each list you wish to send.
When you have marked all the lists, press [F6] (TRAN) and [F1] (YES). If either
calculator gives a Transmit ERROR message, then push the link cable in again and start over. If the list you are sending already exists in the receiving calculator, choose [F1]
(YES) to replace this list with the new list.
2 ! + " /
See Calculator Note 1D.
! "% 3 3 /
There are several ways to generate a list of random numbers within an interval.
Random Decimals
To find a random decimal between 0 and 1, in the RUN Menu press [OPTN] [F6] [F3]
(PROB) [F4] (Ran#) [EXE]. If you want a random decimal between 0 and 20, press [F4]
[×] [20] [EXE].
Random Integers
To find a random integer between 0 and 20, you must enter Int(Ran#×20).
Press [EXIT] until there are no more menus across the bottom of the screen.
Press [OPTN] [F6] [F4] [F2] (Int). Then press [EXIT] [F3] (PROB) [ ( ] [F4] [×] [20] [EXE]. If you want five random integers, press [EXE] five
$ ! 4$ 5, " " 6$ %
The TVM (Financial) Mode provides you with the tools to perform the following types of financial calculations.
- Simple interest - Compound interest
- Investment appraisal (Cash Flow) - Amortization
- Interest rate conversation - Cost, selling price, margin - Day/date calculations
On the Main Menu, select the TVM icon to enter the Financial Mode. When you do, the Financial 1 screen appears on the display.
Press [F2] (CMPD) from the Financial 1 screen to display the input screen for compound interest calculation.
n = number of compound periods I% = annual interest rate
PV = present value (loan amount in case of a loan; principal in case of savings) PMT = payment for each installment (payment in case of loan; deposit in case of savings)
FV = future value (unpaid balance in case of loan; principal plus interest in case of savings)
P/Y = installment periods per year C/Y = compounding periods per year
A period (n) is expressed as a positive value. Either the present value (PV) or future value (FV) is positive, while the other is negative.
After entering any six of the seven values, you can press [F1] to [F5] to calculate the value you want to find.
This first screen shows the values input to calculate the monthly payment to completely repay a 5-year (60-month) $12,000 loan at 5.25% interest, with payments made at the end of each month. The second screen shows the display after pressing [F4] (PMT). The answer, PMT, is negative because it is a payment made to the bank.
