494
WMD
O: Fluency-based Word Mover’s Distance for
Machine Translation Evaluation
Julian Chow,Pranava Madhyastha and Lucia Specia Department of Computing
Imperial College London, UK
{julian.chow16,pranava,l.specia}@imperial.ac.uk
Abstract
We propose WMDO, a metric based on
dis-tance between distributions in the semantic vector space. Matching in the semantic space has been investigated for translation evalua-tion, but the constraints of a translation’s word order have not been fully explored. Building on the Word Mover’s Distance metric and var-ious word embeddings, we introduce a frag-mentation penalty to account for fluency of a translation. This word order extension is shown to perform better than standard WMD, with promising results against other types of metrics.
1 Introduction
Current metrics to automatically evaluate machine translations, such as the popular BLEU (Papineni et al.,2002), are heavily based on string matching. They claim to account for adequacy by checking for overlapping words between the machine trans-lation output and reference transtrans-lation, and fluency by rewarding matches in sequences of more than one word. This way of viewing adequacy is very limiting; comparing strings makes it harder to evaluate any deviation from the semantics of the original text in the reference or machine transla-tion.
Meteor (Banerjee and Lavie,2005) relaxes this constraint by allowing matching of lemmas, syn-onyms or paraphrases. However, this requires lin-guistic resources to lemmatise the data or lexical databases to fetch synonyms/paraphrases, which do not exist for most languages.
Character-based metrics like chrF (Popovic,
2015) and CharacTER (Wang et al.,2016) also re-lax the exact word match constraint by allowing the matching of characters. However, they ulti-mately still assume a surface-level similarity be-tween reference and machine translation output.
Chen and Guo (2015) presented a number of experiments where both translation and reference sentences are compared in the embedding space rather than at surface level. They however sim-ply extract these two embedding representations and measure the (cosine) similarity between them, which may account for some overall semantic similarity, but ignores other aspects of translation quality.
A version of Meteor has been proposed that also performs matches at the word embedding space (Servan et al., 2016). Two words are considered to match if their cosine distance in the embed-ding space is above a certain threshold. In other words, the embeddings are only used to provide this binary decision, rather than to measure over-all semantic distance between two sentences. In a similar vein, bleu2vec and ngram2vec (Tttar and Fishel, 2017) are a direct modification of BLEU where fuzzy matches are added to strict matches. The fuzzy match score is implemented via token and n-gram embedding similarities. As we show in Section4, these metrics do not perform well.
MEANT 2.0 (Lo,2017) also relies on matching of words in the embedding space, but this is only used to score the similarity between pairs of words that have already been aligned based on their se-mantic roles, rather than to find the alignments be-tween words.
Adjustments to EMD have been used previously to create evaluation metrics based on word embed-dings and word positions (Echizen’ya et al.,2019). Likewise, using vector word embeddings as an in-dicator of similarity and the word embeddings of each text as a distribution, WMD gives the opti-mal method of transforming the words of one doc-ument to the words of another docdoc-ument. WMD does not take word order into account and rather focuses on semantic similarity of word meanings. WMD has been recently used for the evalua-tion of image capevalua-tioning models (Kilickaya et al.,
2017;Madhyastha et al.,2019). It proved promis-ing for image captionpromis-ing evaluation, where word order is less relevant. The same image can be de-scribed similarly using different word orders as it is constrained by the image itself. We note that in machine translation evaluation, word order is more important, since the order is constrained by that of the source sentence.
In this paper, we propose WMDO– an extension to WMD that incorporates word order. We show that this metric outperforms the standard WMD and performs on par or better than most state-of-the-art evaluation metrics.
2 Method
In this section we describe the original WMD dis-tance metric and its extension to account for word order.
2.1 WMD
Word Mover’s Distance (WMD) (Kusner et al.,
2015) makes use of vectorial relationships tween word embeddings to compute distance be-tween two text documents. In essence, WMD cap-tures the minimal distance required to move words from the first document to words in the second document.
Let X ∈ Rn×d be a d-dimensional word em-bedding matrix for a vocabulary ofnwords. Let
xi ∈ Rd be a d-dimensional representation of
ith word. Assume two documentsA andB with
daanddbas the normalized bag-of-words (BOW) vectors, k-dimensional vectors for the respective documents, wheredjais the number of times word
joccurs inA(normalized by all words appearing inA). Note that stop words are removed from doc-uments; only content words are retained.
Kusner et al. (2015) propose the word travel cost, that is the cost of moving words fromTia to
Tjb, as the measure of word dissimilarity, using the Euclidean distance between the embeddings cor-responding to words. More precisely, the cost as-sociated is defined as:
c(i, j) =kxi−xjk22, (1)
This allows documents with many closely re-lated words to have smaller distances than docu-ments with very dissimilar words. WMD defines a transport matrixT ∈ Rn×n,
where Tij contains information about the pro-portion of dai that needs to be transported to dbj. Formally, WMD computesTthat optimizes:
D(da, db) = min
T≥0 n X
i,j=1
Tijc(i, j), (2)
such that: Pnj=1Tij=dai and Pni=1Tij=dbj, ∀i, j. Here, the normalized bag-of-words distribution of the documentsdaanddb contains a combined vo-cabulary fromdaanddbresulting in a square trans-port matrixT of dimensionalityn×n.
We note thatKusner et al. (2015) remove stop words and retain only content words before com-puting WMD, as stop words are generally less rel-evant for capturing content specific similarity be-tween documents. In our implementation, we in-clude the stop words in order to capture a more coherent distance.
2.2 WMD with word order
Evaluation of translation candidates generally takes into account fluency as well as adequacy to form a judgment. As described in previous sec-tion, the standard WMD does not take word order into account. We introduce a modified version which includes a specialized penalty that is in-tended to penalize for words occurring in a dif-ferent order from the reference translation. This modification adds a notion of fluency on top of the original WMD metric, which is crucial in match-ing the multifaceted approach of human transla-tion evaluatransla-tion.
machine translation. The longer each chain of n-grams is, the fewer the chunks, so if the entire ma-chine translation matches the reference in consec-utive order there is only one chunk. Figure 1 is an illustration of the use of chunks. The matched unigrams for “the president” and “spoke loudly” are in the same order in both sentences, giving two chunks for this translation, fragmented by the word “then”.
the president spoke loudly
[image:3.595.88.272.200.241.2]the president then spoke loudly
Figure 1: An example of chunks.
This type of word order penalty is necessary to deal with examples such as that of Figure 2. The sentence gets a perfect WMD score because all of its words align exactly to another one in the vector space, with no regard to its fluency. With a frag-mentation penalty, this type of situation would see the score get worse because of its different sen-tence structure to the reference.
the sun is shining brightly
brightly shining is the sun
Figure 2: The WMD score for this sentence pair is 0.0.
The penalty is formulated as:
Penalty= c um
(3)
where c is the number of chunks and um is the number of unigrams in the machine translation.
This penalty is weighted by a value δ. and is formulated as:
Weight=δ×Penalty (4)
We also observed that, in many cases, the sim-ple penalty in Equation 4 can further be aug-mented with a modification that rewards sentences which are largely contiguous. We modify Equa-tion 4 such that sentences with fewer chunks are rewarded and sentences with more chunks are pe-nalized. We empirically found that 12 is optimal for such a realization. With this modification, our fluency based word mover’s distance (WMDO) is
defined as:
WMDO =WMD−δ(1
2−Penalty) (5)
We also observe that, in most cases, the optimal weight seems to be0.2.
3 Experimental settings
We performed experiments to verify the perfor-mance of the proposed metric, comparing the met-ric’s results against human annotations to measure a level of correlation. We used the PyEMD wrap-per (Mayner, 2019) for calculating the WMD, based on (Pele and Werman, 2008, 2009). We did not remove any stopwords as these are impor-tant to fluency. We also use Cosine rather than Euclidean distance to calculate distance between word embeddings as magnitude of the vectors is not as important in such high dimensions.
3.1 Datasets
We used the WMT17 segment-level into-English datasets for our experiments (Bojar et al., 2017). This has data from seven different source lan-guages, with 560 different texts each. Every text carries a reference translation and a machine trans-lation, with a human annotation labelling how closely the machine translation relates to the ref-erence.
3.2 Word embeddings
Many pre-trained word embeddings are available for English. Since word2vec embeddings have been shown to work well with WMD, this was our starting point as the embeddings used to de-velop the metric. We used a freely-available pre-trained model of 300 dimensions pre-trained on ap-proximately 100 billion words from news articles (Mikolov et al.,2013). This model had a vocab-ulary size of 3 million. While large, there were still many instances of out-of-vocabulary (OOV) words in the WMT17 dataset alone. Some of this can be attributed to incomplete translations; many of the missing words were foreign words in the source language. Other instances were proper nouns which had not been seen in the pre-trained embeddings vocabulary, as well as numerical val-ues for the same reason.
[image:3.595.105.258.409.448.2]every instance of a missing word. For these exper-iments, we used the vector of all 0s, as this seemed the most neutral. Another was to have a random vector for each OOV word and store it in a dictio-nary, calling on the same value whenever the OOV word is encountered again. In the same vein, one setting was to generate this vector by taking an av-erage of five random vectors in the embedding.
An alternative approach we also pursued was to use a different set of embeddings. FastText (Mikolov et al., 2018) is a type of embedding which is able to produce embeddings for words not part of the vocabulary. This utilises vectors from of substrings of characters contained in the miss-ing word, addmiss-ing them together so even vectors for misspelled words or a concatenation of words can be produced. Again, a pre-trained model, also of 300 dimensions and trained on news articles was used here. We also fine-tuned this model to pro-duce another set of embeddings, using monolin-gual training data from the WMT19 news transla-tion task. The experiments with these embeddings were done with and without the FastText character n-gram method of solving OOVs.
All of these approaches were used to test the metric against human scores, the results of which can be seen in Section4.
4 Results
The results of these experiments are shown in Ta-bles 1 to 4. Each row in a table corresponds to an experimental setting, while each column repre-sents one of the seven language pairs. The value of each cell represents the Pearson correlation with of the metric’s score with the given human score, with a higher value suggesting better agreement with the gold standard human evaluation.
Table 1 shows the results of the different OOV strategies, all using the pre-trained word2vec em-bedding and the standard WMD metric. Out of these strategies, the same random vector for all OOVs came out top by a small margin.
Table 2 looks at the effect of using different em-beddings on results and OOV rate, including with and without the n-gram method of FastText to re-solve OOVs. We can see that the pre-trained Fast-Text vectors with the OOV resolution strategy of the same vector for all OOV had the best perfor-mance, but only marginally over a random vec-tor for each OOV. A different vecvec-tor choice might be better for different embeddings, but for the
purposes of further experiments with this dataset the zero vector was used. It also shows that the FastText embeddings perform better than the word2vec embedding with the same OOV resolu-tion strategy, suggesting a difference in quality of vectors.
Table 3 presents the experimental results of WMD and the WMD word order metrics for dif-ferent values ofδ. These experiments used the pre-trained FastText vectors with a zero vector for all OOV. It shows that the WMD word order metric performs better than the standard WMD metric in the majority of language pairs.
Combining these results, we find that the best performing iteration of our metric for all language pairs is the word order version of WMD, withδ
at 0.2. This is using the pre-trained FastText em-bedding, with the zero vector used for each OOV word. However, it should be noted that some lan-guage pairs perform slightly better with a higher or lowerδ; this is reflected in the next table with the “ideal” parameter.

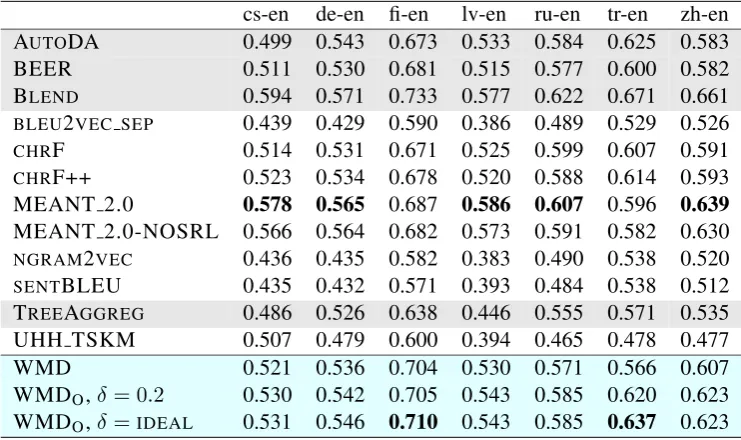

We compare this to the rest of the results from the WMT17 metrics task in Table 4; it shows that our metric performs at a similar level or better than most evaluation metrics. Of the metrics which do better than WMDO. Blend and AutoDA are trained metrics, which are not the most practical when applied to larger datasets as they rely on hu-man annotated training data. MEANT is a met-ric that does very well for most language combi-nations. It also uses word embeddings to score matching words, but it is not clear whether the benefit comes from this or from other components in the metric. Overall, this metric has a very large number of steps that rely on linguistic resources, and its code is not available.
5 Analysis
We plot two examples of the distributions of hu-man and WMDO metric scores in Figures3 and
4. The results for Finnish-English were fairly strong, but those for Latvian-English had a few more anomalies.
The metric performs sufficiently with reference and machine translated outputs which were largely of a similar length, as the influence of each word was not overbearing on the metric’s end result. This can be seen in the results for Finnish to En-glish, which are quite consistent.
cs-en de-en fi-en lv-en ru-en tr-en zh-en Same vector for all OOV 0.513 0.531 0.689 0.505 0.562 0.561 0.595
Random vector per OOV 0.513 0.531 0.687 0.501 0.560 0.557 0.591
Average of 5 random vectors 0.500 0.534 0.678 0.492 0.563 0.557 0.572
Table 1: Performance of OOV strategies with standard WMD and word2vec.
cs-en de-en fi-en lv-en ru-en tr-en zh-en OOV (%)
Word2vec (same vector for all OOV) 0.513 0.531 0.689 0.505 0.562 0.561 0.595 0.10 FastText (same vector for all OOV) 0.521 0.536 0.704 0.530 0.571 0.566 0.607 0.22 FastText (random vector per OOV) 0.521 0.536 0.702 0.530 0.571 0.566 0.607 0.22
FastText (n-grams) 0.511 0.542 0.700 0.526 0.572 0.577 0.583 0
[image:5.595.71.556.169.252.2]FastText finetuned (n-grams) 0.485 0.525 0.671 0.513 0.546 0.538 0.597 0
Table 2: Performance of different embeddings on standard WMD, including OOV rate.
cs-en de-en fi-en lv-en ru-en tr-en zh-en
WMD 0.521 0.536 0.704 0.530 0.571 0.566 0.607
[image:5.595.113.484.462.682.2]WMDO,δ= 0.05 0.528 0.544 0.709 0.537 0.580 0.585 0.616 WMDO,δ= 0.1 0.531 0.546 0.710 0.541 0.585 0.600 0.621 WMDO,δ= 0.2 0.530 0.542 0.705 0.543 0.585 0.620 0.623 WMDO,δ= 0.3 0.525 0.534 0.696 0.540 0.579 0.631 0.621 WMDO,δ= 0.4 0.518 0.525 0.686 0.535 0.572 0.637 0.616
Table 3: Performance of different WMD implementations with pre-trained FastText and same vector strategy. Bolded value signify the best performing metric for each language pair.
cs-en de-en fi-en lv-en ru-en tr-en zh-en
AUTODA 0.499 0.543 0.673 0.533 0.584 0.625 0.583
BEER 0.511 0.530 0.681 0.515 0.577 0.600 0.582
BLEND 0.594 0.571 0.733 0.577 0.622 0.671 0.661
BLEU2VEC SEP 0.439 0.429 0.590 0.386 0.489 0.529 0.526
CHRF 0.514 0.531 0.671 0.525 0.599 0.607 0.591
CHRF++ 0.523 0.534 0.678 0.520 0.588 0.614 0.593
MEANT 2.0 0.578 0.565 0.687 0.586 0.607 0.596 0.639
MEANT 2.0-NOSRL 0.566 0.564 0.682 0.573 0.591 0.582 0.630
NGRAM2VEC 0.436 0.435 0.582 0.383 0.490 0.538 0.520
SENTBLEU 0.435 0.432 0.571 0.393 0.484 0.538 0.512
TREEAGGREG 0.486 0.526 0.638 0.446 0.555 0.571 0.535
UHH TSKM 0.507 0.479 0.600 0.394 0.465 0.478 0.477
WMD 0.521 0.536 0.704 0.530 0.571 0.566 0.607
WMDO,δ = 0.2 0.530 0.542 0.705 0.543 0.585 0.620 0.623
WMDO,δ =IDEAL 0.531 0.546 0.710 0.543 0.585 0.637 0.623
Figure 3: WMDOagainst human scores for fi-en
Figure 4: WMDOagainst human scores for lv-en
of sentences which were shorter, as each chunk be-came more pronounced in the penalty, which com-pounded the bad WMD scores of the nonsensical translation. This was especially evident with poor translations which were comprised largely of re-tained foreign words. An example of this is from the Latvian to English set; one of the machine translations was “Pann uzkars oil” for the refer-ence “Heat oil in a frying-pan”. The penalty could be adjusted in the future to account for sentence length.
6 Conclusions
We have proposed a novel method of evaluating machine translations, focusing on word embed-dings and the semantic space. Our metric imple-menting a word order weighting achieved strong performance in relation to other state-of-the-art metrics and the standard WMD metric. From this we can conclude that semantic spaces are a viable approach to assessing machine translations.
In terms of experimental settings, we found that using the n-gram approach of FastText did not sig-nificantly outperform initialising a random vector for each OOV word, although the higher quality FastText embeddings proved to be more accurate
than the older word2vec embeddings. These set-tings, along with the value ofδ, may vary for dif-ferent datasets. This may be because the WMT17 dataset had a large number of foreign words, which would not make much sense to use n-grams to piece back together. In addition, the finetuned FastText embedding might have had suboptimal training parameters, leading to its poorer perfor-mance. It can also be seen that different values of
δ work better on certain language pairs; this may have to be a value tuned per language pair rather than a catch-all value.
This work within semantic spaces can also be extended to other translation tasks; as compar-isons of two segments are performed within the currently monolingual vector space, future trans-lation evaluations could make use of cross-lingual word embeddings, which carry vectors for differ-ent languages in the same space. This could poten-tially allow translation evaluations to be done di-rectly from the source text to the machine transla-tion, without the human evaluation in between by using a vector space combining the source and tar-get language. Work into cross-lingual embeddings has been growing in recent years (Conneau et al.,
2017) and this metric could be used to leverage the potential of this area in the future of automatic translation evaluation. We will provide an open source implementation of WMDO(Chow,2019).
References
Satanjeev Banerjee and Alon Lavie. 2005. ME-TEOR: An Automatic Metric for MT Evaluation with Improved Correlation with Human Judgments. Proceedings of the ACL Workshop on Intrinsic and Extrinsic Evaluation Measures for Machine Translation and/or Summarization, pages 65–72.
Ondrej Bojar, Yvette Graham, and Amir Kamran. 2017. Results of the wmt17 metrics shared task. Proceedings of the Second Conference on Machine Translation, page 489513.
Boxing Chen and Hongyu Guo. 2015. Representation based translation evaluation metrics. In Proceedings of the 53rd Annual Meeting of the Association for Computational Linguistics and the 7th International Joint Conference on Natural Language Processing (Volume 2: Short Papers), pages 150–155, Beijing, China. Association for Computational Linguistics.
Julian Chow. 2019. Wmdo. https://github. com/julianchow/WMDO.
[image:6.595.71.293.227.360.2]Word translation without parallel data. arXiv preprint arXiv:1710.04087.
Hiroshi Echizen’ya, Kenji Araki, and Eduard Hovy. 2019. Word embedding-based automatic mt eval-uation metric using word position information. Proceedings of NAACL-HLT, page 18741883.
Mert Kilickaya, Aykut Erdem, Nazli Ikizler-Cinbis, and Erkut Erdem. 2017. Re-evaluating automatic metrics for image captioning. Proceedings of EACL 2017, pages 199–209.
Matt J Kusner, Yu Sun, Nicholas I Kolkin, and Kilian Q Weinberger. 2015. From word em-beddings to document distances. Proceedings of the 32nd International Conference on International Conference on Machine Learning, 37:957–966.
Chi-kiu Lo. 2017. Meant 2.0: Accurate semantic mt evaluation for any output language. In Proceedings of the Second Conference on Machine Translation, Volume 2: Shared Task Papers, pages 589–597, Copenhagen, Denmark. Association for Computa-tional Linguistics.
Pranava Madhyastha, Josiah Wang, and Lucia Spe-cia. 2019. VIFIDEL:evaluating the visual fidelity of image descriptions. In Proceedings of Annual Meeting of the Association for Computational Linguistics (ACL).
William Mayner. 2019. Fast emd for python: a wrapper for pele and werman’s c++ implementa-tion of the earth mover’s distance metric. https: //github.com/wmayner/pyemd.
Tomas Mikolov, Kai Chen, Greg Corrado, and Jeffrey Dean. 2013. Efficient estimation of word represen-tations in vector space. ICLR Workshop.
Tomas Mikolov, Edouard Grave, Piotr Bojanowski, Christian Puhrsch, and Armand Joulin. 2018. Ad-vances in pre-training distributed word represen-tations. In Proceedings of the International Conference on Language Resources and Evaluation (LREC 2018).
Kishore Papineni, Salim Roukos, Todd Ward, and Wei-Jing Zhu. 2002. BLEU: a Method for Automatic Evaluation of Machine Translation. Proceedings of the 40th Annual Meeting of the Association for Computational Linguistics, pages 311–318.
Ofir Pele and Michael Werman. 2008. A linear time histogram metric for improved sift matching. In Computer Vision–ECCV 2008, pages 495–508. Springer.
Ofir Pele and Michael Werman. 2009. Fast and robust earth mover’s distances. In 2009 IEEE 12th International Conference on Computer Vision, pages 460–467. IEEE.
Maja Popovic. 2015. CHRF: character n-gram F-score for automatic MT evaluation. Proceedings of the Tenth Workshop on Statistical Machine Translation, pages 392–395.
Christophe Servan, Alexandre Berard, Zied El-loumi, Herv´e Blanchon, and Laurent Besacier. 2016. Word2Vec vs DBnary: Augmenting ME-TEOR using Vector Representations or Lexical Re-sources? Proceedings of COLING 2016, the 26th International Conference on Computational Linguistics: Technical Papers, pages 1159–1168.
Andre Tttar and Mark Fishel. 2017. bleu2vec: the painfully familiar metric on continuous vector space steroids. Proceedings of the Second Conference on Machine Translation, page 619622.
