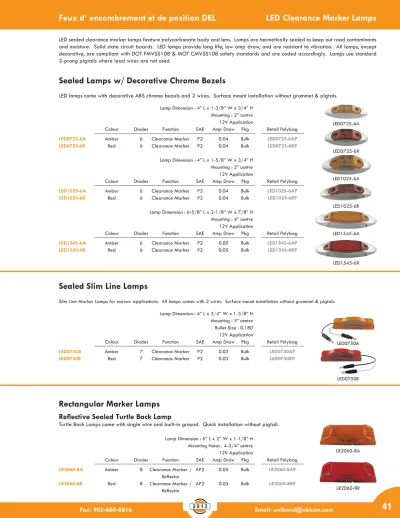

LED0725-6A
LR2060-8R Lamp Dimension : 4” L x 1-3/8” W x 3/4” H
Mounting : 2” centre
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED0725-6A Amber 6 Clearance Marker P2 0.04 Bulk LED0725-6AP
LED0725-6R Red 6 Clearance Marker P2 0.04 Bulk LED0725-6RP
Lamp Dimension : 4” L x 1-5/8” W x 3/4” H Mounting : 2” centre
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED1025-6A Amber 6 Clearance Marker P2 0.04 Bulk LED1025-6AP
LED1025-6R Red 6 Clearance Marker P2 0.04 Bulk LED1025-6RP
Lamp Dimension : 6-5/8” L x 2-1/8” W x 7/8” H Mounting : 4” centre
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED1545-6A Amber 6 Clearance Marker P2 0.05 Bulk LED1545-6AP
LED1545-6R Red 6 Clearance Marker P2 0.05 Bulk LED1545-6RP
Lamp Dimension : 4” L x 3/4” W x 1-3/8” H Mounting : 3” centre Bullet Size : 0.180
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED0750A Amber 7 Clearance Marker P2 0.03 Bulk LED0750AP
LED0750R Red 7 Clearance Marker P2 0.03 Bulk LED0750RP
Re
fl
ective Sealed Turtle Back Lamp
Turtle Back Lamps come with single wire and built-in ground. Quick installation without pigtail.
Lamp Dimension : 6” L x 2” W x 1-1/8” H Mounting Holes : 4-3/4” centre
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LR2060-8A Amber 8 Clearance Marker / AP2 0.05 Bulk LR2060-8AP Refl ector
LR2060-8R Red 8 Clearance Marker / AP2 0.05 Bulk LR2060-8RP Refl ector
LED sealed clearance marker lamps feature polycarbonate body and lens. Lamps are hermetically sealed to keep out road contaminants and moisture. Solid state circuit boards. LED lamps provide long life, low amp draw, and are resistant to vibration. All lamps, except decorative, are compliant with DOT FMVSS108 & MOT CMVSS108 safety standards and are coded accordingly. Lamps use standard 2-prong pigtails where lead wires are not used.
Sealed Lamps w/ Decorative Chrome Bezels
LED lamps come with decorative ABS chrome bezels and 2 wires. Surface mount installation without grommet & pigtals.
Sealed Slim Line Lamps
Slim Line Marker Lamps for narrow applications. All lamps comes with 2 wires. Surface mount installation without grommet & pigtals.
Rectangular Marker Lamps
LED0725-6R LED1025-6A LED1025-6R LED1545-6A LED1545-6R LED0750A LED0750R LR2060-8A
Rectangular Marker Lamps
1” x 2” Sealed Lamps - 1 Diodes Series
Incandescent Version (Page 76)
Lamp Dimension : 2-5/8” L x 1-1/4” W x 7/8” H12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED1225-1A Amber 1 Clearance Marker P2 0.04 Bulk LED1225-1AP
LED1225-1R Red 1 Clearance Marker P2 0.04 Bulk LED1225-1RP Mounting Accessories for LED1225-1 series
Branch Defl ectors BM1020B See Page 104 Base Mounts BM1020C, BM1020CB or BM1020CG See Page 104 Base Mounts w/Built-In Ground BM1021C, BM1021CB or BM1021CG See Page 104
Grommet GR1225 See Page 107
Pigtails PT6020 See Page 110
Lamps with base mount. Various types of base mount with hotwire and built-in ground. Pigtail not required. All kits packaged in retail polybags.
Base Mount Type (Part No.) Amber Red
___________________________
________________
________________
Gray Branch Defl ector (BM1020B) KTL1225-1A KTL1225-1RBlack Base Mount (BM1021CB) KTL2132-1A KTL2132-1R
Gray Base Mount (BM1021CG) KTL2133-1A KTL2133-1R
Chrome Base Mount (BM1021C) KTL2134-1A KTL2134-1R
Lamps with base mount and pigtail (PT6020). All kits packaged in retail polybag. Base Mount Type (Part No.) Amber Red
___________________________
________________
________________
Chrome Base Mount (BM1020C) KTL2126-1A KTL2126-1RBlack Base Mount (BM1020CB) KTL2128-1A KTL2128-1R
Gray Base Mount (BM1020CG) KTL2129-1A KTL2129-1R
1” x 2” Sealed Lamps - 6 Diodes Series
Incandescent Version (Page 76)
Lamp Dimension : 2-5/8” L x 1-1/4” W x 7/8” H12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED1225-6A Amber 6 Clearance Marker P2 0.04 Bulk LED1225-6AP
LED1225-6R Red 6 Clearance Marker P2 0.04 Bulk LED1225-6RP Mounting Accessories for LED1225-6 series
Branch Defl ectors BM1020B See Page 104 Base Mounts BM1020C, BM1020CB or BM1020CG See Page 104 Base Mounts w/Built-In Ground BM1021C, BM1021CB or BM1021CG See Page 104 Rail Mounts BM1020R, BM1020RB or BM1020RG See Page 104
Grommet GR1225 See Page 107
Pigtails PT6020 See Page 110
Lamps with base mount. Various types of base mount with hotwire and built-in ground. Pigtail not required. All kits packaged in retail polybags.
Base Mount Type (Part No.) Amber Red
___________________________
________________
________________
Gray Branch Defl ector (BM1020B) KTL1225A KTL1225RBlack Base Mount (BM1021CB) KTL2132A KTL2132R
Gray Base Mount (BM1021CG) KTL2133A KTL2133R
Chrome Base Mount (BM1021C) KTL2134A KTL2134R
Lamps with base mount and pigtail (PT6020). All kits packaged in retail polybag. Base Mount Type (Part No.) Amber Red
___________________________
________________
________________
Chrome Base Mount (BM1020C) KTL2126A KTL2126RBlack Base Mount (BM1020CB) KTL2128A KTL2128R
Gray Base Mount (BM1020CG) KTL2129A KTL2129R
White Rail Mount (BM1020R) KTL3127A KTL3127R
Black Rail Mount (BM1020RB) KTL2130A KTL2130R
Gray Rail Mount (BM1020RG) KTL2131A KTL2131R
LED1225-6A LED1225-6R KTL1225R KTL2132A KTL2129R KTL2131A LED1225-1A LED1225-1R KTL1225-1A KTL2132-1A
1” x 4” Sealed Lamps - 4 Diodes Series
Incandescent Version (Page 76)
Marker Lamps only. Base mounts are required for installation.Lamp Dimension : 4” L x 1-1/4” W x 7/8” H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED1040-4A Amber 4 Clearance Marker P2PC 0.02 Bulk LED1040-4AP
LED1040-4R Red 4 Clearance Marker P2PC 0.02 Bulk LED1040-4RP
Mounting Accessories for LED1040-4 series
Base Mounts w/ Built-In Ground BM1040B, BM1040BB or BM1040BC See Page 105
Lamps with base mount with built-in ground & hotwire. Separate pigtail is not required. Kits pack-aged in retail polybags.
Base Mount Type (Part No.) Amber Red
__________________ ________________
________________
Gray Base Mount (BM1040B) KTL2140-4A KTL2140-4R1” x 4” Sealed Lamps - 12 Diodes Series
Incandescent Version (Page 76)
Marker Lamps come with base mount, hotwire and built-in ground. Quick installation without pigtail.Lamp Dimension with Base Mount : 4” L x 1-1/4” W x 1-1/4” H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED1040-12A Amber 12 Clearance Marker P2 0.10 Bulk LED1040-12AP
LED1040-12R Red 12 Clearance Marker P2 0.10 Bulk LED1040-12RP
Mounting Accessories for LED1040-12 series
Base Mounts w/ Built-In Ground BM1040B, BM1040BB or BM1040BC See Page 105
2” x 4” Bullseye Lamps
Incandescent Version (Page 82)
Marker Lamps come with single wire and built-in ground. Quick installation without pigtail.Lamp Dimension : 4” L x 2” W x 1” H Mounting : 3” centre
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED2040A Amber 10 Clearance Marker P2 0.07 Bulk LED2040AP
LED2040R Red 10 Clearance Marker P2 0.07 Bulk LED2040RP
Mounting Accessories for LED2040 series
Pkg Retail Polybag
_________________________________________________ _____________
BM2043C Chrome Guard Bulk BM2043CP
Rectangular Marker Lamps
LED2040A LED2040R LED1040-12A LED1040-12R LED2043C LED1040-4A LED1040-4R KTL2140-4A
1 Diode Series
Lamp Dimension : 2” Dia. x 3/4” H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED2000-1A Amber 4 Clearance Marker P2 0.04 Bulk LED2000-1AP
LED2000-1R Red 4 Clearance Marker P2 0.04 Bulk LED2000-1RP
Mounting Accessories for LED2000-1 series
Grommets GR2000 or GR2001 See Page 108
Branch Defl ector BD2000 See Page 104
Pigtails PT6020 See Page 110
Mounting Brackets MB2000 See Page 109
Decorative Bezels BZ2000 or BZ2000V See Page 105
Flush Mount Lamps with Flanges Installed. All lamps packaged in retail polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LEDF2000-1A0 LEDF2000-1R0Black ABS LEDF2000-1A1 LEDF2000-1R1
Gray ABS LEDF2000-1A2 LEDF2000-1R2
Chrome ABS LEDF2000-1A5 LEDF2000-1R5
Lamps with Grommet & Pigtail (PT6020). All kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Open (GR2000) KTL2000-1A KTL2000-1RClosed (GR2001) KTL2001-1A KTL2001-1R
Lamps with Grommet, Branch Defl ector (BD2000) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2001) KTL3201-1A KTL3201-1RLamps with Grommet, Steel Mounting Bracket (MB2000) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2001) KTLM2001-1A KTLM2001-1R2” Sealed Round Lamps
Incandescent Version (Page 77)
LED2000-1A LED2000-1R LEDF2000-1R2 KTL2001-1R KTL3201-1A KTLM2001-1R
2” Sealed Round Lamps
Incandescent Version (Page 77)
4 Diodes Series
Lamp Dimension : 2” Dia. x 3/4” H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED2000-4A Amber 4 Clearance Marker P2 0.06 Bulk LED2000-4AP
LED2000-4R Red 4 Clearance Marker P2 0.06 Bulk LED2000-4RP
Mounting Accessories for LED2000-4 series
Grommets GR2000 or GR2001 See Page 108
Branch Defl ector BD2000 See Page 104
Pigtails PT6020 See Page 110
Mounting Brackets MB2000 See Page 109
Decorative Bezels BZ2000 or BZ2000V See Page 105
Flush Mount Lamps with Flanges Installed. All lamps packaged in retail polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LEDF2000-4A0 LEDF2000-4R0Black ABS LEDF2000-4A1 LEDF2000-4R1
Gray ABS LEDF2000-4A2 LEDF2000-4R2
Chrome ABS LEDF2000-4A5 LEDF2000-4R5
Lamps with Grommet & Pigtail (PT6020). All kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Open (GR2000) KTL2000-4A KTL2000-4RClosed (GR2001) KTL2001-4A KTL2001-4R
Lamps with Grommet, Branch Defl ector (BD2000) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2001) KTL3201-4A KTL3201-4RLamps with Grommet, Steel Mounting Bracket (MB2000) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2001) KTLM2001-4A KTLM2001-4R LED2000-4A LED2000-4R LEDF2000-4A0 KTL2000-4R KTL3201-4A KTLM2001-4R9 Diodes Series
Lamp Dimension : 2” Dia. x 1” H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED2000-9A Amber 9 Clearance Marker P3PC 0.03 Bulk LED2000-9AP
LED2000-9R Red 9 Clearance Marker P3PC 0.03 Bulk LED2000-9RP
Mounting Accessories for LED2000-9 series
Grommets GR2000 or GR2001 See Page 108
Branch Defl ector BD2000 See Page 104
Pigtails PT6020 See Page 110
Mounting Brackets MB2000 See Page 109
Decorative Bezels BZ2000 or BZ2000V See Page 105
Flush Mount Lamps with Flanges Installed. All lamps packaged in retail polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LEDF2000-9A0 LEDF2000-9R0Black ABS LEDF2000-9A1 LEDF2000-9R1
Gray ABS LEDF2000-9A2 LEDF2000-9R2
Chrome ABS LEDF2000-9A5 LEDF2000-9R5
Lamps with Grommet & Pigtail (PT6020). All kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Open (GR2000) KTL2000-9A KTL2000-9RClosed (GR2001) KTL2001-9A KTL2001-9R
Lamps with Grommet, Branch Defl ector (BD2000) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2001) KTL3201-9A KTL3201-9RLamps with Grommet, Steel Mounting Bracket (MB2000) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2001) KTLM2001-9A KTLM2001-9R2” Sealed Round Lamps
Incandescent Version (Page 77)
LED2000-9A LED2000-9R LEDF2000-9R1 KTL2000-9R KTL3201-9A KTLM2001-9R
10 Diodes Series
Featuring attractive “Star” light pattern when lit.
Lamp Dimension : 2” Dia. x 3/4” H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED2000-10A Amber 10 Clearance Marker P2 0.03 Bulk LED2000-10AP
LED2000-10R Red 10 Clearance Marker P2 0.03 Bulk LED2000-10RP
Clear Lens Lamps
LED2000C-10A Amber 10 Clearance Marker P2 0.03 Bulk LED2000C-10AP
LED2000C-10R Red 10 Clearance Marker P2 0.03 Bulk LED2000C-10RP
Mounting Accessories for LED2000-10 series
Grommets GR2000 or GR2001 See Page 108
Branch Defl ector BD2000 See Page 104
Pigtails PT6020 See Page 110
Mounting Brackets MB2000 See Page 109
Decorative Bezels BZ2000 or BZ2000V See Page 105 Flush Mount Lamps with Flanges Installed. All lamps packaged in retail Polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LEDF2000-10A0 LEDF2000-10R0Black ABS LEDF2000-10A1 LEDF2000-10R1
Gray ABS LEDF2000-10A2 LEDF2000-10R2
Chrome ABS LEDF2000-10A5 LEDF2000-10R5
Clear Lens Amber Clear Lens Red
________________
________________
White ABS LEDF2000C-10A0 LEDF2000C-10R0Black ABS LEDF2000C-10A1 LEDF2000C-10R1
Gray ABS LEDF2000C-10A2 LEDF2000C-10R2
Chrome ABS LEDF2000C-10A5 LEDF2000C-10R5
Lamps with Grommet & Pigtail (PT6020). All kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Open (GR2000) KTL2000-10A KTL2000-10RClosed (GR2001) KTL2001-10A KTL2001-10R
Clear Lens Amber Clear Lens Red
________________
________________
Open (GR2000) KTL2000C-10A KTL2000C-10RClosed (GR2001) KTL2001C-10A KTL2001C-10R
Lamps with Grommet, Branch Defl ector (BD2000) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2001) KTL3201-10A KTL3201-10RClear Lens Amber Clear Lens Red
________________
________________
Closed (GR2001) KTL3201C-10A KTL3201C-10RLamps with Grommet, Steel Mounting Bracket (MB2000) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2001) KTLM2001-10A KTLM2001-10RClear Lens Amber Clear Lens Red
________________
________________
Closed (GR2001) KTLM2001C-10A KTLM2001C-10R2” Sealed Round Lamps
Incandescent Version (Page 77)
LED2000-10R/10A LED2000C-10A LED2000C-10R LEDF2000-10R5 LEDF2000C-10R1 LEDF2000C-10R1 KTL2001-10A KTL3201-10R KTLM2001-10A
LED7200A
LED7200R
Beehive Series
Featuring attractive “Star” light pattern when lit
Lamp Dimension : 2” Dia. x 1-1/2” H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED7200A Amber 9 Clearance Marker P2 0.06 Bulk LED7200AP
LED7200R Red 9 Clearance Marker P2 0.06 Bulk LED7200RP
Mounting Accessories for LED7200 series
Grommets GR2000 or GR2001 See Page 108
Pigtails PT6020 See Page 110
Decorative Bezels BZ2000 or BZ2000V See Page 105
Flush Mount Lamps with Flanges Installed. All lamps packaged in retail polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LEDF7200A0 LEDF7200R0Black ABS LEDF7200A1 LEDF7200R1
Gray ABS LEDF7200A2 LEDF7200R2
Lamps with Grommet & Pigtail (PT6020) All Kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2000) KTL7200A KTL7200RClosed (GR2001) KTL7201A KTL7201R
Lamp Dimension : 3/4” at lens, 21/32” at base, 1-1/16” at grommet Mounts in maximum 13/16” hole
12V Application
Colour Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED0700A Amber Clearance Marker PC 0.04 Bulk LED0700AP
LED0700R Red Clearance Marker PC 0.03 Bulk LED0700RP
LED0700C Clear Utility - 0.04 Bulk LED0700CP
2” Sealed Round Lamps
LEDF7200R1
3/4” Sealed Round Lamps
Compact side marker clearance lamp comes with grommet and lead wire. Lead wire is covered with heat shrinkable tube.
KTL7200A
LED0700R
LED0700C LED0700A
LED2500-4A
LED2500-4R
2.5” Sealed Round Lamps
Incandescent Version (Page 78)
4 Diodes Series
Lamp Dimension : 2-1/2” Dia. x 3/4” H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED2500-4A Amber 4 Clearance Marker P2 0.06 Bulk LED2500-4AP
LED2500-4R Red 4 Clearance Marker P2 0.06 Bulk LED2500-4RP
Mounting Accessories for LED2500-4 series
Grommets GR2500 or GR2501 See Page 108
Branch Defl ector BD2500 See Page 104
Pigtails PT6020 See Page 110
Mounting Brackets MB2500 See Page 109
Decorative Bezels BZ2500 or BZ2500V See Page 105
Flush Mount Lamps with Flanges Installed. All lamps packaged in retail polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LEDF2500-4A0 LEDF2500-4R0Black ABS LEDF2500-4A1 LEDF2500-4R1
Gray ABS LEDF2500-4A2 LEDF2500-4R2
Chrome ABS LEDF2500-4A5 LEDF2500-4R5
Lamps with Grommet & Pigtail (PT6020). All kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Open (GR2500) KTL2500-4A KTL2500-4RClosed (GR2501) KTL2501-4A KTL2501-4R
Lamps with Grommet, Branch Defl ector (BD2500) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2501) KTL3251-4A KTL3251-4RLamps with Grommet, Steel Mounting Bracket (MB2500) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2501) KTLM2501-4A KTLM2501-4R LEDF2500-4A0 KTL2500-4R KTL3251-4A KTLM2501-4RLED2500-12A
LEDF2500-12R2
KTL3251-12R
12 Diodes Series
Lamp Dimension : 2-1/2” Dia. x 1”H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED2500-12A Amber 12 Clearance Marker P2P3 0.04 Bulk LED2500-12AP
LED2500-12R Red 12 Clearance Marker P2P3 0.05 Bulk LED2500-12RP
Mounting Accessories for LED2500-12 series
Grommets GR2500 or GR2501 See Page 108
Branch Defl ector BD2500 See Page 104
Pigtails PT6020 See Page 110
Mounting Brackets MB2500 See Page 109
Decorative Bezels BZ2500 or BZ2500V See Page 105
Flush Mount Lamps with Flanges Installed. All lamps packaged in retail polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LEDF2500-12A0 LEDF2500-12R0Black ABS LEDF2500-12A1 LEDF2500-12R1
Gray ABS LEDF2500-12A2 LEDF2500-12R2
Chrome ABS LEDF2500-12A5 LEDF2500-12R5
Lamps with Grommet & Pigtail (PT6020). All kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Open (GR2500) KTL2500-12A KTL2500-12RClosed (GR2501) KTL2501-12A KTL2501-12R
Lamps with Grommet, Branch Defl ector (BD2500) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2501) KTL3251-12A KTL3251-12RLamps with Grommet, Steel Mounting Bracket (MB2500) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2501) KTLM2501-12A KTLM2501-12R2.5” Sealed Round Lamps
Incandescent Version (Page 78)
LED2500-12R
KTL2500-12A
LED2500-13A/13R
LED2500C-13A
13 Diodes Series
Featuring attractive “Star” light pattern when lit.
Lamp Dimension : 2-1/2” Dia. x 3/4” D
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED2500-13A Amber 13 Clearance Marker P2 0.07 Bulk LED2500-13AP
LED2500-13R Red 13 Clearance Marker P2 0.07 Bulk LED2500-13RP
Clear Lens Lamps
LED2500C-13A Amber 13 Clearance Marker P2 0.07 Bulk LED2500C-13AP
LED2500C-13R Red 13 Clearance Marker P2 0.07 Bulk LED2500C-13RP
Mounting Accessories for LED2500-13 series
Grommets GR2500 or GR2501 See Page 108
Branch Defl ector BD2500 See Page 104
Pigtails PT6020 See Page 110
Mounting Brackets MB2500 See Page 109
Decorative Bezels BZ2500 or BZ2500V See Page 105 Flush Mount Lamps with Flanges Installed. All lamps packaged in retail polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LEDF2500-13A0 LEDF2500-13R0Black ABS LEDF2500-13A1 LEDF2500-13R1
Gray ABS LEDF2500-13A2 LEDF2500-13R2
Chrome ABS LEDF2500-13A5 LEDF2500-13R5
Clear Lens Amber Clear Lens Red
________________
________________
White ABS LEDF2500C-13A0 LEDF2500C-13R0Black ABS LEDF2500C-13A1 LEDF2500C-13R1
Gray ABS LEDF2500C-13A2 LEDF2500C-13R2
Chrome ABS LEDF2500C-13A5 LEDF2500C-13R5
Lamps with Grommet & Pigtail (PT6020). All kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Open (GR2500) KTL2500-13A KTL2500-13RClosed (GR2501) KTL2501-13A KTL2501-13R
Clear Lens Amber Clear Lens Red
________________
________________
Open (GR2500) KTL2500C-13A KTL2500C-13RClosed (GR2501) KTL2501C-13A KTL2501C-13R
Lamps with Grommet, Branch Defl ector (BD2500) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2501) KTL3251-13A KTL3251-13RClear Lens Amber Clear Lens Red
________________
________________
Closed (GR2501) KTL3251C-13A KTL3251C-13RLamps with Grommet, Steel Mounting Bracket (MB2500) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2501) KTLM2501-13A KTLM2501-13RClear Lens Amber Clear Lens Red
________________
________________
Closed (GR2501) KTLM2501C-13A KTLM2501C-13R2.5” Sealed Round Lamps
Incandescent Version (Page 78)
LED2500C-13R
LEDF2500-13A1
KTL2500-13R
KTL3251-13A
LR2500-4A
LRF2500-4R5
Re
fl
ective Series
Incandescent Version (Page 79)
Lamp Dimension : 2-1/2” Dia. x 3/4” H12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LR2500-4A Amber 4 Clearance Marker AP2 0.02 Bulk LR2500-4AP
LR2500-4R Red 4 / Refl ector AP2 0.02 Bulk LR2500-4RP
Mounting Accessories for LR2500-4 series
Grommets GR2500 or GR2501 See Page 108
Branch Defl ector BD2500 See Page 104
Pigtails PT6020 See Page 110
Mounting Brackets MB2500 See Page 109
Decorative Bezels BZ2500 or BZ2500V See Page 105
Flush Mount Lamps with Flanges Installed. All lamps packaged in retail polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LRF2500-4A0 LRF2500-4R0Black ABS LRF2500-4A1 LRF2500-4R1
Gray ABS LRF2500-4A2 LRF2500-4R2
Chrome ABS LRF2500-4A5 LRF2500-4R5
Lamps with Grommet & Pigtail (PT6020). All kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Open (GR2500) KTRL2500-4A KTRL2500-4RClosed (GR2501) KTRL2501-4A KTRL2501-4R
Lamps with Grommet, Branch Defl ector (BD2500) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2501) KTRL3251-4A KTRL3251-4RLamps with Grommet, Steel Mounting Bracket (MB2500) & Pigtail (PT6020). All kits packaged in retail polybags.
Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Closed (GR2501) KTRLM2500-4A KTRLM2500-4R2.5” Sealed Round Lamps
LR2500-4R
KTRL2500-4A
KTRL3251-4R
LLB1017P-11R-2 as Auxiliary Turn Signal
Beehive Series
Lamp Dimension : 2-1/2” Dia. x 2-3/8” H
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LED7250A Amber 13 Clearance Marker P2 0.08 Bulk LED7250AP
LED7250R Red 13 Clearance Marker P2 0.08 Bulk LED7250RP
Mounting Accessories for LED7250 series
Grommets GR2500 or GR2501 See Page 108
Branch Defl ector BD2500 See Page 104
Pigtails PT6020 See Page 110
Mounting Brackets MB2500 See Page 109
Decorative Bezels BZ2500 or BZ2500V See Page 105
Flush Mount Lamps with Flanges Installed. All lamps packaged in retail polybags.
Flange Type Amber Red
__________________ ________________
________________
White ABS LEDF7250A0 LEDF7250R0Black ABS LEDF7250A1 LEDF7250R1
Gray ABS LEDF7250A2 LEDF7250R2
Chrome ABS LEDF7250A5 LEDF7250R5
Lamps with Grommet & Pigtail (PT6020). All kits packaged in retail polybags. Grommet Type (Part No.) Amber Red
__________________ ________________
________________
Open (GR2500) KTL7250A KTL7250R Closed (GR2501) KTL7251A KTL7251R Dimension : 2-7/8” L x 2” W x 1” H Stud Size : 1/4” 12V ApplicationColour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LR2020-6A Amber 6 Clearance Marker / AP2 0.02 Bulk LR2020-6AP
LR2020-6R Red 6 Refl ector AP2 0.02 Bulk LR2020-6RP
This marker light bar can also be used as an auxiliary turn signal when used in combination with approved turn signal. Standard industry color coded wiring (Green, Brown, Yellow & White).
Dimension : 17” L x 1-3/8” W x 1” H Mounting : 16” centre
12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Polybag
_________________________________________________ _____________
LLB1017P-11R Red 11 Clearance Marker / P2 0.04/0.11 Bulk LLB1017P-11RP Auxiliary Turn Signal
2.5” Sealed Round Lamps
LLB1017P-11R-1 as Clearance Marker
Slim Line Marker Light Bar
LEDF7250A0 KTL7250R LED7250A LED7250R LR2020-6A LR2020-6R
Sealed Cab Marker Lamps
Incandescent Version (Page 84)
Lamp Dimension : 2-1/2” L x 2-5/8” W x 2” H (w/gasket)12V Application
Colour Diodes Function SAE Amp Draw Pkg Retail Clamshell
_________________________________________________ _____________
LED3501A Amber 15 Clearance Marker P2 0.18 Bulk LED3501AP Identifi cation
LED3501R Red 15 Clearance Marker P2 0.18 Bulk LED3501RP Identifi cation
Lamp Dimension : 6-3/8” L x 4” W x 1-3/4” H
Colour
_________________________________________________ _____________
Diodes Function SAE Pkg Retail ClamshellLEDM4065-18A Amber 18 Emergency Tail T Bulk LEDM4065-18AC
LEDM4065-18G Green 18 Specialty Warning Bulk LEDM4065-18GC
LEDM4065-18R Red 18 Emergency Tail T Bulk LEDM4065-18RC
LEDM4065-18W White 18 Specialty Warning Bulk LEDM4065-18WC
Sturdy power coated steel mounting bracket has 3 mounting holes.
Lamp Dimension : 6-3/8” L x 6-1/8” W x 1-3/4” H Colour Diodes Function SAE Pkg
_________________________________________________
LEDH4065-18A Amber 18 Emergency Tail T Bulk
LEDH4065-18R Red 18 Emergency Tail T Bulk
LED Warning Lamps in acrylic lens & ABS base with fl ashing & steady settings. Use 4 AA batteries (not included). Available in Magnetic Back or with Steel Mounting Bracket. Lamp is certifi ed as a tail lamp for emergency use.
Warning Lamps w/ Magnetic Back
LED Warning Lamps
Feux avertisseurs DEL
