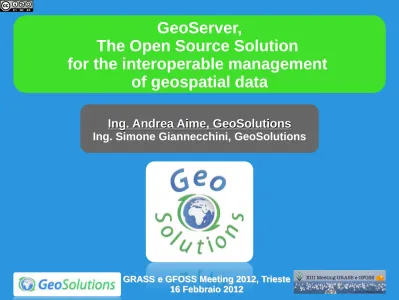

GeoServer, The Open Source Solution for the interoperable management of geospatial data

(1)

GeoServer,

The Open Source Solution

for the interoperable management

of geospatial data

Ing. Andrea Aime, GeoSolutions

(2)

GeoSolutions

 Founded in Italy in late 2006  Expertise

• Image Processing, GeoSpatial Data Fusion

• Java, Java Enterprise, C++, Python

• JPEG2000, JPIP, Advanced 2D visualization

 Supporting/Developing FOSS4G projects  GeoTools, GeoServer

 GeoNetwork, GeoBatch  ImageIO-Ext

(3)

Outline



GeoSolutions



GeoServer

 Quick introduction  OGC services

 Data access news  Security

(4)

(5)

GeoServer



GeoSpatial enterprise gateway

Java Enterprise

Management of raster and vector data



Standards compliant

OGC WCS 1.0 - 1.1.1 (RI) OGC WFS 1.0 - 1.1 (RI), 2.0 OGC WMS 1.1.1, 1.3.0

OGC WPS 1.0.0



Google Earth/Maps support

(6)

Formats

and

Protocols

Geo

Serve

r

WFS 1.0, 1.1, 2.0 WMS 1.1.1 1.3.0 PostGIS Oracle H2 DB2 SQL Server MySql Spatialite GeoCouch Shapefile --- --- --- --- --- --- --- --- --- --- --- --- ArcSDE WFS PNG, GIF JPEG TIFF, GeoTIFF SVG, PDF KML/KMZ Shapefile GML2 GML3 GeoRSS GeoJSON CSV/XLS Raw vector data Servers Styled maps DBMS Vector files WCS 1.0 1.1.1 GeoTIFF WMS ArcGrid GTopo30 Img+world

Mosaic Raster files

Raw raster data GeoTIFF ArcGrid GTopo30 Img+World GWC (WMTS,

TMS, KML superoverlays _{Google maps tiles} WFSv*

Google*

WPS 1.0.0

(7)

Architecture

GeoTools

JTS

ImageIO

GDAL

WCS

JAI

WMS WFS WPS REST Google

Vector

Raster

GWC

Style

Kakadu

JAITools

(8)

(9)

RESTful Configuration



Programmatic configuration of layers via REST

service calls

Workspaces

DataStores/CoverageStores Layers and Styles



Exposing internal configuration to remote clients



Integrated Security



Admin credentials required for modifications



Client libraries:

GeoServer Manager

(Java),

(10)

RESTful Configuration

GeoServer

Javascript

client

Desktop

app

GeoBatch

Server side

scripts

Styles Automatic Configuration of recurring flows of data Mass publishing of

(11)

Virtual Services

 Expose multiple OGC service endpoints per installation  One virtual service per workspace

 Expose only layers defined in such workspace

 Configure service metadata (point of contacts and the like) per

workspace (only on 2.2.x)

 Use cases:

 Provide clients with focused/theme centered data sets

 Provide each department of a single organization with its own set

of services

 Limitations:

(12)

(13)

WMS



Dissemination of Maps

 Fusing raster and vector data seamlessly  With styling!



WMS 1.1.1 and 1.3 support



SLD

 Basic support for SLD 1.1 and SE 1.1  Full support for SLD 1.0

 Geo-CSS (community module)



Many rendering extensions available!



Integration with GeoWebCache

(14)

KML/KMZ

TEMPORAL SERIES

(15)

(16)

Advanced Projection Handling

Management of dateline Change and map-wrapping Cutting un-reprojectable geometries

(17)

Advanced Styling

Filter Functions

Geometry

Transformations

Drop Shadow Number Formatting

(18)

Rendering transformations



On-the-fly data transformations



Calling WPS processes from SLD docs

(19)

Rendering transformations



Point feature extraction from two band raster data

(e.g. Wind(u,v))

(20)

Time and elevation support

 Available on 2.2.x

 Supports both vector (fields) and rasters (mosaics with time/elevation associated to tiles)

(21)

WMS Animator

 Animations for WMS requests across custom GetMap params

 Controlled via aparam/avalues couples

 Generates multiple frames through multiple GetMap requests

 http://localhost:8080/geoserver/wms/animate?LAYERS=topp%3Aworld&apara

m=time&avalues=2004-01-01T00:00:00.000Z,,2004-07-01T00:00:00.000Z&format=image/gif;subtype=animated&format_options=gif_l oop_continuosly:true

(22)

Cross-Layer filtering

 “querylayer” community module

 “Find all sites within 100 meters from roads”  Single CQL filter with WMS:

DWITHIN( the_geom, collectGeometries( queryCollection('roads', 'the_geom', 'INCLUDE') ), 200, meters)

(23)

INSPIRE

 INSPIRE community module

 Adds new layer metadata fields

 Integrate the WMS capabilities documents to support the INSPIRE requirements

(24)

WMS Cascading

 Cascade WMS 1.1 and WMS 1.3

 Auto-fill metadata based on caps document

 GetMap and GetFeatureInfo Cascading

 Support for reprojection on-the-fly

 GUI based mass import of remote layers

(25)

WFS



Dissemination and filtering of vector data



WFS 1.0 and 1.1 support with transactions



WFS 2.0 on the 2.2.x series



Formats:

 GML 2, 3.1 e 3.2, CSV, GeoRSS, GeoJSON

 Shapefile (zipped), OGR (via ogr2ogr, configurable)



Extensions

 CQL

 WFS 1.0 with on-the-fly reprojection  Paging and sorting in WFS 1.0 and 1.1

(26)

WFS paging

http://myserver/geoserver/topp/ows? service=WFS&version=1.0.0&request=GetFeature &typeName=topp:states&outputFormat=csv &propertyName=STATE_NAME,PERSONS &maxFeatures=10&startIndex=10 #FID,STATE_NAME,PERSONS states.11,Arizona,3665228 states.12,Oklahoma,3145585 states.13,North Carolina,6628629 states.14,Tennessee,4829958 states.15,Texas,17122020 states.16,New Mexico,1379559 states.17,Alabama,4040587 states.18,Mississippi,2573216 states.19,Georgia,6457339

(27)

WCS*



Raster data dissemination

 Raw raster data useful for analysis, no maps!

 Support for TIME and ELEVATION (via ImageMosaic plugin)



WCS 1.0 e 1.1.1



Output formats

 GeoTiff, ArcGrid

 GDAL based formats*



Extensions

(28)

(29)

WPS

 WPS 1.0

 Official Extension

 Raster and Vector data support

 High performance processes development (raster/vector statistics, raster/vector format conversions and more)  Supports asynchronous requests

 Integrated WPS

 Automatic publishing of results

 Embedding processes into SLD styles

(30)

(31)

WPS*

 Deficiencies

 Missing request limits enforcements (e.g. input/output maximum dimensions)

 Wish list:

 Scripting (Jython, GeoScript)

 Sextante, IDL, JGrass (Grass?) integration  Improved robustness

 Jiffle (jai-tools) based raster algebra

 Create new layers as dynamic WPS processes (computing data on the fly as requested)

(32)

(33)

New/improved vector stores



Teradata

(large databases + analytics/business

intelligence)

 SQL Server: improved performance, added support for SQL Azure

 GeoCouch* (couch db)

 GeoGit* (distributed versioning)

 Simple Feature Service* client (aka MapFish++ protocol)  New OGR data store*

(34)

Aggregating data store

 N layers, remote or local, sharing the same structure  Aggregating store puts them together dynamically, the

client will think there is just one layer  Parallel data fetching

 Can be configured to tolerate

temporarily unreachable data sources

(35)

SQL Parametric Views

 SQL View as a GeoServer Layer

 No need to actually creating a view in the database  View can be parametric

 WMS and WFS allow parameter substitution

 ….&request=GetMap&viewparams=low:2000000;high:5000000  Default values for parameters

(36)

ImageIO-Ext Support



JAI

ImageIO Extension 

Plugins:

 BigTiff  netCDF-CF, GriB1  MatFile 5  HDF4  JP2000 (Kakadu)  GDAL 1.8.1

(37)

Image Server*

 Turning GeoServer into an Image Server  Serving pure Imagery

 No geo-reference need/available/(would make sense!)  Special Coordinate Reference Systems defined

 Interoperability with WMS clients  Respecting EPSG conventions

 EPSG:404000  See here

 Improved support for data with bad/missing geo-reference!

(38)

(39)

Integrated Security

namespace.layer.mode=role1,role2,... A name, or * to mean “any” r: read w: write

The roles that will be authorized to access the data



Spring Security



RBAC on layers and services

(40)

Security Developments in 2.1



Security Management at the feature level (record

in DBMS)



read and write filtering



Hide sensible attributes



Discriminate visible areas on a per-user basis



Rules for services and layers



Server side framework available, but no integrated

solution leveraging it.



External tools available: GeoRepository,

(41)

GeoRepository

(42)

Database level security



Some enterprises want to control security at

the database level (instead of at the

application level)



The connection pool user gets very limited

rights



Pass down the

current GeoServer

user to the database

via SQL script

(43)

Security Developments in 2.2.x



Some new security advances are in the works on

the unstable series, will be available in 2.2.0:



Pluggable authentication layer (use

authentications others than HTTP BASIC

ones)



Pluggable user/roles database

(44)

The End

Questions?

(45)

Raster Symbolizer

65536 Colors 256 Colors Raw Data

(46)

(47)

(48)

Integrated Security

private.* topp.* TRUSTED_ROLE r/w r r r topp. districts Other layers

*.*.r=*

*.*.w=NO_ONE

private.*.r=TRUSTED_ROLE

private.*.w=TRUSTED_ROLE

topp.districts.w=LEGISLATORS

RDONLY lock down Per-layer override

(49)

Security Developments in 2.1



GSIP 57



extended authorization management



GeoRepository

 Role Base Access Control  Services

 Operations  Layers

 Attributes (alphanumeric and geospatial)  External Web Application

 Web Services + UI  Rule-based

(50)

Complex Feature*

 Application/community schemas  Complex Features

 Attributes as sub-features  Attributes as list of features  Tree-like structure

 Heterogeneous data sources  INSPIRE!

(51)

(52)

Advanced Styling

(53)

WMS - CQL

 GeoServer WMS – CQL Examples  STATE_NAME = 'Montana'

 MALE > FEMALE

(54)

WMS TIME and ELEVATION

TIME = 20100512T0000000Z ELEVATION = 0.0

(55)

Raster Pyramids

 Preprocessing raster data for performance  Multiple resolutions levels

 Scale decide best resolution level  Multiple file (tiles) per resolutions level  File Based Pyramids Support

 DBMS-based Pyramids  Postgis

 DB2

 Oracle (GeoRaster)  MySQL

(56)

(57)

Improved Raster Reprojection

 Raster reprojection  complex process

 Idea:

 try to approximate the overall

transformation with a simpler one, either a single affine

transformation or a piecewise composition of them (grid warp)

 Ability to specify threshold for error acceptance

 Iterative approach (local optimization)  Trade off between speed and

(58)

GeoWebCache Integration

GeoServer

GeoWebCache

 Direct calls to GeoServer rendering engine

 Support for layers modified through WFT-T

 Support for various tile protocols

GMap, Gearth

OpenLayers, VEarth, Bing

 Speed-up factor 10/100  Disk quota support

(59)

GeoServer in da Cloud

 Standing Cloud

 Admin-Free Cloud Infrastructure

 Paas from Amazon, GoGrid, Linode, etc…  Pay per use

 Elastic resources at hand  GeoServer SaaS

 Deploy and admin with UI  No sysadmin skills

SS e GFOSS Meeting 2012

http://localhost:8080/geoserver/wms/animate?LAYERS=topp%3Aworld&apara

m=time&avalues=2004-01-01T00:00:00.000Z,,2004-07-01T00:00:00.000Z&format=image/gif;subtype=animated&format_options=gif_l

e


