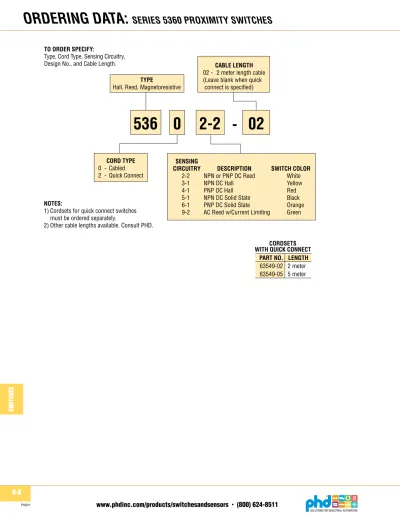

ORDERING DATA: SERIES 5360 PROXIMITY SWITCHES

(1)

SWITCHES

ORDERING DATA:

SERIES 5360 PROXIMITY SWITCHES

CORD TYPE

0 - Cabled 2 - Quick Connect

TO ORDER SPECIFY:

SENSING

CIRCUITRY DESCRIPTION SWITCH COLOR

2-2 NPN or PNP DC Reed White

3-1 NPN DC Hall Yellow

4-1 PNP DC Hall Red

5-1 NPN DC Solid State Black

6-1 PNP DC Solid State Orange

9-2 AC Reed w/Current Limiting Green Type, Cord Type, Sensing Circuitry,

Design No., and Cable Length.

2-2

536 0

CABLE LENGTH

02 - 2 meter length cable (Leave blank when quick connect is specified)

TYPE

Hall, Reed, Magnetoresistive

02

-NOTES:

1) Cordsets for quick connect switches must be ordered separately.

2) Other cable lengths available. Consult PHD.

PART NO. 63549-02 63549-05 LENGTH 2 meter 5 meter CORDSETS WITH QUICK CONNECT

(2)

9-7

SWITCHES

BENEFITS:

SERIES 5360 HALL EFFECT SWITCHES

BENEFITS

■ Series 5360 Hall Effect Switches are available for use on selected

PHD products, making it easy to interface these actuators with various electronic controls.

■ Switches have no moving parts or mechanical contacts, providing long switch life and elimination of contact bounce.

■ Constant amplitude output is provided for use with most digital logic systems.

■ Low profile integral clamp mounting is easy to adjust over the

entire piston travel of the cylinder or actuator.

■ Several switches may be mounted to control or initiate any sequence or function.

■ Dual LED indicators provide convenient means for positioning

and troubleshooting circuits. Green LED shows that power is being received at the switch and amber shows when the switch output is on.

■ Available in a Quick Connect model for easy installation

and maintenance.

Series 5360 Hall Effect Switches are designed specifically to provide an input signal to various types of programmable controllers or logic systems. Since Hall Effect Switches are solid-state, there are no moving parts to wear out. They offer an infinite number of trouble-free operations. Hall Effect Switches operate on DC current only.

SPECIFICATIONS 53603 & 53623 53604 & 53624

OPERATING PRINCIPLE Hall Effect

ACTUATED BY Moving Magnet

INPUT VOLTAGE 4.5 to 24 VDC

OUTPUT TYPE NPN (Sink) PNP (Source)

CURRENT RATING 20 mA. Max. 100 mA. Max.

VOLTAGE DROP .5 VDC Max.

SWITCH BURDEN 12 mA. Max.

ENVIRONMENTAL IP67

OPERATING TEMP. 0° to 80°C

MODEL NO. 53604 & 53624 - PNP (SOURCE) INPUT - 4.5-24 VDC

LOAD CURRENT - 100 mA. MAX. SWITCH HOUSING COLOR - RED

(LED’s have been omitted from the schematic for clarity.)

MODEL NO. 53603 & 53623 - NPN (SINK) INPUT - 4.5-24 VDC

LOAD CURRENT - 20 mA. MAX. SWITCH HOUSING COLOR - YELLOW

BLACK BROWN BLUE LOAD SWITCH DC DC CABLED MODEL 53603 1 2/4 3 PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC

QUICK CONNECT MODEL 53623

1 2/4 3 PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC

QUICK CONNECT MODEL 53624

LOAD

SWITCH

DC DC

CABLED MODEL 53604

HALL EFFECT WIRING SCHEMATICS

BROWN BLUE BLACK BROWN BLUE BLACK BLACK BROWN BLUE

(3)

SWITCHES

BENEFITS:

SERIES 5360 SOLID STATE SWITCHES

BENEFITS

■ Series 5360 Solid State Switches are available for use on selected PHD products, making it easy to interface these actuators with various electronic controls.

■ Switches are solid state, having no moving parts or mechanical contacts, providing long switch life and elimination of contact bounce.

■ Transient voltage protection.

■ Constant amplitude output is provided for use with most digital logic systems.

■ Reverse polarity protection.

■ Low profile integral clamp mounting is easy to adjust over the entire piston travel of the cylinder or actuator.

■ Dual LED indicators provide convenient means for positioning

and troubleshooting circuits. Green LED shows that power is being received at the switch and amber shows when the switch output is on.

■ Available in a Quick Connect model for easy installation

and maintenance.

Series 5360 Solid State Switches are designed specifically to provide an input signal to various types of programmable controllers or logic systems. Since Solid State Switches have no moving parts to wear out, they offer an infinite number of trouble-free operations. Solid State Switches operate on DC current only.

MODEL NO. 53606 & 53626 - PNP (SOURCE) INPUT - 6-24 VDC

LOAD CURRENT - 100 mA. MAX. SWITCH HOUSING COLOR - ORANGE

MODEL NO. 53605 & 53625 - NPN (SINK) INPUT - 6-24 VDC

LOAD CURRENT - 20 mA. MAX. SWITCH HOUSING COLOR - BLACK

BLACK BROWN BLUE LOAD SWITCH DC DC CABLED MODEL 53605 1 2/4 3 PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC

QUICK CONNECT MODEL 53625

1 2/4 3 PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC

QUICK CONNECT MODEL 53626

LOAD

SWITCH

DC DC

CABLED MODEL 53606

SOLID STATE WIRING SCHEMATICS

BROWN BLUE BLACK BROWN BLUE BLACK BLACK BROWN BLUE

SPECIFICATIONS 53605 & 53625 53606 & 53626

OPERATING PRINCIPLE Solid State ACTUATED BY Moving Magnet INPUT VOLTAGE 6 to 24 VDC Max. OUTPUT TYPE NPN (Sink) PNP (Source) CURRENT RATING 20 mA. Max. 100 mA. Max. VOLTAGE DROP .5 VDC Max.

SWITCH BURDEN 12 mA. Max. ENVIRONMENTAL IP67* OPERATING TEMP. 0° to 80°C

(4)

9-9

SWITCHES

DIMENSIONS:

SERIES 5360 HALL/SOLID STATE SWITCHES

HALL EFFECT AND SOLID STATE SWITCH

.700 [17.8] .325 [8.2] .580 [14.7] .061 [1.5] .460 [11.7] .150 [3.8] .320 [8.1] .126 [3.2] .290 [7.4] 2 m CABLE x Ø.134 [3.40]

HALL EFFECT AND SOLID STATE SWITCH WITH MALE QUICK CONNECT

[M8x1] CABLE x Ø .134 [3.40] 4.000 [102.0] .290_[7.4] .126 [3.2] .325 [8.3] .061 [1.5] .460 [11.7] .150 [3.8] .320 [8.1] (5.590 [142]) .580 [14.7] .700 [17.8] MODEL NO. A 78.74 [2 m] 196.85 [5 m] LETTER DIM. 63549-02 63549-05 PIN 2/4 WIRE COLOR BLACK PIN 1 WIRE COLOR BROWN PIN 3 WIRE COLOR BLUE A .402 [10.2] .689 [19.3] 1.299 [34.8] CABLE x .177 [4.5]

63549-xx CORDSET WITH FEMALE QUICK CONNECT

NUMBERS IN [ ] ARE IN mm–IMPERIAL EQUIVALENTS ARE PROVIDED FOR CONVENIENCE

(5)

SWITCHES MODEL NO. A 78.74 [2 m] 196.85 [5 m] LETTER DIM. 63549-02 63549-05 PIN 2/4 WIRE COLOR BLACK PIN 1 WIRE COLOR BROWN PIN 3 WIRE COLOR BLUE A .402 [10.2] .689 [19.3] 1.299 [34.8] CABLE x .177 [4.5]

63549-xx CORDSET WITH FEMALE QUICK CONNECT

NUMBERS IN [ ] ARE IN mm – IMPERIAL EQUIVALENTS ARE PROVIDED FOR CONVENIENCE

DIMENSIONS:

SERIES 5360 REED SWITCHES

REED SWITCH

REED SWITCH WITH MALE QUICK CONNECT

MODEL NO. 53602-2 & 53622-2 53609-2 & 53629-2 A .685 [17.4] .895 [22.7] B 1.090 [27.7] 1.300 [33] LETTER DIM.

BENEFITS:

SERIES 5360 REED SWITCHES

BENEFITS

■ Series 5360 Reed Switches are available for use on selected

PHD products, making it easy to interface these actuators with various electronic controls.

■ Low profile integral clamp mounting is easy to adjust over the entire piston travel of the cylinder or actuator.

■ An LED indicator provides convenient means for positioning

and troubleshooting circuits.

■ Available in a Quick Connect model for easy installation and maintenance.

■ Special current limit model available for AC applications where

inrush might otherwise damage the switch. _{SPECIFICATIONS} _{53602-2 & 53622-2} _{& 53629-2*}53609-2*

OPERATING PRINCIPLE Magnetic Reed

INPUT VOLTAGE 4.5 to 24 VDC 110 to 120 VAC

OUTPUT TYPE Contact Closure

POWER CAPACITY 4 Watt Max. 2.5 Watt Max.

CURRENT RATING 200 mA. Max. Inter. Limited to 20 mA.

CONTACT RESISTANCE .200 Ohms Max. 1.5 kOhm

ENVIRONMENTAL IEC IP67

Series 5360 Reed Switches are available in either AC or DC models. They are ideal for use as inputs for many types of sequencers and programmable controllers. In some cases, they can be used to drive some relays or valve solenoids. However, electrical transients (inrush currents or line spikes) associated with inductive or capacitive loads can damage and shorten the life of the switch.

NUMBERS IN [ ] ARE IN mm – IMPERIAL EQUIVALENTS ARE PROVIDED FOR CONVENIENCE [M8x1] CABLE x Ø .134 [3.40] 4.000 [102.0] .290_[7.4] .126 [3.2] .325 [8.3] .061 [1.5] .460 [11.7] .150 [3.8] .320 [8.1] (5.590 [142]) .580 [14.7] .700 [17.8]

(6)

9-11

SWITCHES

MODEL NO. 53602-2 & 53622-2 - NPN (SINK) OR PNP (SOURCE) INPUT - 4.5-24 VDC

POWER CAPACITY - 4 WATT MAX. LOAD CURRENT - 200 mA. MAX.

MODEL NO. 53609-2 & 53629-2 INPUT - 110-120 VAC

SWITCHED POWER - 2.5 WATT MAX. INTERNAL RESISTANCE - 1.5 kOhm SWITCH HOUSING COLOR - GREEN

CABLED MODEL 53609-2 BLACK BROWN

BLUE

LOAD LINE

QUICK CONNECT MODEL 53629-2

LOAD LINE PIN 2/4 PIN 1 PIN 3 1 2/4 3

REED WIRING SCHEMATICS

LOAD DC DC

CABLED MODEL 53602-2 - NPN (SINK) CABLED MODEL 53602-2 - PNP (SOURCE)

LOAD DC DC 1 2/4 3 QUICK CONNECT MODEL 53622-2 - NPN (SINK)

PIN 2/4 PIN 3 PIN 1 LOAD DC DC 1 2/4 3 QUICK CONNECT MODEL 53622-2 - PNP (SOURCE)

PIN 2/4 PIN 1 PIN 3 LOAD DC DC

SWITCH HOUSING COLOR - WHITE

(Bi-polar LED emits a green light in the Sinking circuit and a red light in the Sourcing circuit.)

BROWN BLUE BLACK BROWN BLUE BLACK BROWN BLUE BLACK BLACK BROWN BLUE BLACK BROWN BLUE

ENGINEERING DATA:

(7)

SWITCHES

ORDERING DATA:

CORD TYPE

SENSING

CIRCUITRY DESCRIPTION SWITCH COLOR

5-1 NPN (Sink) DC Solid State Brown 6-1 PNP (Source) DC Solid State Tan

7-1 AC/DC Reed Silver

Type, Cord Type, Sensing Circuitry, Design No., and Cable Length.

7-1

625 0

CABLE LENGTH

02 - 2 meter length cable (Leave blank when quick connect is specified) TYPE Reed, Magnetoresistive

02

-NOTES:

PART NO. 61397-02 61397-05 CABLE LENGTH 2 meter/3 wire 5 meter/3 wire

CORDSETS WITH QUICK CONNECT

NOTE: This cordset is used for both

3-wire and 2-wire applications. When used in 2-wire applications, refer to the schematic and disregard the black wire.

(8)

9-13

SWITCHES

BENEFITS:

BENEFITS

■ Series 6250 Reed Switches are available for use with PHD ISO

Cylinder and on other select PHD actuators which use the “M” magnet option.

■ Series 6250 Reed Switches offer both 120 VAC or 10 to 30 VDC sink and source operation for maximum flexibility in interfacing with various electronic controls.

■ Special current limiting feature is designed into each switch for protection against potential current inrush damage to switch components.

■ Integral clamp mounting provides easy attachment and adjustment while eliminating the cost of brackets and additional hardware.

■ Several switches may be used on an actuator to control or

initiate a sequence or function.

■ LED indicator provides convenient means for positioning and troubleshooting circuits.

■ Switches include either a hard wired 24 AWG, Polyurethane (PUR) jacketed cable making it virtually impervious to chemical or environmental damage, or an integral 8 mm screw type connector mounted directly on the switch.

■ IP67 Environmental Protection

SPECIFICATIONS 62507-1 62517-1

SWITCH COLOR Silver

INPUT VOLTAGE 10 to 30 VDC or 110-120 VAC*

OUTPUT VOLTAGE Contact Closure

POWER CAPACITY 2.5 Watt Max.

CURRENT RATING Internally Limited to 25 mA.

IMPEDANCE 2.25 k Ohm

ENVIRONMENTAL IP67

OPERATING TEMP. 0 to 80C

MODEL NO. 62507-1 & 62517-1 INPUT - 10 to 30 VDC

POWER CAPACITY - 2.5 WATTS MAX. LOAD CURRENT - 25 mA. MAX. SWITCH HOUSING COLOR - SILVER MODEL NO. 62507-1 & 62517-1

INPUT - 110 - 120 VAC

POWER CAPACITY - 2.5 WATTS MAX. LOAD CURRENT - 25 mA. MAX. INTERNAL RESISTANCE - 2.25 k Ohm SWITCH HOUSING COLOR - SILVER

REED WIRING SCHEMATICS

CABLED MODEL 62507-1 _{Alternate load position for}

sink circuit BROWN

BLUE DC

DC LOAD

QUICK CONNECT MODEL 62517-1

1 2/4 3 PIN 1 PIN 3 DC DC LOAD BROWN BLUE CABLED MODEL 62507-1 1 2/4 3 PIN 1 PIN 3

QUICK CONNECT MODEL 62517-1

LINE

LOAD

Alternate load position for sink circuit

LOAD

LOAD LOAD

LOAD

Alternate load position for sink circuit

(9)

SWITCHES

BENEFITS:

SERIES 6250 SOLID STATE SWITCHES

BENEFITS

■ Series 6250 Solid State Switches are available for use with

PHD ISO Cylinders and on other select PHD actuators which use the “M” magnet option

■ Available in both current sinking or current sourcing models for maximum flexibility in interfacing with various electronic controls.

■ Series 6250 Solid State Switch circuitry protects against voltage surges and other electrical anomalies associated with operating systems.

■ Integral clamp mounting provides easy attachment and adjustment while eliminating the cost of brackets and additional hardware.

■ Several switches may be mounted to control or initiate any

sequence or function.

■ An LED indicator provides convenient means for positioning and troubleshooting circuits.

■ Switches include either a hard wired 24 AWG, Polyurethane (PUR) jacketed cable making it virtually impervious to chemical or environmental damage, or an integral 8mm screw type connector mounted directly on the switch.

Series 6250 Solid State Switches are designed specifically to provide an input signal to various types of programmable controllers or logic systems. Since Solid State Switches have no moving parts to wear out, they offer an infinite number of trouble-free operations. Solid State Switches operate on DC current only.

MODEL NO. 62506-1 & 62516-1 - PNP - (SOURCE) INPUT - 10-30 VDC

LOAD CURRENT - 100 mA. MAX. SWITCH HOUSING COLOR - TAN

(LED has been omitted from the schematic for clarity.)

MODEL NO. 62505-1 & 62515-1 - NPN - (SINK) INPUT - 10-30 VDC

LOAD CURRENT - 100 mA. MAX. SWITCH HOUSING COLOR - BROWN

BLACK BROWN BLUE LOAD MR SWITCH DC DC CABLED MODEL 62505-1 1 2/4 3 2/4 PIN 1 PIN 3 LOAD MR SWITCH DC DC

QUICK CONNECT MODEL 62515-1

1 2/4 3 2/4 PIN 1 PIN 3 LOAD MR SWITCH DC DC

QUICK CONNECT MODEL 62516-1

BLACK BROWN BLUE LOAD MR SWITCH DC DC CABLED MODEL 62506-1

MAGNETORESISTIVE WIRING SCHEMATICS

62505-1 & 62506-1 & SPECIFICATIONS 62515-1 62516-1

SWITCH COLOR Brown Tan

OPERATING PRINCIPLE Magnetoresistive

INPUT VOLTAGE 10 to 30 VDC

CURRENT RATING 100 mA. Max. 100mA. Max.

ENVIRONMENTAL IP67

(10)

9-15

SWITCHES .318 [8.1] _.660 [16.7] .183 [4.6] .158 [4] .071 [1.8] .503 [12.8] .380 [9.6] .682 [17.3] 1.088 [27.6] MODEL NO. A 78.7 [2000] 197.0 [5000] LENGTH 3 wire 3 wire LETTER DIM. 61397-02 61397-05

PIN 3 - BLUE WIRE PIN 2/4 - BLACK COLOR .335

[8.5]

PIN 1 - BROWN WIRE CABLE x .177 [4.5]

A

DIMENSIONS:

SERIES 6250 REED/SOLID STATE SWITCHES

REED AND SOLID STATE SWITCH

WITH QUICK CONNECT

REED AND SOLID STATE

SWITCH CABLED

.660 [16.7] .203 [5.2] SGNL .876 [22.3] .682 [17.3] 1.088 [27.6] M8 THREAD .660 [16.7] .503 [12.8] .380 [9.6] .318 [8.1] .071 [1.8]

NOTE: THIS CORDSET IS USED FOR BOTH 3-WIRE AND 2-WIRE APPLICATIONS. WHEN USED IN 2-WIRE APPLICATIONS, REFER TO THE SCHEMATIC AND DISREGARD THE BLACK WIRE.

(11)

SWITCHES

ORDERING DATA:

SERIES 1750 SWITCHES

ORDERING DATA

COMMON BENEFITS

■ Series 1750 switches are available for use on most Tom Thumb and PHD products for simple interfacing to many types of electrical controllers.

■ The compact low profile design saves space and provides mounting versatility.

■ Low profile bracket attaches securely across two tie rods and

allows easy position adjustment over the entire piston travel of the cylinder or actuator.

■ Red LED indicator provides convenient method for position

setting and troubleshooting.

■ Available in a cabled or 8 mm threaded Quick Connect model for easy installation and maintenance.

■ 24 AWG polyurethane (PUR) jacketed cable is robust and virtually impervious to chemical and environmental damage.

■ Multiple switches may be mounted to control or initiate any sequence or function.

SOLID STATE BENEFITS

■ Solid state switches afford long life. Constant amplitude output allows use with most digital logic systems.

■ Switch circuitry protects against voltage surges and other

electrical anomalies associated with operating systems.

■ Excellent switch hysteresis characteristics and symmetry. ■ Offered in 10-30 VDC current sinking and current sourcing

versions for simple interfacing to electronic system controllers.

REED BENEFITS

■ Available as either 10-30 VDC or 110-120 VAC models for simple interfacing to sequencers and programmable controllers.

■ Can be used to directly drive some types of relays or valve solenoids. CORD TYPE 0 - Cabled 2 - Quick Connect TO ORDER SPECIFY: SENSING

2-2 NPN or PNP DC Reed White

3-2 NPN DC Solid State Yellow

4-2 PNP DC Solid State Red

9-3 *AC Reed w/Current Limiting Green Type, Cord Type, Sensing

Circuitry, Design No., and Cable Length.

2-2

175 0

CABLE LENGTH

06 - 6 ft [1.8 m] length cable (Leave blank when quick connect is specified)

06

-

NOTES:

1) Cordsets for quick connect switches must be ordered separately. See page 9-17. 2) Other cable lengths

available. Consult PHD. 3) *CE certification not

applicable to the AC Reed with Current Limiting model.

TYPE

Solid State, Reed

PART NO. 63549-02 63549-05 LENGTH 2 meter 5 meter CORDSETS WITH QUICK CONNECT

(12)

9-17

SWITCHES .500 [12.7] MAX .137 [3.5] MAX 1.000 [25.4] LED INDICATOR .690 [17.5] LINEAR SECTION 17000-36-0 17000-37-0 17000-40-0 17000-41-0 17000-35-0 SERIES 1000 & 2000 3000 & 4000 5000 & 6000 7000 & 8000 MINIATURE ROTARY SECTION 17000-32-5 17000-34-5 17000-38-0 17000-39-0 — COMPACT BRACKETS ROTARY & MULTI-MOTION ACTUATORS

NPG METRIC 19 25 29 35 19 29 35 51 75 29 35 COMPACT BRACKETS 17000-31-5 17000-32-5 17000-33-5 17000-34-5 17000-35-0 17000-36-0 17000-37-0 17000-40-0 17000-41-0 17000-33-5 17000-36-0 EA, EL, & NEA AV & HV SERIES CYLINDERS BORE SIZE IMPERIAL 3/4 1 1-1/8 1-3/8 3/4 1-1/8 1-3/8 2 3 1-1/8 1-3/8 COMPACT BRACKETS* 17000-51-0 17000-51-0 17000-51-0 17000-51-0 17000-51-0 17000-57-0 IMPERIAL LARGE BORE CYLINDERS

BORE SIZE 1-1/2 2 2-1/2 3-1/4* 4 5, 6, & 8 *3-1/4" Bore C & C Cylinders require switch bracket 5142-54-3. SWITCH BRACKET

DOES NOT EXTEND BEYOND CYLINDER OUTLINE ON THIS SIDE

.144 [3.7] MAX .429 [10.9] MAX 1.000 [25.4] LED INDICATOR .700 [17.8] 17000-31-5 17000-32-5 17000-33-5 17000-34-5 17000-35-0 17000-36-0 17000-37-0 17000-40-0 17000-41-0

SWITCH BRACKET DOES NOT EXTEND BEYOND CYLINDER OUTLINE ON THIS SIDE

DESCRIPTION

Strain relief kit for non -5 brackets (-35-0 through -41-0) Strain relief kit for Series SD/SE Slide size 26 PART NUMBER 17494 18412 SD/SE SLIDES BRACKET 17000-31-5 17000-32-5 17000-33-5 17000-34-5 58050-02 BORE SIZE 22 23 24 25 26

REED SWITCH

LED INDICATOR 4° TYP

6 ft [1.8 m] CABLE x Ø.177 [4.5] .473 [12.0] .028 [.71] Ø .200 [4.6] 1.000 [25.4] .286 [7.3] .322 [8.2] .178 [4.52] .323 [8.2]

MALE QUICK CONNECT DETAIL

SOLID STATE SWITCH

Ø.200 [4.6] LED INDICATOR 1.000 [25.4] 4° TYP .286 [7.3] 6 ft [1.8 m] CABLE x Ø.177 [4.5] .322 [8.2] .178 [4.52] .323 [8.2] .473 [12]

MALE QUICK CONNECT DETAIL

4° TYP .473 [12.0] .028 [.71] 4.000 [101.6] Ø.177 [4.5] .286 [7.3] .322 [8.2] .178 [4.52] .323 [8.2] (5.590 [142]) .314 [8] M8x1

NUMBERS IN [ ] ARE IN mm–IMPERIAL EQUIVALENTS ARE PROVIDED FOR CONVENIENCE

SWITCH BRACKETS

17000-xx-5

DIMENSIONS:

MODEL NO. L 78.74 [2 m] 196.85 [5 m] LETTER DIM. 63549-02 63549-05 PIN 2/4 WIRE COLOR BLACK BLACK CABLE PIN 3 WIRE COLOR BLUE L 1.299 [34.8] Ø .402 [10.2] .689 [19.3] BLACK CONNECTOR PIN 1 WIRE COLOR BROWN

63549-xx CORDSET WITH FEMALE QUICK CONNECT

NOTES:

1) For alternative supplier part numbers, see page 9-5. 2) For earlier design switches 1752x-1 and 17529-2, use cordset 17533-00-02 or 17533-00-05.

17000-xx-0

(13)

SWITCHES

SPECIFICATIONS:

17502-2 17509-3* SPECIFICATIONS 17522-2 17529-3*

OPERATING PRINCIPLE Magnetic Reed ACTUATED BY Piston Magnet INPUT VOLTAGE 10-30 VDC 110-120 VAC POWER CAPACITY 10 Watt Max. 10 Watt Max. OUTPUT TYPE Contact Closure CURRENT RATING 200 mA. Inter. Limited

Switched to 85 mA. CONTACT RESISTANCE .1 Ohm Max. .1 Ohm Max. ENVIRONMENTAL IP67

SPECIFICATIONS 17503-2 & 17523-2 17504-2 & 17524-2

OPERATING PRINCIPLE Solid State ACTUATED BY Piston Magnet INPUT VOLTAGE 10-30 VDC

OUTPUT TYPE NPN (Sink) PNP (Source) CURRENT RATING 20 mA. Max 100 mA. Max VOLTAGE DROP .5 VDC

SWITCH BURDEN 10 mA. Max. ENVIRONMENTAL IP67 OPERATING TEMP. 0° to 80°C

* CE certification not applicable to these switch models.

MODEL NO. 17504-2 & 17524-2 - PNP (SOURCE) INPUT - 10-30 VDC

LOAD CURRENT - 100 mA. MAX. SWITCH HOUSING COLOR - RED

MODEL NO. 17503-2 & 17523-2 - NPN (SINK) INPUT - 10-30 VDC

BLACK BROWN BLUE LOAD SWITCH _DC DC CABLED MODEL 17503-2 PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC

QUICK CONNECT MODEL 17524-2 BLACK BROWN BLUE LOAD SWITCH _DC DC CABLED MODEL 17504-2

SOLID STATE WIRING SCHEMATICS

MODEL NO. 17502-2 & 17522-2 - NPN (SINK) OR PNP (SOURCE) INPUT - 10-30 VDC

POWER CAPACITY - 3 WATT MAX. LOAD CURRENT - 200 mA. MAX. SWITCH HOUSING COLOR - WHITE

(Bi-polar LED emits a red light.)

MODEL NO. 17509-3 & 17529-3 INPUT - 120 VAC

SWITCHED POWER - 3 WATT MAX. INTERNAL RESISTANCE - 1.5 kOhm SWITCH HOUSING COLOR - GREEN CABLED MODEL 17509-3

LOAD

LINE

REED WIRING SCHEMATICS

BROWN BLACK BLUE LOAD DC DC

CABLED MODEL 17502-2 - NPN (SINK)

CABLED MODEL 17502-2 - PNP (SOURCE)

LOAD DC DC BROWN 1 2/4 BLACK 3 BLUE PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC

QUICK CONNECT MODEL 17523-2 _BROWN 1

2/4 BLACK 3

BLUE

QUICK CONNECT MODEL 17522-2 - NPN (SINK) PIN 2/4 PIN 3 PIN 1 LOAD DC DC BROWN₁ 2/4 BLACK 3 BLUE

QUICK CONNECT MODEL 17522-2 - PNP (SOURCE) PIN 2/4 PIN 1 PIN 3 LOAD DC DC BROWN₁ 2/4 BLACK 3 LOAD LINE PIN 2/4 PIN 1 PIN 3 BROWN 1 2/4 BLACK 3 BLUE BROWN BLACK BLUE BROWN BLACK BLUE

(14)

9-19

SWITCHES

ORDERING DATA:

BENEFITS

■ Series 5580 Proximity Switches are available for use on selected PHD products making it easy to interface these actuators with various electronic controls.

■ Hall Effect Switches are solid state for long life and elimination of contact bounce. Constant amplitude output is provided for use with most digital logic systems.

■ Low profile mounting is easy to adjust at the ends of travel of

the slide or gripper.

■ LED indicator provides convenient means for positioning and troubleshooting circuits. An LED shows when the switch output is on.

■ Available in a Quick Connect model for easy installation and maintenance.

HALL EFFECT

PHD Series 5580 Hall Effect Proximity Switches are designed specifically to provide an input signal to various types of programmable controllers or logic systems. Since Hall Effect Switches are solid-state, there are no moving parts to wear out. The switches offer an infinite number of trouble-free operations. Hall Effect Switches operate on DC current only.

REED

PHD Series 5580 Reed Switches are available in a DC model. They are ideal for use as inputs for many types of sequencers and programmable controllers. In some cases, they can be used to drive some relays or valve solenoids. However, electrical transients (inrush currents or line spikes) associated with inductive or capacitive loads can damage and shorten the life of the switch.

SPECIFICATIONS 55803 & 55823 55804 & 55824

OPERATING PRINCIPLE Hall Effect

ACTUATED BY Target Magnet

CURRENT RATING 20 mA. Max. 100 mA. Max.

ENVIRONMENTAL IP67

SPECIFICATIONS 55802 & 55822

OUTPUT TYPE NPN (Sink) or

PNP (Source)

CURRENT RATING 200 mA. Switched

CONTACT RESISTANCE .090 Ohm Max.

ENVIRONMENTAL IP67

TYPE

Hall, Reed

TO ORDER SPECIFY:

Type, Cord Type, Sensing Circuitry, Design No., and Cable Length.

2-1

558 0

CABLE LENGTH

02 - 2 meter length cable (Leave blank when quick connect is specified)

02

-NOTES:

CORD TYPE

SENSING

2 - 1 NPN or PNP DC Reed White 3 - 1 NPN DC Hall Yellow 4 - 1 PNP DC Hall Red PART NO. 63549-02 63549-05 LENGTH 2 meter 5 meter CORDSETS WITH QUICK CONNECT

(15)

SWITCHES

63549-xx CORDSET WITH FEMALE QUICK CONNECT

DIMENSIONS:

HALL EFFECT AND REED SWITCH

HALL EFFECT AND REED SWITCH WITH MALE QUICK CONNECT

1.180 [30.0] .118 [3.0] 2 m CABLE x Ø .134 [3.4] .236 [6.0]SQ .118 [3.0]

MODEL NO. 55804 & 55824 - PNP (SOURCE) INPUT - 4.5-24 VDC

LOAD CURRENT - 100 mA. MAX. SWITCH HOUSING COLOR - RED

MODEL NO. 55803 & 55823 - NPN (SINK) INPUT - 4.5-24 VDC

BLACK BROWN BLUE LOAD SWITCH DC DC CABLED MODEL 55803 BLACK BROWN BLUE LOAD SWITCH DC DC CABLED MODEL 55804 PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC

QUICK CONNECT MODEL 55824

HALL EFFECT WIRING SCHEMATICS

REED WIRING SCHEMATICS

PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC

QUICK CONNECT MODEL 55823

MODEL NO. 55802 & 55822 - NPN (SINK) OR PNP (SOURCE) INPUT - 4.5-24 VDC

(Bi-polar LED emits a green light in the Sinking circuit and a red light in the Sourcing circuit.)

BLACK BROWN BLUE DC DC PIN 2/4 PIN 1 PIN 3 LOAD DC DC PIN 2/4 PIN 1 PIN 3 LOAD DC DC

CABLED MODEL 55802 - NPN (SINK)

QUICK CONNECT MODEL 55822 - NPN (SINK)

CABLED MODEL 55802 - PNP (SOURCE)

QUICK CONNECT MODEL 55822 - PNP (SOURCE) LOAD CURRENT - 200 mA. MAX.

SWITCH HOUSING COLOR - WHITE

DC DC BLACK BLUE BROWN LOAD LOAD BROWN 1 2/4 BLACK 3 BLUE BROWN 1 2/4 BLACK 3 BLUE BROWN 1 2/4 BLACK 3 BLUE BROWN 1 2/4 BLACK 3 BLUE

NUMBERS IN [ ] ARE IN mm–IMPERIAL EQUIVALENTS ARE PROVIDED FOR CONVENIENCE [M8x1] CABLE x .134 [3.40] 4.000 [102.0] 1.180 [30.0] (5.550 [141]) .236 [6.0] SQ MODEL NO. A 78.74 [2 m] 196.85 [5 m] LETTER DIM. 63549-02 63549-05 PIN 2/4 WIRE COLOR BLACK PIN 1 WIRE COLOR BROWN PIN 3 WIRE COLOR BLUE A .402 [10.2] .689 [19.3] 1.299 [34.8] CABLE x .177 [4.5]

(16)

9-21

SWITCHES

ORDERING DATA

NOTES:

1) Cordsets for quick connects must be ordered separately. 2) *AC Reed (9-2) available with quick connect only.

Product Type, Cable Type, Sensing Circuitry, Cable Length

2-1

679

0

SENSING CIRCUITRY 2-1 PNP or NPN DC Reed 9-2 AC Reed CABLE TYPE 0 - Cabled 2 - Quick Connect PRODUCT TYPE Reed PART NO. 63549-02 63549-05 LENGTH 2 meter 5 meter CORDSETS WITH QUICK CONNECT CABLE LENGTH

05 - 5 meter length cable Leave blank when quick connect is specified

05

-67902-1-05 67922-1 67929-2 AVAILABLE MODELS

BENEFITS

■ Model 6790 Switches are available for use on many actuators.

■ Saving space and providing mounting versatility, the round

design fits into grooves in the body of the actuator.

■ LED indicator provides convenient method for position setting and troubleshooting.

■ Available in 8 mm threaded Quick Connect model for easy installation and maintenance.

■ 28 AWG Polyurethane (PUR) jacketed cable

■ Multiple switches may be mounted to control or initiate any

sequence or function.

■ Available in 4.5 - 30 VDC or 65 - 120 VAC models for simple interfacing to sequencers and programmable controllers.

■ Can be used to directly drive some types of relays or valve solenoids within the switch specifications stated.

4.5 - 30 VDC 50 mA Max. .12 Ohm Max SPECIFICATIONS OPERATING PRINCIPLE ACTUATED BY INPUT VOLTAGE OUTPUT TYPE CURRENT RATING ENVIRONMENTAL OPERATING TEMP. IMPEDANCE 67902 & 67922 Magnetic Reed Piston Magnet Contact Closure IP67 -20° to 85°C 67929 65 - 120 VAC 25 mA Max. 1.5 k Ohm

(17)

SWITCHES

BENEFITS:

MODEL 6790 SWITCHES

MODEL NO. 63549-02 63549-05 LETTER DIM. L 78.74 [2 m] 196.85 [5 m] PIN 2/4 WIRE COLOR BLACK BLACK CABLE PIN 3 WIRE COLOR BLUE L 1.299 [34.8] Ø .402 [10.2] .689 [19.3] BLACK CONNECTOR PIN 1 WIRE COLOR BROWN

MODEL NO. 67904-1 & 67924-1 - PNP (SOURCE) INPUT: 4.5-30 VDC

LOAD CURRENT:50 mA. MAX.

SWITCH HOUSING COLOR: BLACK

(Bi-polar LED emits a red light.)

MODEL NO. 67903-1 & 67923-1 - NPN (SINK) INPUT: 4.5 - 30 VDC

LOAD CURRENT: 50 mA. MAX. SWITCH HOUSING COLOR: BLACK

(Bi-polar LED emits a yellow light)

SOLID STATE WIRING SCHEMATICS

MODEL NO. 67902-1 & 67922-1 - NPN (SINK) OR PNP (SOURCE) INPUT: 4.5 - 30 VDC

LOAD CURRENT: 50 mA. MAX. IMPEDANCE: .12 Ohm MAX. SWITCH HOUSING COLOR: BLACK

(LED emits a red light)

REED WIRING SCHEMATICS

CABLED MODEL 67902 - NPN (SINK) CABLED MODEL 67902 - PNP (SOURCE) QUICK CONNECT MODEL 67923

QUICK CONNECT MODEL 67922 - NPN (SINK) QUICK CONNECT MODEL 67922 - PNP (SOURCE) CABLED MODEL 67903

QUICK CONNECT MODEL 67924 BLACK BROWN BLUE LOAD SWITCH DC DC PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC CABLED MODEL 67904 BLACK BROWN BLUE LOAD SWITCH DC DC PIN 2/4 PIN 1 PIN 3 LOAD SWITCH DC DC BROWN 1 2/4 BLACK 3 BLUE BROWN BLACK BLUE LOAD DC DC PIN 2/4 PIN 3 PIN 1 LOAD DC DC BROWN 1 2/4 BLACK 3 BLUE LOAD DC DC BROWN BLACK BLUE PIN 2/4 PIN 1 PIN 3 LOAD DC DC BROWN 1 2/4 BLACK 3 BLUE BROWN 1 2/4 BLACK 3 BLUE SWITCH SWITCH SWITCH SWITCH MODEL NO. 67929-2 INPUT: 65 - 120 VDC

LOAD CURRENT: 25 mA. MAX. IMPEDANCE: 1.5 k Ohm

SWITCH HOUSING COLOR: BLACK

(LED emits a red light)

AC REED WIRING SCHEMATICS

QUICK CONNECT MODEL 67929-2 PIN 2/4 PIN 3 PIN 1 LOAD BROWN 1 2/4 BLACK 3 BLUE SWITCH LINE 3-48 x 3/16 [4.8] SET SCREW .050 [1.3] HEX*

.180 [4.6] .102 [2.6] .134 [3.4] .236 [6] 1.736 [44] Ø .315 [8] .260 [6.6] M8 x 1 THREAD LED .078 [2] .136 [3.5] .777 [19.7] 1.100 [27.9] .156 [3.9] .108 [2.7] .095 [2.4]

MALE QUICK CONNECT DETAIL

*MAX. SCREW TORQUE 1.0 in-lb [.110 Nm] METRIC INFORMATION SHOWN IN [ ]

(18)

9-23

SWITCHES

ORDERING DATA:

MODEL JC1 SWITCHES

Product, Series, Design No., Options, Type, Circuit Type, and Cable Options. TYPE D - DC Single Position T - DC 2 Position Teachable DESIGN NO.

S

C

1

P

OPTIONS S - Solid State

2

PRODUCT J - Switches

J

SERIES C - C-Slot Mounting

T

CIRCUIT TYPE N - NPN P - PNP (DC 2 position teachable available in PNP only)

-CABLE OPTIONS K - Quick Connect

2 - 2 Meter Cable (Available on JC1STP only) 5 - 5 Meter Cable (Not available on JC1STP)

NEW PHD SWITCH no direct substitute*† no direct substitute*† JC1SDN-5 JC1SDN-5 JC1SDP-5 JC1SDP-5 no direct substitute*† JC1SDN-K JC1SDP-K still available CURRENT 6790 SWITCH 67902-1-02 67902-1-05 67903-1-02 67903-1-05 67904-1-02 67904-1-05 67922-1 67923-1 67924-1 67929-2 DESCRIPTION

PNP or NPN DC Reed, 2 meter Cable PNP or NPN DC Reed, 5 meter Cable NPN DC Solid State, 2 meter Cable NPN DC Solid State, 5 meter Cable PNP DC Solid State, 2 meter Cable PNP DC Solid State, 5 meter Cable PNP or NPN DC Reed, Quick Connect

NPN DC Solid State, Quick Connect PNP DC Solid State, Quick Connect

AC Reed, Quick Connect

SWITCH CROSS REFERENCE CHART

*Consider Solid State to replace DC Reed.

† CAUTION: If used for 67902-1-xx or 67922-1 Switch replacement, power connection (brown and blue leads) may need to be reversed to match connection diagram on page 6.

(19)

SWITCHES

Common Benefits for Both Styles

• Fits into 4mm switch slot

• IP67 Environmental Protection

• LED indicator for convenient setting and troubleshooting

• Integrated protection circuitry including short circuit protection

• Polyurethane (PUR) jacketed cable

• Available in solid state sensing only for longest life and most reliable operation

• Improved switch hysteresis and magnetic response uniformity

• Quick connect available

Both switches have a unique housing

design which allows “drop-in”

installation from the side, does not have

to be inserted from the end of the slot

Recommended PHD Products Use

• GRIPPERS: Series GRK, EGRK, GRB, GRF (JC1SD only), & GRS (JC1SD only)

• ROTARY ACTUATORS: Series RI, RCC

• SLIDES: Series SFP, SFM, SHP, STP, SIP, SMx, & SxL, SxH

• CYLINDERS: Series CRS & CTS

Teachable Series JC1 Switches

• Teachable switches feature two programmable outputs. Switch is simply

mounted in a convenient location, such as middle of travel, then actuator is placed in first desired position and first output is set. Then actuator is placed in second desired position and second output is set. Outputs retain settings even after power interruption.

• Since each switch provides two outputs, an actuator

with only two slots may have up to four outputs by using two switches.

• Offered in 12 – 30 VDC current sourcing (PNP) version only

• Available in cabled (2 meter) or quick connect versions.

Standard Series JC1 Switches

• Available in cabled (5 meter) or quick connect versions

• Available in solid state sensing only for longest life and most

reliable operation

• Offered in 10 – 30 VDC current sinking (NPN) and current

sourcing (PNP) versions for simple interfacing to system controllers.

• Replaces PHD Series 6790 Switches (excluding AC applications)

See chart on page 2.

TEACHABLE

STANDARD

Use two position teachable switches for:

• Reduced cabling

• Simplified setup,

• More sensing positions

Standard JC1

Switches

can be used on many

PHD Standard

Actuators

Tilt switch

to drop in, then

rotate logo up.

(20)

9-25

www.phdinc.com/products/switchesandsensors

•

(800) 624-8511

SWITCHES

PHDV1

This switch provides the ability to identify two separately programmable positions with a single switch. Programmable capability means no “fine-tuning.” With switch properly aligned, just place actuator in desired positions and program. Solid-state sensing technology provides a highly reliable switch. Elliptical housing allows for easy “drop-in” installation from the side, and does not have to be inserted from the end of the slot. LED indicators on module for positioning and programming. Available with 2 meter cable or 8 mm threaded Quick Connect.

JC1STP-2

DIMENSIONS:

SERIES JC1ST TEACHABLE SWITCHES

ENGINEERING DATA:

SERIES JC1ST TEACHABLE SWITCHES

SERIES JC1ST TWO POSITION

TEACHABLE MAGNETIC SWITCH

JC1STP-2

JC1STP-K (Quick Connect)

81284-1-001 CORDSET

SPECIFICATIONS JC1STP-x

OPERATING PRINCIPLE Programmable Magnetic

Field Characterization

INPUT VOLTAGE 12 - 30 VDC

NUMBER & TYPE OF OUTPUTS Two PNP (source), separately adjustable

OUTPUT CURRENT 100 mA max.,

Short Circuit Protection

VOLTAGE DROP 2.2 VDC

SWITCH BURDEN 15 mA

ENVIRONMENTAL IP67

OPERATING TEMP. -20C to 75C

TYP. DETECTION AREA 0-50 mm

PART NO.

JC1STP-2 JC1STP-K

SWITCH DESCRIPTION

PNP (Source), Solid State, 12-30 VDC, 2 meter cable PNP (Source), Solid State, 12-30 VDC, Quick Connect

MATCHING CORDSET

PART NO.

81284-1-001

DESCRIPTION

M8, 4 pin, Straight Female Connector, 5 meter cable

M8 x 1 .394 [10] 1.200 [30.5] M8 x 1 PIN 1 WIRE COLOR BROWN PIN 2 WIRE COLOR WHITE PIN 3 WIRE COLOR BLUE PIN 4 WIRE COLOR BLACK .150 [3.8] .113 [2.87] .768 [19.5] 3.750 [95.25] 1.181 [30] .177 [4.5] _.256 [6.5] .020 [0.5]

FOR SWITCH DIMENSIONS SEE ABOVE

19.125

FOR TEACH MODULE DIMENSIONS SEE ABOVE

1.349 [34.3] DETECTION AREA

JC1STP-2

JC1STP-K (Quick Connect) 81284-1-001 CORDSET

SPECIFICATIONS JC1STP-x

OPERATING PRINCIPLE Programmable Magnetic

Field Characterization

INPUT VOLTAGE 12 - 30 VDC

NUMBER & TYPE OF OUTPUTS Two PNP (source), separately adjustable

OUTPUT CURRENT 100 mA max.,

Short Circuit Protection

VOLTAGE DROP 2.2 VDC

SWITCH BURDEN 15 mA

ENVIRONMENTAL IP67

OPERATING TEMP. -20C to 75C

TYP. DETECTION AREA 0-50 mm

PART NO.

JC1STP-2 JC1STP-K

SWITCH DESCRIPTION

PNP (Source), Solid State, 12-30 VDC, 2 meter cable PNP (Source), Solid State, 12-30 VDC, Quick Connect

MATCHING CORDSET

PART NO.

81284-1-001

DESCRIPTION

M8, 4 pin, Straight Female Connector, 5 meter cable

M8 x 1 .394 [10] 1.200 [30.5] M8 x 1 PIN 1 WIRE COLOR BROWN PIN 2 WIRE COLOR WHITE PIN 3 WIRE COLOR BLUE PIN 4 WIRE COLOR BLACK .150 [3.8] .113 [2.87] .768 [19.5] 3.750 [95.25] 1.181 [30] .177 [4.5] _.256 [6.5] .020 [0.5]

FOR SWITCH DIMENSIONS SEE ABOVE

19.125 [485.78]

FOR TEACH MODULE DIMENSIONS SEE ABOVE

1.349 [34.3] DETECTION AREA

(21)

SWITCHES

PROGRAMMING GUIDE:

SERIES JC1 TEACHABLE SWITCHES

1

2

3

1 2 3 Install Tilt to drop in Teach Rotate logo up First, move to Position 1 Test

Verify proper operation at each position

Move to Position 2

(22)

9-27

www.phdinc.com/products/switchesandsensors

•

(800) 624-8511

SWITCHES

PHDV1

This switch provides the ability to identify a single position. Solid-state sensing technology provides a highly reliable switch. Elliptical housing allows for easy “drop-in” installation. Includes LED indicator for convenient means of positioning. Available with PNP or NPN output. Available with cable or 8 mm threaded Quick Connect.

SERIES JC1SD MAGNETIC SWITCH

DIMENSIONS:

SERIES JC1SD STANDARD SWITCHES

ENGINEERING DATA:

SERIES JC1SD STANDARD SWITCHES

63549-xx CORDSET

HS1 (SIZE 35 & 46) (SIZE 58 & 75-SWITCH HOUSING DOES NOT PROTRUDE BELOW SURFACE OF GRIPPER) HS3 SWITCH ON OPEN 7.0 [18.0] PART NO. JC1SDP-5 JC1SDP-K JC1SDN-5 JC1SDN-K SWITCH DESCRIPTION

PNP (Source), Solid State, 10-30 VDC, 5 meter cable PNP (Source), Solid State, 10-30 VDC, Quick Connect NPN (Sink), Solid State, 10-30 VDC, 5 meter cable NPN (Sink), Solid State, 10-30 VDC, Quick Connect

MATCHING CORDSET

PART NO.

63549-02 63549-05

DESCRIPTION

M8, 3 pin, Straight Female Connector, 2 meter cable M8, 3 pin, Straight Female Connector, 5 meter cable

mm 5.6 3.2 LETTER DIM HS1 HS3 in .220 .125 GRK-x-35 X 6.5 or 12 MODEL NUMBER GRK-x-46 X 8 or 16 GRK-x-58 X 10.5 or 20 GRK-x-75 X 12.5 or 26 mm .4 10.9 in .015 .430 mm 16.3 in .640 mm 21.6 in .850 JC1SDx-5 JC1SDx-K (Quick Connect) M8 x 1 MIN 196.85 [5 m] .984 [25] .140 [3.6] 1.349 [34.3] 9.250 [234.0] SPECIFICATIONS JC1SDP-x JC1SDN-x

OPERATING PRINCIPLE Solid State Detection of Moving Magnet INPUT VOLTAGE 10 - 30 VDC

OUTPUT TYPE PNP (source) NPN (sink) OUTPUT CURRENT 100 mA max., Short Circuit Protection VOLTAGE DROP 2.5 VDC SWITCH BURDEN 8 mA ENVIRONMENTAL IP67 OPERATING TEMP. -25 C to 75 C .111 [2.8] .984 [25] .140 [3.6] .111 [2.8] MIN PIN 2/4 WIRE COLOR BLACK PIN 1 WIRE COLOR BROWN PIN 3 WIRE COLOR BLUE .402 [10.2] .689 [19.3] 1.299 [34.8]

STANDARD

63549-xx CORDSET HS1 (SIZE 35 & 46) (SIZE 58 & 75-SWITCH HOUSING DOES NOT PROTRUDE BELOW SURFACE OF GRIPPER) HS3 SWITCH ON OPEN 7.0 [18.0] PART NO. JC1SDP-5 JC1SDP-K JC1SDN-5 JC1SDN-K SWITCH DESCRIPTION

PNP (Source), Solid State, 10-30 VDC, 5 meter cable PNP (Source), Solid State, 10-30 VDC, Quick Connect NPN (Sink), Solid State, 10-30 VDC, 5 meter cable NPN (Sink), Solid State, 10-30 VDC, Quick Connect

MATCHING CORDSET

PART NO.

63549-02 63549-05

DESCRIPTION

M8, 3 pin, Straight Female Connector, 2 meter cable M8, 3 pin, Straight Female Connector, 5 meter cable

mm 5.6 3.2 LETTER DIM HS1 HS3 in .220 .125 GRK-x-35 X 6.5 or 12 MODEL NUMBER GRK-x-46 X 8 or 16 GRK-x-58 X 10.5 or 20 GRK-x-75 X 12.5 or 26 mm .4 10.9 in .015 .430 mm 16.3 in .640 mm 21.6 in .850 JC1SDx-5 JC1SDx-K (Quick Connect) M8 x 1 MIN 196.85 [5 m] .984 [25] .140 [3.6] 1.349 [34.3] 9.250 [234.0] SPECIFICATIONS JC1SDP-x JC1SDN-x

OPERATING PRINCIPLE Solid State Detection of Moving Magnet INPUT VOLTAGE 10 - 30 VDC

OUTPUT TYPE PNP (source) NPN (sink) OUTPUT CURRENT 100 mA max., Short Circuit Protection VOLTAGE DROP 2.5 VDC SWITCH BURDEN 8 mA ENVIRONMENTAL IP67 OPERATING TEMP. -25 C to 75 C .111 [2.8] .984 [25] .140 [3.6] .111 [2.8] MIN PIN 2/4 WIRE COLOR BLACK PIN 1 WIRE COLOR BROWN PIN 3 WIRE COLOR BLUE .402 [10.2] .689 [19.3] 1.299 JC1SDP-K & JC1SDN-K 63549-XX JC1SDP-5 & JC1SDN-5

JC1SDN-x

JC1SDP-x

(23)

SWITCHES

APPLICATIONS:

SERIES JC1 STANDARD SWITCHES

Series JC1SD Magnetic Switches

replace the old style Series 6790 DC

Switches and can be used on all standard

PHD Components listed.

• GRIPPERS: Series GRK, EGRK, GRB, GRF (JC1SD only), & GRS (JC1SD only)

• ROTARY ACTUATORS: Series RI, RCC

• SLIDES: Series SFP, SFM, SHP, STP, SIP, SMx, & SxL, SxH

• CYLINDERS: Series CRS & CTS

Series SIP

Series GRF (JC1SD only)

Series SxH

Series CTS

Series SFM, SFP

Series SHP

Series GRB

Series STP

Series RI

Series RCC

Series CR

Old Series 6790

Switch

Series GRS (JC1SD only)

Series GRK

(24)

9-29

SWITCHES

DC INDUCTIVE PROXIMITY SWITCHES

4 mm ROUND

PART NO.

18430-001-02 18430-002-02

DESCRIPTION

NPN (Sink) 10-30 VDC, 2 meter cable PNP (Source) 10-30 VDC, 2 meter cable

2 meter cordset for all Series 5580 Switches with Quick Connect. Other cable lengths available - contact PHD.

6 mm SQUARE

PART NO.

18431-001-02 18431-002-02

DESCRIPTION

8 mm THREADED

PART NO.

51422-005-02 51422-006-02

DESCRIPTION

BENEFITS

■ High reliability provided by solid state inductive sensing technology.

■ Ease of mounting with PHD’s Proximity Switch Bracket Kit and

Target Kits for grippers. These kits include all hardware for mounting the switch and the target that is used to actuate the switch. (See Slide and Gripper sections for details.)

■ Suitable for plant environments where dirt and contamination

create difficulties for electromechanical and other types of switches.

■ LED indicator circuits are standard on 4 mm round, 6 mm

square, and 8 mm threaded and provide a convenient means of positioning and troubleshooting.

18430-001-02 18430-002-02

SPECIFICATIONS 18431-001-02 18431-002-02 51422-005-02 51422-006-02

INPUT VOLTAGE 10 to 30 VDC 10 to 30 VDC 10 to 30 VDC 10 to 30 VDC OUTPUT TYPE NPN (Sink) PNP (Source) NPN (Sink) PNP (Source) SENSING RANGE 0.8 mm Max. 0.8 mm Max. 1.5 mm Max. 1.5 mm Max. OUTPUT CURRENT RATING 100 mA. Max. 100 mA. Max. 200 mA. Max. 200 mA. Max. SWITCH BURDEN 10 mA. Max. 10 mA. Max. 10 mA. Max. 10 mA. Max. VOLTAGE DROP 2.5 VDC Max. 2.5 VDC Max. 1.0 VDC Max. 1.0 VDC Max. CIRCUIT PROTECTION Yes Yes No No

REVERSE VOLTAGE Yes

OUTPUT STATE Normally Open

ENVIRONMENTAL IP67 15561-001 10 to 30 VDC NPN (Sink) 1.6 mm Max. 200 mA Max. 8 mA Max. 1.5 V Max. Yes 15561-002 10 to 30 VDC PNP (Source) 1.6 mm Max. 200 mA Max. 8 mA Max. 1.5 V Max. Yes Yes Normally Open IP68 15561-003 20 to 250 VAC Solid State 1.6 mm Max. 130 mA Max. — 11 V Max. No BLACK BROWN BLUE LOAD SWITCH DC DC MODEL 15561-001 18430-001-02 18431-001-02 51422-005-02 BLACK BROWN BLUE LOAD SWITCH DC DC MODEL 15561-002 18430-002-02 18431-002-02 51422-006-02

WIRING SCHEMATICS

BROWN BLUE SWITCH NEUTRAL LINE LOAD AC MODEL 15561-003 DC NPN (Sink) DC PNP (Source)

12 mm THREADED

PART NO. 15561-001 15561-002 15561-003 DESCRIPTION

NPN (Sink) 10-30 VDC, 3 meter cable PNP (Source) 10-30 VDC, 3 meter cable 20-250 VAC, 3 meter cable

(25)

SWITCHES

SERIES 62002 8 mm ROUND

THREADED PROXIMITY SWITCH

SERIES 62002 PROXIMITY WIRING SCHEMATICS

BROWN BLUE LOAD SWITCH DC DC

MODEL NO. 62002-1-02 - NPN (SINK) OR PNP (SOURCE) INPUT - 4.5-24 VDC

POWER CAPACITY - 1.0 WATT MAX. LOAD CURRENT - 40 mA MAX.

CABLED MODEL 62002 - PNP (SOURCE) CABLED MODEL 62002 - NPN (SINK)

BROWN BLUE LOAD SWITCH DC DC SPECIFICATIONS 62002-1-02

OUTPUT VOLTAGE Contact Closure

POWER CAPACITY 1.0 Watt Max.

CURRENT RATING 40 mA Max.

CONTACT RESISTANCE .200 Ohm Max.

ENVIRONMENTAL IP67

OPERATING TEMP. 0 to 70C

PART NO.

62002-1-02

DESCRIPTION

8 mm Threaded Reed Switch with 2 meter cable

1.075 [27.31] 2x .160 [4.1] .085 [2.16] 2x .265 [6.73] (M8 x 1.0-6g THREAD) M8 HEX NUT (2 SUPPLIED)

LED IN THIS APPROX LOCATION .220 [5.59] .984 .080 [25 2.03] .59 [14.99] .51 [12.95] .795 [20.19] .990 [25.15] 74.74 .79 [1900 20] .276 .040 [7 1]

(26)

9-31

www.phdinc.com/products/switchesandsensors

•

(800) 624-8511

SWITCHES

PHDV1

BENEFITS

■ Provides independent and fully adjustable multiple position

sensing on Series 8400 Angular Grippers, Series 190 & 191 Parallel and 190 Angular Grippers, Series 5300 Oval Grippers, and all Rotary Actuators and Multi-Motion Actuators.

■ Independent adjustment of two set point positions from

two sensors allows one set point module to interface with two actuators. Or, can be used with a single unit providing 4 adjustable set points throughout jaw travel or rotation.

■ Solid state electronics with Hall Effect sensing technology for

an infinite number of trouble-free cycles.

■ Wide signal range capability permits interfacing with most programmable controllers and other logic systems.

■ LED indicators for visual confirmation of each output state. ■ Set Point Module is available for either current sinking or

current sourcing models with 4.5 to 24 VDC output capability.

BENEFITS:

HALL SENSOR WITH SET POINT MODULE

SPECIFICATIONS 9800-01-0300 9800-01-0400

OPERATING PRINCIPLE Linear Hall Effect INPUT VOLTAGE 18 to 24 VDC

OUTPUT TYPE NPN (Sink) PNP (Source) Open Collector Collector Output OUTPUT VOLTAGE 4.5 to 24 VDC

OUTPUT CURRENT RATING 200 mA. Max. OUTPUT VOLTAGE DROP .4 VDC Max. .5 VDC Max.

at Rated Current at 50 mA. SWITCH BURDEN 150 mA. Max. OPERATING TEMP. 0° to 60°C (32° to 140°F) HUMIDITY 5 to 95%

(NON CONDENSING)

ORDERING DATA:

DUAL INPUT SET POINT MODULE

PART NO. 9800-01-0300 9800-01-0400 DESCRIPTION NPN (Sink) 4.5-24 VDC PNP (Source) 4.5-24 VDC

2 meter cordset for all Series 5580 Switches with Quick

HALL SENSOR KIT

FOR SERIES 190, 191, & 8400 MINIATURE GRIPPERS

DESCRIPTION

Size 6 Models 19x60, 19x61, & 19x62 Parallel Size 7 Models 19x70, 19x71, & 19x72 Parallel Size 8 Models 19x80, 19x81, & 19x82 Parallel Size 9 Models 19x90, 19x91, & 19x92 Parallel Size 0 Model 19x02 Angular

Size 1 Model 19x12 Angular Size 2 Model 19x22 Angular Size 3 Model 19x32 Angular 8400 Gripper Angular 8410 Gripper Angular 8420 Gripper Angular 8430 Gripper Angular PART NO. IMPERIAL METRIC 18674-04 18057-04 18675-04 18058-04 18676-04 18059-04 18677-04 18060-04 — 18057-04 — 18058-04 — 18059-04 — 18060-04 10906-12 — 10907-12 — 10908-12 — 18686-04 —

HALL EFFECT SENSOR/TRANSDUCER

The Sensor/Transducer must be ordered as part of the Gripper or Actuator assembly. The Sensor/Transducer will be mounted to the unit with a transition plate. See individual unit Ordering Data for availability and ordering information. Individual replacement sensors are avai lable as shown.

APPLICATIONS

GRIPPERS

■ Provides two adjustable sensing positions throughout jaw travel for two grippers (through a single set point module).

■ Allows the assurance of part presence by ensuring the jaws

have closed or opened to the proper size.

■ Permits “go, no go” type gauging to occur as parts are gripped.

ROTARY ACTUATORS &

MULTI-MOTION ACTUATORS

■ Provides two adjustable sensing positions throughout

the 180° rotation of two rotary actuators or multi-motion actuators.

■ Can be used to signal ends of rotation of two units.

INDIVIDUAL REPLACEMENT SENSORS

PART NO.

10688-2-12 10832-1-1-12

DESCRIPTION

Sensor for all 8600, 7900, and 5300 Angular Grippers, and 8600 Parallel Grippers

Sensor for all Rotary Actuators and Multi-Motion Actuators

(27)

SWITCHES

10688-2-012 BASIC HALL SENSOR

SERIES 7900, 8600 3-JAW, & 5300

ANGULAR GRIPPERS

GRIPPER

MODEL NO. 792x, 862x, & 1532x 793x, 863x, & 1533x 794x, 864x, & 1534x 795x, 865x, & 1535x A .854 [21.5] .917 [23.5] 1.112 [28.5] 1.586 [40.5] B 1.257 [32.0] 1.540 [39.0] 1.945 [49.5] 2.500 [63.5] LETTER DIMENSION C 0.00 [0.0] .122 [3.0] .247 [6.0] .441 [11.0] 30°B A C 2X THRU HOLE FOR #6 SCREWS .625 [28.5] .125 [28.5] .375 [9.5] .500 [13.0] 1.125 [28.5] 12 FT [4 m] OF SHIELDED CABLE IS INCLUDED WITH SENSOR .237 [6.0] .246 [6.0]

SERIES 190 & 191

PARALLEL GRIPPERS

GRIPPER MODEL NO. 19x6x 19x7x 19x8x 19x9x A 1.437 [36.5] 1.555 [39.5] 1.810 [46.0] 2.283 [58.0] B .650 [16.5] .550 [14.0] .295 [7.5] .295 [7.5] LETTER DIMENSION C .787 [20.0] .985 [25.0] 1.496 [38.0] 1.968 [50.0] C .375 [9.5] .187 [5.0] A B A .375 [5.0] .187_[9.5] C B

GRIPPER MODEL NO. IMPERIAL METRIC 840x 19002 841x 19012 842x 19022 843x 19032 A 1.354 [36.5] 1.454 [39.5] 1.704 [46.0] 2.237 [58.0] B .654 [16.5] .554 [14.0] .304 [7.6] .300 [7.6] LETTER DIMENSION C .700 [20.0] .900 [25.0] 1.400 [38.0] 1.910 [50.0]

SERIES 8400 &

190 ANGULAR GRIPPERS

DUAL INPUT SET POINT LOGIC EXAMPLE

Both gripper jaws are wide open. No set

points are made. The jaws of gripper A are closed to grip apart and are wide open on gripper B. One set point is made for gripper A.

Both gripper jaws are closed to grip a part. Two set points are made, one for gripper A and one for gripper B.

Gripper A jaws are closed all the way (no parts) and Gripper B jaws are closed to grip a part. Two set points for gripper A and one set point for gripper B are made.

Both gripper jaws are closed all the way (no parts). Two set points are made for both grippers A and B.

In the event one gripper is wide open (A) and the other is closed all the way (B), only the two set points for the closed gripper would be made.

CASE 1 CASE 2 CASE 3 CASE 4

CASE 5 CASE 6 A B A B A B A B A B A B CASE 1 2 3 4 5 6

SET POINT OUTPUT A1 0 1 1 1 1 0 A2 0 0 0 1 1 0 B1 0 0 1 1 1 1 B2 0 0 0 0 1 1

(28)

9-33

SWITCHES

DIMENSIONS:

HALL SENSOR & SET POINT MODULE

SERIES 1000-8000 ROTARY ACTUATORS &

MULTI-MOTION ACTUATORS

ACTUATOR SERIES 1000 & 2000 3000 & 4000 5000 & 6000 7000 & 8000 A 2.980 [75.7] 4.230 [107.4] 4.980 [126.5] 7.980 [202.7] B 2.000 [50.8] 3.000 [76.2] 4.000 [101.6] 5.000 [127.0] LETTER DIM.

3 m SHIELDED CABLE FROM THIS SIDE ON SERIES 1000 & 2000 UNITS ONLY

B

.500 [12.7]

3 m SHIELDED CABLE FROM THIS SIDE ON SERIES 3000-8000 UNITS LIMITATIONS: SENSOR MAY BE USED ON UNITS WITH MAXIMUM ROTATION UP TO AND INCLUDING 180° A MODEL 9800-01-0300 NPN (SINK) MODEL 9800-01-0400 PNP (SOURCE) BLACK COMMON 18-24 VDC POWER SUPPLY INPUT TO PROGRAMMABLE CONTROLLER BLACK RED RED WHITE WHITE OUTPUTS A1 & A2 OUTPUTS B1 & B2 1 2 3 4 5 6 7 8 9 10 BLACK COMMON PRIMARY SUPPLY INPUT TO PROGRAMMABLE CONTROLLER RED WHITE WHITE OUTPUTS A1 & A2 OUTPUTS B1 & B2 1 2 3 4 5 6 7 8 9 10 A B A B OPTIONAL -REQUIRED ONLY IF DESIRED SOURCE OUTPUT VOLTAGE IS OTHER THAN THAT OF PRIMARY SUPPLY

IF OUTPUT VOLTAGE REQUIRED IS THE SAME AS THE PRIMARY SUPPLY ATTACH A JUMPER BETWEEN TERMINALS 1 & 10 18-24 VDC POWER SUPPLY BLACK RED

ENGINEERING DATA:

WIRING SCHEMATICS

Diagrams are typical for many programmable controller interface applications. Modules may also be used to signal TTL. CMOS, relays or solenoids within rated electrical specifications.

NOTE: For single applications where four outputs are desired, install a jumper between terminals 4 & 5.

SET POINT MODULE #9800-01-0x00

+ 18 - 24 VDC -0 VDC TRNS POS TRNS SIG A TRNS SIG B OUTPUT A1 OUTPUT A2 OUTPUT B1 OUTPUT B2 + 4,5-24 VDC SOURCE ONLY 3.470 [88.0] .270 [7.0] .905 [23.0] 2.190 [55.6] 3.720 [94.5] .490 [12.5] 2.220 [56.5]

4X SET POINT MADE

LED INDICATORS 4X THRU HOLE FOR#8 [M4] SCREW

.140 [3.5] 4.000 [101.5] .750 [22.0] .220 [5.5] 4X SET POINT ADJUSTMENT .295 [7.5] 3.410 [86.5]

(29)

SWITCHES

BENEFITS & DIMENSIONS:

BRACKETS FOR NFPA CYLINDERS

BENEFITS

■ Allows PHD Series 1750 Reed and Hall Effect

Switches to be mounted to 1-1/2" [38.1 mm] to 8" [203.2 mm] bore NFPA Cylinders.

■ The brackets’ flexible design means only two

brackets are required to cover 8 sizes of NFPA Cylinders.

■ The extruded aluminum bracket attaches securely to a single tierod and does not allow the switch to pull away from the cylinder barrel.

■ The low profile of the switch and bracket saves space and provides additional mounting flexibility.

■ Optional strain relief clamp may be used to protect

the switch cable from damage at the switch due to flexing. PART NO. 17509-3-06 17502-2-06 17529-3 17522-2 17503-2-06 17504-2-06 17523-2 17524-2 DESCRIPTION AC Reed DC Reed

AC Reed, Quick Connect DC Reed, Quick Connect Hall Effect NPN (Sink) Hall Effect PNP (Source)

Hall Effect NPN (Sink), Quick Connect Hall Effect PNP (Source), Quick Connect

NFPA CYLINDER BORE 1-1/2, 2, 2-1/2, 3-1/4, & 4 5, 6, & 8 SWITCH BRACKET NUMBER 17000-51-0 17000-57-0 STRAIN RELIEF BRACKET 18412 18412 PHD SWITCH MODELS

See pages 9-16 to 9-18 for switch information. NFPA cylinder must have the proper magnetic piston for the PHD Switches to function correctly.

17000-xx-0 NFPA SWITCH BRACKET

18412 CABLE RESTRAINT KIT

1.000 [25.4] LED INDICATOR A REF C SQ REF B REF OPTIONAL CABLE RESTRAINT BRACKET D REF DIA BORE SIZE 1-1/2 2 2-1/2 3-1/4 4 5 6 8 A 1.375 1.500 1.750 2.000 2.375 3.000 3.375 4.000 B 1.500 1.750 1.875 2.187 2.500 3.125 3.375 4.125 LETTER DIMENSION C 2.000 2.500 3.000 3.750 4.500 5.500 6.500 8.500 D .250 .312 .312 .375 .375 .500 .500 .625 PART NO. 17502-2-06 17509-3-06 17503-2-06 17504-2-06 DESCRIPTION DC Reed NPN/PNP (White) AC Reed (Green)

Solid State NPN (Yellow) Solid State PNP (Red)
