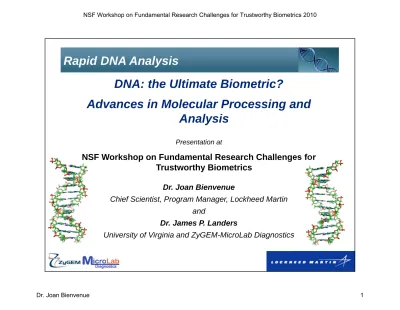

Rapid DNA Analysis

DNA: the Ultimate Biometric?

Advances in Molecular Processing and

Analysis

Presentation at

NSF Workshop on Fundamental Research Challenges for

Trustworthy Biometrics

Dr. Joan Bienvenue

Chief Scientist, Program Manager, Lockheed Martin

and

(2)

OUTLINE

■

Future Directions for Biometrics

▪ DNA Microfluidics

• Where are we at? Where do we need to be?

■

Beyond STRs: Next Generation

Technological Advances

▪ SNPs

▪ NextGen sequencing

■

New Technology, New Problems?

(3)

Biometric Modalities

(4)

Challenges with DNA As A Biometric

• Different applications,

different specs

• Portability

• Training of end users

• LCN

• Casework

• Evidence quality

• Interpretation of

results

• Speed of analysis

• Court acceptance

(5)

Our Motivation

9 hrs, 50 min (average) 8 hrs, 15 min (rush) Detection PCR Amplification Dilution gDNA Quantification Cell Lysis/ DNA Extraction

Qiagen EZ1 ABI 7000

RT-PCR Tecan Genesis ABI 9700 Multimek ABI 3130 1hr 45 min 2 hr 20 min 15 min 3 hr 30 min 2 hr

Current Approach

LM-ZyGEM/MicroLab Approach

INTEGRATED DEVICE

Step 1: Sample Collection Step 2: Liquid Extraction Step 3: Polymerase Chain

Reaction Step 4: Electrophoresis

Microfluidics

Approach

•Inexpensive

•Portable

•Robust

Alpha Device

(6)

Integrated Instrument:



Sample in-answer out



Turn-key operation



Miniaturizable footprint



Portable



Automated



Unskilled personnel

RapI.D. STR Chip – Micro-Analysis

Microvolume Analysis:



Ultrafast processing



Open channel architecture



Reduced reagent needs



Closed analysis environment



Small analytical footprint

(7)

Anticipated LM-ZM Instrument

• Ruggedized instrument at

TRL 6+

• Modular Component design

to support maintainability

• Easily portable

• Removable PC

• 4, 8, 12, 16 channel

cartridges containing

reagents

• “Plug and Play” concept

• Portable (< 40 lbs)

(8)

Micro-Total Analysis STR Profiling in <45 min?

STR Profile

DNA Purification DNA Amplification <4 min Injection Separation/D etection 8 min <2 min <20 min

SPE Inlet

Extraction Amplification Separation Injection

+5 min for fluidic pumping, etc.



Multiplex amplification



High resolution separation

(9)

Rapid Microfluidic DNA Analysis – A Reality

• Multiple competitors,

research born out of high

quality university effort

• Close ties to biometric and

forensic analysis

communities

• Small companies working

together with universities,

larger corporations to bring

the best in technology and

innovation to these analyses

• Rapid, portable analysis is

possible

(10)

Expedite the 3 Major Sample Preparation/ Analysis Steps:

•Solid Phase Extraction (SPE)

•Polymerase Chain Reaction (PCR)

•Separation and Detection

Motivation – Expedite and Miniaturize

9 hrs, 50 min (average) 8 hrs, 15 min (rush) Detection PCR Amplification Dilution gDNA Quantification Cell Lysis/ DNA Extraction

Qiagen EZ1 ABI 7000

(11)

Expedite the 3 Major Sample Preparation/Analysis Steps:

•Solid Phase Extraction (SPE)

•Separation and Detection

Motivation – Expedite and Miniaturize

Qiagen EZ1 ABI 7000

(12)

Generation of High Quality, PCR-Ready DNA ….

4 min 8 min 2 min 40 min

SPE Inlet

Extraction Amplification Separation Injection DNA Prep 0 2 4 6 8 10 12 14 16 18 20min



Time reduced from 20 min to <4 min



Volume reduced from several hundred



L



A simple one-step process performed

(13)

Expedite the 3 Major Sample Preparation/Analysis Steps:

•Polymerase Chain Reaction (PCR) •Separation and Detection

Motivation – Expedite and Miniaturize

Qiagen EZ1 ABI 7000

RT-PCR Tecan Genesis

ABI 9700

ABI 3130 Multimek

(14)

Rapid Amplification of STR Loci ….

(15)

Time (min)

Conventional PCR: IdentiFiler®

IdentiFiler® amplification: 1 ng template DNA 25 µL reaction volume 90 70 50

T

emperature

40 80 120 160 200

Total amp. time:

~210 min

11 mininitial denature, 95 ºC 32 cycles

60 sec@ 94ºC; 60 sec@ 59ºC;

60 sec@ 72ºC

(16)

Microchip IR-PCR Amplification: IdentiFiler®

2 mininitial denature, 95 ºC 32 cycles

5 sec@ 94ºC; 10 sec@ 59ºC; 10 sec

@ 72ºC

1 minfinal extension 72 ºC IdentiFiler® amplification: ~1 ng template DNA 0.5 microliter volume 90 70 50

T

emperature

Total amp. time:

~26 min

Time (min)

5 10 15 20 25

Modified conditions from Vallone et. al.FSI: Genetics,2008, 3, 42-45

(17)

Expedite the 3 Major Sample Preparation/Analysis Steps:

•Separation and Detection

Motivation – Expedite and Miniaturize

Qiagen EZ1 ABI 7000

ABI 9700

ABI 3130 Multimek

(18)

Peak Resolution in Short Channels

D3S1358 and THO1 _9.3/10



High resolution separations

in short distances (L

_eff

)

allows for reduced chip

footprint and reduced

separation times



9.3/10 resolved in 7cm L

_eff

(19)

Expedite the 3 Major Sample Preparation Steps:

•Solid Phase Extraction (SPE)

•Polymerase Chain Reaction (PCR) •Separation and Detection

Motivation – Expedite and Miniaturize

Qiagen EZ1 ABI 7000

ABI 9700

ABI 3130 Multimek

(20)

(21)

(22)

Portable DNA Analysis

• Easy, less than 1 hr of

training to use

• Automated allele

calling/expert system

software

• Automated profile

generation

• Automated database

searches

• How does this impact the

quality, reliability, and

acceptability of results?

(23)

OUTLINE

■

Future Directions for Biometrics

▪ DNA Microfluidics

• Where are we at? Where do we need to be?

■

Beyond STRs: Next Generation

Technological Advances

▪ SNPs

▪ NextGen sequencing

(24)

• Useful in cases where a STR profile

doesn’t match an existing profile in

CODIS or an identified suspect

• Provide information useful to the

investigation improving the ability to

identify potential suspects

SNPs for Ancestry & Phenotype Inference

• Will not directly identify a single suspect individual but

will:

• assist in prioritizing suspect processing

• corroborate witness testimony

(25)

Forensic SNPs

■

Individual Identification SNPs (IISNPs)

■

Lineage Informative SNPs (LISNPs)

■

Ancestry Informative SNPs (AISNPs)

■

Phenotype Informative SNPs

(PISNPs)

SNPs that

collectively give a

high probability of an

individual’s ancestry

being from one part

of the world or being

derived from two or

more areas of the

world.

SNPs that

collectively give a

high probability of an

individual’s ancestry

being from one part

of the world or being

derived from two or

more areas of the

(26)

Ancestry Informative ISNPs -

Duffy Null Allele

• Duffy blood group identifies phenotypes associated with two

proteins that appear on the surface of red-blood cells

• Plays an important role in susceptibility to malaria infection

• The Fy(a-b-) phenotype (i.e., not expressing the receptor)

represents an adaptation to living in malaria-endemic regions

• Predominant in African populations esp. those from West Africa.

(27)

Forensic SNPs

■

Individual Identification SNPs (IISNPs)

■

Lineage Informative SNPs (LISNPs)

■

Ancestry Informative SNPs (AISNPs)

■

Phenotype Informative SNPs

(PISNPs)

SNPs that

collectively give a

high probability Of

a phenotypic

marker of a

specific physical

trait.

SNPs that

collectively give a

high probability Of

a phenotypic

marker of a

specific physical

trait.

(28)

G. Tully, Forensic Science International: Genetics 1, 105 (2007

Phenotype Informative SNPs

HERC 2

http://voiland.org/blog/wp-content/uploads/2008/02/blue.jpg

• Five genes (

SLC24A, ASIP,

MC1R, SLC45A2,

OCA2

)

involved in pigment expression

• HERC 2 (part of OCA2) has

SNPs strongly associated with

blue eyes

(29)

• Rapid sequencing

of the entire

genome of an

individual

• Currently cost is

$30-100K

• NIH searching for

the technology for

the $100 genome

(30)

• Technologies are

evolving rapidly for

full genome seq

(FGS)

• None capable of

doing this in a

cost-effective way

• PacBio claims FGS

15 min for $100 by

2015

(31)

OUTLINE

■

Future Directions for Biometrics

▪ DNA Microfluidics

• Where are we at? Where do we need to be?

■

Beyond STRs: Next Generation

Technological Advances

▪ SNPs

▪ NextGen sequencing

(32)

• Taking DNA into the field, how do we maintain the quality

and reliability of results?

-

What will the controls be?

-

How will instrument performance be monitored?

-

Validation of instrument, methods, chemistry?

-

Training and certification of users?

-

Audits, reviews, quality control measures?

• Automated data analysis, what happens when something

goes wrong or the results are uninterpretable/need expert

analysis?

-

Will data be shared with a laboratory for analysis?

(33)

• What weight will the field results carry?

-

Will samples need re-analysis in the laboratory for court

acceptance?

-

Can results be used to arrest, to hold, to convict?

-

State vs Federal vs Global, different standards, different access,

different collection requirements?

• What policy has to change/be adapted to permit samples to

be run in the field, in a booking station, at a checkpoint?

-

Can the data generated be uploaded to databases?

-

Can the data generated be used to search databases?

-

What samples are uploaded to databases?

(34)

• NextGen racial profiling?

-

How and when do we use phenotypic

genetic information?

-

Does ancestral/phenotypic testing violate

civil rights?

• What other information do we get when we

sequence and how do we prevent abuse?

-

Medical conditions?

-

What if genes are found that can be

associated with a pre-disposition to

violence? Murder? Sexual Assault?
