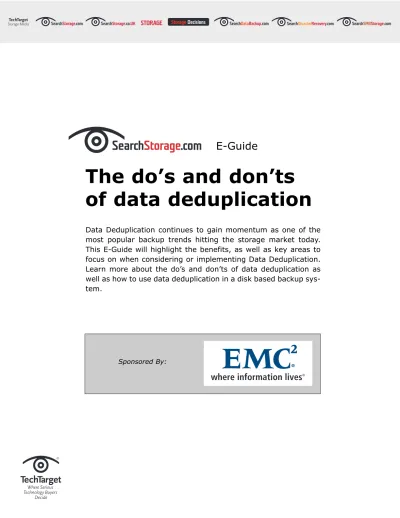

The do s and don ts. E-Guide

(1)

The do’s and don’ts

of data deduplication

Data Deduplication continues to gain momentum as one of the

most popular backup trends hitting the storage market today.

This E-Guide will highlight the benefits, as well as key areas to

focus on when considering or implementing Data Deduplication.

Learn more about the do’s and don’ts of data deduplication as

well as how to use data deduplication in a disk based backup

sys-tem.

Dedupe dos and don'ts: Data deduplication technology best practices

Where and how to use data deduplication technology in disk-based backup

About EMC and your local EMC Solution Provider

The do’s and don’ts of

data deduplication

(3)

Dedupe dos and don'ts: Data deduplication technology best

practices

By: W. Curtis Preston

Data deduplication technology can significantly reduce the amount of disk needed to store your data backups, but things that you do in your data center can actually be working against deduplication. And there are other things that don't necessarily hurt your deduplication system, but aren't a good idea anyway.

This article will explain those things you should (or shouldn't) be doing if you are performing data deduplication.

Target dedupe

This first section applies only to target deduplication systems. These include data dedupe appliances and software-based target dedupe in your backup software (e.g., CommVault Simpana and Symantec Corp. NetBackup PureDisk Media ServerOption).

Don't perform more full backups just to get a better data deduplication ratio.Some customers have been told by their target dedupe sales engineers to perform nightly full backups to increase their dedupe ratios. Please don't do this. Perform more frequent full backups because it makes your recoveries better, or makes your DBAs sleep better. (DBAs have always had a trust issue with incremental backups.) Don't do this just to get a better deduplication ratio.

Do consider increasing your backup retention period on disk.Once you have your first set of backups on disk, adding additional backups to that same deduped system will take up less space than sending them to tape. So if you're already storing 30 days on disk and 60 days on tape, consider storing all 90 days on disk. You'll be surprised at how little disk additional backups take up, assuming you're getting a good dedupe ratio.

Don't use multiplexing if you're backing up to a virtual tape library (VTL).Some people carry over this practice from physical tape to virtual tape, and this can have devastating effects on your dedupe ratio. Even systems that can de-multiplex the data (FalconStor, Sepaton) recommend that your turn it off, as they are just wasting computing cycles de-multiplexing the data -- cycles that could otherwise be used to dedupe your data faster. Instead of multiplexing 40 backups to 10 virtual tape drives, create 40 virtual tape drives and turn off multiplexing.

Source and target deduplication

Don't obsess over your deduplication ratio, period. You should closely examine this number when you are comparing multiple products.See who gets the better dedupe ratio when you send the same data to each system. But once your system is installed, try to not overanalyze this number, especially when it's first installed. Dedupe ratios are always low at first and grow over time. You should periodically check to see if there has been a significant, negative change in your dedupe ratio, as it may indicate that something is wrong.

The do’s and don’ts of data deduplication

Dedupe dos and don’ts: Data deduplication technology best practices

(4)

Don't encrypt data before the dedupe system sees it.

For example, do not back up a Windows Encrypted Filesystem to a dedupe system and expect to see anything other than 1:1 as your dedupe ratio. Dedupe systems look for patterns and encryption systems get rid of patterns -- ergo, no dedupe.

Don't compress data before the dedupe system sees it -- for two reasons.

The first is that all dedupe systems compress after they dedupe, so you are accomplishing nothing. The second reason is that compression can "scramble" the data, creating difficulties for the dedupe system when looking for patterns. (Note: CommVault's dedupe system allows you to encrypt and compress your backups once they're fingerprinted, and that should not impact your dedupe ratio.)

Do learn what data doesn't dedupe very well and consider not deduping it.

With most dedupe systems, data that is created by a human (e.g., Office documents, database entries) dedupes well. Data that is automatically created by a computer doesn't dedupe well. Photos, video, audio, imaging, seismic data, are all examples of data that don't dedupe very well. Consider storing it on non-deduped storage. (Some dedupe systems can turn off dedupe on certain sets of data.)

Do read the best practices documentation for your particular dedupe systems and follow their suggestions.

The suggestions in this article should apply to most (if not all) dedupe systems, but your particular product may have some idiosyncrasies you should be aware of when using it.

Do test multiple dedupe systems before buying one of them.

There are some really good products out there, but there are also products with some real limitations. Only by comparing multiple products do some of these rear their ugly heads.

Do test copying data from your dedupe system to tape if you plan to do that.

This is one of the areas that separate the men from the boys, so to speak.

Don't believe a vendor that tells you that none of the dedupe products can't stream your tape drive at its maximum speed.

The list may be short, but it does exist. Some of the products, unfortunately, can only stream drives that are five to six years old.

Test everything.Believe nothing. Read the documentation and follow its advice, and all should be right in dedupe land.

(5)

You know that virtualization is vital to improving efficiency and productivity. But proving that to senior executives can be challenging. Together, and EMC offer a holistic approach to virtualizing your data center that will give you full visibility into the cost and expected benefits associated with virtualization. So you can demonstrate all that virtualization can do—and earn the complete confidence of senior executives. The next step in building your VMware environment starts now with and EMC.

Gain full support for your virtualization journey with EMC.

EMC2_{, EMC, and where information lives are registered trademarks or trademarks of EMC Corporation in the United States and other countries.}

Senior executives

totally on board.

Now:

Battling

virtualization

skeptics.

(6)

Where and how to use data deduplication technology in

disk-based backup

By: Lauren Whitehouse

Data deduplication promises to reduce the transfer and storage of redundant data, which optimizes network bandwidth and storage capacity. Storing data more efficiently on disk lets you retain data for longer periods or "recapture" data to protect more applications with disk-based backup, increasing the likelihood that data can be recovered rapidly. Transferring less data over the network also improves performance. Reducing the data trans-ferred over a WAN connection may allow organizations to consolidate backup from remote locations or extend disaster recovery to data that wasn't previously protected. The bottom line is that data dedupe can save organiza-tions time and money by enabling more data recovery from disk and reducing the footprint and power and cooling requirements of secondary storage. It can also enhance data protection.

Read the fine print when selecting a data dedupe product

The first point of confusion lies in the many ways storage capacity can be optimized. Data deduplication is often a catch-all category for technologies that optimize capacity. Archiving, single-instance storage, incremental "forever" backup, delta differencing and compression are just a few technologies or methods employed in the data protection process to eliminate redundancy and the amount of data transferred/stored. Unfortunately, firms have to wade through a lot of marketing hype to understand what's being offered by vendors who toss around these terms. In data protection processes, dedupe is a feature available in backup applications and disk storage systems to reduce disk and bandwidth requirements. Data dedupe technology examines data to identify and eliminate redun-dancy. For example, data dedupe may create a unique data object with a hash algorithm and check that fingerprint against a master index. Unique data is written to storage and only a pointer to the previously written data is stored.

Granularity and dedupe

Another issue is the level of granularity the dedupe solution offers. Dedupe can be performed at the file, block and byte levels. There are tradeoffs for each method, including computational time, accuracy, level of duplication detected, index size and, potentially, the scalability of the solution.

File-level dedupe (or single-instance storage) removes duplicated data at the file level by checking file attributes and eliminating redundant copies of files stored on backup media. This method delivers less capacity reduction than other methods, but it's simple and fast.

Deduplicating at the sub-file level (block level) carves the data into chunks. In general, the block or chunk is "fingerprinted" and its unique identifier is then compared to the index. With smaller block sizes, there are more chunks and, therefore, more index comparisons and a higher potential to locate and eliminate redundancy (and

(7)

produce higher reduction ratios). One tradeoff is I/O stress, which can be greater with more comparisons; in addi-tion, the size of the index will be larger with smaller chunks, which could result in decreased backup performance. Performance can also be impacted because the chunks have to be reassembled to recover the data.

Byte-level reduction is a byte-by-byte comparison of new files and previously stored files. While this method is the only one that guarantees full redundancy elimination, the performance penalty could be high. Some vendors have taken other approaches. A few concentrate on understanding the format of the backup stream and evaluating duplication with this "content-awareness."

Where and when to dedupe

The work of data dedupe can be performed at one or more places between the data source and the target storage destination. Dedupe occurring at the app or file-server level (before the backup data is transmitted across the network) is referred to as client-side deduplication (a must-have if bandwidth reduction is important). Alternatively, dedupe of the backup stream can happen at the backup server, which can be referred to as proxy deduplication, or on the target device, which is called target-based deduplication.

Deduplication can be timed to occur before data is written to the disk target (inline processing) or after data is written to the disk target (post-processing).

Post-process deduplication will write the backup image to a disk cache before starting to dedupe. This lets the backup complete at full disk performance. Post-process dedupe requires disk cache capacity sized for the backup data that's not deduplicated plus the additional capacity to store deduped data. The size of the cache depends on whether the dedupe process waits for the entire backup job to complete before starting deduplication or if it starts to deduplicate data as it's written and, more importantly, when the deduplication process releases storage space. Inline dedupe could negatively impact backup performance when the app uses a fingerprint database that grows over time. Inline approaches inspect and dedupe data on the way to the disk target. Performance degradation depends on several factors, including the method of fingerprinting, granularity of dedupe, where the inline process-ing occurs, network performance, how the dedupe technology workload is distributed and more.

Hardware versus software deduplication

Many of today's most popular hardware-based approaches may solve the immediate problem of reducing data in disk-to-disk backup environments, but they mask the issues that will arise as the environment expands and evolves.

The issue is software versus hardware. On the hardware side, purpose-built appliances offer faster deployments, integrating with existing backup software and providing a plug-and-play experience. The compromise? There are limitations when it comes to flexibility and scalability. Additional appliances may need to be added as demand for capacity increases, and the resulting appliance "sprawl" not only adds management complexity and overhead, but may limit deduplication to each individual appliance.

Where and how to use data deduplication technology in disk-based backup

(8)

With software approaches, disk capacity may be more flexible. Disk storage is virtualized, appearing as a large pool that scales seamlessly. In a software scenario, the impact on management overhead is less and the effect on dedu-plication may be greater since dedudedu-plication occurs across a larger data set than most individual appliance architec-tures.

Software-based client-side and proxy dedupe optimize performance by distributing dedupe processing across a large number of clients or media servers. Target dedupe requires powerful, purpose-built storage appliances as the entire backup load needs to be processed on the target. Because software implementations offer better workload distribution, inline dedupe performance may be improved over hardware-based equivalents.

Choosing a software or hardware approach may depend on your current backup software implementation. If the backup software in place doesn't have a dedupe feature or option, switching to one that does may pose challenges.
