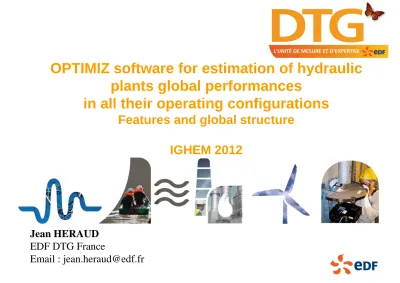

OPTIMIZ software for estimation of hydraulic plants global performances in all their operating configurations Features and global structure

(1)

OPTIMIZ software for estimation of hydraulic

plants global performances

in all their operating configurations

Features and global structure

IGHEM 2012

Jean HERAUD

EDF DTG France

(2)

Division Production Ingénierie Hydraulique - DTG

2

INTRODUCTION

DTG is a unit of EDF dedicated to on-site

measurements (based in Grenoble)

EDF DTG developped in 2011, a tool called

"OptimizV2" which, knowing :

the intrinsic performances of units (directly taken from site

measurements)

loss coefficients in pipes,

….gives the performance of the plant in all its

operating configurations

(3)

3

INTRODUCTION

This allows an optimization of the use of the

plant :

Knowledge of the power levels associated with

efficiency peaks (whatever units running, whatever

head)

Knowledge of power margins available for

contracting system services (Power-frequency

regulation)

Besides, it allows for major hydraulic plants, a

monitoring of power

(4)

INTRODUCTION

This tool version 2 already exists (macros Excel VBA)

and version 3 is being currently developped (intranet

server with mathematical part on Matlab)

Version 3 has extended functionalities

The following issue presents the features, uses and

structure of this product.

jour mois année D41**/TRA/2011-*****-A

(5)

Presentation of the tool

Hydraulic model of a plant

5

(6)

Presentation of the tool

Hydraulic model

(7)

Presentation of the tool

Hydraulic model

(8)

Screenshot OptimizV3

(9)

Presentation of the tool

Hydraulic model

(10)

Presentation of the tool

Hydraulic model

(11)

Division Production Ingénierie Hydraulique - DTG D41**/TRA/2011-*****-A jour mois année

11

Presentation of the tool

(12)

(13)

Real screenshots of OptimizV3

(14)

14

Screenshots V3 : Creation of a

hydraulic model

(15)

15

Screenshots V3 : Affectation of

performance datasets to groups

(16)

16

Screenshots V3 : Creation of

performance datasets

(17)

17

Screenshots V3 : Creation of

series of datas (in a dataset)

(18)

Optimiz allows a visualisation of input data

and of the interpolation curves associated.

It allows to check :

the quality of interpolation

the coherence of the data at various net head

values …

18

Presentation of the tool

(19)

Presentation of the tool

visualisation of input data (V2)

(20)

Screenshot V3

(21)

21

(22)

Presentation of the tool

Simulator screen (OptimizV3)

22

(23)

23

Presentation of the tool

(24)

Presentation of the tool

Graphs

The tool (V2) is already able to generate curves for variations of

load or head.

Superposition of curves is possible

(25)

Presentation of the tool

Calculation of production and energetical coefficient

OptimizV3 will be able to calculate for a monitored

period of supervision :

the production of the plant

or the energetical coefficient (kWh/m

3 ₎

It will be able to simulate what would be produced

and the Energetical coefficient (kWh/m3) with another

Hydraulic model.

This is useful when you try to justify the added value

of a new shape of turbine for example.

(26)

Comparisons can be made :

At equal power of order for the energetical coefficient

(kWh/m3)

At power amplificated by a multiplicative factor for

comparison of energetical coefficient

At equal flowrate for comparison of production or energetical

coefficient

26

Presentation of the tool

Calculation of production and energetical coefficient

(2013)

(27)

By monitoring head and openings, it is possible to

simulate the expected power.

27

Presentation of the tool

Monitoring (2013)

Expected

power

Monitored

power

(28)

28

Presentation of the tool

(29)

This monitoring may allow to :

Detect technical defects



Power measurement defects



Opening organs measurement defects



On Kaplan/bulb : Defects in optimization blades / wicket gate

highlight incidents harmful to the units :



Power losses by obstruction (wood stuck in the wheel, the

spiral case, the injector ...)

highlight performance trends emerged in the long term or

after work



abnormal loss of performance:



significant wear of the wheel and labyrinths



poor axial setting of the wheel

detect losses in adductions (

silting of the gallery or degradation

of internal coatings

(30)

The tool is based on a matricial Newton

Raphson iterative resolution.

The aim of the iteration is the

convergence of

the vector of the total head calculated

towards the target value total head.

30

(31)

Structure of the tool

(32)

To transpose Power and Flowrate at different

net head values, α and β coefficients are

used, defined as :

32

(33)

If net head values of the input performance datasets

frame the net head of transposition, weighted

average is realised between the transpositions from

various sources.

33

Structure of the tool

P

Opening

Input Datas 1

(Hn1)

Input Datas 2

(Hn2)

P1

P2

P

P : Ponderated average of P1 et P2

(34)

Conclusion

The need of a tool like Optimiz is

universal for operating units at their best

and manipulating easily the results of

performance measurements.
