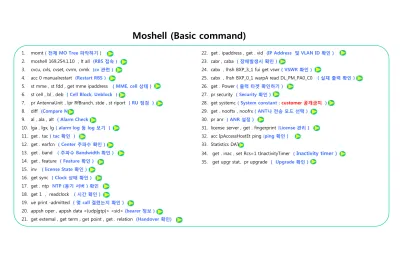

Moshell (Basic command)

1. momt ( 전체 MO Tree 파악하기 )

2. moshell 169.254.1.10 , lt all (RBS 접속 )

3. cvcu, cvls, cvset, cvrm, cvmk (cv 관련 )

4. acc 0 manualrestart (Restart RBS )

5. st mme , st fdd , get mme ipaddress ( MME, cell 상태 )

6. st cell , bl , deb ( Cell Block, Unblock )

7. pr AntennaUnit , lpr RfBranch, stde , st riport ( RU 점검 )

8. diff (Compare MO)

9. al , ala , alt ( Alarm Check )

10. lga , lgx, lg ( alarm log 등 log 보기 )

11. get . tac ( tac 확인 )

12. get . earfcn ( Center 주파수 확인 )

13. get . band ( 주파수 Bandwidth 확인 )

14. get . feature ( Feature 확인 )

15. inv ( license State 확인 )

16. get sync ( Clock 상태 확인 )

17. get . ntp NTP (동기 서버 ) 확인

18. get 1 , readclock ( 시간 확인 )

19. ue print -admitted ( 몇 call 결렸는지 확인 )

20. appsh oper , appsh data <{udp|gtp}> <sid> (bearer 정보 )

21. get extemal , get term , get point , get . relation (Handover 확인)

22. get . ipaddress , get . vid (IP Address 및 VLAN ID 확인 )

23. cabr , caba ( 장애발생시 확인 )

24. cabx , lhsh BXP_3_1 fui get vswr ( VSWR 확인 )

25. cabx , lhsh BXP_0_1 warpA read DL_PM_PA0_C0 ( 실재 출력 확인 )

26. get . Power ( 출력 타겟 확인하기 )

27. pr security ( Security 확인 )

28. get systemc ( System constant : customer 공개금지 )

29. get . nooftx , noofrx ( ANT나 전송 모드 선택)

30. pr anr ( ANR 설정 )

31. license server , get . fingerprint (License 관리 )

32. acc IpAccessHostEt ping (ping 확인 )

33. Statistics DATA

34. get . inac , set Rcs=1 tInactivityTimer (

Inactivity timer )

35. get upgr stat, pr upgrade ( Upgrade 확인 )

(2)

ENB03> momt

110328-16:10:46 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/2764 ---

MO classes under ManagedElement --- ENodeBFunction[1] (systemCreated) AdmissionControl[1] (systemCreated) AirIfLoadProfile[0-24] AnrFunction[1] (systemCreated) AnrFunctionEUtran[1] (systemCreated) AnrFunctionGeran[1] (systemCreated) AnrFunctionUtran[1] (systemCreated) Cdma2000Network[0-1] Cdma2000FreqBand[0-18] Cdma2000Freq[0-64] ExternalCdma2000Cell[0-64] EUtraNetwork[1] (systemCreated) EUtranFrequency[0-24] ExternalENodeBFunction[0-256] ExternalEUtranCellFDD[0-24] ExternalEUtranCellTDD[0-24] TermPointToENB[0-1] EUtranCellFDD[0-24] Cdma2000FreqBandRelation[0-32] Cdma2000CellRelation[0-64] Cdma2000FreqRelation[0-64] EUtranFreqRelation[0-8] EUtranCellRelation[0-64] GeranFreqGroupRelation[0-16] GeranCellRelation[0-64] UeMeasControl[1] (systemCreated) PmUeMeasControl[0-1] ReportConfigA1Prim[1] (systemCreated) ReportConfigA1Sec[1] (systemCreated) ReportConfigA5[1] (systemCreated) ReportConfigA5Anr[1] (systemCreated) ReportConfigB2Cdma2000[1] (systemCreated) ReportConfigB2Geran[1] (systemCreated) ReportConfigB2Utra[1] (systemCreated) ReportConfigEUtraBadCovPrim[1] (systemCreated) ReportConfigEUtraBadCovSec[1] (systemCreated) ReportConfigEUtraBestCell[1] (systemCreated) ReportConfigEUtraBestCellAnr[1] (systemCreated) ReportConfigEUtraIntraFreqPm[0-2] UtranFreqRelation[0-16] UtranCellRelation[0-64] EUtranCellTDD[0-24]

Understand the entire MO Tree

DU

RU

(3)

[~]$ moshell 169.254.1.10

#################################################################### # Welcome to MoShell 8.0r #

# Finn Magnusson, Jan Pettersson # # http://utran01.au.ao.ericsson.se/moshell # # Contact: [email protected] # # [email protected] # #################################################################### Checking ip contact...OK HELP MENU : h BASIC MO COMMANDS : m OTHER MO COMMANDS : n OTHER COMMANDS : o PM COMMANDS : p QUIT : q 169.254.1.10> lt all 110323-21:50:44 169.254.1.10 8.0r stopfile=/tmp/2920 Checking MOM version...ERBS_NODE_MODEL_B_1_40 Using MOM version: ERBS_NODE_MODEL_B_1_40_COMPLETE

Parsing MOM (cached): /home/Administrator/moshell/jarxml/ERBS_NODE_MODEL_B_1_40_COMPLETE.xml.cache.gz ...Done. Using paramfile /home/Administrator/moshell/commonjars/pm/PARAM_ERBS_B_1_0.txt

Parsing file /home/Administrator/moshell/commonjars/pm/PARAM_ERBS_B_1_0.txt ...Done. Fetching IOR file...Done.

Connecting to 10.0.0.165:56834 (CorbaSecurity=OFF, corba_class=2, java=1.6.0_23, jacoms=R73D19, jacorb=R73D01) **** Welcome to the Simple Mo Browser (version 3.0)!

Trying file=C:/cygwin/home/Administrator/moshell_logfiles/logs_moshell/tempfiles/20110323-215038_1808/ior1808 **** Test Construction OK **** $mobrowser_pid = 3436 Connected to 169.254.1.10 (SubNetwork=ONRM_ROOT_MO_R,SubNetwork=TEST,MeContext=ENB04,ManagedElement=1) Connected to 169.254.1.10 (SubNetwork=ONRM_ROOT_MO_R,SubNetwork=TEST,MeContext=ENB04,ManagedElement=1) Last MO: 1043. Loaded 1043 MOs. Total: 1044 MOs.

ENB04>

Connect to RBS

1. Have laptop setting same as left.

2. Enter moshell 169.254.1.10 for connection.

3. Enter lt all

1. The above is a access method when you connect directly to LNB PORT in the station.

2. In case of access through LSM, use (10.0.0.163)

(4)

ENB02> cvcu

110326-10:42:02 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/896

=================================================================================================== 110326-10:42 CV Name Upgrade Package Release

=================================================================================================== Startable: selfconfig_autocreated1 CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2)

Loaded: RU_SW_Change_R25S-alarmc_cdmaHOcell33 CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2) Executing: selfconfig_autocreated1 CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2) Last created: selfconfig_autocreated1 CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2) ---

Current UpgradePkg: UpgradePackage=R9AS CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2) AutoCreatedCV: Disabled

Countdown status: Deactivated Ongoing CV activity: 0 (IDLE) Rollback status: Rollback is off

================================================================================================= ENB02> cvls

================================================================================================== 110326-10:42 CV Name Upgrade Package Release

================================================================================================== Startable: selfconfig_autocreated1 CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2)

Loaded: RU_SW_Change_R25S-alarmc_cdmaHOcell33 CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2) Executing: selfconfig_autocreated1 CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2) Last created: selfconfig_autocreated1 CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2) ---

Current UpgradePkg: UpgradePackage=R9AS CXP102051/12_R9AS L11B (LSV59.3-4-CPP_8.0.2) AutoCreatedCV: Disabled

Countdown status: Deactivated Ongoing CV activity: 0 (IDLE) Rollback status: Rollback is off

=================================================================================================== UP name ProductData CVs LMs PrDate LastCV state Release CompatIndex

=================================================================================================== InitialUP 0_0 0 0 0 IDLE, ONLY_DELETEABLE

Virtual_2_of_CXP102051/10_R5EA CXP102051/10_R5EA 0 0 100906 IDLE, ONLY_DELETEABLE L11A Virtual_0_of_CXP102051/12_R8AA CXP102051/12_R8AA 1 0 110216 110314 IDLE, ONLY_DELETEABLE L11B Virtual_1_of_CXP102051/12_R7AK CXP102051/12_R7AK 4 0 110203 110315 IDLE, ONLY_DELETEABLE L11B (LSV59.3-3-CPP_8.0.2) R9BE%2 CXP102051/10_R9BE/2 29 192 101207 110323 IDLE, UPGRADE_COMPLETED L11A.0.1.0 (EP30-CPP_8.0.0.3) CXP102051%1-R4 R9AS CXP102051/12_R9AS 16 200 110303 110325 IDLE, UPGRADE_COMPLETED L11B (LSV59.3-4-CPP_8.0.2) CXP102051%1-R4 ================================================================================================== CV Name Creation Date UpgradePackage Release Type Operator Comment

================================================================================================== BasicCV_CXP102106%10_R9BE%2 2010-12-07 13:28 CXP102051/10_R9BE/2 L11A.0.1.0 other unknown none

LTE_Initial 2010-12-07 13:33 CXP102051/10_R9BE/2 L11A.0.1.0 other ProductionTest ProductionTest L11A-artiza-vlanoff 2011-03-01 02:26 CXP102051/10_R9BE/2 L11A.0.1.0 other cwcho none

=================================================================================================== >>> Total: 50 CV's, 6 UP's

ENB03>

CV

※ What is CV ?

Similar to system restoration point of Windows.

It has all Parameter and Version information for rollback to the previous status promptly in case of failure to reduce no service time. ( Maximum number of CVs stored in each station is 50.)

CV type: Manual rollback point (Made by user)

Installation rollback point (Automatically created during upgrade)

System rollback point (Automatically created by system)

Startable : Display CV activated at the time of reset

Loaded :

Executing : Display CV currently in operation

Last created : Display CV created most recently

1. Current CV check:

cvcu

2. Entire CV check:

cvls

3. CV change:

cvset

( Select certain CV among saved CVs and restart station to active the CV)

4. CV creation:

cvmk

5. CV deletion:

cvrm

6. CV creation & startable change:

cvms

7. reset: acc 0 manualrestart <┛

y <┛

3 <┛

0 <┛

6. pol 5 5 <┛

(5)

Restart RBS

ENB03> acc 0 manualrestart

110323-22:33:17 169.254.1.10 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/3644 The node has been restarted on a different CV: from OptimizedUDPDL2 to selfconfig_autocreated2. Rereading MOM and MIB...

Connected to 169.254.1.10 (SubNetwork=ONRM_ROOT_MO_R,SubNetwork=TEST,MeContext=ENB03,ManagedElement=1) Last MO: 835. Loaded 835 MOs. Total: 836 MOs.

Checking MOM version...ERBS_NODE_MODEL_B_1_40 Using MOM version: ERBS_NODE_MODEL_B_1_40_COMPLETE

Parsing MOM (cached): /home/Administrator/moshell/jarxml/ERBS_NODE_MODEL_B_1_40_COMPLETE.xml.cache.gz ...Done. Using paramfile /home/Administrator/moshell/commonjars/pm/PARAM_ERBS_B_1_0.txt

Parsing file /home/Administrator/moshell/commonjars/pm/PARAM_ERBS_B_1_0.txt ...Done. Call Action manualrestart on following 1 MOs ?

=================================================================================== 0 ManagedElement=1

INFO: The RBS node ENB03 will be restarted on CV: selfconfig_autocreated2

=================================================================================== Call action manualrestart on 1 MOs. Are you Sure [y/n] ? y

================================================================================================================ Proxy MO Action Nr of Params

================================================================================================================ 0 ManagedElement=1 manualRestart 3

Parameter 1 of 3, restartRank (enumRef-RestartRank):

Enter one of the following integers: 0:RESTART_WARM, 1:RESTART_REFRESH, 2:RESTART_COLD, 3:RESTART_COLDWTEST: 3 Parameter 2 of 3, restartReason (enumRef-RestartReason):

Enter one of the following integers: 0:PLANNED_RECONFIGURATION, 1:UNPLANNED_NODE_EXTERNAL_PROBLEMS, 2:UNPLANNED_NODE_UPGRADE_PROBLEMS, 3:UNPL ANNED_O_AND_M_ISSUE, 4:UNPLANNED_CYCLIC_RECOVERY, 5:UNPLANNED_LOCKED_RESOURCES, 6:UNPLANNED_COLD_WITH_HW_TEST,

7:UNPLANNED_CALL_PROCESSING_DEGRA DATION, 8:UNPLANNED_LOW_COVERAGE, 30:UPGRADE_BOARD_RESTART: 0 Parameter 3 of 3, restartInfo (string): 0

>>> Return value = null

=============================================================================================================== Total: 1 MOs attempted, 1 MOs actioned

ENB03>

ENB03> pol 5 5

110323-22:33:35 169.254.1.10 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/3644 Waiting 5 seconds before starting to poll...

No contact to port 80, retrying in 1 second... No contact to port 80, retrying in 1 second... No contact to port 80, retrying in 1 second...

CORBA.OBJECT_NOT_EXIST Polling for 0m41s, MO service not ready, retrying in 5 seconds... CORBA.OBJECT_NOT_EXIST Polling for 0m46s, MO service not ready, retrying in 5 seconds... CORBA.OBJECT_NOT_EXIST Polling for 0m51s, MO service not ready, retrying in 5 seconds... CORBA.OBJECT_NOT_EXIST Polling for 1m02s, MO service not ready, retrying in 5 seconds... MO service is ready. ENB03>

1. acc 0 manualrestart

2. y

3. 3

4. 0

5. 0

pol 5 5

Use it when you want to know when the signal resumes after disconnection.

pol 5: interval 5: wait time

169.254.1.10> polu 5 5

110331-12:35:07 169.254.1.10 8.0r ERBS_NODE_MODEL_B_1_30_COMPLETE stopfile=/tmp/2168

Waiting 5 seconds before starting to poll... No ongoing activity on the UpgradePackage MOs. 169.254.1.10> pol 5 5

110331-12:35:25 169.254.1.10 8.0r ERBS_NODE_MODEL_B_1_30_COMPLETE stopfile=/tmp/2168

Waiting 5 seconds before starting to poll... MO service is ready.

(6)

eNB3> lst mme

110310-16:38:07 10.0.0.164 8.0r ERBS_NODE_MODEL_A_9_53_COMPLETE stopfile=/tmp/4728

=================================================================================== Proxy Adm State Op. State MO

=================================================================================== 536 1 (UNLOCKED) 1 (ENABLED) ENodeBFunction=1,TermPointToMme=LGERMME01

=================================================================================== Total: 1 MOs

eNB3> lst fdd

=================================================================================== 854 1 (UNLOCKED) 1 (ENABLED) ENodeBFunction=1,EUtranCellFDD=33

879 0 (LOCKED) 0 (DISABLED) ENodeBFunction=1,EUtranCellFDD=32 905 1 (UNLOCKED) 1 (ENABLED) ENodeBFunction=1,EUtranCellFDD=31

=================================================================================== Total: 3 MOs

eNB3> st sector

=================================================================================== 1030 1 (UNLOCKED) 0 (DISABLED) SectorEquipmentFunction=S1

1031 1 (UNLOCKED) 0 (DISABLED) SectorEquipmentFunction=S2 1036 1 (UNLOCKED) 1 (ENABLED) SectorEquipmentFunction=S3

=================================================================================== Total: 3 MOs

eNB3> get mme ipaddress

110310-16:38:40 10.0.0.164 8.0r ERBS_NODE_MODEL_A_9_53_COMPLETE stopfile=/tmp/4728 ================================================================================================================= MO Attribute Value ================================================================================================================= TermPointToMme=LGERMME01 ipAddress1 4.2.0.132 TermPointToMme=LGERMME01 ipAddress2 0.0.0.0 TermPointToMme=LGERMME01 usedIpAddress 4.2.0.132 ================================================================================================================= Total: 1 MOs

MME , CELL Status

To check MME status

Check CELL status

Same command lst cell

MME Node addition method

cr ENodeBFunction=1,TermPointToMme=LGERMME02

lget ENodeBFunction=1,TermPointToMme=LGERMME02

lset ENodeBFunction=1,TermPointToMme=LGERMME02 ipAddress1 xxx.xxx.xxx.xxx

deb LGERMME02

MME IP modification method (From

station side)

ENB03> get mme ip

ENB03> bl mme

ENB03> set mme ipAddress1 100.100.100.150

ENB03> deb mme

(7)

ENB03> st cell

=================================================================================== 147 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,SubDeviceGroup=bb-1,CellDeviceSet=1 854 1 (UNLOCKED) 1 (ENABLED) ENodeBFunction=1,EUtranCellFDD=33

===================================================================================

ENB03> deb 879

110328-15:12:50 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/1940 Deblock following 1 MOs ?

=================================================================================== 879 ENodeBFunction=1,EUtranCellFDD=32

=================================================================================== Deblock 1 MOs. Are you Sure [y/n] ? y

==================================================================================== Id MO administrativeState Result

==================================================================================== 879 EUtranCellFDD=32 1 >>> Set.

==================================================================================== Total: 1 MOs attempted, 1 MOs set

ENB03> bl 879

110328-15:13:04 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/1940 Block following 1 MOs ?

=================================================================================== 879 ENodeBFunction=1,EUtranCellFDD=32

=================================================================================== Block 1 MOs. Are you Sure [y/n] ? y

Block, Unblock

Unblock Cell no. 32, currently

blocked.

Check Cell status.

Block Cell no. 32, currently

unblocked.

(8)

RU Check

ENB03> lk fdd

=============================================================================== Proxy Adm State Op. State MOs linked to 476:EUtranCellFDD=31

=============================================================================== 476 1 (UNLOCKED) 0 (DISABLED) EUtranCellFDD=31

477 EUtranCellFDD=31,UeMeasControl=1

480 EUtranCellFDD=31,UeMeasControl=1,ReportConfigEUtraBestCell=1 479 EUtranCellFDD=31,UeMeasControl=1,ReportConfigEUtraBadCovSec=1 478 EUtranCellFDD=31,UeMeasControl=1,ReportConfigEUtraBadCovPrim=1 492 1 (UNLOCKED) 0 (DISABLED) SectorEquipmentFunction=S1

147 AntennaUnitGroup=1,RfBranch=1 149 AntennaUnitGroup=1,RfBranch=2 123 0 (DISABLED) RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,RiPort=DATA_1 131 0 (DISABLED) RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,RiPort=DATA_2 143 0 (DISABLED) RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,RiPort=DATA_1 135 0 (DISABLED) RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,RiPort=DATA_2

126 1 (UNLOCKED) 0 (DISABLED) RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru,RfPort=A 130 0 (LOCKED) 0 (DISABLED) RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru,RfPort=B 138 1 (UNLOCKED) 0 (DISABLED) RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru,RfPort=A 141 0 (LOCKED) 0 (DISABLED) RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru,RfPort=B 127 0 (LOCKED) 0 (DISABLED) RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru,RfPort=RXA_IO 125 0 (LOCKED) 0 (DISABLED) RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru,RfPort=RXB_IO 140 0 (LOCKED) 0 (DISABLED) RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru,RfPort=RXA_IO 142 0 (LOCKED) 0 (DISABLED) RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru,RfPort=RXB_IO =============================================================================== Total: 20 MOs

eNB3> st aux

=============================================================================== Proxy Adm State Op. State MO

=============================================================================== 122 1 (UNLOCKED) 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1

134 1 (UNLOCKED) 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2

=============================================================================== Total: 2 MOs

eNB3> st ru

=============================================================================== Proxy Adm State Op. State MO

=============================================================================== 63 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,GeneralProcessorUnit=1 122 1 (UNLOCKED) 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1

124 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru 134 1 (UNLOCKED) 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2

136 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru =============================================================================== Total: 5 MOs

eNB3> lh ru vii

110331-15:41:29 169.254.1.10 8.0r ERBS_NODE_MODEL_A_9_53_COMPLETE stopfile=/tmp/ Please enter Node Password:

Checking available boards on node... ...

Created following board-groups: all, allp, mp, bp, tu, coremp, ommp, scb, sxb, scx, sccpmp , et, etmfg, etmfx, aal2ap, aal2ncc, aal2cpsrc, aal2rh, xp, rax, tx,gcpu.

>>> Type "bp" to view available board-groups and "bp <group>" to view group contents. ============================================================ $ lhsh BXP_0_1 vii BXP_0_1: Indicated states: BXP_0_1: Red: BXP_0_1: Default (off) BXP_0_1: Green:

BXP_0_1: Default (steady light) BXP_0_1: Yellow: BXP_0_1: Default (off) =========================================================== $ lhsh BXP_3_1 vii BXP_3_1: Indicated states: BXP_3_1: Red: BXP_3_1: Default (off) BXP_3_1: Green:

BXP_3_1: Default (steady light) BXP_3_1: Yellow:

BXP_3_1: Default (off) $

(9)

ENB03> st de

=================================================================================== 119 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,DeviceGroup=dul 146 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,SubDeviceGroup=bb-1 147 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,SubDeviceGroup=bb-1,CellDeviceSet=1 160 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,SubDeviceGroup=du-1 161 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,SubDeviceGroup=du-1,RicmDeviceSet=1 211 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=5,AuxPlugInUnit=RU-1-5,DeviceGroup=ru 213 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=5,AuxPlugInUnit=RU-1-5,DeviceGroup=ru,TrDeviceSet=tr 220 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru 225 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru,TrDeviceSet=tr 231 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru 232 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru,TrDeviceSet=tr 243 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=6,AuxPlugInUnit=RU-1-6,DeviceGroup=ru 246 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=6,AuxPlugInUnit=RU-1-6,DeviceGroup=ru,TrDeviceSet=tr 255 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=3,AuxPlugInUnit=RU-1-3,DeviceGroup=ru 261 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=3,AuxPlugInUnit=RU-1-3,DeviceGroup=ru,TrDeviceSet=tr 266 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=4,AuxPlugInUnit=RU-1-4,DeviceGroup=ru 270 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=4,AuxPlugInUnit=RU-1-4,DeviceGroup=ru,TrDeviceSet=tr =================================================================================== Total: 17 MOs ENB03> st riport 110328-22:04:03 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/1056 =================================================================================== Proxy Adm State Op. State MO

=================================================================================== 126 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,RiPort=B 127 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,RiPort=C 136 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,RiPort=E 139 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,RiPort=A 142 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,RiPort=D 157 1 (ENABLED) Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,RiPort=F 209 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=5,AuxPlugInUnit=RU-1-5,RiPort=DATA_1 210 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=5,AuxPlugInUnit=RU-1-5,RiPort=DATA_2 227 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,RiPort=DATA_1 228 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,RiPort=DATA_2 238 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,RiPort=DATA_1 239 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,RiPort=DATA_2 242 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=6,AuxPlugInUnit=RU-1-6,RiPort=DATA_2 250 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=6,AuxPlugInUnit=RU-1-6,RiPort=DATA_1 253 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=3,AuxPlugInUnit=RU-1-3,RiPort=DATA_1 254 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=3,AuxPlugInUnit=RU-1-3,RiPort=DATA_2 265 1 (ENABLED) Equipment=1,RbsSubrack=1,RbsSlot=4,AuxPlugInUnit=RU-1-4,RiPort=DATA_1 273 0 (DISABLED) Equipment=1,RbsSubrack=1,RbsSlot=4,AuxPlugInUnit=RU-1-4,RiPort=DATA_2 =================================================================================== Total: 18 MOs

RU Check

(10)

RU Check

ENB03> pr AntennaUnit 110328-21:30:28 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/1056 =================================================================================== Proxy MO =================================================================================== 184 Equipment=1,AntennaUnitGroup=1 187 Equipment=1,AntennaUnitGroup=1,AntennaUnit=1 274 Equipment=1,AntennaUnitGroup=3 277 Equipment=1,AntennaUnitGroup=3,AntennaUnit=3 300 Equipment=1,AntennaUnitGroup=2 303 Equipment=1,AntennaUnitGroup=2,AntennaUnit=2 =================================================================================== Total: 6 Mos ENB03> pr rfport 110328-21:24:15 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/1056 =================================================================================== Proxy MO =================================================================================== 212 Equipment=1,RbsSubrack=1,RbsSlot=5,AuxPlugInUnit=RU-1-5,DeviceGroup=ru,RfPort=RXB_IO 215 Equipment=1,RbsSubrack=1,RbsSlot=5,AuxPlugInUnit=RU-1-5,DeviceGroup=ru,RfPort=B 216 Equipment=1,RbsSubrack=1,RbsSlot=5,AuxPlugInUnit=RU-1-5,DeviceGroup=ru,RfPort=A 217 Equipment=1,RbsSubrack=1,RbsSlot=5,AuxPlugInUnit=RU-1-5,DeviceGroup=ru,RfPort=RXA_IO 221 Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru,RfPort=RXA_IO 223 Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru,RfPort=RXB_IO 224 Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru,RfPort=A 226 Equipment=1,RbsSubrack=1,RbsSlot=1,AuxPlugInUnit=RU-1-1,DeviceGroup=ru,RfPort=B 233 Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru,RfPort=B 234 Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru,RfPort=A 235 Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru,RfPort=RXA_IO 236 Equipment=1,RbsSubrack=1,RbsSlot=2,AuxPlugInUnit=RU-1-2,DeviceGroup=ru,RfPort=RXB_IO 244 Equipment=1,RbsSubrack=1,RbsSlot=6,AuxPlugInUnit=RU-1-6,DeviceGroup=ru,RfPort=B 245 Equipment=1,RbsSubrack=1,RbsSlot=6,AuxPlugInUnit=RU-1-6,DeviceGroup=ru,RfPort=RXA_IO 248 Equipment=1,RbsSubrack=1,RbsSlot=6,AuxPlugInUnit=RU-1-6,DeviceGroup=ru,RfPort=RXB_IO 249 Equipment=1,RbsSubrack=1,RbsSlot=6,AuxPlugInUnit=RU-1-6,DeviceGroup=ru,RfPort=A 256 Equipment=1,RbsSubrack=1,RbsSlot=3,AuxPlugInUnit=RU-1-3,DeviceGroup=ru,RfPort=RXA_IO 257 Equipment=1,RbsSubrack=1,RbsSlot=3,AuxPlugInUnit=RU-1-3,DeviceGroup=ru,RfPort=B 258 Equipment=1,RbsSubrack=1,RbsSlot=3,AuxPlugInUnit=RU-1-3,DeviceGroup=ru,RfPort=RXB_IO 259 Equipment=1,RbsSubrack=1,RbsSlot=3,AuxPlugInUnit=RU-1-3,DeviceGroup=ru,RfPort=A 267 Equipment=1,RbsSubrack=1,RbsSlot=4,AuxPlugInUnit=RU-1-4,DeviceGroup=ru,RfPort=RXB_IO 268 Equipment=1,RbsSubrack=1,RbsSlot=4,AuxPlugInUnit=RU-1-4,DeviceGroup=ru,RfPort=B 269 Equipment=1,RbsSubrack=1,RbsSlot=4,AuxPlugInUnit=RU-1-4,DeviceGroup=ru,RfPort=RXA_IO 271 Equipment=1,RbsSubrack=1,RbsSlot=4,AuxPlugInUnit=RU-1-4,DeviceGroup=ru,RfPort=A =================================================================================== Total: 24 Mos ENB03> pr branch 110328-21:24:32 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/1056 =================================================================================== Proxy MO =================================================================================== 185 Equipment=1,AntennaUnitGroup=1,RfBranch=2 186 Equipment=1,AntennaUnitGroup=1,RfBranch=1 275 Equipment=1,AntennaUnitGroup=3,RfBranch=2 276 Equipment=1,AntennaUnitGroup=3,RfBranch=1 301 Equipment=1,AntennaUnitGroup=2,RfBranch=2 302 Equipment=1,AntennaUnitGroup=2,RfBranch=1 =================================================================================== Total: 6 MOs

AntennaUnitGroup MO

(11)

ENB03> st fdd

=================================================================================== 854 1 (UNLOCKED) 1 (ENABLED) ENodeBFunction=1,EUtranCellFDD=33

=================================================================================== Total: 3 MOs ENB03> diff 854 879 110328-17:28:26 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/464 110328-17:28:26 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/464 ===================================================================================================== MO EUtranCellFDD=33 EUtranCellFDD=32 ===================================================================================================== redirectionInfoRefPrio1 Cdma2000Network=1,Cdma2000FreqBand=1,Cdma2000Freq=400

sectorFunctionRef SectorEquipmentFunction=S3 SectorEquipmentFunction=S2 mappingInfo.mappingInfo SIB8 1 (MAPPED_SI_1) 0 (NOT_MAPPED)

EUtranCellFDDId 33 32

administrativeState 1 (UNLOCKED) 0 (LOCKED) availabilityStatus 0 (NO_STATUS) 8 (OFF_LINE) noOfUsedTxAntennas 1 -1

operationalState 1 (ENABLED) 0 (DISABLED) physicalLayerCellIdGroup 11 10

cellId 33 32 physicalLayerSubCellId 0 2

=====================================================================================================

Compare MO

(12)

ENB02> al

Connecting to 10.0.0.163:56834 (CorbaSecurity=OFF, corba_class=2, java=1.6.0_23, jacoms=R73D19, jacorb=R73D01) Trying file=C:/cygwin/home/Administrator/moshell_logfiles/logs_moshell/tempfiles/20110310-134651_4212/ior4212 Resolving the alarm service in OMS...

Simple Alarm Client initialized... Starting to retrieve active alarms Nr of active alarms are: 9

================================================================================================ Sever Specific Problem Cause Mo-Reference

================================================================================================ Maj Disconnected equipment_malfunction HwUnit=SCU

Maj ResourceAllocationFailure configuration_or_customizing_error EUtranCellFDD=21 Maj ResourceAllocationFailure configuration_or_customizing_error EUtranCellFDD=22 Maj ResourceAllocationFailure configuration_or_customizing_error EUtranCellFDD=23

Maj TU Synch Reference Loss of Signal loss_of_signal Subrack=1,Slot=1,PlugInUnit=1,TimingUnit=1,TuSyncRef=GPS Min Emergency Unlock of Software Licensing alarm_indication_signal Licensing=1

Min HwFault equipment_malfunction Subrack=1,Slot=1,PlugInUnit=1,RiPort=A Min HwFault equipment_malfunction Subrack=1,Slot=1,PlugInUnit=1,RiPort=D Min Loss of Synch Reference Redundancy replaceable_unit_problem Synchronization=1

>>> Total: 9 Alarms (0 Critical, 5 Major)

ENB02> ala

Connecting to 10.0.0.163:56834 (CorbaSecurity=OFF, corba_class=2, java=1.6.0_23, jacoms=R73D19, jacorb=R73D01) Trying file=C:/cygwin/home/Administrator/moshell_logfiles/logs_moshell/tempfiles/20110310-134651_4212/ior4212 Resolving the alarm service in OMS...

Simple Alarm Client initialized... Starting to retrieve active alarms Nr of active alarms are: 9

================================================================================================ Sever Specific Problem Cause Mo-Reference

================================================================================================ Maj Disconnected equipment_malfunction HwUnit=SCU

Maj ResourceAllocationFailure configuration_or_customizing_error EUtranCellFDD=21 Maj ResourceAllocationFailure configuration_or_customizing_error EUtranCellFDD=22 Maj ResourceAllocationFailure configuration_or_customizing_error EUtranCellFDD=23

Maj TU Synch Reference Loss of Signal loss_of_signal Subrack=1,Slot=1,PlugInUnit=1,TimingUnit=1,TuSyncRef=GPS Min Emergency Unlock of Software Licensing alarm_indication_signal Licensing=1

Min HwFault equipment_malfunction Subrack=1,Slot=1,PlugInUnit=1,RiPort=A Min HwFault equipment_malfunction Subrack=1,Slot=1,PlugInUnit=1,RiPort=D Min Loss of Synch Reference Redundancy replaceable_unit_problem Synchronization=1

Alarm Id : SubNetwork=ONRM_ROOT_MO_R,SubNetwork=TEST,MeContext=ENB02_4 Event Time : 2011. 3. 10 $ 9:51:13

Perceived Severity : Major

Check Alarm

Brief check of Alarm al

Detailed check of Alarm ala

Check Alarm by the hour alt

(13)

ENB03> lga

110328-16:46:20 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/2764 Please enter Node Password:

Startdate=19661031.231320, Enddate=20110329.074624

...Get /c/logfiles/alarm_event/ALARM_LOG.xml /home/Administrator/moshell_logfiles/logs_moshell/tempfiles/20110328-161024_2612/alarmLog2 764.xml ... OK

======================================================================================================= Timestamp (UTC) S Problem Cause MO-reference

======================================================================================================= 2011-03-28 01:53:03 AL m Loss of Synch Reference Redundancy replaceable_unit_problem Synchronization=1

2011-03-28 02:42:20 AL * Synch Reference Not Reliable clock_synchronisation_problem Synchronization=1 2011-03-28 02:42:20 AL * Loss of Synch Reference Redundancy replaceable_unit_problem Synchronization=1 2011-03-28 05:52:58 AL M ServiceUnavailable underlying_resource_unavailable EUtranCellFDD=31 2011-03-28 05:53:37 AL * ServiceUnavailable underlying_resource_unavailable EUtranCellFDD=31 2011-03-28 06:23:23 AL M TU Synch Reference Loss of Signal loss_of_signal

Subrack=1,Slot=1,PlugInUnit=1,TimingUnit=1,TuSyncRef=GPS

2011-03-28 06:23:47 AL M Synch Reference Not Reliable clock_synchronisation_problem Synchronization=1 2011-03-28 06:24:31 AL * Synch Reference Not Reliable clock_synchronisation_problem Synchronization=1 2011-03-28 06:27:18 AL M System Clock in Holdover Mode replaceable_unit_problem Synchronization=1

ENB03> lg

110328-16:56:25 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/464 ***************************************************************************************

lg[acdefghilmnopqrstuvwxyz] [-l <logdirectory|logfile|zipfile>] [-m <minustime>] [-p <plustime>] [-s <startdate>] [-e <enddate>] [-g <boardgroup >] [-n <nodefilter>] [|<unixcmds>]

*************************************************************************************** Fetching and processing of node logs

All options can be combined together, except options "d","w","x","f" which can only be combined with the options "r" and "c". Log Options:

************

- a: Alarm log (ALARM_LOG.xml). History of alarms raising and ceasing.

- x: Active alarms (ALARM_LOG.xml). Snapshot of alarms active on a specific date/time given in -m/-s option. - e: Event log (EVENT_LOG.xml). History of MO events.

- v: Availability log (CELLO_AVAILABILITY2_LOG.xml). History of node/board/program restarts. - s: System log (/c/logfiles/systemlog). History of node/board/program restarts.

- p: Post Mortem Dumps (/c/pmd) and LTE ENodeB error files (/c/logfiles/troubleshooting/error). History of board/program crashes. PMD files are saved permanently in moshell_logfiles/logs_moshell/pmdfiles/<nodeaddress>/pmd .

- u: Upgrade log (Trace.log and Trace.log_old). History of system upgrades. - d: Downtime log. History of node outages.

- o: MO command log (CORBA_AUDITTRAIL_LOG.xml). History of MO write commands (set/action/create/delete).

- q: MO command log in "trun" format (CORBA_AUDITTRAIL_LOG.xml). Useful for recovering configuration data which was not saved to CV before node

Check log

(14)

ENB03> get . tac 110329-15:36:22 10.0.0.164 8.0r ERBS_NODE_MODEL_B_1_40_COMPLETE stopfile=/tmp/3924 ========================================================================================================== ======= MO Attribute Value ========================================================================================================== =======

Security=1 targetMonitorPortActive true

EUtraNetwork=1,ExternalENodeBFunction=Samsung,ExternalEUtranCellFDD=4506-18-1 tac 4 EUtraNetwork=1,ExternalENodeBFunction=Samsung,ExternalEUtranCellFDD=4506-18-2 tac 4 EUtraNetwork=1,ExternalENodeBFunction=Samsung,ExternalEUtranCellFDD=Samsung tac 4 EUtraNetwork=1,ExternalENodeBFunction=NSN,ExternalEUtranCellFDD=NSN tac 52 EUtraNetwork=1,ExternalENodeBFunction=ENB02,ExternalEUtranCellFDD=4506-2-21 tac 4 EUtraNetwork=1,ExternalENodeBFunction=ENB02,ExternalEUtranCellFDD=4506-2-22 tac 4 EUtraNetwork=1,ExternalENodeBFunction=ENB02,ExternalEUtranCellFDD=ENB02 tac 4 EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=43 tac 4 EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=42 tac 4 EUtraNetwork=1,ExternalENodeBFunction=1,ExternalEUtranCellFDD=4506-4-41 tac 4

EUtranCellFDD=33 dlInterferenceManagementActive true EUtranCellFDD=33 tac 2

EUtranCellFDD=33 ulInterferenceManagementActive true EUtranCellFDD=32 dlInterferenceManagementActive true EUtranCellFDD=32 tac 2

EUtranCellFDD=32 ulInterferenceManagementActive true EUtranCellFDD=31 dlInterferenceManagementActive true EUtranCellFDD=31 tac 2

EUtranCellFDD=31 ulInterferenceManagementActive true

========================================================================================================== =======

Total: 14 Mos

ENB04> eset1 EUtranCellFDD tac 4

110303-09:38:35 10.0.0.165 8.0r ERBS_NODE_MODEL_B_1_30_COMPLETE stopfile=/tmp/2136 Set following 3 attributes?

============================================================================================================ 762 EUtranCellFDD=41 tac

784 EUtranCellFDD=43 tac 808 EUtranCellFDD=42 tac

============================================================================================================ Set 3 attributes. Are you Sure [y/n] ? y

============================================================================================================ =====

Id MO Attribute Value Result

============================================================================================================ =====

762 EUtranCellFDD=41 tac 3 >>> Set. 784 EUtranCellFDD=43 tac 3 >>> Set. 808 EUtranCellFDD=42 tac 3 >>> Set.

============================================================================================================ Total: 3 attributes attempted, 3 attributes set

Check Tac

(15)

ENB04> get . earfcn 110322-21:48:28 10.0.0.165 8.0r ERBS_NODE_MODEL_B_1_40 stopfile=/tmp/2744 ================================================================================================================= MO Attribute Value ================================================================================================================= EUtranCellFDD=41 earfcndl 2600 EUtranCellFDD=41 earfcnul 20600 EUtranCellFDD=43 earfcndl 2600 EUtranCellFDD=43 earfcnul 20600 EUtranCellFDD=42 earfcndl 2600 EUtranCellFDD=42 earfcnul 20600 ================================================================================================================= Total: 3 MOs

Check Center frequency

Check frequency allocation

information

LGU+ Center Frequency

889.0Mhz(DL) : 2600

844.0Mhz(UL) : 20600

set EUtranCellFDD earfcnul 21400

set EUtranCellFDD earfcndl 3400

LGU+ Center Freq

889.0Mhz(DL) : 2600

844.0Mhz(UL) : 20600

set EUtranCellFDD earfcnul 20600

set EUtranCellFDD earfcndl 2600

Attribute 1 of 8, earfcndl (long): 3400

Attribute 2 of 8, earfcnul (long): 21400

(16)

ENB02> get . band 110322-22:04:47 10.0.0.163 8.0r ERBS_NODE_MODEL_B_1_40 stopfile=/tmp/4500 ================================================================================================= MO Attribute Value ================================================================================================= Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=10MHz CapacityChannelBandwidthId 10MHz

Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=10MHz capacityUnitChannelBandwidth Number of 10000kHz licenses Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=10MHz keyIdChannelBandwidth CXC4010718

Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=10MHz licenseCapacityChannelBandwidth 1 Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=10MHz licenseStateChannelBandwidth 1 (ENABLED) Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=15MHz CapacityChannelBandwidthId 15MHz

Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=15MHz capacityUnitChannelBandwidth Number of 15000kHz licenses Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=15MHz keyIdChannelBandwidth CXC4010719

Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=15MHz licenseCapacityChannelBandwidth 1 Licensing=1,CapacityLicenses=1,CapacityChannelBandwidth=15MHz licenseStateChannelBandwidth 1 (ENABLED) Licensing=1,CapacityLicenses=1,UlBasebandCapacity=1 UlBasebandCapacityId 1 ENodeBFunction=1 dlTransNwBandwidth 1000 ENodeBFunction=1 ulTransNwBandwidth 1000 EUtraNetwork=1,ExternalENodeBFunction=4506-3,ExternalEUtranCellFDD=4506-3-31 dlChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-3,ExternalEUtranCellFDD=4506-3-31 ulChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-3,ExternalEUtranCellFDD=4506-3-32 dlChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-3,ExternalEUtranCellFDD=4506-3-32 ulChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-3,ExternalEUtranCellFDD=4506-3-33 dlChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-3,ExternalEUtranCellFDD=4506-3-33 ulChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-4,ExternalEUtranCellFDD=4506-4-41 dlChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-4,ExternalEUtranCellFDD=4506-4-41 ulChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-4,ExternalEUtranCellFDD=4506-4-42 dlChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-4,ExternalEUtranCellFDD=4506-4-42 ulChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-4,ExternalEUtranCellFDD=4506-4-43 dlChannelBandwidth 10000 EUtraNetwork=1,ExternalENodeBFunction=4506-4,ExternalEUtranCellFDD=4506-4-43 ulChannelBandwidth 10000 EUtranCellFDD=21 dlChannelBandwidth 10000 EUtranCellFDD=21 prsBandwidth 4 (N100) EUtranCellFDD=21 ulChannelBandwidth 10000 EUtranCellFDD=22 dlChannelBandwidth 10000 EUtranCellFDD=22 prsBandwidth 4 (N100) EUtranCellFDD=22 ulChannelBandwidth 10000 EUtranCellFDD=22,EUtranFreqRelation=3 allowedMeasBandwidth 6 Cdma2000Network=1,Cdma2000FreqBand=1 Cdma2000FreqBandId 1

Cdma2000Network=1,Cdma2000FreqBand=1 hrpdBandClass 4 (BAND_CLASS_4) EUtranCellFDD=23 dlChannelBandwidth 10000 EUtranCellFDD=23 prsBandwidth 4 (N100) EUtranCellFDD=23 ulChannelBandwidth 10000 AdmissionControl=1 dlTransNwBandwidth 1000 AdmissionControl=1 ulTransNwBandwidth 1000 SectorEquipmentFunction=S1 fqBand 0 SectorEquipmentFunction=S2 fqBand 5 SectorEquipmentFunction=S3 fqBand 5 ================================================================================================ Total: 24 MOs

Check frequency bandwidth

Use for frequency Bandwidth

check

Downlink to no. 21 Cell

downlink bandwidth is

10Mhz

Uplink to no. 21 Cell

bandwidth is 10Mhz

Bandwidth change

get . dlchannel

get . ulchannel

lst cell

bl 865

set EUtranCellFDD=31 dlChannelBandwidth 5000

set EUtranCellFDD=31 ulChannelBandwidth 5000

get . Channelband

lst cell

deb 865

get 865

(17)

ENB02> get . feature 110323-11:41:12 10.0.0.163 8.0r ERBS_NODE_MODEL_B_1_40 stopfile=/tmp/3220 ========================================================================================== MO Attribute Valu e ========================================================================================== Licensing=1,OptionalFeatures=1 OptionalFeaturesId 1

Licensing=1,OptionalFeatures=1,SharedNetworkSupport=1 featureStateSharedNetworkSupport 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,Dl64Qam=1 featureStateDl64Qam 1 (ACTIVATED)

Licensing=1,OptionalFeatures=1,MixedMode=1 featureStateMixedMode 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,IntraLTEHandover=1 featureStateIntraLTEHandover 1 (ACTIVATED)

Licensing=1,OptionalFeatures=1,CsfbForLimitedDualRadioUE=1 featureStateCsfbForLimitedDualRadioUE 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,AirIfLoadGenerator=1 featureStateAilg 0 (DEACTIVATED)

Licensing=1,OptionalFeatures=1,RetSupport=1 featureStateRetSupport 0 (DEACTIVATED)

Licensing=1,OptionalFeatures=1,Anr=1 featureStateAnr 0 (DEACTIVATED)

Licensing=1,OptionalFeatures=1,Aisgv2FwDownload=1 featureStateAisgv2FwDownload 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,InterFrequencyLTEHandover=1 featureStateInterFrequencyLTEHandover 1 (ACTIVATED) Licensing=1,OptionalFeatures=1,Irc=1 featureStateIrc 0 (DEACTIVATED)

Licensing=1,OptionalFeatures=1,MultiErabsPerUser=1 featureStateMultiErabsPerUser 1 (ACTIVATED)

Licensing=1,OptionalFeatures=1,WcdmaSessionContinuity=1 featureStateWcdmaSessionContinuity 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,RbsEventStreamer=1 featureStateEventStreaming 0 (DEACTIVATED)

Licensing=1,OptionalFeatures=1,OtdoaSupl=1 featureStateOtdoaSupl 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,RlcUm=1 featureStateRlcUm 1 (ACTIVATED)

Licensing=1,OptionalFeatures=1,PmInitiatedUeMeasurements=1 featureStatePmInitiatedUeMeasurements 1 (ACTIVATED) Licensing=1,OptionalFeatures=1,TimeAndPhaseSynchWithGPS=1 featureStateTimeAndPhaseSynchWithGPS 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,AgpsSupl=1 featureStateAgpsSupl 0 (DEACTIVATED)

Licensing=1,OptionalFeatures=1,InterFrequencySessionContinuity=1 featureStateInterFrequencySessionContinuity 1 (ACTIVATED)

Licensing=1,OptionalFeatures=1,UePosCellId=1 featureStateCellId 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,RetCascading=1 featureStateRetCascading 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,VswrSupervision=1 featureStateVswrSupervision 0 (DEACTIVATED)

Licensing=1,OptionalFeatures=1,DualAntDlPerfPkg=1 featureStateDualAntDlPerfPkg 1 (ACTIVATED)

Licensing=1,OptionalFeatures=1,IntraLTEHODataFwd=1 featureStateIntraLTEHODataFwd 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,GsmSessionContinuity=1 featureStateGsmSessionContinuity 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,TmaSupport=1 featureStateTmaSupport 0 (DEACTIVATED)

Licensing=1,OptionalFeatures=1,Cdma2000SessionContinuity=1 featureStateCdma2000SessionContinuity 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,RetConfigurationMgt=1 featureStateRetConfigurationMgt 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,MaximumCellRange=1 featureStateMaximumCellRange 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,QosAwareScheduler=1 featureStateQosAwareScheduler 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,CsfbToGsmWcdma=1 featureStateCsfbToGsmWcdma 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,Drx=1 featureStateDrx 0 (DEACTIVATED)

Licensing=1,OptionalFeatures=1,EcsCsfb=1 featureStateEcsCsfb 0 (DEACTIVATED) Licensing=1,OptionalFeatures=1,Ul16Qam=1 featureStateUl16Qam 1 (ACTIVATED) IpSec=1 featureState 0 (DEACTIVATED)

========================================================================================= Total: 37 MOs

Check Feature (Major functions)

Status check command to see if Feature(major functions) are

ACTIVATED or DEACTIVATED

For example) Certain function

(ANR : Auto Neighbor

relation) is DEACTIVATED,

thus will not work.

When the function is

DEACTIVATED, it is impossible to

have MIMO configuration.

When the function is

DEACTIVATED, SIB5 doesn’t go

down.

(18)

ENB02> inv

================================================================================================================= Feature keyId licenseState featureState serviceState description

================================================================================================================= AgpsSupl=1 CXC4010963 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE)

AirIfLoadGenerator=1 CXC4010955 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE) Aisgv2FwDownload=1 CXC4011036 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE)

Anr=1 CXC4010620 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE) Automated Neighbour Relations

Cdma2000SessionContinuity=1 CXC4010614 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE) CDMA2000 Session continuity, coverage triggered CsfbForLimitedDualRadioUE=1 CXC4010949 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE)

CsfbToGsmWcdma=1 CXC4010956 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE)

Dl64Qam=1 CXC4010610 1 (ENABLED) 1 (ACTIVATED) 1 (OPERABLE) 64-QAM DL Drx=1 CXC4010912 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE)

DualAntDlPerfPkg=1 CXC4010609 1 (ENABLED) 1 (ACTIVATED) 1 (OPERABLE) Dual Antenna DL Performance Package EcsCsfb=1 CXC4011034 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE)

GsmSessionContinuity=1 CXC4010618 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE) GERAN Session continuity, coverage triggered SharedNetworkSupport=1 CXC4010960 0 (DISABLED) 0 (DEACTIVATED) 0 (INOPERABLE)

TimeAndPhaseSynchWithGPS=1 CXC4010917 0 (DISABLED) 0 (DEACTIVATED) 0 (INOPERABLE)

TmaSupport=1 CXC4010621 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE) TMA Support UePosCellId=1 CXC4010841 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE)

Ul16Qam=1 CXC4010611 1 (ENABLED) 1 (ACTIVATED) 1 (OPERABLE) 16-QAM UL VswrSupervision=1 CXC4010799 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE) VSWR

WcdmaSessionContinuity=1 CXC4010616 1 (ENABLED) 0 (DEACTIVATED) 0 (INOPERABLE) WCDMA Session continuity, coverage triggered

=============================================================================================================== =============================================================================================================== Capacity keyId licenseState licenseCapacity capacityUnit hardLimit percentileConf

=============================================================================================================== ChannelBandwidth=10MHz CXC4010718 1 (ENABLED) 1 Nr of 10000kHz licenses

ChannelBandwidth=15MHz CXC4010719 1 (ENABLED) 1 Nr of 15000kHz licenses ChannelBandwidth=1p4Mhz CXC4010721 0 (DISABLED) 0 Nr of 1400kHz licenses ChannelBandwidth=20MHz CXC4010720 1 (ENABLED) 1 Nr of 20000kHz licenses ChannelBandwidth=3MHz CXC4010722 0 (DISABLED) 0 Nr of 3000kHz licenses ChannelBandwidth=5MHz CXC4010627 1 (ENABLED) 1 Nr of 5000kHz licenses

ConnectedUsers=1 CXC4010608 1 (ENABLED) 500 Nr of Connected Users 200 90 DlBasebandCapacity=1 CXC4010623 1 (ENABLED) 173 Mbit/s 65535 90 DlPrbCapacity=1 CXC4011039 1 (ENABLED) 65535 Nr of PRBs 65535 90 OutputPower=40Watt CXC4010625 1 (ENABLED) 6 Nr of 40 Watt Licenses

OutputPower=60Watt CXC4010626 1 (ENABLED) 6 Nr of 60 Watt Licenses

UlBasebandCapacity=1 CXC4010624 1 (ENABLED) 56 Mbit/s 65535 90 UlPrbCapacity=1 CXC4011040 1 (ENABLED) 65535 Nr of PRBs 65535 90

================================================================================================================

Check license State

(19)

ENB02> get sync 110310-13:28:36 10.0.0.163 8.0r ERBS_NODE_MODEL_B_1_30_COMPLETE stopfile=/tmp/2388 ================================================================================================================= 39 SystemFunctions=1,Licensing=1,OptionalFeatures=1,TimeAndPhaseSynchWithGPS=1 ================================================================================================================= TimeAndPhaseSynchWithGPSId 1 featureStateTimeAndPhaseSynchWithGPS 0 (DEACTIVATED) keyIdTimeAndPhaseSynchWithGPS CXC4010917 licenseStateTimeAndPhaseSynchWithGPS 0 (DISABLED) serviceStateTimeAndPhaseSynchWithGPS 0 (INOPERABLE) ================================================================================================================= 60 TransportNetwork=1,Synchronization=1 ================================================================================================================= SynchronizationId 1 degradationIsFault 0 (DEGR_NOT_FAULT) nodeSystemClock 2 (LOCKED_MODE) syncRefActivity i[8] = 1 2 1 1 1 1 1 1 syncRefPriority i[8] = 1 2 0 0 0 0 0 0 syncRefStatus i[8] = 0 3 0 0 0 0 0 0 syncReference [8] = >>> syncReference = Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,TimingUnit=1,TuSyncRef=GPS >>> syncReference = IpSystem=1,IpAccessHostEt=1,IpSyncRef=1 >>> syncReference = >>> syncReference = >>> syncReference = >>> syncReference = >>> syncReference = >>> syncReference = userLabel ================================================================================================================= 114 Equipment=1,Subrack=1,Slot=1,PlugInUnit=1,TimingUnit=1,TuSyncRef=GPS ================================================================================================================= TuSyncRefId GPS administrativeState 1 (UNLOCKED) availabilityStatus 2 (FAILED) operationalState 0 (DISABLED) reservedBy [1] = >>> reservedBy = TransportNetwork=1,Synchronization=1 userLabel ================================================================================================================= 960 IpSystem=1,IpAccessHostEt=1,IpSyncRef=1 ================================================================================================================= IpSyncRefId 1 administrativeState 1 (UNLOCKED) availabilityStatus 0 (NO_STATUS) cachedIpAddress ntpServerIpAddress 172.30.108.217 operationalState 1 (ENABLED) reservedBy [1] = >>> reservedBy = TransportNetwork=1,Synchronization=1 syncStatus 2 (OK) userLabel ================================================================================================================= Total: 4 MOs

값

상태

0 UNKNOWN_MODE

1 STARTUP_MODE

2 LOCKED_MODE

3 HOLD_OVER_MODE

4 FREE_RUNNING_MODE

5 FAILED_MODE

6 LOSS_OF_TRACKING_MODE

7 NOT_APPLICABLE

Check Clock status

Set Priority

값

상태

0 FAILED

1 DEGRADED

2 LOSS_OF_TRACKING

3 OK

4 REF_PATH_FAILED_A

5 REF_PATH_FAILED_B

6 NOT_RELIABLE

7 LOW_QUALITY

3 Normal Lock status

ACTIVE : 2, INACTIVE : 1

값 상태 0 NO_STATUS 1 IN_TEST 2 FAILED 4 POWER_OFF 8 OFF_LINE 16 OFF_DUTY 64 DEGRADED 128 NOT_INSTALLED 256 LOG_FULL 544 DEPENDENCY_LOCKED 1056 DEPENDENCY_FAILED 2080 DEPENDENCY_SHUTTINGDOWN

Free Running→ Loss of tracking

LOCK → Hold over →

(20)

Check Sync data

0 UNKNOWN_MODE

1 STARTUP_MODE

The system clock is starting up.

2 LOCKED_MODE

The system clock signal on the Timing Unit is locked: a synchronization reference is used to generate the system clock, the clock accuracy is 50 ppb or better.

3 HOLD_OVER_MODE

The system clock signal on the Timing Unit has holdover quality: no synchronization reference is used to generate the system clock, the clock accuracy is 50 ppb or better.

4 FREE_RUNNING_MODE

The system clock signal on the Timing Unit is free-running: no

synchronization reference is used to generate the system clock, the clock accuracy is 4.6 ppm or better.

5 FAILED_MODE

The system clock signal on the Timing Unit is failed: there is fault in generating the system clock, no guarantee of clock accuracy level.

6 LOSS_OF_TRACKING_MODE

The frequency of the system clock is at its upper or lower limit.

7 NOT_APPLICABLE

The system clock signal on Timing Unit is not applicable: the TUB or the CBU is not present.

0 FAILED

Synchronization reference cannot perform its required tasks.

1 DEGRADED

Capability of the synchronization reference to perform its required tasks is degraded, for example, because of high bit error rate. This value is applicable only for synchronization references that carry traffic, that is, for ETphysical path terminations.

2 LOSS_OF_TRACKING

The algorithm for system clock regulation cannot follow the synchronization reference signal either because of the poor quality of the signal or because of a HW fault.

3 OK

Synchronization reference is capable of performing its required tasks.

4 REF_PATH_FAILED_A

Synchronization reference cannot be distributed on plane A.

5 REF_PATH_FAILED_B

Synchronization reference cannot be distributed on plane B.

6 NOT_RELIABLE

No NTPpackets are received from the server. This value is only used for IP

synchronization references.

7 LOW_QUALITY

The time stamp packets received from the NTPserver are not reliable and the synchronization algorithm cannot lock to IPreference. This value is only used for IPsynchronization references.

0 NO_STATUS

No other availability status f or this resource is currently present. 1 IN_TEST

The resource is undergoing a test procedure. Tests that do not exclude additional users can be present in any operational sta te or administrative state. 2 FAILED

The resource has an internal f ault that prevents it f rom operating. The operational state is disabled. 4 POWER_OFF

The resource requires power to be applied and is not powered on. The operational state is disabled. 8 OFF_LINE

The resource requires a routine operation to be perf ormed to place it online and make it available f or use. The operation may be manual, automatic, or both. The operational state is disabled or enabled.

16 OFF_DUTY

The resource has been made inactive by some internal control process in accordance with a predetermined time schedule. Under normal conditions the control process can be expected to reactivate the resource at some scheduled time, and it is theref ore considered to be optional. The operati onal state is enabled or disabled.

64 DEGRADED

The service available f rom the resource is degraded in some respect, such as in speed or operating capacity. However, the res ource remains available f or service, either because some services are satisf actory or because degraded service is pref erable to no service at all. The operational state is enabled.

128 NOT_INSTALLED

The resource represented by the managed object is not present, or is incomplete. For example, a plug -in unit is missing, a cable is disconnected, or a sof tware module is not loaded. The operational state is disabled.

256 LOG_FULL

This indicates a log f ull condition. Currently not used. 544 DEPENDENCY_LOCKED

The administrative state of a resource that this resource depends on is locked or the availability status of the other resour ce is dependency locked. The operational state is disabled.

1056 DEPENDENCY_FAILED

The availability status of a resource that this resource depends on is f ailed or dependency f ailed. The operational state is disabled. 2080 DEPENDENCY_SHUTTINGDOWN

The administrative state of a resource that this resource depends on is shutting down or the availability status of the other resource is dependency shutting down. The operational state is disabled.

(21)

ENB02>

get . ntp

110323-19:34:48 169.254.1.10 8.0r ERBS_NODE_MODEL_B_1_40 stopfile=/tmp/884

============================================================================================= MO Attribute Value

============================================================================================= ManagedElementData=1 ntpBurstFlagPrimary true

ManagedElementData=1 ntpBurstFlagSecondary false ManagedElementData=1 ntpBurstFlagThird false ManagedElementData=1 ntpMaxPollPrimary 1024 ManagedElementData=1 ntpMaxPollSecondary 1024 ManagedElementData=1 ntpMaxPollThird 1024 ManagedElementData=1 ntpMinPollPrimary 16 ManagedElementData=1 ntpMinPollSecondary 64 ManagedElementData=1 ntpMinPollThird 64 ManagedElementData=1 ntpServerAddressPrimary 10.0.0.19 ManagedElementData=1 ntpServerAddressSecondary 0.0.0.0 ManagedElementData=1 ntpServerAddressThird 0.0.0.0 ManagedElementData=1 ntpServiceActivePrimary true ManagedElementData=1 ntpServiceActiveSecondary false ManagedElementData=1 ntpServiceActiveThird false IpAccessHostEt=1 ntpDscp 46

IpAccessHostEt=1 ntpServerMode 0 (DISABLED) IpAccessHostEt=1,IpSyncRef=1 ntpServerIpAddress 172.30.108.217 EUtranCellFDD=21,UeMeasControl=1 measurementPriority 0 (ANR_PRIO) EUtranCellFDD=21,UeMeasControl=1,ReportConfigEUtraIntraFreqPm=1 reportAmountPm 0 EUtranCellFDD=22,UeMeasControl=1 measurementPriority 0 (ANR_PRIO) EUtranCellFDD=23,UeMeasControl=1 measurementPriority 1 (PM_PRIO) EUtranCellFDD=23,UeMeasControl=1,ReportConfigEUtraIntraFreqPm=1 reportAmountPm 0

============================================================================================== Total: 8 MOs
