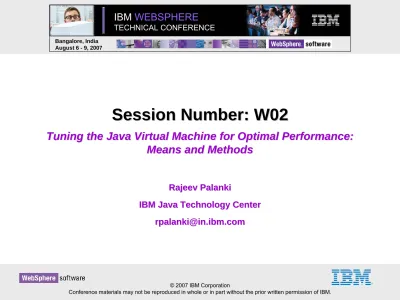

Bangalore, India August 6 - 9, 2007

IBM

WEBSPHERE

TECHNICAL CONFERENCE

Session Number: W02

Tuning the Java Virtual Machine for Optimal Performance:

Means and Methods

Rajeev

Palanki

IBM Java Technology Center

[email protected]

(2)

2007 WebSphere Technical Conference (Bangalore, India)

Objectives

• Have an insight into key aspects of JVM Runtime Performance and

understanding of the means and methods to tune the JVM for optimal

performance.

• At the end of this session you should have:

High level overview of the Java Virtual Machine (JVM) and its key components.

Understanding of different Garbage Collection schemas in the Sovereign & J9 Virtual Machines and

their impact on JVM Runtime performance.

Knowledge about using verbosegc outputs effectively to improve application response times.

Introduction to Shared Classes Technology and performance gains.

(3)

Agenda

• Overview of the Java Virtual Machine and its key components

• Garbage Collection Basics (Sovereign VM – 142 JDK)

• Profiling Garbage Collection: Verbosegc Outputs

• Garbage Collection Policies in Java 5.0

• Debugging and Analysis tools for Garbage Collection

• Introduction to Shared Classes Technology

• Real Time Java – A brief overview

(4)

IBM Java Building Blocks

Java SDK

Virtual Machine

Class Libraries

JIT

(5)

IBM Java Building Blocks

Java SDK

Virtual Machine

Class Libraries

_JIT

ORB

XML

Security

Big decimal

RAS

(6)

The Java Application Stack

Java Code

Platform

Native

libraries

Java Class Libraries

ORB

Java Class Extensions

Native Code

Execution Management (XM)

Core Interface (CI)

Diagnostics

Execution

_Engine

_Classloader

Lock

Data

Conversion

Storage

(7)

Building Blocks

The JDK is a key component in the Application Server Stack from a performance perspective

Operating system

–

Vendor specific operating environment

–

Specific hardware architecture (instruction set)

Java SDK

Virtual Machine

Class Libraries

JIT

Application

–

“Write Once Run Anywhere”

–

Class Libraries

– Collection of well-defined code packages that assist developers’ creation of business applications (3 specifications)

–

Just-in-Time Compiler

– Code generator that converts bytecodes into machine language instructions at run time.

–

Virtual Machine

– Platform independent execution environment that abstracts operating system specifics from the developer/user.

(8)

IBM Java 5.0

• IBM have totally rewritten and redesigned our VM for Java 5.0 – You may have

heard this referred as J9

New Virtual Machine implementation (J9)

New Garbage Collection Mechanism (Modron)

New Just In Time Compiler (Testarossa)

Shared Classes technology

• Just In Time Compiler (Testarossa)

Multiple optimization levels

Recompilation driven by sampling thread

Dynamic Profile Information Collection

Profiling thread helps determine “hotness” of methods

Asynchronous compilation

• Garbage Collection (Modron)

Uses a “type accurate” collector

Introduces parallel compactor

(9)

Garbage Collection Overview

¾

Garbage Collection (GC)

The main cause of memory–related performance bottlenecks in Java.

¾

Two things to look at in GC: frequency and duration

Frequency depends on the heap size and allocation rate

Duration

depends on the heap size and number of objects in the heap

¾

GC algorithm

Critical to understand how it works so that tuning is done more intelligently

.

¾

How do you eliminate GC bottlenecks?

Minimize the use of objects by following good programming practices

(10)

The (IBM) JVM Garbage Collector

• “The purpose of Garbage Collection is to identify Java Heap storage which is no

longer being used by the Java application and so is available for reuse by the

JVM”

• Key questions:

• Performance and Scalability: How quickly can you find garbage?

• Accuracy:

Can you find all the garbage?

(11)

Garbage

Collection

:

_:

IBM Technology

• Concurrent mark

Most of the marking phase is done outside of ‘Stop the World’ when the ‘mutator’ threads are

still active giving a significant improvement in pause time.

• Parallelizing the garbage Collection phases

The Mark and sweep workload is distributed across available processors resulting in a

significant improvement in pause times

• Adaptive sizing of thread local heaps

Reduces the amount of Java Heap locking

• Incremental compaction

The expense of compaction is distributed across GCs leading to a reduction in (an occasional)

long pause time

.

• Java 5 technologies

(12)

The JVM Heaps

Size Next Size Next

freelist

Null

free storage free storage

Native Heap

Java Heap

‘

Thread Stacks

Buffers

JIT Compiled Code

Motif structures

Free List

(13)

Allocation schemes

• Two types of allocation

–

Cache Allocation

(for object allocations < 512 bytes), does not require Heap

Lock. Each thread has local storage in the heap (TLH – Thread Local Heap)

where the objects are allocated.

–

Heap Lock Allocation

(Heap Allocation occurs when the allocation request is

more than 512 bytes, requires Heap Lock.

If size is less than 512 or enough space in the cache

try cacheAlloc

return if OK

HEAP_LOCK

do forever

If there is a big enough chunk on freelist

Take it

goto Gotit

else

manageAllocFailure

If any error

goto GetOut

End do

Gotit:

Initialize object

Get out

Heap_UNLOCK

(14)

Large Object Allocation

• All objects => 64K are termed “large” from the VM

perspective

• In practice, objects of 10MB+ in size are usually

considered large

• The Large Object Area is 5% of the active heap by

default.

• Any object is first tried to be allocated in the free list of

the main heap – if there is not enough “contiguous”

space in the main heap to satisfy the allocation request

for object => 64K, then it is allocated in the Large

Object Area (wilderness)

• Objects < 64K can only be allocated in the main heap

and never in the Large Object Area

Active heap

LOA

Xmx

Users can identify the Java stack of a thread making an allocation request of larger than the value specified with the environment variable ALLOCATION_THRESHOLD

export ALLOCATION_THRESHOLD =5400

This will give java stacks for object allocations of created than 5400 bytes

.

Users can specify the desired % of the Large Object Area using the Xloration option (where n determines the

fraction of heap designated for LOA.

(15)

Sub pools

• Subpools provide an improved policy of object allocation and is available

from JDK 1.4.1 releases only on AIX.

–

Improved time for allocating objects

–

Avoid premature GCs due to allocation of large objects

–

Improve MP scalability by reducing time under HEAP_LOCK

–

Optimize TLH sizes and storage utilization

• The subpool algorithm uses multiple free lists rather than the single free list

used by the default allocation scheme.

• It tries to predict the size of future allocation requests based on earlier

allocation requests. It recreates free lists at the end of each GC based on

these predictions.

• While allocating objects on the heap, free chunks are chosen using a ″best

fit″ method, as against the ″first fit″ method used in other algorithms.

• It is enabled by the –Xgcpolicy:subpool option.

(16)

Garbage Collection Basics (142 JVM)

• Garbage Collection is performed when there is:

¾

An allocation failure in the heap lock allocation

¾

Specific call to System.gc

• Garbage Collection is Stop the World (All other application threads are suspended during

GC)

• Two main technologies used to remove garbage:

¾

Mark Sweep Collector

¾

Copy Collector

GC occurs in the thread that handled the request

¾

Requested object allocation that caused allocation failure

¾

Programmatically requested GC

• Thread must acquire certain locks required for GC

¾

Heap Lock

¾

Thread queue lock

(17)

Object reclamation process for a Mark Sweep Collector

Obtain locks and suspend threads

Mark phase

Process of identifying all objects reachable from the root set.

All “live” objects are marked by setting a mark bit in the mark bit vector.

Sweep phase

¾

Sweep phase identifies all the objects that have been allocated, but no longer

referenced

.

Compaction (optional)

¾

Once garbage has been removed, we consider compacting the resulting set of

objects to remove spaces between them.

(18)

Mark

–

Sweep

–

Compact Algorithm

Root Set

Heap reachable object unreachable object

(19)

Together we achieve: Some parallel processing

• GC Helper threads

On a multiprocessor system with N CPUs, a JVM supporting parallel mode starts N-1

garbage collection helper threads at the time of initialization.

These threads remain idle at all times when the application code is running; they are

called into play only when garbage collection is active.

For a particular phase, work is divided between the thread driving the garbage

collection and the helper threads, making a total of N threads running in parallel on

an N-CPU machine.

The only way to disable the parallel mode is to use the -Xgcthreads parameter to

change the number of garbage collection helper threads being started

.

• Parallel Mark

The basic idea is to augment object marking through the addition of helper threads

and a facility for sharing work between them.

• Parallel BitWise Sweep

Similar to parallel mark, uses same helper threads as parallel mark

(20)

Concurrent Marking

Designed to give reduced and consistent GC pause times as heap sizes

increases.

Concurrent aims to complete the marking just before the before the heap is

full.

In the concurrent phase, the Garbage Collector scans the roots by asking each

thread to scan its own stack. These roots are then used to trace live objects

concurrently.

Tracing is done by a low-priority background thread and by each application

thread when it does a heap lock allocation.

(21)

Incremental Compaction

• Incremental compaction removes the dark matter from the heap and reduces pause times

significantly

• The fundamental idea behind incremental compaction is to split the heap up into sections and

compact each section just as during a full compaction.

• Incremental compaction was introduced in JDK 1.4.0; is enabled by default and triggered under

particular conditions. (Called Reasons)

• -Xpartialcompactgc

Option to invoke incremental compaction in every GC cycle.

• -Xnopartialcompactgc

Option to disable incremental compcation.

• -Xnocompactgc

Option to disable full compcation

The heap is divided into regions

The regions are further divided into sections

Each section is handled by one helper thread

A region is divided into

(number of helper threads +1) or

8 sections (whichever is less)

(22)

Explicit Garbage Collection

Garbage collector is called only upon two conditions:

When an allocation failure occurs

GC explicitly called using System.gc

Don’t call System.gc() at all. It hurts more often than it helps. GC

knows when it should run

The temptation to scatter System.gc() calls here, there, and

everywhere is enormous. It does not make a good idea.

TRUST ME !!!!!

(23)

Profiling Garbage Collection:

Verbosegc

output

The most indispensable tool for profiling GC activity is

Verbosegc – from JVM runtime.

Enabled using –verbosegc on the java command line.

Verbosegc redirection

-Xverbosegclog: <path to file> filename

Verbosegc redirection to multiple files

-Xverbosegclog:<path to file>filename#,X,Y

(24)

Understanding a typical

verbosegc

output

<AF[71]:

Allocation Failure

. need 65552 bytes,

3 ms since last AF>

<AF[71]: managing allocation failure,

action=2

(

142696/10484224

)>

<GC(71): GC cycle started Fri Mar 19 17:59:06 2004

<GC(71): freed 94184 bytes, 2% free (

236880/10484224

), in 12 ms>

<GC(71): mark: 5 ms, sweep: 0 ms, compact: 7 ms>

<GC(71): refs:

soft 0

(age >= 32), weak 0, final 0, phantom 0>

<GC(71):

moved 3095 objects

, 188552 bytes, reason=1>

<AF[71]: managing allocation failure, action=3 (236880/10484224)>

<AF[71]: managing allocation failure, action=4 (236880/10484224)>

<AF[71]: managing allocation failure, action=6 (236880/10484224)>

JVMDG217: Dump Handler is Processing a Signal - Please Wait.

JVMDG315: JVM Requesting Heap dump file

JVMDG318: Heap dump file written to

/workarea/rajeev/gctests/heapdump.20040319.175906.8467.txt

JVMDG303: JVM Requesting Java core file

JVMDG304: Java core file written to

/workarea/rajeev/gctests/javacore.20040319.175906.8467.txt

JVMDG274: Dump Handler has Processed OutOfMemory.

<AF[71]:

insufficient heap space to satisfy allocation request

>

<AF[71]: completed in

203 ms

>

(25)

When are GC messages printed out?

• The first two lines are put out just before the beginning of STW phase of GC.

• Rest of messages are printed out after the STW phase ends and threads are

woken up. No messages are printed during GC.

• Heap shrinkage messages are printed before STW messages, but shrinkage

happens AFTER STW phase!

• Heap expansion messages are correctly printed AFTER STW messages.

(26)

Things to look for in a

verbosegc

output

• Was it an Allocation Failure GC?

• What was the size of allocation request that caused AF?

• What were the total and free heap sizes before GC?

• What was the total pause time?

• Where was maximum time spent in GC?

• Are we doing a compaction in each GC cycle?

• What actions were taken by GC?

• Was GC able to meet allocation request in the end?

(27)

GC actions (JDK 142)

• Look for lines of this type:

managing allocation failure, action=<n>

Where <n> is the numerical value of action taken.

Actions:

0 -> GC because of exhaustion of pinned free list.

1 -> Perform garbage collection without using

wilderness

2 -> Garbage Collector tried to allocate out of wilderness and

failed.

3 -> Expand the Java heap

4 -> Clear soft references

(28)

Using

verbosegc

to set the heap size

• Use verbosegc to guess ideal size of heap, and then tune using –Xmx and –Xms.

• Setting –Xms:

Should be big enough to avoid AFs from the time the application starts to the time it

becomes ‘ready’. (Should not be any bigger!)

• Setting –Xmx:

In the normal load condition, free heap space after each GC should be > minf (Default

is 30%).

There should not be any OutOfMemory errors.

In heaviest load condition, if free heap space after each GC is > maxf (Default is 70%),

heap size is too big.

(29)

Example of

verbosegc

when heap is too small

GC is too frequent

<AF[25]: Allocation Failure. need 65552 bytes,

1 ms since last AF>

<AF[25]: managing allocation failure, action=2 (319456/

10484224

)>

<GC(25): GC cycle started Sat Mar 20 15:32:50 2004

<GC(25): freed 3968 bytes, 3% free (323424/10484224), in 11 ms>

<GC(25): mark: 5 ms, sweep: 0 ms, compact: 6 ms>

<GC(25): refs: soft 0 (age >= 32), weak 0, final 0, phantom 0>

<GC(25): moved 214 objects, 9352 bytes, reason=1>

<AF[25]: managing allocation failure, action=3 (323424/10484224)>

<AF[25]: managing allocation failure, action=4 (323424/10484224)>

<AF[25]: managing allocation failure, action=6 (323424/10484224)>

<AF[25]: warning! free memory getting short(1). (323424/10484224)>

<AF[25]: completed in 13 ms>

(30)

Example of

verbosegc

when heap is too big

GC is too long

<AF[29]: Allocation Failure. need 2321688 bytes,

88925

ms since last AF>

<AF[29]: managing allocation failure, action=1 (

3235443800/20968372736

)

(3145728/3145728)>

<GC(29): GC cycle started Mon Nov 4 14:46:20 2002

<GC(29): freed 8838057824 bytes, 57% free (12076647352/20971518464), in

4749 ms>

<GC(29): mark: 4240 ms, sweep: 509 ms, compact: 0 ms>

<GC(29): refs: soft 0 (age >= 32), weak 0, final 1, phantom 0>

<AF[29]: completed in

4763

ms>

(31)

Effect of wrong

–

Xms

&

-

Xmx

settings

Too small heap = Too frequent GC.

Too big heap = Too much GC pause time. (Irrespective of amount of physical memory on the

system)

Heap size > physical memory size = paging/swapping = bad for your application.

It is desirable to have the Xms much less than Xmx if you are encountering fragmentation issues.

This forces class allocations, thread and persistent objects to be allocated at the bottom of the

heap.

What about Xms=Xmx?

It means no heap expansion or shrinkage will ever occur.

Not normally recommended.

It may be good for a few apps which require constant high heap storage space.

Hurts apps which show a varying load.

(32)

Mark Stack Overflow (MSO)

• Verbosegc will contain the line:

<GC(45): mark stack overflow>

• Is bad for performance.

• Caused by too many objects on the heap, especially deeply nested objects.

• Processing MSOs is expensive

• No solution is a silver bullet. Things to try:

¾

Decrease the heap size!

¾

Use concurrent mark (-Xgcpolicy:optavgpause)

¾

Re-design the application.

(33)

High pause times and system activity

In the event of pause times being usually acceptable with the exception of a few

"abnormally high"

spikes - we are likely to infer that the deviation was a result of

some system level activity (heavy paging for ex) outside of the Java process.

Consideration:

How many clock ticks our process actually spent executing

instructions, not time spent waiting for I/O or time spent waiting for a CPU to

become available for the process to run on?

(34)

Headline Changes in Java 5.0 Garbage Collector

Java Tiger: JSE 5.0

¾

5.0 uses a completely new memory management framework

¾

No pinned/dosed objects

Stack Maps used to provide a level of indirection between references and heap

5.0 VM never pins arrays, it always makes a copy for the JNI code

¾

The GC is Type Accurate

¾

New efficient parallel compactor

(35)

Garbage collection policies in IBM Java 5.0

• Four policies available:

Optthruput (default)

¾

Mark-sweep algorithm

¾

Fastest for many workloads

optavgpause

¾

Concurrent collection and concurrent sweep

¾

Small mean pause

¾

Throughput impact

gencon

¾

The Generational Hypothesis

¾

Fastest for transactional workloads

¾

Combines low pause times and high throughput

subpools

¾

Mark-sweep based, but with multiple freelists

¾

Avoids allocation contention on many-processor machines

(36)

Why different GC Policies?

• Availability of different GC policies gives you increased capabilities.

• Best choice depends upon application behaviour and workloads.

• Think about throughput, response times & pause times.

Throughput

is the amount of

data processed by the

application

Pause time

is the amount

of time the garbage

collector has stopped

threads while collecting the

heap.

Response time

is the latency

of the application – how

quickly it answers incoming

requests

Policy

Option

( -Xgcpolicy )

Description

Optimize for

throughput

Optthruput

(Default)

It is typically used for applications where

raw throughput is more important than

short GC pauses. The application is

stopped each time that garbage is

collected.

Optimize for

pause times

Optavgpause

Trades high throughput for shorter GC

pauses by performing some of the

garbage collection concurrently. The

application is paused for shorter times.

Generational

Concurrent

gencon

Handles short lived objects differently than

the longer lived.

Supool

subpool

Uses same algorithm similar to the default

policy but employs allocation strategy

suitable for SMPs.

(37)

Runtime Performance Tuning

What policy should I choose for my J9 VM

Policy

Considerations

optthruput

I want my application to run to completion as quickly as possible.

optavgpause

• My application requires good response times to unpredictable events.

• A degradation in performance is acceptable as long as GC pause times are reduced.

• My application is running very large java heaps.

• My application is a GUI application and user response times are important.

gencon

• My application allocates many short lived objects

• The java heap space is fragmented

(38)

Memory Management / Garbage Collection

How the IBM J9 Generational Garbage Collector Works

JVM Heap

Nursery/Young Generation

Old Generation

Permanent Space

Sun JVM Only:

-XX:MaxPermSize=nn

IBM J9:

-Xmn (-Xmns/-Xmnx)

Sun:

-XX:NewSize=nn

-XX:MaxNewSize=nn

-Xmn<size>

IBM J9:

-Xmo (-Xmos/-Xmox)

Sun:

-XX:NewRatio=n

• Minor Collection – takes place only in the young generation, normally

done through direct copying Æ very efficient

• Major Collection – takes place in the new and old generation and uses

the normal mark/sweep (+compact) algorithm

(39)

Nursery/Young Generation

Allocate Space

Survivor Space

Allocate Space

• Nursery is split into two spaces (semi-spaces)

Only one contains live objects and is available for allocation

Minor collections (Scavenges) move objects between spaces

Role of spaces is reversed

(40)

Sample

verbosegc

output for

gencon

<af type="nursery" id="35" timestamp="Thu Aug 11 21:47:11 2005" intervalms="10730.361"> <minimum requested_bytes="144" />

<time exclusiveaccessms="1.193" />

<nursery freebytes="0" totalbytes="1226833920" percent="0" />

<tenured freebytes="68687704" totalbytes="209715200" percent="32" > <soa freebytes="58201944" totalbytes="199229440" percent="29" /> <loa freebytes="10485760" totalbytes="10485760" percent="100" /> </tenured>

<gc type="scavenger" id="35" totalid="35" intervalms="10731.054"> <flipped objectcount="1059594" bytes="56898904" />

<tenured objectcount="12580" bytes="677620" /> <refs_cleared soft="0" weak="691" phantom="39" /> <finalization objectsqueued="1216" />

<scavenger tiltratio="90" />

<nursery freebytes="1167543760" totalbytes="1226833920" percent="95" tenureage="14" /> <tenured freebytes="67508056" totalbytes="209715200" percent="32" >

<soa freebytes="57022296" totalbytes="199229440" percent="28" /> <loa freebytes="10485760" totalbytes="10485760" percent="100" /> </tenured>

<time totalms="368.309" /> </gc>

<nursery freebytes="1167541712" totalbytes="1226833920" percent="95" /> <tenured freebytes="67508056" totalbytes="209715200" percent="32" >

<soa freebytes="57022296" totalbytes="199229440" percent="28" /> <loa freebytes="10485760" totalbytes="10485760" percent="100" /> </tenured>

<time totalms="377.634" /> </af>

Allocation request

details, time it took to

stop all mutator threads.

Heap occupancy

details before GC.

Heap occupancy

details after GC.

Details about the

scavenge.

(41)

Diagnostic tool for garbage collector

• Diagnostic tool for optimizing parameters affecting the

garbage collector while using IBM JVM

• Reads the “verbosegc” output and produces textual and

graphical visualizations and related statistics

–

Frequency of garbage collection cycles

–

Time spent in different phases of garbage collection

–

Quantities of heap memories involved in the

process

–

Characteristics of allocation failures

–

Mark Stack Overflows

• Built in parsers for JVM 1.5, 1.4.2 , 1.3.1 & 1.2.2

• Prerequisite – JFreeChart libraries (freely downloadable)

(42)

Screen Shots

Starting the tool and selecting verbosegc input file and

appropriate JVM parser

Extract GCCollector.zip

Place jfreeChart-0.9.21.jar and jcommon-0.9.6.jar in the lib directory of the GCCollector folder

Execute GCCollector.bat (which will spawn a GUI)

Select verbosegc file for analysis

(43)

Duration of GC Cycles

(44)

Graphical view of heap usage

(45)

Information for specific cycle

(46)

Choosing time range

(47)

Extensible Verbose Tool Kit

Analyzing your verbose GC output

• EVTK: Verbose GC visualizer and analyzer

Available through ISA

¾

IBM Support Assistant v3.0.2

https://www14.software.ibm.com/webapp/iwm/web/preLogin.do?source=isa

Reduces barrier to understanding verbose output

¾

Visualize GC data to track trends and relationships

¾

Analyze results and provide general feedback

¾

Extend to consume output related to application

(48)

Starting the EVTK

In the Tools

section of ISA,

select the Java

product plug-in to

display the

available tools

Click on the

name of a tool to

start that tool

(49)

EVTK usage scenarios

• Investigate performance problems

Long periods of pausing or unresponsiveness

• Evaluate your heap size

Check heap occupancy and adjust heap size if needed

• Garbage collection policy tuning

Examine GC characteristics, compare different policies

• Look for memory growth

Heap consumption slowly increasing over time

(50)

Extensible Verbose Toolkit overview

• The Extensible Verbose Toolkit (EVTK) is a visualizer for verbose

garbage collection output

The tool parses and plots verbose GC output and garbage collection traces (

-Xtgc

output)

• The tooling framework is extensible, and will be expanded over time to

include visualization for other collections of data

• The EVTK provides

Raw view of data

Line plots to visualize a variety of GC data characteristics

Tabulated reports with heap occupancy recommendations

View of multiple datasets on a single set of axes

(51)

Plotting data with the EVTK

Use File > Open

to open a new

input file

The VGC Data

menu allows

you to choose

what data to

display

The Line plot tab contains

the data visualization

Use File > Add

to add multiple

input files to a

single data set

for comparison

and aggregated

display

The Axes

panel supports

customized

units and

pan-and-zoom

Right-click

on the

plot and use the

context menu

to

(52)

Reports and recommendations

• Report contents can be

configured using VGC menu

options

Occupancy recommendations

tell you how to adjust heap size

for better performance

Summary information is

generated for each input in the

dataset

Graphs included for all GC

display data

• Can export as HTML by

right-clicking and using the context

The Report tab contains the

(53)

Types of graphs

• The EVTK has built-in support for over forty different types of graphs

These are configured in the VGC Data menu

Options vary depending on the current dataset and the parsers and

post-processors that are enabled

• Some of the VGC graph types are:

• Note: Different graph types and a different menu are available for TGC

output

• Free tenured heap (after collection)

• Tenured heap size

• Tenure age

• Free LOA (after collection)

• Free SOA (after collection)

• Total LOA

• Total SOA

• Used total heap

• Pause times (mark-sweep-compact

collections)

• Pause times (totals, including exclusive

access)

• Compact times

• Weak references cleared

(54)

Heap usage and occupancy

recommendation

This graph shows heap

usage after garbage

collection; it jumps up to

around 60M and stays there

The summary report shows

that mean heap occupancy is

98% and that the application

is spending over a third of its

time doing garbage collection

(55)

EVTK

–

Heap Visualization

(56)

EVTK

-

Comparison & Advice

Compare runs…

(57)

Java 5 Shared Classes

• Available on all platforms.

• Feature enabled using the –Xshareclasses flag.

• Static class data caches in shared memory

Shared between all IBM Java VMs

All application and bootstrap classes shared

Cache persisted beyond lifetime of any JVM, but lost on shutdown/reboot

• Provides savings in footprint and start up times.

• Target: Server environments where multiple JVMs exist on the same box.

• Multiple sharing strategies

Standard Classloaders (including Application Classloader) exploit this feature when enabled.

(58)

Shared Classes

–

Start up times

Sharing helps speed up JVM startup

Startup Improvements with Shared Classes and AOT

0

5

10

15

20

25

30 eclipse 3.2.2

tomcat 5.5

WAS 6.1

S

e

c

onds

default

-Xshareclasses (Java 5.0)" -Xshareclasses (Java 6.0)

Lower is better

(59)

What does real

-

time mean?

• Real-time = predictability of performance

Hard - Violation of timing constraints are hard failures

Soft - Timing constraints are simply performance goals

• Constraints vary in magnitude (microseconds to seconds)

• Consequences of missing a timing constraint:

from service level agreement miss (stock trading)

to life in jeopardy (airplanes)

• Real-fast is not real-time, but Real-slow is not real-good

(60)

WebSphere

Real Time (WRT)

• 1.0 generally available in August 2006.

• WRT is a Java runtime providing highly predictable operation

Real-time garbage collection (Metronome)

Static and dynamic compilation

Full support for RTSJ (JSR 1)

Java SE 5.0 compliant

(61)

Real

-

Time Garbage Collection

The Metronome Garbage Collector

• Utilization

Percentage of time dedicated to the application in a

given window of time

Application

Collector

Time

Application receives a minimum

percentage of time to run

10ms

• Metronome uses a 10ms sliding window to

measure utilization

(62)

Visual Performance

Analyser

• Eclipse based performance visualization kit

–

Profile Analyzer

–

Code Analyzer

–

Pipeline Analyzer

• Profiler Analyzer provides a powerful set of graphical and text-based views that

allow users to narrow down performance problems to a particular process,

thread, module, symbol, offset, instruction or source line.

–

Supports time based system profiles

• Code Analyzer examines executable files and displays detailed information

about functions, basic blocks and assembly instructions.

• Pipeline Analyzer displays the pipeline execution of instruction traces.

(63)

Profile Analyzer Views

• The following are important views within Profile Analyzer:

Basic Blocks

Call-Graph Callers/Descendants

Compiler Listing

Console

Counters

Database Connections

Disassembly/Offsets

Disassembly Comparison

Java/Classes Hierarchy

Profile Comparison

Profile Details

Profile Resources

Resolved Calls

Sample Distribution Chart

Source Code

Symbol Distribution

(64)

Temporal Profiling View

(65)

Counters : In the Process Hierarchy View

(

View Window

-

> Show View

-

> Others

(66)

Summary

• Take Aways from the Session:

High level overview of the Java Virtual Machine (JVM) and its key

components.

Understanding of different Garbage Collection schemas in the Sovereign &

J9 Virtual Machines and their impact on JVM Runtime performance.

Knowledge about using verbosegc outputs effectively to improve application

response times.

Introduction to Shared Classes Technology and performance gains.

Familiarity with debugging and profiling tools available for JVM and their

effective usage

.

(67)

References & Further Reading

• www.ibm.com/developerworks/java/library/j-ibmjava2

• developers.sun.com/learning/javaoneonline/2007/pdf/TS-2023.pdf

• http://www.ibm.com/developerworks/java/library/j-ibmjava4/

• http://www-128.ibm.com/developerworks/java/library/j-rtj1/index.html

• https://www-950.ibm.com/events/IBMImpact/Impact2007/3977.pdf

(68)

Questions ?

(69)

Merci

Gracias

Obrigado

Grazie

Danke

English

French

Russian Spanish Japanese German Italian Arabic Traditional Chinese Simplified Chinese Hindi Thai

Scribd is down for maintenance.

IBM

WEBSPHERE

TECHNICAL CONFERENCE

Session Number: W02

Session Number: W02

Tuning the Java Virtual Machine for Optimal Performance:

Tuning the Java Virtual Machine for Optimal Performance:

Means and Methods

Means and Methods

Rajeev

Rajeev

Palanki

Palanki

IBM Java Technology Center

IBM Java Technology Center

[email protected]

[email protected]

Objectives

Objectives

•

Have an insight into key aspects of JVM Runtime Performance and

understanding of the means and methods to tune the JVM for optimal

performance.

•

At the end of this session you should have:



High level overview of the Java Virtual Machine (JVM) and its key components.



Understanding of different Garbage Collection schemas in the Sovereign & J9 Virtual Machines and

their impact on JVM Runtime performance.



Knowledge about using verbosegc outputs effectively to improve application response times.



Introduction to Shared Classes Technology and performance gains.

Agenda

Agenda

•

Overview of the Java Virtual Machine and its key components

•

Garbage Collection Basics (Sovereign VM – 142 JDK)

•

Profiling Garbage Collection: Verbosegc Outputs

•

Garbage Collection Policies in Java 5.0

•

Debugging and Analysis tools for Garbage Collection

•

Introduction to Shared Classes Technology

•

Real Time Java – A brief overview

IBM Java Building Blocks

IBM Java Building Blocks

Java SDK

Virtual Machine

Class Libraries

JIT

IBM Java Building Blocks

IBM Java Building Blocks

Java SDK

Virtual Machine

Class Libraries

JIT

ORB

XML

Security

Big decimal

RAS

The Java Application Stack

The Java Application Stack

Java Code

Platform

Native

libraries

Java Class Libraries

ORB

Java Class Extensions

Native Code

Execution Management (XM)

Core Interface (CI)

_JIT

_Engine

_Classloader
