Hi Essence Cable Spec

(1)

Rev: 4444 ((((02/2011111))))

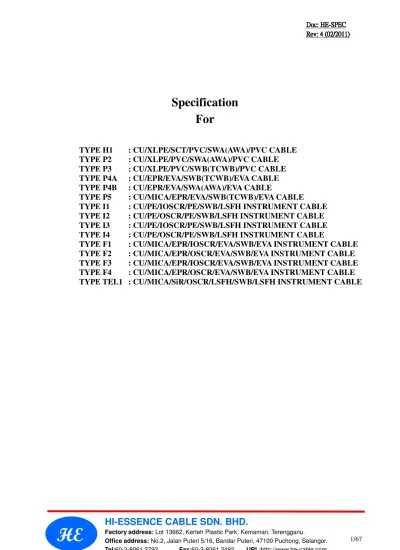

Specification

For

TYPE H1

: CU/XLPE/SCT/PVC/SWA(AWA)/PVC CABLE

TYPE P2

: CU/XLPE/PVC/SWA(AWA)/PVC CABLE

TYPE P3

: CU/XLPE/PVC/SWB(TCWB)/PVC CABLE

TYPE P4A

: CU/EPR/EVA/SWB(TCWB)/EVA CABLE

TYPE P4B

: CU/EPR/EVA/SWA(AWA)/EVA CABLE

TYPE P5

: CU/MICA/EPR/EVA/SWB(TCWB)/EVA CABLE

TYPE I1

: CU/PE/IOSCR/PE/SWB/LSFH INSTRUMENT CABLE

TYPE I2

: CU/PE/OSCR/PE/SWB/LSFH INSTRUMENT CABLE

TYPE I3

: CU/PE/IOSCR/PE/SWB/LSFH INSTRUMENT CABLE

TYPE I4

: CU/PE/OSCR/PE/SWB/LSFH INSTRUMENT CABLE

TYPE F1

: CU/MICA/EPR/IOSCR/EVA/SWB/EVA INSTRUMENT CABLE

TYPE F2

: CU/MICA/EPR/OSCR/EVA/SWB/EVA INSTRUMENT CABLE

TYPE F3

: CU/MICA/EPR/IOSCR/EVA/SWB/EVA INSTRUMENT CABLE

TYPE F4

: CU/MICA/EPR/OSCR/EVA/SWB/EVA INSTRUMENT CABLE

TYPE TEL1 : CU/MICA/SiR/OSCR/LSFH/SWB/LSFH INSTRUMENT CABLE

(2)

CROSS-LINKED POLYETHYLENE INSULATED ARMOURED PVC SHEATHED

FLAME RETARDANT CABLE

TYPE H1 : CU/XLPE/SCT/PVC/SWA/PVC CABLE

TYPE H1 : CU/XLPE/SCT/PVC/AWA/PVC CABLE

DESCRIPTION

Single core and three-core cables with copper conductor, XLPE insulated, copper tape screened, flame retardant PVC bedding, galvanized steel wire armoured and flame retardant PVC outer sheath. Cables are rated at 6/10 (12) kV

CONSTRUCTION

1 Conductor

Plain annealed circular compacted stranded copper conductor, conform to IEC 60228 class 2. 2 Conductor screen

Extruded layer of semi-conductive compound. 3 Insulation

XLPE (cross-linked polyethylene) 4 Insulation screen

4a. Non-metallic part

Extruded layer of semi-conductive compound. 4b. Metallic part

Copper tape screen (SCT). 5 Colour for core identification

Single core - Natural

Three cores - Red, yellow and blue tapes shall be applied between non-metallic and metallic part of insulation screen.

6 Cabling

Three insulated screened cores are laid up together and filled with non-hygroscopic material compatible with the insulation.

7 Bedding

Flame retardant PVC compound, colour black. 8 Armour

Single core -- Aluminium wires shall be applied over the PVC bedding. Multi-core -- Galvanized steel wires shall be applied over the PVC bedding. 9 Outer sheath

Flame retardant PVC compound, colour red.

CABLE MARKING

manufacturer’s name, rated voltage, cable type, conductor size, manufacture year.

SPECIFICATIONS

IEC 60502-2 IEC 60332-3 Cat A

IEC 60754 (HCL emission 17% maximum by weight) ASTM D 2863(Oxygen index greater than 30%)

(3)

Rev: 4444 ((((02/2011111))))

TYPE H1：

：

：CU/XLPE/SCT/PVC/AWA/PVC CABLE – SINGLE CORE

6/10 (12) kV

Conductor Nominal thickness of insulation Metallic screening Nominal thickness of bedding Nominal diameter of aluminium wire Nominal thickness of outer sheath Approx. overall diameter Maximum Conductor Resistance (at 20℃℃℃℃) Current rating Nominal Cross- sectional area No./dia. of wire Approx. outer diameter Approx. thickness of copper tape In air at 40℃℃℃℃ In ground at 25℃℃℃℃ mm2 No./mm mm mm mm mm mm mm mm ΩΩΩΩ/km A A 50 c.c. 8.2 3.4 0.1 1.2 1.6 1.9 28.4 0.387 215 205 70 c.c. 10.0 3.4 0.1 1.2 1.6 1.9 30.2 0.268 270 255 95 c.c. 11.6 3.4 0.1 1.2 1.6 2.0 32.0 0.193 325 305 120 c.c. 13.1 3.4 0.1 1.2 2.0 2.0 34.3 0.153 375 345 150 c.c. 14.5 3.4 0.1 1.2 2.0 2.1 35.9 0.124 430 390 185 c.c. 16.3 3.4 0.1 1.2 2.0 2.2 37.9 0.0991 495 435 240 c.c. 18.6 3.4 0.1 1.2 2.0 2.2 40.2 0.0754 585 505 300 c.c. 21.0 3.4 0.1 1.2 2.0 2.3 42.8 0.0601 665 570 400 c.c. 23.2 3.4 0.1 1.3 2.5 2.4 48.5 0.0470 770 645 500 c.c. 26.0 3.4 0.1 1.3 2.5 2.5 51.5 0.0366 890 725 630 c.c. 30.0 3.4 0.1 1.4 2.5 2.7 56.6 0.0283 1030 815

Note：c.c. -- compacted circular stranded conductor Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃ ℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩΩΩ/km 50 0.494 0.132 70 0.342 0.125 95 0.247 0.118 120 0.196 0.113 150 0.159 0.111 185 0.127 0.107 240 0.0976 0.102 300 0.0785 0.0991 400 0.0624 0.0957 500 0.0499 0.0942 630 0.0402 0.0921

(4)

TYPE H1：

：

：CU/XLPE/SCT/PVC/SWA/PVC CABLE – THREE CORES

6/10 (12) kV

Conductor Nominal thickness of insulation Metallic screening Nominal thickness of bedding Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Maximum Conductor Resistance (at 20℃℃) ℃℃ Current rating Nominal Cross- sectional area No./dia. of wire Approx. outer diameter Approx. thickness of copper tape In air at 40℃℃℃℃ In ground at 25℃℃℃℃ mm2 No./mm mm mm mm mm mm mm mm ΩΩΩΩ/km A A 50 c.c. 8.2 3.4 0.1 1.4 2.5 2.7 53.1 0.387 200 200 70 c.c. 10.0 3.4 0.1 1.5 2.5 2.8 57.4 0.268 250 245 95 c.c. 11.6 3.4 0.1 1.5 2.5 2.9 61.1 0.193 300 290 120 c.c. 13.1 3.4 0.1 1.6 2.5 3.0 64.7 0.153 345 330 150 c.c. 14.5 3.4 0.1 1.7 2.5 3.2 68.4 0.124 390 365 185 c.c. 16.3 3.4 0.1 1.7 3.15 3.3 73.8 0.0991 445 410 240 c.c. 18.6 3.4 0.1 1.8 3.15 3.5 79.4 0.0754 520 475 300 c.c. 21.0 3.4 0.1 1.9 3.15 3.7 85.1 0.0601 585 525 400 c.c. 23.2 3.4 0.1 2.1 3.15 3.9 94.1 0.0470 665 590

Note：c.c. -- compacted circular stranded conductor. Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃ ℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩΩΩ/km 50 0.494 0.108 70 0.342 0.102 95 0.247 0.0976 120 0.196 0.0944 150 0.160 0.0915 185 0.128 0.0888 240 0.0986 0.0856 300 0.0798 0.0833 400 0.0641 0.0809

(5)

Rev: 4444 ((((02/2011111))))

CROSS-LINKED POLYETHYLENE INSULATED ARMOURED PVC SHEATHED

FLAME RETARDANT CABLE

TYPE P2：

：

：CU/XLPE/PVC/SWA/PVC CABLE

TYPE P2：

：

：CU/XLPE/PVC/AWA/PVC CABLE

DESCRIPTION

Single core and multi-core cables with copper conductor, XLPE insulated, flame retardant PVC inner covering, galvanized steel wire armoured and flame retardant PVC outer sheath.

Cables are rated at 0.6/1 (1.2) kV

CONSTRUCTION

1 Conductor

Plain annealed circular or compacted stranded copper conductor, conform to IEC 60228 class 2. 2 Insulation

XLPE (cross-linked polyethylene) 3 Colour for core identification

Two core - Red, black

Three core - Red, yellow and blue Four core - Red, yellow, blue and black

Five core ＆ above White(natural) core with black numbering 4 Cabling

Two, three, four, five or more insulated cores are laid up together, if necessary filled with non-hygroscopic material compatible with the insulation.

5 Inner covering

Single core -- Aluminium wires shall be applied over the PVC inner covering. Multi-core -- Galvanized steel wires shall be applied over the PVC inner covering. 7 Outer sheath

Flame retardant PVC compound, colour black.

CABLE MARKING

SPECIFICATIONS

IEC 60502-1 IEC 60332-3 Cat A

IEC 60754 (HCL emission 17﹪maximum by weight) ASTM D 2863(Oxygen index greater than 30﹪)

(6)

TYPE P2：

：

：CU/XLPE/PVC/AWA/PVC CABLE – SINGLE CORE

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of aluminium wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃) ℃℃ Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃℃℃ In ground at 25℃℃℃℃ mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A A 16 7/-- 5.0 0.7 1.0 0.8 1.8 14.4 345 1.15 100 115 25 7/-- 6.1 0.9 1.0 0.8 1.8 15.9 460 0.727 135 150 35 7/-- 7.1 0.9 1.0 0.8 1.8 16.9 565 0.524 165 170 50 19/-- 8.2 1.0 1.0 1.25 1.8 19.1 750 0.387 200 205 70 19/-- 10.0 1.1 1.0 1.25 1.8 21.1 980 0.268 255 250 95 19/-- 11.6 1.1 1.0 1.25 1.8 22.7 1245 0.193 310 300 120 37/-- 13.1 1.2 1.0 1.6 1.8 25.2 1560 0.153 365 340 150 37/-- 14.5 1.4 1.0 1.6 1.8 27.0 1865 0.124 415 385 185 37/-- 16.3 1.6 1.0 1.6 1.8 29.2 2250 0.0991 480 435 240 61/-- 18.6 1.7 1.0 1.6 1.9 31.9 2835 0.0754 570 500 300 61/-- 21.0 1.8 1.0 1.6 1.9 34.6 3455 0.0601 650 565 400 61/-- 23.2 2.0 1.2 2.0 2.1 38.8 4440 0.0470 760 635 500 61/-- 26.0 2.2 1.2 2.0 2.2 42.2 5535 0.0366 870 715 630 61/-- 30.0 2.4 1.2 2.0 2.3 46.9 6995 0.0283 995 800 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 16 1.47 0.126 25 0.927 0.119 35 0.668 0.114 50 0.494 0.112 70 0.342 0.106 95 0.247 0.101 120 0.196 0.1 150 0.159 0.098 185 0.128 0.096 240 0.0982 0.093 300 0.0793 0.091 400 0.0632 0.092 500 0.0509 0.09 630 0.0415 0.087

(7)

Rev: 4444 ((((02/2011111))))

TYPE P2：

：

：CU/XLPE/PVC/SWA/PVC CABLE – TWO CORES

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃℃℃) Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃℃℃ In ground at 25℃℃℃℃ mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A A 1.5 7/0.53 1.59 0.7 1.0 0.8 1.8 14.1 325 12.1 29 33 2.5 7/0.67 2.01 0.7 1.0 0.8 1.8 14.9 375 7.41 38 45 4 7/0.85 2.55 0.7 1.0 0.8 1.8 16.1 445 4.61 45 59 6 7/1.04 3.12 0.7 1.0 0.8 1.8 17.1 540 3.08 58 75 10 7/-- 3.8 0.7 1.0 1.25 1.8 19.9 795 1.83 79 98 16 7/-- 5.0 0.7 1.0 1.25 1.8 22.3 985 1.15 105 125 25 7/-- 6.1 0.9 1.0 1.6 1.8 26.0 1445 0.727 140 160 35 7/-- 7.1 0.9 1.0 1.6 1.8 28.0 1730 0.524 170 195 50 19/-- 8.2 1.0 1.0 1.6 1.8 30.6 2080 0.387 210 230 70 19/-- 10.0 1.1 1.0 1.6 2.0 35.0 2720 0.268 260 280 95 19/-- 11.6 1.1 1.2 2.0 2.1 39.6 3705 0.193 320 335 120 37/-- 13.1 1.2 1.2 2.0 2.2 43.4 4410 0.153 370 380 150 37/-- 14.5 1.4 1.2 2.0 2.3 47.2 5215 0.124 425 425 185 37/-- 16.3 1.6 1.4 2.5 2.5 54.0 6790 0.0991 485 480 240 61/-- 18.6 1.7 1.4 2.5 2.7 59.4 8320 0.0754 575 555 300 61/-- 21.0 1.8 1.6 2.5 2.8 65.4 10025 0.0601 650 620 400 61/-- 23.2 2.0 1.6 2.5 3.1 71.3 12155 0.0470 745 695

Note：--: compacted circular stranded conductor. Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 1.5 15.43 0.101 2.5 9.45 0.094 4 5.88 0.089 6 3.93 0.084 10 2.33 0.08 16 1.47 0.076 25 0.927 0.076 35 0.669 0.074 50 0.494 0.074 70 0.342 0.072 95 0.247 0.071 120 0.196 0.071 150 0.16 0.071 185 0.128 0.071 240 0.0987 0.0704 300 0.0798 0.07 400 0.064 0.0699

(8)

TYPE P2：

：

：CU/XLPE/PVC/SWA/PVC CABLE – THREE CORES

：

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃℃℃) Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃ ℃℃ In ground at 25℃℃℃℃ mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A A 1.5 7/0.53 1.59 0.7 1.0 0.8 1.8 14.7 360 12.1 21 28 2.5 7/0.67 2.01 0.7 1.0 0.8 1.8 15.5 420 7.41 27 37 4 7/0.85 2.55 0.7 1.0 0.8 1.8 16.8 500 4.61 38 48 6 7/1.04 3.12 0.7 1.0 0.8 1.8 17.9 620 3.08 49 60 10 7/-- 3.8 0.7 1.0 1.25 1.8 20.8 925 1.83 65 81 16 7/-- 5.0 0.7 1.0 1.25 1.8 23.4 1175 1.15 89 105 25 7/-- 6.1 0.9 1.0 1.6 1.8 27.3 1725 0.727 120 135 35 7/-- 7.1 0.9 1.0 1.6 1.8 29.5 2100 0.524 145 160 50 19/-- 8.2 1.0 1.0 1.6 1.9 32.5 2590 0.387 175 190 70 19/-- 10.0 1.1 1.2 2.0 2.0 38.2 3715 0.268 225 235 95 19/-- 11.6 1.1 1.2 2.0 2.2 42.1 4675 0.193 275 280 120 37/-- 13.1 1.2 1.2 2.0 2.3 46.1 5650 0.153 315 320 150 37/-- 14.5 1.4 1.4 2.5 2.5 52.3 7230 0.124 365 355 185 37/-- 16.3 1.6 1.4 2.5 2.6 57.3 8675 0.0991 420 405 240 61/-- 18.6 1.7 1.6 2.5 2.8 63.4 10815 0.0754 490 465 300 61/-- 21.0 1.8 1.6 2.5 3.0 69.8 13090 0.0601 555 515 400 61/-- 23.2 2.0 1.6 2.5 3.2 75.8 15930 0.0470 635 580 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 1.5 15.43 0.101 2.5 9.45 0.094 4 5.88 0.089 6 3.93 0.084 10 2.33 0.08 16 1.47 0.076 25 0.927 0.076 35 0.669 0.074 50 0.494 0.074 70 0.343 0.072 95 0.248 0.071 120 0.197 0.071 150 0.16 0.071 185 0.129 0.071 240 0.0996 0.0704 300 0.0809 0.07 400 0.0653 0.0699

(9)

Rev: 4444 ((((02/2011111))))

TYPE P2：

：

：CU/XLPE/PVC/SWA/PVC CABLE –FOUR CORES

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃℃℃) Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃ ℃℃ In ground at 25℃℃℃℃ mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A A 1.5 7/0.53 1.59 0.7 1.0 0.8 1.8 15.5 405 12.1 21 28 2.5 7/0.67 2.01 0.7 1.0 0.8 1.8 16.4 475 7.41 27 37 4 7/0.85 2.55 0.7 1.0 0.8 1.8 17.9 580 4.61 38 48 6 7/1.04 3.12 0.7 1.0 1.25 1.8 20.0 835 3.08 49 60 10 7/-- 3.8 0.7 1.0 1.25 1.8 22.2 1080 1.83 65 81 16 7/-- 5.0 0.7 1.0 1.6 1.8 25.8 1530 1.15 89 105 25 7/-- 6.1 0.9 1.0 1.6 1.8 29.4 2065 0.727 120 135 35 7/-- 7.1 0.9 1.0 1.6 1.9 32.0 2545 0.524 145 160 50 19/-- 8.2 1.0 1.0 1.6 2.0 35.4 3180 0.387 175 190 70 19/-- 10.0 1.1 1.2 2.0 2.2 41.8 4580 0.268 225 235 95 19/-- 11.6 1.1 1.2 2.0 2.3 45.9 5820 0.193 275 280 120 37/-- 13.1 1.2 1.4 2.5 2.5 52.5 7540 0.153 315 320 150 37/-- 14.5 1.4 1.4 2.5 2.6 57.0 8975 0.124 365 355 185 37/-- 16.3 1.6 1.4 2.5 2.8 62.8 10815 0.0991 420 405 240 61/-- 18.6 1.7 1.6 2.5 3.0 69.7 13590 0.0754 490 465 300 61/-- 21.0 1.8 1.6 2.5 3.2 76.6 16440 0.0601 555 515 400 61/-- 23.2 2.0 1.8 3.15 3.5 85.2 21265 0.0470 635 580

Note：--: compacted circular stranded conductor Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 1.5 15.43 0.101 2.5 9.45 0.094 4 5.88 0.089 6 3.93 0.084 10 2.33 0.08 16 1.47 0.076 25 0.927 0.076 35 0.669 0.074 50 0.494 0.074 70 0.343 0.072 95 0.248 0.071 120 0.197 0.071 150 0.16 0.071 185 0.129 0.071 240 0.0996 0.0704 300 0.0809 0.07 400 0.0653 0.0699

(10)

TYPE P2：

：

：CU/XLPE/PVC/SWA/PVC CABLE –FIVE CORES

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃) ℃℃ Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃℃℃ In ground at 25℃℃℃℃ mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A A 1.5 7/0.53 1.59 0.7 1.0 0.8 1.8 16.4 445 12.1 19 23 2.5 7/0.67 2.01 0.7 1.0 0.8 1.8 17.5 530 7.41 22 30 4 7/0.85 2.55 0.7 1.0 1.25 1.8 20.0 790 4.61 31 40 6 7/1.04 3.12 0.7 1.0 1.25 1.8 21.3 940 3.08 40 49 10 7/-- 3.8 0.7 1.0 1.25 1.8 23.7 1230 1.83 53 67 16 7/-- 5.0 0.7 1.0 1.6 1.8 27.7 1755 1.15 73 86 25 7/-- 6.1 0.9 1.0 1.6 1.8 31.7 2375 0.727 99 111 35 7/-- 7.1 0.9 1.0 1.6 1.9 34.6 2955 0.524 119 132 50 19/-- 8.2 1.0 1.2 2.0 2.1 39.7 4040 0.387 144 156 70 19/-- 10.0 1.1 1.2 2.0 2.3 45.5 5365 0.268 185 195 95 19/-- 11.6 1.1 1.4 2.5 2.4 51.9 7335 0.193 227 231 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 1.5 15.43 0.101 2.5 9.45 0.094 4 5.88 0.089 6 3.93 0.084 10 2.33 0.08 16 1.47 0.076 25 0.927 0.076 35 0.669 0.074 50 0.494 0.074 70 0.343 0.072 95 0.248 0.071

(11)

Rev: 4444 ((((02/2011111))))

TYPE P2：

：

：CU/XLPE/PVC/SWA/PVC CABLE –MULTI-CORES(1.5

：

mm2

)

0.6/1 (1.2) kV

No.

of

core

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance Ω ΩΩ Ω/km Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃℃℃ In ground at 25℃℃℃℃ C mm2 No./mm mm mm mm mm mm mm

kg/km

20℃℃℃℃ 90℃℃℃℃ A A 6 1.5 7/0.53 1.59 0.7 1.0 0.8 1.8 17.3 495 12.1 15.43 17 21 7 1.5 7/0.53 1.59 0.7 1.0 0.8 1.8 17.3 510 16 19 8 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 19.1 690 15 18 9 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 20.1 750 15 17 10 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 21.3 815 14 16 11 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 21.3 835 14 16 12 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 21.8 865 13 16 13 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 22.6 920 13 15 14 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 22.6 935 13 15 15 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 23.5 995 12 14 16 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 23.5 1010 12 14 17 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 24.4 1065 12 14 18 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 24.4 1085 12 14 19 1.5 7/0.53 1.59 0.7 1.0 1.25 1.8 24.4 1100 12 13 20 1.5 7/0.53 1.59 0.7 1.0 1.6 1.8 26.0 1315 11 13 21 1.5 7/0.53 1.59 0.7 1.0 1.6 1.8 26.0 1330 11 13 24 1.5 7/0.53 1.59 0.7 1.0 1.6 1.8 28.2 1490 10 11 27 1.5 7/0.53 1.59 0.7 1.0 1.6 1.8 28.7 1565 9 10 30 1.5 7/0.53 1.59 0.7 1.0 1.6 1.8 29.5 1655 8 9 37 1.5 7/0.53 1.59 0.7 1.0 1.6 1.8 31.3 1880 7 8

TYPE P2：

：

：CU/XLPE/PVC/SWA/PVC CABLE –MULTI-CORES(2.5

mm2

)

0.6/1 (1.2) kV

No.

of

core

Conductor Nominal thickness of insulation Approx thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance Ω Ω Ω Ω/km Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃℃℃ In ground at 25℃℃℃℃ C mm2 No./mm mm mm mm mm mm mm

kg/km

20℃℃℃℃ 90℃℃℃ ℃ A A 6 2.5 7/0.67 2.01 0.7 1.0 1.25 1.8 19.4 725 7.41 9.45 20 27 7 2.5 7/0.67 2.01 0.7 1.0 1.25 1.8 19.4 745 19 25 8 2.5 7/0.67 2.01 0.7 1.0 1.25 1.8 20.4 825 18 24 9 2.5 7/0.67 2.01 0.7 1.0 1.25 1.8 21.4 895 17 23 10 2.5 7/0.67 2.01 0.7 1.0 1.25 1.8 22.9 985 16 22 11 2.5 7/0.67 2.01 0.7 1.0 1.25 1.8 22.9 1015 15 21 12 2.5 7/0.67 2.01 0.7 1.0 1.25 1.8 23.4 1050 15 21 13 2.5 7/0.67 2.01 0.7 1.0 1.25 1.8 24.3 1120 15 20 14 2.5 7/0.67 2.01 0.7 1.0 1.25 1.8 24.3 1145 14 20 15 2.5 7/0.67 2.01 0.7 1.0 1.6 1.8 26.1 1365 14 19 16 2.5 7/0.67 2.01 0.7 1.0 1.6 1.8 26.1 1395 14 19 17 2.5 7/0.67 2.01 0.7 1.0 1.6 1.8 27.1 1480 13 18 18 2.5 7/0.67 2.01 0.7 1.0 1.6 1.8 27.1 1505 13 18 19 2.5 7/0.67 2.01 0.7 1.0 1.6 1.8 27.1 1530 13 18 20 2.5 7/0.67 2.01 0.7 1.0 1.6 1.8 28.2 1620 13 17 21 2.5 7/0.67 2.01 0.7 1.0 1.6 1.8 28.2 1645 12 17 24 2.5 7/0.67 2.01 0.7 1.0 1.6 1.8 30.6 1835 11 15 27 2.5 7/0.67 2.01 0.7 1.0 1.6 1.8 31.1 1940 10 14

(12)

TYPE P2：

：

：CU/XLPE/PVC/SWA/PVC CABLE –MULTI-CORES(4

mm2

)

0.6/1 (1.2) kV

No.

of

core

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance Ω Ω Ω Ω/km Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃℃℃ In ground at 25℃℃℃℃ C mm2 No./mm mm mm mm mm mm mm

kg/km

20℃℃ 90℃℃℃ ℃℃℃ A A 6 4 7/0.85 2.55 0.7 1.0 1.25 1.8 21.2 885 4.61 5.88 28 36 7 4 7/0.85 2.55 0.7 1.0 1.25 1.8 21.2 925 26 33 8 4 7/0.85 2.55 0.7 1.0 1.25 1.8 22.5 1020 25 31 9 4 7/0.85 2.55 0.7 1.0 1.25 1.8 23.7 1120 23 29 10 4 7/0.85 2.55 0.7 1.0 1.6 1.8 26.0 1375 22 28 11 4 7/0.85 2.55 0.7 1.0 1.6 1.8 26.0 1420 22 28 12 4 7/0.85 2.55 0.7 1.0 1.6 1.8 26.6 1475 21 27 13 4 7/0.85 2.55 0.7 1.0 1.6 1.8 27.7 1575 21 26 14 4 7/0.85 2.55 0.7 1.0 1.6 1.8 27.7 1615 20 26 15 4 7/0.85 2.55 0.7 1.0 1.6 1.8 28.9 1720 20 25 16 4 7/0.85 2.55 0.7 1.0 1.6 1.8 28.9 1755 19 24 17 4 7/0.85 2.55 0.7 1.0 1.6 1.8 30.1 1860 19 24 18 4 7/0.85 2.55 0.7 1.0 1.6 1.8 30.1 1900 19 24 19 4 7/0.85 2.55 0.7 1.0 1.6 1.8 30.1 1935 18 23 20 4 7/0.85 2.55 0.7 1.0 1.6 1.8 31.4 2060 18 22 21 4 7/0.85 2.55 0.7 1.0 1.6 1.8 31.4 2100 17 22 24 4 7/0.85 2.55 0.7 1.0 1.6 1.9 34.4 2380 16 20 27 4 7/0.85 2.55 0.7 1.0 1.6 1.9 35.0 2525 14 18

(13)

Rev: 4444 ((((02/2011111))))

CROSS-LINKED POLYETHYLENE INSULATED BRAIDED PVC SHEATHED FLAME

RETARDANT CABLE

TYPE P3 : CU/XLPE/PVC/SWB/PVC CABLE

TYPE P3 : CU/XLPE/PVC/TCWB/PVC CABLE

DESCRIPTION

Single core and multi-core cables with copper conductor, XLPE insulated, flame retardant PVC inner covering, galvanized steel wire braided and flame retardant PVC outer sheath.

CONSTRUCTION

1 Conductor

Plain annealed circular compacted stranded copper conductor, conform to IEC 60228 class 2. 2 Insulation

XLPE (cross-linked polyethylene) 3 Colour for core identification

Three core - Red, yellow and blue Four core - Red, yellow, blue and black

Five core & above - White(natural) core with black numbering 4 Cabling

Single core – Tinned copper wires shall be braided over the PVC inner covering. Multi-core -- Galvanized steel wires shall be braided over the PVC inner covering. 7 Outer sheath

Flame retardant PVC compound, colour black.

CABLE MARKING

Manufacturer’s name, rated voltage, cable type, conductor size, manufacture year.

SPECIFICATIONS

IEC 60092, IEC 60092-353 IEC 60332-3 Cat A

IEC 60754 (HCL emission 17% maximum by weight) ASTM D 2863(Oxygen index greater than 30%)

(14)

TYPE P3：

：

：CU/XLPE/PVC/TCWB/PVC CABLE – SINGLE CORE

：

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of tinned copper wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃℃℃) Current rating (In air at 40℃℃) ℃℃ Nominal cross- sectional area No./dia. of wire Approx. outer diameter mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩ/km ΩΩ A 16 c.c 5.0 0.7 1.0 0.3 1.2 12.6 330 1.15 100 25 c.c 6.1 0.9 1.0 0.3 1.2 14.1 445 0.727 135 35 c.c 7.1 0.9 1.0 0.3 1.3 15.3 555 0.524 165 50 c.c 8.2 1.0 1.0 0.3 1.3 16.6 695 0.387 200 70 c.c 10.0 1.1 1.0 0.3 1.4 18.8 930 0.268 255 95 c.c 11.6 1.1 1.0 0.3 1.5 20.8 1215 0.193 310 120 c.c 13.1 1.2 1.0 0.3 1.5 22.6 1475 0.153 365 150 c.c 14.5 1.4 1.0 0.3 1.6 24.6 1775 0.124 415 185 c.c 16.3 1.6 1.0 0.3 1.7 27.0 2175 0.0991 480 240 c.c 18.6 1.7 1.0 0.3 1.8 29.7 2755 0.0754 570 300 c.c 21.0 1.8 1.0 0.3 1.9 32.6 3380 0.0601 650 400 c.c 23.2 2.0 1.2 0.3 2.0 35.8 4245 0.0470 760 500 c.c 26.0 2.2 1.2 0.3 2.1 39.2 5320 0.0366 870 630 c.c 30.0 2.4 1.2 0.3 2.3 44.1 6780 0.0283 995 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 16 1.47 0.117 25 0.927 0.112 35 0.668 0.108 50 0.494 0.104 70 0.342 0.099 95 0.247 0.096 120 0.196 0.094 150 0.159 0.092 185 0.128 0.091 240 0.0982 0.089 300 0.0793 0.087 400 0.0632 0.087 500 0.0509 0.085 630 0.0415 0.083

(15)

Rev: 4444 ((((02/2011111))))

TYPE P3：

：

：CU/XLPE/PVC/SWB/PVC CABLE – TWO CORES

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃) ℃℃ Current rating (In air at 40℃℃℃℃) Nominal cross- sectional area No./dia. of wire Approx. outer diameter mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩ/km ΩΩ A 1.5 7/0.53 1.59 0.7 1.0 0.3 1.2 12.4 215 12.1 29 2.5 7/0.67 2.01 0.7 1.0 0.3 1.2 13.2 250 7.41 38 4 7/0.85 2.55 0.7 1.0 0.3 1.2 14.4 310 4.61 45 6 7/1.04 3.12 0.7 1.0 0.3 1.3 15.6 375 3.08 58 10 c.c 3.8 0.7 1.0 0.3 1.3 17.5 495 1.83 79 16 c.c 5.0 0.7 1.0 0.3 1.4 20.1 660 1.15 105 25 c.c 6.1 0.9 1.0 0.3 1.5 23.5 930 0.727 140 35 c.c 7.1 0.9 1.0 0.3 1.6 25.7 1175 0.524 170 50 c.c 8.2 1.0 1.0 0.3 1.7 28.5 1485 0.387 210 70 c.c 10.0 1.1 1.0 0.3 1.9 32.9 2025 0.268 260 95 c.c 11.6 1.1 1.2 0.3 2.0 36.7 2655 0.193 320 120 c.c 13.1 1.2 1.2 0.3 2.1 40.5 3255 0.153 370 150 c.c 14.5 1.4 1.2 0.3 2.3 44.5 3950 0.124 425 185 c.c 16.3 1.6 1.4 0.3 2.5 49.9 4925 0.0991 485 240 c.c 18.6 1.7 1.4 0.3 2.6 55.1 6220 0.0754 575

Note：c.c. -- compacted circular stranded conductor. Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 1.5 15.43 0.103 2.5 9.45 0.0961 4 5.88 0.0899 6 3.93 0.0853 10 2.33 0.078 16 1.47 0.0767 25 0.927 0.077 35 0.669 0.0746 50 0.494 0.0738 70 0.342 0.0726 95 0.247 0.0708 120 0.196 0.0709 150 0.16 0.0719 185 0.128 0.072 240 0.0987 0.0713 300 0.0798 0.0707 400 0.064 0.0704

(16)

TYPE P3：

：

：CU/XLPE/PVC/SWB/PVC CABLE – THREE CORES

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃℃℃) Current rating (In air at 40℃℃℃℃) Nominal cross- sectional area No./dia. of wire Approx. outer diameter mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A 1.5 7/0.53 1.59 0.7 1.0 0.3 1.2 12.9 245 12.1 21 2.5 7/0.67 2.01 0.7 1.0 0.3 1.2 13.7 290 7.41 27 4 7/0.85 2.55 0.7 1.0 0.3 1.3 15.2 365 4.61 38 6 7/1.04 3.12 0.7 1.0 0.3 1.3 16.3 450 3.08 49 10 c.c 3.8 0.7 1.0 0.3 1.4 18.5 620 1.83 65 16 c.c 5.0 0.7 1.0 0.3 1.4 21.1 820 1.15 89 25 c.c 6.1 0.9 1.0 0.3 1.6 24.9 1195 0.727 120 35 c.c 7.1 0.9 1.0 0.3 1.7 27.3 1530 0.524 145 50 c.c 8.2 1.0 1.0 0.3 1.8 30.3 1960 0.387 175 70 c.c 10.0 1.1 1.2 0.3 2.0 35.4 2725 0.268 225 95 c.c 11.6 1.1 1.2 0.3 2.1 39.1 3560 0.193 275 120 c.c 13.1 1.2 1.2 0.3 2.2 43.1 4390 0.153 315 150 c.c 14.5 1.4 1.4 0.3 2.4 47.8 5390 0.124 365 185 c.c 16.3 1.6 1.4 0.3 2.6 53.2 6670 0.0991 420 240 c.c 18.6 1.7 1.6 0.3 2.8 59.3 8565 0.0754 490 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 1.5 15.43 0.103 2.5 9.45 0.0961 4 5.88 0.0899 6 3.93 0.0853 10 2.33 0.078 16 1.47 0.0767 25 0.927 0.077 35 0.669 0.0746 50 0.494 0.0738 70 0.343 0.0726 95 0.248 0.0708 120 0.197 0.0709 150 0.16 0.0719 185 0.129 0.072 240 0.0996 0.0713

(17)

Rev: 4444 ((((02/2011111))))

TYPE P3：

：

：CU/XLPE/PVC/SWB/PVC CABLE –FOUR CORES

：

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃℃℃) Current rating (In air at 40℃℃) ℃℃ Nominal cross- sectional area No./dia. of wire Approx. outer diameter mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A 1.5 7/0.53 1.59 0.7 1.0 0.3 1.2 13.7 280 12.1 21 2.5 7/0.67 2.01 0.7 1.0 0.3 1.2 14.6 335 7.41 27 4 7/0.85 2.55 0.7 1.0 0.3 1.3 16.3 435 4.61 38 6 7/1.04 3.12 0.7 1.0 0.3 1.3 17.5 540 3.08 49 10 c.c 3.8 0.7 1.0 0.3 1.4 19.9 750 1.83 65 16 c.c 5.0 0.7 1.0 0.3 1.5 23.2 1030 1.15 89 25 c.c 6.1 0.9 1.0 0.3 1.7 27.2 1495 0.727 120 35 c.c 7.1 0.9 1.0 0.3 1.8 29.8 1925 0.524 145 50 c.c 8.2 1.0 1.0 0.3 1.9 33.2 2485 0.387 175 70 c.c 10.0 1.1 1.2 0.3 2.1 38.8 3465 0.268 225 95 c.c 11.6 1.1 1.2 0.3 2.2 42.9 4560 0.193 275 120 c.c 13.1 1.2 1.4 0.3 2.4 48.0 5700 0.153 315 150 c.c 14.5 1.4 1.4 0.3 2.6 52.9 6970 0.124 365 185 c.c 16.3 1.6 1.4 0.3 2.8 58.7 8600 0.0991 420 240 c.c 18.6 1.7 1.6 0.3 3.0 65.6 11095 0.0754 490

Note：c.c. -- compacted circular stranded conductor.

Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 1.5 15.43 0.103 2.5 9.45 0.0961 4 5.88 0.0899 6 3.93 0.0853 10 2.33 0.078 16 1.47 0.0767 25 0.927 0.077 35 0.669 0.0746 50 0.494 0.0738 70 0.343 0.0726 95 0.248 0.0708 120 0.197 0.0709 150 0.16 0.0719 185 0.129 0.072 240 0.0996 0.0713

(18)

TYPE P3：

：

：CU/XLPE/PVC/SWB/PVC CABLE –FIVE CORES

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃) ℃℃ Current rating (In air at 40℃℃) ℃℃ Nominal cross- sectional area No./dia. of wire Approx. outer diameter mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A 1.5 7/0.53 1.59 0.7 1.0 0.3 1.2 14.6 310 12.1 19 2.5 7/0.67 2.01 0.7 1.0 0.3 1.3 15.9 385 7.41 22 4 7/0.85 2.55 0.7 1.0 0.3 1.3 17.5 495 4.61 31 6 7/1.04 3.12 0.7 1.0 0.3 1.4 19.0 625 3.08 40 10 c.c 3.8 0.7 1.0 0.3 1.5 21.8 890 1.83 53 16 c.c 5.0 0.7 1.0 0.3 1.6 25.3 1215 1.15 73 25 c.c 6.1 0.9 1.0 0.3 1.7 29.5 1755 0.727 99 35 c.c 7.1 0.9 1.0 0.3 1.9 32.6 2290 0.524 119 50 c.c 8.2 1.0 1.2 0.3 2.0 36.7 2990 0.387 144 70 c.c 10.0 1.1 1.2 0.3 2.2 42.5 4130 0.268 185 95 c.c 11.6 1.1 1.4 0.3 2.4 47.6 5520 0.193 227 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 1.5 15.43 0.103 2.5 9.45 0.0961 4 5.88 0.0899 6 3.93 0.0853 10 2.33 0.078 16 1.47 0.0767 25 0.927 0.077 35 0.669 0.0746 50 0.494 0.0738 70 0.343 0.0726 95 0.248 0.0708

(19)

Rev: 4444 ((((02/2011111))))

TYPE P3：

：

：CU/XLPE/PVC/SWB/PVC CABLE –MULTI-CORES(1.5

mm2

)

0.6/1 (1.2) kV

No.

of

core

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance Ω ΩΩ Ω/km Current rating (In air at 40℃℃℃℃) Nominal cross- sectional area No./dia. of wire Approx. outer diameter C mm2 No./mm mm mm mm mm mm mm

kg/km

20℃℃℃℃ 90℃℃℃℃ A 6 1.5 7/0.53 1.59 0.7 1.0 0.3 1.3 15.7 355 12.1 15.43 17 7 1.5 7/0.53 1.59 0.7 1.0 0.3 1.3 15.7 370 16 8 1.5 7/0.53 1.59 0.7 1.0 0.3 1.3 16.6 410 15 9 1.5 7/0.53 1.59 0.7 1.0 0.3 1.4 17.8 440 15 10 1.5 7/0.53 1.59 0.7 1.0 0.3 1.4 19.0 500 14 11 1.5 7/0.53 1.59 0.7 1.0 0.3 1.4 19.0 520 14 12 1.5 7/0.53 1.59 0.7 1.0 0.3 1.4 19.5 545 13 13 1.5 7/0.53 1.59 0.7 1.0 0.3 1.4 20.3 585 13 14 1.5 7/0.53 1.59 0.7 1.0 0.3 1.4 20.3 600 13 15 1.5 7/0.53 1.59 0.7 1.0 0.3 1.5 21.6 660 12 16 1.5 7/0.53 1.59 0.7 1.0 0.3 1.5 21.6 675 12 17 1.5 7/0.53 1.59 0.7 1.0 0.3 1.5 22.5 720 12 18 1.5 7/0.53 1.59 0.7 1.0 0.3 1.5 22.5 735 12 19 1.5 7/0.53 1.59 0.7 1.0 0.3 1.5 22.5 750 12 20 1.5 7/0.53 1.59 0.7 1.0 0.3 1.5 23.4 795 11 21 1.5 7/0.53 1.59 0.7 1.0 0.3 1.5 23.4 810 11 24 1.5 7/0.53 1.59 0.7 1.0 0.3 1.6 25.8 930 10 27 1.5 7/0.53 1.59 0.7 1.0 0.3 1.6 26.3 995 9 30 1.5 7/0.53 1.59 0.7 1.0 0.3 1.7 27.3 1080 8 37 1.5 7/0.53 1.59 0.7 1.0 0.3 1.7 29.1 1255 7

TYPE P3：

：

：CU/XLPE/PVC/SWB/PVC CABLE –MULTI-CORES(2.5

mm2

)

0.6/1 (1.2) kV

No.

of

core

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance Ω Ω Ω Ω/km Current rating (In air at 40℃℃) ℃℃ Nominal cross- sectional area No./dia. of wire Approx. outer diameter C mm2 No./mm mm mm mm mm mm mm

kg/km

20℃℃ 90℃℃℃ ℃℃℃ A 6 2.5 7/0.67 2.01 0.7 1.0 0.3 1.3 16.9 435 7.41 9.45 20 7 2.5 7/0.67 2.01 0.7 1.0 0.3 1.3 16.9 460 19 8 2.5 7/0.67 2.01 0.7 1.0 0.3 1.4 18.2 525 18 9 2.5 7/0.67 2.01 0.7 1.0 0.3 1.4 19.6 560 17 10 2.5 7/0.67 2.01 0.7 1.0 0.3 1.5 21.0 650 16 11 2.5 7/0.67 2.01 0.7 1.0 0.3 1.5 21.0 680 15 12 2.5 7/0.67 2.01 0.7 1.0 0.3 1.5 21.5 710 15 13 2.5 7/0.67 2.01 0.7 1.0 0.3 1.5 22.4 765 15 14 2.5 7/0.67 2.01 0.7 1.0 0.3 1.5 22.4 790 14 15 2.5 7/0.67 2.01 0.7 1.0 0.3 1.5 23.5 845 14 16 2.5 7/0.67 2.01 0.7 1.0 0.3 1.5 23.5 870 14 17 2.5 7/0.67 2.01 0.7 1.0 0.3 1.6 24.7 940 13 18 2.5 7/0.67 2.01 0.7 1.0 0.3 1.6 24.7 960 13 19 2.5 7/0.67 2.01 0.7 1.0 0.3 1.6 24.7 985 13 20 2.5 7/0.67 2.01 0.7 1.0 0.3 1.6 25.8 1045 13 21 2.5 7/0.67 2.01 0.7 1.0 0.3 1.6 25.8 1070 12 24 2.5 7/0.67 2.01 0.7 1.0 0.3 1.7 28.4 1230 11 27 2.5 7/0.67 2.01 0.7 1.0 0.3 1.7 28.9 1315 10

(20)

TYPE P3：

：

：CU/XLPE/PVC/SWB/PVC CABLE –MULTI-CORES(4

mm2

)

0.6/1 (1.2) kV

No.

of

core

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance Ω Ω Ω Ω/km Current rating (In air at 40℃℃℃℃) Nominal cross- sectional area No./dia. of wire Approx. outer diameter C mm2 No./mm mm mm mm mm mm mm

kg/km

20℃℃ 90℃℃℃ ℃℃℃ A 6 4 7/0.85 2.55 0.7 1.0 0.3 1.4 18.9 575 4.61 5.88 28 7 4 7/0.85 2.55 0.7 1.0 0.3 1.4 18.9 610 26 8 4 7/0.85 2.55 0.7 1.0 0.3 1.5 20.6 700 25 9 4 7/0.85 2.55 0.7 1.0 0.3 1.5 21.8 775 23 10 4 7/0.85 2.55 0.7 1.0 0.3 1.5 23.4 855 22 11 4 7/0.85 2.55 0.7 1.0 0.3 1.5 23.4 900 22 12 4 7/0.85 2.55 0.7 1.0 0.3 1.6 24.2 955 21 13 4 7/0.85 2.55 0.7 1.0 0.3 1.6 25.3 1030 21 14 4 7/0.85 2.55 0.7 1.0 0.3 1.6 25.3 1070 20 15 4 7/0.85 2.55 0.7 1.0 0.3 1.6 26.5 1150 20 16 4 7/0.85 2.55 0.7 1.0 0.3 1.6 26.5 1185 19 17 4 7/0.85 2.55 0.7 1.0 0.3 1.7 27.9 1280 19 18 4 7/0.85 2.55 0.7 1.0 0.3 1.7 27.9 1315 19 19 4 7/0.85 2.55 0.7 1.0 0.3 1.7 27.9 1355 18 20 4 7/0.85 2.55 0.7 1.0 0.3 1.7 29.2 1435 18 21 4 7/0.85 2.55 0.7 1.0 0.3 1.7 29.2 1475 17 24 4 7/0.85 2.55 0.7 1.0 0.3 1.8 32.2 1690 16 27 4 7/0.85 2.55 0.7 1.0 0.3 1.9 33.0 1840 14

(21)

Rev: 4444 ((((02/2011111))))

ETHYLENE PROPYLENE RUBBER INSULATED BRAIDED EVA SHEATHED

FLAME RETARDANT CABLE

TYPE P4A : CU/EPR/EVA/SWB/EVA CABLE

TYPE P4A : CU/EPR/EVA/TCWB/EVA CABLE

DESCRIPTION

Single core and multi-core cables with copper conductor, EPR insulated, flame retardant low smoke free halogen compound EVA inner covering, galvanized steel wire braided and flame retardant low smoke free halogen compound EVA outer sheath.

CONSTRUCTION

1 Conductor

Plain annealed circular stranded copper conductor, conform to IEC 60228 class 2. 2 Insulation

EPR (Ethylene propylene rubber) 3 Colour for core identification

Single core - Black

Three core - Red, yellow and blue Four core - Red, yellow, blue and black Five core & above - White core with black numbering 4 Cabling

Flame retardant low smoke free halogen compound EVA, colour black. 6 Armour

Single core -- Tinned copper wires shall be braided over the EVA inner covering. Multi-core -- Galvanized steel wires shall be braided over the EVA inner covering. 7 Outer sheath

Flame retardant low smoke free halogen compound EVA, colour black.

CABLE MARKING

SPECIFICATIONS

IEC 60092, IEC 60092-353 IEC 60332-3 Cat A

IEC 60754 (HCL emission 0.5% maximum by weight) ASTM D 2863(Oxygen index greater than 30%)

(22)

TYPE P4A：

：

：TCU/EPR/EVA/TCWB/EVA CABLE – SINGLE CORE

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of tinned copper wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃) ℃℃ Current rating (In air at 40℃℃) ℃℃ Nominal cross- sectional area No./dia. of wire Approx. outer diameter mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩ/km ΩΩ A 16 7/1.70 5.10 1.0 1.0 0.3 1.2 13.5 385 1.16 100 25 7/2.14 6.42 1.2 1.0 0.3 1.3 15.5 530 0.734 134 35 7/2.52 7.56 1.2 1.0 0.3 1.3 16.7 655 0.529 164 50 19/1.78 8.90 1.4 1.0 0.3 1.4 18.6 825 0.391 199 70 19/2.14 10.70 1.4 1.0 0.3 1.4 20.4 1070 0.270 254 95 19/2.52 12.60 1.6 1.0 0.3 1.5 23.2 1415 0.195 308 120 37/2.03 14.21 1.6 1.0 0.3 1.6 25.0 1705 0.154 364 150 37/2.25 15.75 1.8 1.0 0.3 1.6 27.0 2030 0.126 412 185 37/2.52 17.64 2.0 1.0 0.3 1.7 29.4 2470 0.100 478 240 61/2.25 20.25 2.2 1.0 0.3 1.8 32.7 3135 0.0762 567 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩ/km ΩΩ 16 1.48 0.12 25 0.936 0.115 35 0.674 0.109 50 0.499 0.106 70 0.345 0.1 95 0.25 0.098 120 0.197 0.095 150 0.162 0.093 185 0.129 0.091 240 0.0992 0.089

(23)

Rev: 4444 ((((02/2011111))))

TYPE P4A：

：

：TCU/EPR/EVA/SWB/EVA CABLE – TWO CORES

：

0.6/1 (1.2) kV

kg/km

ΩΩΩΩ/km A 1.5 7/0.53 1.59 1.0 1.0 0.3 1.2 13.8 265 12.2 29 2.5 7/0.67 2.01 1.0 1.0 0.3 1.2 14.6 305 7.56 38 4 7/0.85 2.55 1.0 1.0 0.3 1.3 16.0 375 4.70 45 6 7/1.04 3.12 1.0 1.0 0.3 1.3 17.0 440 3.11 58 10 7/1.35 4.05 1.0 1.0 0.3 1.4 19.9 605 1.84 79 16 7/1.70 5.10 1.0 1.0 0.3 1.5 22.3 800 1.16 105 25 7/2.14 6.42 1.2 1.0 0.3 1.6 26.1 1125 0.734 139 35 7/2.52 7.56 1.2 1.0 0.3 1.7 28.7 1410 0.529 169 50 19/1.78 8.90 1.4 1.0 0.3 1.8 32.3 1795 0.391 209 70 19/2.14 10.70 1.4 1.0 0.3 1.9 36.1 2350 0.270 259 95 19/2.52 12.60 1.6 1.2 0.3 2.1 41.7 3165 0.195 318 120 37/2.03 14.21 1.6 1.2 0.3 2.2 45.1 3795 0.154 369 150 37/2.25 15.75 1.8 1.2 0.3 2.3 49.3 4560 0.126 422 185 37/2.52 17.64 2.0 1.4 0.3 2.5 54.7 5650 0.100 483 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩΩΩ/km 1.5 15.56 0.114 2.5 9.64 0.106 4 5.99 0.099 6 3.97 0.093 10 2.34 0.087 16 1.48 0.083 25 0.936 0.082 35 0.675 0.079 50 0.499 0.079 70 0.345 0.076 95 0.25 0.075 120 0.197 0.0738 150 0.16 0.0738 185 0.129 0.0736

(24)

TYPE P4A：

：

：TCU/EPR/EVA/SWB/EVA CABLE – THREE CORES

0.6/1 (1.2) kV

kg/km

ΩΩΩΩ/km A 1.5 7/0.53 1.59 1.0 1.0 0.3 1.2 14.4 305 12.2 21 2.5 7/0.67 2.01 1.0 1.0 0.3 1.3 15.5 365 7.56 27 4 7/0.85 2.55 1.0 1.0 0.3 1.3 16.7 440 4.70 38 6 7/1.04 3.12 1.0 1.0 0.3 1.4 18.0 540 3.11 49 10 7/1.35 4.05 1.0 1.0 0.3 1.4 20.9 745 1.84 65 16 7/1.70 5.10 1.0 1.0 0.3 1.5 23.4 1000 1.16 89 25 7/2.14 6.42 1.2 1.0 0.3 1.6 27.5 1430 0.734 119 35 7/2.52 7.56 1.2 1.0 0.3 1.7 30.3 1820 0.529 144 50 19/1.78 8.90 1.4 1.0 0.3 1.9 34.4 2350 0.391 174 70 19/2.14 10.70 1.4 1.2 0.3 2.0 38.9 3160 0.270 224 95 19/2.52 12.60 1.6 1.2 0.3 2.2 44.4 4215 0.195 274 120 37/2.03 14.21 1.6 1.2 0.3 2.3 48.1 5100 0.154 314 150 37/2.25 15.75 1.8 1.4 0.3 2.5 53.4 6245 0.126 362 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩΩΩ/km 1.5 15.56 0.114 2.5 9.64 0.106 4 5.99 0.099 6 3.97 0.093 10 2.34 0.087 16 1.48 0.083 25 0.936 0.082 35 0.675 0.079 50 0.499 0.079 70 0.345 0.076 95 0.25 0.075 120 0.197 0.0738 150 0.16 0.0738

(25)

Rev: 4444 ((((02/2011111))))

TYPE P4A：

：

：TCU/EPR/EVA/SWB/EVA CABLE –FOUR CORES

：

0.6/1 (1.2) kV

kg/km

ΩΩΩΩ/km A 1.5 7/0.53 1.59 1.0 1.0 0.3 1.3 15.6 360 12.2 21 2.5 7/0.67 2.01 1.0 1.0 0.3 1.3 16.5 425 7.56 27 4 7/0.85 2.55 1.0 1.0 0.3 1.4 18.2 535 4.70 38 6 7/1.04 3.12 1.0 1.0 0.3 1.4 19.4 645 3.11 49 10 7/1.35 4.05 1.0 1.0 0.3 1.5 22.9 925 1.84 65 16 7/1.70 5.10 1.0 1.0 0.3 1.6 25.6 1245 1.16 89 25 7/2.14 6.42 1.2 1.0 0.3 1.7 30.1 1795 0.734 119 35 7/2.52 7.56 1.2 1.0 0.3 1.8 33.2 2295 0.529 144 50 19/1.78 8.90 1.4 1.2 0.3 2.0 38.1 3015 0.391 174 70 19/2.14 10.70 1.4 1.2 0.3 2.1 42.7 4025 0.270 224 95 19/2.52 12.60 1.6 1.2 0.3 2.3 48.8 5390 0.195 274 120 37/2.03 14.21 1.6 1.4 0.3 2.5 53.7 6635 0.154 314 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩΩΩ/km 1.5 15.56 0.114 2.5 9.64 0.106 4 5.99 0.099 6 3.97 0.093 10 2.34 0.087 16 1.48 0.083 25 0.936 0.082 35 0.675 0.079 50 0.499 0.079 70 0.345 0.076 95 0.25 0.075 120 0.197 0.0738

(26)

TYPE P4A：

：

：TCU/EPR/EVA/SWB/EVA CABLE –FIVE CORES

：

0.6/1 (1.2) kV

kg/km

ΩΩΩΩ/km A 1.5 7/0.53 1.59 1.0 1.0 0.3 1.3 16.7 400 12.2 19 2.5 7/0.67 2.01 1.0 1.0 0.3 1.4 17.9 485 7.56 22 4 7/0.85 2.55 1.0 1.0 0.3 1.4 19.6 605 4.70 31 6 7/1.04 3.12 1.0 1.0 0.3 1.5 21.3 760 3.11 40 10 7/1.35 4.05 1.0 1.0 0.3 1.5 24.8 1070 1.84 53 16 7/1.70 5.10 1.0 1.0 0.3 1.6 27.7 1420 1.16 73 25 7/2.14 6.42 1.2 1.0 0.3 1.8 32.9 2120 0.734 99 35 7/2.52 7.56 1.2 1.0 0.3 1.9 36.4 2720 0.529 118 50 19/1.78 8.90 1.4 1.2 0.3 2.1 41.8 3570 0.391 143 70 19/2.14 10.70 1.4 1.2 0.3 2.3 47.0 4810 0.270 184 95 19/2.52 12.60 1.6 1.4 0.3 2.5 54.5 6530 0.195 226 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩΩΩ/km 1.5 15.56 0.114 2.5 9.64 0.106 4 5.99 0.099 6 3.97 0.093 10 2.34 0.087 16 1.48 0.083 25 0.936 0.082 35 0.675 0.079 50 0.499 0.079 70 0.345 0.076 95 0.25 0.075

(27)

Rev: 4444 ((((02/2011111))))

TYPE P4A：

：

：TCU/EPR/EVA/SWB/EVA CABLE –MULTI-CORES(1.5

mm2

)

0.6/1 (1.2) kV

No.

of

core

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance Ω ΩΩ Ω/km Current rating (In air at 40℃℃℃℃) Nominal cross- sectional area No./dia. of wire Approx. outer diamete r C mm2 No./mm mm mm mm mm mm mm

kg/km

20℃℃℃℃ 90℃℃℃℃ A 6 1.5 7/0.53 1.59 1.0 1.0 0.3 1.3 17.8 455 12.2 15.56 17 7 1.5 7/0.53 1.59 1.0 1.0 0.3 1.3 17.8 475 16 8 1.5 7/0.53 1.59 1.0 1.0 0.3 1.4 19.2 540 15 9 1.5 7/0.53 1.59 1.0 1.0 0.3 1.5 20.7 615 15 10 1.5 7/0.53 1.59 1.0 1.0 0.3 1.5 22.2 675 14 11 1.5 7/0.53 1.59 1.0 1.0 0.3 1.5 22.2 705 14 12 1.5 7/0.53 1.59 1.0 1.0 0.3 1.5 22.8 730 13 13 1.5 7/0.53 1.59 1.0 1.0 0.3 1.5 23.8 790 13 14 1.5 7/0.53 1.59 1.0 1.0 0.3 1.5 23.8 810 13 15 1.5 7/0.53 1.59 1.0 1.0 0.3 1.6 25.1 880 12 16 1.5 7/0.53 1.59 1.0 1.0 0.3 1.6 25.1 905 12 17 1.5 7/0.53 1.59 1.0 1.0 0.3 1.6 26.2 965 12 18 1.5 7/0.53 1.59 1.0 1.0 0.3 1.6 26.2 985 12 19 1.5 7/0.53 1.59 1.0 1.0 0.3 1.6 26.2 1010 12 20 1.5 7/0.53 1.59 1.0 1.0 0.3 1.7 27.6 1085 11 21 1.5 7/0.53 1.59 1.0 1.0 0.3 1.7 27.6 1110 11 24 1.5 7/0.53 1.59 1.0 1.0 0.3 1.8 30.4 1270 10 27 1.5 7/0.53 1.59 1.0 1.0 0.3 1.8 31.0 1355 9 30 1.5 7/0.53 1.59 1.0 1.0 0.3 1.8 32.0 1465 8 37 1.5 7/0.53 1.59 1.0 1.0 0.3 1.9 34.4 1725 7

TYPE P4A：

：

：TCU/EPR/EVA/SWB/EVA CABLE –MULTI-CORES(2.5

mm2

)

0.6/1 (1.2) kV

No.

of

core

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance Ω Ω Ω Ω/km Current rating (In air at 40℃℃) ℃℃ Nominal cross- sectional area No./dia. of wire Approx. outer diameter C mm2 No./mm mm mm mm mm mm mm

kg/km

20℃℃℃℃ 90℃℃℃ ℃ A 6 2.5 7/0.67 2.01 1.0 1.0 0.3 1.4 19.2 555 7.56 9.64 20 7 2.5 7/0.67 2.01 1.0 1.0 0.3 1.4 19.2 585 19 8 2.5 7/0.67 2.01 1.0 1.0 0.3 1.5 20.9 675 18 9 2.5 7/0.67 2.01 1.0 1.0 0.3 1.5 22.2 745 17 10 2.5 7/0.67 2.01 1.0 1.0 0.3 1.5 23.8 820 16 11 2.5 7/0.67 2.01 1.0 1.0 0.3 1.5 23.8 860 15 12 2.5 7/0.67 2.01 1.0 1.0 0.3 1.6 24.7 910 15 13 2.5 7/0.67 2.01 1.0 1.0 0.3 1.6 25.7 980 15 14 2.5 7/0.67 2.01 1.0 1.0 0.3 1.6 25.7 1010 14 15 2.5 7/0.67 2.01 1.0 1.0 0.3 1.7 27.1 1100 14 16 2.5 7/0.67 2.01 1.0 1.0 0.3 1.7 27.1 1130 14 17 2.5 7/0.67 2.01 1.0 1.0 0.3 1.7 28.4 1210 13 18 2.5 7/0.67 2.01 1.0 1.0 0.3 1.7 28.4 1240 13 19 2.5 7/0.67 2.01 1.0 1.0 0.3 1.7 28.4 1275 13 20 2.5 7/0.67 2.01 1.0 1.0 0.3 1.8 29.9 1365 13 21 2.5 7/0.67 2.01 1.0 1.0 0.3 1.8 29.9 1400 12 24 2.5 7/0.67 2.01 1.0 1.0 0.3 1.9 33.0 1605 11 27 2.5 7/0.67 2.01 1.0 1.0 0.3 1.9 33.7 1725 10

(28)

TYPE P4A：

：

：TCU/EPR/EVA/SWB/EVA CABLE –MULTI-CORES(4

：

mm2

)

0.6/1 (1.2) kV

No.

of

core

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance Ω Ω Ω Ω/km Current rating (In air at 40℃℃℃℃) Nominal cross- sectional area No./dia. of wire Approx. outer diameter C mm2 No./mm mm mm mm mm mm mm

kg/km

20℃_℃_℃℃ 90℃_℃_℃℃ A 6 4 7/0.85 2.55 1.0 1.0 0.3 1.5 21.4 715 4.70 5.99 28 7 4 7/0.85 2.55 1.0 1.0 0.3 1.5 21.4 760 26 8 4 7/0.85 2.55 1.0 1.0 0.3 1.5 22.9 855 25 9 4 7/0.85 2.55 1.0 1.0 0.3 1.6 24.5 960 23 10 4 7/0.85 2.55 1.0 1.0 0.3 1.6 26.4 1060 22 11 4 7/0.85 2.55 1.0 1.0 0.3 1.6 26.4 1115 22 12 4 7/0.85 2.55 1.0 1.0 0.3 1.7 27.3 1180 21 13 4 7/0.85 2.55 1.0 1.0 0.3 1.7 28.6 1275 21 14 4 7/0.85 2.55 1.0 1.0 0.3 1.7 28.6 1325 20 15 4 7/0.85 2.55 1.0 1.0 0.3 1.7 30.0 1425 20 16 4 7/0.85 2.55 1.0 1.0 0.3 1.7 30.0 1470 19 17 4 7/0.85 2.55 1.0 1.0 0.3 1.8 31.6 1585 19 18 4 7/0.85 2.55 1.0 1.0 0.3 1.8 31.6 1630 19 19 4 7/0.85 2.55 1.0 1.0 0.3 1.8 31.6 1680 18 20 4 7/0.85 2.55 1.0 1.0 0.3 1.9 33.3 1800 18 21 4 7/0.85 2.55 1.0 1.0 0.3 1.9 33.3 1845 17 24 4 7/0.85 2.55 1.0 1.2 0.3 2.0 37.2 2155 16 27 4 7/0.85 2.55 1.0 1.2 0.3 2.0 37.9 2325 14

(29)

Rev: 4444 ((((02/2011111))))

ETHYLENE PROPYLENE RUBBER INSULATED ARMOURED EVA SHEATHED

FLAME RETARDANT CABLE

TYPE P4B : CU/EPR/EVA/SWA/EVA CABLE

TYPE P4B : CU/EPR/EVA/AWA/EVA CABLE

DESCRIPTION

Single core and multi-core cables with copper conductor, EPR insulated, flame retardant low smoke free halogen compound EVA inner covering, galvanized steel wire armoured and flame retardant low smoke free halogen compound EVA outer sheath.

CONSTRUCTION

1 Conductor

Plain annealed circular stranded copper conductor, conform to IEC 60228 class 2. 2 Insulation

EPR (Ethylene propylene rubber) 3 Colour for core identification

Single core - Black

Three core - Red, yellow and blue Four core - Red, yellow, blue and black Five core & above - White core with black numbering 4 Cabling

Flame retardant low smoke free halogen compound EVA, colour black. 6 Armour

Single core -- Aluminium wires shall be applied over the EVA inner covering. Multi-core -- Galvanized steel wires shall be applied over the EVA inner covering. 7 Outer sheath

Flame retardant low smoke free halogen compound EVA, colour black.

CABLE MARKING

SPECIFICATIONS

IEC 60092, IEC 60502-1 IEC 60332-3 Cat A

IEC 60754 (HCL emission 0.5% maximum by weight) ASTM D 2863(Oxygen index greater than 30%)

(30)

TYPE P4B：

：

：TCU/EPR/EVA/AWA/EVA CABLE – SINGLE CORE

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of aluminium wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃℃℃) Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃℃℃ In ground at 25℃℃℃℃ mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A A 16 7/1.70 5.10 1.0 1.0 0.8 1.8 15.3 400 1.16 100 115 25 7/2.14 6.42 1.2 1.0 0.8 1.8 17.1 535 0.734 134 149 35 7/2.52 7.56 1.2 1.0 0.8 1.8 18.3 660 0.529 164 169 50 19/1.78 8.90 1.4 1.0 1.25 1.8 20.9 875 0.391 199 204 70 19/2.14 10.70 1.4 1.0 1.25 1.8 22.7 1120 0.270 254 249 95 19/2.52 12.60 1.6 1.0 1.25 1.8 25.1 1450 0.195 308 298 120 37/2.03 14.21 1.6 1.0 1.6 1.8 27.4 1780 0.154 364 339 150 37/2.25 15.75 1.8 1.0 1.6 1.8 29.4 2115 0.126 412 382 185 37/2.52 17.64 2.0 1.0 1.6 1.8 31.6 2550 0.100 478 433 240 61/2.25 20.25 2.2 1.0 1.6 1.9 34.9 3220 0.0762 567 497 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩ/km ΩΩ ΩΩ/km ΩΩ 16 1.48 0.128 25 0.936 0.121 35 0.674 0.115 50 0.499 0.113 70 0.345 0.107 95 0.25 0.103 120 0.197 0.1 150 0.162 0.098 185 0.129 0.096 240 0.0992 0.093

(31)

Rev: 4444 ((((02/2011111))))

TYPE P4B：

：

：TCU/EPR/EVA/SWA/EVA CABLE – TWO CORES

0.6/1 (1.2) kV

Conductor Nominal thickness of insulation Approx. thickness of inner covering Nominal diameter of steel wire Nominal thickness of outer sheath Approx. overall diameter Approx. cable weight Maximum Conductor Resistance (at 20℃℃℃℃) Current rating Nominal cross- sectional area No./dia. of wire Approx. outer diameter In air at 40℃℃℃℃ In ground at 25℃℃℃℃ mm2 No./mm mm mm mm mm mm mm

kg/km

ΩΩΩΩ/km A A 1.5 7/0.53 1.59 1.0 1.0 0.8 1.8 15.8 420 12.2 29 33 2.5 7/0.67 2.01 1.0 1.0 0.8 1.8 16.6 470 7.56 38 45 4 7/0.85 2.55 1.0 1.0 0.8 1.8 17.8 545 4.70 45 58 6 7/1.04 3.12 1.0 1.0 1.25 1.8 19.5 735 3.11 58 75 10 7/1.35 4.05 1.0 1.0 1.25 1.8 22.2 940 1.84 79 98 16 7/1.70 5.10 1.0 1.0 1.25 1.8 24.2 1150 1.16 105 124 25 7/2.14 6.42 1.2 1.0 1.6 1.8 28.5 1680 0.734 139 159 35 7/2.52 7.56 1.2 1.0 1.6 1.8 30.9 2020 0.529 169 194 50 19/1.78 8.90 1.4 1.0 1.6 1.9 34.5 2480 0.391 209 229 70 19/2.14 10.70 1.4 1.0 2.0 2.0 39.1 3405 0.270 259 279 95 19/2.52 12.60 1.6 1.2 2.0 2.2 44.7 4365 0.195 318 333 120 37/2.03 14.21 1.6 1.2 2.0 2.3 48.1 5105 0.154 369 379 150 37/2.25 15.75 1.8 1.2 2.5 2.4 53.8 6465 0.126 422 422 185 37/2.52 17.64 2.0 1.4 2.5 2.6 59.0 7750 0.100 483 478 240 61/2.25 20.25 2.2 1.4 2.5 2.8 65.7 9550 0.0762 572 552 Conductor Size Maximum Conductor Resistance 50Hz at 90℃℃℃℃ Reactance (50Hz) mm2 ΩΩΩΩ/km ΩΩΩΩ/km 1.5 15.56 0.114 2.5 9.64 0.106 4 5.99 0.099 6 3.97 0.093 10 2.34 0.087 16 1.48 0.083 25 0.936 0.082 35 0.675 0.079 50 0.499 0.079 70 0.345 0.076 95 0.25 0.075 120 0.197 0.0738 150 0.16 0.0738 185 0.129 0.0736 240 0.0997 0.073
