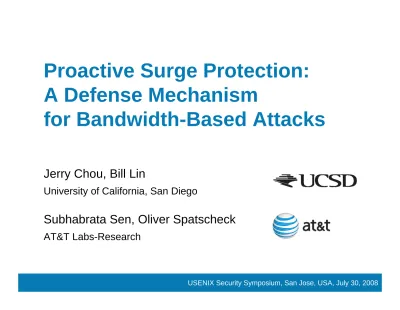

Proactive Surge Protection: A Defense Mechanism for Bandwidth-Based Attacks

Proactive Surge Protection:

A Defense Mechanism

for Bandwidth-Based Attacks

Jerry Chou, Bill Lin

University of California, San Diego

Subhabrata Sen, Oliver Spatscheck

Outline

• Problem

• Approach

• Experimental Results

Motivation

• Large-scale bandwidth-based DDoS attacks can quickly knock out substantial parts of a network before reactive defenses can respond

• All traffic that share common route links will suffer collateral damage even if it is not under direct attack

Seattle

Sunnyvale Denver

Los Angeles

Chicago New York

Washington

Atlanta

Houston Kansas City

Motivation

• Potential for large-scale bandwidth-based DDoS attacks exist

• e.g. large botnets with more than 100,000 bots exist today that, when combined with the prevalence of high-speed Internet access, can give attackers multiple tens of Gb/s of attack capacity

• Moreover, core networks are oversubscribed (e.g. some core routers in Abilene have more than 30 Gb/s incoming traffic from access networks, but only 20 Gb/s of outgoing capacity to the core

Example Scenario

• Suppose under normal condition

¾ Traffic between Seattle/NY + Sunnyvale/NY under 10

Gb/s New York Seattle 10G 10G 10G Seattle/NY: 3 Gb/s Houston Atlanta Indianapolis Kansas City Sunnyvale Sunnyvale/NY: 3 Gb/s

Example Scenario

• Suppose sudden attack between Houston/Atlanta

¾ Congested links suffer high rate of packet loss ¾ Serious collateral damage on crossfire OD pairs

New York Sunnyvale Seattle 10G 10G 10G Sunnyvale/NY: 3 Gb/s Seattle/NY: 3 Gb/s

Houston Atlanta Houston/Atlanta: Attack 10 Gb/s Indianapolis Kansas

Impact on Collateral Damage

• OD pairs are classified into 3 types with respect to the attack traffic

¾ Attacked: OD pairs with attack traffic

¾ Crossfire: OD pairs sharing route links with attack traffic

¾ Non-crossfire: OD pairs not sharing route links with attack traffic

• Collateral damage occurs on crossfire OD pairs

• Even a small percentage of attack flows can affect substantial parts of the network

Related Works

• Most existing DDoS defense solutions are reactive in nature

• However, large-scale bandwidth-based DDoS attacks can quickly knock out substantial parts of a network before reactive defenses can respond

• Therefore, we need a proactive defense mechanism that works immediately when an attack occurs

Related Works (cont’d)

• Router-based defenses like Random Early Drop (RED,

RED-PD, etc) can prevent congestion by dropping packets early before congestion

¾ But may drop normal traffic indiscriminately, causing

responsive TCP flows to severely degrade

• Approximate fair dropping schemes aim to provide fair sharing between flows

¾ But attackers can launch many seemingly legitimate

TCP connections with spoofed IP addresses and port numbers

• Both aggregate-based and flow-based router defense mechanisms can be defeated

Previous Solutions (cont’d)

• Router-based defenses like Random Early Drop (RED,

RED-PD, etc) can prevent congestion by dropping packets early before congestion

¾ But may drop normal traffic indiscriminately, causing

responsive TCP flows to severely degrade

• Approximate fair dropping schemes aim to provide fair sharing between flows

¾ But attackers can launch many seemingly legitimate

TCP connections with spoofed IP addresses and port numbers

• Both aggregate-based and flow-based router defense mechanisms can be defeated

In general, defenses based on

unauthenticated header information such as

IP addresses and port numbers

may not be reliable

In general, defenses based on

unauthenticated header information such as

IP addresses and port numbers

Outline

• Problem • Approach

• Experimental Results • Summary

Our Solution

• Provide bandwidth isolation between OD pairs, independent of IP spoofing or number of TCP/UDP connections

• We call this method Proactive Surge Protection (PSP) as it aims to proactively limit the damage that can be caused by sudden demand surges, e.g. sudden

Traffic received in NY:

Seattle: 3 Gb/s Sunnyvale: 3 Gb/s …

Basic Idea: Bandwidth Isolation

• Meter and tag packets on ingress as HIGH or LOW priority

¾ Based on historical traffic demands and network capacity

• Drop LOW packets under congestion inside network

New York Sunnyvale Seattle 10G 10G 10G Seattle/NY: Limit: 3.5 Gb/s Actual: 3 Gb/s

All admitted as High

Houston Atlanta Indianapolis Kansas City Sunnyvale/NY: Limit: 3.5 Gb/s Actual: 3 Gb/s

All admitted as High

Houston/Atlanta:

Limit: 3 Gb/s

Actual: 2 Gb/s

All admitted as High Houston/Atlanta:

Limit: 3 Gb/s

Actual: 10 Gb/s High: 3 Gb/s Low: 7 Gb/s

Proposed mechanism proactively drop attack

traffic immediately when attacks occur

Proposed mechanism proactively drop attack

traffic immediately when attacks occur

Traffic Data Collector Traffic Data

Collector BandwidthBandwidthAllocator_Allocator

Preferential Dropping Preferential

Dropping DifferentialDifferentialTagging_Tagging

Architecture

Traffic Measurement

Bandwidth Allocation Matrix

tagged packets forwarded packets dropped packets Data Plane Policy Plane Deployed at Network Routers Deployed at Network Perimeter arriving packets High priority Low priority

Proposed mechanism readily available in

modern routers

Proposed mechanism readily available in

modern routers

Allocation Algorithms

• Aggregate traffic at the core is very smooth and variations are predictable

• Compute a bandwidth allocation matrix for each hour based on historical traffic measurements

¾ e.g. allocation at 3pm is computed by traffic

measurements during 3-4pm in the past 2 months

Allocation Algorithms

• To account for measurement inaccuracies and provide headroom for traffic burstiness, we fully allocate the entire network capacity as an utility max-min fair allocation problem

¾ Mean-PSP: based on the mean of traffic demands ¾ CDF-PSP: based on the Cumulative Distribution

Function (CDF) of traffic demands • Utility Max-min fair allocation

¾ Iteratively allocate bandwidth in “water-filling” manner ¾ Each iteration maximize the common utility of all flows ¾ Remove the flows without residual capacity after each

Utility Max-min Fair Bandwidth Allocation

Mean-PSP

(Mean-based Max-min)

• Use mean traffic

demand as the utility function • Iteratively allocate bandwidth in “water-filling” manner 0 2 4 6 8 10 BW BA CB BC AB Links 1st round 0 2 4 6 8 10 BW BA CB BC AB Links 2nd round A B C - 1.5 1 0.5 - 0.5 -1.5 1 Mean Demand -A B C A B C 6 4 4 6 6 4 BW Allocation B_ij 10G A 10G 10G B 10G C A B C t measuremen d B B f ij ij ij ij /# ) (

∑

CDF-PSP

(CDF-based Max-min)

• Explicitly capture the traffic variance by using a

Cumulative Distribution Function (CDF) model as utility functions

• Maximize utility is equivalent to minimizing the drop probabilities for all flows in a max-min fair manner

]

[

)

(

B

PROB

d

B

f

=

≤

)

5

3,

1,

1,

1,

(

:

E.g

d

=

When allocated 3 unit bandwidth, drop probability is 20%

Outline

• Problem • Approach

• Experimental Results

Networks

• US Backbone

¾ Large tier1 backbone network in US

¾ ~700 nodes, ~2000 links (1.5Mb/s – 10Gb/s) ¾ 1-minute traffic traces: 07/01/07-09/03/07

• Europe Backbone

¾ Large tier1 backbone network in Europe

¾ ~900 nodes, ~3000 links (1.5Mb/s – 10Gb/s) ¾ 1-minute traffic traces: 07/01/07-09/03/07

Evaluation Methodology

• NS2 Simulation

• Normal traffic: Based on actual traffic demands over 24 hour period for each backbone

• Attack traffic:

¾ US Backbone: highly distributed attack scenario

• Based on commercial anomaly detection systems • From 40% ingress routers to 25% egress routers

¾ Europe Backbone: targeted attack scenario

• Created by synthetic attack flow generator

Packet Loss Rate Comparison

US Europe

• Both PSP schemes greatly reduced packet loss rates

Relative Loss Rate Comparison

US Europe

Behavior Under Scaled Attacks

• Packet drop rate under attack demand scaled by factor up to 3x

• Under PSP, the loss remains small throughout the range !

Summary of Contributions

• Proactive solution for protecting networks that provides a first line of defense when sudden DDoS attacks occur

• Very effective in protecting network traffic from collateral damage

• Not dependent on unauthenticated header information, thus robust to IP spoofing
