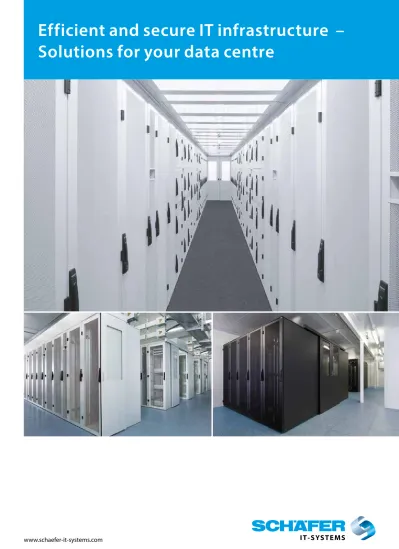

Efficient and secure IT infrastructure Solutions for your data centre

(1)

www.schaefer-it-systems.com

Efficient and secure IT infrastructure –

Solutions for your data centre

(2)

Development so far Scenario „Business as usual“ Scenario „Moderate efficiency increase“ Scenario „Green IT“

Power consumption of servers and data centers in Germany 2000 2001 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 16 14 12 10 8 6 4 2 0 TW h/y ear Source: Borderstep 2010 3,98 TWh 10,1 TWh 9,3 TWh 6,0 TWh 14,2 TWh 9,7 TWh

The specialists for IT infrastructure

Save costs and resources with SCHÄFER

Despite increasing server densities, it is possible to save energy and consequently costs in data centres.

To do so, the effective cooling capacity in particular must be directed precisely to the place it is needed.

Examples:

To make ice cubes, it isn‘t the entire house or the refrigerator that is cooled down, but simply the ice compartment!

Optimal planning of IT infrastructure has influence on...

(3)

Cooling concept 6

Monitoring and control 16

Energy supply 17

Energy distribution 18

Fire protection technology 19

The right cooling concept 20

Service 22

Your contact persons 23

SCHÄFER IT-Systems – your specialist for

data center infrastructure

(4)

The specialists for IT infrastructure

Given conditions in the data center

Climatic Conditions?

Extendable?

Performance

per Rack?

Water or Coolant?

Small Footprint?

Ceiling

Height?

(5)

What is the best cooling concept under

the given conditions?

Given conditions in the data center

Overall

_Performance?

Room Conditions?

Budget?

Small Footprint?

Safety Regulations?

(6)

Efficiency 30 25 12 4 Eff ec tiv e c ooling c apacit y p er r ack in kW

The right cooling concept

Possible solutions

SWAP PANEL9 COLD SECTION

Racks COLD SECTION+ SWAP PANEL9

COLD SECTION + LOOPUS as Open LOOP COLD SECTION + LOOPUS

as Closed LOOP

UNIQLE

LOOPUS (CW)

LOOPUS (DX)

The right cooling concept depends on the effective cooling capacity needed per rack and the required efficiency level in the given spatial conditions

Make your data centre

fit for the future

Air-cooled solutions Water-cooled solutions Coolant-based solutions

Rack-based solutions Cold/Warm aisle solutions

(7)

up to 4 kW/rack

Cold/Warm Aisle

Cold/Warm Aisle

Modern rack cooling concepts provide efficient server cooling while keeping electricity consumption low.

The principle all these concepts are based on involves directing the cold air to the servers as precisely as possible.

n The racks are set up face to face in rows on the raised floor (cold/warm aisle)

n A precision cooling device feeds cold air into the raised floor via ventilation panels at defined points

n The cold air is fed to the servers from the front through passively ventilated cabinets doors

n Behind the racks, the warm air is extracted via the ceiling by a cooling device and cooled down

n This cold air is returned to the raised floor and back into circulation

Air-cooled solutions

n The cold air aisles in front of the cabinets and the warm air aisles behind them are clearly separated from each

n This cooling principle is based on the precise routing of air to achieve a greater cooling effect

(8)

Cold aisle enclosure

COLD SECTION

COLD SECTION for preventing air short circuits (warm and cold air mixing together)

n Economical solution

n Scalability of additional cooling (LOOPUS)

n Raised floor enables cooling capacity to be adjusted

n Easy assembly

n Optional extension to cold/warm aisle

n Enclosure creates structural separation

Cooling by means of a raised floor and the enclosure of cold aisles

Optimum cold-air routing

The purpose of an enclosure is the complete structural separation of the cold aisle in front of the servers and the hot aisle behind the servers.

n The aisles between them are fitted with ceilings and sliding doors to enclose the cold aisle

n The cold air directed through the raised floor is exclusively released into cold aisles

n Enclosure of the cold/warm aisles facilitates the targeted routing of cold air from the raised floor to the hotspots in the cabinets and the warm air back into the cooling cycle via the rear of the racks

n Warm and cold air in the data center is effectively prevented from mixing

(9)

Raised floor system

SWAP PANEL 9

The variable option for ventilation

Modular raised floor panels with exchangeable segments which allow a variety of ventilation options and an even more precise concentration of cold air at individual hotspots are a very useful addition to any enclosure system.

Within the overall concept of directing cold and warm air in the data center as effectively as possible to achieve needs-related cooling requirements, they provide greater flexibility and add the “fine tuning” to the air supply for the cold aisles.

SWAP PANEL 9

Modular inserts in three variations, size: approx. 200 mm x 200 mm

n Air-flow elements (approx. 60 % open area)

n Cable routing elements

n Solid elements (standard and heavy duty)

By using 9 ventilation tiles SWAP PANEL 9 achieves an open area of 60 %.

(10)

SKYLINE

Enclosures – the solution for cabinets

of varying dimensions

Enclosures

The SKYLINE Enclosures

Server cabinets often come from many different manufacturers and in different dimensions. With our flexible SKYLINE Enclosures, it is possible to put a roof over existing cabinets rows and IT structures that have grown together over years, regardless of their manufacturers.

n Enclosure of cold/warm aisles with different widths

and heights

n Profiles with individually measured Sandwich panels

are fitted to close the gaps between the cabinets

n For cabinets of varying height, the spaces up to the

aisle ceiling are also compensated with sandwich panel profiles

n The modular system facilitates on-site handling

and the flexible extension of the enclosure, if required

Wall and ceiling elements and doors from the SKYLINE range can be placed over existing server cabinets (see above). The result is a cold aisle enclosure that meets the latest standards of modern, energy-efficient cooling (see below)

Air Tube Switch: controlled cooling for switches combined with the separation of cold/warm sections in racks

The Air Tube Switch enables cooling air for switches to be routed with precision. It can be installed in 800 mm wide racks with 19“ at the front and rear.

The use of the Air Tube Switch enables switches to be mounted adjacently without any mutual thermal influence.

(11)

Rack-based solutions – water-cooled

Rack-based, water-cooled server cabinet solution

Closed LOOP

This highly efficient cooling concept has a side cooler mounted directly next to the rack – or between two server racks which are closed both at the front and rear.

Cooled air is fed into the closed server rack through the air vent slits in the rack’s side panels. The warm air given off by the servers is sucked in on the rack’s rear side by the side cooler.

This circulating air is then cooled by an integrated heat exchanger and fed back into the rack over its entire height.

The coolant-based cooling system (DX) is used when entire systems require effective cooling capacities of approx. < 50 kW.

For reasons of economy, the water-cooled solution (CW) is only used when the effective cooling capacity for the entire system exceeds > 50 kW.

Why Closed LOOP?

n The Closed Loop System is a self-sufficient mini data center

n Its high heat load dissipation per rack of up to 30 kW enables it to fulfil all requirements of high availability and reliability

n This guarantees the highest levels of space and energy efficiency

(12)

Row-based, water-cooled server cabinet solution

Open LOOP

with

COLD SECTION

Capacit y in kW Server inlet temperature 20° C Water temperatures outflow Δt 5-10K 8° C 10° C 12° C 14° C 17° C 19° C 0,5 1 1,5 2 2,5 3 3,5 4 32,5 27,5 22,5 17,5 12,5 7,5

Water flow rate in m3/h

LOOPUS OLS effective cooling capacity*)

Capacit y in kW Server inlet temperature 24° C Water temperatures outflow Δt 5-10K 8° C 10° C 12° C 14° C 17° C 19° C 0,5 1 1,5 2 2,5 32,5 27,5 22,5 17,5 12,5 7,5

*) Graph data are proximity data. To calculate cooling requirement, precise data are needed.

LOOPUS is a cold aisle enclosure with or without a raised floor. The warm air is sucked in, cooled over an integrated heat exchanger and fed back to the servers.

Why LOOPUS?

n The cooling units are regulated in the direct proximity of the heat source

n The outstanding feature of the LOOPUS operating

prin-ciple is its extremely low pressure loss in comparison to the raised floor solution

n The cooling capacity can be adapted more quickly to the actual requirements

(13)

Capacit y in kW Server inlet temperature 20° C Water temperatures outflow Δt 5-10K 8° C 10° C 12° C 14° C 0,5 1 1,5 2 2,5 3 3,5 32,5 27,5 22,5 17,5 12,5 7,5

LOOPUS CLS effective cooling capacity*)

Capacit y in kW Server inlet temperature 24° C Water temperatures outflow Δt 5-10K 8° C 10° C 12° C 14° C 18° C 0,5 1 1,5 2 2,5 3 3,5 32,5 27,5 22,5 17,5 12,5 7,5

Row-based, water-cooled server cabinet solution

Closed LOOP

with

COLD SECTION

The completely closed, water-cooled server rack system with an integrated heat exchanger enables a cold/warm closed loop system to be implemented in a minimum of space and so represents an energy-efficient solution for the manage-ment of high heat loads.

It can also be incorporated into existing data centers as a self-sufficient climate system.

(14)

Water-cooled rack with heat exchanger

below the server:

UNIQLE

Cooling sy st em Ser ver r ack fr om 37 U up t o max. 58 U Capacit y in kW Server inlet temperature 20° C Water temperatures outflow Δt 5-10K 8° C 10° C 12° C 14° C 0,5 1 1,5 2 2,5 3 3,5 4 32,5 27,5 22,5 17,5 12,5 7,5

UNIQLE effective cooling capacity*)

Capacit y in kW Server inlet temperature 24° C Water temperatures outflow Δt 5-10K 8° C 10° C 12° C 14° C 0,5 1 1,5 2 2,5 32,5 27,5 22,5 17,5 12,5 7,5

Pr essur e loss kP a 1 0 1,2 1,4 1,6 1,8 2 2,2 2,4 2,6 2,8 3 3,2 3,4 3,6 3,8 4 4,2 4,4 Flow rate m3/h 20 40 60 80 100 120 140 160 180 200 220 240

Pressure loss Δp UNIQLE water kPa

Pressure loss kPa

UNIQLE, the self-sufficient mini data center was developed for high-performance computers and cluster solutions n Via a cooling unit integrated in a separate rack, a supply of

cold air is permanently circulated to the front of the servers installed in the racks

n The warm air expelled at the rear of the servers by fans is sucked in by the cooling unit and re-cooled over the heat exchanger

n The thermal energy is fed back to a precision cooling device over water or another coolant

n Can be assembled on less than one square meter using 37 U to 58 U, depending on available space!

(15)

Rack-based solutions – coolant-based

Coolant-based server cabinet solution

with side cooler

The coolant-based cooling system (DX) is used when entire systems require effective cooling capacities of approx. < 50 kW.

For reasons of economy, the water-cooled solution (CW) is only used when the effective cooling capacity for the entire system exceeds > 50 kW.

Compressor

Evaporator Condenser

Expansion valve

External

cooler Side cooler

Compact, coolant-based side coolers are integrated into the rack rows, cooling either one individual rack or the cold aisle of a rack row. The heat transfer fluid (coolant R410A) is circulated in a cycle (see diagram above). Driven by a compressor, it absorbs thermal energy from the rear of the server and passes it on to the external cooler unit via an evaporator.

The system is available as an open (Open LOOP) or closed air circuit (Closed LOOP) and suitable for use in smaller server rooms. Heat dissipation capacities of up to 20 kW are possible.

(16)

Monitoring and control

Monitoring and control –

collecting, presenting and monitoring data

n Monitoring and control n Temperature and humidity control

n Sensor-controlled door management

WIB 8000

n WIB 8000 air-conditioning monitor/controller

RMS Comfort RMS 200

(17)

Energy supply

Reliable power supply safeguards

IT infrastructures and system components

Germany‘s power grid is among the most efficient worldwide. Its failure rate is lower than that of other leading Industrial nations. Nevertheless, in planning and organising your physical infrastructure, the failure risk should be minimised right from the outset. There are various approaches, depending on the desired availability of your IT equipment.

Regardless of whether your transformer station already provides a redundant power supply or you are just beginning to use a UPS configuration with an n+1 solution, we can help you to implement your redundancy concept inside the server/ network cabinets right up to the terminals.

Transformer B Transformer A NEA B NEA A USV B USV A B A B A B A B A

(18)

Energy in the rack –

distribution, switching, measuring

Energy distribution

Simple power distribution

via outlet strip Optically measurablepower outlet strip Switchableoutlet strip

System accessories for intelligent power management!

Modern, high-performance servers and IT equipment have increasingly high energy needs that can be controlled with the right power distribution components.

Depending on requirements and application, there are a range of different PDUs available, from simple power outlet strips to intelligent, switchable and measureable multiple socket outlets.

(19)

Fire protection technology

Fire detection and extinguishing

To comply with fire protection standards, fire detection and extinguishing plans must be in place. A 3-stage safety concept can be helpful in accomplishing this:

Rack-based extinguishing – integration in the rack

n Easy-to-handle, space-saving 482.6 mm (19“) insert

n Integrated aspirating smoke detector

n 1 or 2 U

n Extinguishing agent: Novec™ 1230 N2

n Earliest possible, highly sensitive smoke detection n

Auto-matic system shut-down n Optimal fire suppression with gas.

Depending on the infrastructure, various approached must be pursued.

Room-based extinguishing – integration in the rack

n Extinguishing system covering the entire room (e. g. inside the enclosure in the aisle ceiling)

n Smoke detection in the rack

n Extinguishing system intended for all racks)

n Various gas extinguishing agents

1 2

n Rack-based extinguishing n Room-based extinguishing

(20)

The right cooling concept

Any optimization in the data center is based on a sound currentstate analysis, in which all relevant parameters regarding energy

consumption and thermal loads are determined and evaluated. This will then reveal what measures are required for achieving

effective optimisation and improving consumption figures. Significant efficiency improvements and considerable operating cost reductions can be achieved with relatively little effort and expense! Cooling with water-cooled racks (closed system) Cooling method

Cooling via the raised floor with arrangement of racks in cold/warm aisles

Cooling via the raised floor and cold aisles enclosures

Water-cooled without raised floor and cold aisle enclosures

Diagram

SP20 Rack:

state-of–the-art cabinet solution for all currently available server components. SWAP PANEL 9: Raised floor COLD SECTION: Cold-aisle enclosure SWAP PANEL 9: Raised floor UNIQLE + LOOPUS: Air-conditioned cabinet with integrated rack management system and on-demand cooling unit

LOOPUS: Water-cooled solution combined with COLD SECTION Designated capacity range < 1,500 (2,000) W/m2 < 6 (8) kW/rack 1,000 bis 4,000 W/m2 4 bis 12 kW/rack 8 bis 30 kW/rack 4 bis 25 kW/rack < 1,000 W/m² <4 kW/rack < 2,000 W/m² <8 kW/rack up to 12 kW/rack up to 30 kW/rack 10-25 kW/rack up to 25 kW/rack < 1,000 W/m² <4 kW/rack < 2,000 W/m² <8 kW/rack up to 12 kW/rack up to 30 kW/rack 10-25 kW/rack up to 25 kW/rack

(21)

Planning guide: cooling concepts

for data centers

Remarks Application(Low Density) < 4 kW/rack Application (Medium Density) 4-8 kW/rack Application (High Density) 8-12 kW/rack Application (High Density) > 12 kW/rack

A solution for a relatively homogenous computer centre layout. Performance depends on height of raised floor and air circulation planning. Optimisation possible by accurate sizing of server loads. Risk of hot spots if performance requirements approach borderline areas. Advantage over warm/cold aisle because the enclosure provides structural sepa-ration. Pay attention to pressure ratios in the cold aisle (could have a negative influence on the server). For several enclosures in one room, careful ventilation planning is required.

Practically a mini data center in itself. High level of heat dissipation possible. It should be taken into account that special solution for detecting and extinguishing fires may be required. Can be used in combination with classical room air-conditioning. Advantages of cold aisle enclosure. No raised floor necessary. Shortest possible air paths. Redundancy guarantees high availability. (n+x). Scalable. Application yes Application not needed Application not needed Application not needed Application yes (extreme care and attention required) Application yes Application yes Application yes Application no Application yes Application yes Energy efficiency Application yes Application no Application limited Application yes Energy efficiency Application yes Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency Energy efficiency

(22)

Service

Partnership all the way to success! From consulting to

commissioning – everything from a single source!

Energy efficient rack cooling concepts

For data centre infrastructures that are both reliable and energy efficient, there are no magic formulas, only needs-rela-ted tailor-made solutions. This includes selection of the right rack system and a suitable cooling concept.

Consulting

We will show you where hidden potential for measurable energy savings can be found and how you can improve your data center's overall efficiency.

In a fundamental on-site assessment of your data center

Infrastructure, we will take a holistic view of the entire complex system in order to take all influencing factors into account.

Development

The IT experts at SCHAFER will work with you to develop a

concept for optimal physical protection and advise you on

precision cooling, redundant power supply, emergency boxes, automatic door opening systems, RMS,

temperature and humidity control etc., to speed up fault recognition and rectification.

Service

Regardless of whether you have a question about products or need advice on a specific project, we can provide competent assistance quickly and without complications. With active

project support and individual services like express delivery, cleaning data centers and raised floor systems, unloading and carrying, disposal of packaging materials, on-site assembly and commissioning, we and our well-practised team of partners will provide all the assistance you need.

Partnership Management

Whether a project involves optimizing an existing data center, or building up a new IT structure, having the right planners at hand can guarantee measurable cost and time saving benefits. SCHÄFER analyses, designs and realises the configuration of your data centre in exact accordance with your specific needs and requirements. To achieve this SCHAFER brings together highly specialised and qualified partners to guarantee the data centre design fulfils the requirements specifically defined by the custo-mer to 100 %. The custocusto-mer receives all this from a single source. In addition, service and maintenance specialists are available permanently worldwide with their own service concepts.

Delivery

Through our Express Range, we can deliver customized solutions, including all important accessories, from stock at short notice.

(23)

Sales Management

Michael Weber

Business unit sales director

SCHÄFER Ausstattungs-Systeme GmbH Betzdorf plant: Industriestraße 41 · D-57518 Betzdorf Phone: +49 (0) 2741/283-241 Fax: +49 (0) 2741/283-798 Mobile: +49 (0) 151/46743756 E-Mail: [email protected] Thomas Wermke Sales director SCHÄFER Ausstattungs-Systeme GmbH Betzdorf plant: Industriestraße 41 · D-57518 Betzdorf Phone: +49 (0) 2741/283-781 Fax: +49 (0) 2741/283-798 Mobile: +49 (0) 151/25823004 E-Mail: [email protected]

Sales

Sales area east Jörg Krätzig

Area sales manager east Post codes 0, 1, 39, 98-99 Sales office Berlin:

Wendenschloßstr. 462 · D-12557 Berlin Phone: +49 (0) 2741/283-902

Fax: +49 (0) 2741/283-962

Mobile: +49 (0) 171/5642035 E-Mail: [email protected]

Sales area west Detlef Müller

Area sales manager west Post codes 33, 40-48, 50-54, 56-59 Sales office Kalenborn:

Auf den Wiesen 2 · D-53505 Kalenborn: Phone: +49 (0) 2741/283-907

Fax: +49 (0) 2741/283-967

Sales area north Peter Suter

Area sales manager north Post codes 2, 30-32, 37-38, 49 Sales office Hamburg:

Mattentwiede 5 · D-20457 Hamburg Phone: +49 (0) 2741/283-905

Fax: +49 (0) 2741/283-965

Sales area south-west

Post codes 66-69, 7 Phone: +49 (0) 2741/283-915

Fax: +49 (0) 2741/283-975

E-Mail: [email protected]

Sales area south-east Siegfried Bachmann

Area sales manager south-east Post codes 8, 90-96

Sales office Ammerndorf:

Am Weinberg 5 A · D-90614 Ammerndorf Phone: +49 (0) 2741/283-903

Fax: +49 (0) 2741/283-963

Mobile: +49 (0) 171/9771017

Sales area middle

Post codes 34-36, 55, 60-65, 97 Phone: +49 (0) 2741/283-912

Fax: +49 (0) 2741/283-972

Sales area BeNeLux Gerbert-Jan Meijerink

Area sales manager BeNeLux Phone: +31 (0) 26/3615229 Mobile: +31 (0) 6/31773626

Ramona Breunig

IT Rack Solutions

Factory and office equipment Phone: +49 (0) 2741/283-870 Fax: +49 (0) 2741/283-798 E-Mail: [email protected] Yvonne Henrichs IT Rack Solutions Phone: +49 (0) 2741/283-261 Fax: +49 (0) 2741/283-798 E-Mail: [email protected] Jürgen Schmidt IT Rack Solutions Phone: +49 (0) 2741/283-776 Fax: +49 (0) 2741/283-798 E-Mail: [email protected] Jessica Theis IT Rack Solutions Phone: +49 (0) 2741/283-735 Fax: +49 (0) 2741/283-798 E-Mail: [email protected] Karina Wagner IT Rack Solutions Phone: +49 (0) 2741/283-240 Fax: +49 (0) 2741/283-798 E-Mail: [email protected]

Melvin van Doorn

IT Rack Solutions Export Phone: +49 (0) 2741/283-797

Fax: +49 (0) 2741/283-798

Customer service centre

Service and Order Centre

Phone: +49 (0) 2741/283-770

Fax: +49 (0) 2741/283-798

E-Mail: [email protected] www.schaefer-it-systems.de

Your contact persons

Your contact

(24)

Our production plants

SCHÄFER IT-Systems, an innovative manufacturer of made-to-measure network and server cabinet solutions for both conventional and complex applications, is part of the internationally successful company SCHÄFER WERKE.

The owner-led group of companies has its headquarters in Neunkirchen in Germany’s Siegerland region. The work of all the SCHÄFER WERKE divisions – SCHÄFER IT-Systems, SCHÄFER Industrial Solutions, SCHÄFER Interior Systems, SCHÄFER Container Systems, SCHÄFER Perforated Metal and EMW Steel Service Center – is based on high-quality fine steel sheet. The processing of this material is one of the core competencies of this enterprise.

SCHÄFER Ausstattungs-Systeme GmbH Pfannenbergstraße 1 · D-57290 Neunkirchen Sales and Production:

Industriestraße 41 · D-57518 Betzdorf Tel. +49 (0) 2741/283-770 · Fax +49 (0) 2741/283-798 E-Mail: [email protected] www.schaefer-it-systems.com Prin t no . 0125/02.15 · W e r eser ve the r igh t t o make t echnical modifica tions

Betzdorf plant (D) Ledecˇ nad Sázavou plant (CZ)
