EFFECT OF KNEE VALGUS UNLOADER BRACE IN VARUS- ALIGNED INDIVIDUALS ON FEMORAL ARTICULAR CARTILAGE DEFORMATION ACUTELY FOLLOWING

WALKING PROTOCOL

Joshua Alton Valentine

A thesis submitted to the faculty of the University of North Carolina at Chapel Hill in partial fulfillment of the requirements for the degree of Master of Arts in the Department of Exercise

and Sport Science (Athletic Training) in the College of Arts & Sciences

Chapel Hill 2018

Approved by: Brian Pietrosimone

(2)

© 2018

(3)

ABSTRACT

Joshua Alton Valentine: Effect of knee valgus unloader brace in varus-aligned individuals on femoral articular cartilage deformation acutely following walking protocol

(Under the direction of Brian Pietrosimone)

Progression of knee osteoarthritis (OA) has been associated with excessive cartilage loading. Varus knee malalignment has been hypothesized to increase the load through the medial compartment of the knee. The purpose of our study was to examine the effects of a valgus unloader knee brace in individuals with varus knee alignment on medial femoral articular cartilage deformation following a standardized walking protocol.

Medial compartment cartilage area (MCCA) was measured in 24 healthy subjects pre and post walking 5000 steps across two conditions: braced and unbraced. Percent area change was measured from pre to post in each condition and evaluated via paired samples t-test.

(4)

TABLE OF CONTENTS

LIST OF FIGURES ... VI LIST OF TABLES ... VII

CHAPTER 1 ... 1

SPECIFIC AIMS ... 3

CHAPTER 2 ... 4

PROPERTIES OF CARTILAGE ... 4

ETIOLOGY AND PROGRESSION OF KNEE OA ... 5

KNEE ADDUCTION MOMENT ... 7

JUSTIFICATION FOR ULTRASONOGRAPHY ... 7

UNLOADER BRACE DESIGN AND EFFECT ... 9

Table 1. Review of valgus unloader brace effects on KAM ... 10

CONCLUSION ... 10

CHAPTER 3 ... 11

Design ... 11

Participants ... 11

Data Collection Procedures ... 12

Pre-loading Protocol ... 12

(5)

Statistical Analysis ... 16

CHAPTER 4 ... 17

Table 2. Demographic characteristics ... 17

Table 3. Cross-sectional area cartilage change ... 18

Figure 2. Percent change in medial compartment cross-sectional area ... 19

CHAPTER 5 ... 20

(6)

LIST OF FIGURES

(7)

LIST OF TABLES

(8)

CHAPTER 1

It is estimated that 14 million Americans suffer from symptomatic knee osteoarthritis (OA).1 The disease is characterized by a chronic and abnormal remodeling of joint tissues

including degradation of the cartilage, osteophyte formation, and subchondral bone thickening2.

Activities of daily living become increasingly difficult as the pain and stiffness associated with knee OA worsen3, and in severe cases can lead to surgical joint replacement.4

Progression of knee OA is often associated with abnormal biomechanics and tibiofemoral malalignment.4-5 Greater knee varus angle is hypothesized to increase the load through the

medial compartment of the knee6-7, which may also increase the stress on the articular cartilage

of the medial femoral condyle. Articular cartilage is viscoelastic and deformation of the tissue occurs normally during weight-bearing activities.8 However, excessive loading of the cartilage

may predispose an individual to articular joint pathology. Historically, the load through the medial compartment of the knee has been measured via the knee adduction moment (KAM).9

This moment quantifies the effect of the ground reaction force vector as it passes medially to the knee joint center, and serves as a surrogate measure of medial knee compartment loading while walking.10 An increased KAM has been correlated to the onset of knee OA.9 In patients already

suffering from knee OA, an increased KAM through the medial compartment hastens the progression of the disease and increases pain while weight-bearing.4

Valgus unloader braces have been used as an intervention to treat individuals with medial knee OA.11,27-30 They operate via a three-point bending mechanism that applies valgus pressure

(9)

have demonstrated reductions in pain and improvements in daily function.11 Valgus unloader

braces have also been shown to reduce the KAM by up to 30%.12 However, further research is

needed to determine the effectiveness of these orthoses at reducing the amount of femoral articular cartilage deformation during self-selected walking.

Late-onset osteoarthritic changes, including joint space narrowing and osteophyte presentation, have been traditionally identified by radiography.13 However, radiography is

limited by its inability to identify early cartilage erosion and thickness changes. Ultrasonography (US) is becoming more frequently used as a mode of identifying femoral cartilage changes.13 US

is a reliable alternative when compared with magnetic resonance imaging (MRI), the current standard for the evaluation of knee cartilage thickness.13-14 US is also sensitive to acute femoral

cartilage changes following self-selected walking.15 Therefore, the purpose of this study was to

determine the effect of a valgus unloader brace condition on the acute change in medial femoral condyle cartilage thickness following a standardized walking protocol as captured by

(10)

Specific Aims

Specific Aim: To determine if medial compartment femoral articular cartilage deformation differs following a standardized walking protocol (5000 steps at self-selected walking speed) when healthy participants wear a valgus unloader brace compared to an unbraced condition

(11)

CHAPTER 2

The knee, comprised of the tibiofemoral and patellofemoral joints, plays a pivotal role in daily function and ambulance. Articular cartilage lines the surface of both the tibial and femoral condyles. A meniscal cartilage also protects the medial and lateral tibial plateaus. These

structures, in addition to muscles, ligaments, and bony congruity provide stability at the knee. Injury or disease to these structures can often be debilitating. The knee joint transmits a

significant amount of weight-bearing load during gait. In particular, the medial compartment of the knee in neutrally aligned limbs has been demonstrated to absorb 60-70% of that load5. This

repetitive stress can result in deterioration of the cartilage that lines the tibial plateau and femoral condyles. That deterioration often leads to knee osteoarthritis (OA), a degenerative condition of the articular surface of the knee16. Osteoarthritis primarily affects weight-bearing joints and is

especially prevalent at the knee due to the repetitive loading of the joint during gait and most activity4. Thus, it is important to explore pathological mechanics that predispose an individual to

progressive knee OA in addition to possible interventions to prevent and alleviate symptoms of knee OA.

Properties of Cartilage

Cartilage has several viscoelastic properties that allow it to serve as an effective distributor of compressive forces. The two phases that compose cartilage include a fluid phase (60-80%) composed of water and electrolytes and a solid phase (20-40%) composed of collagen and various protein types17. These phases work in conjunction to displace compressive loads and

(12)

within the tissue that, when activated, produce inflammatory response proteins18. These proteins

include both degrading and remodeling enzymes that work to allow healthy cartilage deformation and reformation in response to compressive stress placed on the tissue18. Acute

cartilage deformation has been also shown to occur following walking and running in healthy subjects15. Harkey et al. were able to demonstrate a 6.7% decrease in medial femoral cartilage

thickness following approximately thirty minutes of walking15. In the control condition (thirty

minutes of sitting), Harkey et al. were also able to demonstrate a 3.4% increase in cartilage thickness15. This can be attributed to the natural reformation of cartilage when not

weight-bearing.

Etiology and Progression of Knee OA

OA is a complex disease that encompasses the entire joint as a whole including the cartilage, subchondral bone, and synovium. OA is characterized by persistent inflammation of the joint originally thought to be caused by mechanical overloading of the joint18. However, the

etiology behind OA may be more complex. The pathophysiology of the disease progresses due to an unbalancing of the enzymes released by the chondrocytes within the cartilage18. This causes a

reflexive stiffening of the cartilage over time characterized by calcifications that form along the chondral-bone interface. The cartilage no longer deforms effectively, resulting in a less effective distribution of load across the joint18. The result of this is the formation of chondral lesions,

osteophyte development and synovitis18.

Researchers have examined several predisposing factors to the development of knee OA. History of knee injury in an individual has been shown to significantly increase the risk for the development of knee OA19. Posttraumatic knee OA has been shown to occur in 30% of the

(13)

with 12.1% of the population aged 60 and older affected by this disease3. Changes in

femorotibial (FT) cartilage thickness over time appear to indicate that those individuals are susceptible to OA progression. Eckstein et al. were able to correlate decreases in articular cartilage thickness with progressive pain levels21. They go on to suggest cartilage thickness

changes are a strong marker for progressive OA and may be used as an outcome measure in future studies22. Indeed, in a previous study, Eckstein et al. were able to identify mean changes of

30% in the articular cartilage on measures performed in vitro with a load of 150% bodyweight8.

Knee malalignment has been identified as a risk factor for developing OA4,7,16. Malalignment

mechanically increases the compressive load in either compartment of the knee. Increased load can result in degenerative changes in the articular cartilage, a precursor for knee OA. Various structural factors in the knee can contribute to malalignment including the meniscus, ligaments, and subchondral bone6. Brouwer et al. identified normal alignment at the knee as between 182

and 184 degrees measured using the FT angle on an AP radiograph while weight-bearing16. FT

angle has also been measured clinically by identifying the midpoint between the ASIS and the greater trochanter then drawing an axis line to the knee joint center. Another axis line is drawn from the knee joint center to the ankle joint center, and the resultant angle is a measure of the FT alignment22. In a study that compared knee malalignment to the progression of OA, there is

positive correlation between varus malalignment and increased risk of medial compartment OA. There is also positive correlation between valgus malalignment and the development of lateral compartment OA7. In addition, patient-reported pain severity is associated with malalignment

(14)

Knee Adduction Moment

An effective method for measuring load placed on the medial compartments of the knee is the measurement of the knee adduction moment (KAM). This moment is a measure of the ground reaction force along the lever arm that runs medial to the knee during midstance in the gait cycle10. KAM is a major determinant of the medial to lateral load distribution across the

knee joint16. Improper distribution of that load is what influences degenerative changes in the

cartilage. Varus malalignment greatly influences KAM. Knee varus has been shown to increase the medial moment arm and load on lateral compartment, while knee valgus has been shown to increase lateral moment arm and load on lateral compartment6. A study that utilized knee

implants to measure TF contact forces showed a correlation between the KAM and the medial contact force at the knee10. KAM and medial contact forces reached peak levels at both the early

and late phases of midstance but were significantly correlated during the early phase10. This

same study discovered that a reduction in KAM by 200% reduced the medial contact force by 100%10. This supports the theory that reducing the KAM directly reduces the load placed

unilaterally through the medial compartment at the knee. It can be inferred that interventions designed to reduce KAM may ultimately diminish the forces being transmitted through the knee joint.

Justification for Ultrasonography

Historically, radiographic imaging has been used to identify cartilage degeneration. The Kellgren/Lawrence grading scale was formulated as a means of objectively determining the progression of OA23. A higher grade correlates to a greater number of osteophytes identified on

the radiograph in the free joint space25. The captured image is then graded on the

(15)

However, the K/L scale serves as a primarily retrospective diagnostic tool. Radiographs are limited in that they only display bone or osteophytic structures. There are many morphological changes that occur to the articular cartilage before the osteoarthritic process truly commences. Magnetic resonance imaging (MRI) has commonly been used to identify connective tissue structures and cartilage24. It is able to offer an image of the entire joint, identifying

morphological changes not apparent on radiography. However, MRI has been shown to not be cost-effective24. Further, MRI has several limitations when it comes to identifying acute cartilage

changes8, including inability to effectively load the joint while being imaged and the length of

time an individual needs to be still post-activity if changes were measured following a loading protocol. The process of taking an MRI is also not time-efficient. Boocock et al. used MRI to capture cartilage thickness changes following a running protocol, with a major limitation being that the process of taking the MRI took between 10 and 13 minutes on average25. TF cartilage

specifically is difficult to measure due to the relative thinness of the articular cartilage resulting in higher precision errors21. Even 10 minutes of non weight-bearing can allow reformation of the

cartilage and alter results. There is evidence to support that diagnostic ultrasound (US) is an effective measure at the knee to determine cartilage thickness and clarity as verified by traditional MRI or knee arthroscopy13-14,26. US is also sensitive to subtle changes in cartilage

thickness before and after activity15.

To obtain an image of the anterior articular cartilage lining the femoral condyles and trochlea, the best practice with US is to have the patient in a seated, supine position with one knee maximally flexed and the back flush against the wall15,26. The transducer head is then

(16)

screen have been shown to be an effective strategy to maintain consistent image positioning across trials to limit user error15.

Unloader Brace Design and Effect

The unloader brace is a knee orthosis that operates via a three-point bend system. In valgus unloader braces specifically, these three points apply pressure at strategic positions at, above, and below the knee joint to correct exaggerated varus frontal plane alignment27. One point

of pressure is along the lateral joint line and the other two are located medially both proximally and distally to the joint line. The point along the lateral joint line has the capacity to be tightened by a screw to increase pressure along the lateral joint. This increases the valgus compressive force, therefore decreasing the varus angle at the knee. In surrogate models fitted with this brace, there was an average varus angle decrease of 7 degrees27. Dessery et al. compared three different

types of braces including a functional knee brace (ACL brace), valgus brace with three-point bending mechanism (V3P brace), and an unloader brace that operated by creating valgus and external rotation tension at the knee (VER brace)38. When tested in a sample of individuals with

symptomatic medial compartment OA, all three braces relieved pain over a several months period, with the only difference being that the KAM impulse was decreased in the VER brace group38. Off-the-shelf unloader braces are capable of between 0-4 degrees of valgus

adjustment12,29. The instrument to be used in this current study is a valgus unloader brace that

operates via a three-point bending mechanism. There is research to suggest custom braces are more effective at decreasing varus alignment and decreasing KAM30, but it has not been shown

to be statistically significant and is neither cost or time effective.

Fantini Pagani et al. looked at the impact of a valgus unloader brace on KAM29. In a

(17)

knee adduction moment during walking was under the brace condition that reduced varus

alignment by 8 degrees, resulting in KAM decreased by 36% compared to a control trial with no orthosis29. Similarly, a second study was able to demonstrate a 20-30% decrease in KAM when a

valgus unloader brace was used as an intervention in a group of young, healthy individuals12. It

can be inferred that because an unloader brace greatly decreases the KAM and medial load, it can also decrease the overall acute change in femoral cartilage thickness.

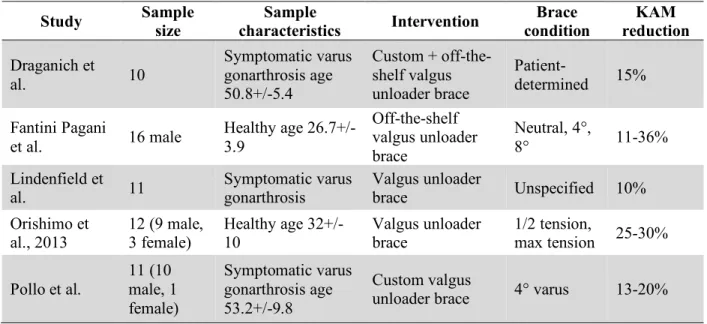

Table 1. Review of valgus unloader brace effects on KAM

Conclusion

As of yet, no study has looked at the use of an unloader brace as an intervention with cartilage thickness changes as an outcome measure. Force load through the medial compartment has been historically measured as the KAM. However, identifying changes in cartilage thickness is a more direct measure of the potential degenerative changes at the knee joint. Therefore, if an unloader brace is truly effective at diminishing cartilage thickness changes during activity, there is further support for its use as an intervention in individuals at risk for developing knee OA.

Study Sample size characteristics Sample Intervention condition Brace reduction KAM

Draganich et

al. 10

Symptomatic varus gonarthrosis age 50.8+/-5.4

Custom + off-the-shelf valgus unloader brace

Patient-determined 15%

Fantini Pagani

et al. 16 male

Healthy age 26.7+/-3.9

Off-the-shelf valgus unloader brace

Neutral, 4°,

8° 11-36%

Lindenfield et

al. 11

Symptomatic varus gonarthrosis

Valgus unloader

brace Unspecified 10%

Orishimo et al., 2013

12 (9 male, 3 female)

Healthy age 32+/-10

Valgus unloader brace

1/2 tension,

max tension 25-30%

Pollo et al.

11 (10 male, 1 female) Symptomatic varus gonarthrosis age 53.2+/-9.8 Custom valgus

(18)

CHAPTER 3 Design

We utilized a crossover design and medial femoral articular cartilage area was measured across two conditions (i.e. braced and unbraced) at two time points (i.e. pre and immediately post-walking). Walking conditions were separated by at least one week. Participants were instructed to limit their physical activity on testing days to avoid excessive or abnormal cartilage loading. Participants were also instructed to maintain their normal level of physical activity between testing sessions. The order of the walking conditions was counterbalanced. In the experimental condition, the subject wore an unloader brace on the dominant limb, defined as the limb an individual would prefer to use to kick a ball. US images were obtained on the dominant limb. A single trained investigator completed all analyses. The investigator was blinded to condition (braced vs unbraced) but was aware of the sequence of which each image was collected for image post-processing.33

Participants

(19)

were excluded if they did not meet the minimum requirements for varus knee alignment (≥ 2°) established at an initial screening session.

Data Collection Procedures Screening Protocol

Participants reported to an initial screening session during which knee alignment was determined using a long-lever goniometer22,31. For the assessment of baseline knee alignment,

the participant stood with feet facing forward directly underneath corresponding acromion

processes and weight evenly distributed. The first axis was measured from ASIS to the knee joint center (defined as the center point between femoral epicondyles in the frontal plane). The second axis was measured from the knee joint center to the ankle joint center (defined as the center point between the medial and lateral malleolus in the frontal plane). All participants presented with varus knee alignment of ³ 2° on the dominant limb. Mass(kg) and height (m) measurements were measured and used to calculate BMI. Once eligible, participants determined a self-selected walking speed by walking between 2 sets of infrared timing gates (TF100, TracTronix). Starting approximately 5 steps before the first timing gate, participants were instructed to walk at a speed described as “comfortable walking over a sidewalk”32. Each participant completed 5 trials and

the average walking speed was calculated.

Pre-loading Protocol

(20)

a treatment table in the long-sit position with knees fully extended for 45 mins to allow time for cartilage reformation15.

Ultrasonographic Assessment of the Femoral Articular Cartilage

While seated with their back up against the wall, participants flexed their knee to 140° measured using a manual goniometer while keeping the limb in line with the torso. A measuring tape was secured to the length of the table so that the position of the posterior calcaneus could be recorded to allow for consistent positioning across trials15. A LOGIQe US system (General

Electric Co., Fairfield, CT) with a 12MHz linear probe was used to image both the medial and lateral femoral cartilage. The probe will be placed transversely in line between the medial and lateral femoral condyles just superior to the patella and rotated to maximize reflection of the articular cartilage26. A transparent grid was placed over the US screen to improve reproducibility

of the US image15. The midpoint of the intercondylar groove was aligned with the center of the

grid. The level of the cartilage-bone interface at the edge of the image on either side was recorded in order to ensure consistent positioning across US assessments. Three images were collected of each knee at each time point. Following each loading condition, the participant was placed in the same position as the pre-loading US assessment using the tape measure. Three images of the femoral cartilage were recorded from each knee. All post-walking images were captured within 5 minutes of the loading protocol.

Cartilage Loading Protocol

(21)

condition. During the braced walking condition, a valgus unloader brace (Össür Unloader One®, Össur Americas, Orange County, CA) was fitted by a certified athletic trainer per manufacturer instructions to the dominant limb while the participant was seated with knee flexed to

approximately 80°. The brace was maximally adjusted to unload the medial compartment. The participant took 30 steps to adjust to the brace. Adjustments were made as needed if the

participant determined the fit was uncomfortable or too loose. The participant took 30 more steps. This was completed four times in total. The participant was transferred to and from the treadmill via wheelchair to control the amount of cartilage loading.

Control Protocol

In the unbraced condition, the participant repeated the brace protocol except that the participant was not fitted with an unloader brace while seated. The participant took 120 steps to keep the number of steps consistent across trials before being transferred to the treadmill. The participant remained unbraced for the entire trial.

Loading Protocol

(22)

Ultrasonographic Image Analysis All US images were analyzed with the ImageJ software (National Institutes of Health, Bethesda, MD). Medial compartment cartilage area (MCCA) is our primary outcome measure. Values for MCCA were obtained for each of the three images of the dominant limb at each time point (pre and post-walking) and averaged for statistical analysis.

Medial Compartment Cartilage Area

All images were analyzed by a single trained investigator. The femoral cartilage was divided into medial and lateral sections by identifying the midline at the most inferior point of the intercondylar groove. The MCCA was outlined with a polygon function as our primary outcome variable of interest (Figure 1). The area (in square millimeters) of the section was measured. Percent change scores ([baseline -post]/baseline *100) for each cartilage outcome measure were calculated.

(23)

Statistical Analysis Primary Analysis

Demographic information including means and standard deviations were collected for the entire cohort (Table 1). Intersession intra-class correlation coefficients (ICC) were calculated to assess the reliability of baseline measures for cartilage area. ICC values were classified as weak (< 0.5), moderate (0.5–0.69), or strong (³ 0.7)34. Two-tailed paired samples t-tests were used to

compare percent change scores for the braced and unbraced conditions for each outcome measure. Differences with a P value ≤ 0.05 were considered significant. All statistical analyses were performed using SPSS (v21.0; IBM Corporation).

Post Hoc Analysis Not all subjects displayed medial compartment articular cartilage deformation during the unbraced walking condition. We split the original cohort into 2 groups: deformers, defined as individuals who demonstrated a change in MCCA of more than the previously described MDC (³ 1.58 mm2)35, and non-deformers, defined as those who did not demonstrate a deformation of

1.58 mm2 in MCCA following 5000 steps of unbraced walking. Two-tailed paired sample t-tests

(24)

CHAPTER 4

Twenty-four healthy individuals with varus knee alignment (62.5% female, 1.70 ± 0.07 m, 66.71 ± 12.85 kg, Table 2) completed both trials. Measures of baseline cartilage area for the medial condyle (ICC = 0.97) demonstrated acceptable reliability (ICC ³ 0.7) between sessions.

For our primary analyses, we did not find significant differences between percent change for cartilage area for the medial condyle (t23 = 0.392, p = 0.699) between braced and unbraced

conditions. Because our planned comparisons did not reveal significant findings, we ran a post hoc analysis to further analyze the data set. In our post hoc analysis, deformers demonstrated significantly less percent change for cartilage area during the unbraced condition compared to the braced condition for the medial condyle (t8 = 2.679, p = 0.028). For the non-deformers, we

did not find any difference between cartilage area percent change for the medial condyle (t14 =

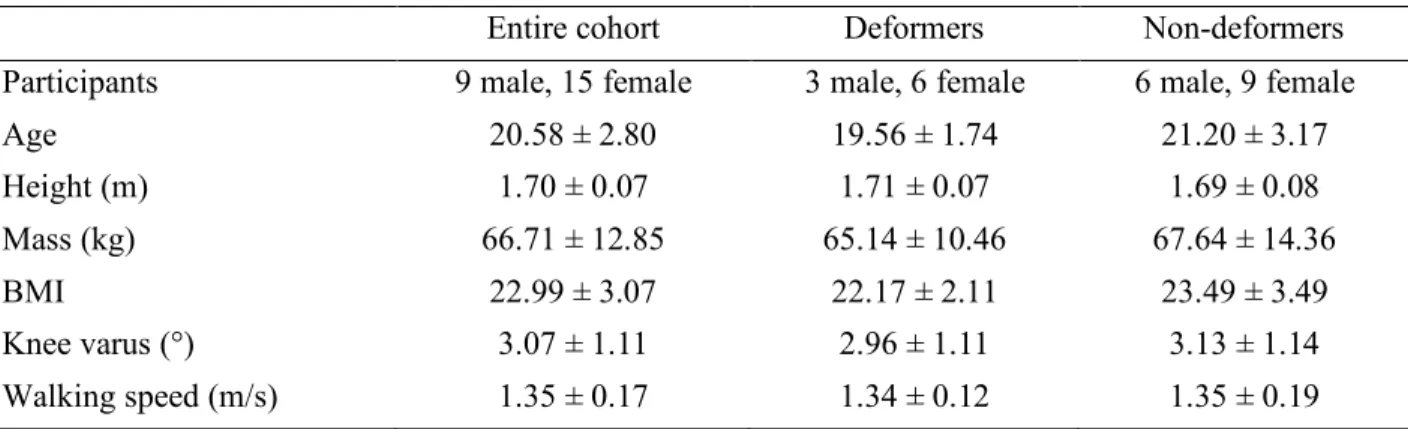

-1.314, p = 0.210) between braced and unbraced conditions. Table 2. Demographic characteristics

Entire cohort Deformers Non-deformers

Participants 9 male, 15 female 3 male, 6 female 6 male, 9 female

Age 20.58 ± 2.80 19.56 ± 1.74 21.20 ± 3.17

Height (m) 1.70 ± 0.07 1.71 ± 0.07 1.69 ± 0.08

Mass (kg) 66.71 ± 12.85 65.14 ± 10.46 67.64 ± 14.36

BMI 22.99 ± 3.07 22.17 ± 2.11 23.49 ± 3.49

Knee varus (°) 3.07 ± 1.11 2.96 ± 1.11 3.13 ± 1.14

(25)

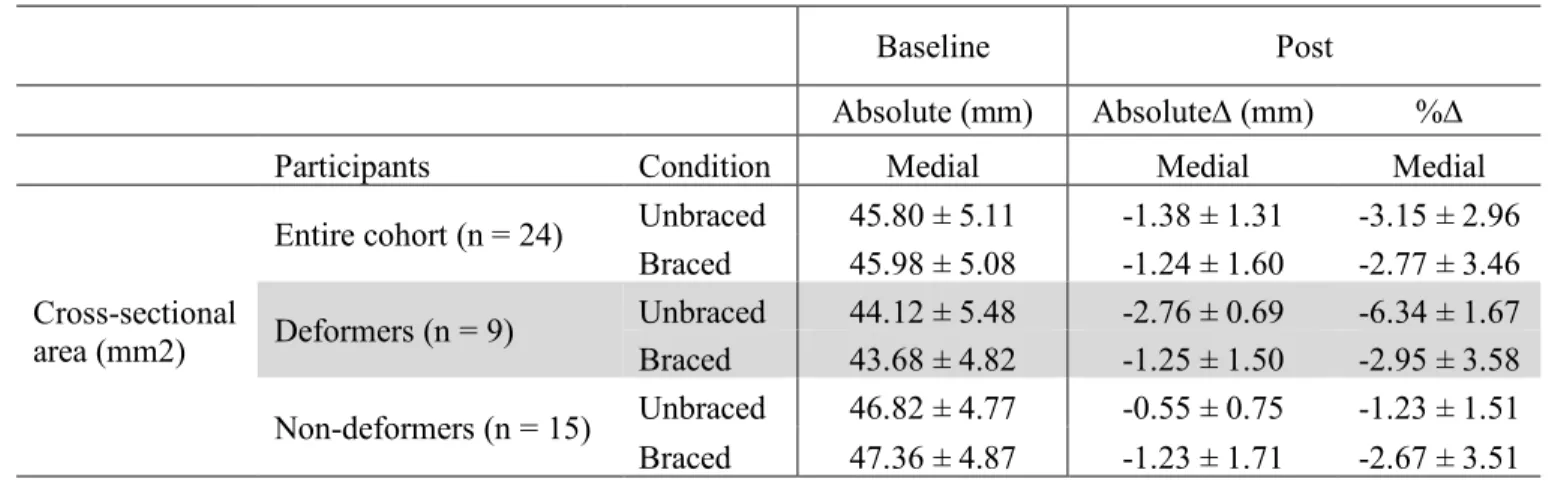

Table 3. Cross-sectional area cartilage change

Baseline Post

Absolute (mm) Absolute∆ (mm) %∆

Participants Condition Medial Medial Medial

Cross-sectional area (mm2)

Entire cohort (n = 24) Unbraced 45.80 ± 5.11 -1.38 ± 1.31 -3.15 ± 2.96 Braced 45.98 ± 5.08 -1.24 ± 1.60 -2.77 ± 3.46

Deformers (n = 9) Unbraced 44.12 ± 5.48 -2.76 ± 0.69 -6.34 ± 1.67 Braced 43.68 ± 4.82 -1.25 ± 1.50 -2.95 ± 3.58

Non-deformers (n = 15) Unbraced 46.82 ± 4.77 -0.55 ± 0.75 -1.23 ± 1.51 Braced 47.36 ± 4.87 -1.23 ± 1.71 -2.67 ± 3.51

(26)

Figure 2. Percent change in medial compartment cross-sectional area

-9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2

Entire cohort

Deformers

Non-deformers

%∆ in Medial Compartment Cross-Sectional Area

(27)

CHAPTER 5

Contrary to our original hypothesis, we did not find any difference between the braced and unbraced conditions for cartilage deformation in the entire cohort. After dividing the cohort into two subgroups, we did find that individuals who surpassed the MDC during normal or unbraced walking demonstrated less deformation during the braced condition. While prior studies have identified reductions in KAM during walking with an unloader brace12,27,29, the

current study provides additional evidence to suggest that unloader braces reduce femoral articular cartilage deformation in some individuals who normally undergo femoral cartilage deformation during walking. We also found a subgroup of cartilage deformers demonstrated similar MCCA percent change as previous studies.15,35 Our study provides important information

regarding the capability of a valgus unloader brace to diminish strain on femoral articular cartilage in individuals who normally undergo cartilage deformation during walking.

Conversely, a large proportion of the cohort (n=15) did not deform greater than the previously demonstrated MDC in medial cartilage area35. It is possible other individuals

experienced femoral cartilage deformation and we were unable to measure it with the single slice of cartilage captured with our US technique. Our method for US image assessment captures primarily a portion of the anterior femoral articular cartilage35. Any deformation occurring

(28)

too great or insufficient to cause significant deformation in some subjects. Further, rate of loading has been shown to impact cartilage deformation36 and was not accounted for in our

study.

Individuals who deformed with unbraced walking did not deform with braced walking. Intersession reliability was strong across conditions indicating baseline measures were similar between days. Therefore, differences in deformation between conditions may be best attributed to our brace intervention.Our findings suggest that unloader braces may diminish deformation on the articular cartilage possibly by lessening the load on the medial tibiofemoral joint in

healthy individuals. We can hypothesize the unloader brace may positively affect cartilage health in individuals who demonstrate deformation following 5000 steps. Unloader braces have already been used on individuals with cartilage pathology and shown significant reductions in pain and function.29 More research is needed to determine the impact of unloader braces on cartilage

deformation specifically in these individuals.

The results of our study support the use of a 5000 step walking protocol as a cartilage stress test in some individuals. For those that deform past the MDC during unbraced walking, the unloader brace may be an effective intervention. Therefore, this stress test has potential clinical use in identifying candidates who will respond positively to being mechanically unloaded at the knee. It is possible that clinicians may evaluate the effectiveness of the intervention prior to prescribing these braces for patients. Previously, the impact of unloader braces on femoral cartilage was unknown. All prior research used the KAM as a surrogate measure for medial compartment knee load but did not measure deformation after a standard stress test.12,29-30 Our

(29)

While the findings of this study encourage further research into this area, there are several limitations to consider. First, all findings were in young, healthy subjects without history of significant knee pathology or surgery. Future studies should recruit participants that are either at-risk or experiencing symptomatic knee OA. Further, the sample size may be small, especially after being divided into the deformers (n=9) and non-deformers groups (n=15). A larger sample of individuals that deform greater than the MDC may more accurately reflect the population as a whole. Another important consideration is that only one segment of the femoral articular

cartilage was captured with US. Femoral cartilage deformation may not be accurately captured in individuals who deformed in different parts of their femoral cartilage. Multiple knee

biomechanics can also impact cartilage deformation in our population. While we screened for static knee alignment, no further biomechanical measures were included in our study. It is unclear how the unloader brace impacts knee biomechanics. Further, because there were only two time points at which we captured US images, individuals may also have had varying responses to our loading protocol (5000 steps) that were not evaluated. Future studies may seek to evaluate the effect of unloader braces following shorter or longer distances than what was evaluated in the current study. These limitations demonstrate the need for a wider body of evidence to further support the findings of this study.

(30)

REFERENCES

1. Deshpande, B. R., Katz, J. N., Solomon, D. H., Yelin, E. H., Hunter, D. J., Messier, S. P., … Losina, E. (2016). The number of persons with symptomatic knee osteoarthritis in the United States: Impact of race/ethnicity, age, sex, and obesity. Arthritis Care & Research, 68(12), 1743–1750. http://doi.org/10.1002/acr.

2. Loeser, R., Goldring, S., Scanzello, C., & Goldring, M. (2012). Osteoarthritis: A disease of the joint as an organ. Arthritis Rheum, 100(2), 130–134.

http://doi.org/10.1016/j.pestbp.2011.02.012.Investigation

3. Dillon, C. F., Rasch, E. K., Gu, Q., & Hirsch, R. (2006). Third National Health and Nutrition Examination Survey 1991-94 . Prevalence of Knee Osteoarthritis in the United States : Arthritis Data from the Third National Health and Nutrition Examination Survey 1991-94. Journal of Rheumatology, 33(11), 2271–2279.

4. Jackson, B. D., Wluka, A. E., Teichtahl, A. J., Morris, M. E., & Cicuttini, F. M. (2004). Reviewing knee osteoarthritis - A biomechanical perspective. Journal of Science and Medicine in Sport, 7(3), 347–357. http://doi.org/10.1016/S1440-2440(04)80030-6 5. Andriacchi, T. P. (1994). Dynamics of knee malalignment. The Orthopedic Clinics of

North America, 25(3).

6. Hunter, D. J., Zhang, Y., Niu, J., Tu, X., Amin, S., Goggins, J., … Felson, D. T. (2005). Structural factors associated with malalignment in knee osteoarthritis: The Boston Osteoarthritis Knee Study. Journal of Rheumatology, 32(11), 2192–2199.

http://doi.org/0315162X-32-2192 [pii]

7. Sharma, L., Song, J., Felson, D. T., Cahue, S., Shamiyeh, E., & Dunlop, D. D. (2001). The role of knee alignment in disease progression and functional decline in knee osteoarthritis. JAMA : The Journal of the American Medical Association, 286(2), 188– 195. http://doi.org/10.1001/jama.286.2.188

8. Eckstein, F., Hudelmaier, M., & Putz, R. (2006). The effects of exercise on human articular cartilage. Journal of Anatomy, 208(4), 491–512. http://doi.org/10.1111/j.1469-7580.2006.00546.x

9. Baliunas, A. J., Hurwitz, D. E., Ryals, A. B., Karrar, A., Case, J. P., Block, J. A., & Andriacchi, T. P. (2002). Increased knee joint loads during walking are present in subjects with knee osteoarthritis. Osteoarthritis and Cartilage, 10(7), 573–579. http://doi.org/10.1053/joca.2002.0797

(31)

11.Horlick, S. G., & Loomer, R. (1993). Valgus Knee Bracing for Medial Gonarthrosis. Clinical Journal of Sport Medicine. http://doi.org/10.1097/00042752-199310000-00006

12.Orishimo, K. F., Kremenic, I. J., Lee, S. J., McHugh, M. P., & Nicholas, S. J. (2013). Is valgus unloader bracing effective in normally aligned individuals: Implications for post-surgical protocols following cartilage restoration procedures. Knee Surgery, Sports Traumatology, Arthroscopy, 21(12), 2661–2666. http://doi.org/10.1007/s00167-012-2174-4

13.Østergaard, M., Gideon, P., Wieslander, S., Cortsen, M., Henriksen, O., Gideon, P., … Cortsen, M. (2016). Ultrasonography in Arthritis of the Knee, 1851(October).

14.Podlipská, J., Guermazi, A., Lehenkari, P., Niinimäki, J., Roemer, F. W., Arokoski, J. P., … Saarakkala, S. (2016). Comparison of Diagnostic Performance of Semi-Quantitative Knee Ultrasound and Knee Radiography with MRI: Oulu Knee Osteoarthritis Study. Scientific Reports, 6(February), 22365. http://doi.org/10.1038/srep22365

15.Harkey, M., Blackburn, J. T., Davis, H., Sierra-Arevalo, L., Nissman, D., &

Pietrosimone, B. (2016). Ultrasonographic assessment of medial femoral cartilage deformation acutely following walking and running. Chapel Hill.

16.Brouwer, G. M., Van Tol, A. W., Bergink, A. P., Belo, J. N., Bernsen, R. M. D.,

Reijman, M., … Bierma-Zeinstra, S. M. A. (2007). Association between valgus and varus alignment and the development and progression of radiographic osteoarthritis of the knee. Arthritis and Rheumatism, 56(4), 1204–1211. http://doi.org/10.1002/art.22515

17.Kilic, G., Kilic, E., Akgul, O., & Ozgocmen, S. (2015). Ultrasonographic assessment of diurnal variation in the femoral condylar cartilage thickness in healthy young adults. American Journal of Physical Medicine & Rehabilitation / Association of

Academic Physiatrists, 94(4), 297–303. http://doi.org/10.1097/PHM.0000000000000179

18.Glyn-Jones, S., Palmer, A. J. R., Agricola, R., Price, A. J., Vincent, T. L., Weinans, H., & Carr, A. J. (2015). Osteoarthritis. The Lancet, 386(9991), 376–387.

http://doi.org/10.1016/S0140-6736(14)60802-3

19.Muthuri, S. G., McWilliams, D. F., Doherty, M., & Zhang, W. (2011). History of knee injuries and knee osteoarthritis: A meta-analysis of observational studies. Osteoarthritis and Cartilage, 19(11), 1286–1293. http://doi.org/10.1016/j.joca.2011.07.015

(32)

randomised trial. BMJ (Clinical Research Ed.), 346(7895), f232. http://doi.org/10.1136/bmj.f232

21.Eckstein, F., Collins, J. E., Nevitt, M. C., Lynch, J. A., Kraus, V. B., Katz, J. N., … Hunter, D. J. (2015). Cartilage thickness change as an imaging biomarker of knee osteoarthritis progression: Data from the foundation for the national institutes of health osteoarthritis biomarkers consortium. Arthritis and Rheumatology, 67(12), 3184–3189. http://doi.org/10.1002/art.39324

22.Schultz, S. (2015). Landing biomechanics in participants with different lower extremity alignment profiles, 50(5), 498–507.

23.Kellgren, J. H., & Lawrence, J. S. (1957). Radiological Assessment of Osteo-Arthrosis. Annals of the Rheumatic Diseases, 16(4), 494–502. http://doi.org/10.1136/ard.16.4.494

24.Guermazi, A., Hayashi, D., Roemer, F. W., & Felson, D. T. (2013). Osteoarthritis. A Review of Strengths and Weaknesses of Different Imaging Options. Rheumatic Disease Clinics of North America, 39(3), 567–591. http://doi.org/10.1016/j.rdc.2013.02.001 25.Boocock, M., McNair, P., Cicuttini, F., Stuart, A., & Sinclair, T. (2009). The short-term

effects of running on the deformation of knee articular cartilage and its relationship to biomechanical loads at the knee. Osteoarthritis and Cartilage, 17(7), 869–876. http://doi.org/10.1016/j.joca.2008.12.010

26.Kazam, J. K., Nazarian, L. N., Miller, T. T., Sofka, C. M., Parker, L., & Adler, R. S. (2011). Sonographic evaluation of femoral trochlear cartilage in patients with knee pain. Journal of Ultrasound in Medicine : Official Journal of the American Institute of

Ultrasound in Medicine, 30(6), 797–802. Retrieved from http://www.ncbi.nlm.nih.gov/pubmed/21632994

27.Arazpour, M., Bani, M. A., Hutchins, S. W., Jones, R. K., Babadi, M. H., Ahmadi Bani, M., & Habibi Babadi, M. (2013). Frontal plane corrective ability of a new unloader orthosis for medial compartment of the knee. Prosthetics and Orthotics International, 37(6), 481–488. http://doi.org/http://dx.doi.org/10.1177/0309364613478964

28.Dessery, Y., Belzile, É. L., Turmel, S., & Corbeil, P. (2014). Comparison of three knee braces in the treatment of medial knee osteoarthritis. Knee, 21(6), 1107–1114.

http://doi.org/10.1016/j.knee.2014.07.024

29.Fantini Pagani, C. H., Potthast, W., & Brüggemann, G. P. (2010). The effect of valgus bracing on the knee adduction moment during gait and running in male subjects with varus alignment. Clinical Biomechanics, 25(1), 70–76.

(33)

30.Draganich, L., Reider, B., Rimington, T., Piotrowski, G., Mallik, K., & Nasson, S. (2006). The effectiveness of self-adjustable custom and off-the-shelf bracing in the treatment of varus gonarthrosis. The Journal of Bone and Joint Surgery. American Volume, 88(12), 2645–52. http://doi.org/10.2106/JBJS.D.02787

31.Nguyen, A. D., Boling, M. C., Slye, C. A., Hartley, E. M., & Parisi, G. L. (2013). Various methods for assessing static lower extremity alignment: Implications for prospective risk-factor screenings. Journal of Athletic Training, 48(2), 248–257. http://doi.org/10.4085/1062-6050-48.2.08

32.Pietrosimone, B., Blackburn, J. T., Harkey, M. S., Luc, B. A., Hackney, A. C., Padua, D. A., … Jordan, J. M. (2016). Walking Speed As a Potential Indicator of Cartilage

Breakdown Following Anterior Cruciate Ligament Reconstruction. Arthritis Care & Research, 68(6), 793–800. http://doi.org/10.1002/acr.22773

33.Felson, D. T., & Nevitt, M. C. (2009). Blinding images to sequence in osteoarthritis: evidence from other diseases. Osteoarthritis and Cartilage, 17(3), 281–283.

http://doi.org/10.1016/j.joca.2008.09.008

34.Shrout, P. E., & Fleiss, J. L. (1979). Intraclass Correlations: Uses in Assessing Rater Reliability. Psychological Bulletin, 86(2), 420–428.

35.Harkey, M. S., Blackburn, J. T., Hackney, A. C., Lewek, M. D., Schmitz, R. J., Nissman, D., & Pietrosimone, B. (2018). Comprehensively assessing the acute femoral cartilage response and recovery after walking and drop-landing: An ultrasonographic study. Ultrasound in Medicine & Biology, 44(2), 311–320.

http://doi.org/10.1016/j.ultrasmedbio.2017.10.009

Figure

Updating...

References

Updating...

Related subjects :
